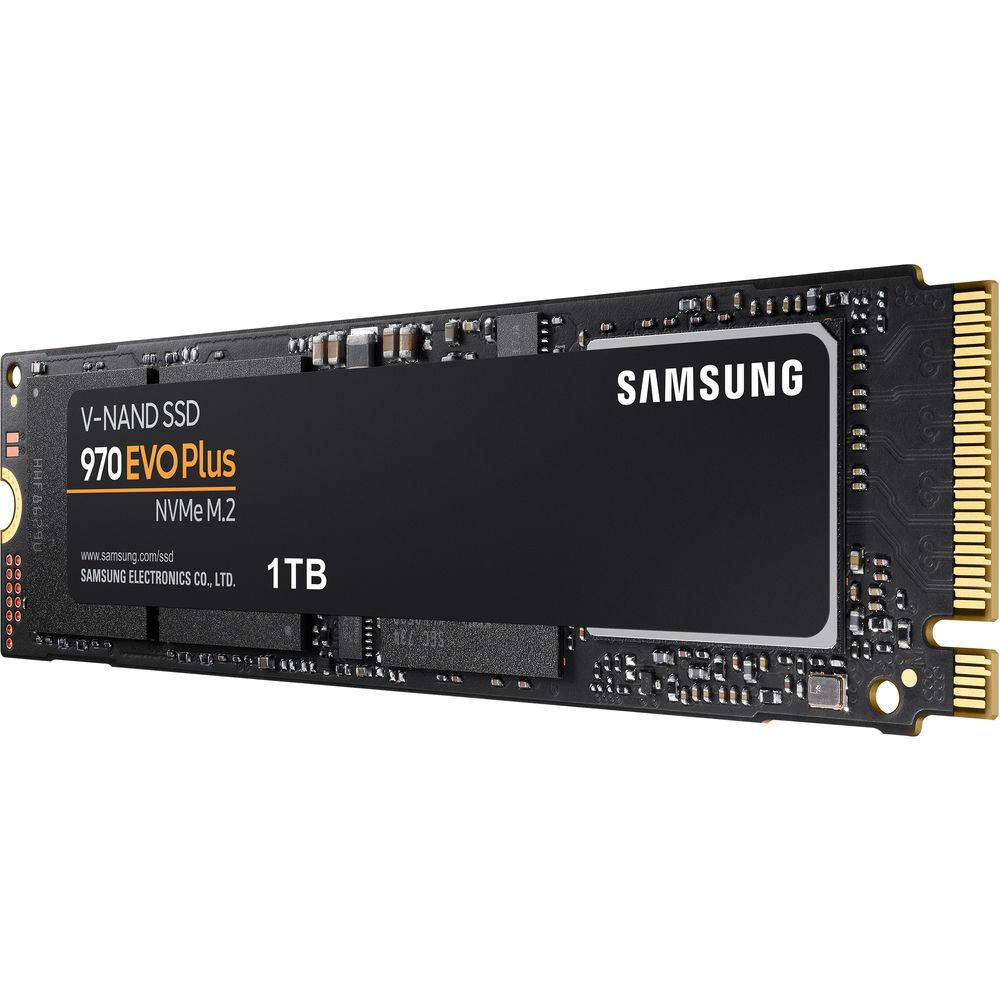

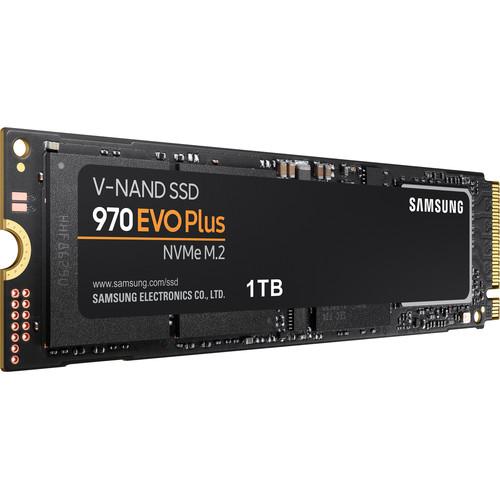

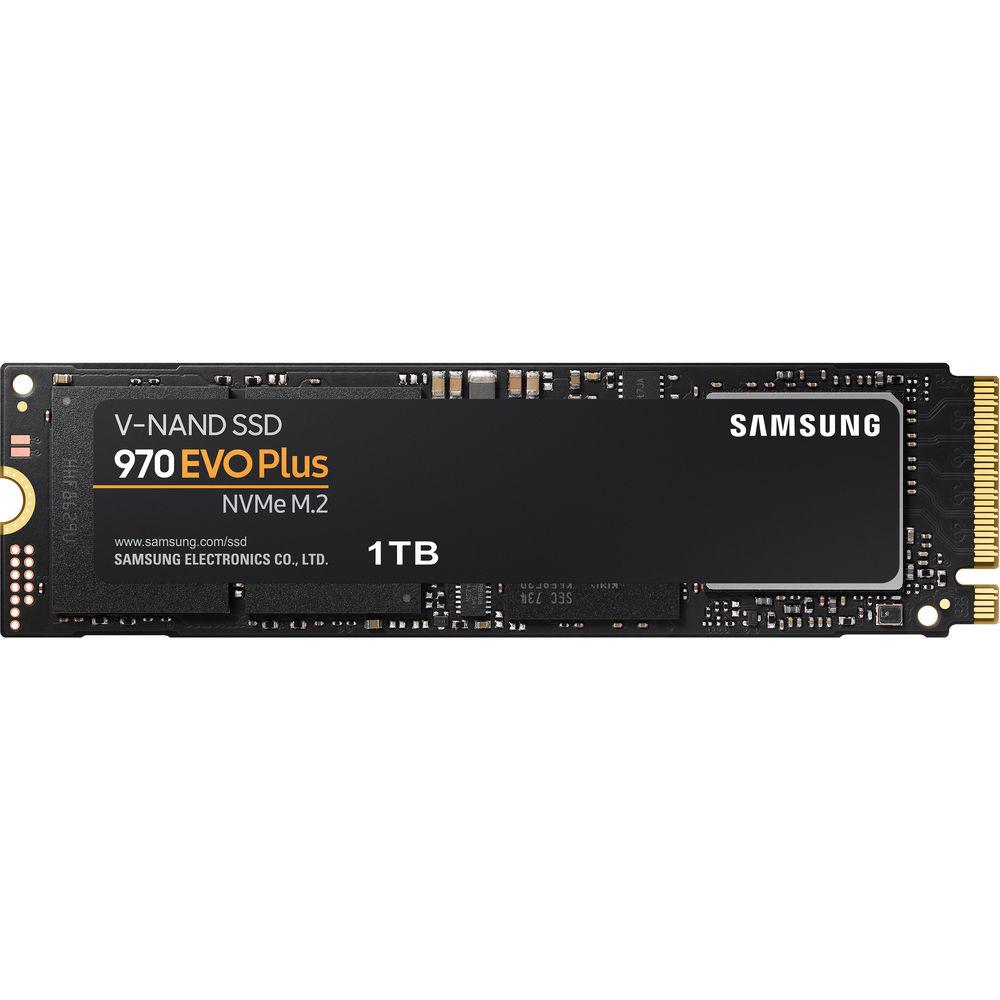

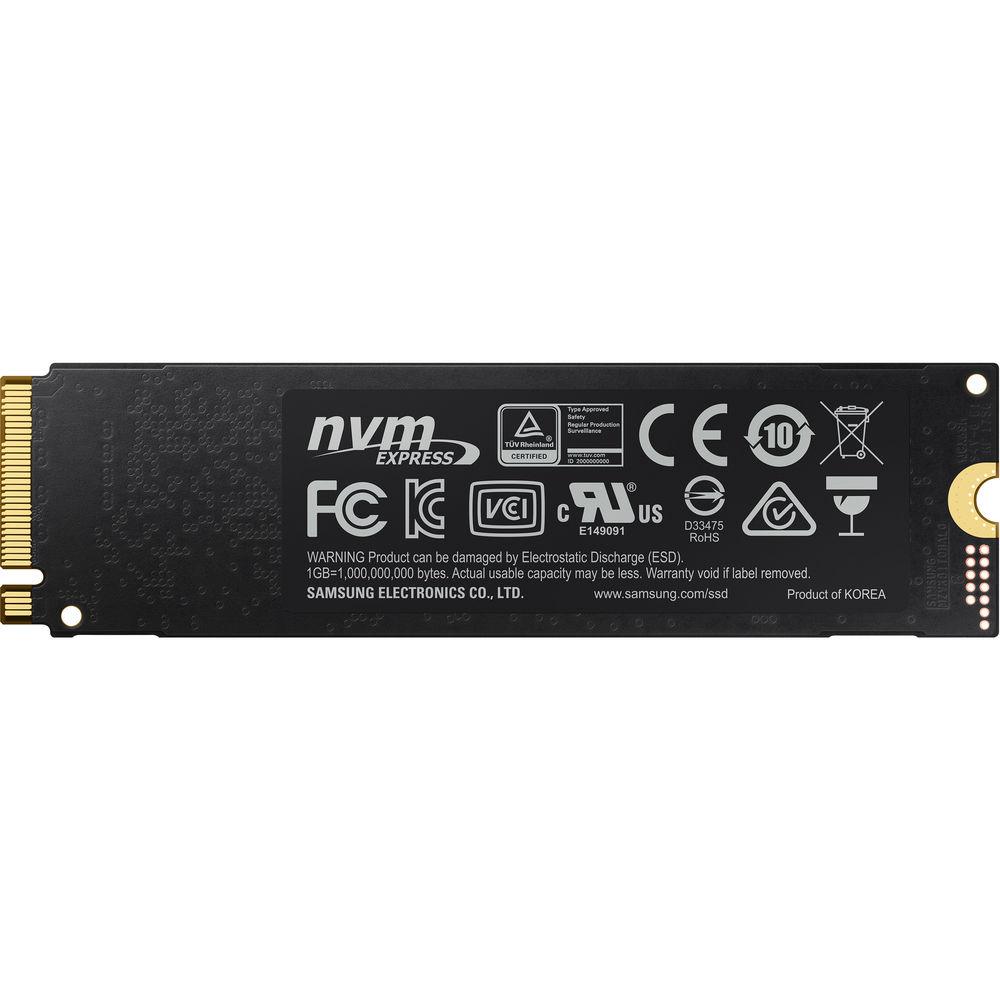

User Manual for Samsung 1TB 970 EVO Plus NVMe M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the Samsung 1TB 970 EVO Plus NVMe
- Product category: Internal Drives Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Internal Drives
 |
User manual for the Samsung 1TB 970 EVO Plus NVMe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Built using their V-NAND 3-bit MLC flash technology for reliable performance, the 1TB 970 EVO Plus NVMe M.2 Internal SSD from Samsung offers enhanced bandwidth, low latency, and power efficiency. Designed for tech enthusiasts, high-end gamers, and 4K & 3D content designers, it delivers sequential read speeds of up to 3500 MB/s, sequential write speeds of up to 3300 MB/s, an endurance of up to 600 TBW, up to 1.5 million hours MTBF, AES 256-bit encryption, and support for both SMART and TRIM. Moreover, it has an M.2 2280 form factor, which is compatible with a wide range of devices, and utilizes the PCIe 3.0 x4 interface. Download Samsung's Smart Magician software to track your drive's health, performance, and install new updates, while Samsung's Dynamic Thermal Guard helps reduce the risk overheating to minimized performance drops. General Features - Always Evolving SSD
- Faster than the 970 EVO, the 970 EVO Plus is powered by the V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for powerful computing with a reliability of 600 TBW.
- Level Up Performance
- The EVO 970 Plus reaches sequential read speeds of up to 3500 MB/s and sequential write speeds of up to 3300 MB/s.Powered by V-NAND technology, which improves NAND performance and delivers higher power efficiency, along with optimized firmware, a Phoenix controller, and Intelligent TurboWrite boost speed.
- Design Flexibility
- The 970 EVO Plus fits 1TB onto the compact M.2 2280 form factor, greatly expanding storage capacity and saving space for other components. Samsung's technology empowers you with the capacity to do more and accomplish more.
- Endurance
- Get up to 600 TBW with a limited 5-year limited for lasting performance. The 970 EVO Plus provides endurance powered by V-NAND technology and Samsung's quality.
- Reliability
- Samsung's nickel-coated controller and heat spreader on the 970 EVO Plus enable improved heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains proper operating temperatures to minimize performance drops.
- Samsung Magician
- The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
UPC: 887276303758 In the Box Samsung 1TB 970 EVO Plus NVMe M.2 Internal SSD Limited 5-Year Warranty or 600 TBW Data Sheet PDF 455.6kb More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 1TB 970 EVO Plus NVMe M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung 970 EVO Plus Specs | | | Drive Capacity | 1.0 TB | | Cache Memory | 1 GB | | | | Interface | PCIe 3.0 x4 | | Random Read Speed | 600,000 IOPS (4 KB Files) | | Random Write Speed | 550,000 IOPS (4 KB Files) | | Sequential Read Speed | 3500 MB/s | | Sequential Write Speed | 3300 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | Flash Controller | Samsung V-NAND 3-Bit MLC | | Flash Memory Type | Multi-Level Cell (MLC) | | SMART Support | Yes | | TRIM Support | Yes | | | | Encryption | 256-Bit AES Hardware Encryption | | Endurance (Total Bytes Written) | 600 TB | | Mean Time Between Failures (MTBF) | 1.5 Million Hours | | | | Power Draw | 6.0 W (Active)
9.0 W (Active)
30.00 mW (Idle) | | Supported Voltage | 3.3 VDC | | | | Operating Shock | 1500 G / 0.5 ms | | Operating Temperature | 32 to 158°F / 0 to 70°C | | | | Dimensions (W x H x D) | 3.2 x 0.9 x 0.1" / 80.2 x 22.2 x 2.4 mm | | Weight | 0.3 oz / 8 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.75 x 4.9 x 0.95" |
