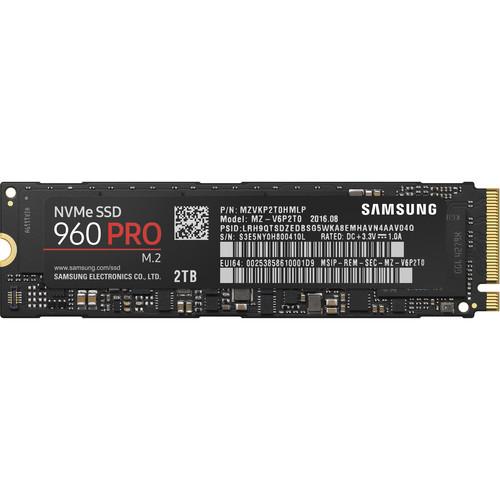

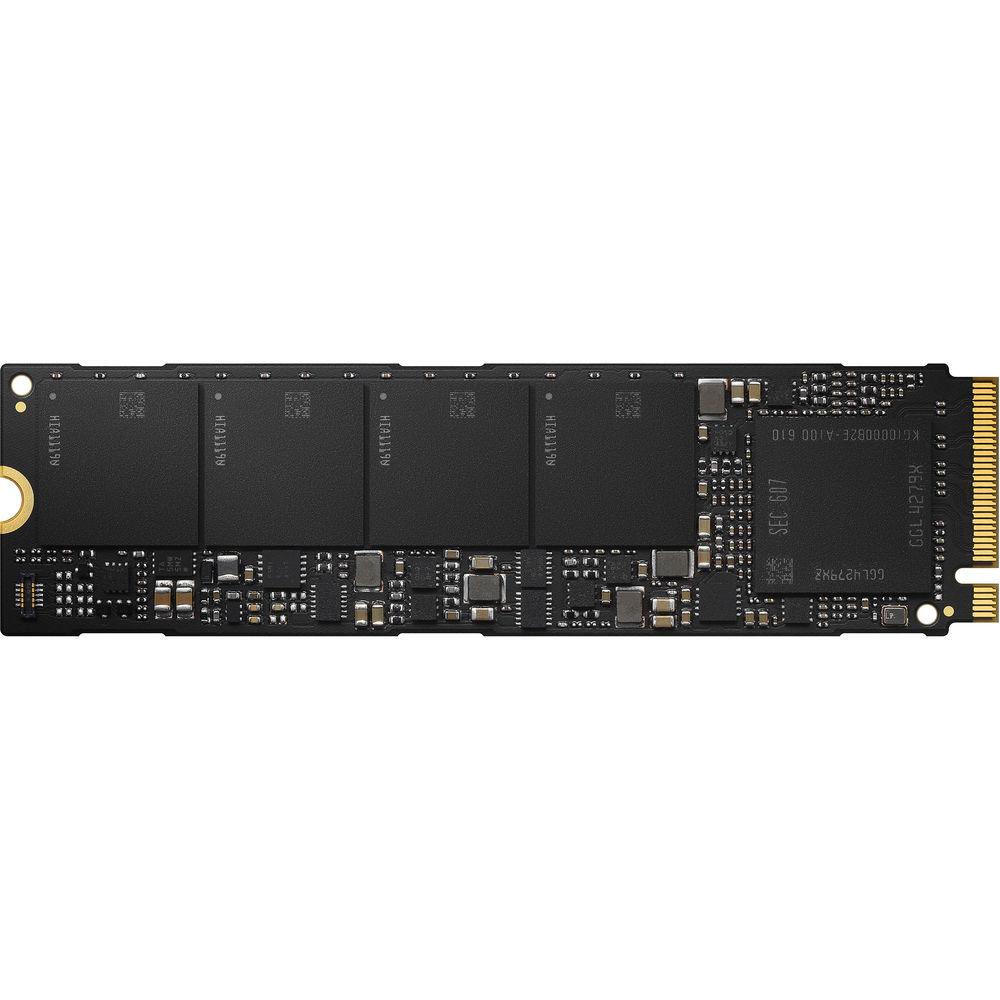

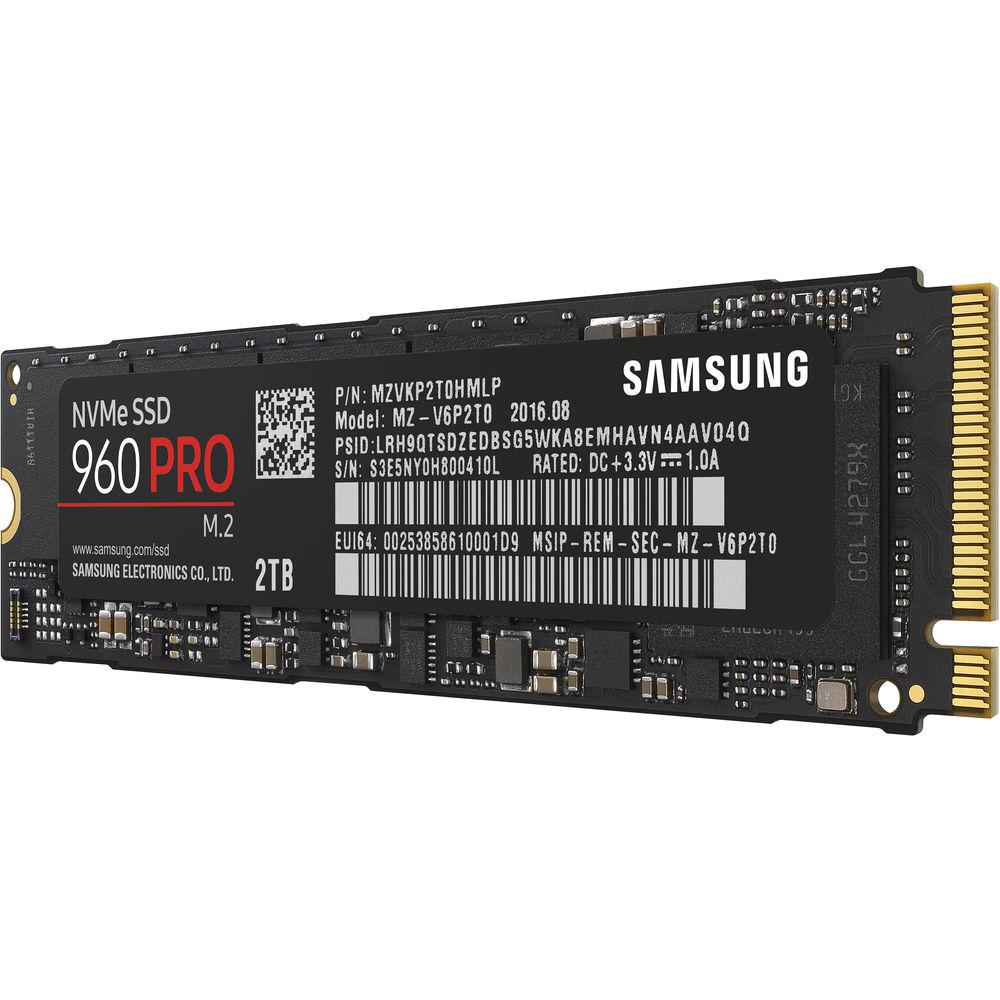

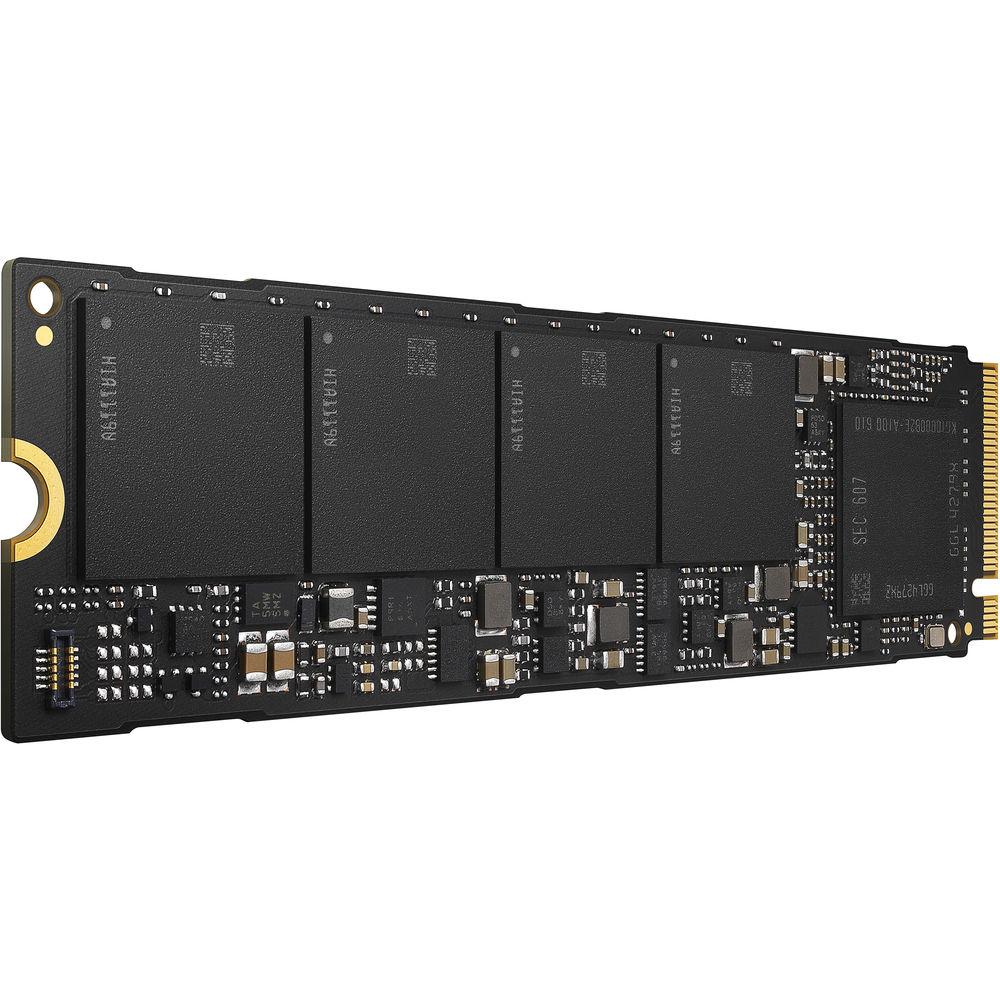

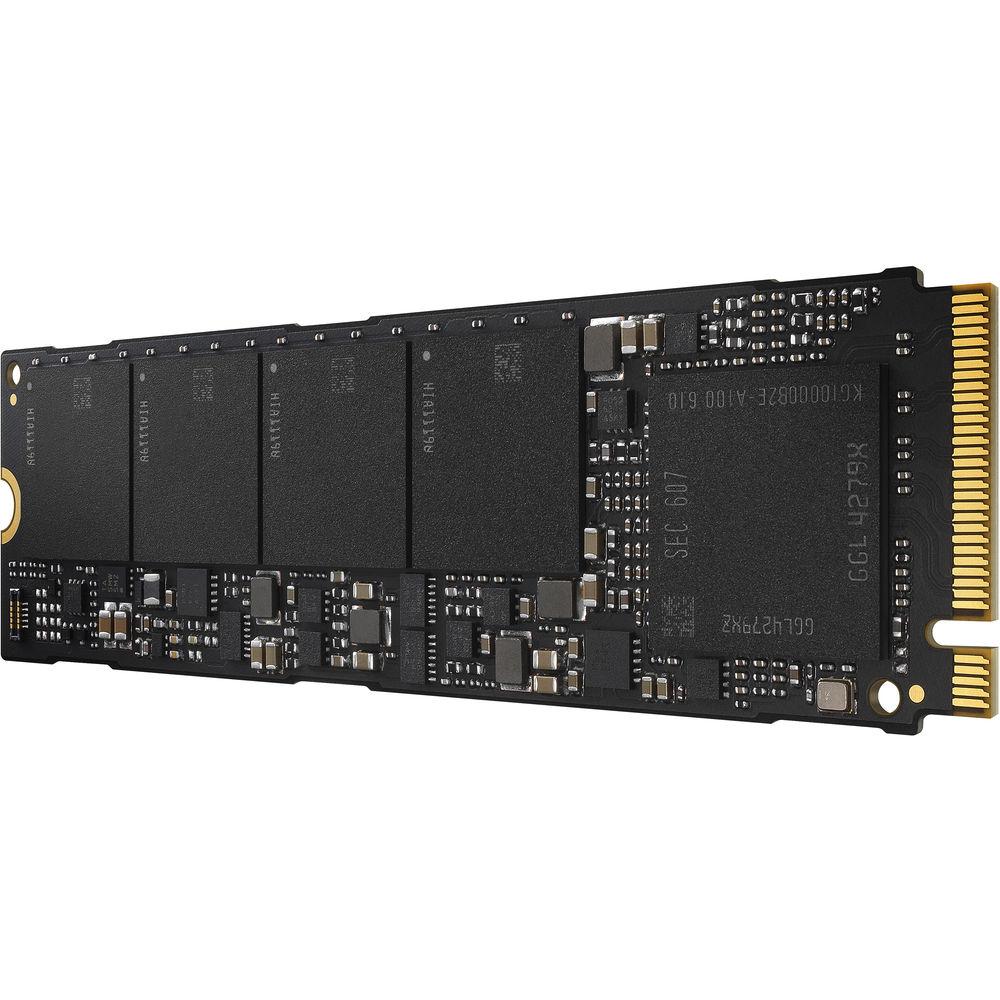

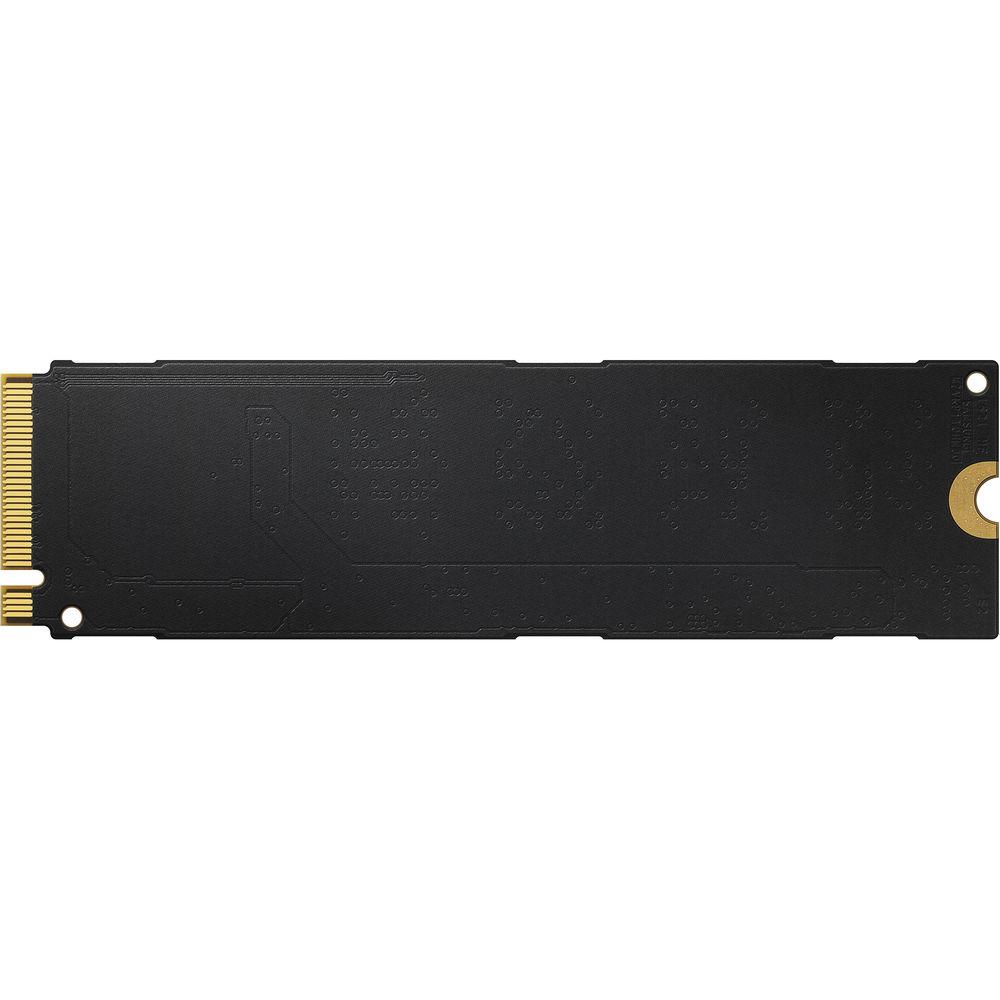

User Manual for Samsung 2TB 960 PRO M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the Samsung 2TB 960 PRO M.2 Internal
- Product category: Internal Drives Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Internal Drives
 |
User manual for the Samsung 2TB 960 PRO M.2 Internal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More - 960 EVO NVMe M.2 Internal SSD
With data transfer rates of up to 3,500 MB/s, the 2TB 960 PRO M.2 Internal SSD from Samsung you can boot directly from the drive for faster system startups, transfer files quickly, stream content directly from the drive, and much more. To ensure fast, reliable data transfer rates Samsung has implemented 48-layer V-NAND-based architecture all in an M.2 form factor. This Samsung drive is also constructed to be reliable as it supports up to 1200 TBW and a 5-year limited warranty. Once installed, this M.2 shock resistant SSD can be managed using the included Magician software. - Next-Gen Performance
- The NVMe interface of the 960 PRO supports PCIe Gen 3 x4 lanes for an enhanced bandwidth and lower latency than SATA SSDs. You can experience massive sequential R/W (read/write) speeds up to 3,500 MB/s and 2,100 MB/s respectively.
- Enhanced Performance
- As a global leader in flash memory, Samsung provides advanced end-to-end integration for our SSDs. The 960 PRO is optimized for performance and capacity, enabling you to store 2TB of data on a single NVMe SSD.
- Drive Management
- The 960 PRO comes with the newly upgraded Magician-an advanced software solution for users to monitor, manage and maintain the drive. Magician provides personalized firmware checking and additional functions tailored for individual user's drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date.
UPC: 887276185330 In the Box Samsung 2TB 960 PRO M.2 Internal SSD 5-Year Limited Warranty or 1200 TBW More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 2TB 960 PRO M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung 960 Pro Specs | | | Drive Capacity | 2.0 TB | | Cache Memory | None | | | | Interface | PCIe 3.0 x4 | | Random Read Speed | 440,000 IOPS (4 KB Files) | | Random Write Speed | 360,000 IOPS (4 KB Files) | | Sequential Read Speed | 3500 MB/s | | Sequential Write Speed | 2100 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | Flash Controller | Samsung Polaris | | SMART Support | Yes | | TRIM Support | Yes | | | | Encryption | 256-Bit AES Hardware Encryption | | Mean Time Between Failures (MTBF) | 1.5 Million Hours | | | | Power Draw | 5.0 mW (Standby)
5.8 W (Active)
1.2 W (Idle) | | | | Operating Shock | 1500 G / 0.5 ms | | Operating Temperature | 32 to 158°F / 0 to 70°C | | | | Dimensions (W x H x D) | 3.1 x 0.9 x 0.1" / 8.0 x 2.2 x 0.2 cm | | Weight | 0 lb / 9.1 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.6 x 3.8 x 0.9" |
