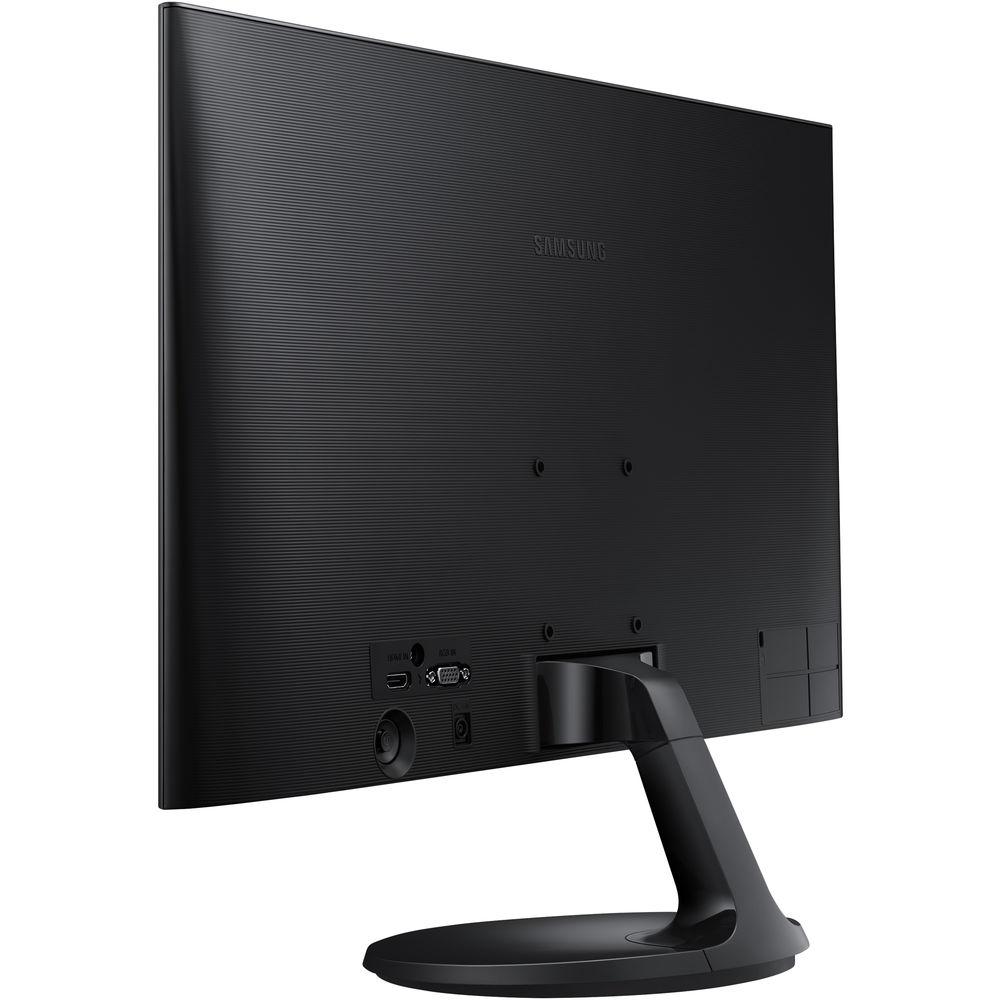

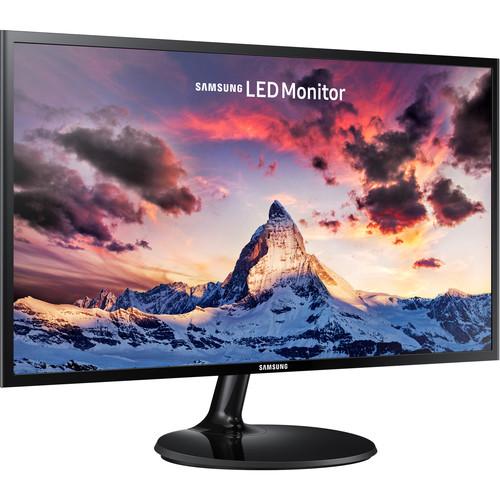

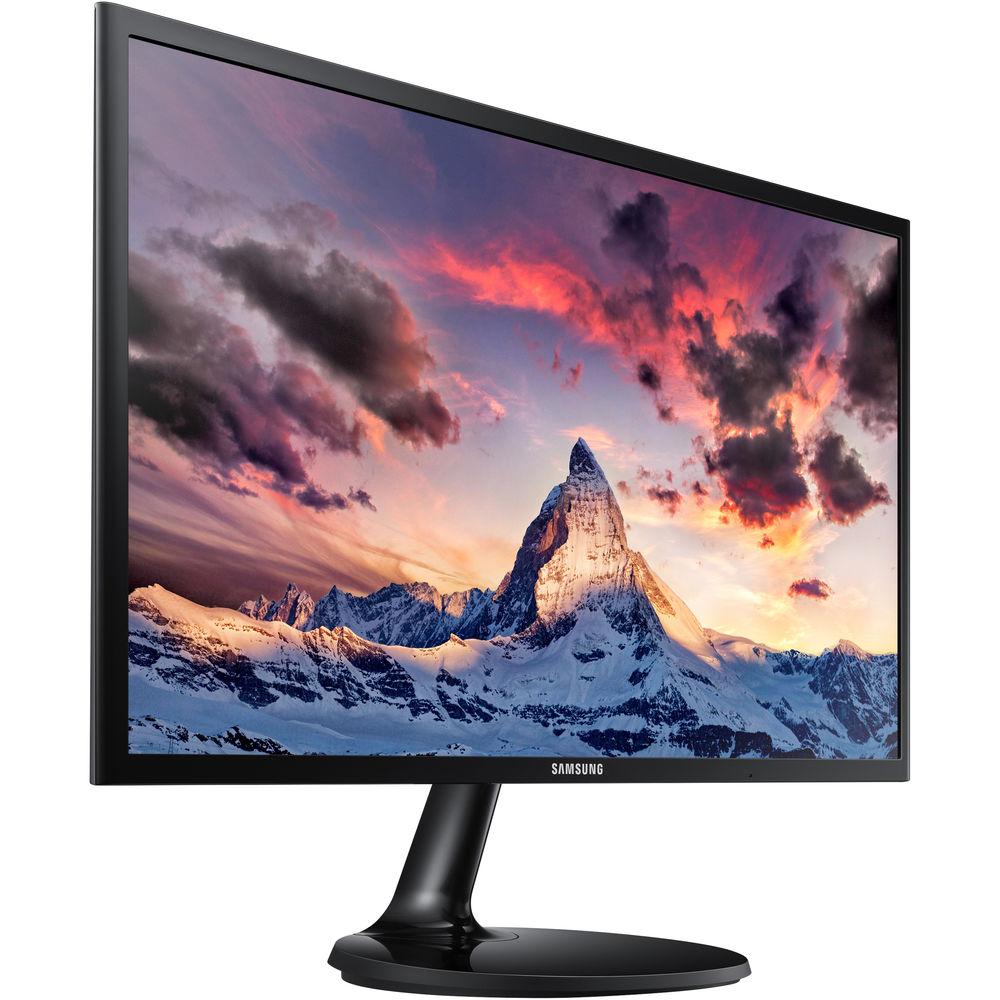

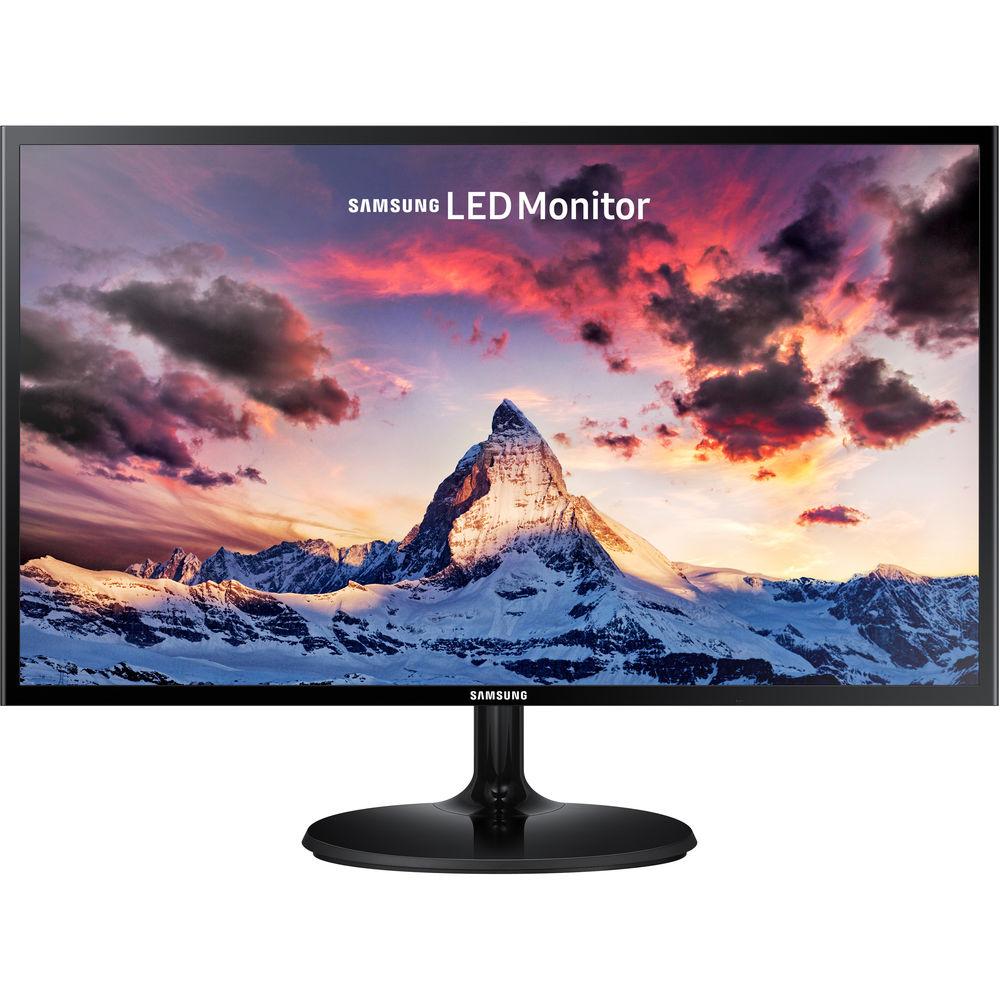

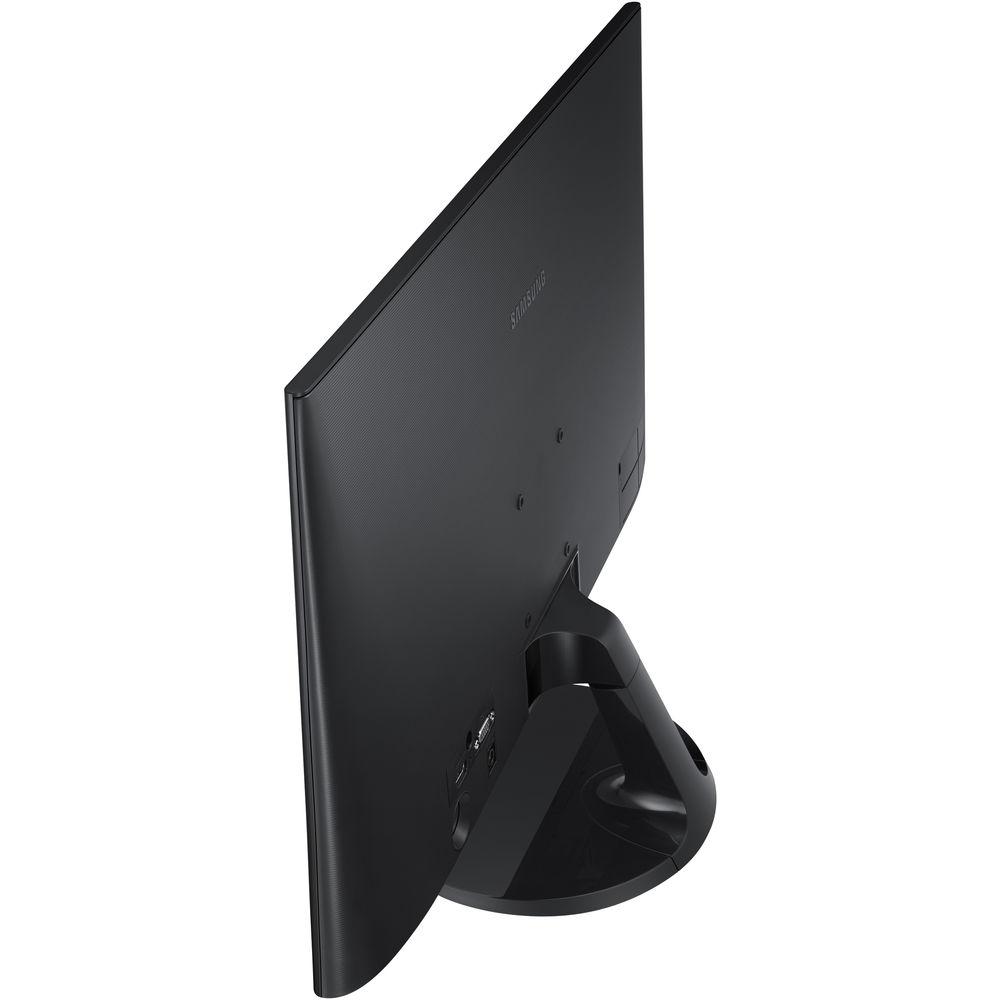

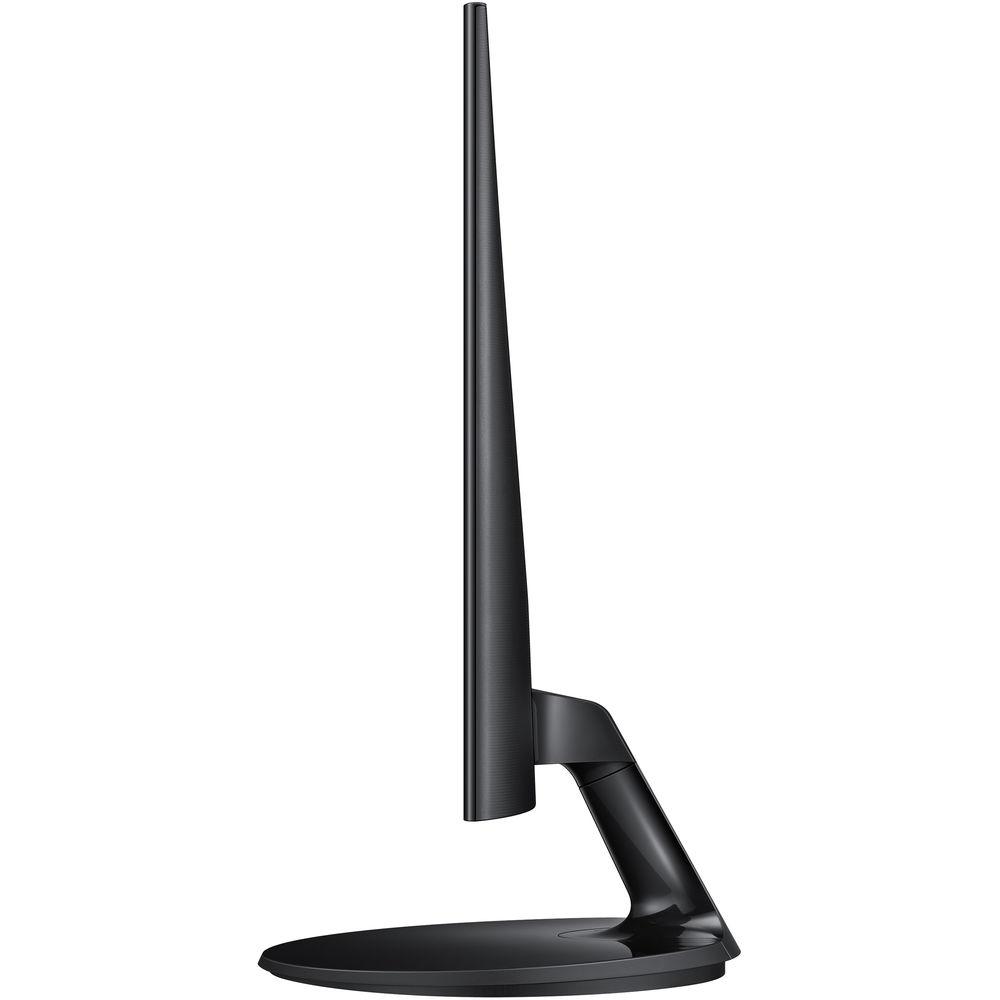

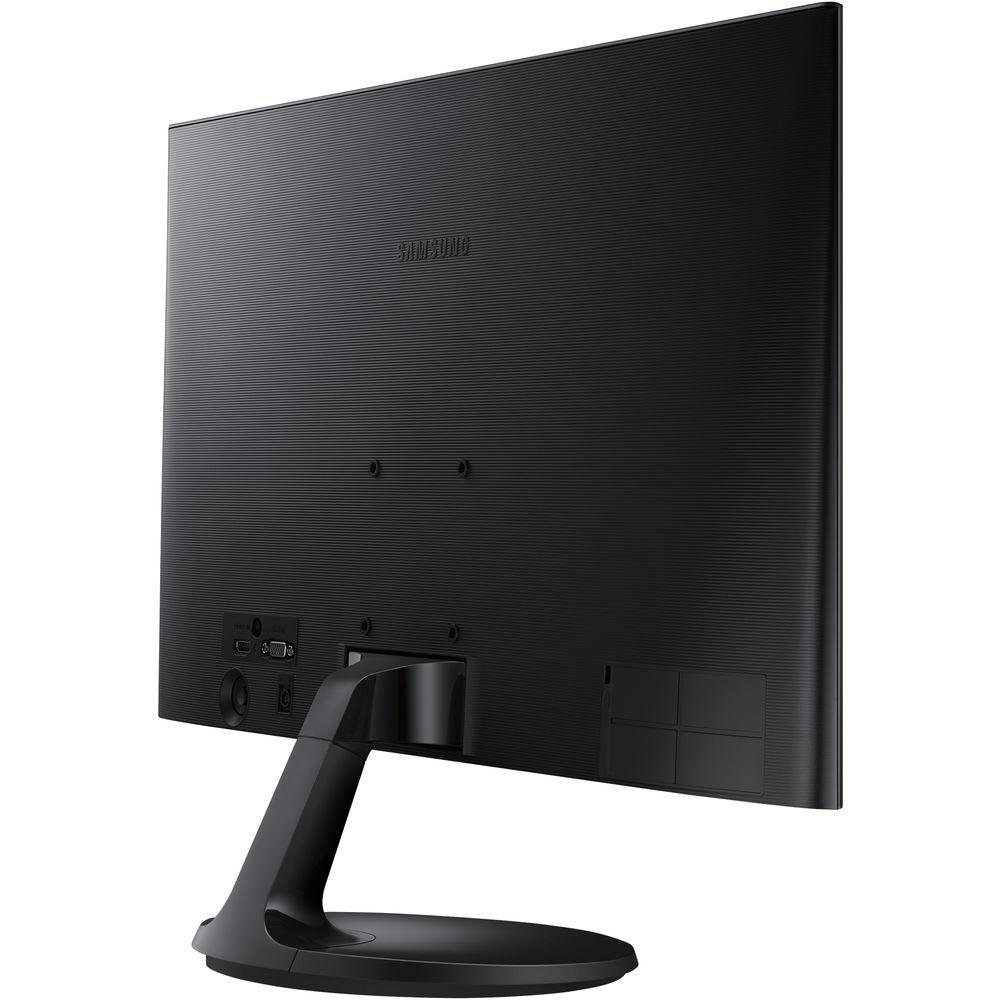

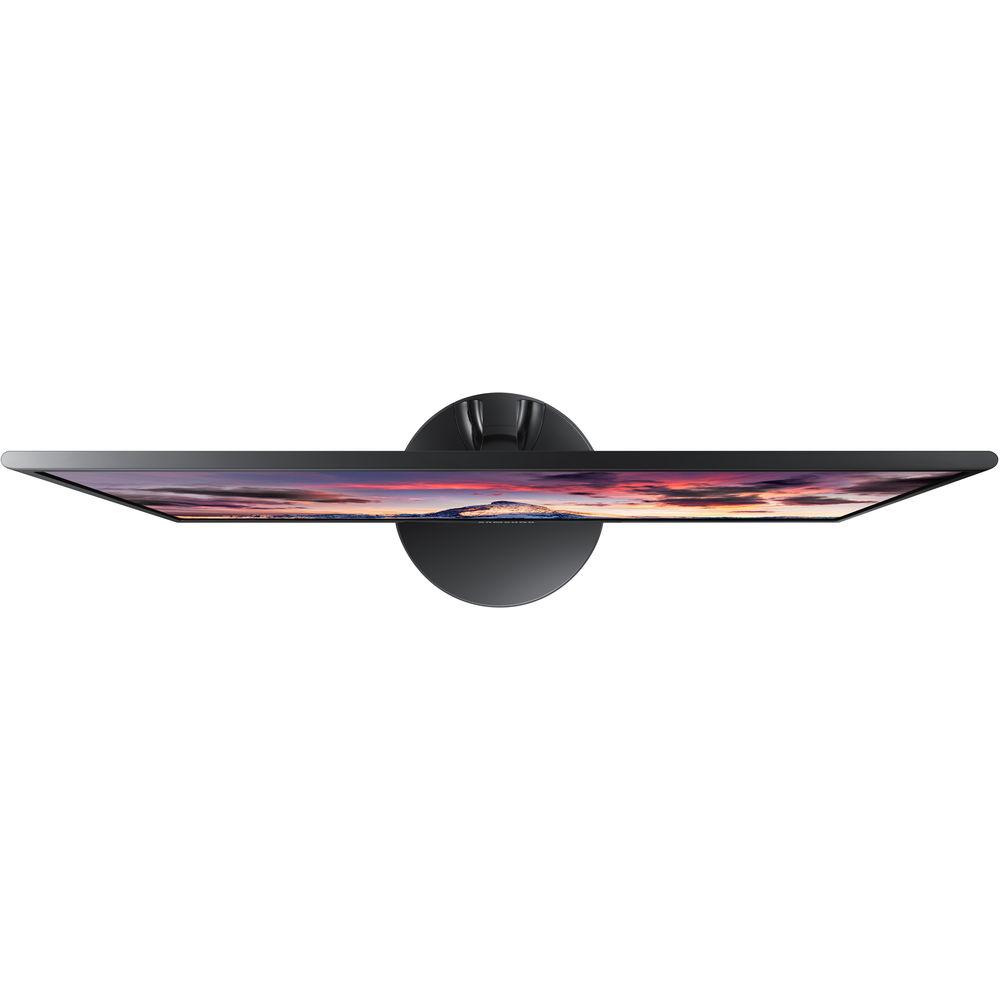

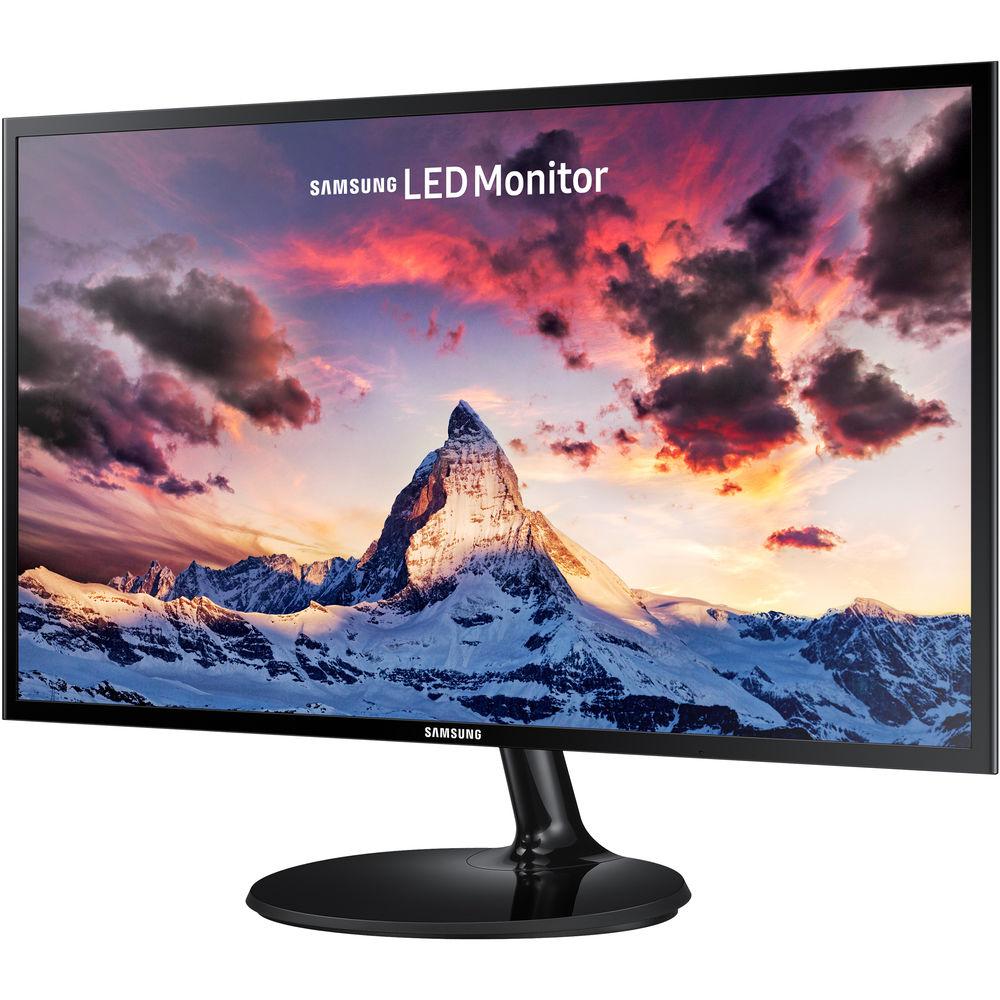

User Manual for Samsung 350 Series SF350 23.5" 16:9 FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung 350 Series SF350 23.5" 16:9
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung 350 Series SF350 23.5" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

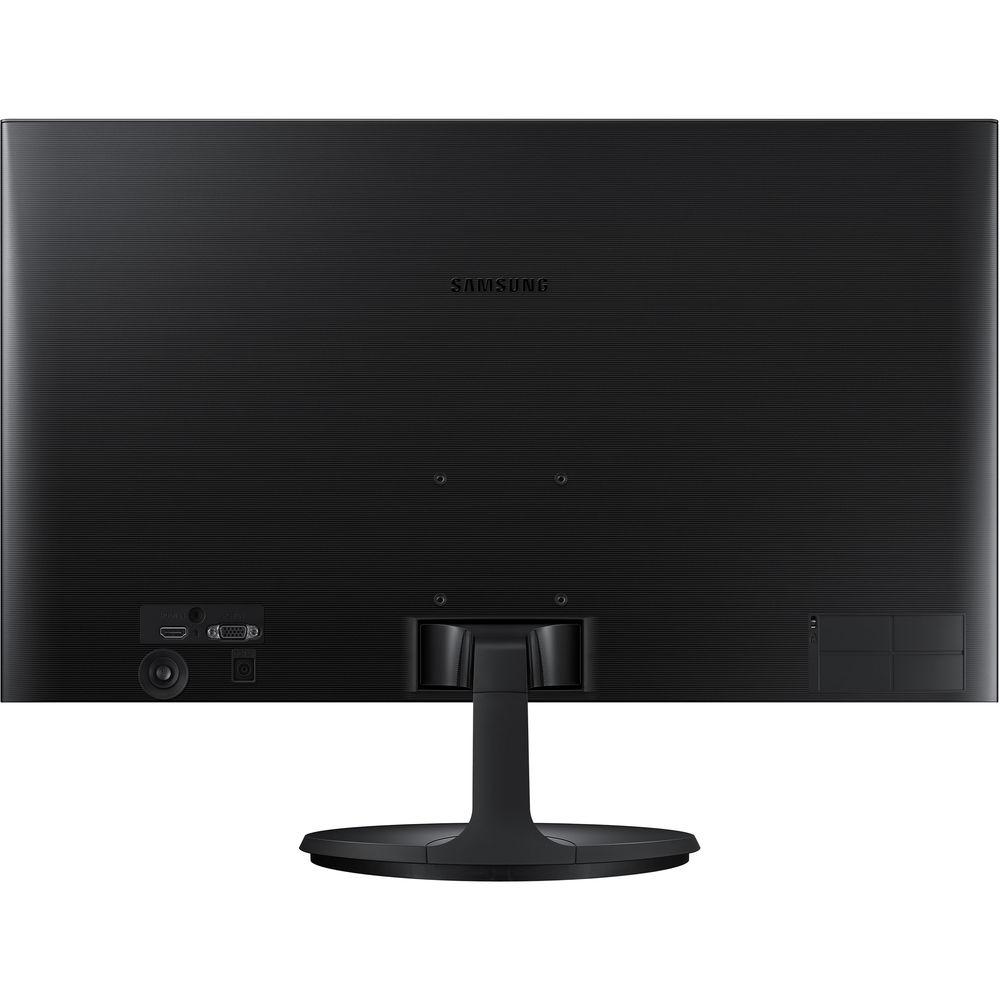

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The SF350 23.5" 16:9 FreeSync LCD Monitor from Samsung is an ultra-thin display with a simple tilting stand and is constructed with a Plane-to-Line Switching (PLS) panel that has a low 4 ms response time. Combined with support for FreeSync technology, which syncs your graphics card's frame rate output to the monitor's refresh rate, you'll be able to enjoy smooth, lag-free gaming without stuttering, ghosting, or frame skipping. Experience crisp, clear pictures in 1920 x 1080 Full HD resolution, and darker blacks and brighter whites with a 250 cd/m² brightness rating, 1000:1 static contrast ratio, and support for 16.7 million colors. Connect this monitor to your system via HDMI or VGA, and at the back of the monitor is 75 x 75mm VESA mounting holes should you want to install an alternate wall-mount or stand. - Ultra-Slim Design
- This 350-series monitor measures less than 0.4" thick for a clean and minimal footprint on your desktop.
- Advanced Gaming Experience with AMD FreeSync
- AMD FreeSync technology dynamically syncs the frame rate output of your graphics card to the refresh rate of the display to reduce image tearing and stutter during gaming. With its 5 ms response time, you'll be able to enjoy smooth gameplay with less motion blur, judder, and ghosting.
- Eye Saver Mode
- Reduce blue light emissions and flickering at the touch of a button. With Eye Saver mode, you'll be able to read documents, play games, watch movies, and edit photos for long periods of time without eye strain or fatigue.
- Eco-Friendly Monitor
- The Eco-Saving Plus feature reduces screen brightness to save power. Plus, the screen brightness automatically transitions to reduce energy use even more.
UPC: 887276162034 In the Box Samsung 350 Series SF350 23.5" 16:9 FreeSync LCD Monitor Power Cable VGA Cable Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 350 Series SF350 23.5" 16:9 FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LS24F350FHNXZA Specs | Screen Size | 23.5" (59.7 cm) | | Active Display Area | 20.52 x 11.54" (52.13 x 29.32 cm) | | Display Type | Plane-to-Line Switching (PLS) | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 (typical)
700:1 (minimum) | | Viewing Angles (H/V) | 178°/178° | | Response Time (GtG) | 4 ms | | Colors Supported | 16.7 Million | | Color Gamut | 72% NTSC 1976 | | Refresh Rate | 60 Hz | | Inputs | 1 x HDMI
1 x VGA | | | | Tilt | -1-22° | | VESA Standard | 75 x 75 mm | | | | Power Supply Type | External adapter, 100-240 VAC | | Power Consumption (typical) | 20 W | | Power Consumption (Maximum) | 25 W | | Power Consumption (Standby) | < 0.3 W | | Maximum Standby Power (DPMS) | < 0.3 W | | | | Operating temperature | 50 - 104°F (10 - 40°C) | | Operating Humidity | 10 - 80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 21.56 x 16.46 x 8.13" (54.76 x 41.81 x 20.65 cm)
Without Stand: 21.56 x 12.63 x 3.22" (54.76 x 32.08 x 8.18 cm) | | Weight | With Stand: 7.3 lb (kg)
Without Stand: 6.2 lb (kg) | | | | Package Weight | 10.05 lb | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 5.5" |
