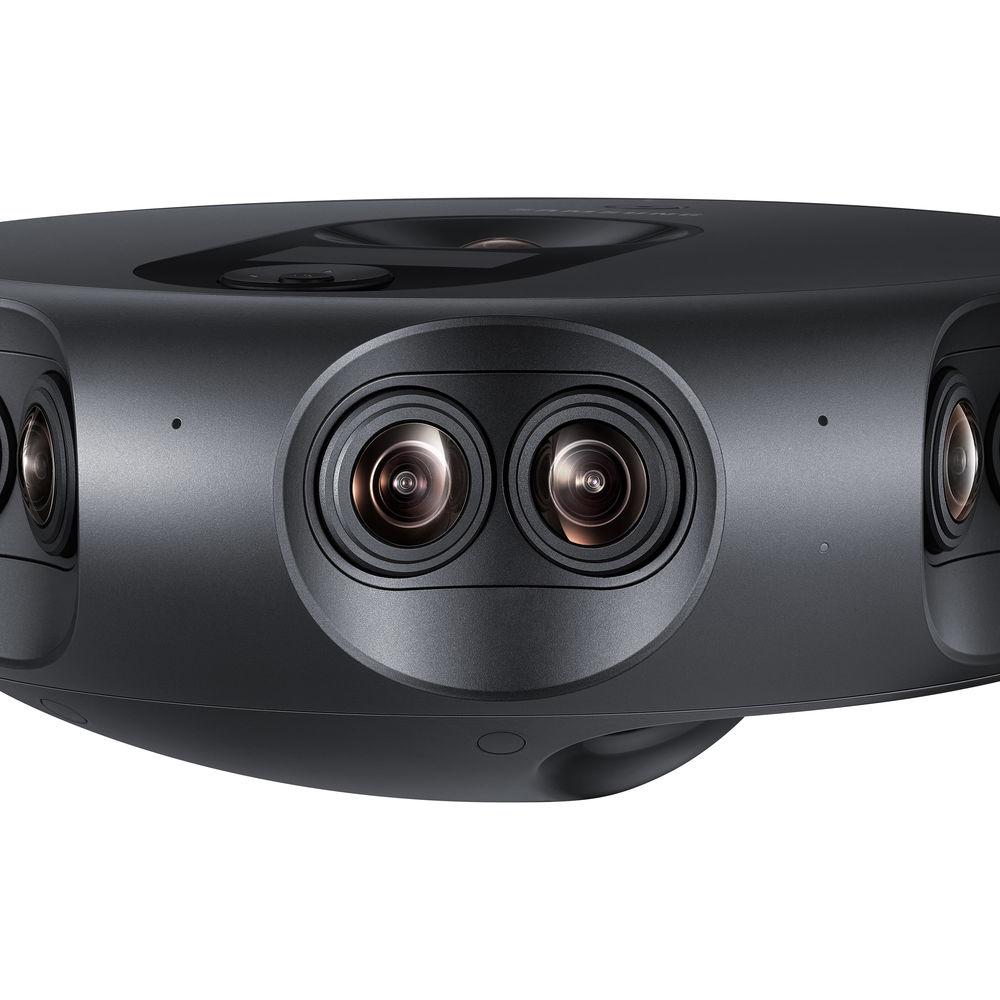

User Manual for Samsung 360 Round Camera System Click to enlarge the picture
Contents of the user manual for the Samsung 360 Round Camera System
- Product category: All 360 Video Cameras Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung All 360 Video Cameras
 |
User manual for the Samsung 360 Round Camera System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

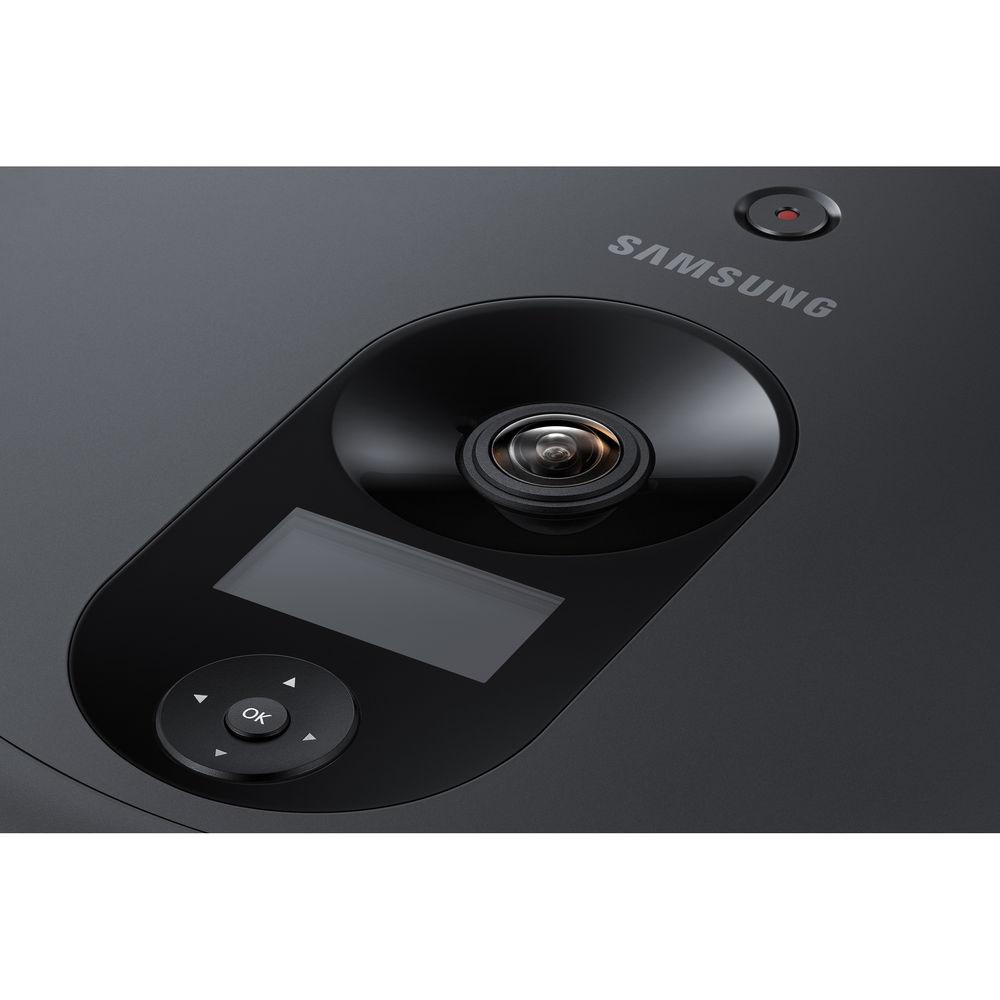

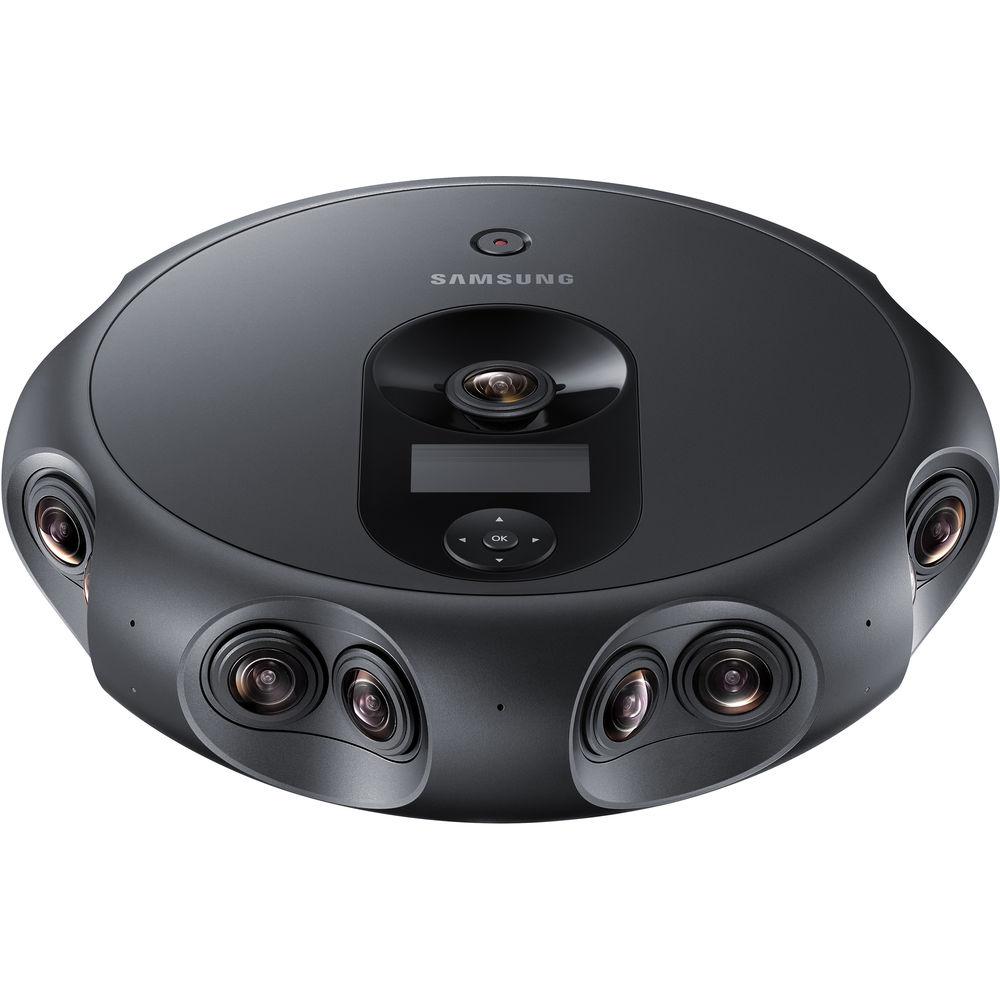

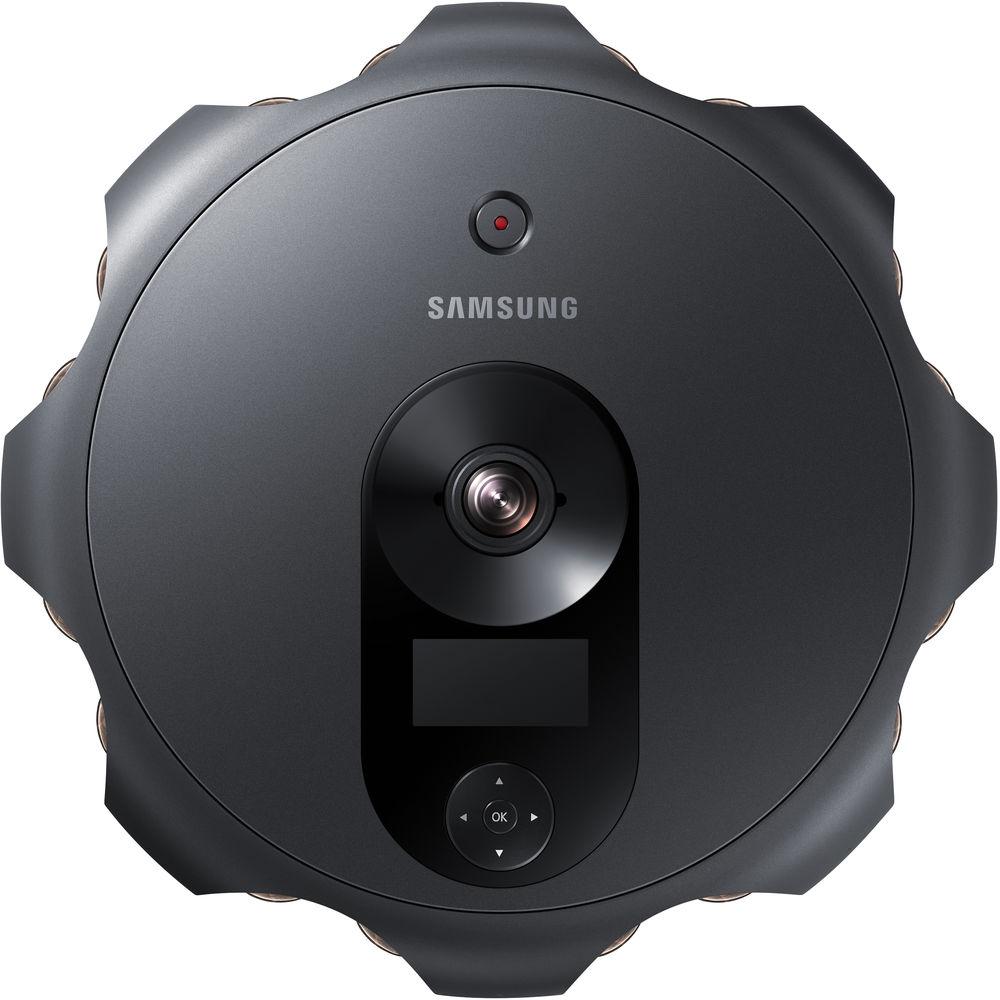

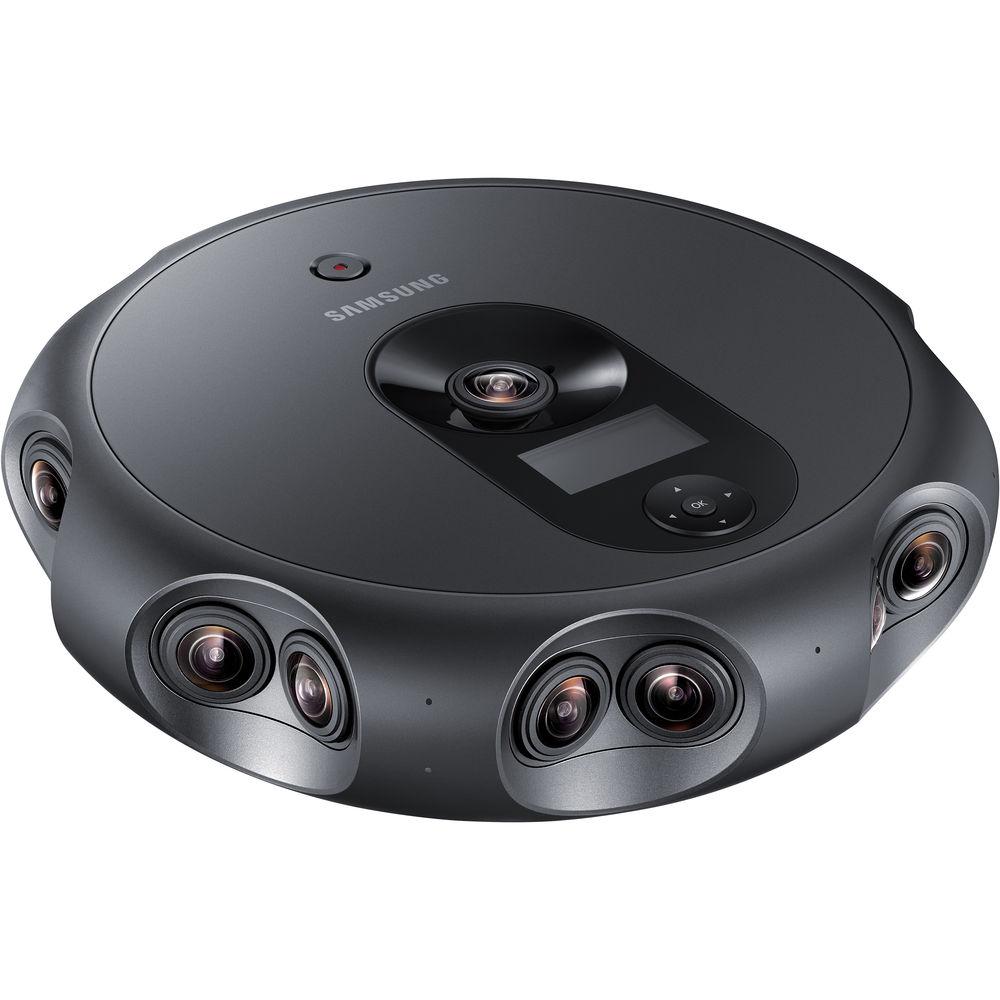

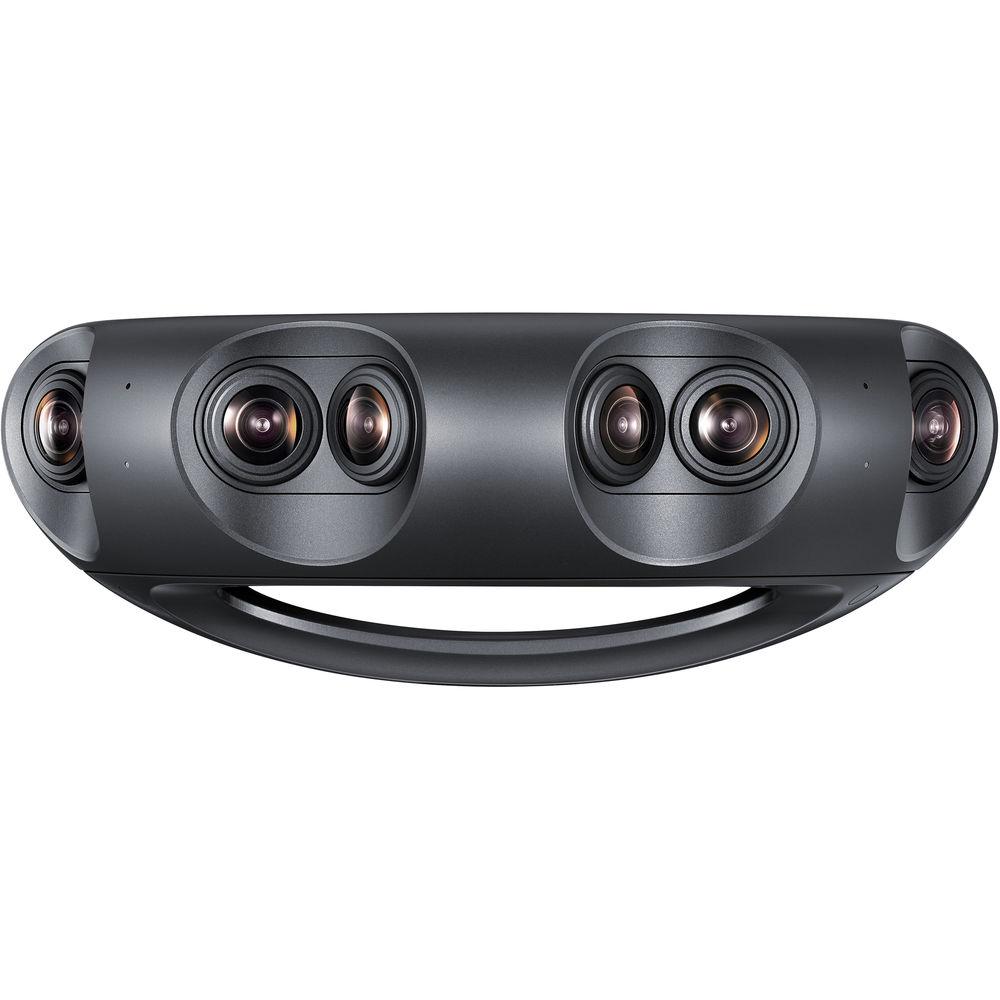

Product description Live stream or record 4K 360° video with the Samsung 360 Round Camera System. Using 17 cameras—16 in 8 stereo pairs positioned horizontally and one skyward-facing—the 360 Round can record or stream high-quality video of everything going on around it. Video can either be recorded to internal memory, to an SD card, or to an external SSD attached via the USB Type-C port as well as streamed live via the Ethernet LAN connection. Video from the 360 Round can be hosted or streamed by well-established platforms, such as Facebook or YouTube, and Samsung's own platform, Samsung VR. Whether recording or streaming, high-resolution is always maintained. The 2D video can be stitched to a 4096 x 2048 frame size, while 3D video maintains the same resolution spec, per eye. - Compact Unibody Design
- The unibody chassis is designed to dissipate heat effectively, removing the need for a cooling fan and minimizing excess noise. The compact design and passive cooling reduces power consumption for hours of continuous shooting on the job.
- Virtually Seamless Live Streaming
- The 360 Round enables live streaming with minimal latency (depending on the network connection) and makes broadcasting less computationally intensive through one-step stitching and software control provided by Samsung.
- IP65 Rating
- Feel free to set up the 360 Round outdoors, even in inclement weather, dusty conditions, or other challenging environments.
- Expansion

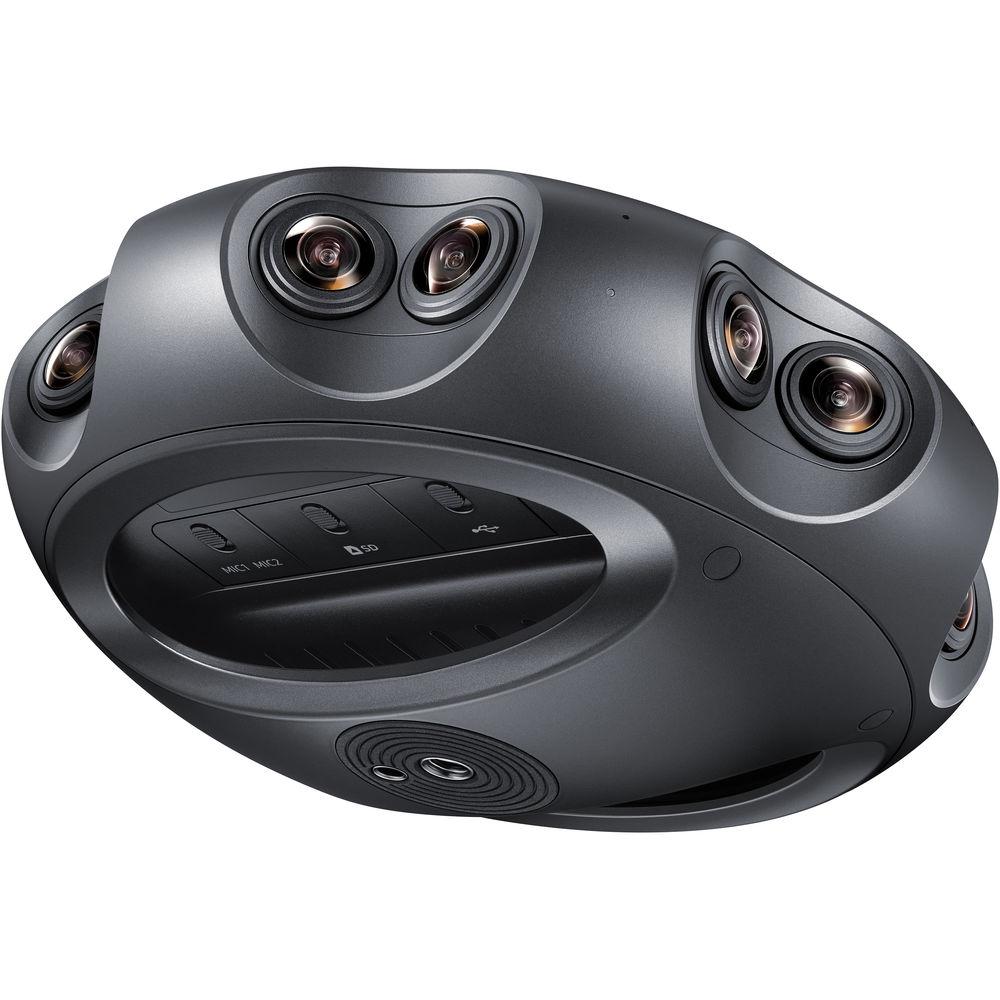

- With the onboard I/O, external equipment such as fast SSD media and microphones can expand the capabilities of the 360 Round.
- Included PC Software
- Install the included Samsung software for viewing, editing, and stitching incoming video or recorded video from the 360 Round.
UPC: 887276235400 In the Box Samsung 360 Round Camera System Hard Case Power Adapter Waterproof Cable Clamps Limited 1-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 360 Round Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung SM-R260NZKAXAR Specs | Camera | 17 x Cameras
Sensor Size: 1/2.8"
Resolution: 2 MP
Lens Aperture: f/1.8 | | Audio | 6 x Internal microphones for spatial audio
2 x 3.5 mm external microphone inputs | | Video Resolution | 3D: 4096 x 2048, 30 fps (per eye)
2D: 4096 x 2048, 30 fps | | Video Format | MP4: H.265/H.264 | | Storage | RAM: 10 GB LPDDR3
Internal: 40 GB eMMC
Removable: UHS-II SD card (up to 256 GB)

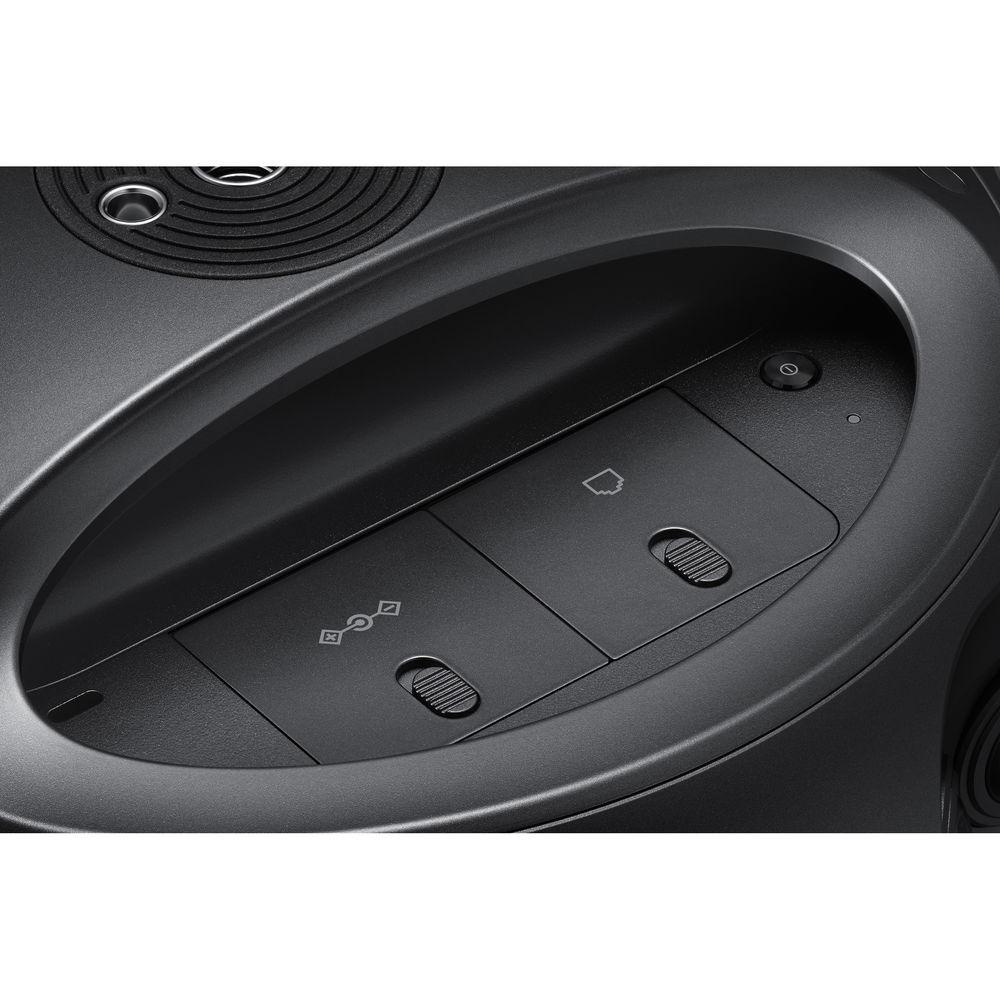

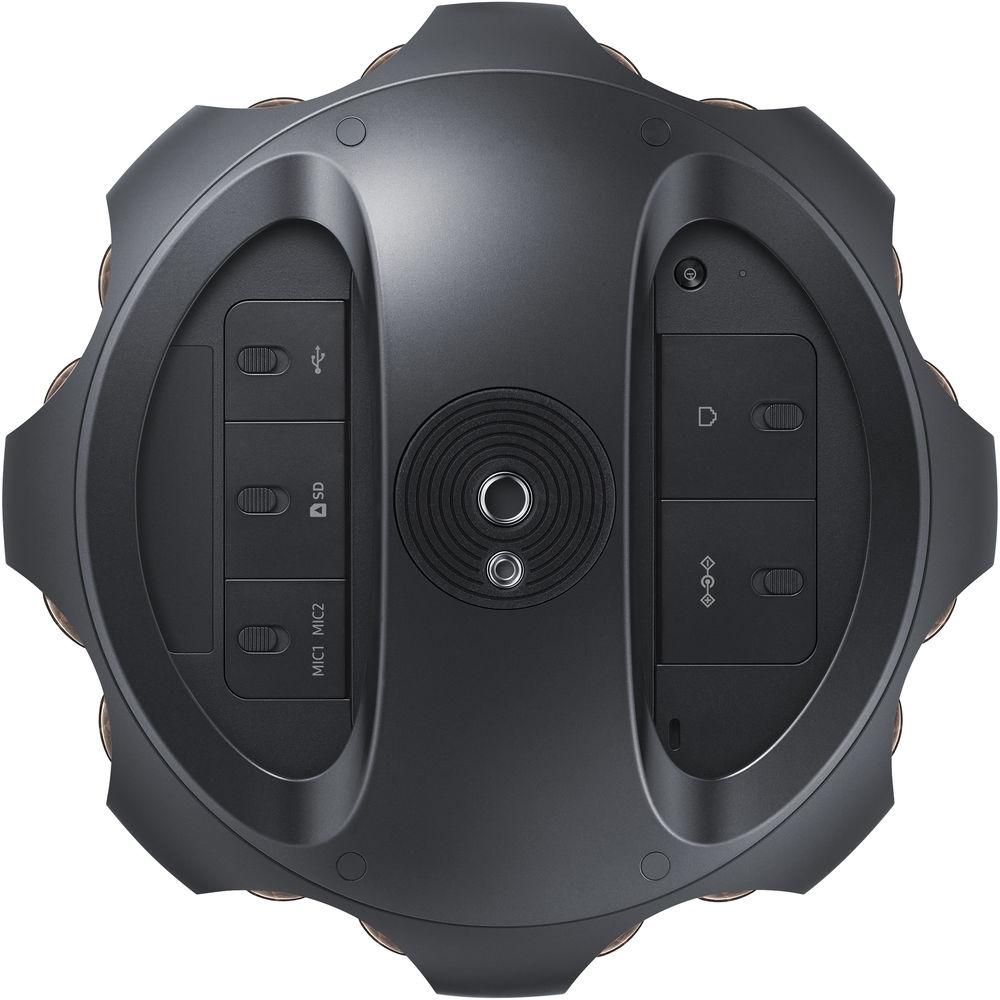

External: SSD (up to 2 TB) | | Connectivity | 1 x RJ45, Ethernet (LAN)
1 x USB Type-C | | Sensors | Gyrometer and accelerometer | | Tripod Mount Thread | 1 x 3/8"-16 | | IP Rating | IP65 | | Power Supply | Input: 100-240 VAC, 50-60 Hz
Output: 19 VDC, 2.1 A | | Minimum Computer Requirements | Post Processing:
OS: 64-bit Windows 10
RAM: 16 GB DDR4
Power Supply: 850 W
CPU: Intel Core i7 6700K
GPU: 1 x NVIDIA GTX 1080
Streaming and Live Broadcast:
OS: 64-bit Windows 10
RAM: 32 GB DDR4
Power Supply: 850 W
CPU: Intel Core i7 6950X
GPU: 2 x NVIDIA GTX 1080 Ti | | Dimensions | 8.1 x 8.1 x 3.1" / 20.5 x 20.5 x 7.7 cm | | Weight | 4.25 lb / 1.9 kg | | | | Package Weight | 17.8 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 10.0" |
