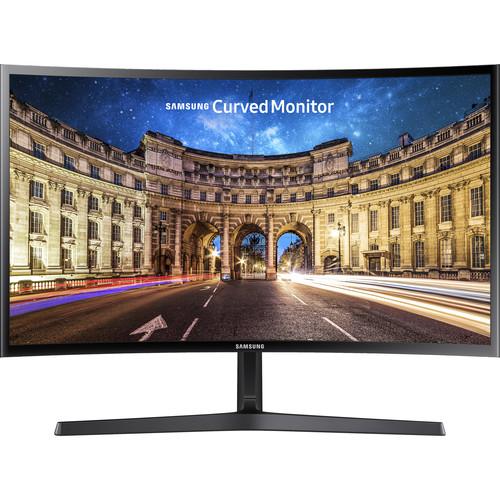

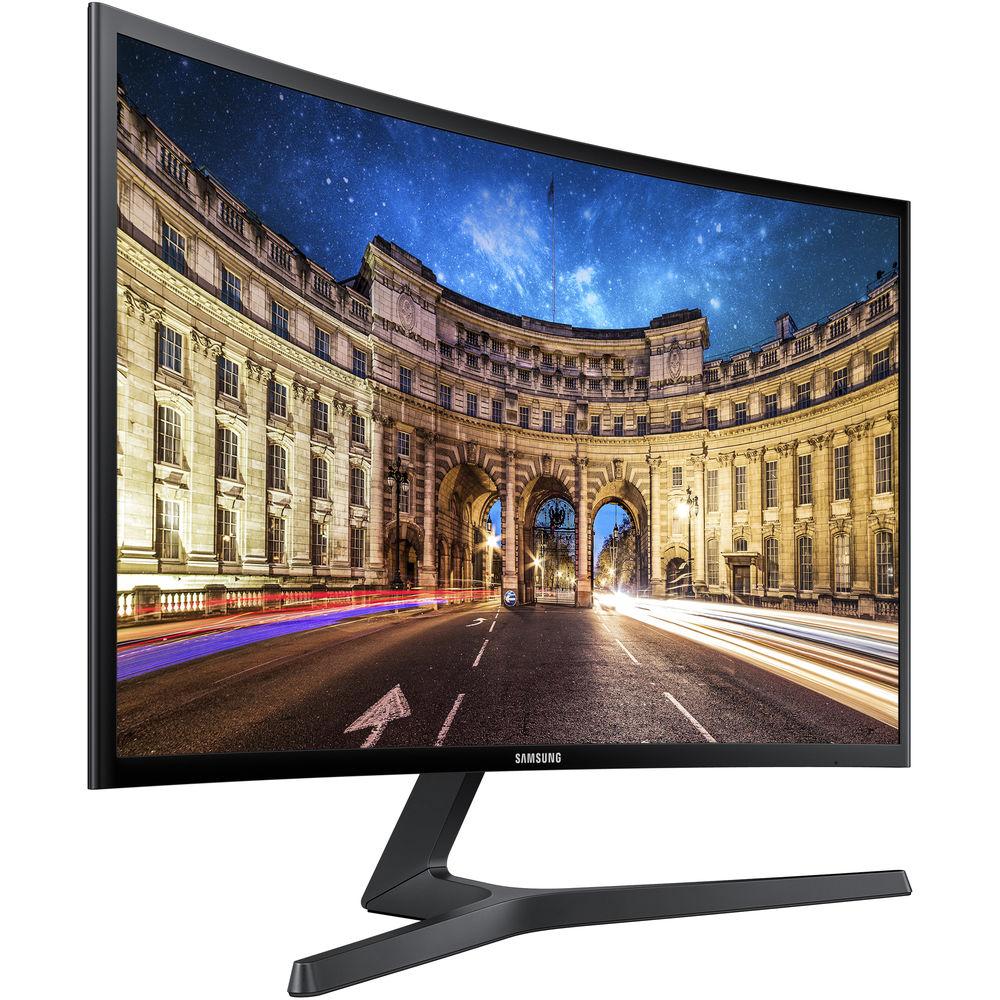

User Manual for Samsung 398 Series C27F398 27" 16:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung 398 Series C27F398 27" 16:9
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung 398 Series C27F398 27" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

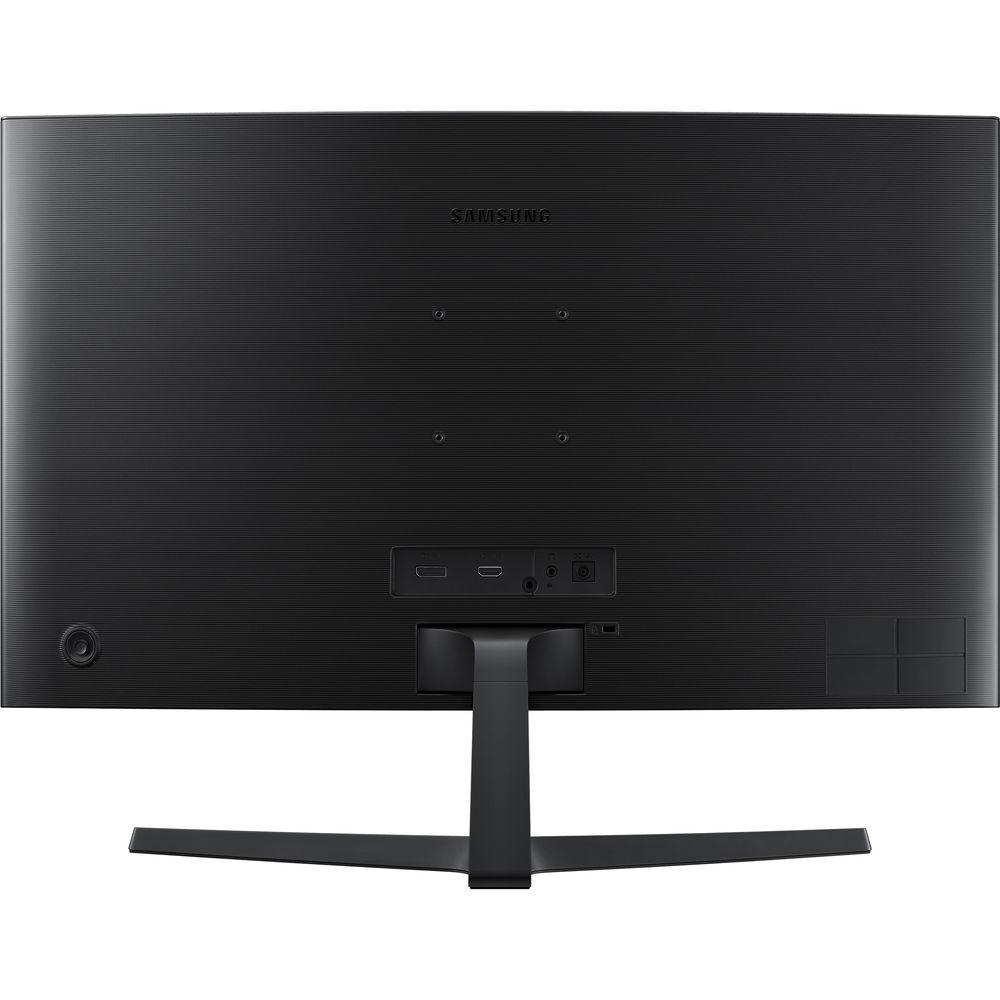

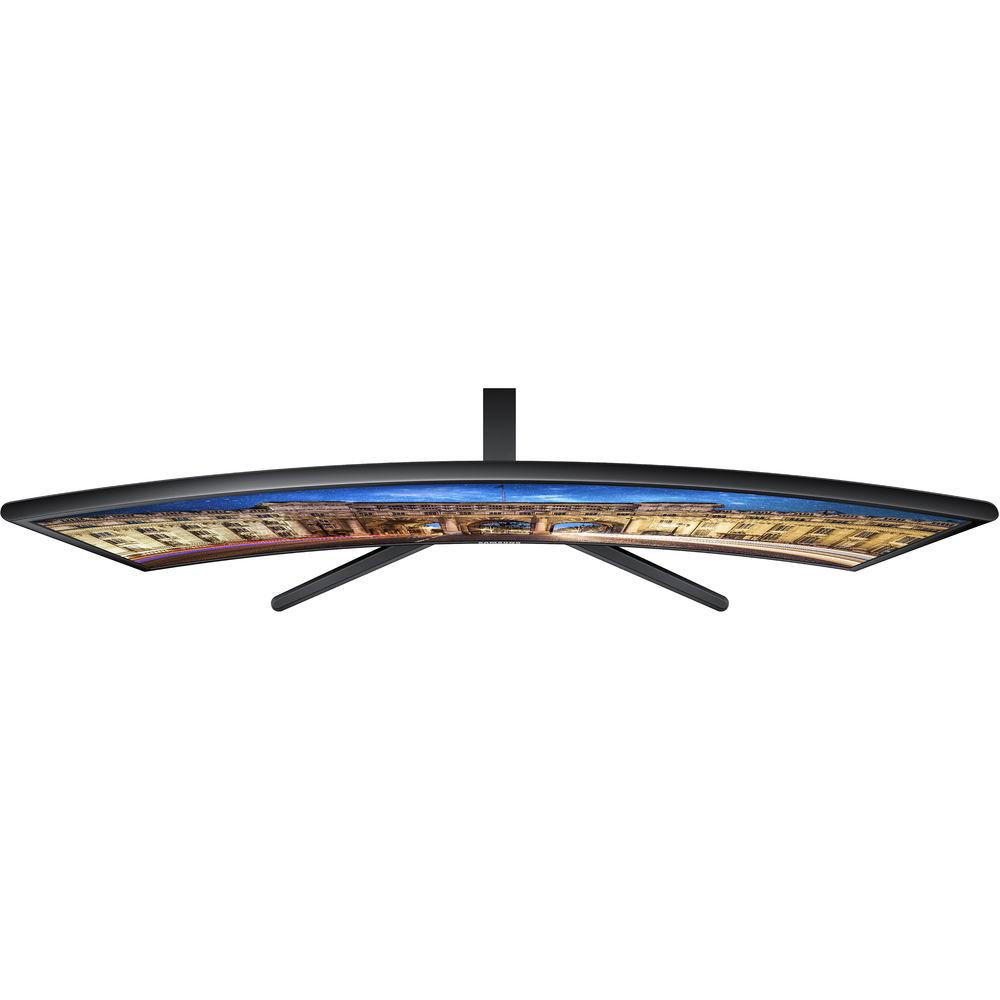

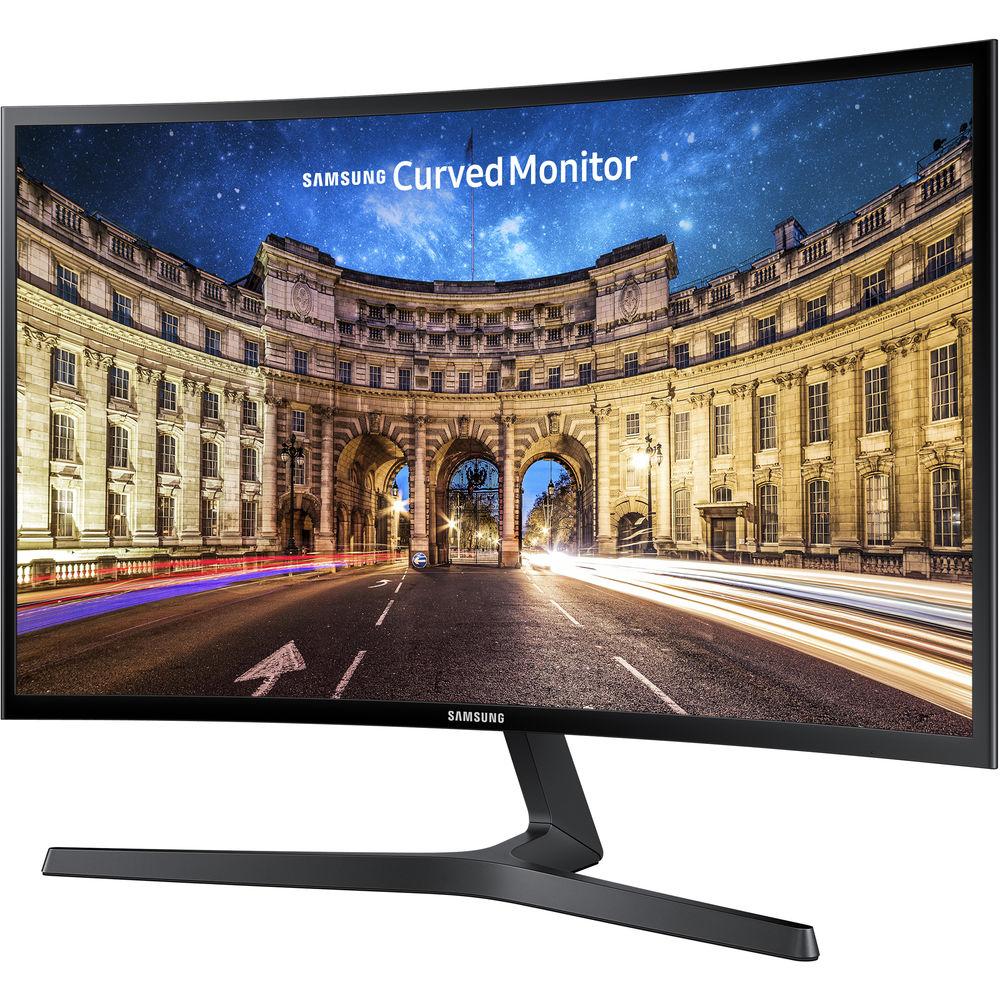

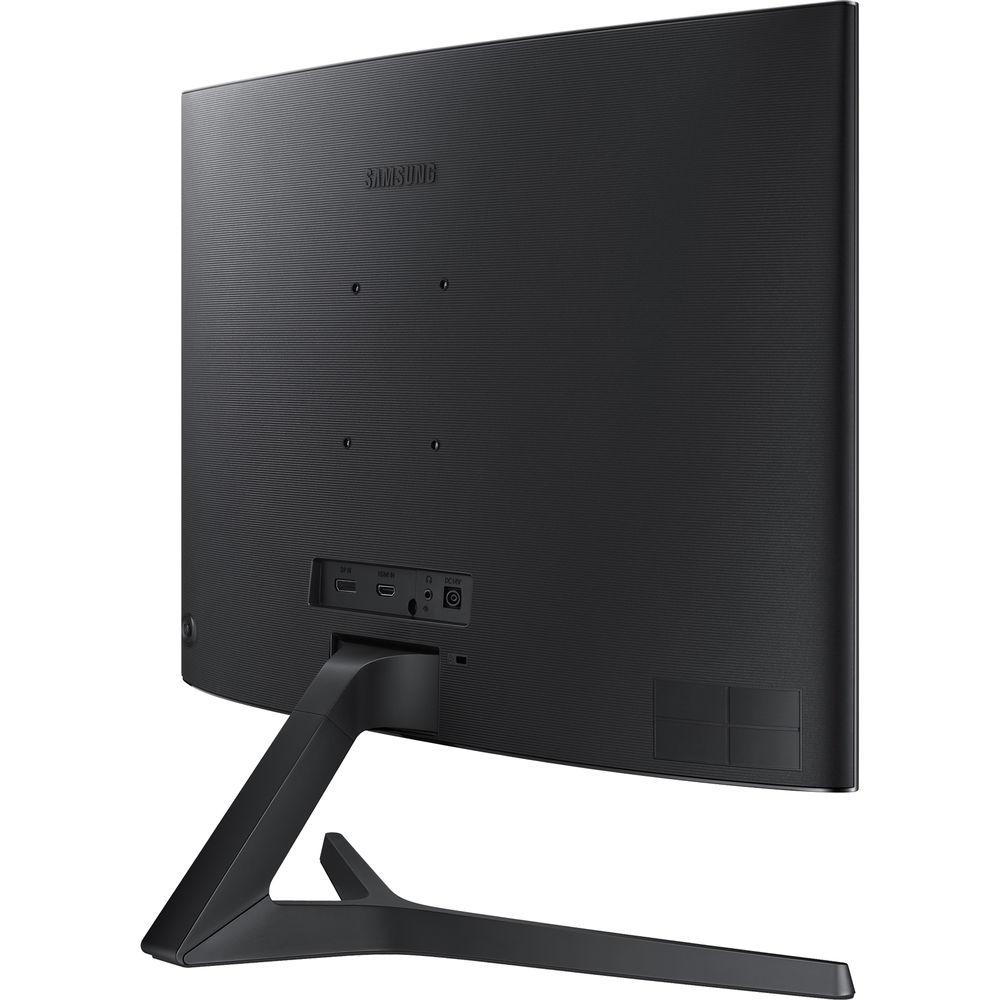

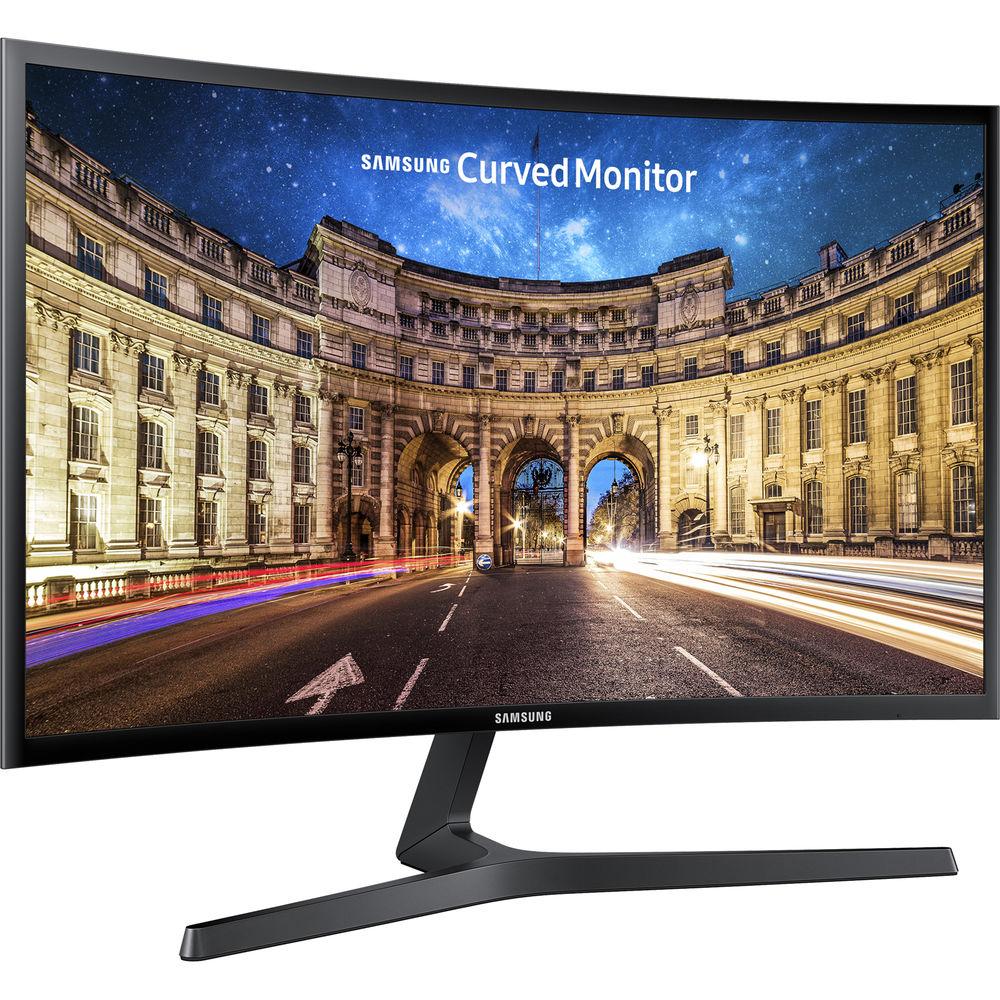

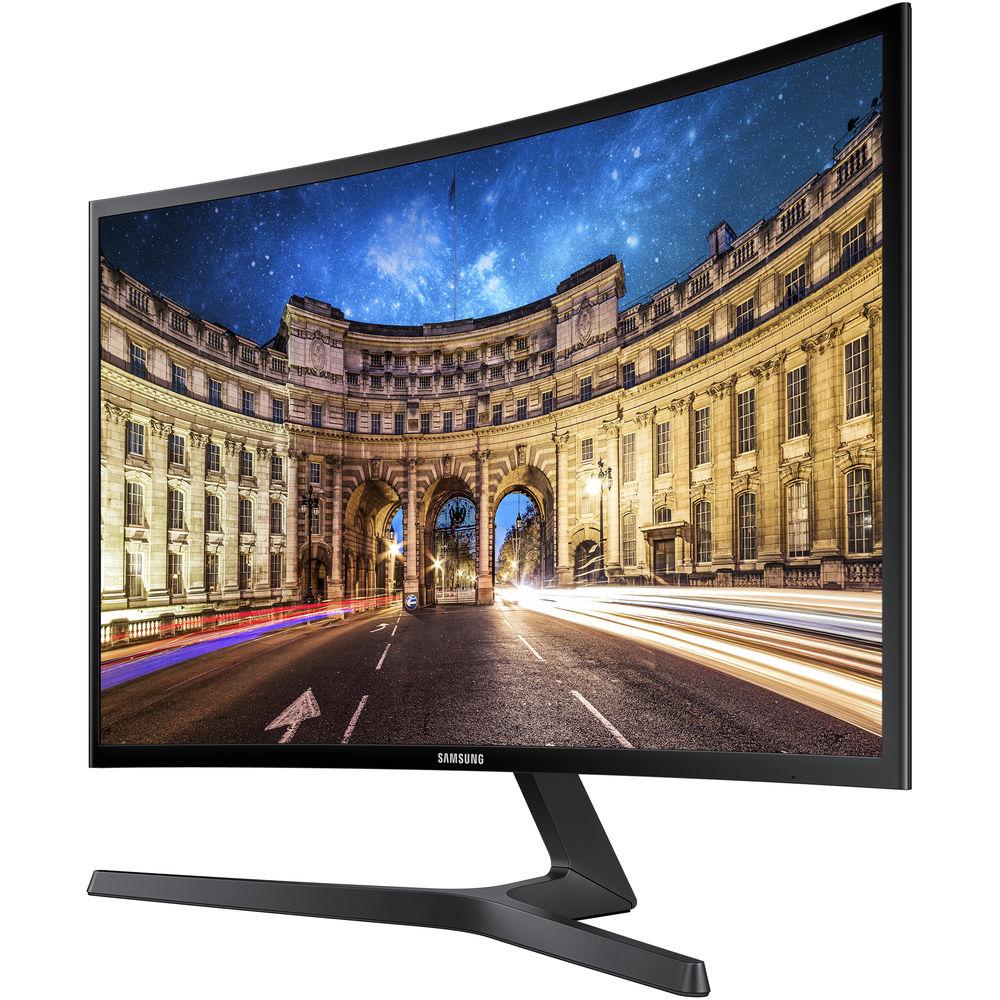

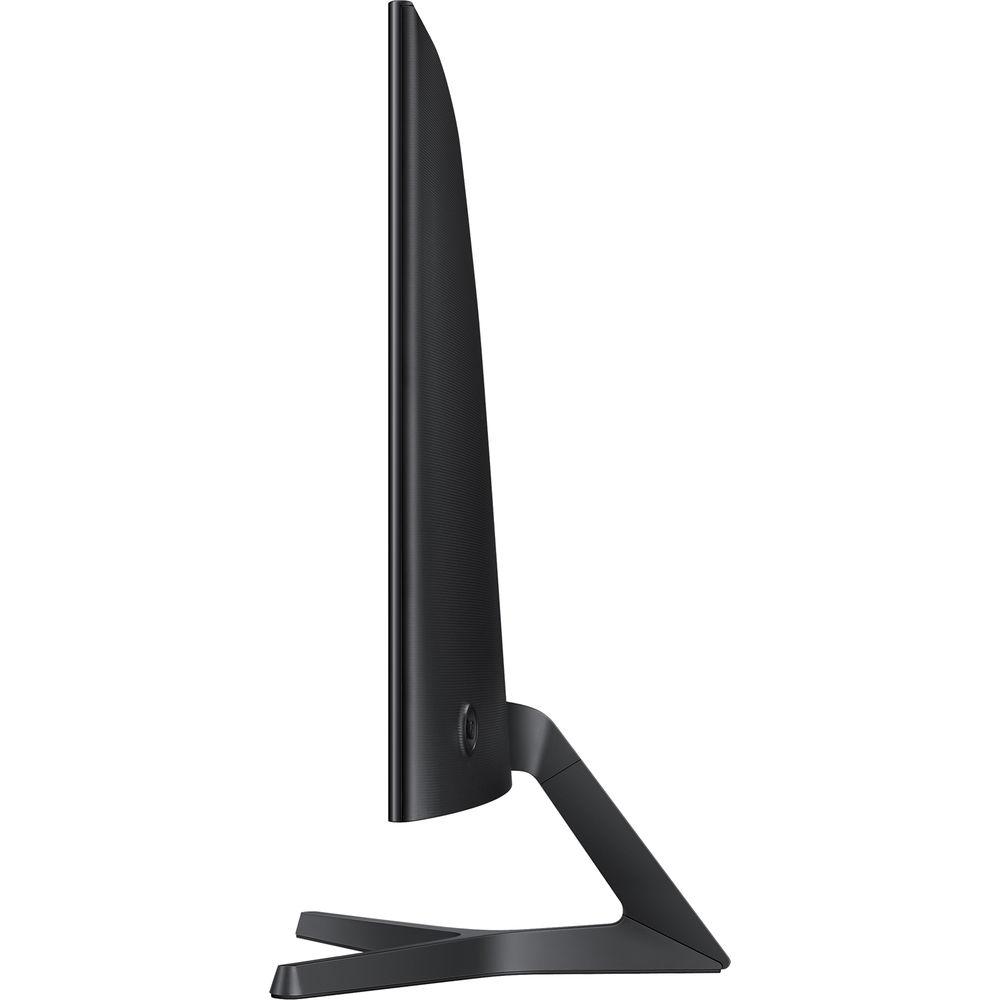

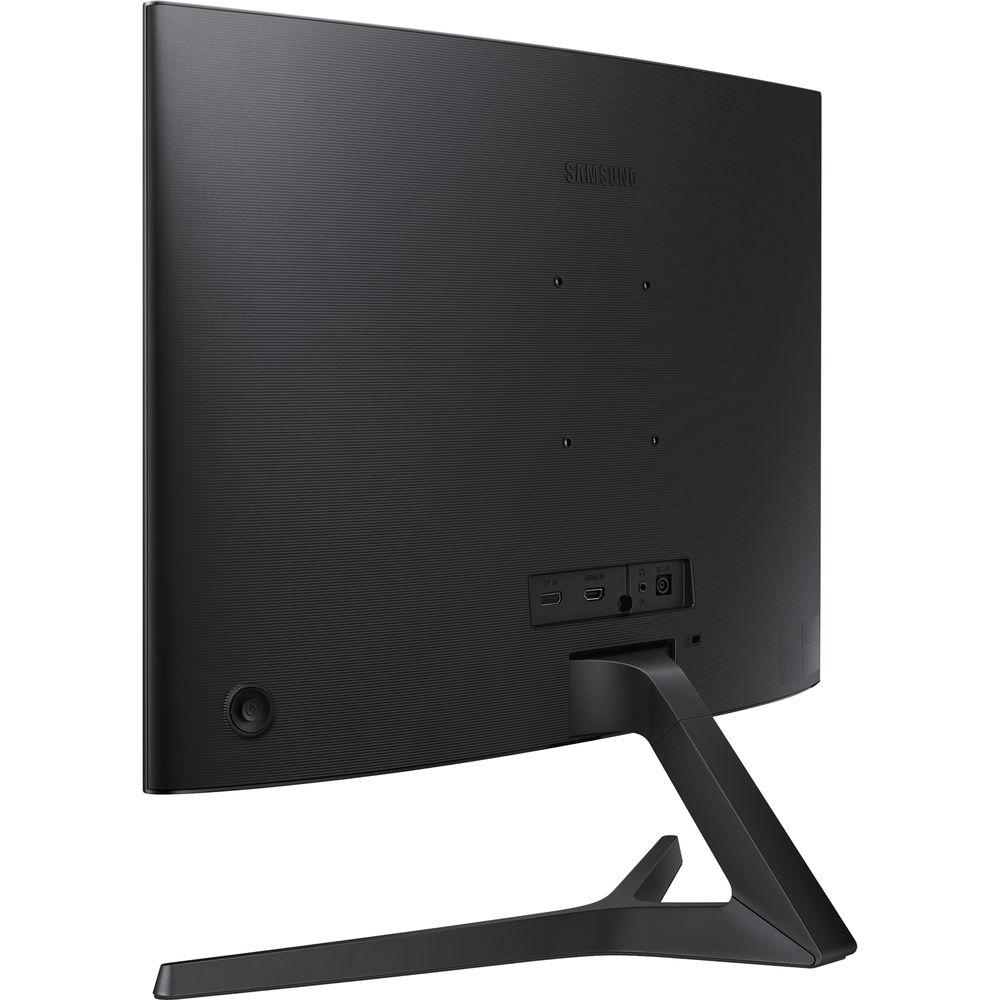

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 398 Series C27F398 27" 16:9 Curved LCD Monitor from Samsung features a curved Vertical Alignment (VA) panel, mimicking the curvature of the human eye, for an immersive experience, whether you're playing games, watching movies, or even working. It has an ultra-slim design, which fits nicely on any desk, and is complimented with a simple tilting stand. Enjoy crisp, clear pictures in 1920 x 1080 Full HD resolution, and darker blacks and brighter whites with a 250 cd/m² brightness rating and 3000:1 static contrast ratio. Connect this monitor to your system via HDMI or DisplayPort, and at the back of the monitor you'll find 75 x 75mm VESA mounting holes should you want to install an alternate wall-mount or stand. - Immersive Viewing Experience with Curved Screen
- The curved screen provides an immersive viewing experience that lets you enjoy stunning panoramic views for work or play.
- Game Mode
- When enabled, Game Mode disables the standard image processing the monitor normally performs and allows the game itself to adjust the settings to provide the best picture for that game.
- Eye Saver Mode
- Reduce blue light emissions and flickering at the touch of a button. With Eye Saver mode, you'll be able to read documents, play games, watch movies, and edit photos for long periods of time without eye strain or fatigue.
- Eco-Friendly Monitor
- The Eco-Saving Plus feature reduces screen brightness to save power. Plus the screen brightness automatically transitions to reduce energy use even more.
- Additional Features
-
- Samsung MagicBright
- Samsung MagicUpscale
- Flicker Free
UPC: 887276151069 In the Box Samsung 398 Series C27F398 27" 16:9 Curved LCD Monitor Power Cable HDMI Cable Limited 1-Year Warranty Samsung C27F398 User's Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 398 Series C27F398 27" 16:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LC27F398FWNXZA Specs | | | Size | 27" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 81 ppi | | Finish | Glossy | | Contrast Ratio | 3000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x 3.5 mm Output
1 x DisplayPort 1.2 Input
1 x HDMI | | | | Power Consumption | 0.3 W (Standby)
25 W (Typical) | | | | Tilt Adjustment | -2 to 22° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 24.5 x 14.5 x 3.2" / 62.3 x 36.8 x 8.2 mm (Without Stand)
24.5 x 18.4 x 9.6" / 62.3 x 46.6 x 24.3 mm (With Stand) | | Weight | 9 lb / 4.1 kg (With Stand)
7.9 lb / 3.6 kg (Without Stand) | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 27.5 x 17.5 x 7.0" |
