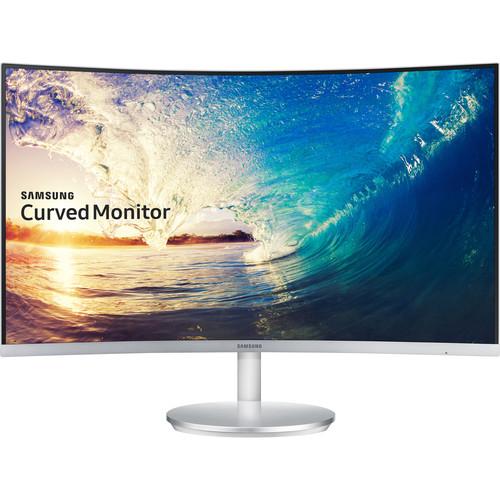

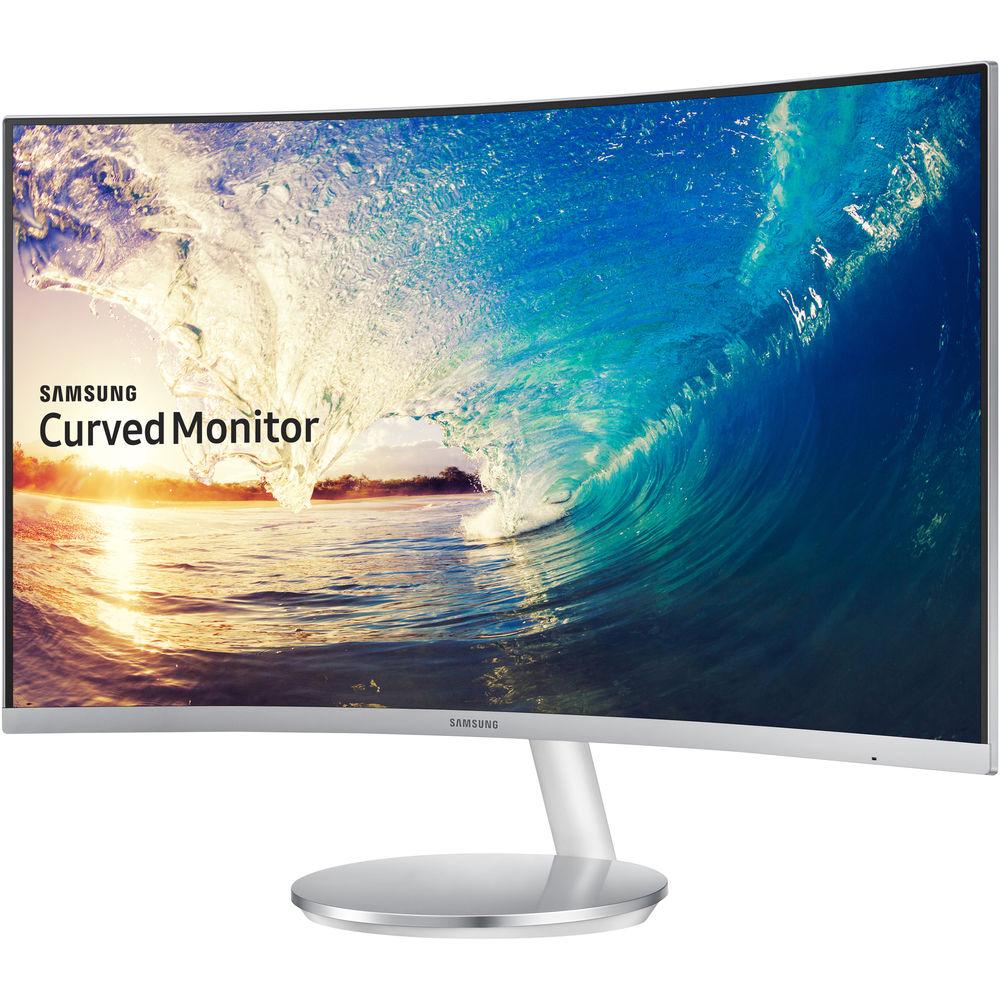

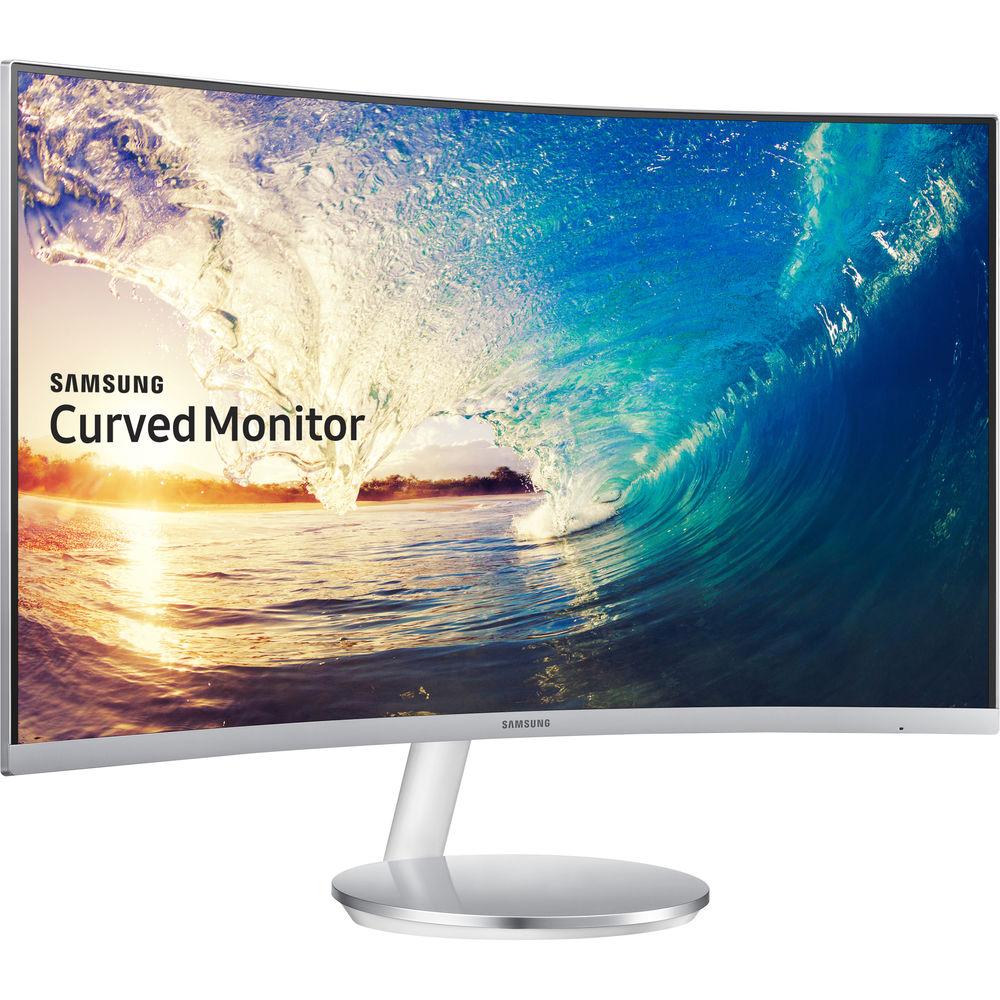

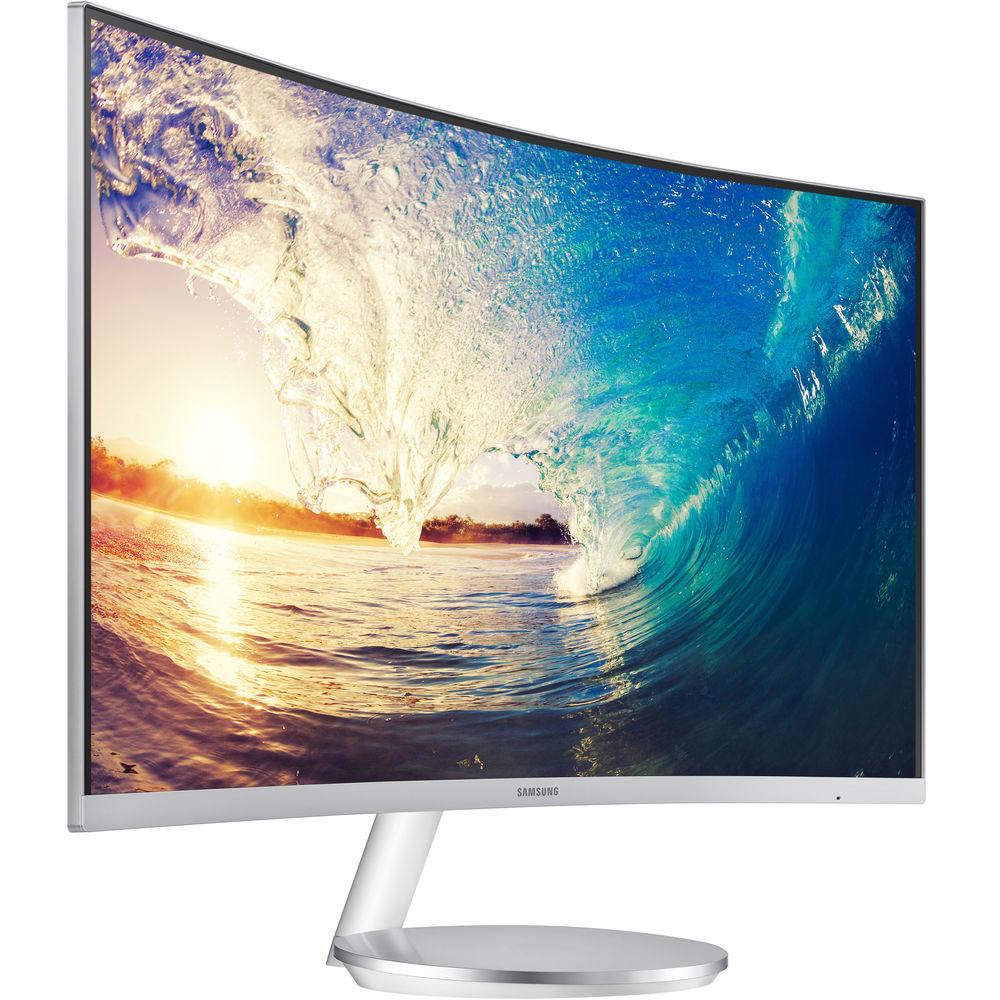

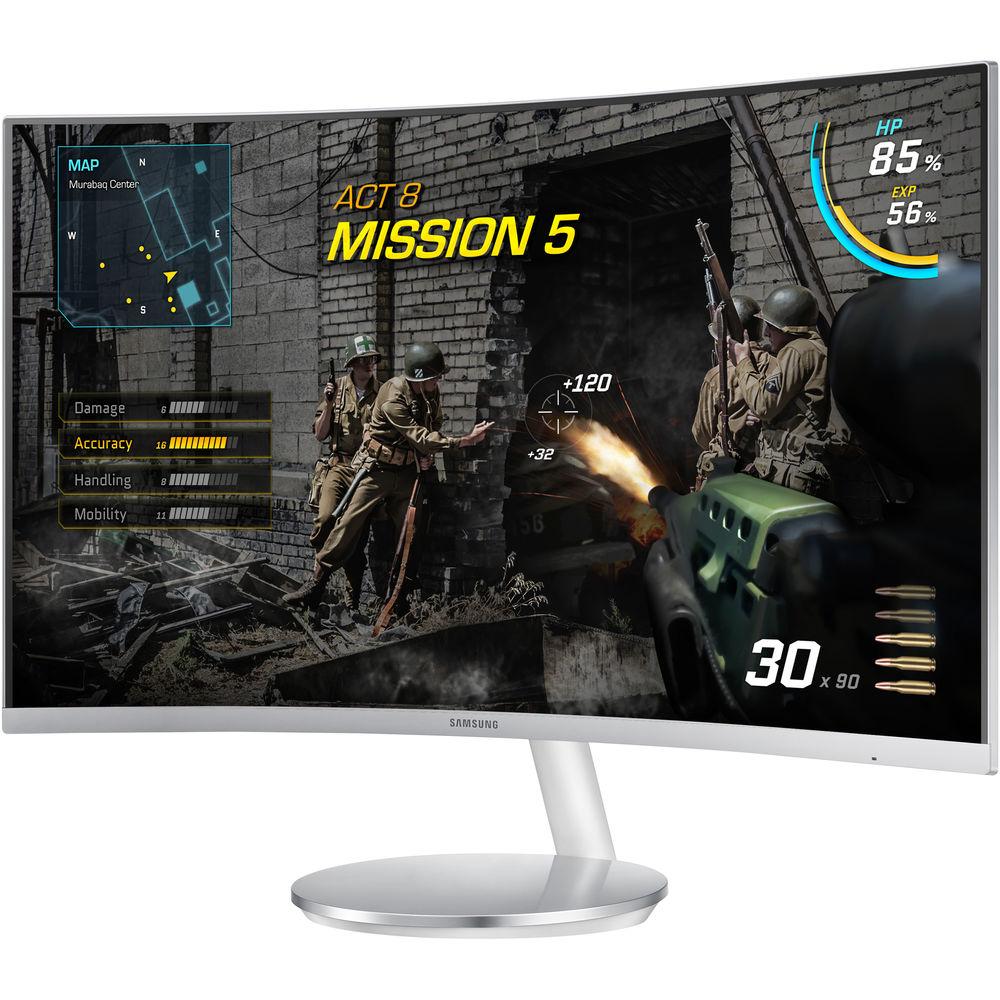

User Manual for Samsung 591 Series C27F591 27" 16:9 Curved FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung 591 Series C27F591 27" 16:9
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung 591 Series C27F591 27" 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 591 Series C27F591 27" 16:9 Curved FreeSync LCD Monitor from Samsung is built with a Vertical Alignment (VA) panel that delivers wide viewing angles and color reproduction similar to that of an In-Plane Switching (IPS) panel. The curve of this monitor mimics the curvature of the human eye for an immersive viewing experience, whether you're playing games, watching movies, or even working. It has a sleek design, which fits nicely on any desk, complimented with a simple tilting stand. Enjoy crisp, clear pictures in 1920 x 1080 Full HD resolution, and darker blacks and brighter whites with a 250 cd/m² brightness rating, a 3000:1 static contrast ratio, and support for 16.7 million colors. Furthermore, with a 4 ms response time and FreeSync technology, which syncs your graphics card's frame rate output to the monitor's refresh rate, you'll be able to enjoy smooth, lag-free gaming without stuttering, ghosting, and frame skipping. - Immersive Viewing Experience with Curved Screen
- The curved screen provides an immersive viewing experience that lets you enjoy stunning panoramic views for work or play.

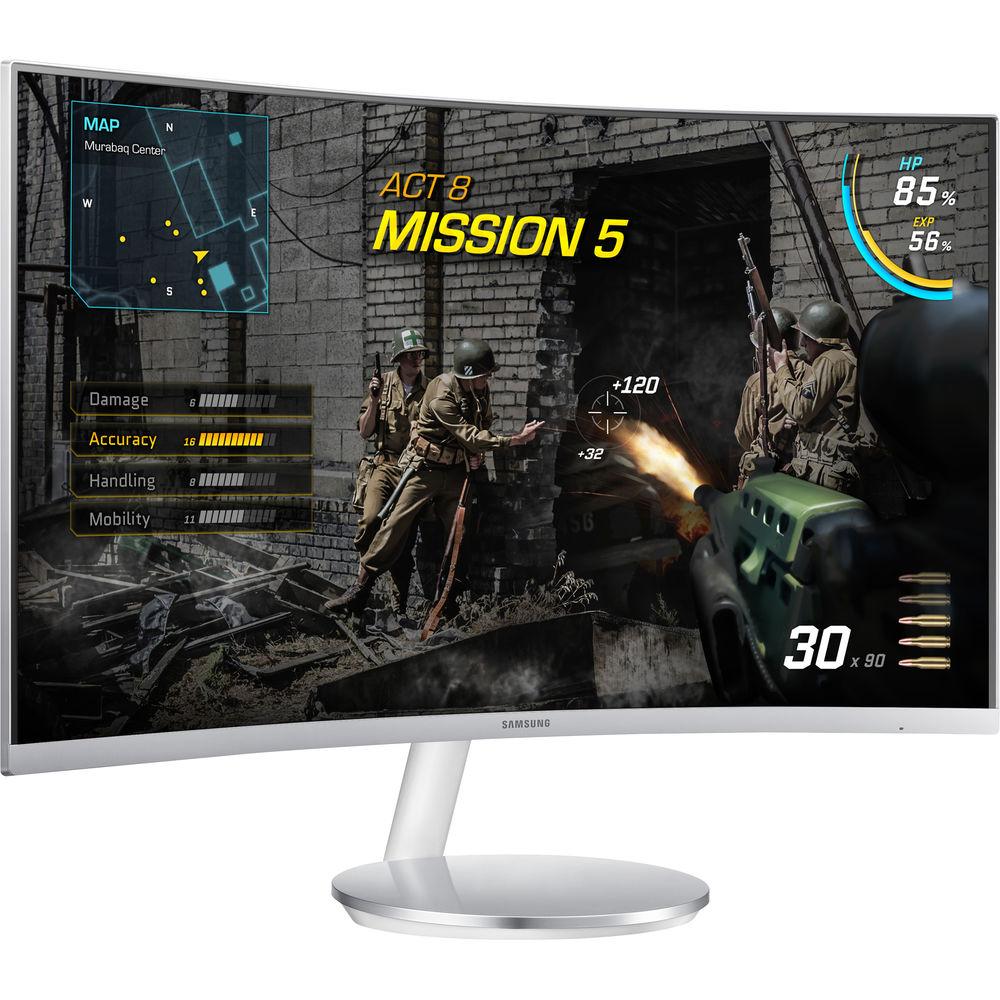

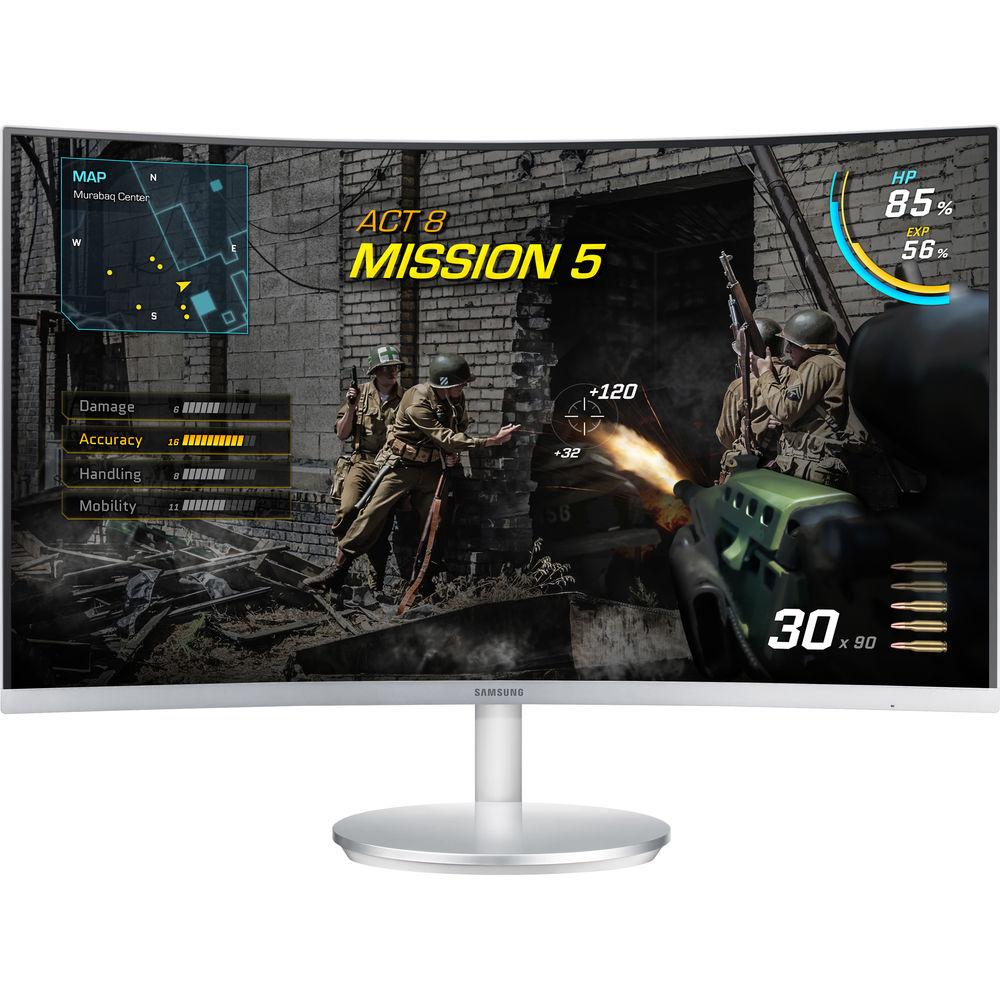

- Advanced Gaming Experience with AMD FreeSync
- AMD FreeSync technology dynamically syncs the frame rate output of your graphics card to the refresh rate of the display to reduce image tearing and stutter during gaming. With its 4 ms response time, you'll be able to enjoy smooth gameplay with less motion blur, judder, and ghosting.
- Built-In Speakers
- Built-in 5W stereo speakers deliver rich sound for watching movies or playing games.
- Eye Saver Mode
- Reduce blue light emissions and flickering at the touch of a button. With Eye Saver mode, you'll be able to read documents, play games, watch movies, and edit photos for long periods of time without eye strain or fatigue.
- Eco-Friendly Monitor
- The Eco-Saving Plus feature reduces screen brightness to save power. Plus the screen brightness automatically transitions to reduce energy use even more.
UPC: 887276137803 In the Box Samsung 591 Series C27F591 27" 16:9 Curved FreeSync LCD Monitor Power Cable HDMI Cable Limited 1-Year Warranty User Manual PDF 1.3mb More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung 591 Series C27F591 27" 16:9 Curved FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LC27F591FDNXZA Specs | | | Size | 27" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 81 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 119.3% sRGB | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°

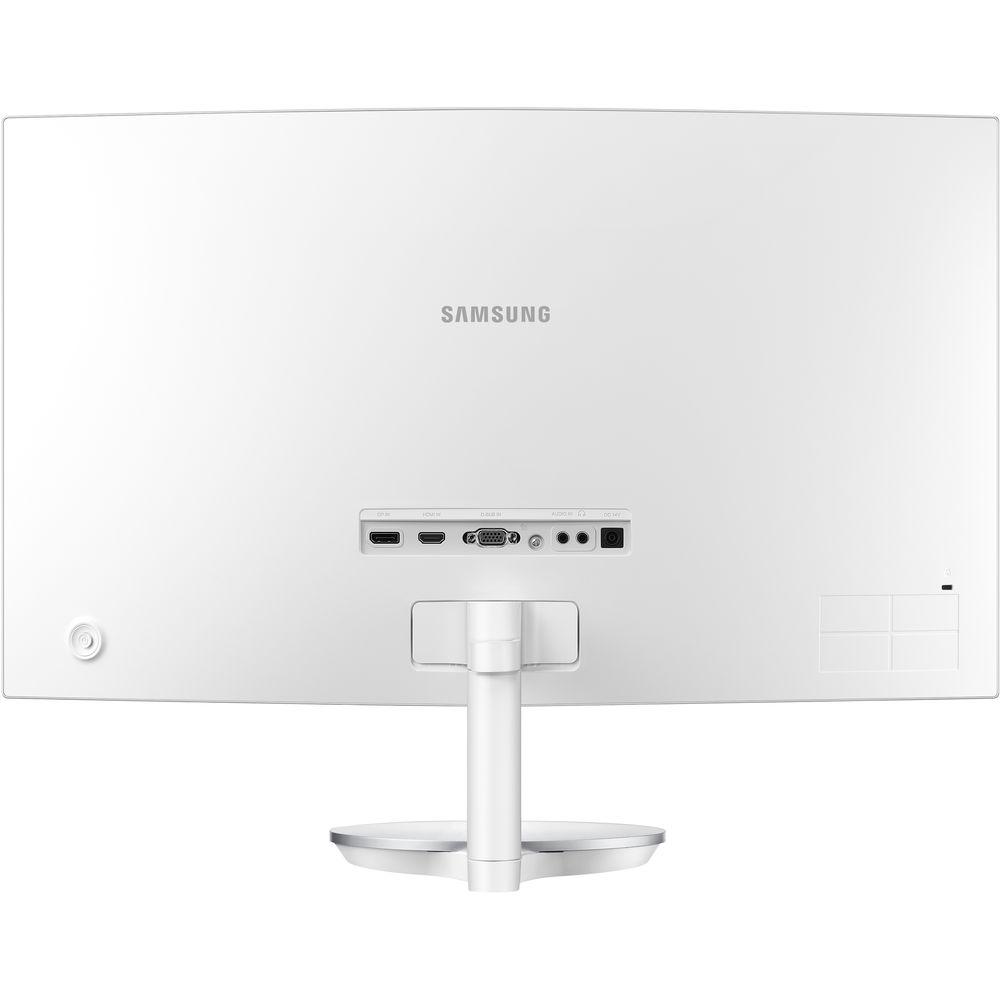

Vertical: 178° | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DisplayPort Input
1 x HDMI
1 x VGA | | Built-In Speakers | Yes | | | | Power Consumption | 0.3 W (Standby)

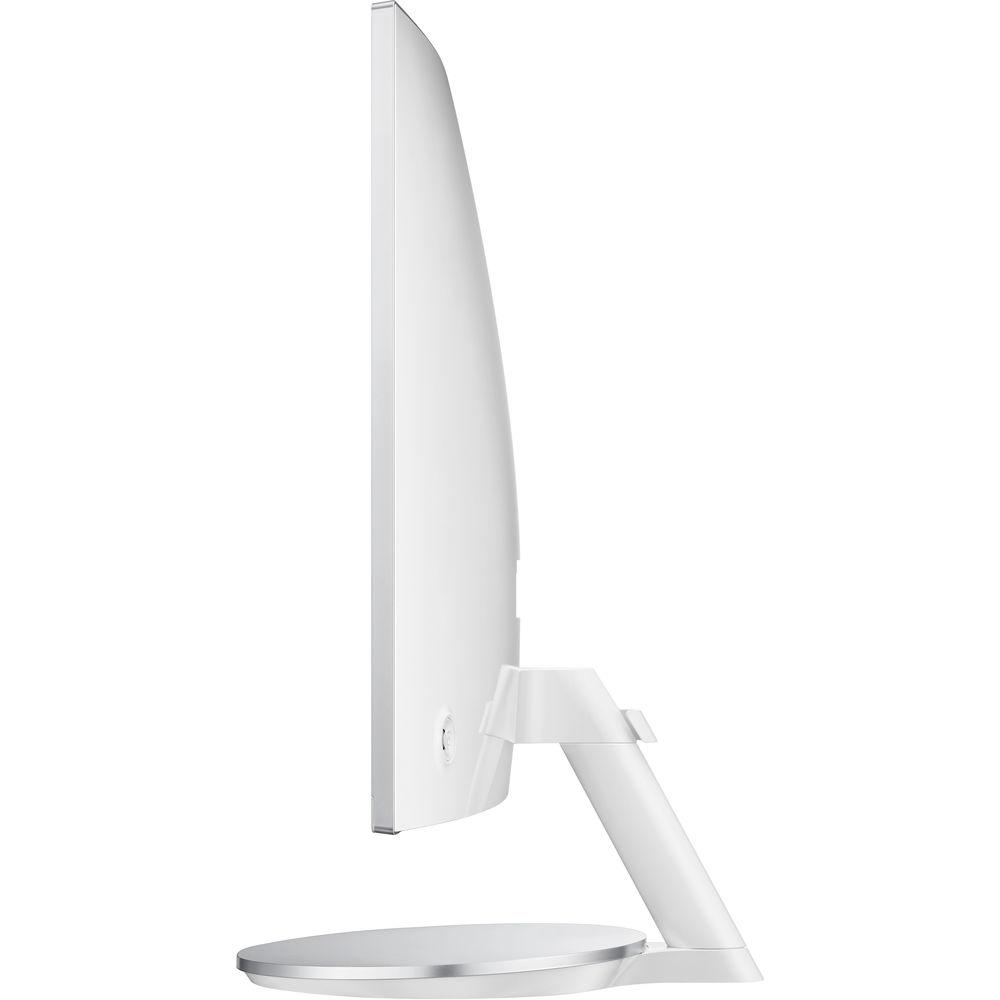

36 W (Typical) | | DC Input Power | 14 VDC at 3.22 A | | | | Tilt Adjustment | -2 to 20° | | Dimensions (W x H x D) | 24.2 x 17.0 x 10.6" / 61.5 x 43.2 x 26.9 mm (With Stand)
24.2 x 14.3 x 5.6" / 61.5 x 36.3 x 14.2 mm (Without Stand) | | Weight | 9.7 lb / 4.4 kg (With Stand)
7.7 lb / 3.5 kg (Without Stand) | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 26.5 x 16.5 x 7.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
