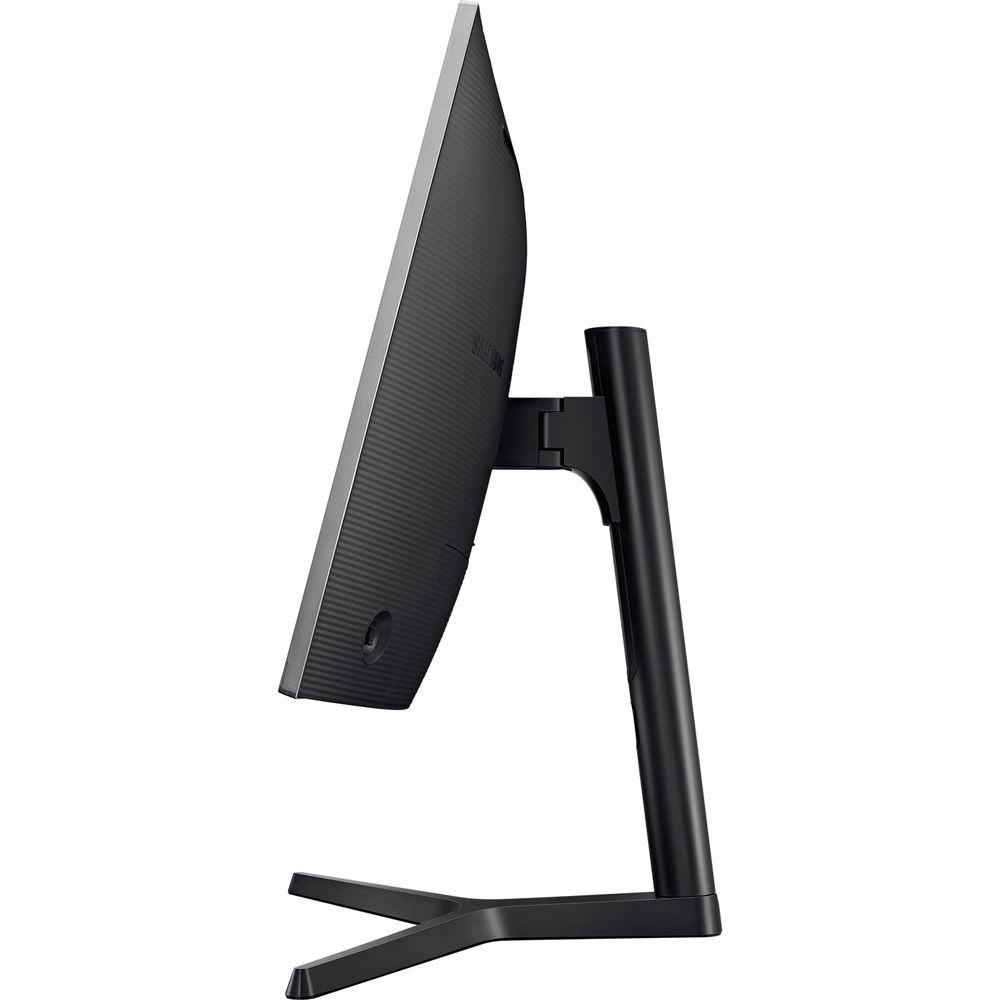

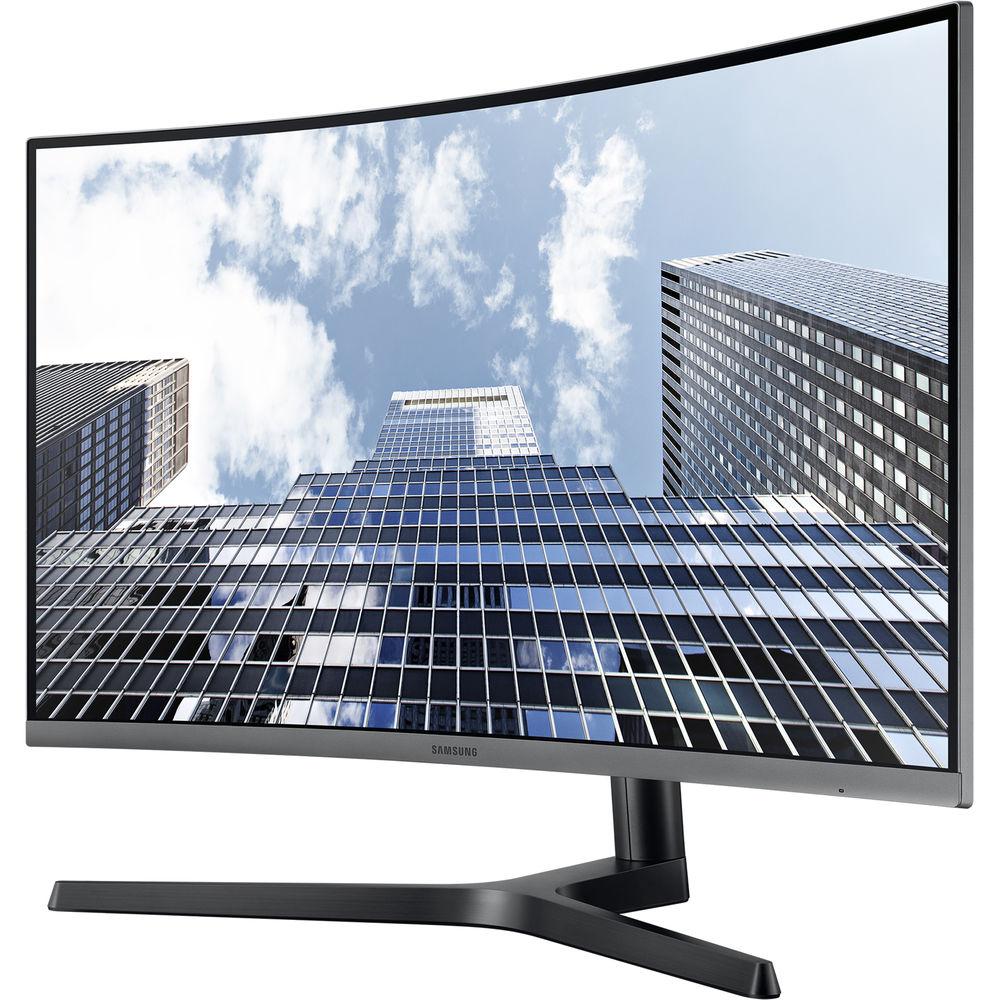

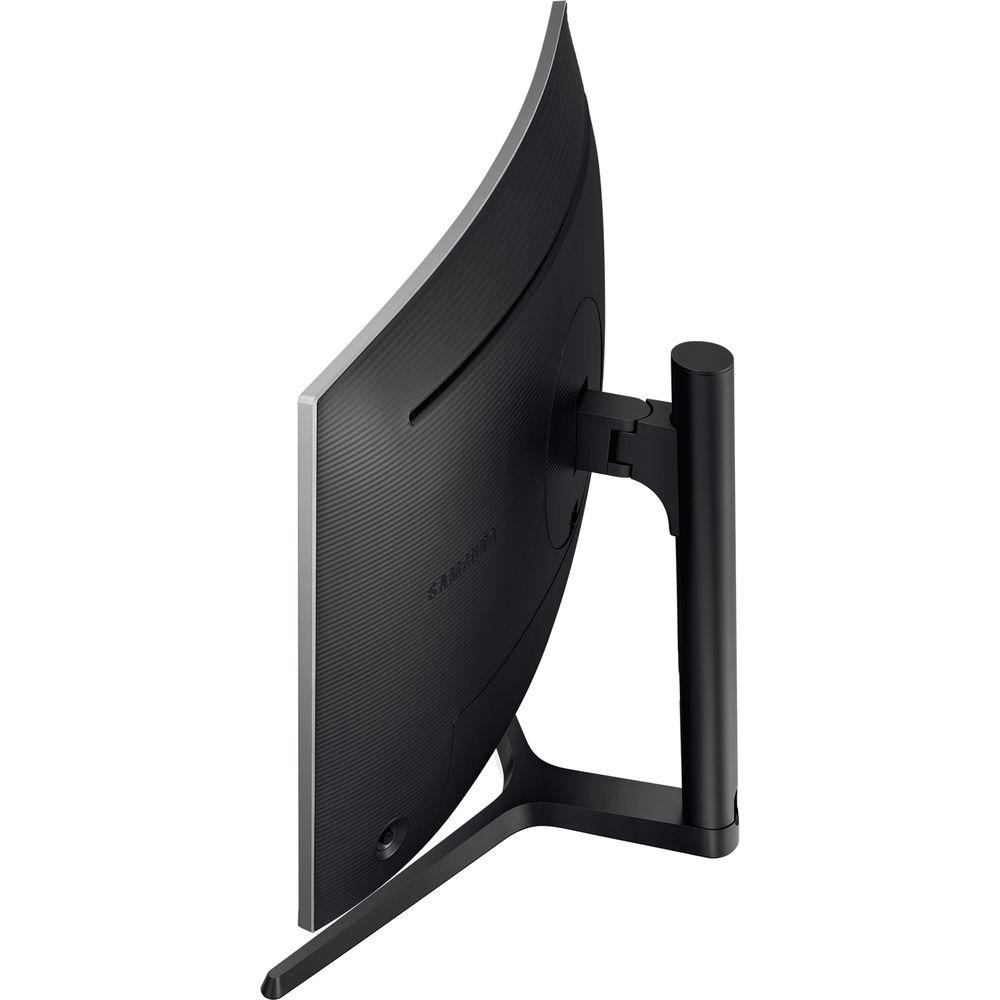

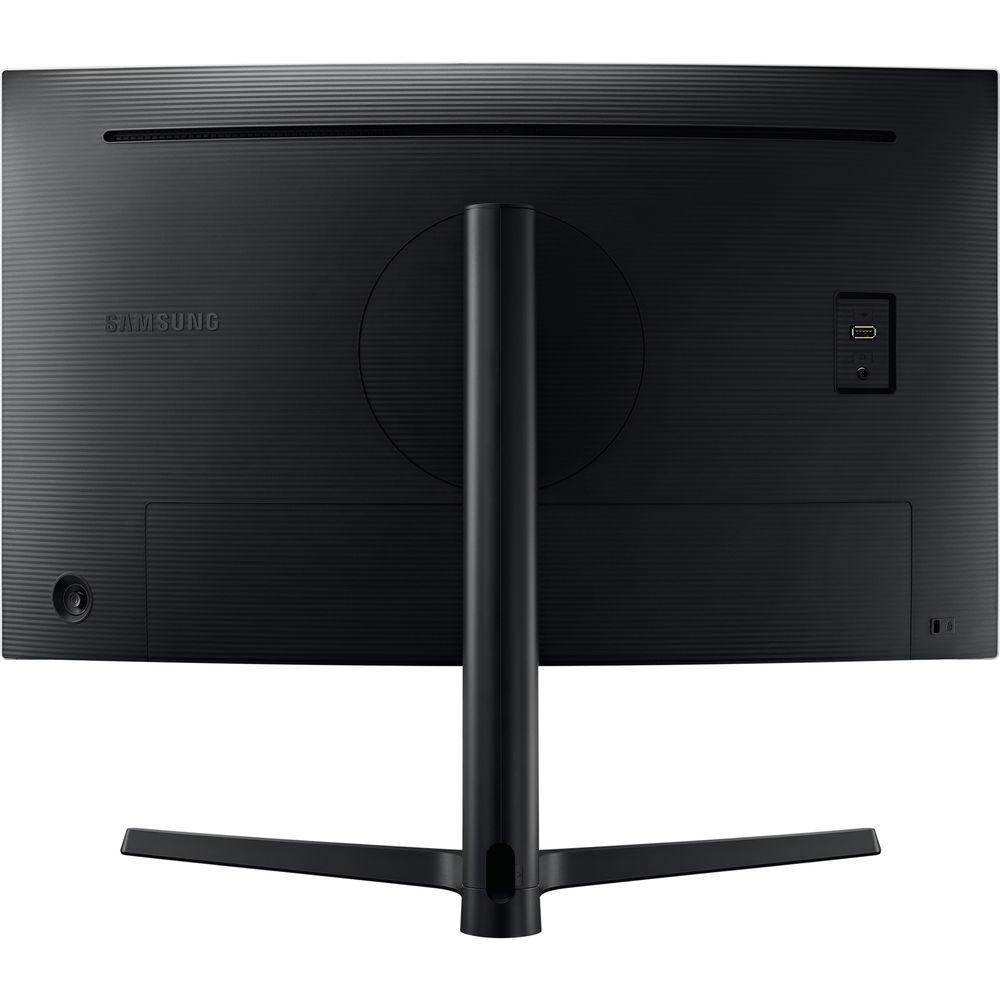

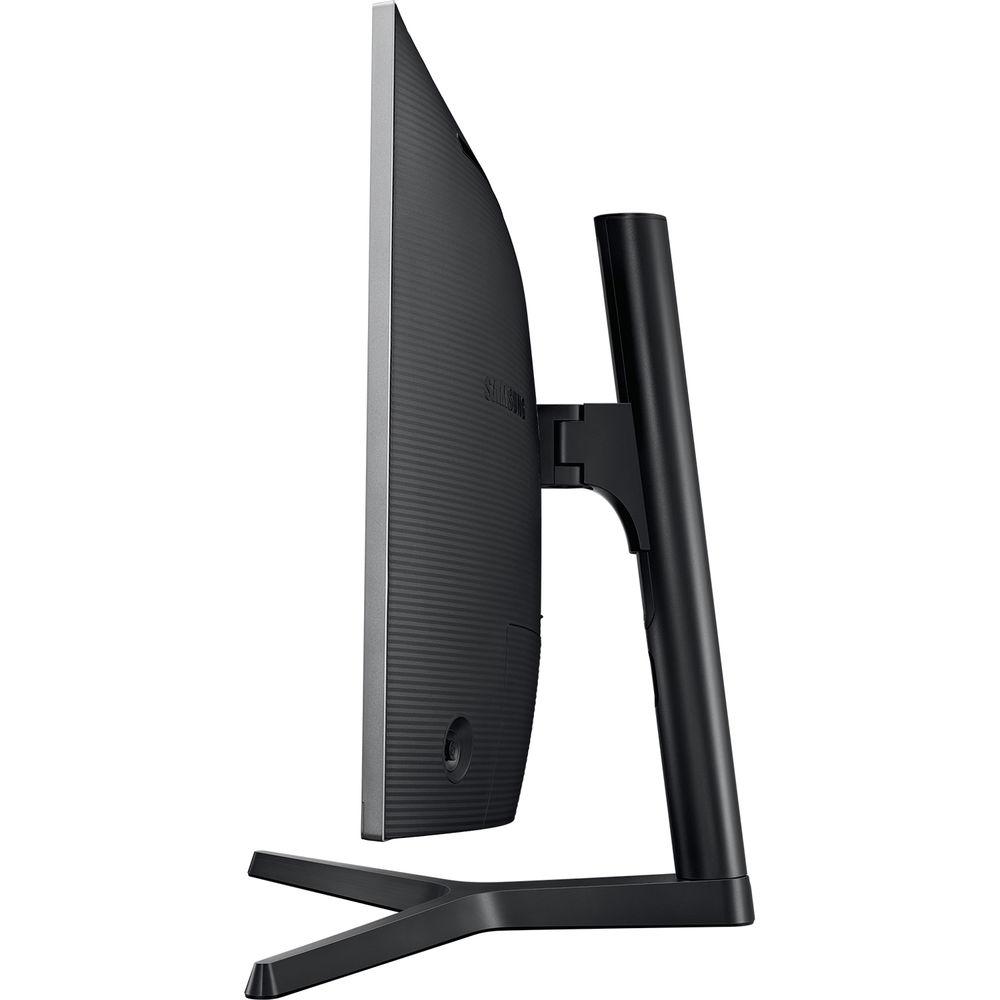

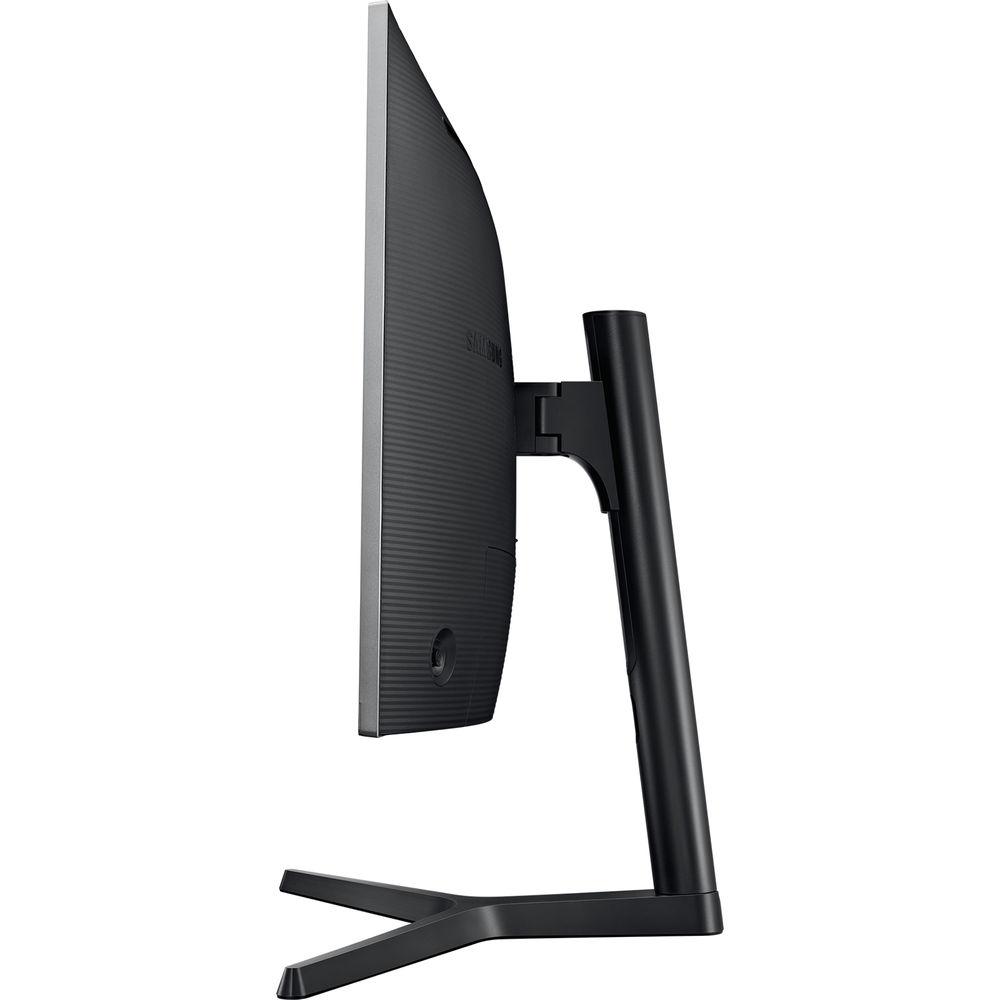

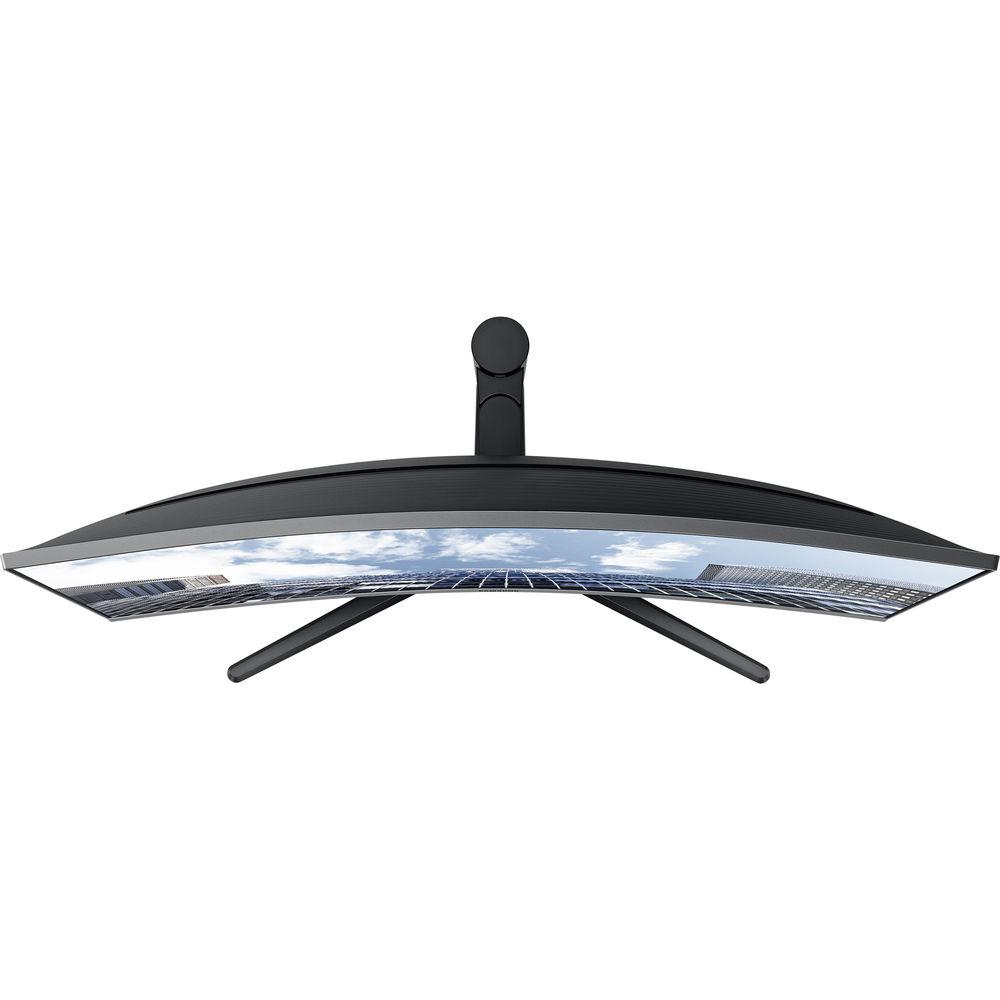

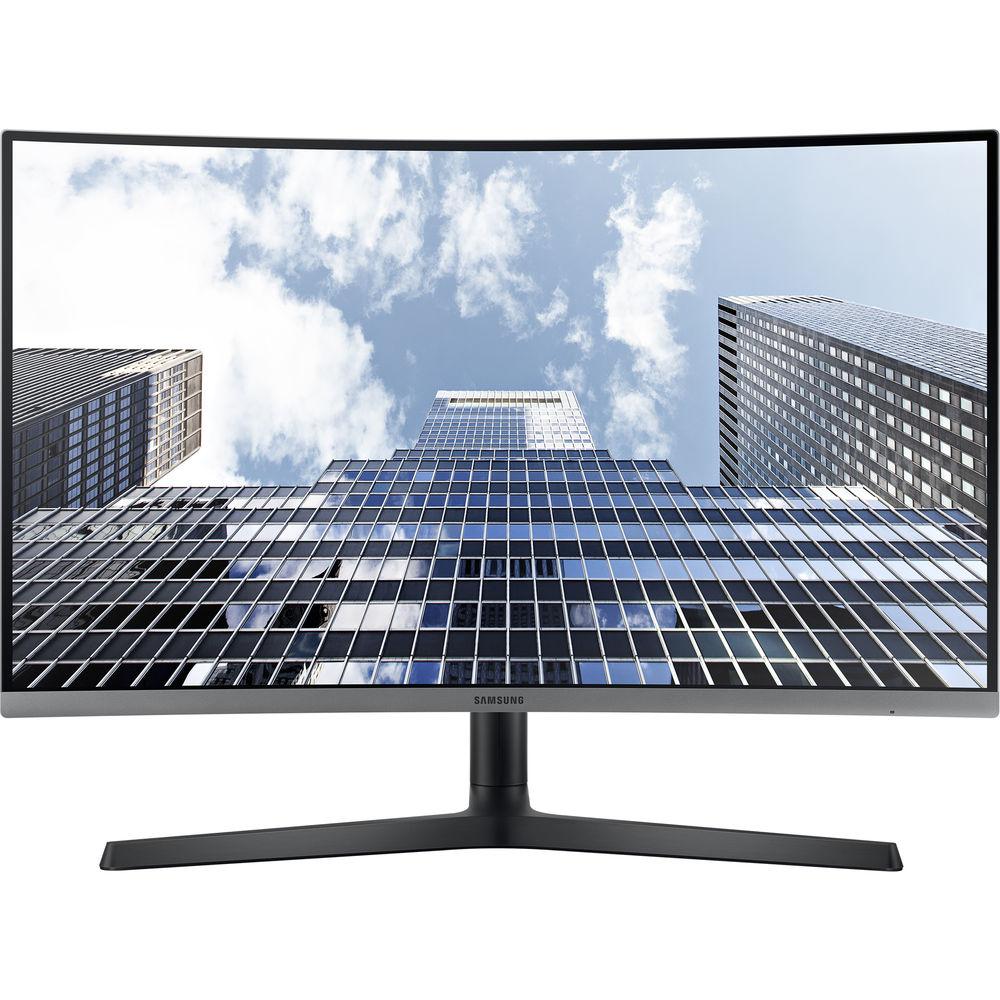

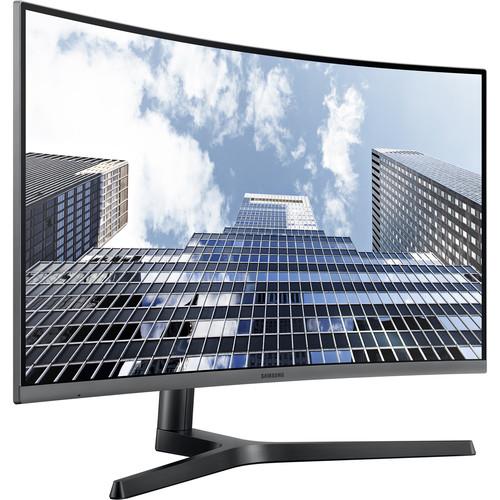

User Manual for Samsung C27H800FCN 27" 16:9 Curved FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung C27H800FCN 27" 16:9 Curved FreeSync
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung C27H800FCN 27" 16:9 Curved FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

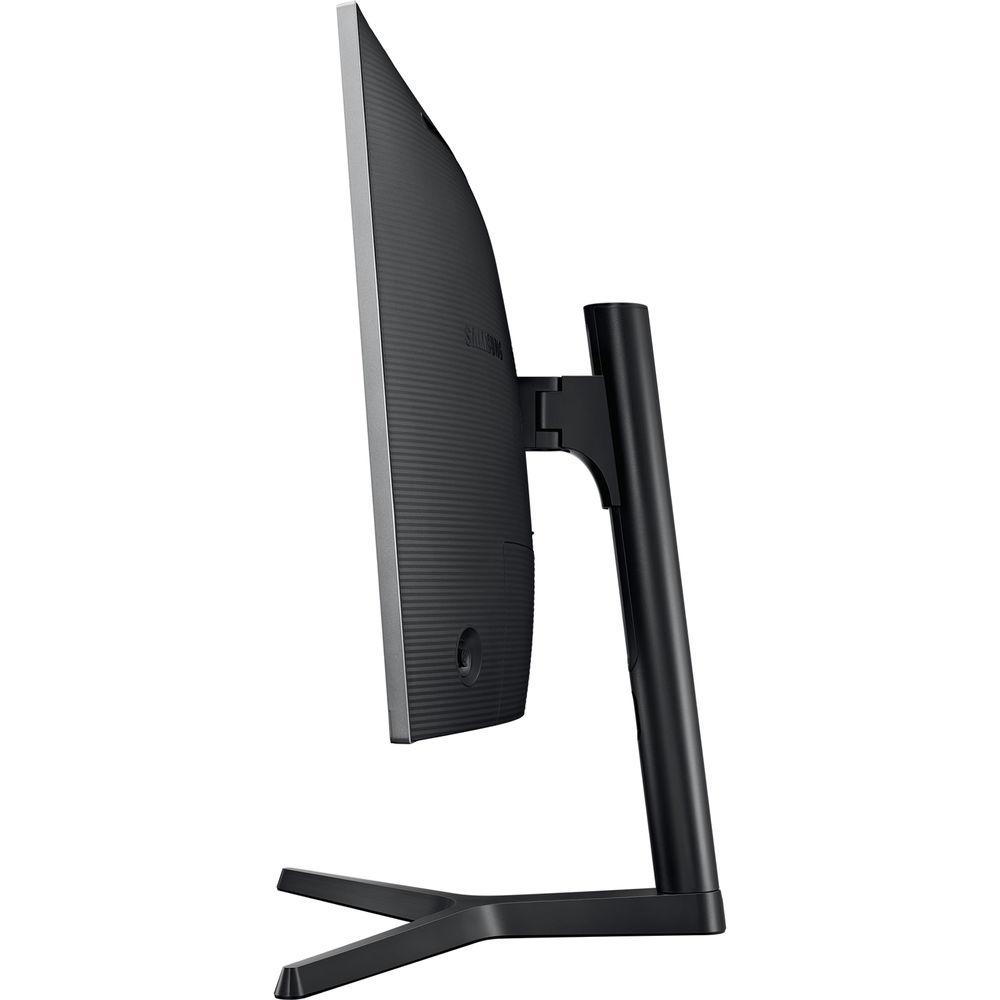

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The C27H800FCN 27" 16:9 Curved FreeSync LCD Monitor from Samsung features an 1800R curved display and ultra-thin bezels that provide you with an immersive viewing experience by putting you directly in the middle of the action. It's built with a VA (Vertical Alignment) Panel, which offers wide 178° viewing angles, vivid colors, and a 5 ms response time. With a 1920 x 1080 resolution, it can display crisp and clear Full HD content. Moreover, it has a 250 cd/m² brightness rating and a 3000:1 static contrast ratio that delivers brighter bright colors and darker blacks. Thanks to AMD FreeSync technology, you'll be able to enjoy smooth playback with less stuttering and screen tearing. Connect this display to your system via HDMI, DisplayPort, or USB Type-C and tilt, swivel, pivot, and adjust its height to your preference. For your convenience, it also has a built-in USB 3.0 hub that you can use to connect peripherals such as a mouse, keyboard, and flash drive. - 1800R Curved Display
- The 1800R curved display wraps around the edges of your field of view, placing you right in the middle of the action. Combined with its ultra-slim bezels, you'll be able to enjoy a more immersive viewing experience.
- USB Type-C Port
- The USB Type-C port can be used to transmit video, data, and power. This monitor is also equipped with three USB ports for connecting peripherals such as a mouse, keyboard, and flash drive.
- Daisy Chain
- With DisplayPort-in and -out connections, you'll be able to daisy-chain up to 4 Full HD monitors or 2 QHD monitors with a single connection.
- AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate to your graphics card's frame rate output for a smoother gaming experience with less stuttering and screen tearing.
- Game Mode
- Game mode features multiple profiles optimized for different game genres. It enhances colors and adjusts contrast for sharper and more vivid pictures.
- Eye-Friendly
- Thanks to Eye-Saver mode and Flicker-Free technology, you'll have a more comfortable viewing experience, even during extended periods. Eye Save mode reduces blue light levels and flicker-free technology eliminates flickering at all brightness levels.
- Additional Features
-
- Off Timer Plus
- Samsung MagicBright and MagicUpscale
- Wall Mountable, Height Adjustable Stand
UPC: 887276222530 In the Box Samsung C27H800FCN 27" 16:9 Curved FreeSync LCD Monitor USB Type-C Cable DisplayPort Cable HDMI Cable Power Cable Limited 3-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung C27H800FCN 27" 16:9 Curved FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung C27H800FCN Specs | Screen Size | 27" (68.6 cm) | | Display Type | VA (Vertical Alignment) | | Curvature | 1800R | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m² | | Static Contrast Ratio | 3000:1 (max)
2400:1 (min)
Mega ∞ (dynamic) | | Viewing Angle (H x V) | 178°/178° | | Response Time (GtG) | 5 ms | | Active Display Size (H × V) | 23.54 x 13.24" (59.8 x 33.6 cm) | | sRGB Coverage | 98% | | Color Support | 16.7 million | | Refresh Rate | 60 Hz | | USB Hub | 1 x USB upstream
3 x USB 2.0 Type-A downstream | | Ports and Connectors | 1 x HDMI
1 x USB Type-C
1 x DisplayPort-in
1 x DisplayPort-out
1 x Headphone | | | | Height Adjustment Range | 5.31 (±0.2") (135 (±5 mm)) | | Tilt | -5° (±2°) - 24° (±2°) | | Swivel | -30° (±2°) - 30° (±2°) | | Pivot | -2° (±2°) - 92° (±2°) | | VESA Compatibility | 100 x 100 mm | | | | Power Supply Type | 100-240 VAC | | Power Consumption (Maximum) | 124 W | | Power Consumption (Standby) | < 0.3 W | | Power Consumption (DPMS) | < 0.5 W | | | | Operating Temperature | 50-104°F (10-40°C) | | Operating Humidity | 10-80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 24.2 x 21.3 x 11.1" (61.5 x 54.1 x 28.2 cm)
Without Stand: 24.2 x 14.3 x 3.8" (61.5 x 36.3 x 9.7 cm) | | Weight | With Stand: 13.2 lb (5.99 kg)
Without Stand: 9.5 lb (4.31 kg) | | | | Package Weight | 18.7 lb | | Box Dimensions (LxWxH) | 28.5 x 17.0 x 9.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
