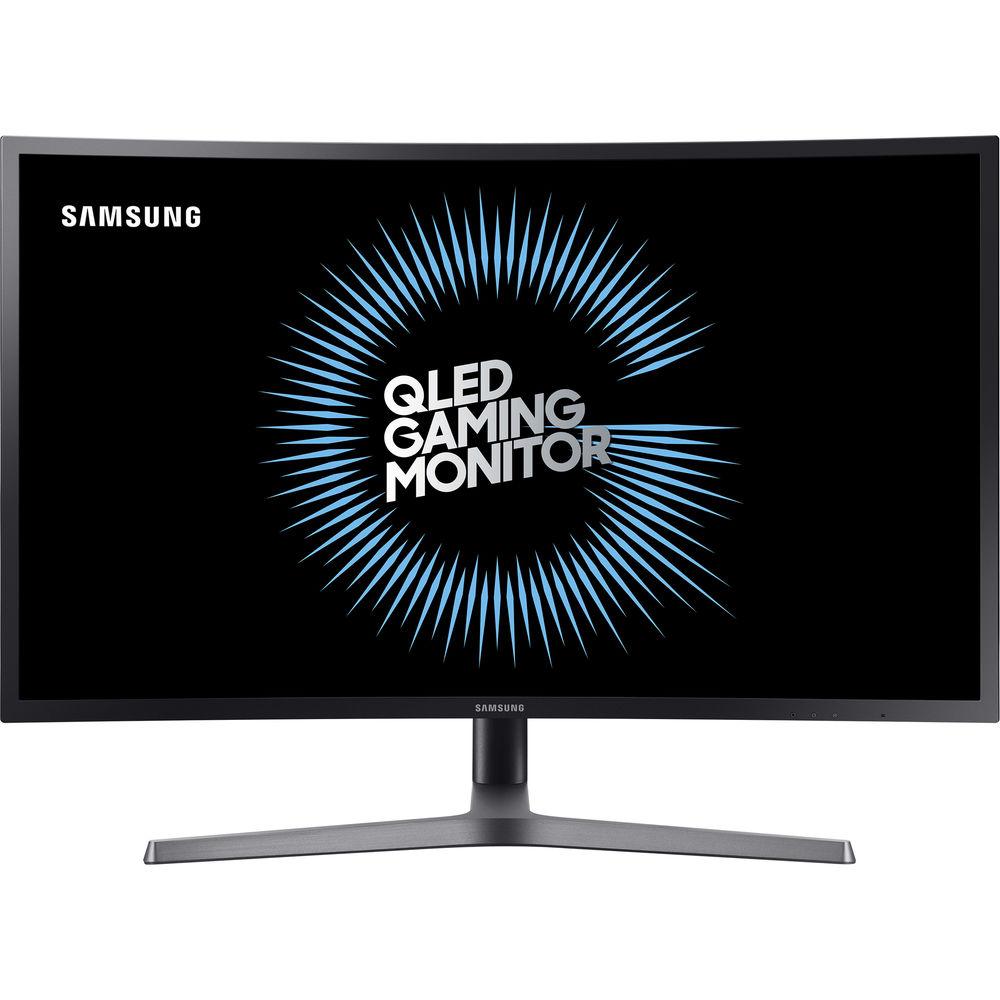

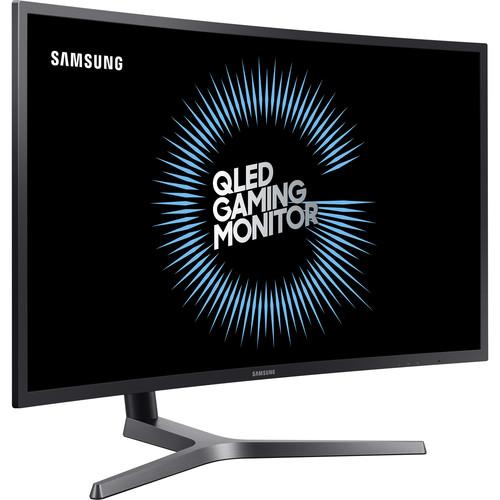

User Manual for Samsung C32HG70 32" 16:9 Curved LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the Samsung C32HG70 32" 16:9 Curved LCD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung C32HG70 32" 16:9 Curved LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

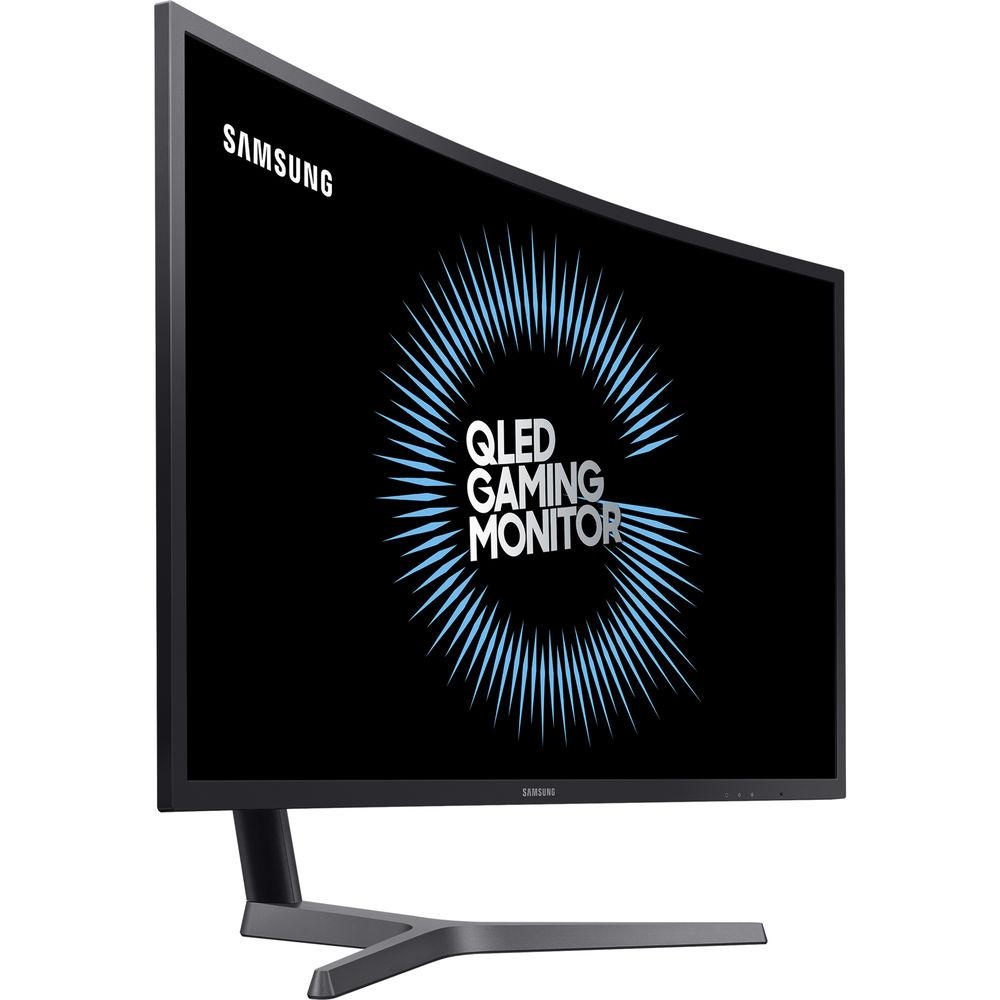

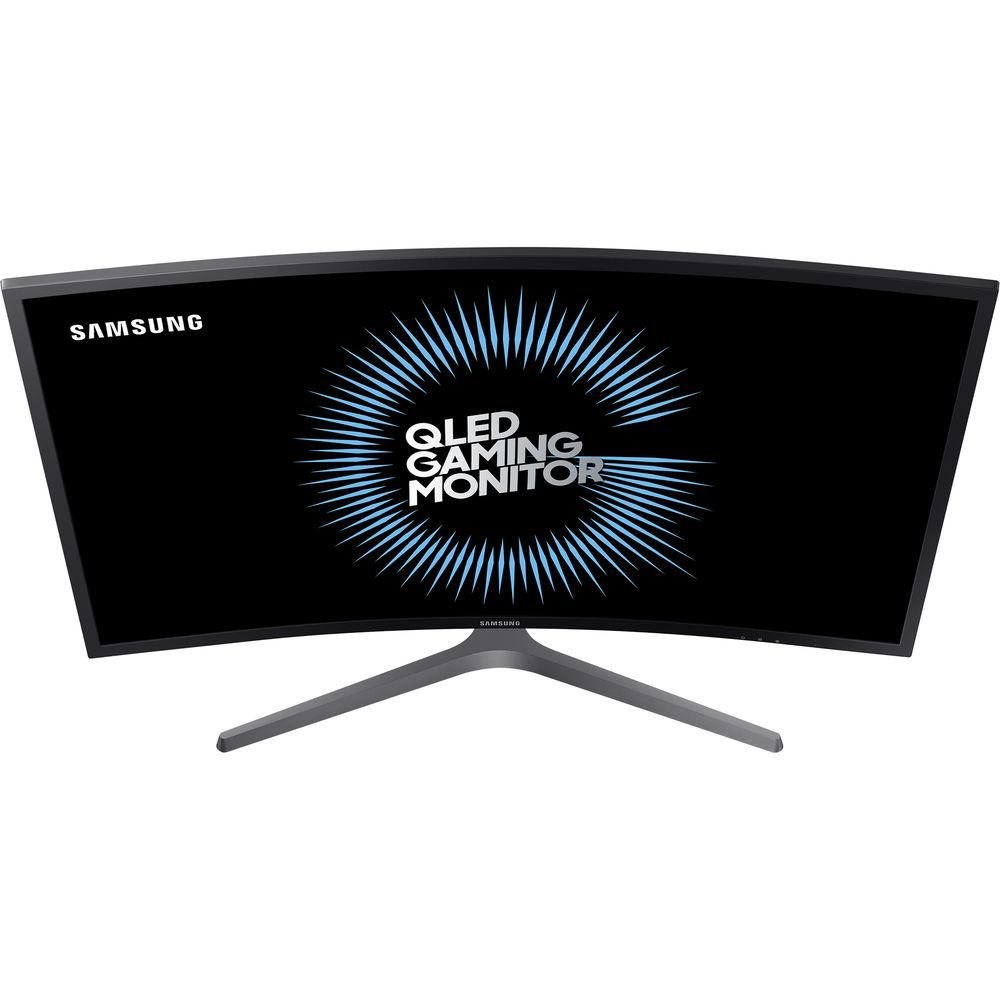

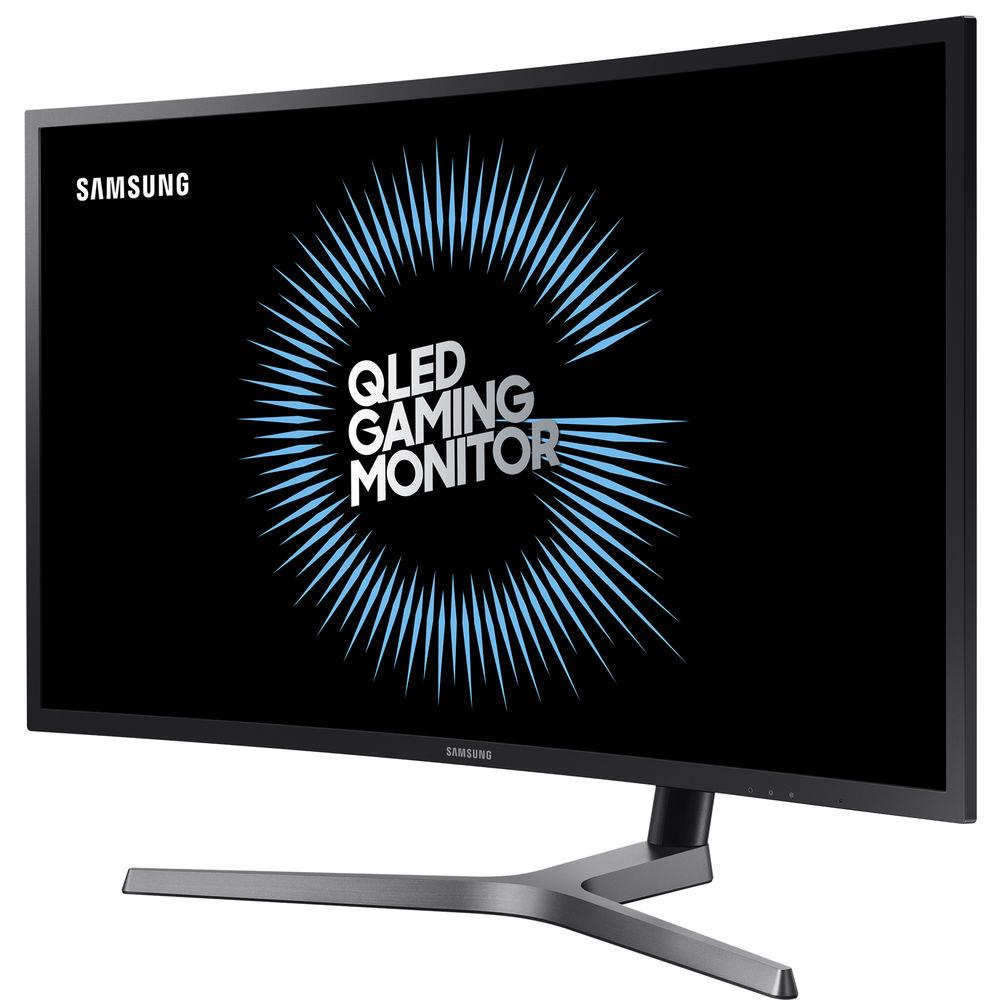

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed with the gamer in mind, the C32HG70 32" 16:9 Curved LCD Gaming Monitor from Samsung comes equipped with a variety of features to enhance your gaming experience, such as Quantum Dot Technology, which supports a billion shades of accurate color for a more immersive gaming experience. Additional features include High Dynamic Range support, which greatly enhances color contrast, a 1 ms response time to reduce ghosting, a 144 Hz refresh rate, and support for AMD FreeSync 2 technology to sync this monitor with compatible graphics cards.
This Samsung gaming monitor features a 1800R curvature for an all-encompassing gaming experience to virtually eliminate the need to turn your head to see the far corners of the display. Setup is simple as this monitor comes equipped with both HDMI and DisplayPort inputs along with a dedicated USB hub, a single 3.5mm audio input, and a headphone jack. Once configured the C32HG70 monitor supports a 2560 x 1440 resolution, a 3000:1 contrast ratio, a 350 cd/m² brightness rating, and support for 178° horizontal and vertical viewing angles. - Quantum Dot Technology
- With Quantum Dot technology, Samsung's QLED Gaming Monitor provides an upgrade in your gaming experience. Quantum Dot makes games appear more lifelike by delivering a billion shades of accurate color.
- High Dynamic Range Support
- The C32HG70 gaming monitor features support for High Dynamic Range (HDR), so dark areas are darker and bright areas are brighter.
- AMD Radeon FreeSync Support
- The CHG70 supports AMD's Radeon FreeSync 2 technology, which gives gamers a smooth, plug-and-play HDR gaming experience with twice the perceivable brightness and color of that offered by the sRGB spectrum without distortion or visual distraction.
- Advanced Motion Blur Reduction Technology
- Blending its advanced motion blur reduction technology with its VA panel, Samsung has created this curved monitor with a super-fast 1 ms MPRT (Motion Picture Response Time) that lets you enjoy enhanced gaming performance without motion blur across the entire screen.
- 144 Hz Refresh Rate
- The fast 144 Hz screen refresh rate ensures flawlessly smooth action scenes even in games with high frame rates. You can also adjust the refresh rate to 60 Hz/120 Hz when necessary.
- Enhanced Pixel Density
- With a pixel density approximately 1.7 times higher than Full HD, the C32HG70 delivers game scenes and characters in detail.

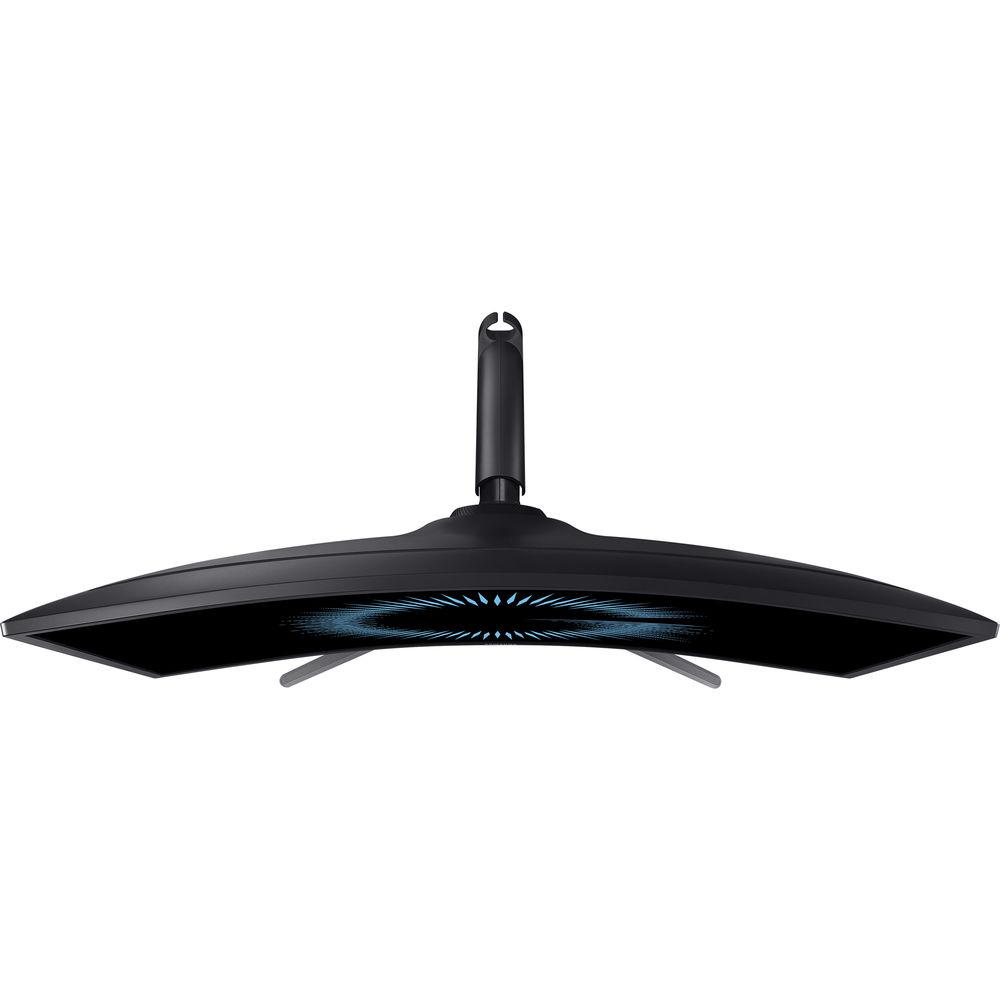

- 1800R Curvature Rating
- Designed to meet your everyday gaming needs, the C32HG70 features an 1800R curvature that gives you the feeling of being pulled in and wrapped around in your gaming world, much like the way an IMAX screen immerse the audience into the movie.
- Arena Lighting
- The C32HG70's arena lighting feature produces a pulsating lightshow on the wall behind it.
- Samsung's OSD Dashboard
- With Samsung's OSD dashboard menu optimally tailored for gamers, you can have a full view of key game settings at a glance and use shortcut keys to change the settings the way you want them.
- Game Display Modes
- The C32HG70 factory-calibrated game display modes instantly optimize black gamma levels, contrast ratios, sharpness, and color value settings for any game genre, be it FPS, RTS, RPG, or AOS.
- Built-In Black Equalizer Technology
- The C32HG70's 20-step Black Equalizer adjusts dark areas in games. Its 3000:1 contrast ratio keeps images sharp, even in the darkest or brightest scene.

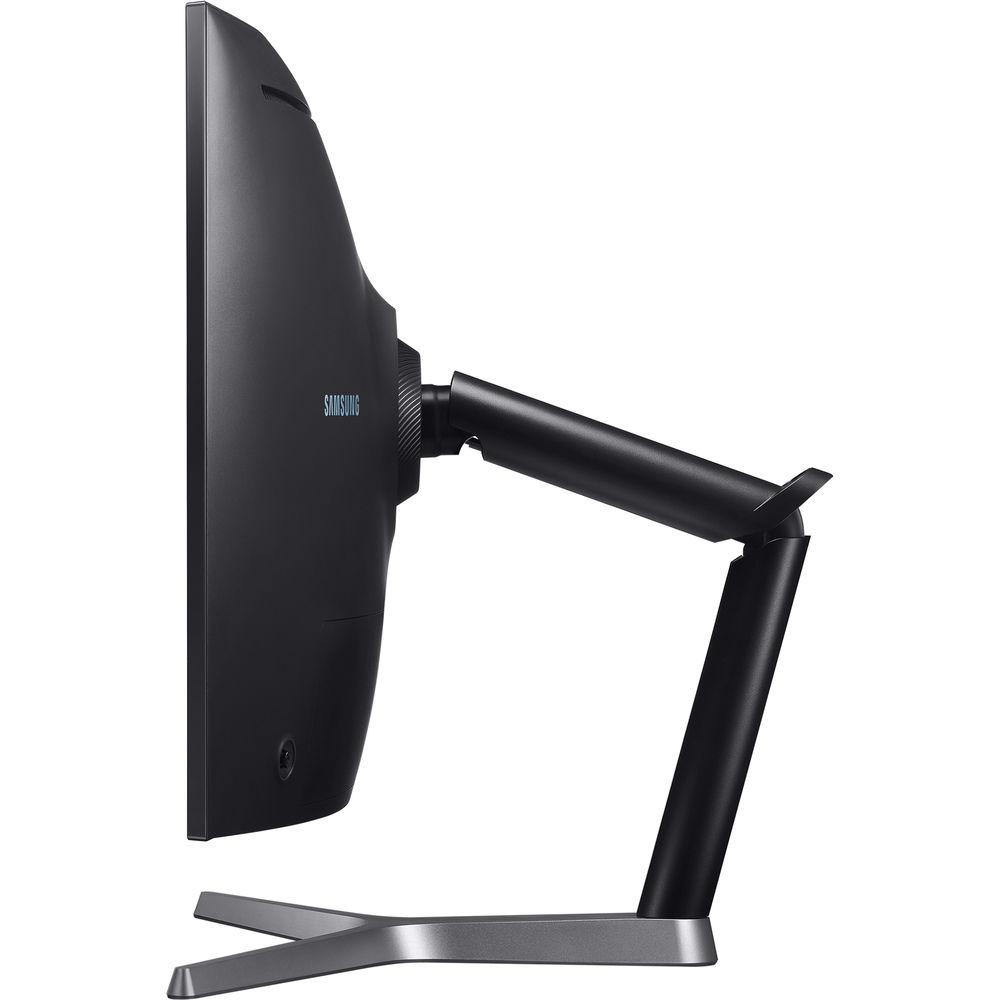

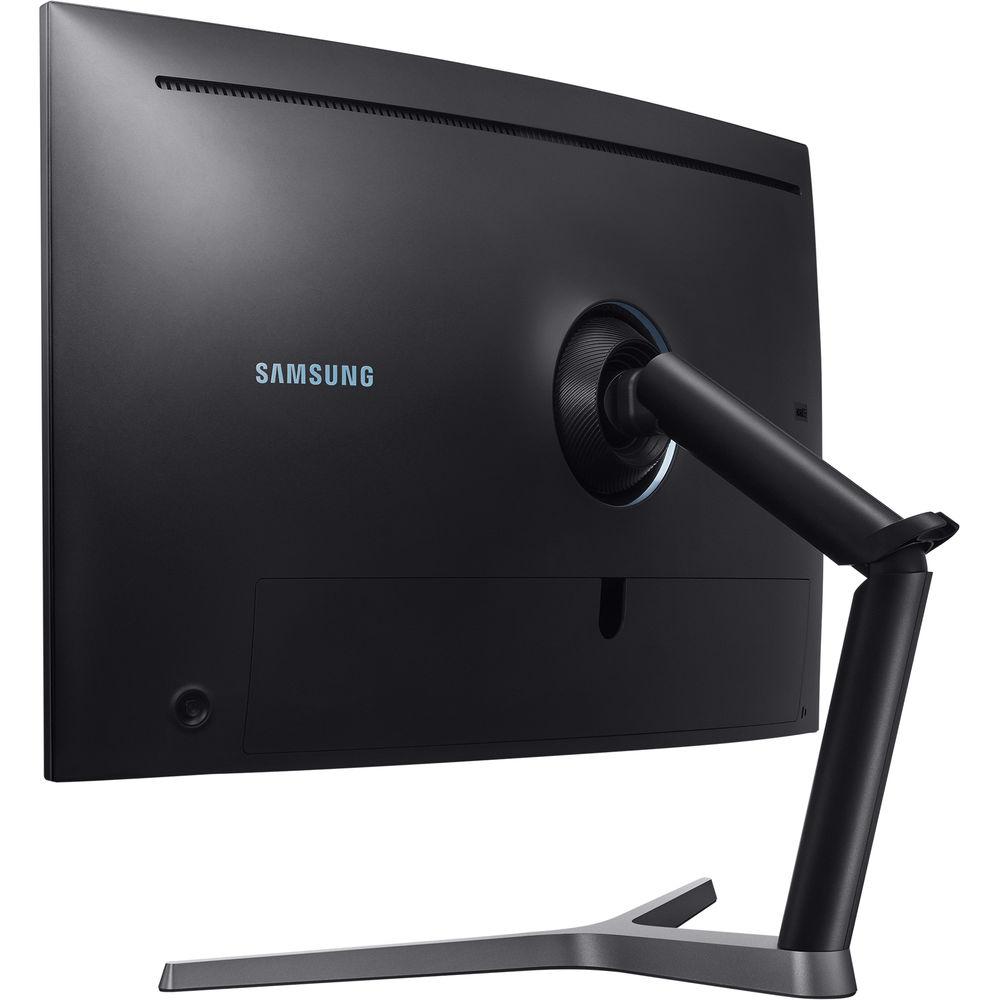

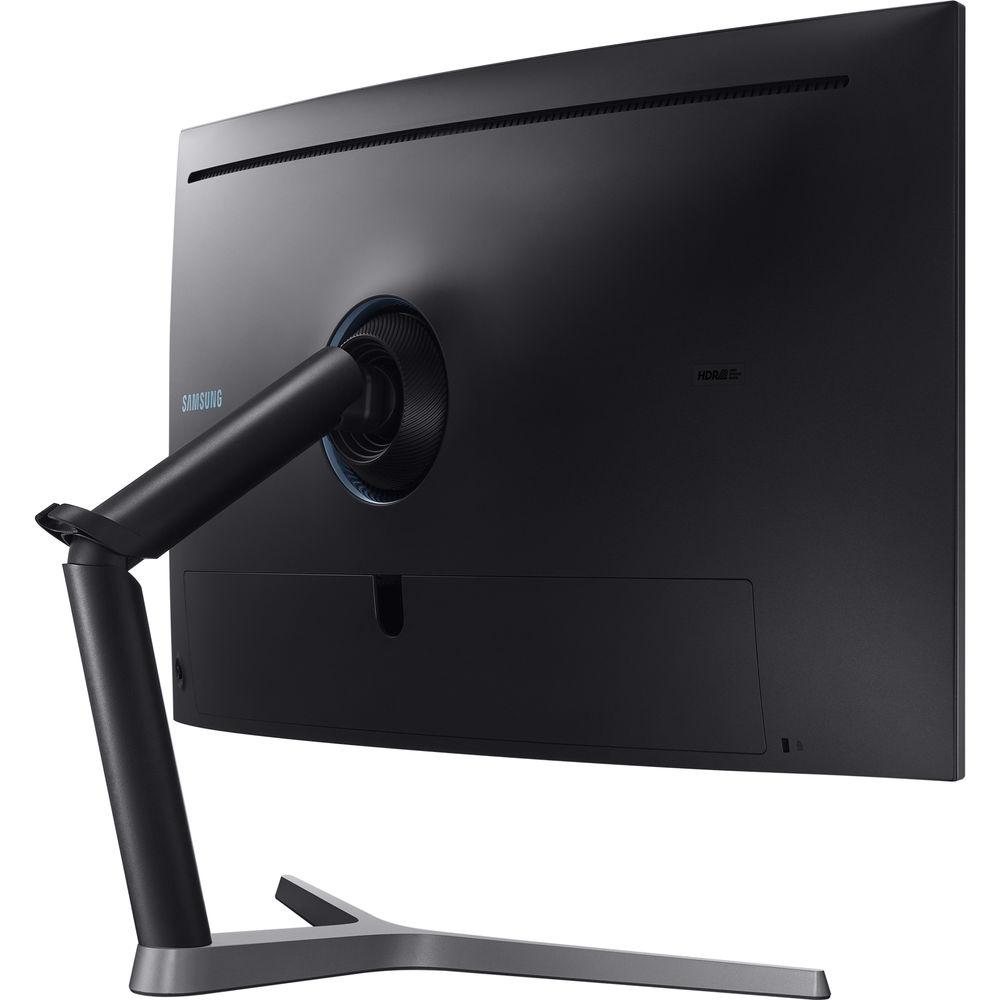

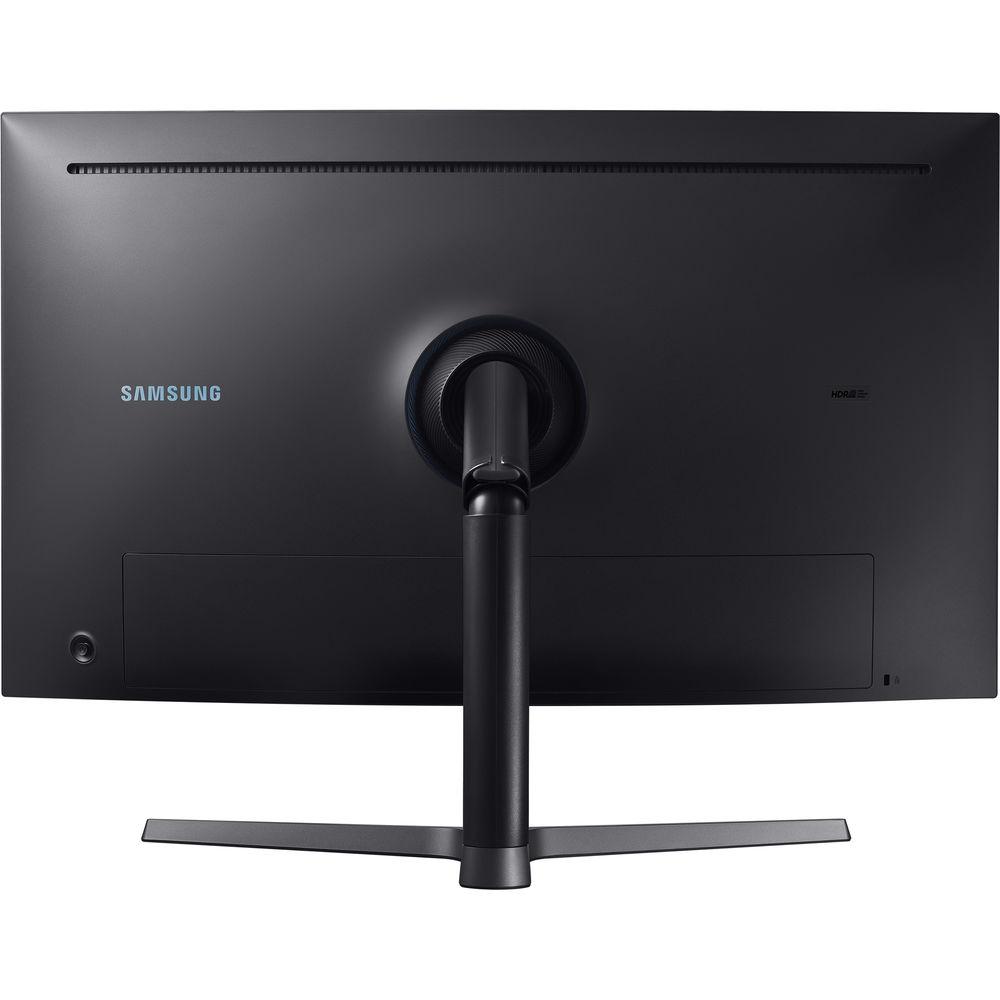

- Strong Dual-Hinge Stand
- Designed with gamers in mind, the strong dual-hinge stand gives you precise control over how you position the display panel. The C32HG70's gamer-friendly design even sports a convenient place to hang your headphones.
- Eye-Saver Mode
- The C32HG70 features an eye-saver mode, which cuts down blue light emissions to a substantial extent. So, play on with reduced eyestrain and greater visual comfort.
- Multiple Connection Interface
- The C32HG70 has a DP and two HDMI ports, providing a multiple connection interface that lets you hook up computers, game consoles, additional monitors, and other devices with ease, all to meet your multi-tasking needs.
- Additional Features
-
- Wall mountable
- Eco saving plus
- Eye saver mode
- Flicker-free technology
- Quantum Dot Color (Nano Crystal)
- Game color mode
- Screen size optimizer
- Low input lag mode
- Custom key
- Refresh rate optimizer
- Super arena gaming UX
- Easy setting box
UPC: 887276202082 In the Box Samsung C32HG70 32" 16:9 Curved LCD Gaming Monitor HDMI Cable DisplayPort Cable Power Cable Limited 3-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung C32HG70 32" 16:9 Curved LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LC32HG70QQNXZA Specs | Screen Size | 31.5" / 80 cm | | Display Type | Vertical Alignment (VA) | | Curvature | 1800R | | Resolution | 2560 x 1440 | | Refresh Rate | 144 Hz | | Aspect Ratio | 16:9 | | Brightness | Typical: 350 cd/m²
Minimum: 300 cd/m² | | Contrast Ratio | Static
Typical: 3000:1
Minimum: 2400:1
Dynamic
Mega | | Viewing Angles (H/V) | 178°/178° | | Response Time | 1 ms | | Color Coverage | sRGB Coverage
Typical: 125%
Minimum: 120%
Adobe RGB
Typical: 92%
Minimum: 88% | | Colors Supported | 1.07 billion | | Color Gamut | Typical: 88%
Minimum: 84% | | Power | Type
Internal adapter
Power Supply Type
100-240 VAC
Power Consumption
Maximum: 78 W
Standby: 0.3 W
Maximum Standby (DPMS): 0.5 W | | Ergonomics | Height Adjustable Stand
5.7" / 14.5 cm
Tilt
-5 to 15°
Swivel
-15 to 15°
Pivot
-2 to 92°
Stand Type
Dual hinge | | Inputs | 2 x HDMI
1 x DisplayPort
1 x Super Charging USB hub
1 x 3.5 mm audio-in
1 x headphone jack | | Temperature & Humidity | Operating Temperature
50 to 104°F / 10 to 40°C
Operating Humidity
10 to 80% non-condensing | | Dimensions | With Stand
28.51 x 24.48 x 14.98" / 72.42 x 62.18 x 38.05 cm
Without Stand
28.51 x 16.71 x 4.55" / 72.42 x 42.44 x 11.56 cm | | Weight | With Stand
21.16 lb / 9.6 kg
Without Stand
17.64 lb / 8 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 32.0 x 20.0 x 9.0" |
