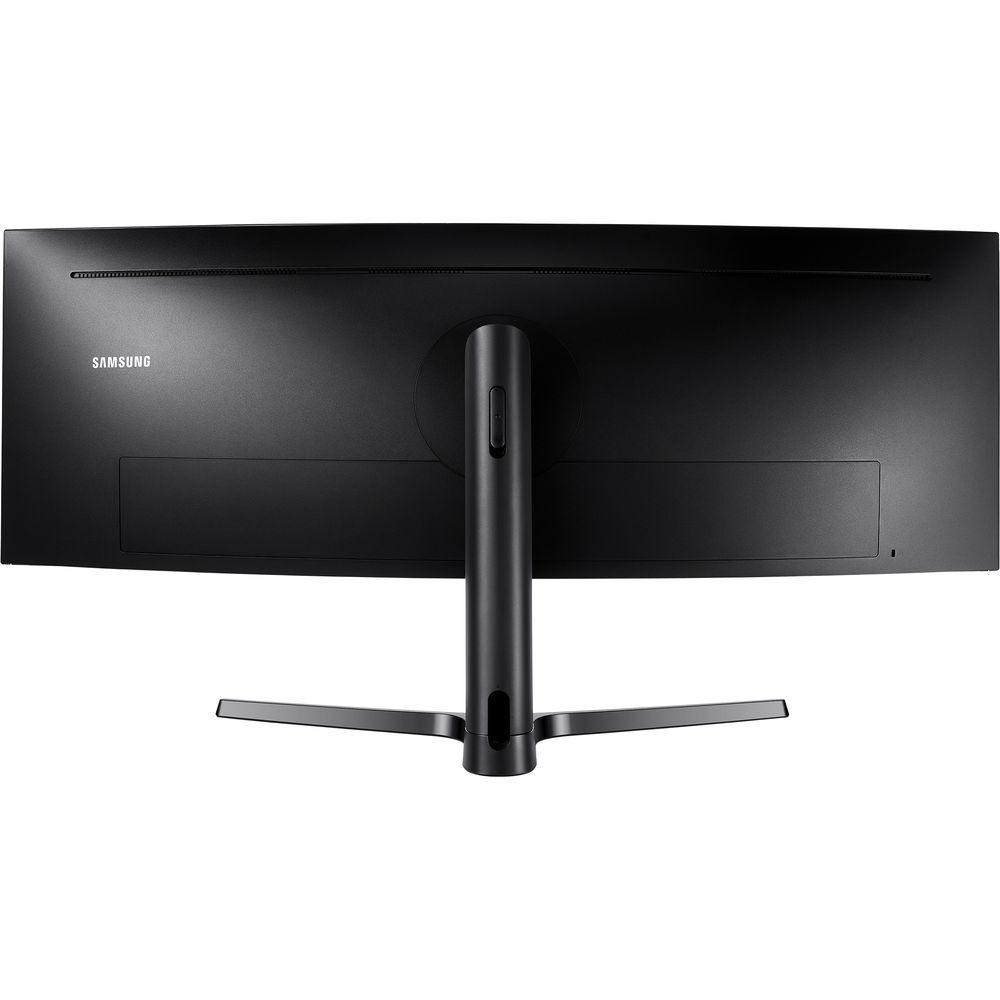

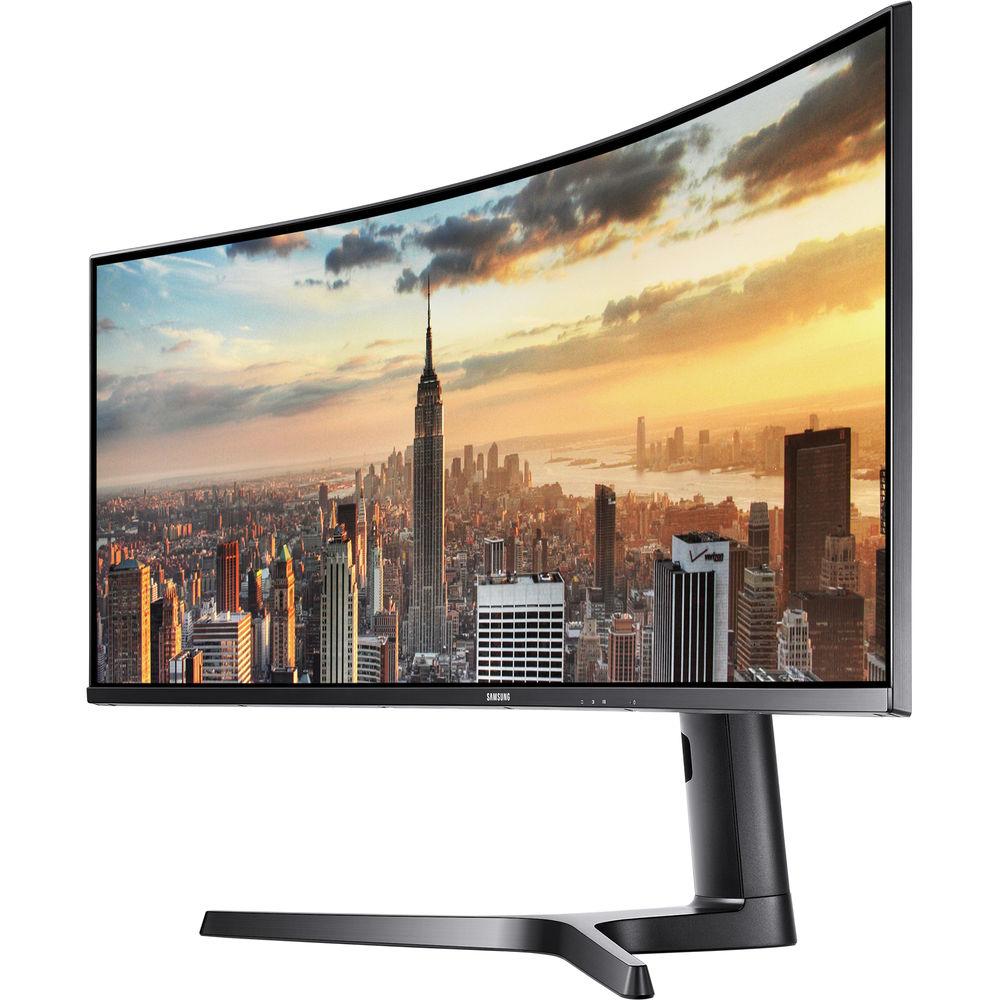

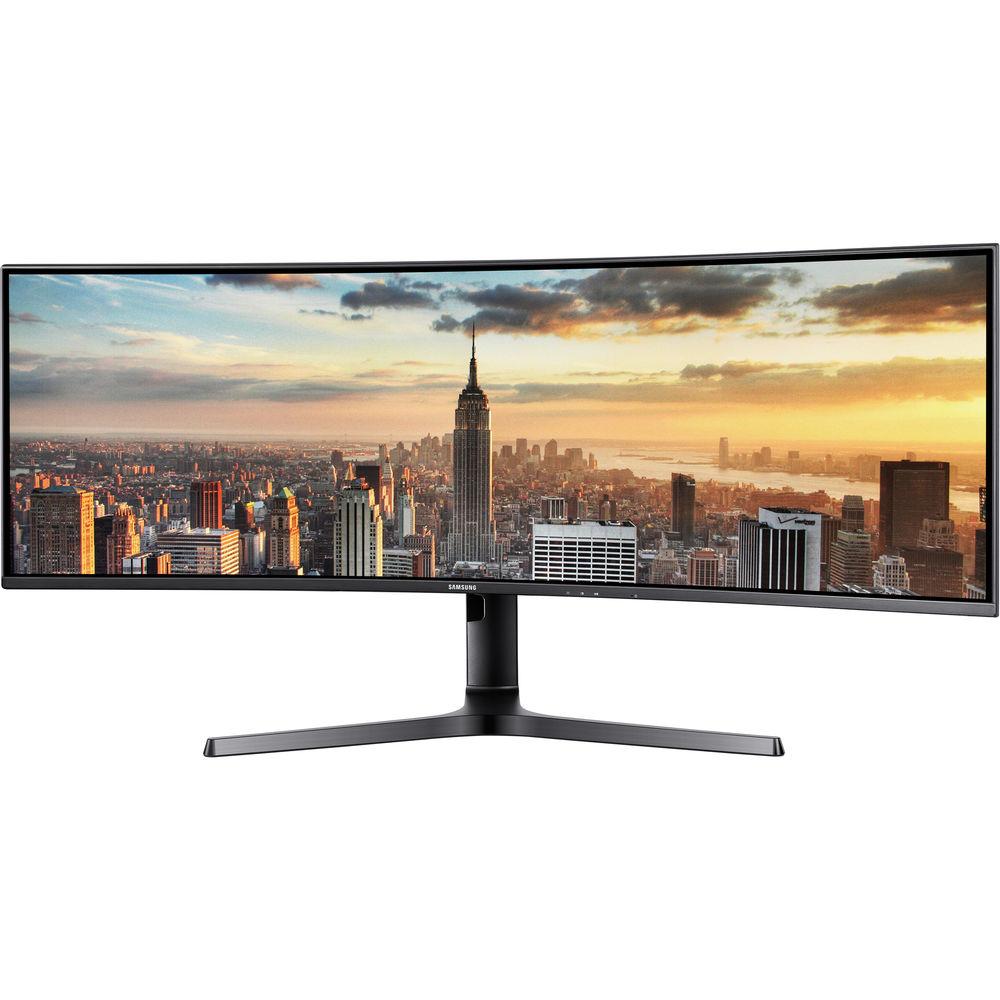

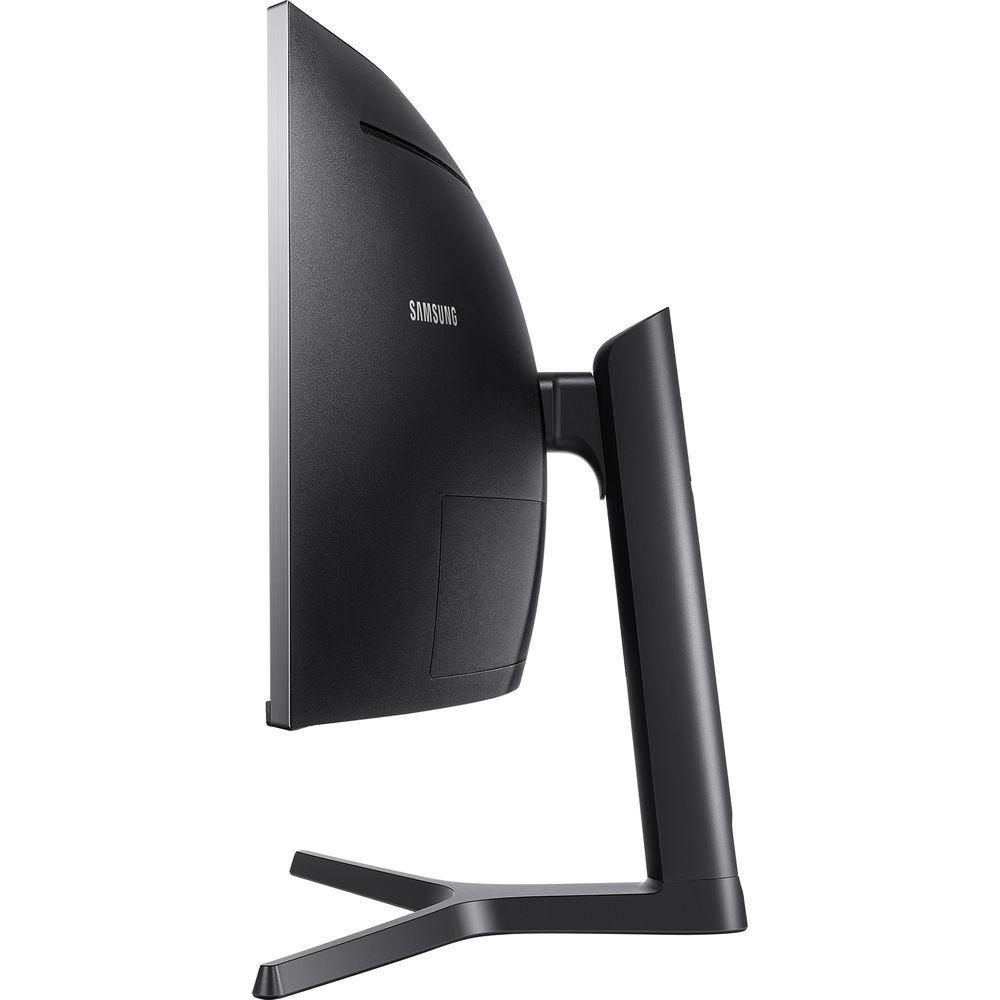

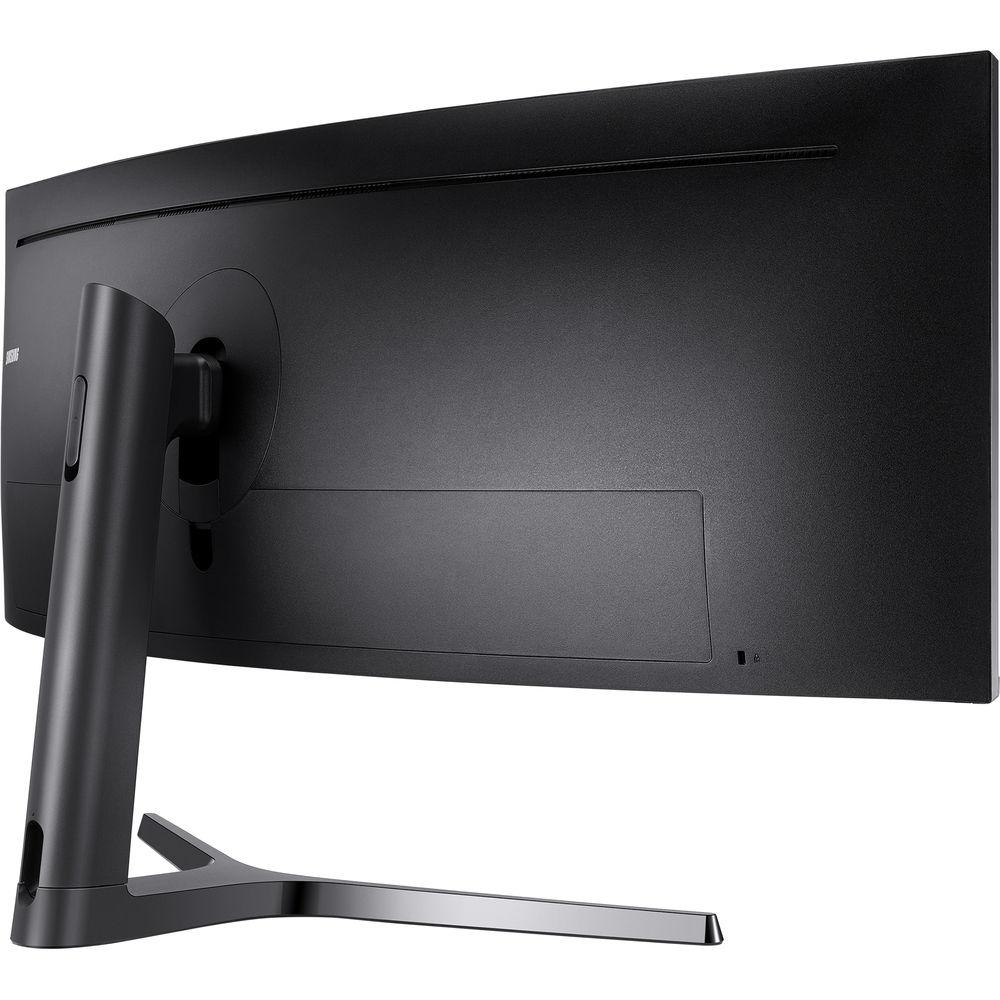

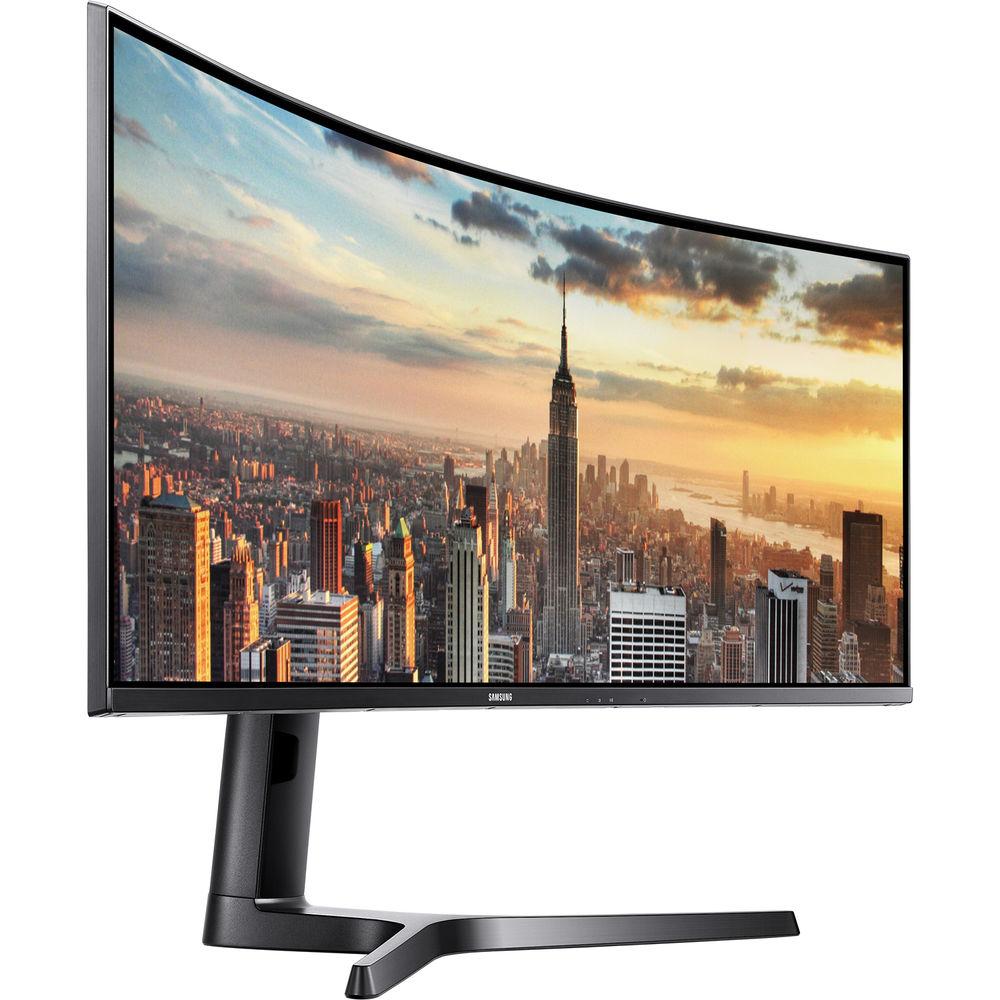

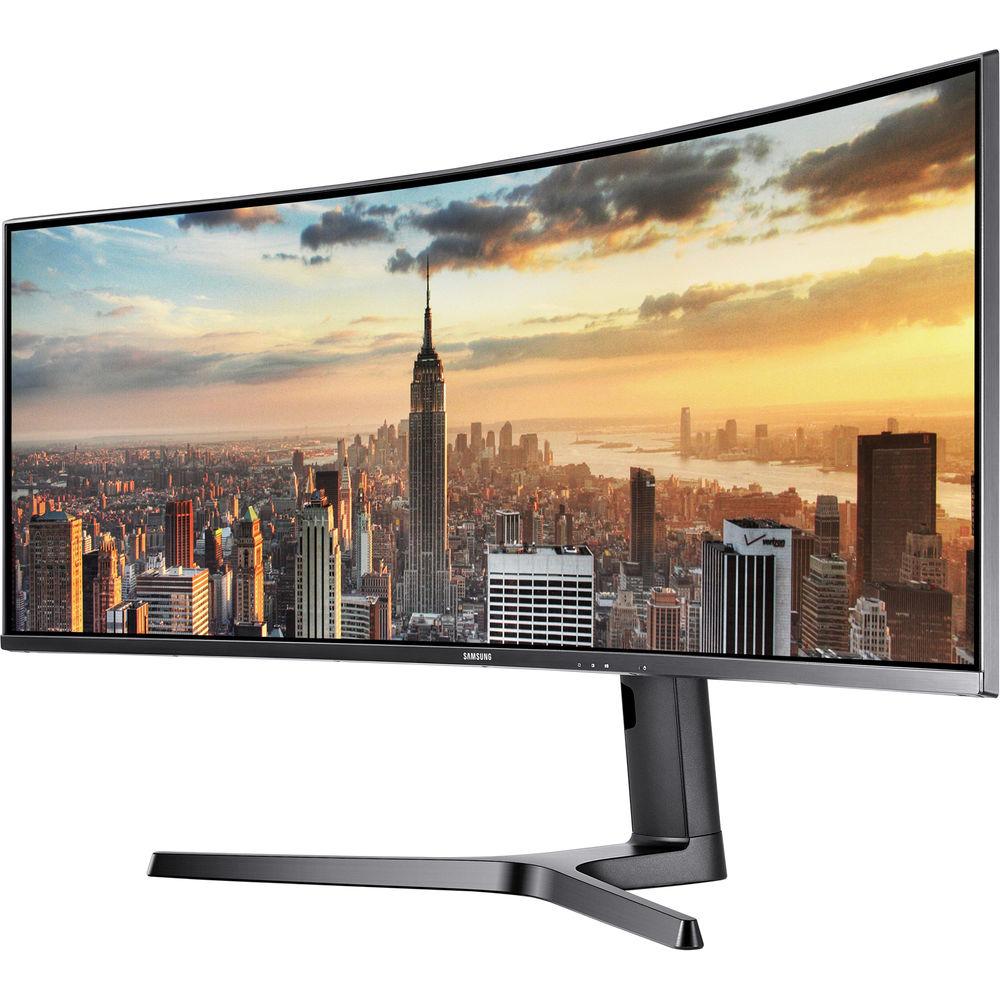

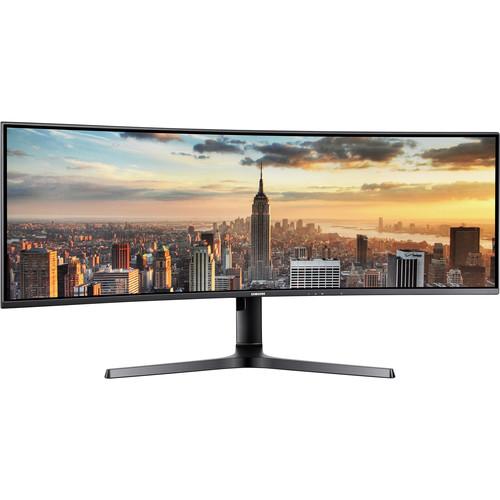

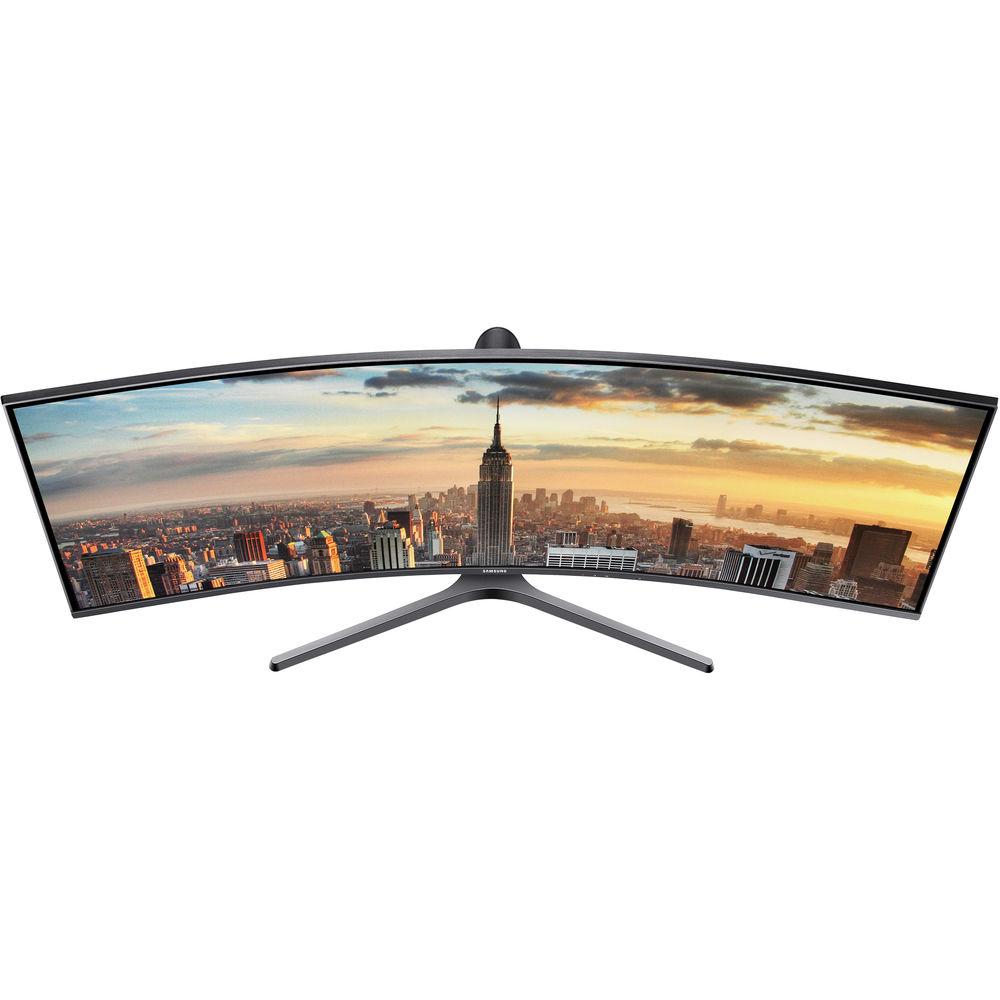

User Manual for Samsung C43J890 43.4" 32:10 Ultra-Wide Curved 120 Hz LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung C43J890 43.4" 32:10 Ultra-Wide Curved
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung C43J890 43.4" 32:10 Ultra-Wide Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The C43J890 43.4" 32:10 Ultra-Wide Curved 120 Hz LCD Monitor from Samsung provides you the screen space to multitask with ease. Along with the expanded screen size, this display features a 3840 x 1200 resolution, a 32:10 aspect ratio, a 5 ms response time, a 3000:1 contrast ratio, viewing angles of 178°, a typical brightness of 300 cd/m2, a curvature of 1800R, and support for up to 16.7 million colors for enhanced picture clarity with reduced ghosting and blur. For even more color clarity, this Samsung monitor covers up to 99% of the sRGB color space and refresh rates of 60, 100, and 120 Hz.
Setup and configuration of the C43J890 monitor is simple as it comes equipped with HDMI 2.0 and DisplayPort 1.2 inputs, as well as three USB Type-C ports, one USB 3.1 Gen 1 Type-A port, and two USB 2.0 Type-A ports. The USB Type-C ports have a power output of up to 100W to provide juice to a variety of compatible devices. Once configured, viewers can take advantage of flicker-free technology and a low blue light filter to help alleviate the strain placed on the eyes during periods of extended viewing. Additional features include picture-in-picture capabilities, a dedicated game mode, dual 5W speakers, and a 3.5mm audio output. General Features - Goodbye to Bezel Blindspots
- With a diagonal screen of 43.4" and a 32:10 aspect ratio, the C43J890 is equal to two 24" (16:10) monitors. With no bezel blind spots, finely matched image quality, and fewer cables, it's a smart alternative to dual monitor setups.
- Connect and Collaborate
- Picture-by-Picture lets you display inputs from two systems simultaneously for collaborating with colleagues or clients. Simply connect a second device, such as a laptop, to instantly view its display side by side with your primary system's display.
- Built-In KVM Switch
- When two devices are connected to the C43J890, its built-in KVM switch lets you control them both using just one keyboard and mouse. Multitask efficiently and save desk space.
- Split Screen Your Way
- Easy Setting Box software makes splitting the monitor workspace into multiple windows a snap. Partition the screen into up to six windows with just a mouse click for an instant view of all your projects. You can also adjust the window sizes for a fully customized view.
- Dual USB Type-C Ports
- USB Type-C transmits data, video and audio, and power all over a single cable.
- Multiple Inputs
- Featuring one DisplayPort 1.2, one HDMI 2.0, one USB 3.1 Gen 1 Type-A, two USB 2.0 Type-A, and two USB Type-C inputs, the C43J890 lets you connect almost any device you can imagine. And with built-in 5W stereo speakers, you can be sure that whatever you, your colleagues, or your clients bring to the table, your monitor is up to the task.
- Curved for Comfort
- The C43J890's curved display lets your eyes maintain a constant focus across the entire screen, resulting in less fatigue and a more comfortable viewing experience.
- 120 Hz Refresh Rate
- The 120 Hz screen refresh rate provides smooth scenes and can be adjustable to 60 Hz for optimized monitor performance.
- Eye Saver Mode
- Samsung's Eye Saver Mode reduces fatigue-inducing blue light emissions and its Flicker Free technology suppresses screen flicker, allowing you to work for longer with less strain on your eyes.
- Optimized View

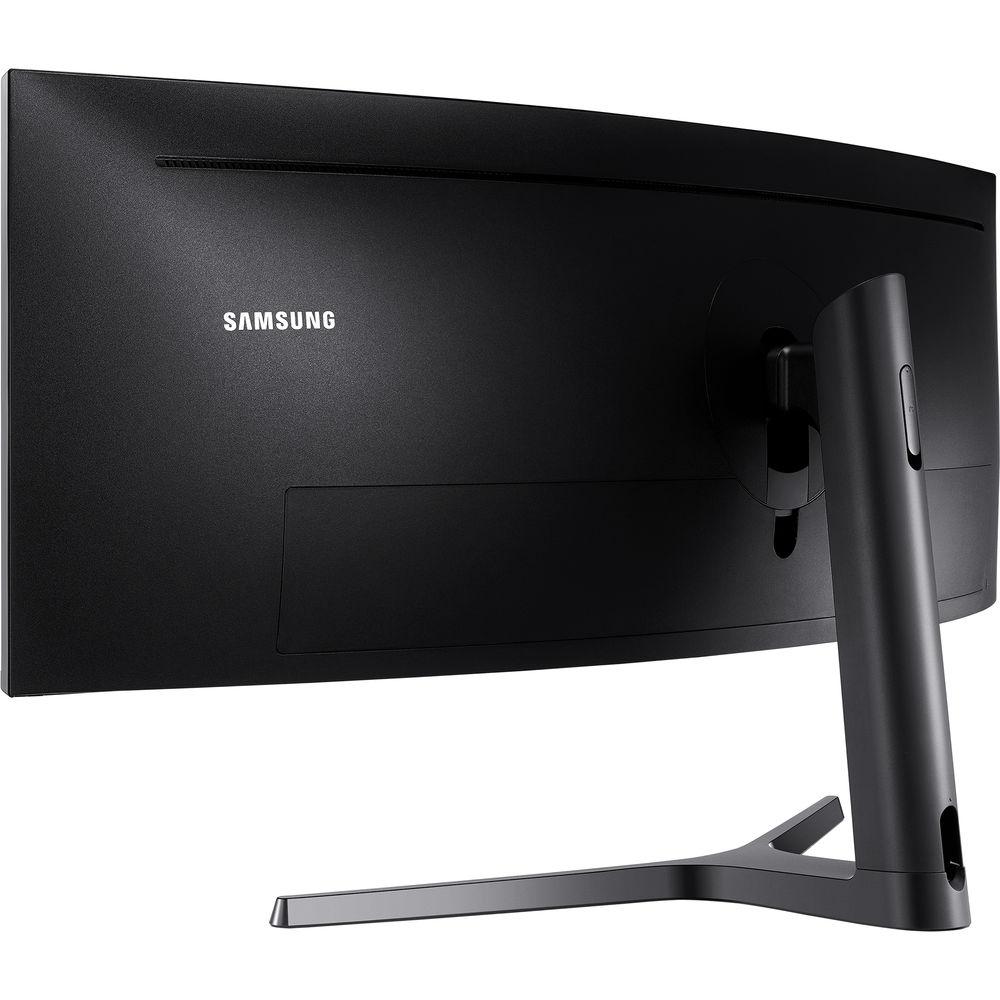

- The swivel/tilt and height-adjustable stand offers all the flexibility you need to position the screen for increased comfort. The panel's 100 x 100mm VESA mount also offers the option of mounting on VESA-compatible arms.
UPC: 887276270777 In the Box Samsung C43J890 43.4" 32:10 Ultra-Wide Curved 120 Hz LCD Monitor HDMI Cable USB Type-C Cable Power Cable Limited 1-Year Warranty More info from Samsung zfseqfrwvtcxys Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung C43J890 43.4" 32:10 Ultra-Wide Curved 120 Hz LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LC43J890DKNXZA Specs | | | Size | 43.4" | | Screen Area | 41.4 x 12.9" / 1051.56 x 327.66 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3840 x 1200 | | Aspect Ratio | 32:10 | | Pixels Per Inch (ppi) | 92 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 120 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 160 kHz | | Vertical Frequency | 50 to 120 Hz | | Pixel Clock Frequency | 600 MHz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.274 x 0.274 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 2.0
3 x USB Type-C
1 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x 3.5 mm | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 220 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 100 W (via USB Type-C)
15 W (via USB Type-C) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 95% | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 41.8 x 20.7 x 12.4" / 106.2 x 52.6 x 31.5 cm (With Stand)
41.8 x 14.1 x 6.9" / 106.2 x 35.8 x 17.5 cm (Without Stand) | | Weight | 28.66 lb / 13.00 kg (With Stand)
22.49 lb / 10.20 kg (Without Stand) | | | | Package Weight | 38.35 lb | | Box Dimensions (LxWxH) | 45.0 x 17.5 x 10.0" |
