User Manual for Samsung C49J890DKN 49" 32:9 Curved 144 Hz LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung C49J890DKN 49" 32:9 Curved 144
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung C49J890DKN 49" 32:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

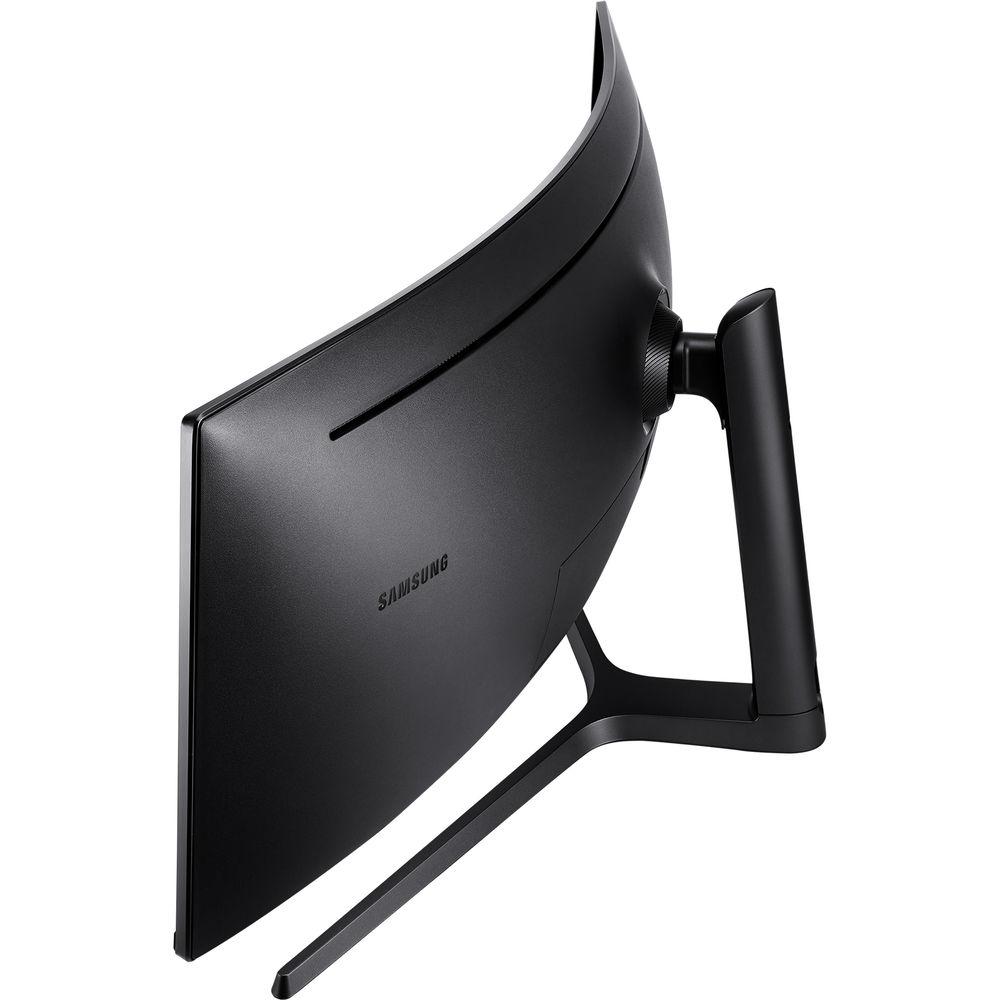

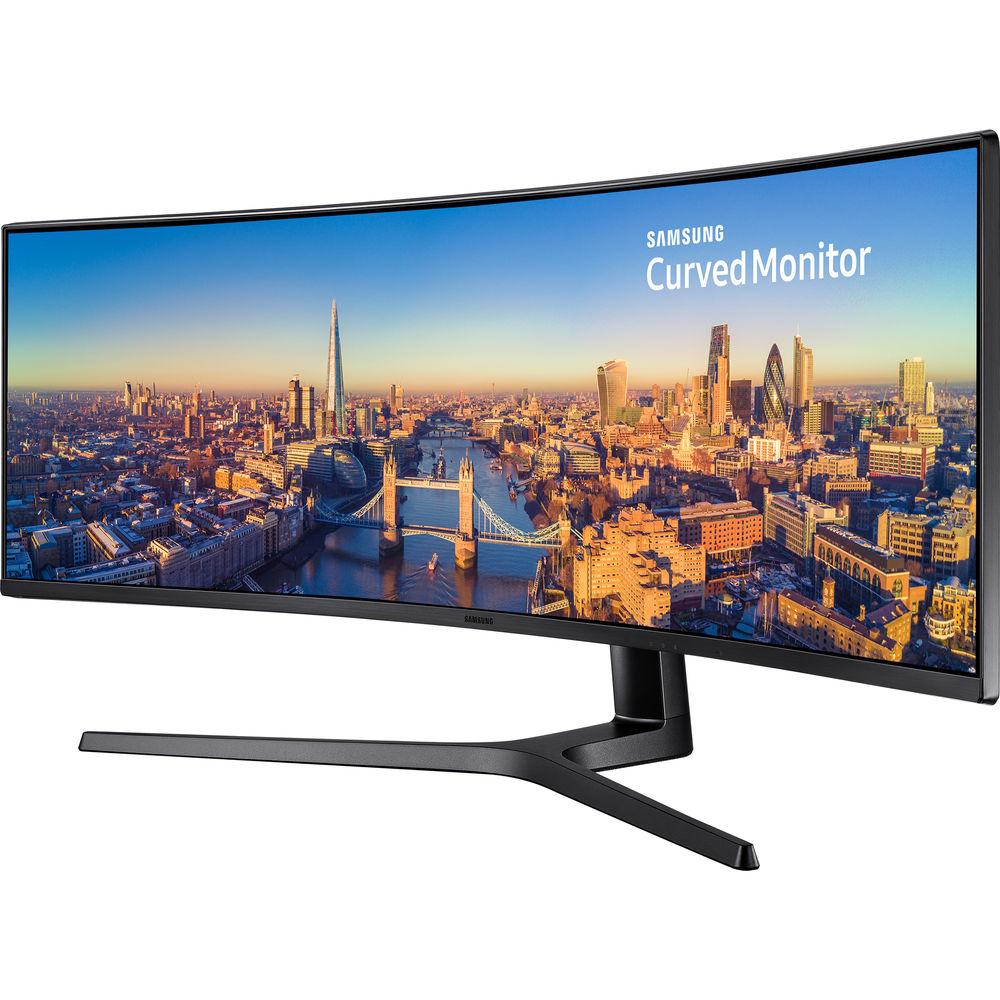

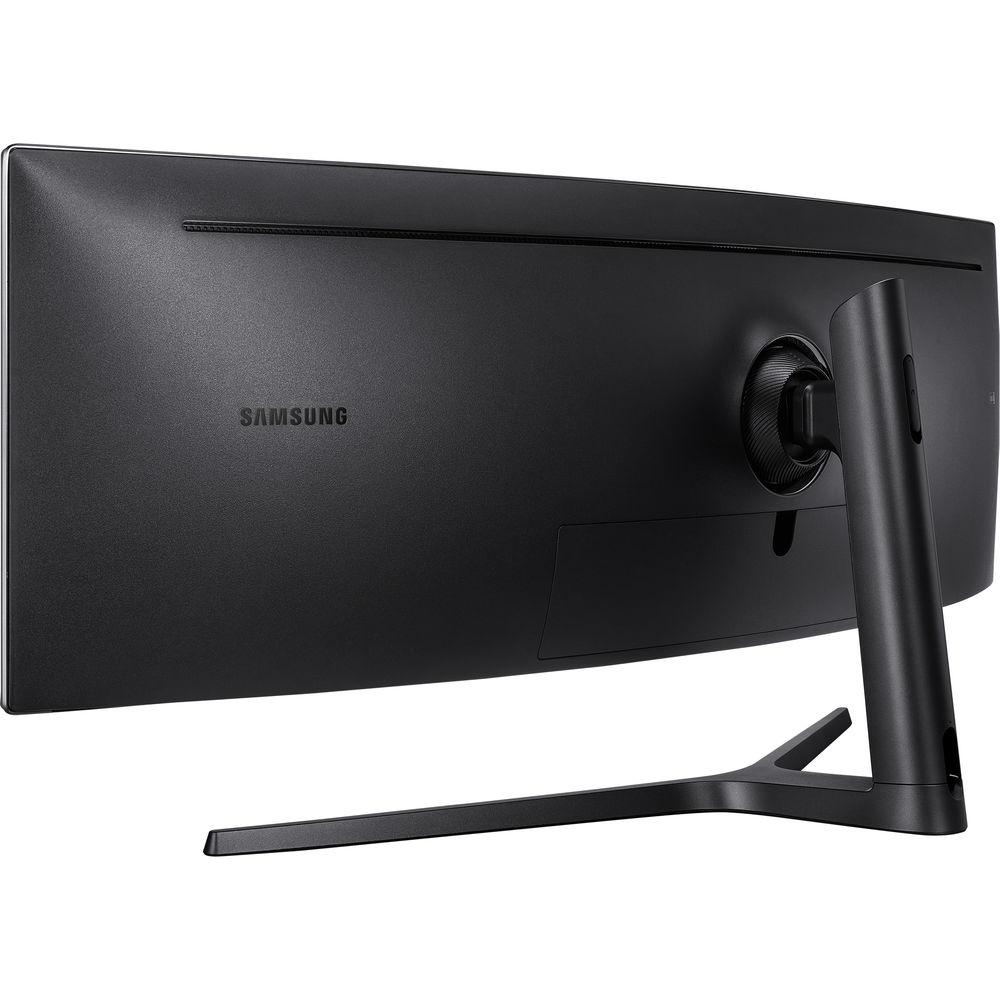

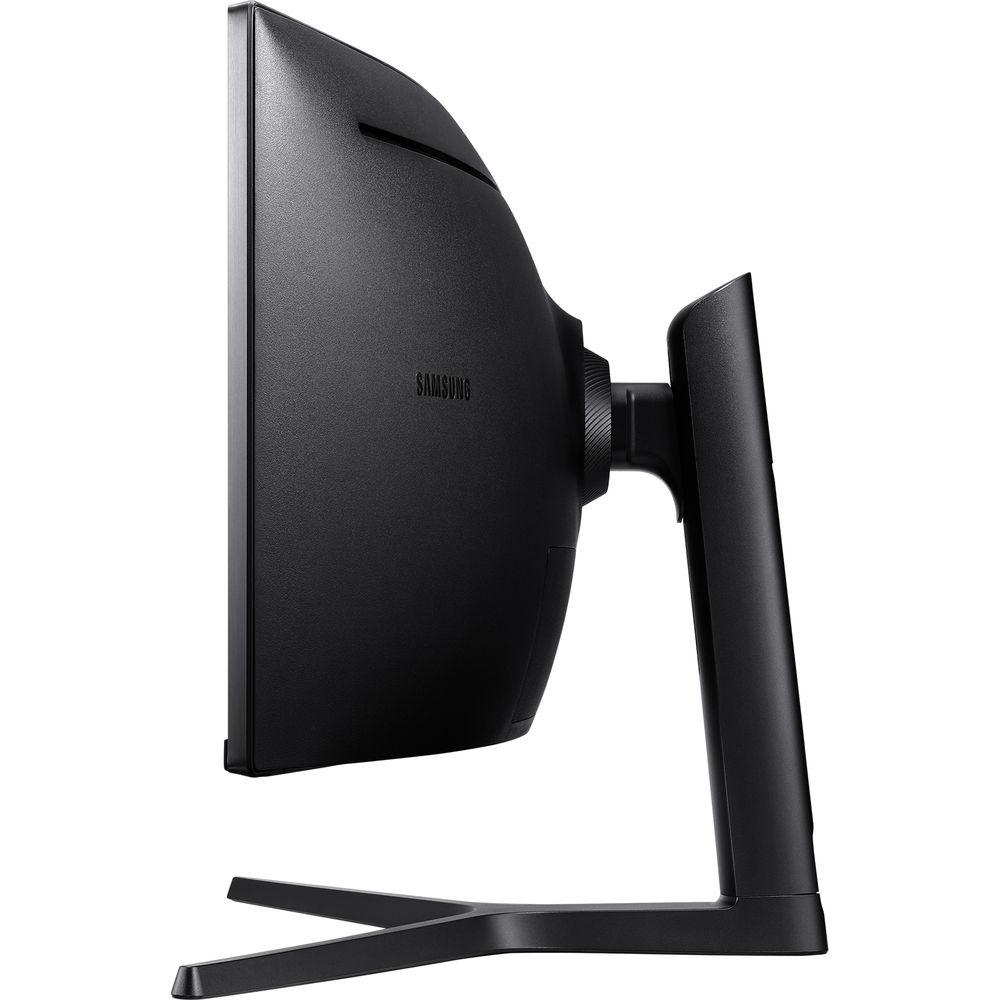

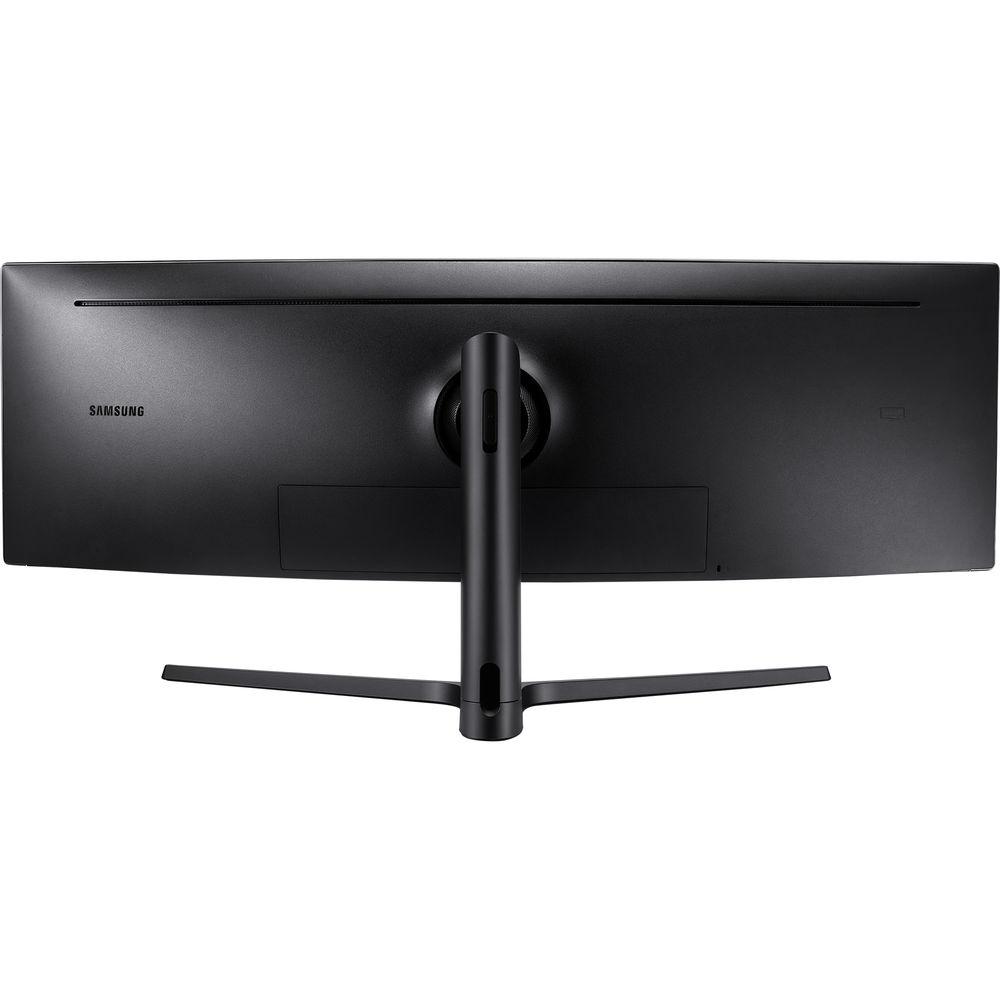

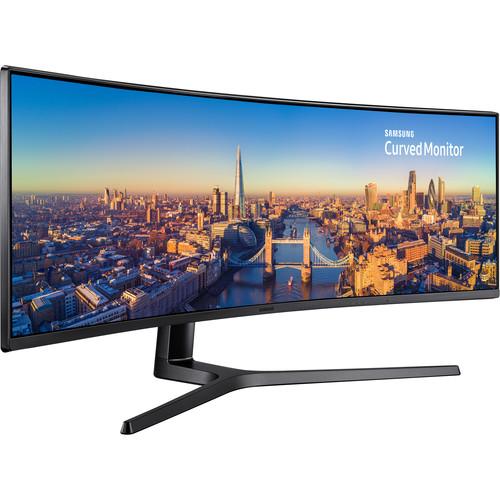

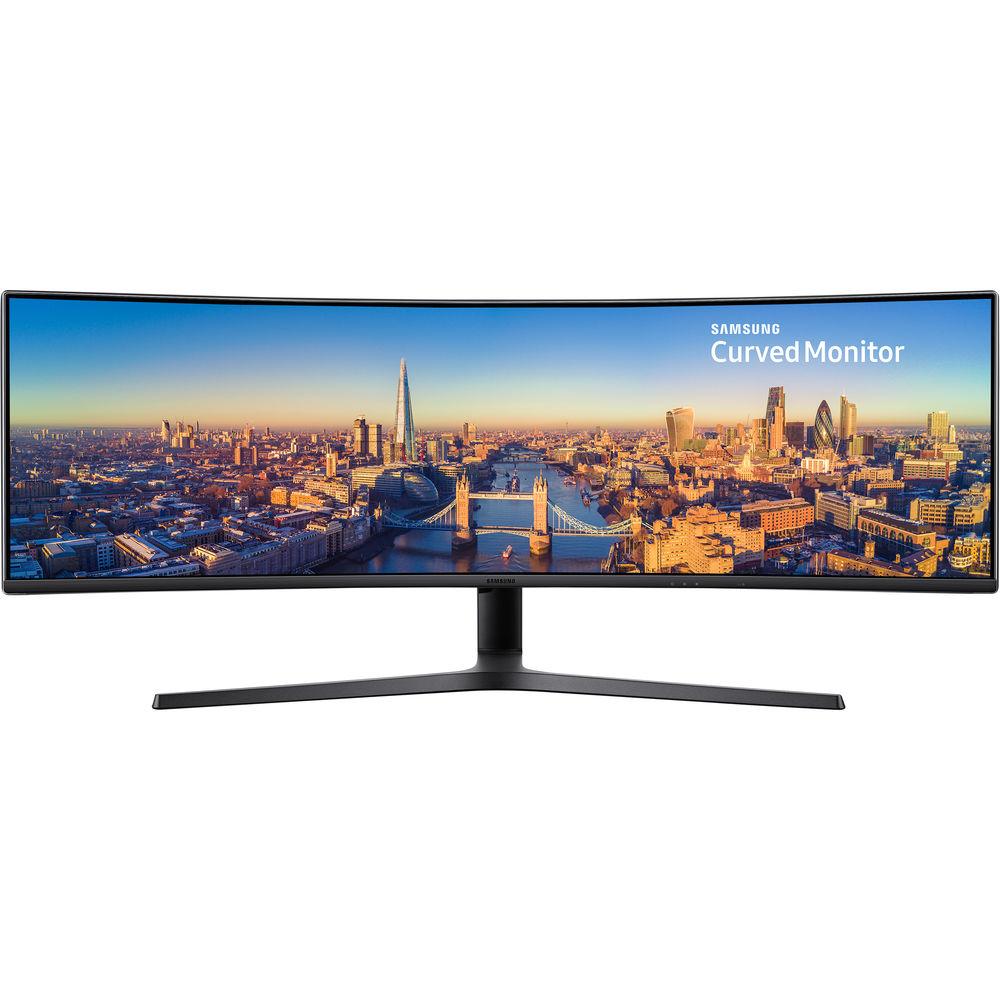

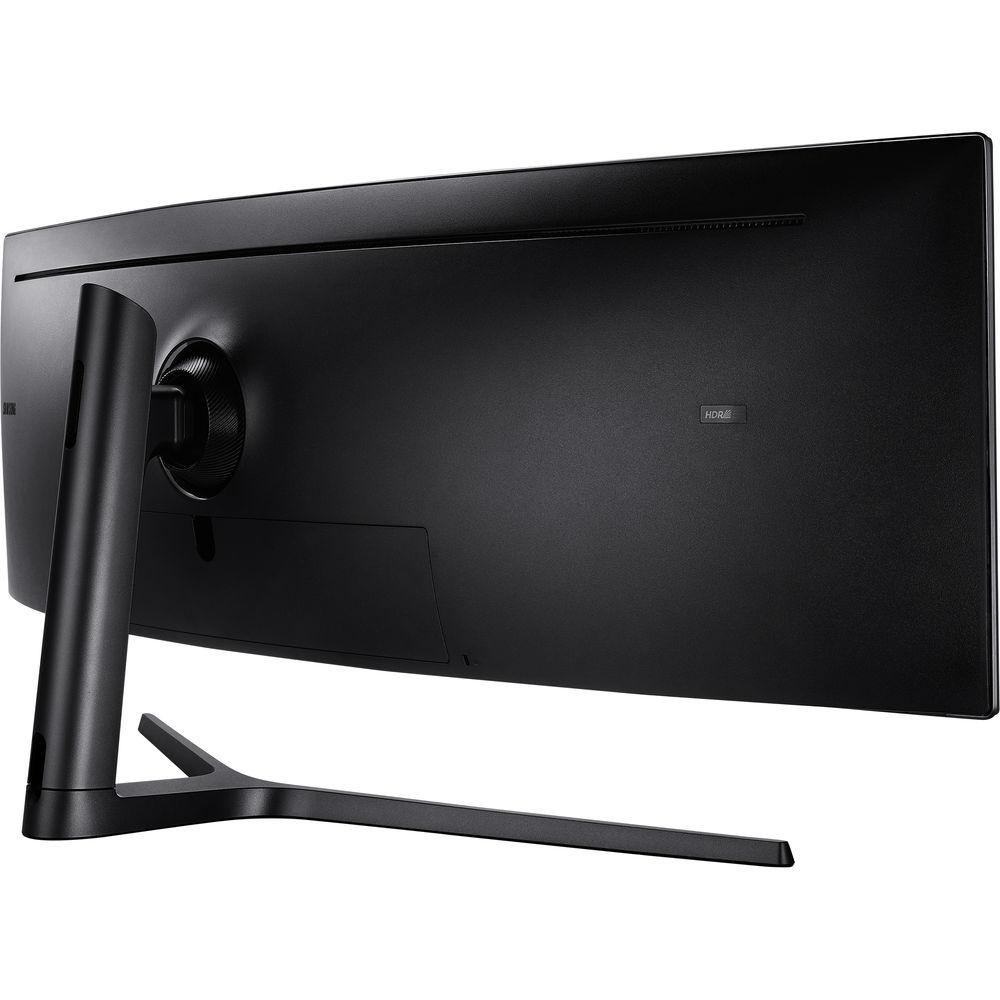

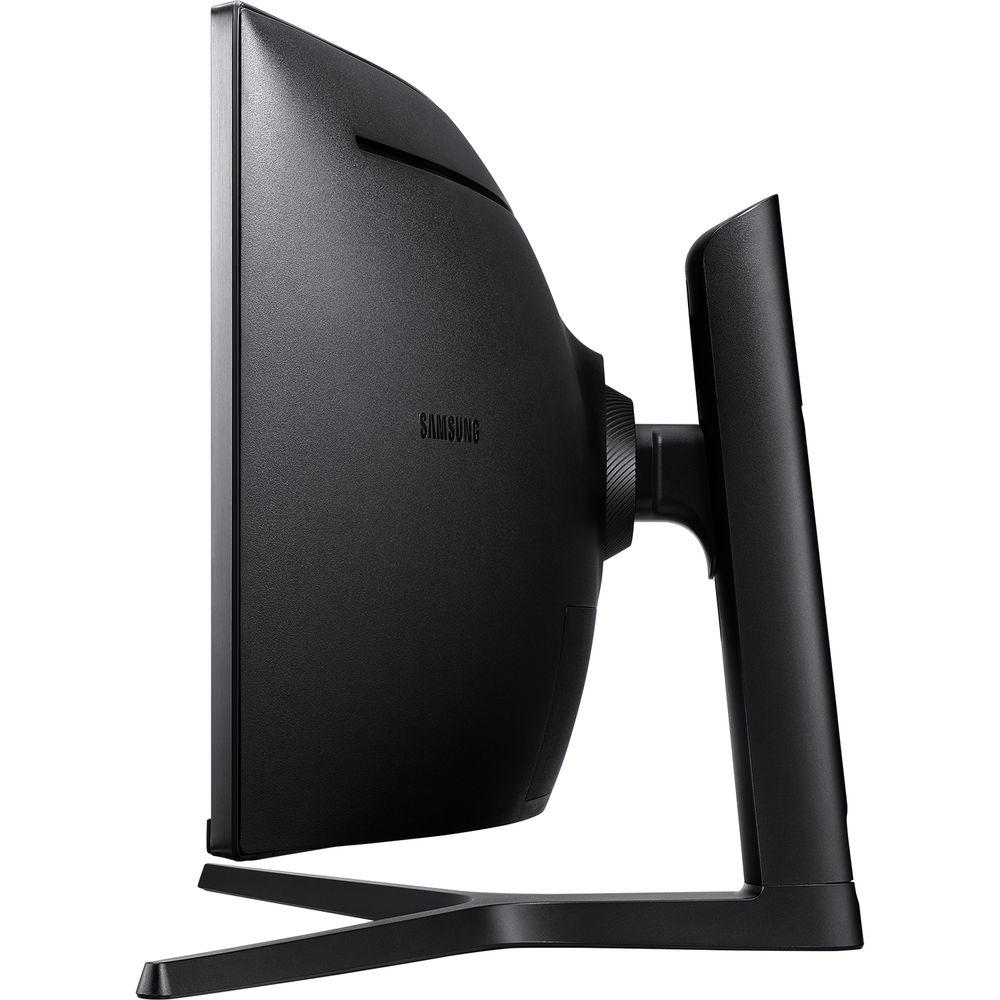

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The C49J890DKN 49" 32:9 Curved 144 Hz LCD Monitor from Samsung is a CJ890-series super ultra-wide monitor designed to replace multi-monitor setups. Its 49" 32:9 VA panel is essentially two 27" 16:9 monitors stitched together without the bezels in between. With so much on-screen real estate, you can view large spreadsheets and easily multitask with PBP and PIP modes. Specs-wise, it features a 3840 x 1080 resolution, a 3000:1 static contrast ratio, a 300 cd/mÿ² brightness rating, and support for up to 16.7 million colors. Connect it to your systems via HDMI, DisplayPort, or the multi-function USB Type-C option, and then adjust its versatile stand to best fit your viewing needs. Alternatively, you can install your own VESA-compatible mount, stand, or arm if need - Large 49" Curved Display

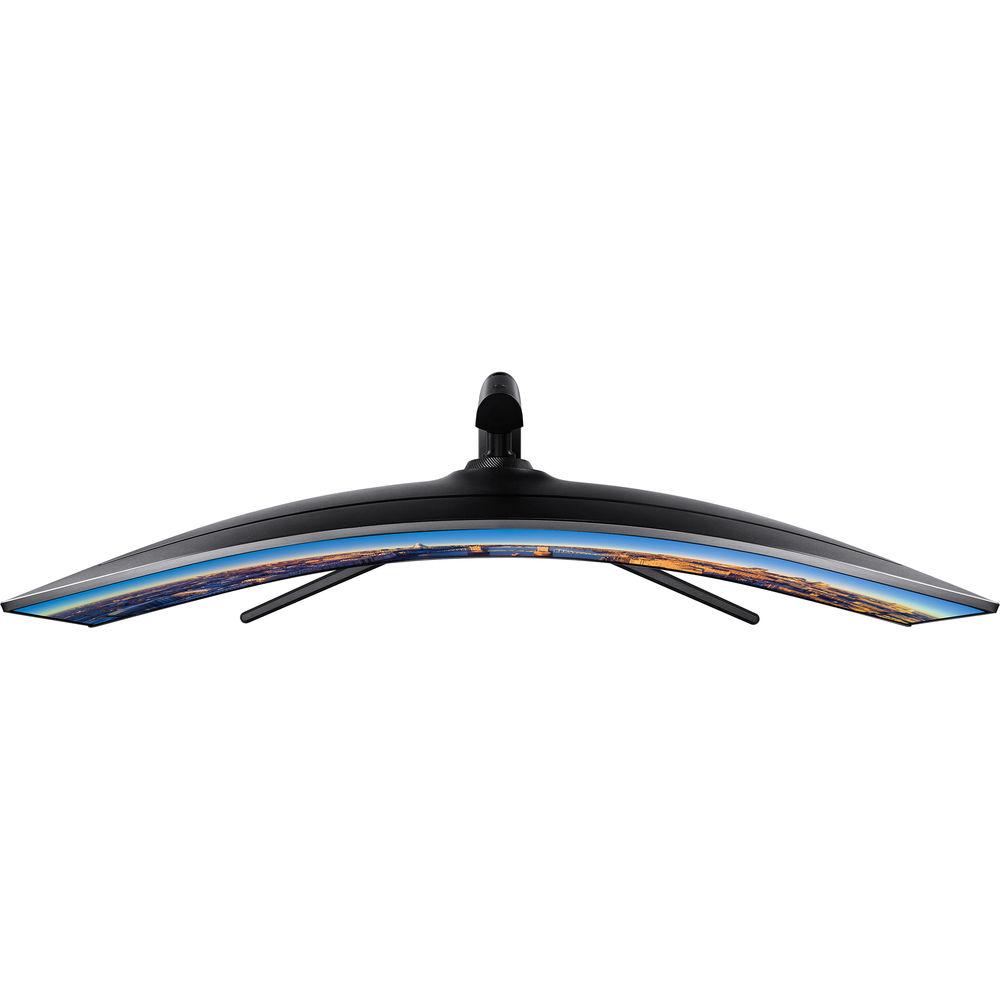

- This 49" 32:9 display is essentially two 27" 16:9 monitors placed side-by-side without the distracting bezel in the middle. It also has a 1800R curvature for a more uniform viewing distance when you're sitting in the middle.
- USB Type-C
- The two USB Type-C ports on this display support display, data, and power for a single-cable solution. Connect this display to a PC, tablet, or even a mobile device.
- KVM Switch
- A built-in KVM (Keyboard, Mouse, and Monitor) switch lets you control multiple computers from one set of peripherals.
- PBP & PIP
- Connect two separate systems and utilize split-screen Picture-by-Picture (PBP) and Picture-in-Picture (PIP) modes to multitask with ease.
- 144 Hz Refresh Rate
- A fast 144 Hz refresh rate helps to reduce blurring, ghosting, and juddering for smoother content playback whether you're watching videos or playing games.
- Easy on the Eyes
- Eye Save Mode and Flicker-Free technologies help to prevent eyestrain and fatigue over extended viewing periods by reducing blue light emissions and flickering.
UPC: 887276260167 In the Box Samsung C49J890DKN 49" 32:9 Curved 144 Hz LCD Monitor HDMI Cable USB Type-C Cable Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung C49J890DKN 49" 32:9 Curved 144 Hz LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung C49J890DKN Specs | | | Size | 49" | | Screen Area | 47.08 x 13.24" / 1195.8 x 336.3 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3840 x 1080 | | Aspect Ratio | 32:9 | | Pixels Per Inch (ppi) | 81 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI 2.0
1 x DisplayPort 1.2
2 x USB Type-C
1 x USB Type-C (USB 3.1 Gen 1) Input
3 x USB Type-A (USB 3.1 Gen 1) Output
1 x 3.5 mm Output | | Built-In Speakers | Yes | | | | Power Consumption | 220 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | 4.72" / 120 mm | | Swivel Adjustment | 30° (-15 to 15°) | | Tilt Adjustment | -2 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 47.4 x 20.7 x 15.0" / 1204.0 x 525.8 x 381.0 mm (With Stand)
27.4 x 14.5 x 7.7" / 696.0 x 368.3 x 195.6 mm (Without Stand) | | Weight | 33.3 lb / 15.10 kg (With Stand)
26.5 lb / 12.02 kg (Without Stand) | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 51.5 x 18.75 x 12.25" |
