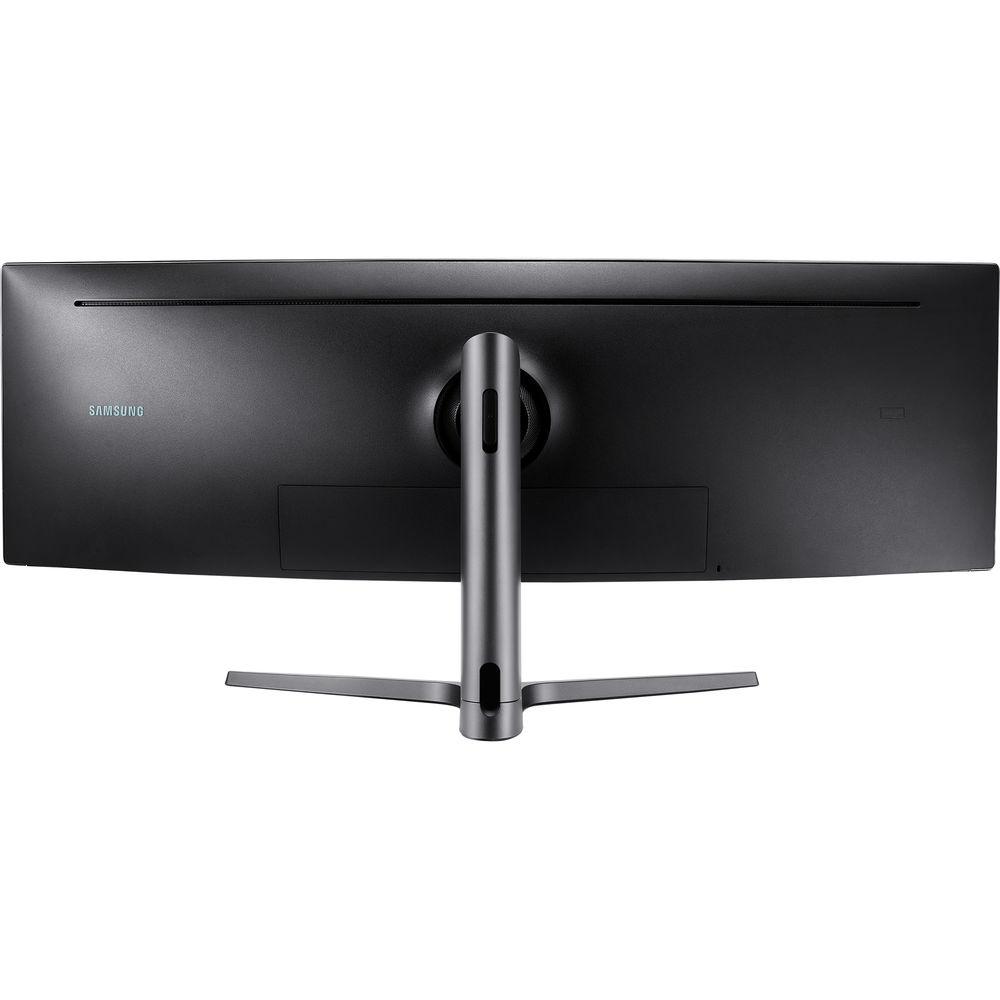

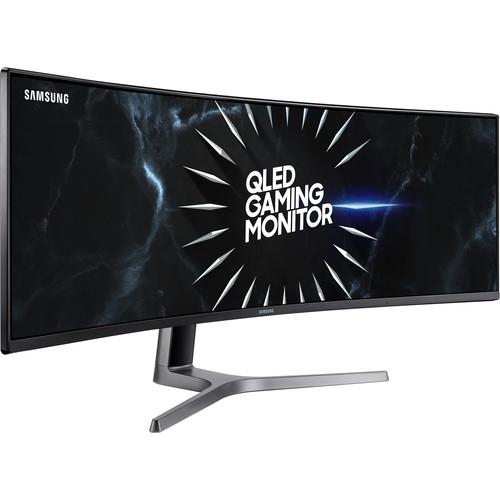

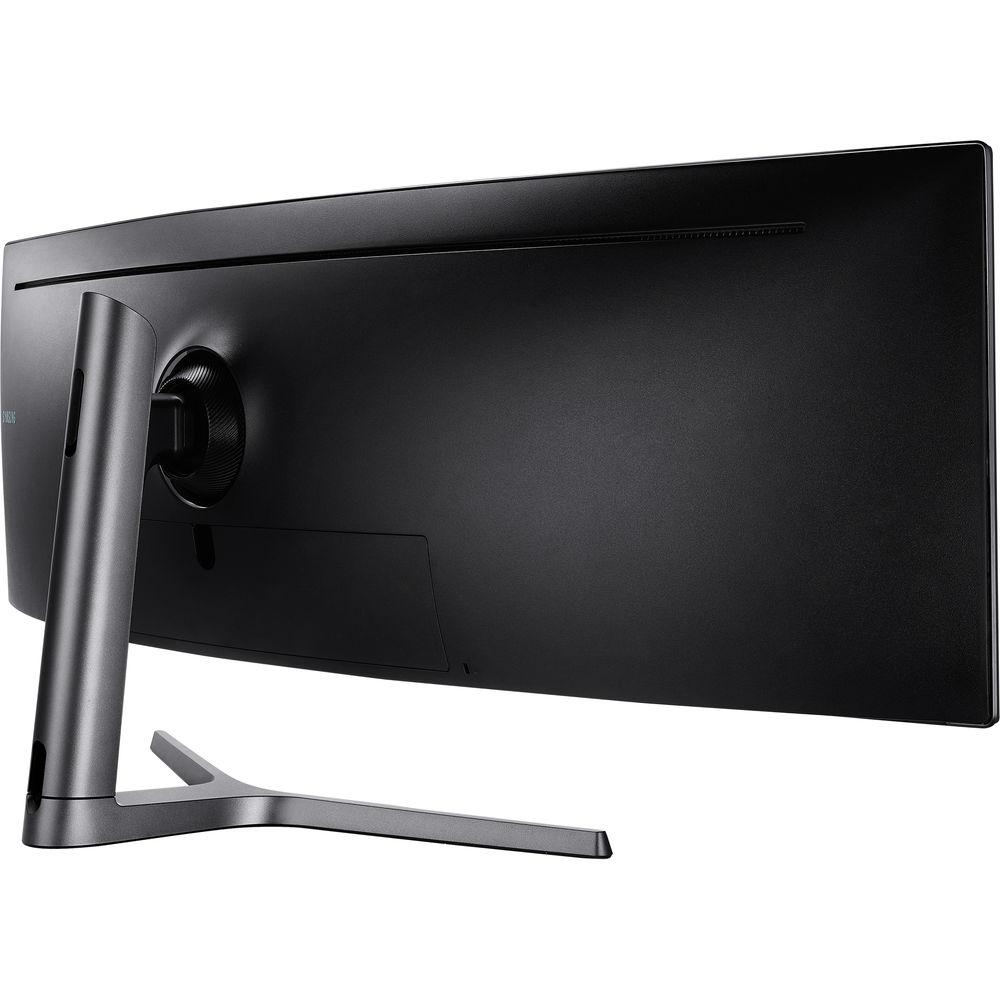

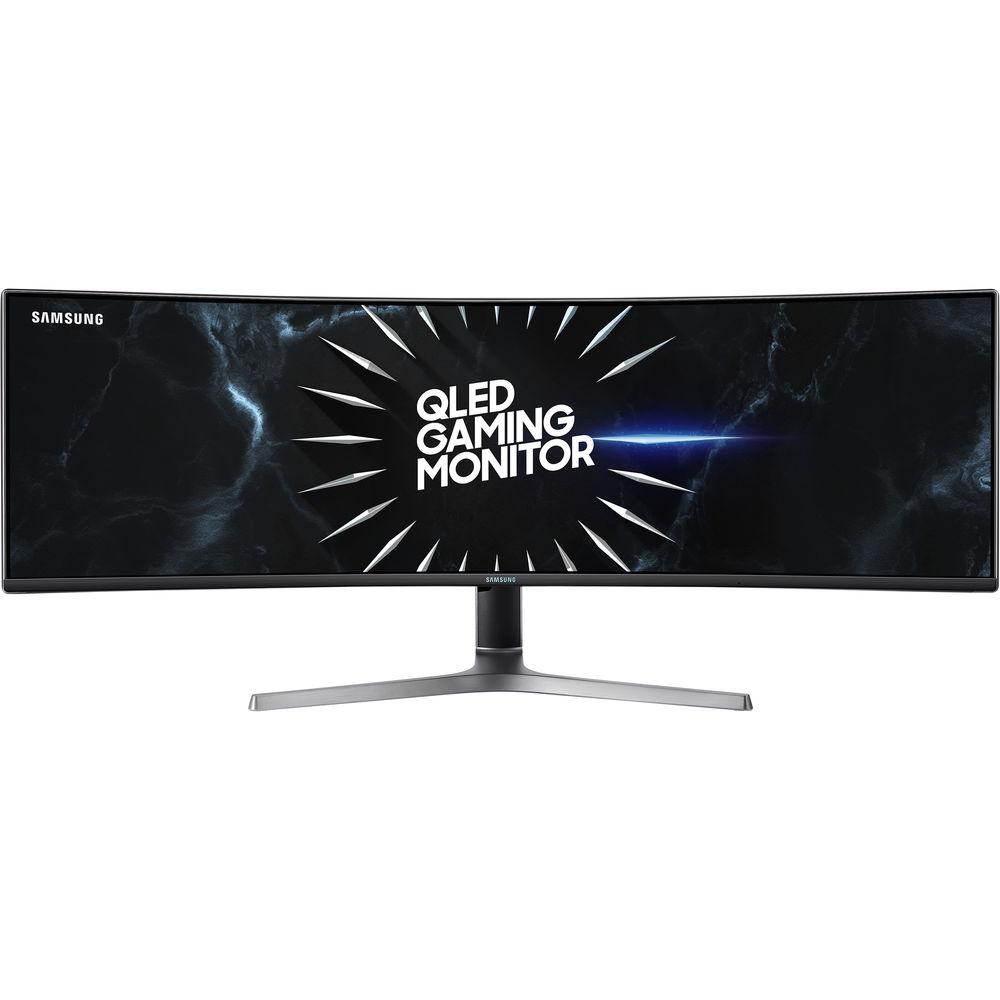

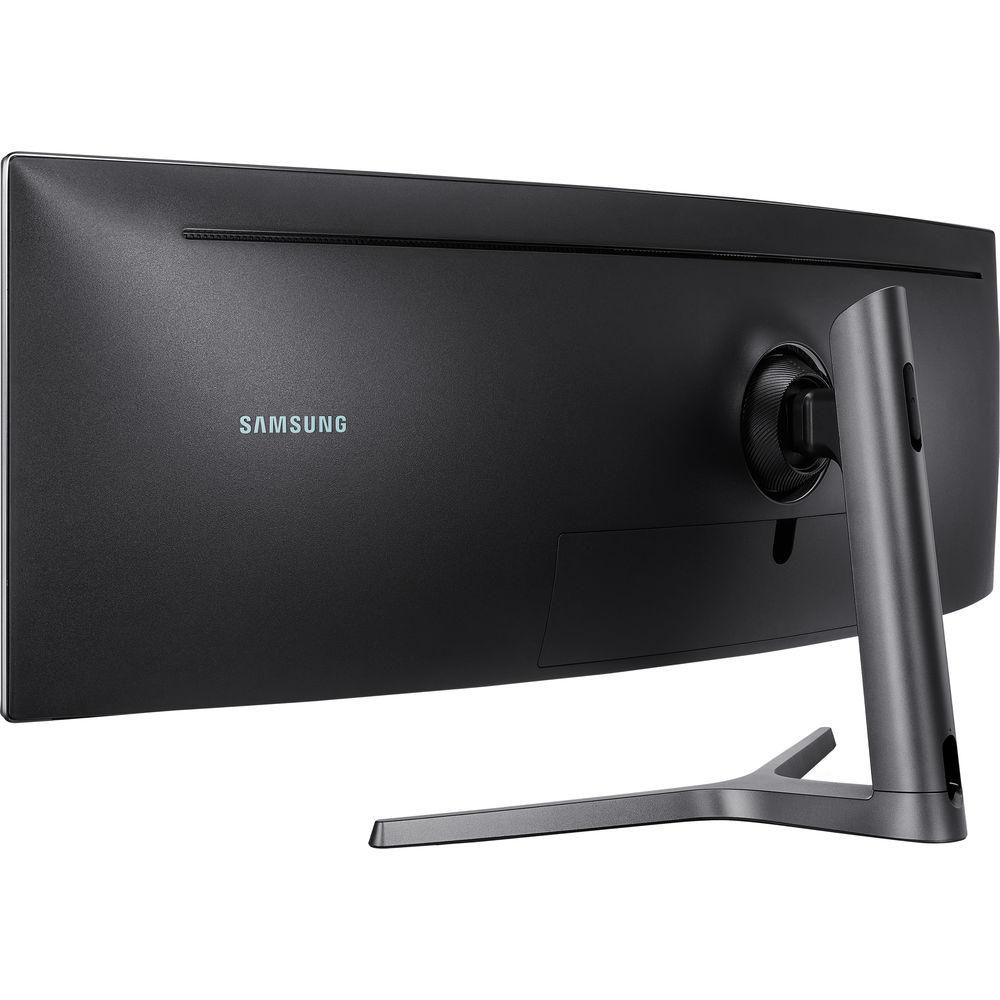

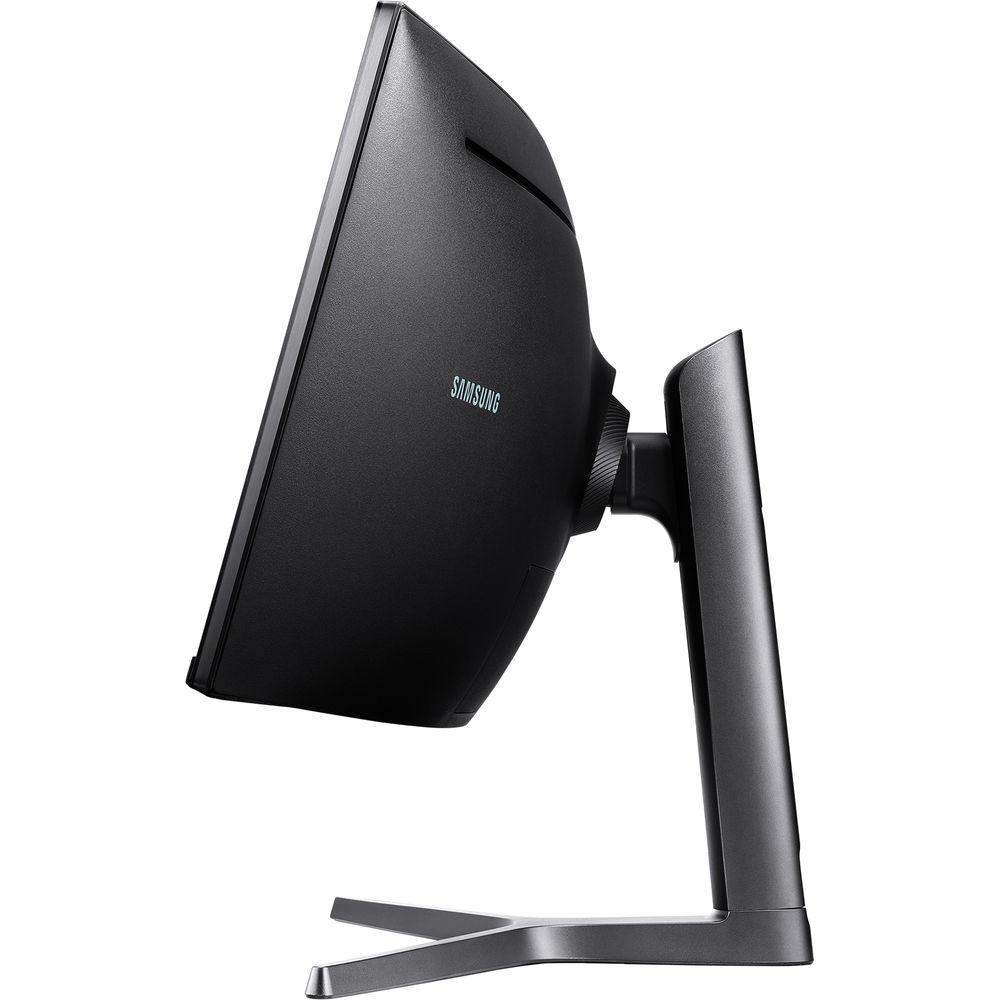

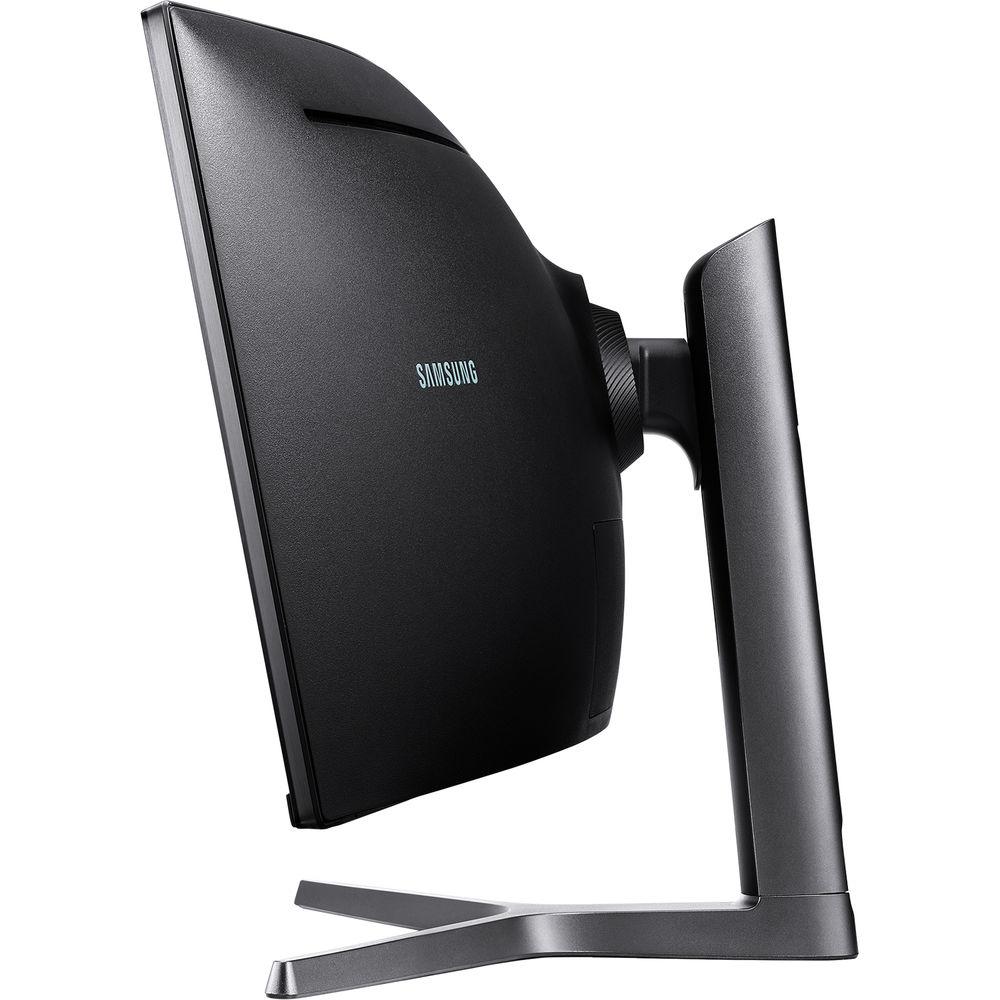

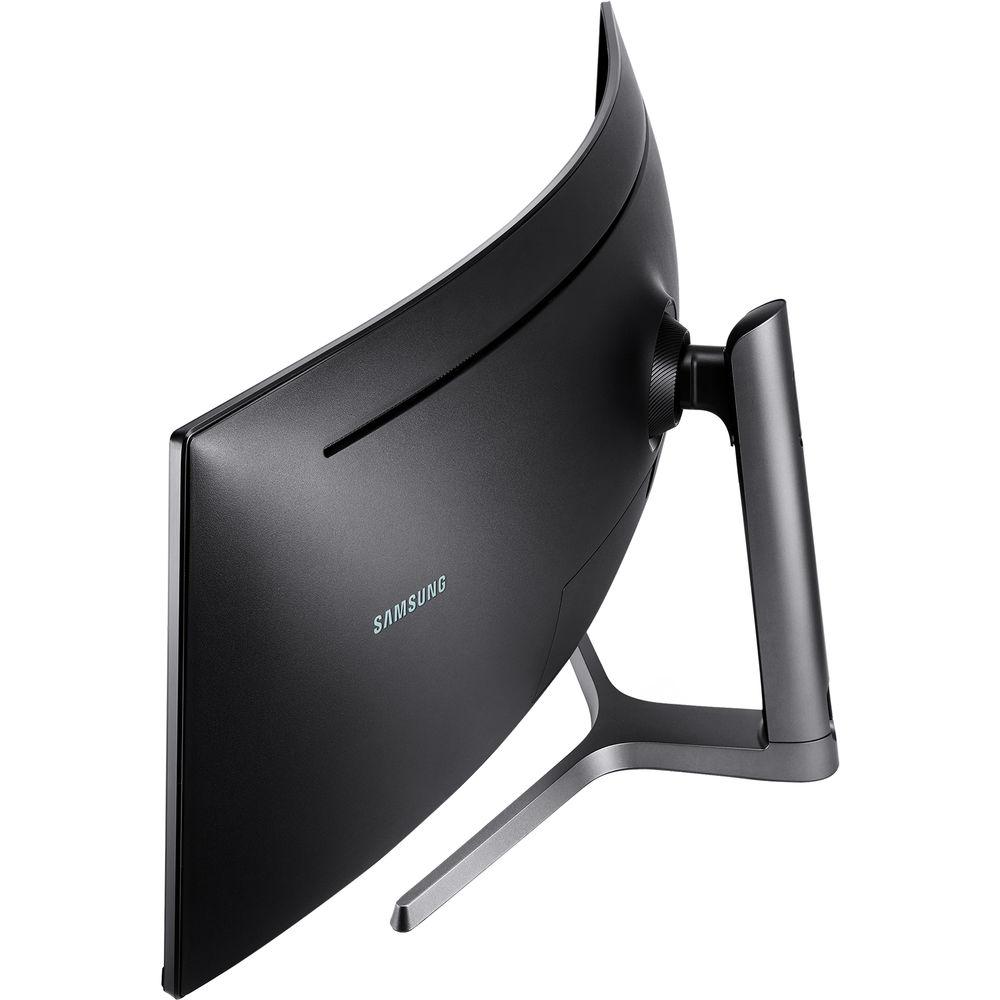

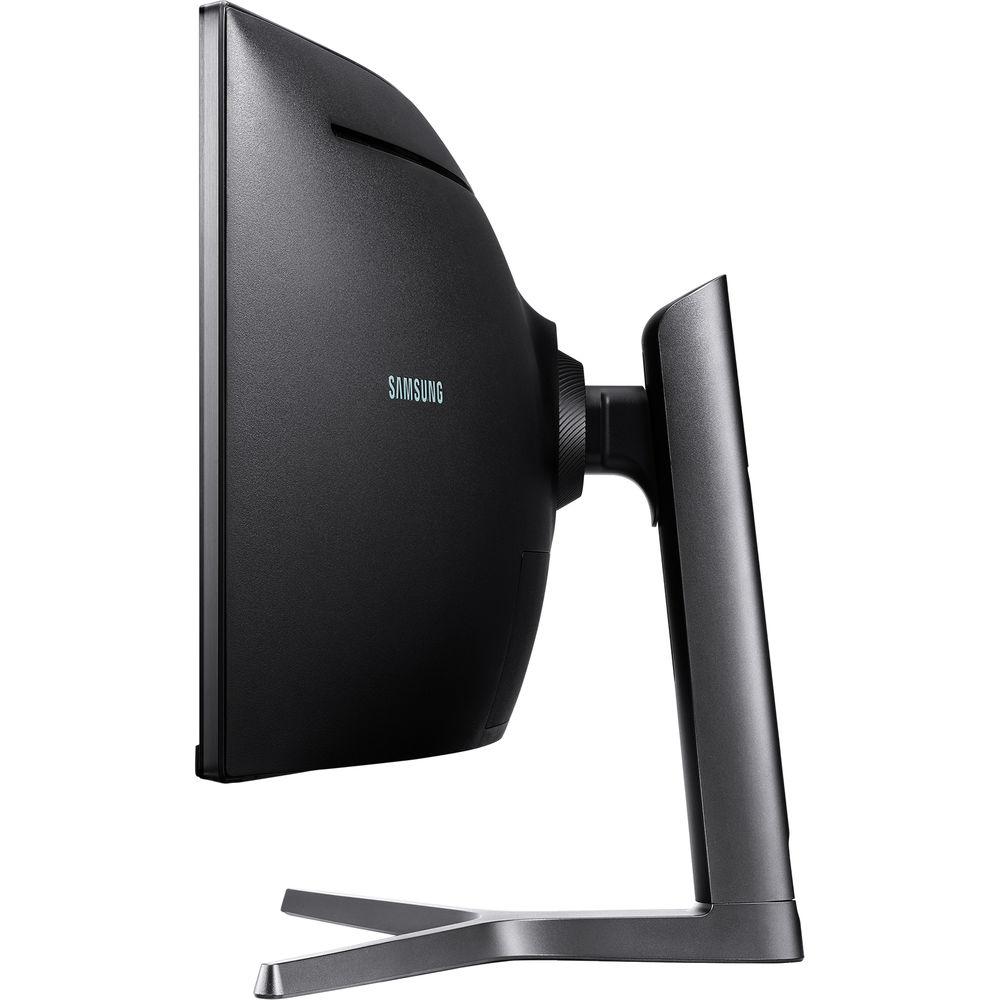

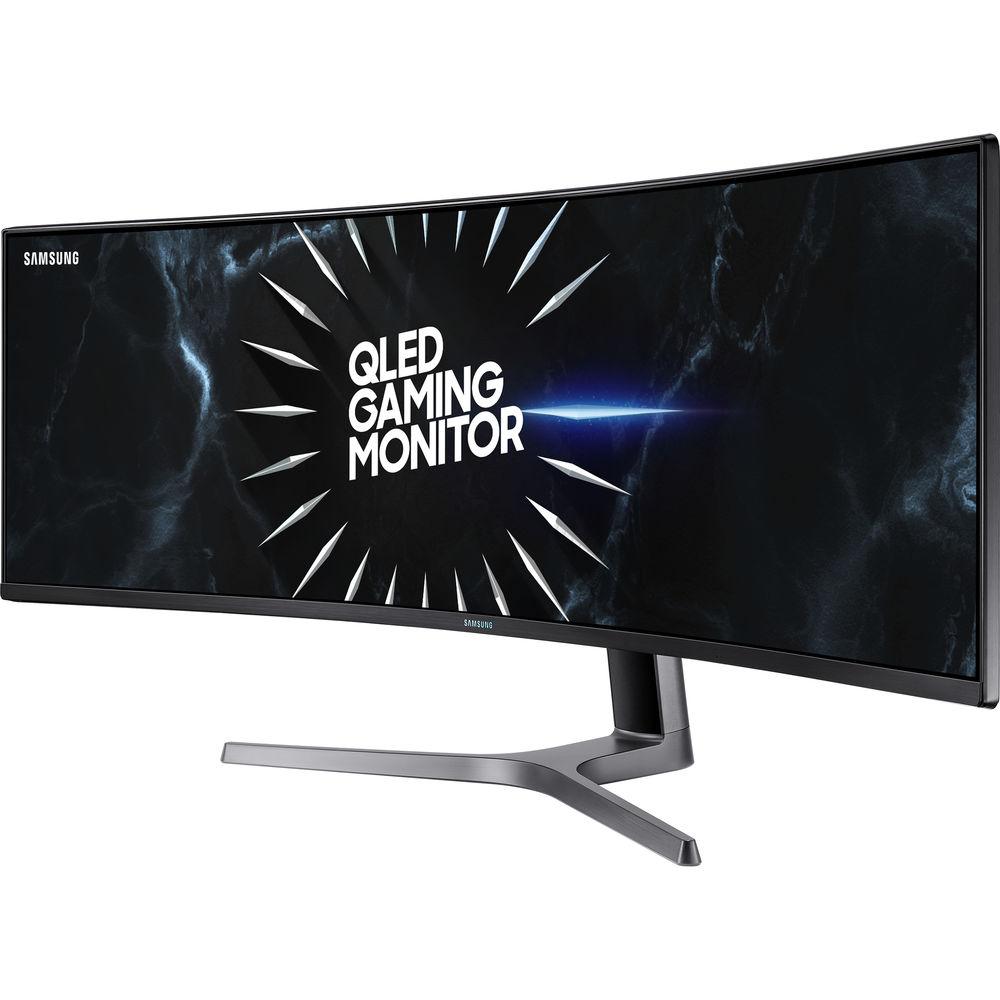

User Manual for Samsung C49RG9 49" 32:9 120 Hz Curved FreeSync HDR LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the Samsung C49RG9 49" 32:9 120 Hz
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung C49RG9 49" 32:9 120 Hz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Built to deliver a wide and immersive gaming experience, the C49RG9 49" 32:9 120 Hz Curved FreeSync HDR LCD Gaming Monitor from Samsung features a 49" Vertical Alignment (VA) panel with a native resolution of 5120 x 1440, a 32:9 aspect ratio, an 1800R curvature rating, a 120 Hz refresh rate, DisplayHDR 1000 with a peak luminance of 1000 cd/m2, and AMD FreeSync II.
The 1800R curvature rating helps your eyes to maintain a constant focus distance from the screen. This reduces focus shifts your eyes make when viewing a flat screen, which helps result in less fatigue and more comfortable viewing over extended periods. Additionally, the 120 Hz refresh rate means the display shows a new image 120 times per second for less delay between each individual frame and therefore less input lag. Rounding things out is AMD FreeSync II, which helps remove stuttering delays and screen tearing by dynamically adapting the display's refresh rate to variable frame rates.
Samsung has also equipped this display with support for 1.07 billion colors, a static contrast ratio of 3000:1, a 4 ms (GtG) response time, and coverage for 95% of the DCI-P3 and 125% of the sRGB color gamuts using Quantum Dot technology. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one HDMI 2.0 output and two DisplayPort 1.4 outputs for connecting to your system. For connecting peripherals, there are two USB 3.0 Type-A ports and two USB 2.0 Type-A ports.
Please note that DisplayHDR 1000 requires HDR10. UPC: 887276302348 In the Box Samsung C49RG9 49" 32:9 120 Hz Curved FreeSync HDR LCD Gaming Monitor Power Cable (5.9' / 1.8m) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung C49RG9 49" 32:9 120 Hz Curved FreeSync HDR LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung CRG9 Specs | | | Size | 49" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 5120 x 1440 | | Aspect Ratio | 32:9 | | Pixels Per Inch (ppi) | 108 ppi | | Maximum Brightness | 1000 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 120 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | HDR10 | | Color Gamut | 95% DCI-P3
125% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x DisplayPort 1.4
1 x HDMI 2.0
2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Mounting-Hole Pattern | 100 x 100 mm |
