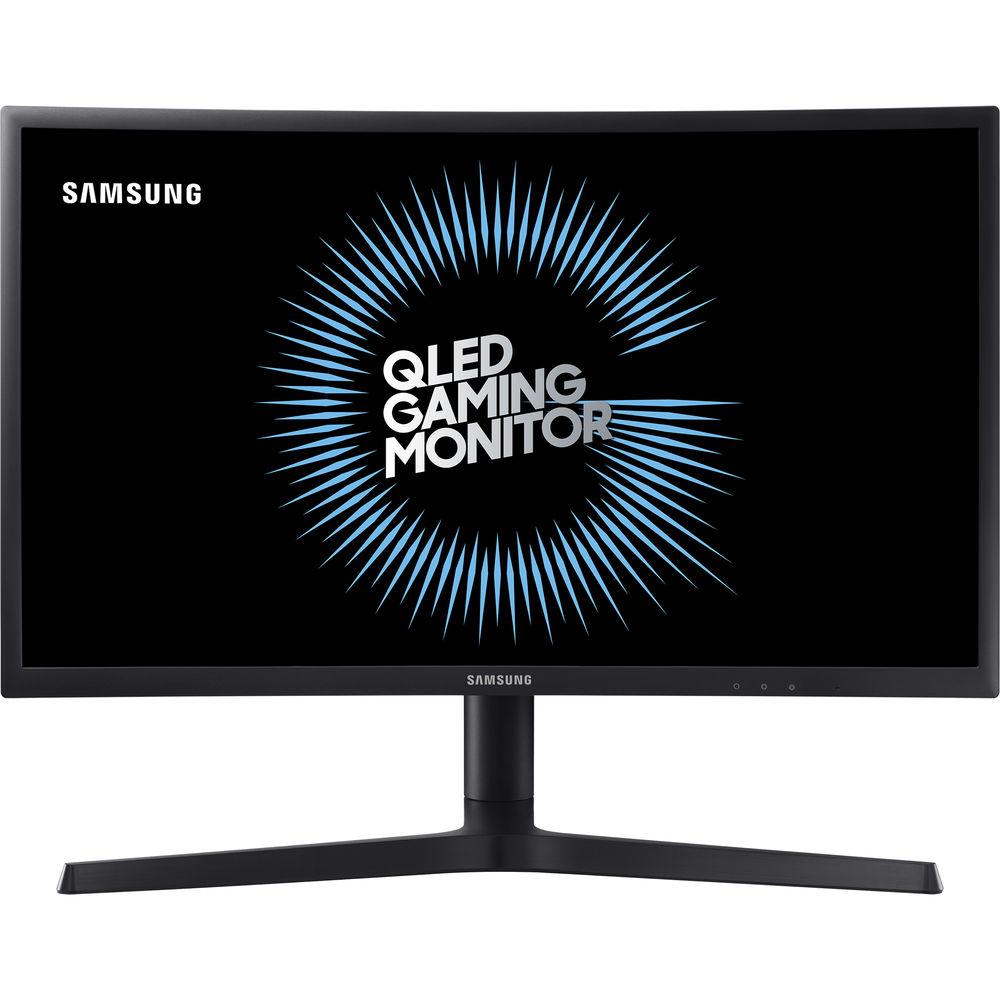

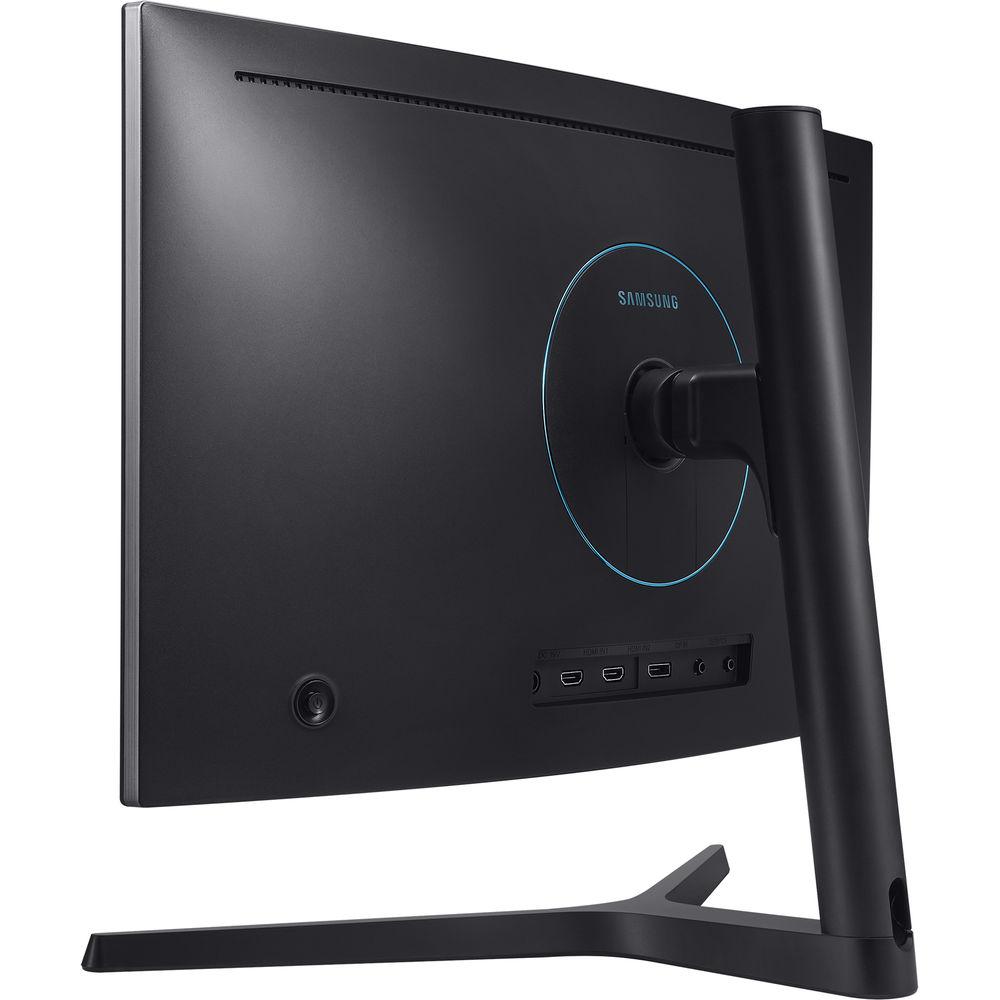

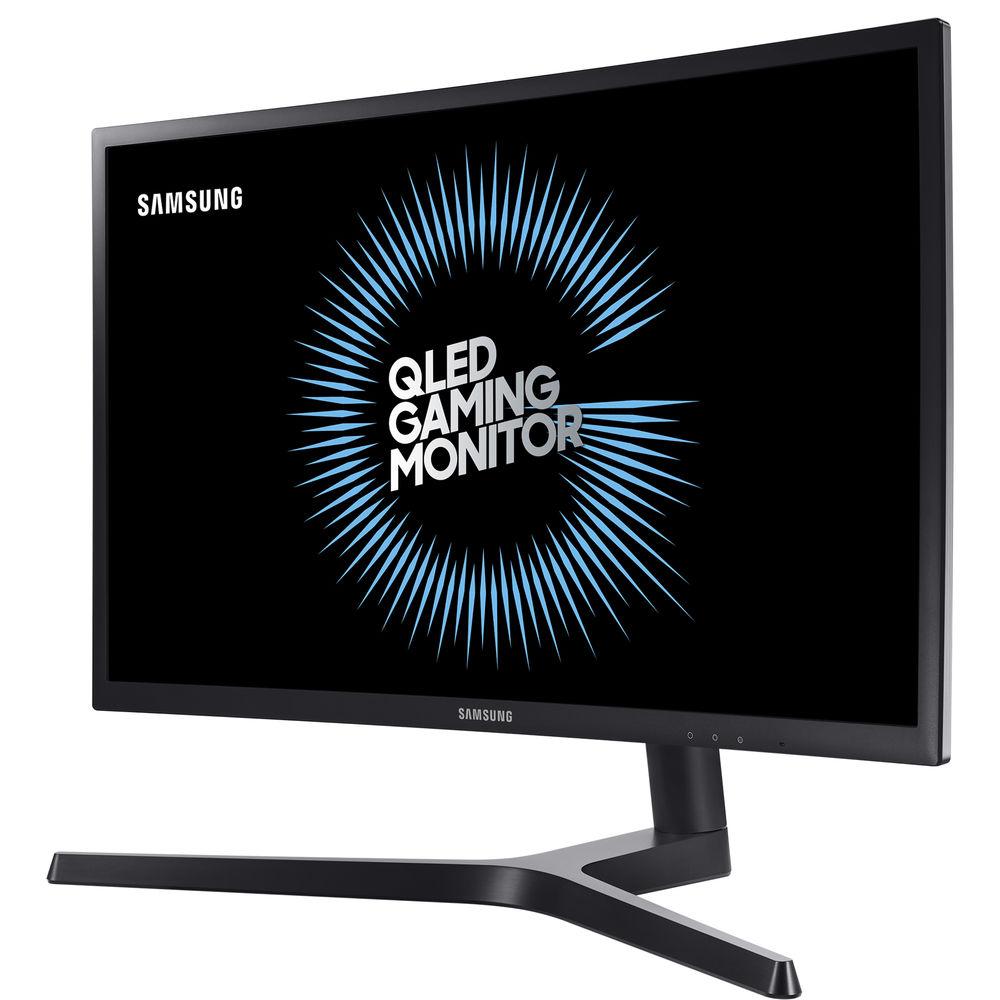

User Manual for Samsung CFG70 Series 24" 16:9 Curved 144 Hz FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung CFG70 Series 24" 16:9 Curved
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung CFG70 Series 24" 16:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

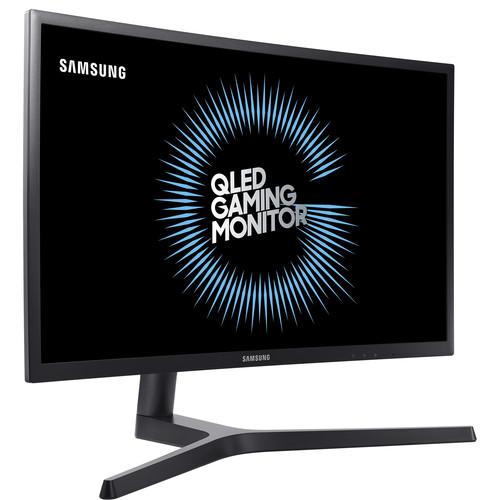

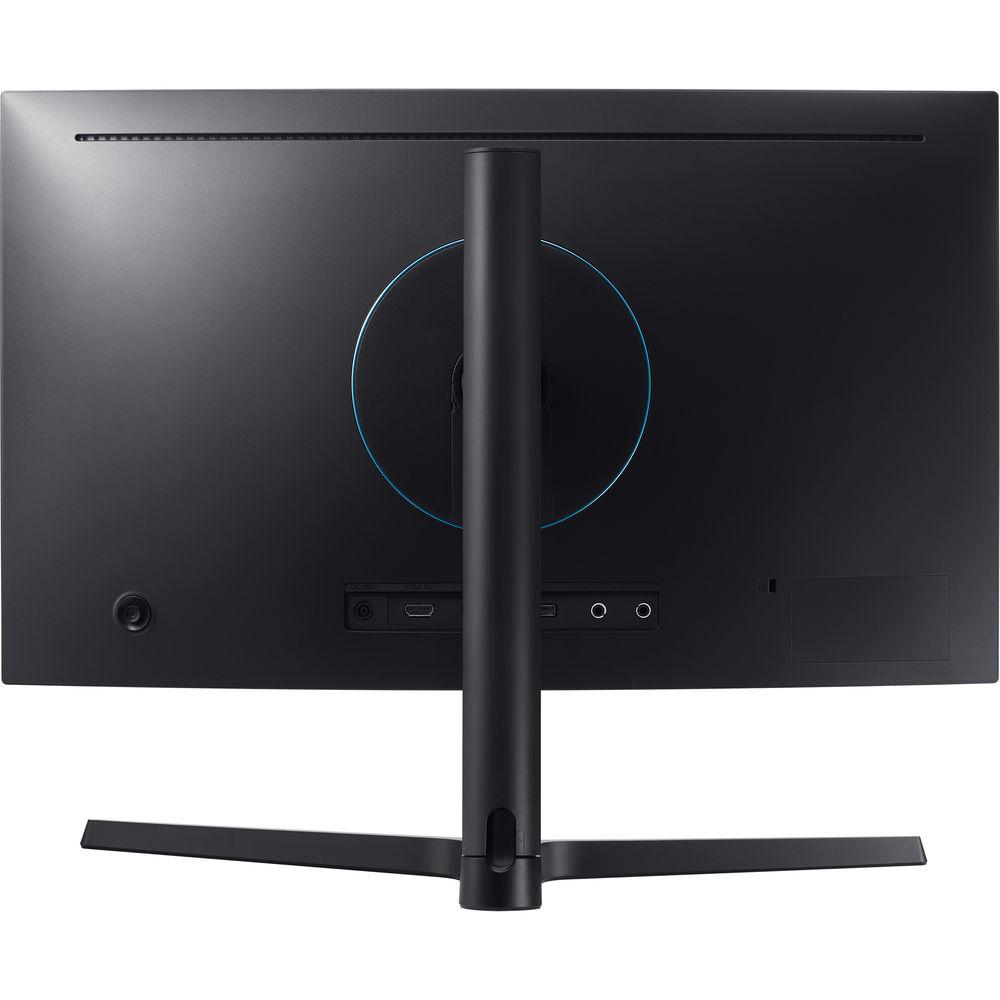

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The CFG70 Series 24" 16:9 Curved 144 Hz FreeSync LCD Monitor from Samsung is built on a VA (Vertical Alignment) panel that provides you with rich and vivid colors at wide viewing angles. Its curved design is intended to offer a more immersive experience for work or play. Specs-wise, it has a 1920 x 1080 Full HD resolution, a 350 cd/m² brightness rating, a 3000:1 static contrast ratio, and supports 16.7 million colors. Combined with Samsung's Quantum Dot technology, you'll get to enjoy a wide range of accurate colors. As a gaming monitor, it's packed with plenty of gaming features such as gaming modes, AMD FreeSync technology, a 1 ms response time, and a 144 Hz refresh rate. Connect it to your system via HDMI or DisplayPort and adjust it to your viewing preference using its dual-arm stand. Otherwise, you can install an optional stand or arm using the VESA mounting holes on the back. - Curved Display

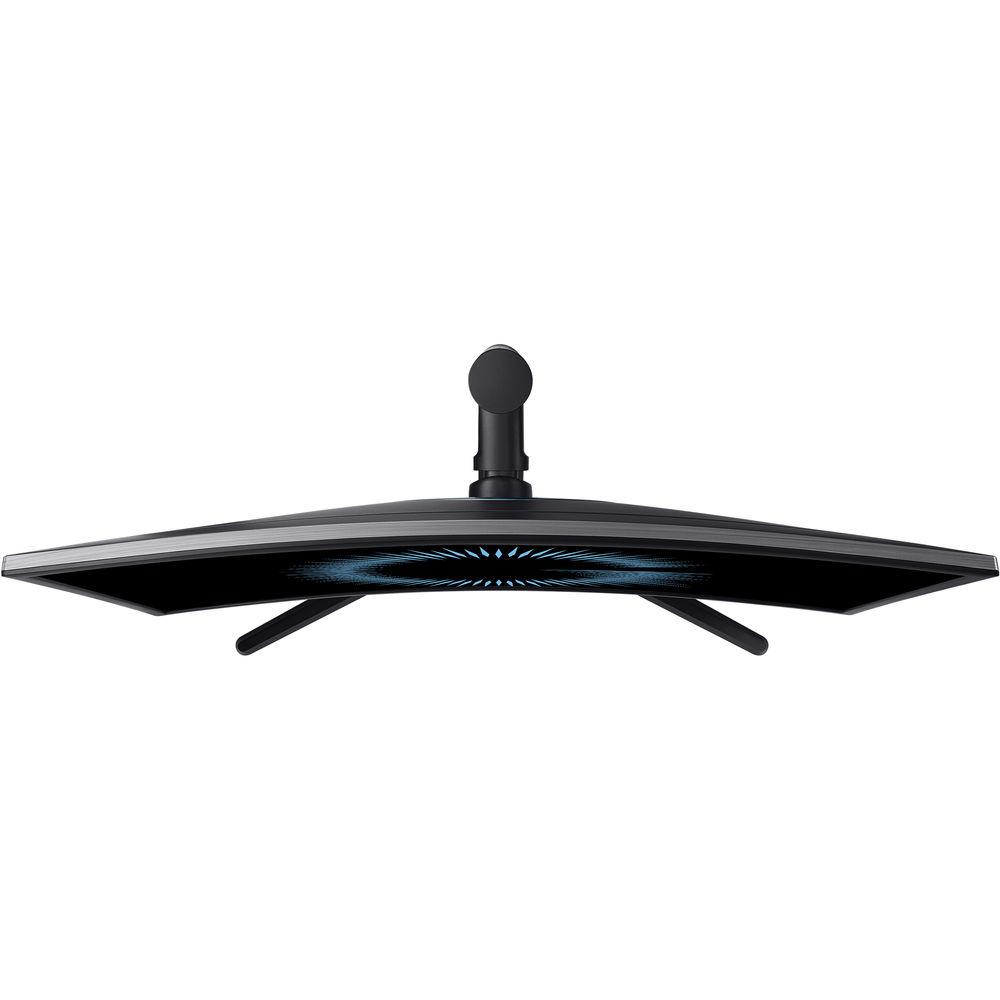

- With an 1800R curvature, the edges wrap around your field of view for a more immersive experience whether you're playing a game or watching a movie.
- Quantum Dot Technology
- Samsung's Quantum Dot Technology supports 125% of the sRGB color palette for a wider and more accurate range of colors, especially for dark reds and greens.
- 144 Hz Refresh Rate
- At high refresh rates, games are noticeably smoother than on monitors with refresh rates of 60 or 70 Hz; however, if your hardware isn't powerful enough, you'll be able to choose from 60, 100, and 120 Hz refresh rates as well.
- AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with the graphics card's frame rate output to reduce tearing and stuttering, which provides you with a smooth and lag-free gaming experience.
- Preset Display Game Modes
- Preset Display Game Modes features factory-calibrated gamma levels, contrast ratios, and sharpness for FPS, RTS, RPG, and AOS-type games for optimized viewing.
- Game-Style OSD Menu & Sound Interactive LED Lighting
- Have an easier time adjusting your display settings with the on-screen display rather than hardware buttons. This monitor also features LED lighting that enhances your gameplay with a dynamic display of lights that shine from below the monitor frame onto the stand.

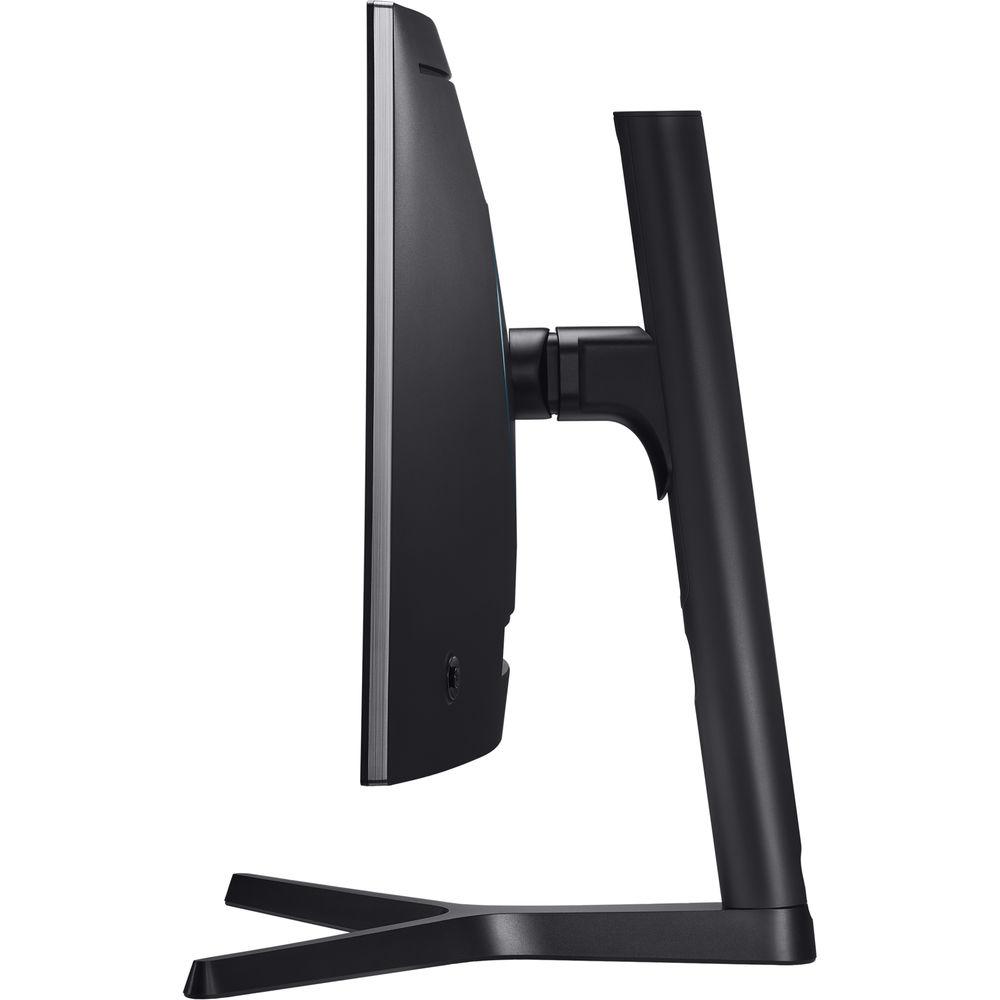

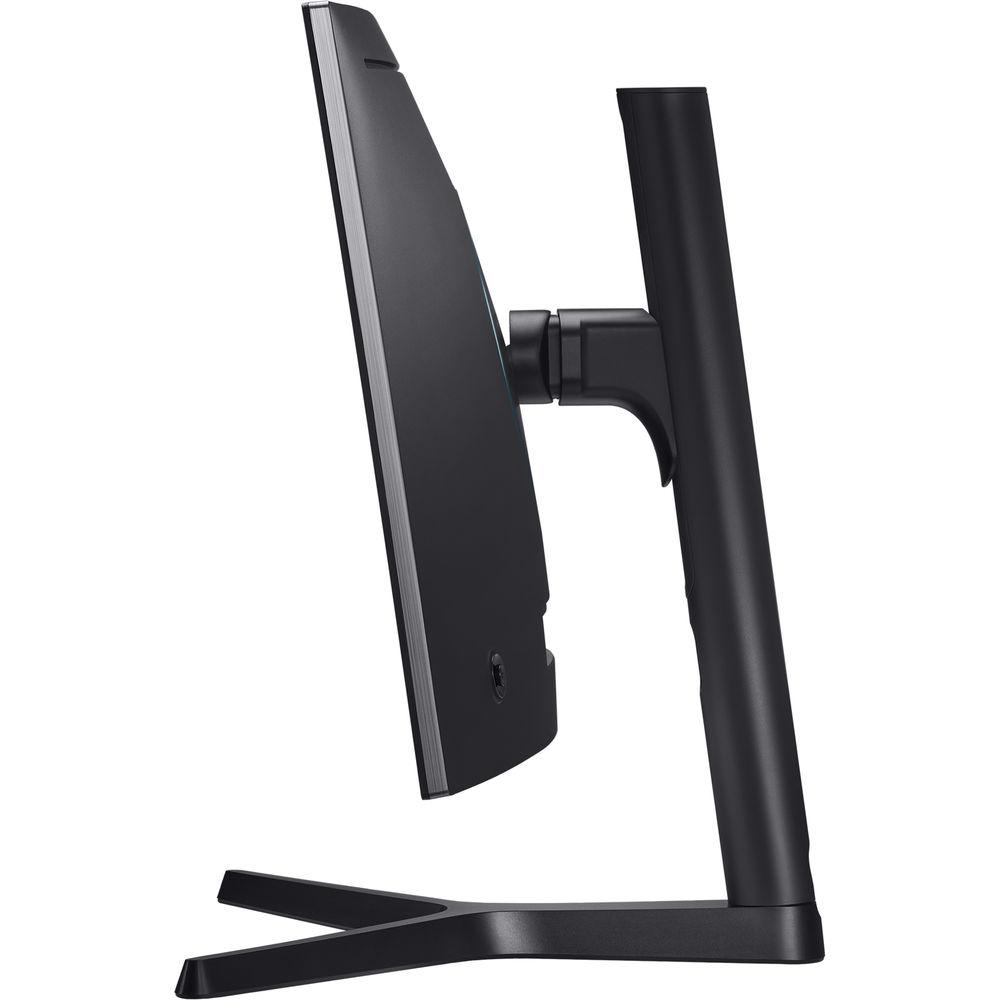

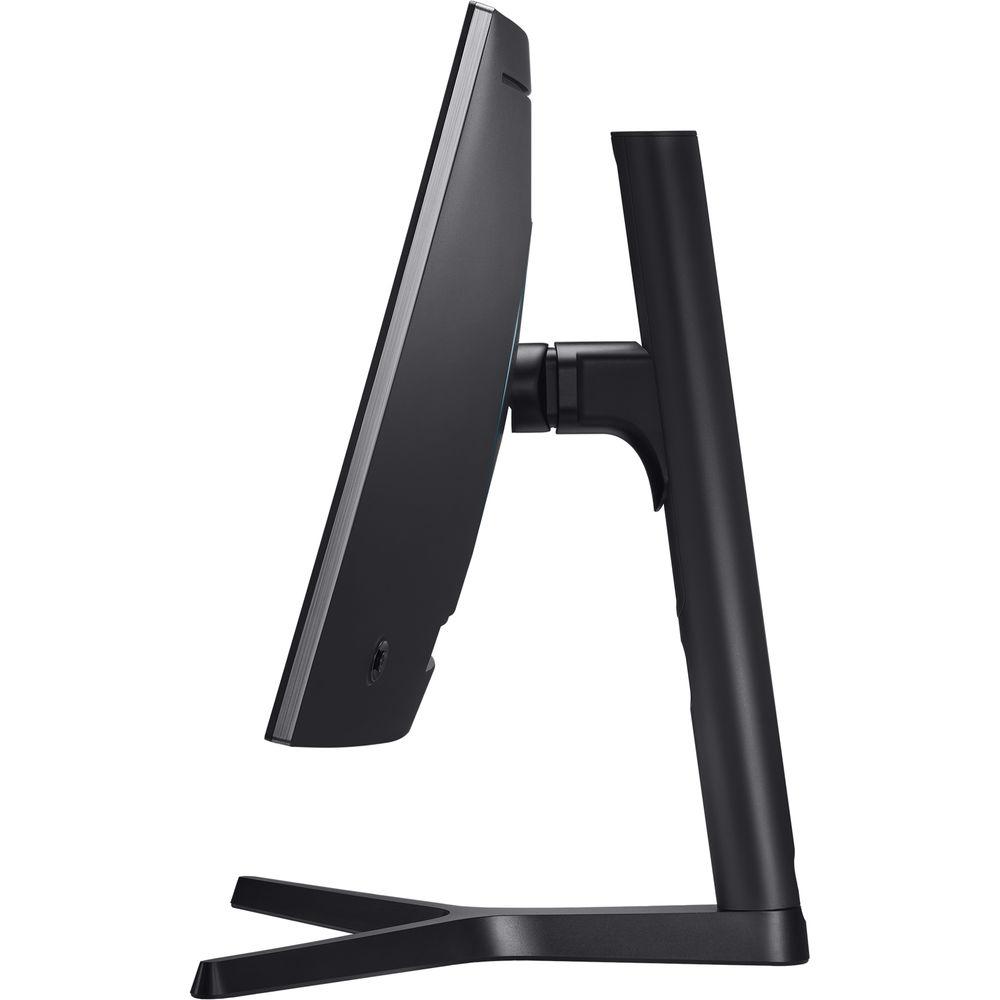

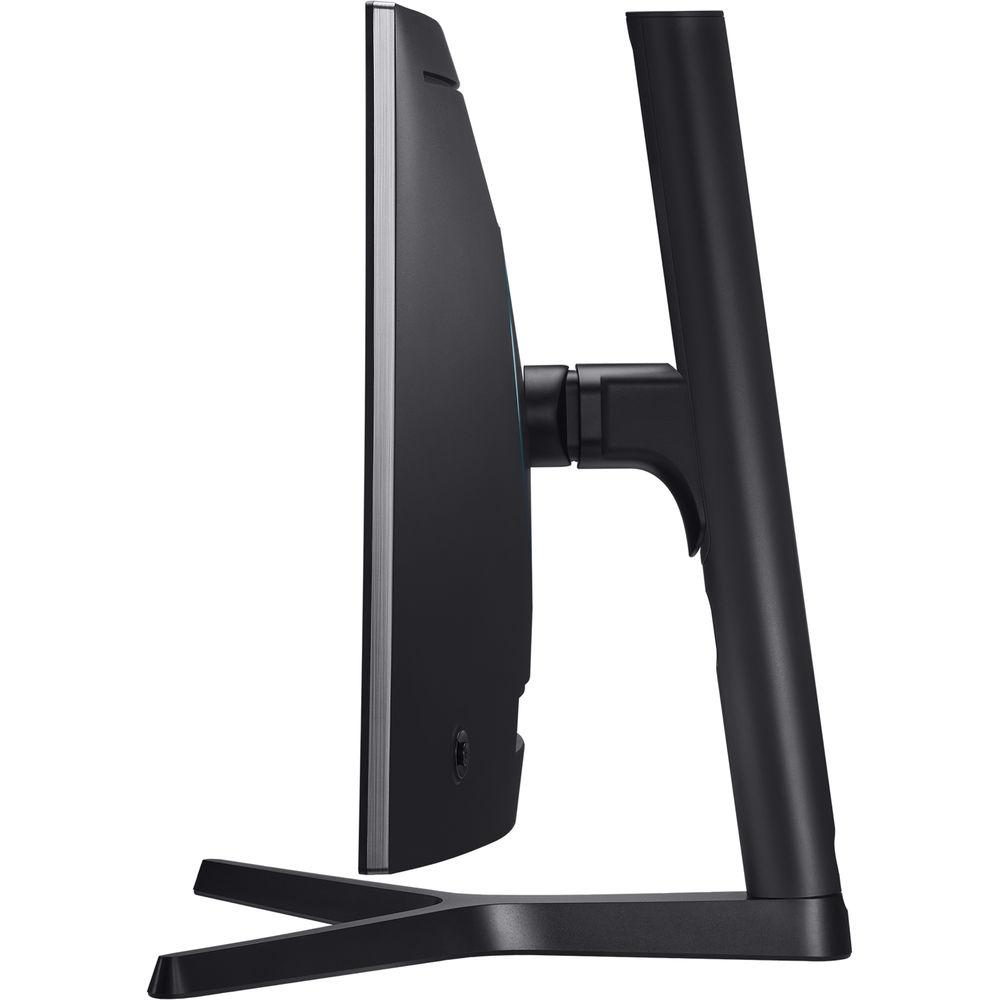

- Dual-Hinged Arm
- The dual-hinged arm stand lets you adjust the height and tilt angle of the display so that it can fit your preferred viewing position.
UPC: 887276217482 In the Box Samsung CFG70 Series 24" 16:9 Curved 144 Hz FreeSync LCD Monitor Power Cable HDMI Cable DisplayPort Cable Limited 3-Year Warranty User Manual PDF 2.8mbbtudrvrfrbvvyddtuzszyeyccrdyrdzyewd More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung CFG70 Series 24" 16:9 Curved 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LC24FG73FQNXZA Specs | Screen Size | 24" (61 cm) | | Display Type | VA (Vertical Alignment) | | Curvature | 1800R | | Resolution | 1920 x 1080 | | Brightness | 350 cd/m² | | Static Contrast Ratio | 3000:1 | | Viewing Angle (H/V) | 178°/178° | | Response Time | 1 ms (MPRT) | | Refresh Rate | 144 Hz | | Color Support | 16.7 Million | | AMD Free Sync Technology | Yes | | Audio | 1 x Headphone | | Ports and Connectors | 2 x HDMI
1 x DisplayPort | | | | VESA Compatibility | 75 x 75 mm | | Tilt | -2~17° (±2°) | | | | Type | External Adapter | | Power Supply | 100 - 240 VAC, 50 / 60 Hz | | Power Consumption (Maximum) | 59 W | | Power Consumption (Standby) | 0.3 W | | Max Standby Power | 0.5 W | | | | Dimensions (W x H x D) | With Stand: 21.5 x 20.9 x 15.2 (546.1 x 530.86 x 386.08 mm)
Without Stand: 21.5 x 12.8 x 2.8" (546.1 x 325.12 x 71.12 mm) | | Weight | With Stand: 11.5 lb (5.22 kg)
Without Stand: 6.8 lb (3.08 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 8.0" |
