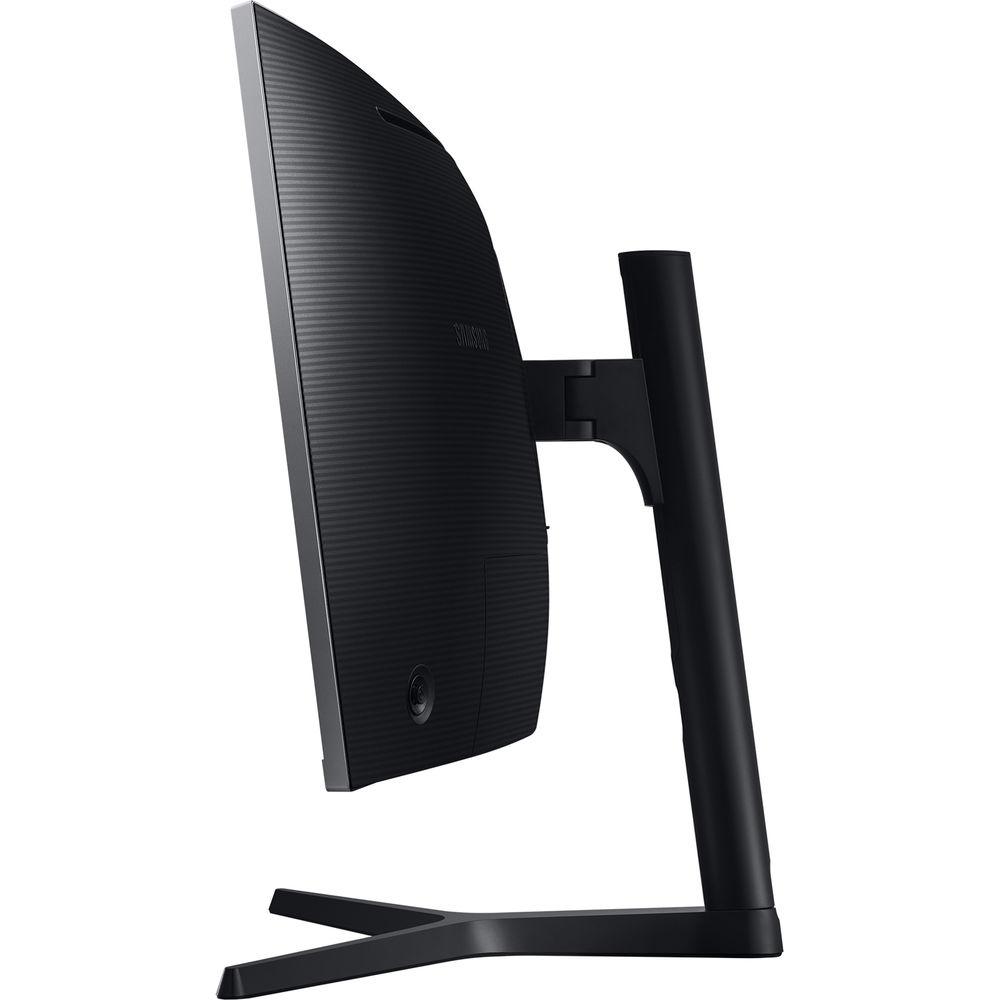

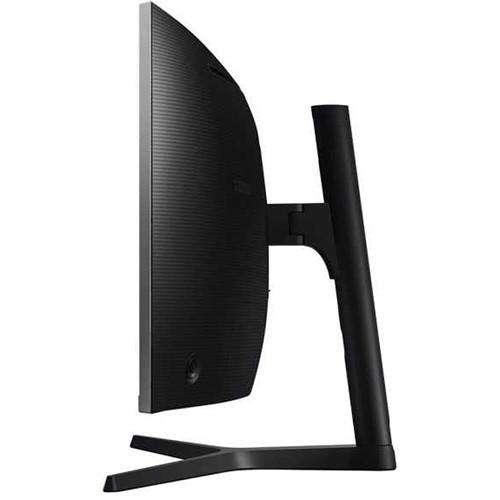

User Manual for Samsung CH890 34" 21:9 Curved FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung CH890 34" 21:9 Curved FreeSync
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung CH890 34" 21:9 Curved FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

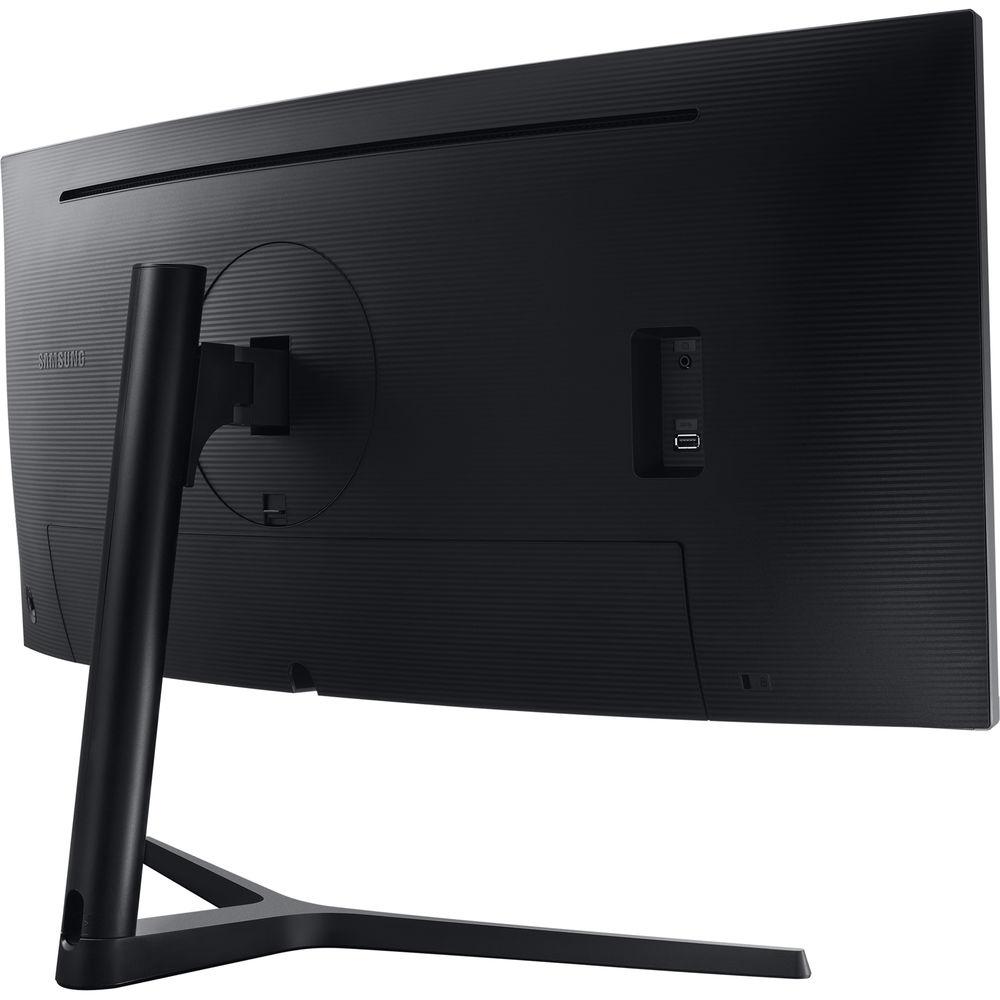

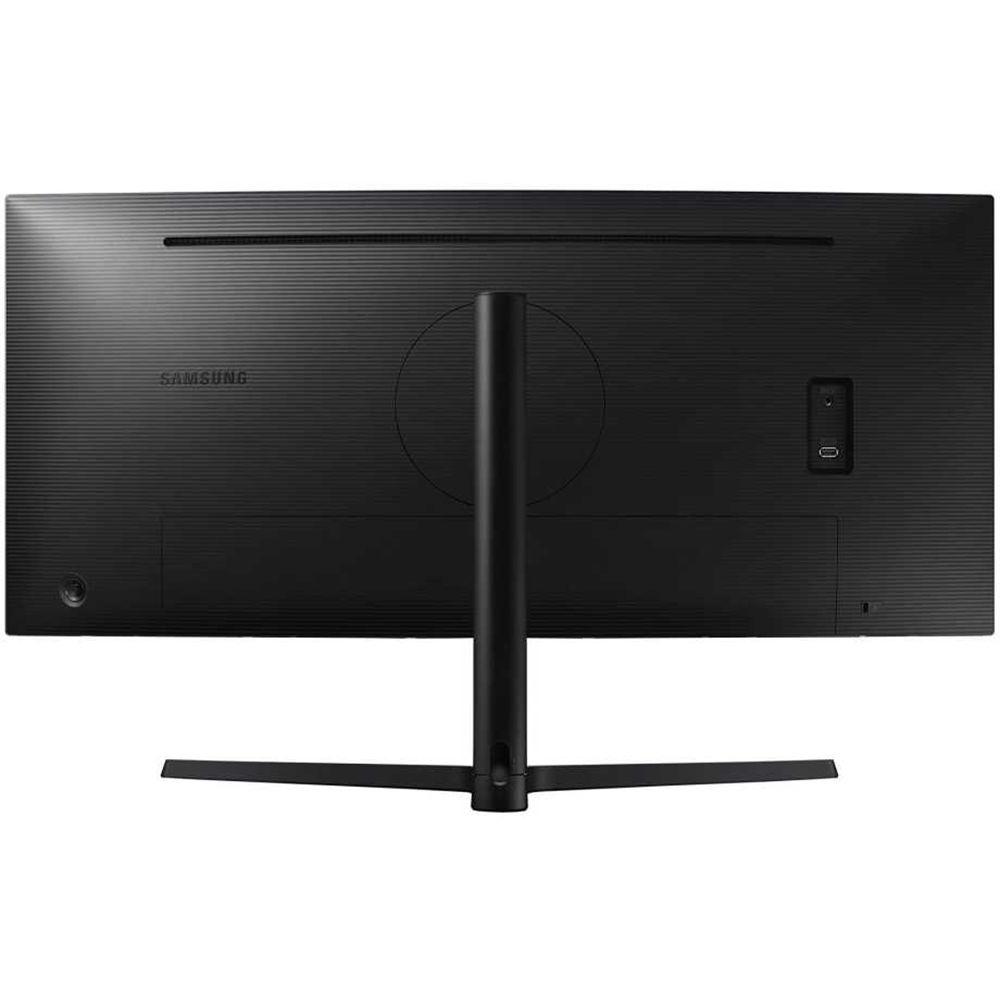

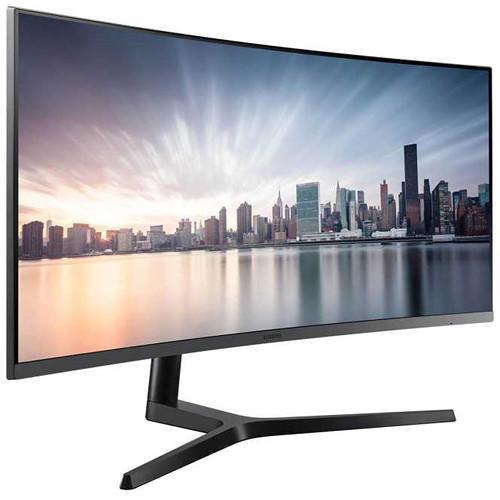

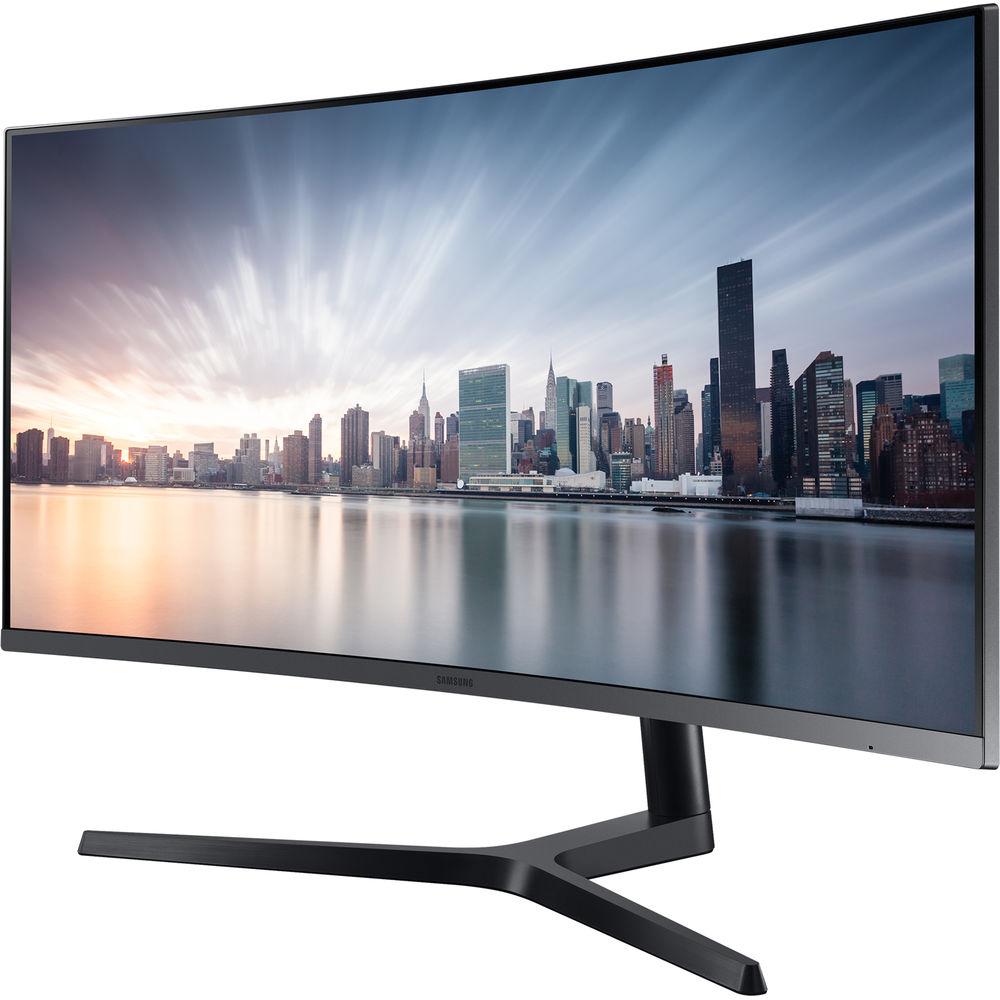

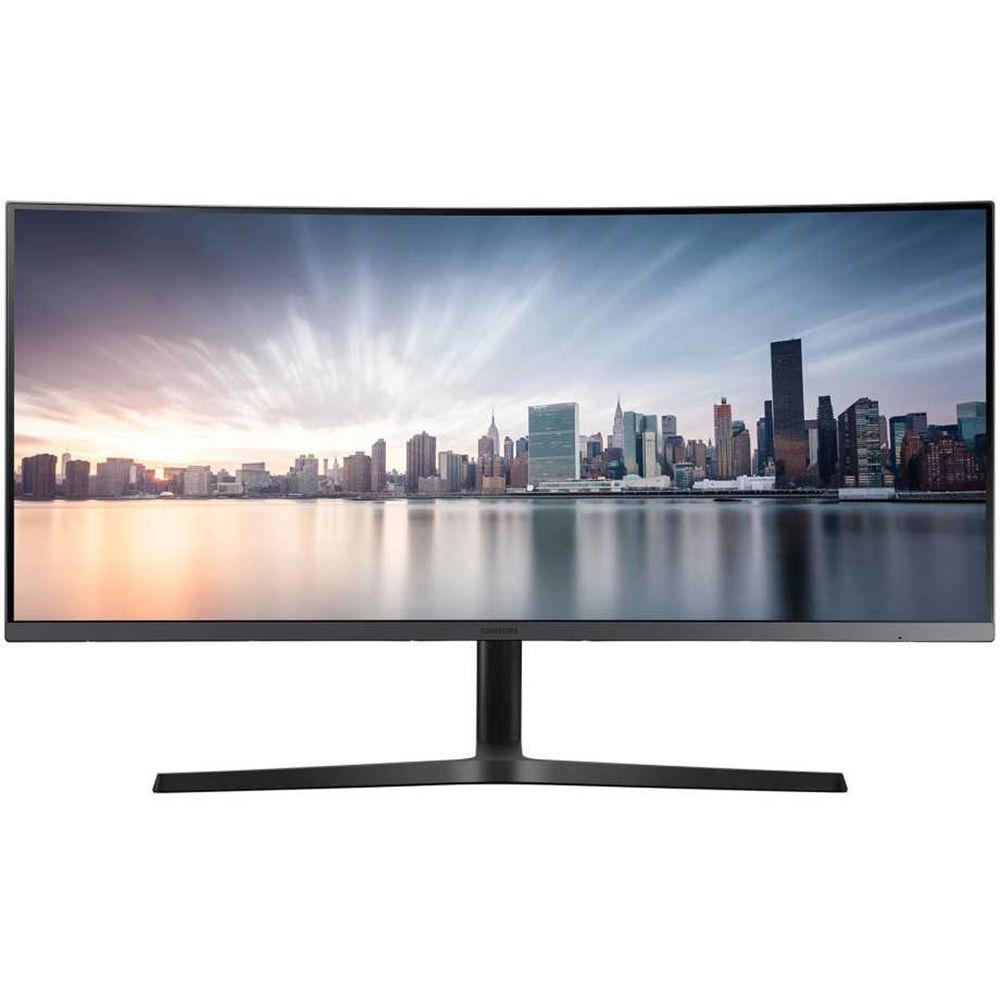

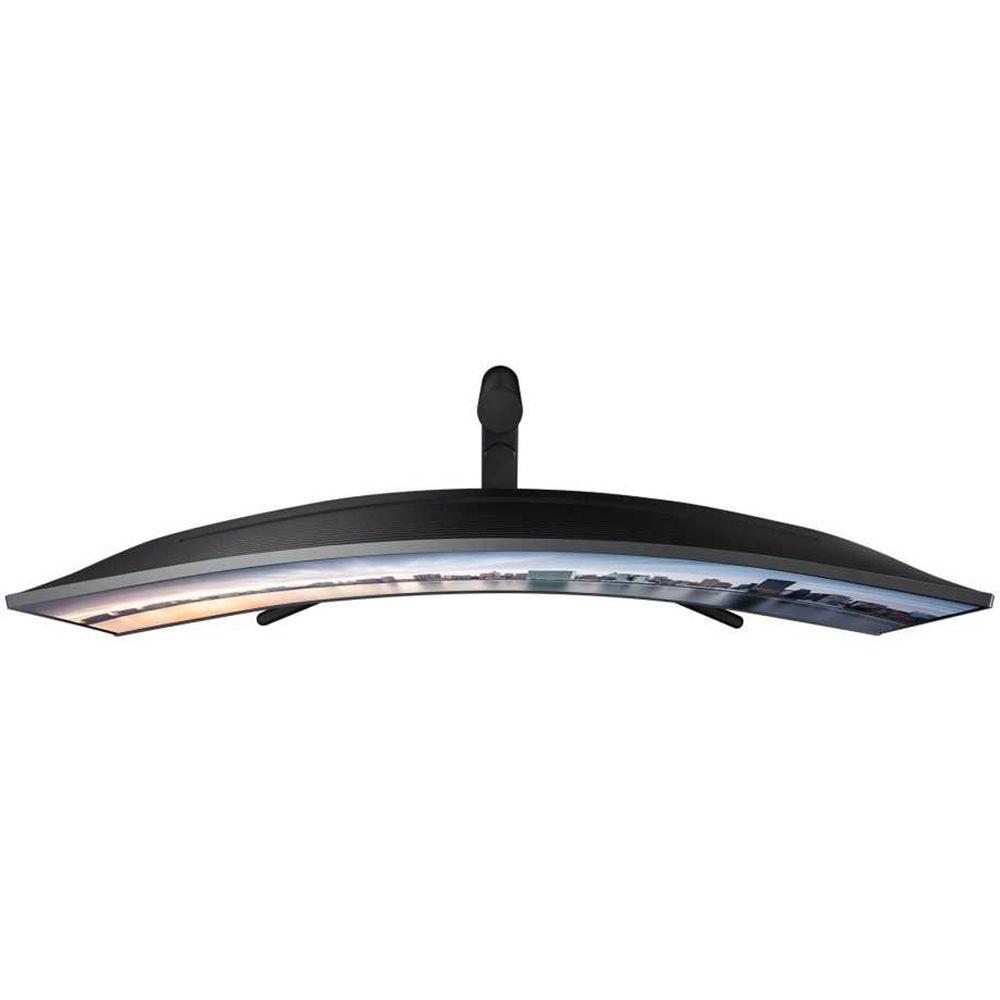

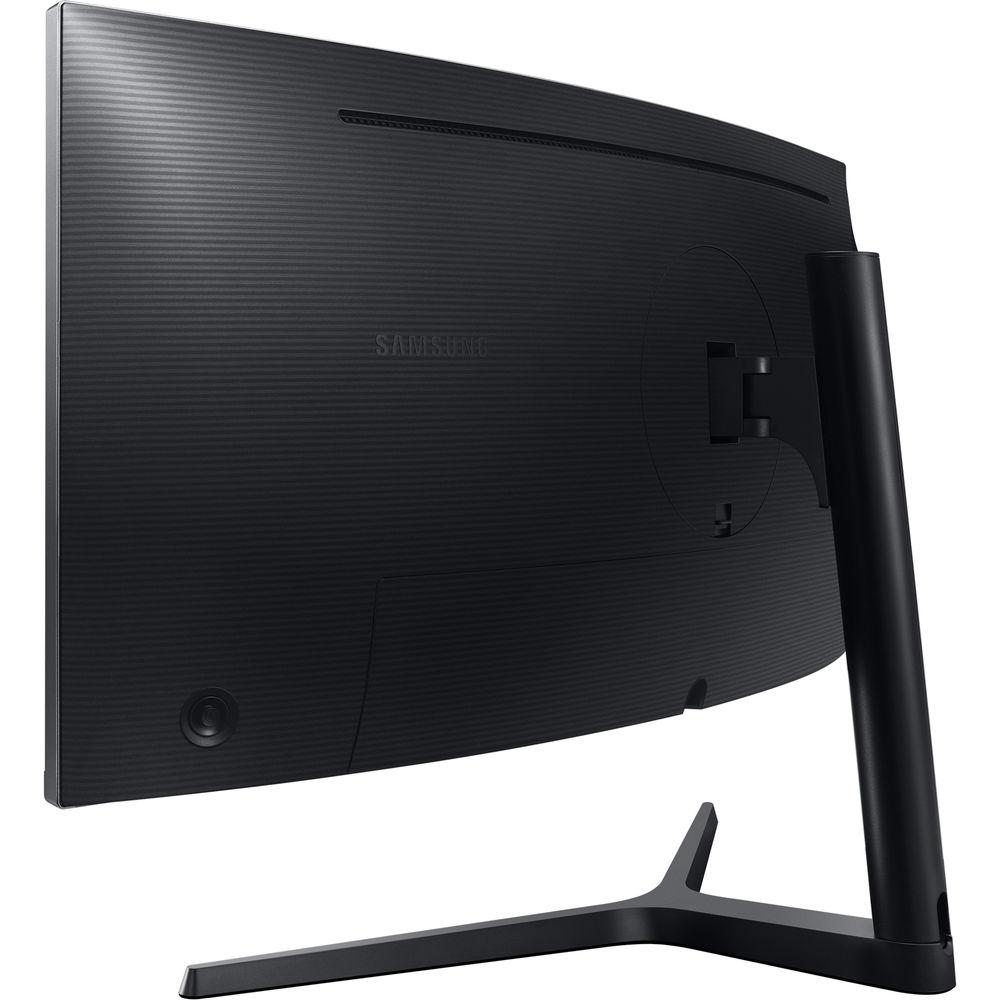

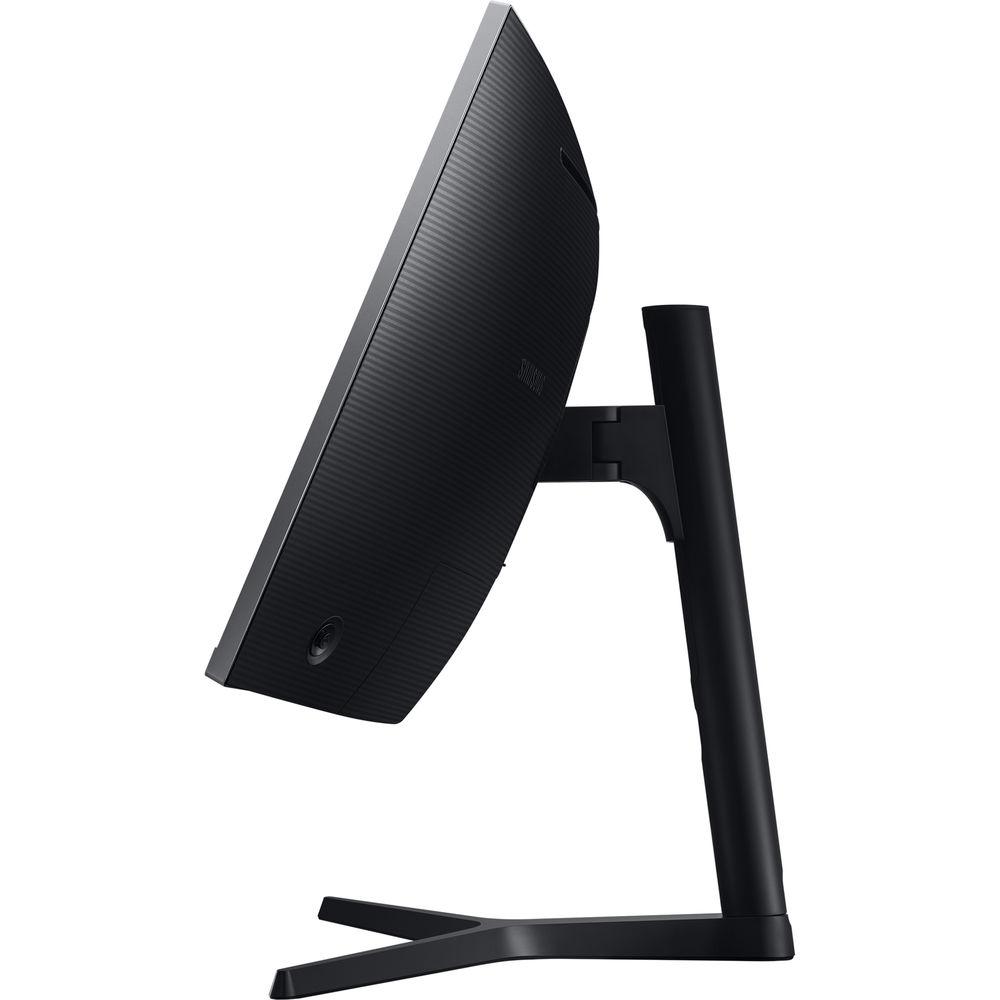

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The CH890 34" 21:9 Curved FreeSync LCD Monitor from Samsung features an expansive 34" curved display that wraps around your field of view for an immersive viewing experience. Additionally, it supports AMD FreeSync, which is a helpful feature for gamers that syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting. Specs-wise, it has a 3440 x 1440 resolution, a 300 cd/m² brightness rating, and a 3000:1 static contrast ratio, and support for 16.7 million colors for crisp and clear details with vivid colors. Once connected to your system via HDMI or DisplayPort, you can swivel, tilt, and adjust its height to your viewing preference. Otherwise, you can install an optional VESA stand, mount, or arm using the mounting holes on the back. For your convenience, this monitor also has a built-in USB hub with one of the ports featuring a USB Type-C interface. - AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother viewing experience.
- USB Type-C
- The USB Type-C port on this monitor supports power, data, and even DisplayPort for a single cable solution for connecting your devices.
- PBP Dual-Screen Function
- Samsung's Picture-by-Picture (PBP) function lets you connect two devices at the same time and use them simultaneously.
- PIP Sub-Screen Display
- Samsung's Picture-in-Picture function lets you resize your second image down to 25% and place it wherever you need it.
- USB Hub
- Aside from the USB Type-C port, this monitor is also equipped with three USB Type-A ports that you can use to conveniently connect USB peripherals and devices.
- Extend Your Mobile Device
- With the USB Type-C port, this monitor can be used with the Samsung S8 and Note 8 without any hubs or apps.
In the Box Samsung CH890 34" 21:9 Curved FreeSync LCD Monitor Power Cable HDMI Cable DisplayPort Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung CH890 34" 21:9 Curved FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung C34H890 Specs | | | Size | 34" | | Screen Area | 31.4 x 13.13" / 797.56 x 333.50 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 110 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 100 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI
1 x DisplayPort
1 x USB Type-C
1 x 3.5 mm
1 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Built-In Speakers | None | | | | Power Consumption | 175 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 45 W | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | 5.31" / 134.87 mm | | Rotation Adjustment | None | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 24° | | Lock Slot | No | | Dimensions (W x H x D) | 31.9 x 21.2 x 11.8" / 810.3 x 538.5 x 299.7 mm (With Stand)
31.9 x 14.3 x 4.9" / 810.3 x 363.2 x 124.5 mm (Without Stand) | | Weight | 18.3 lb / 8.30 kg (With Stand)
13.89 lb / 6.30 kg (Without Stand) |
