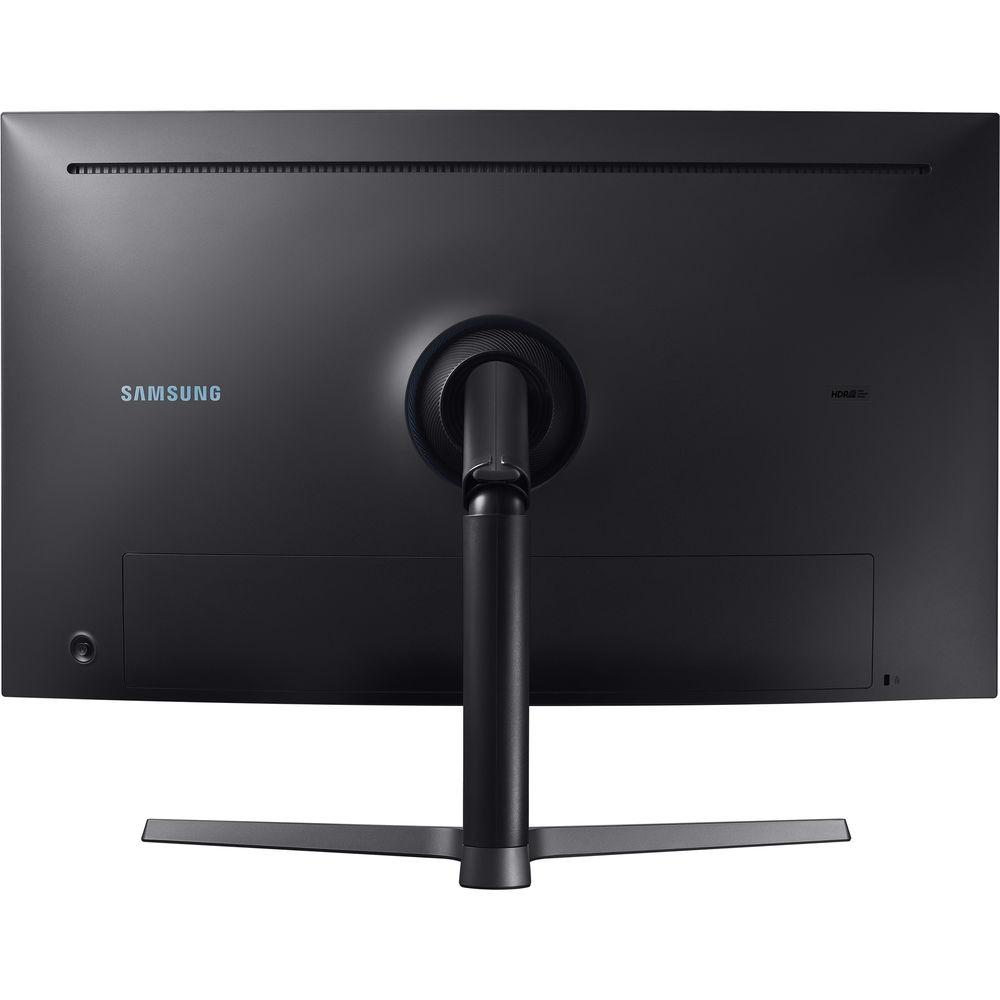

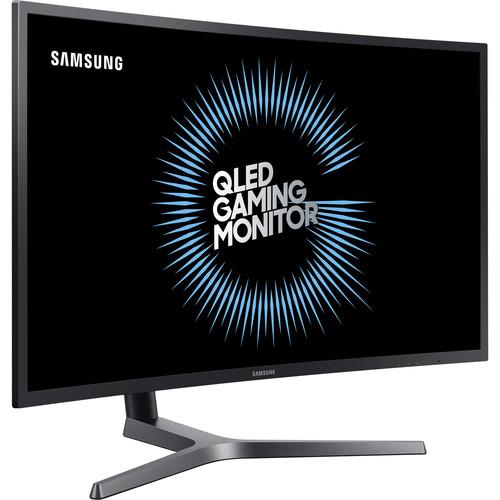

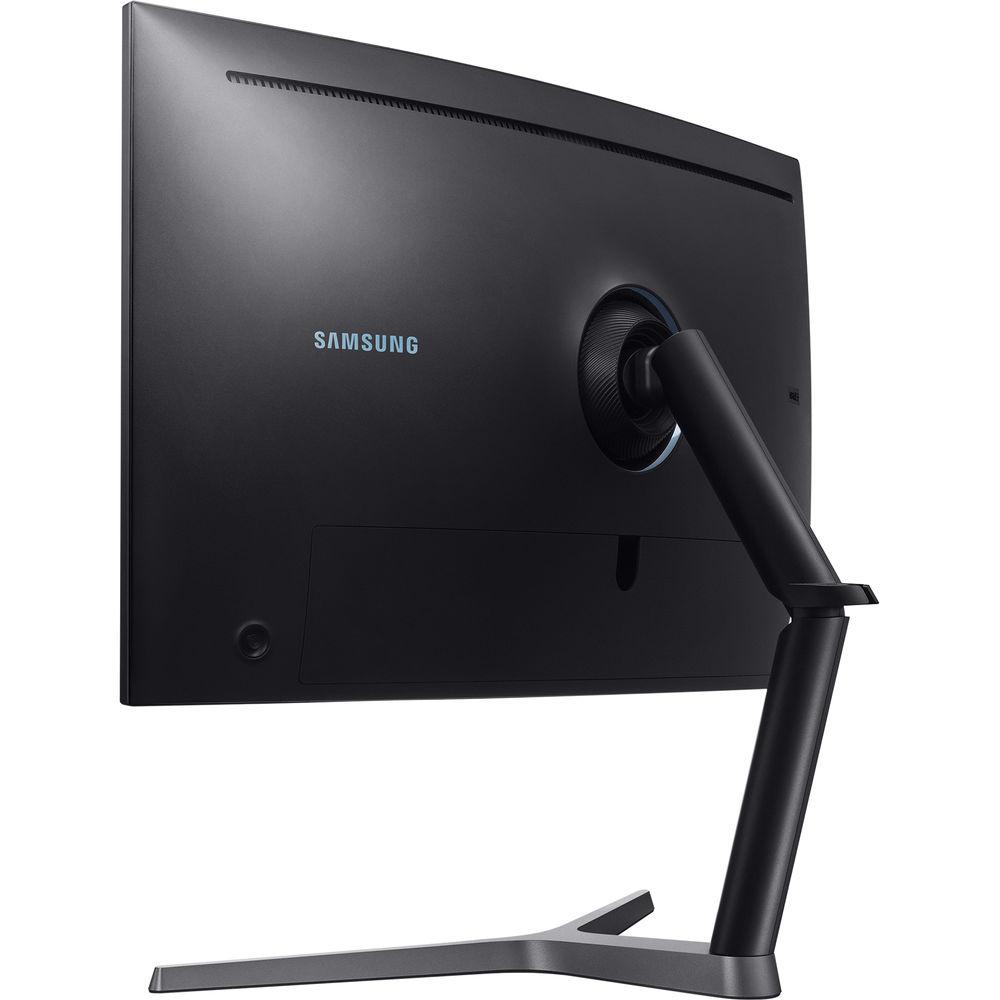

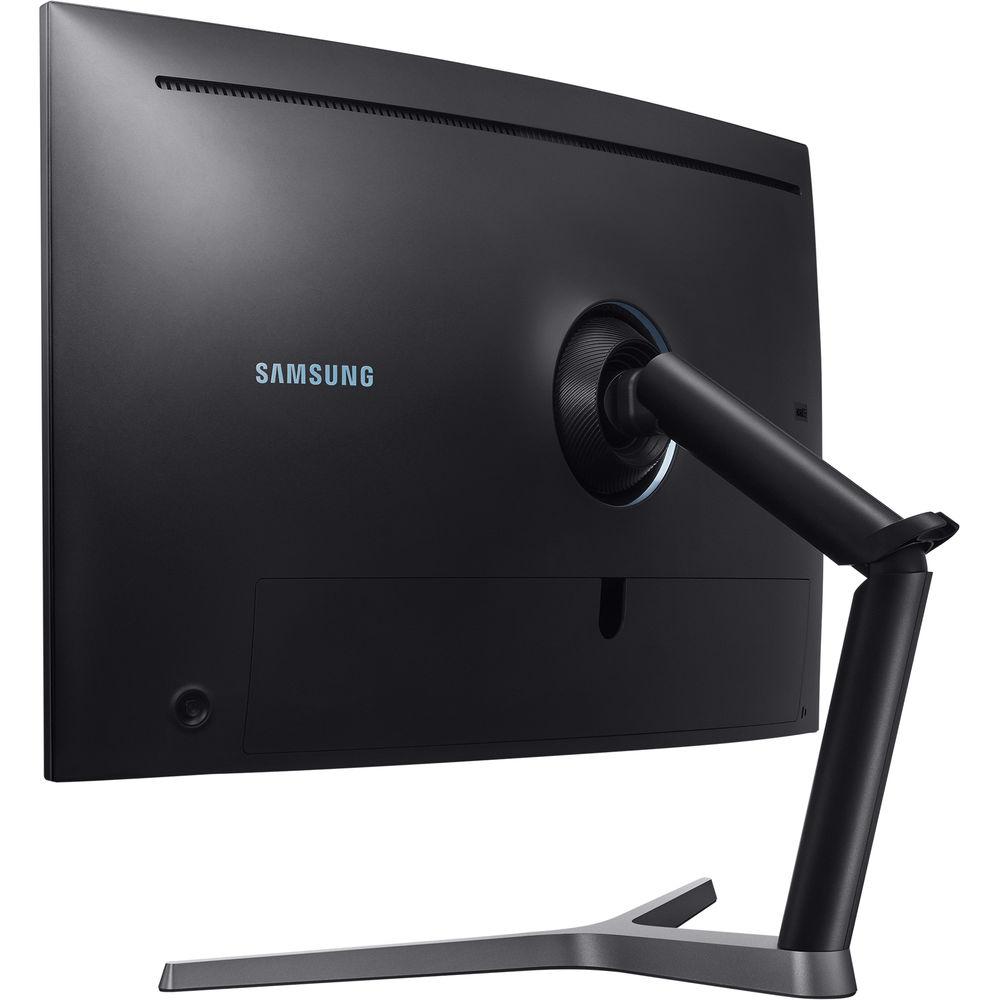

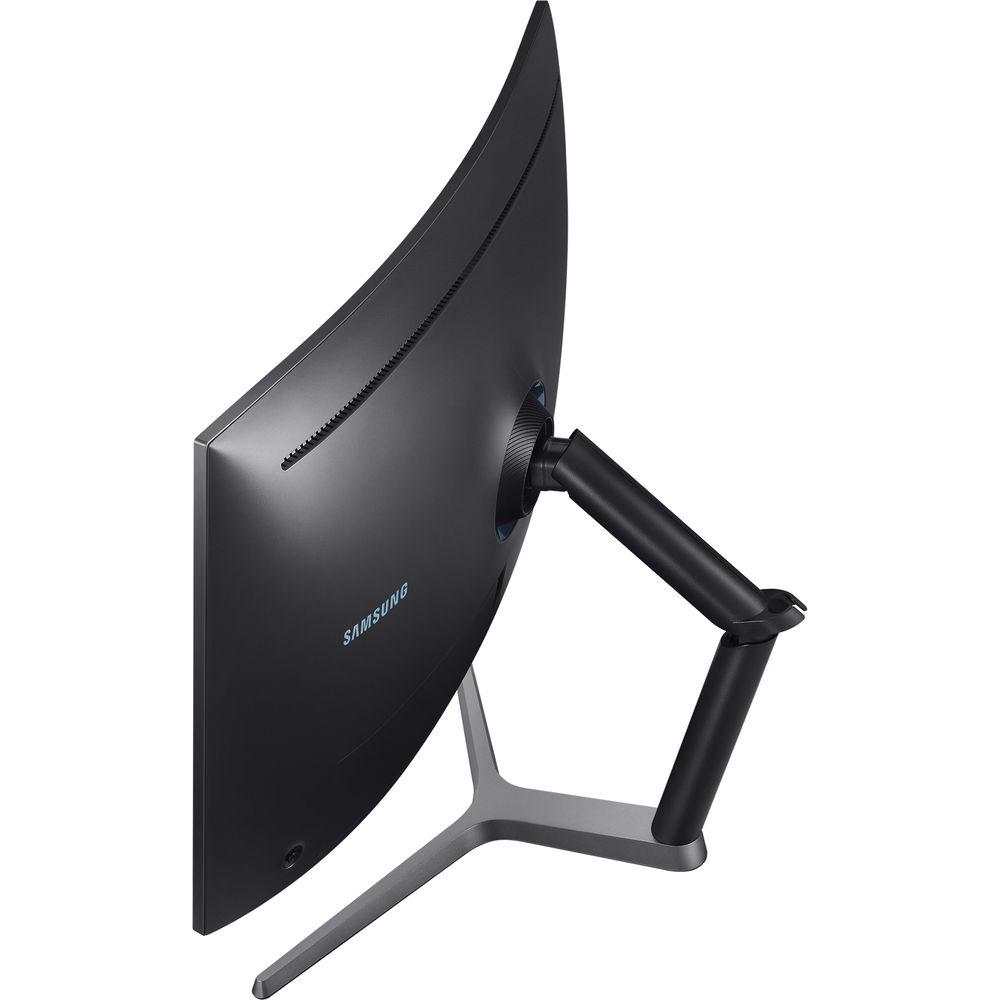

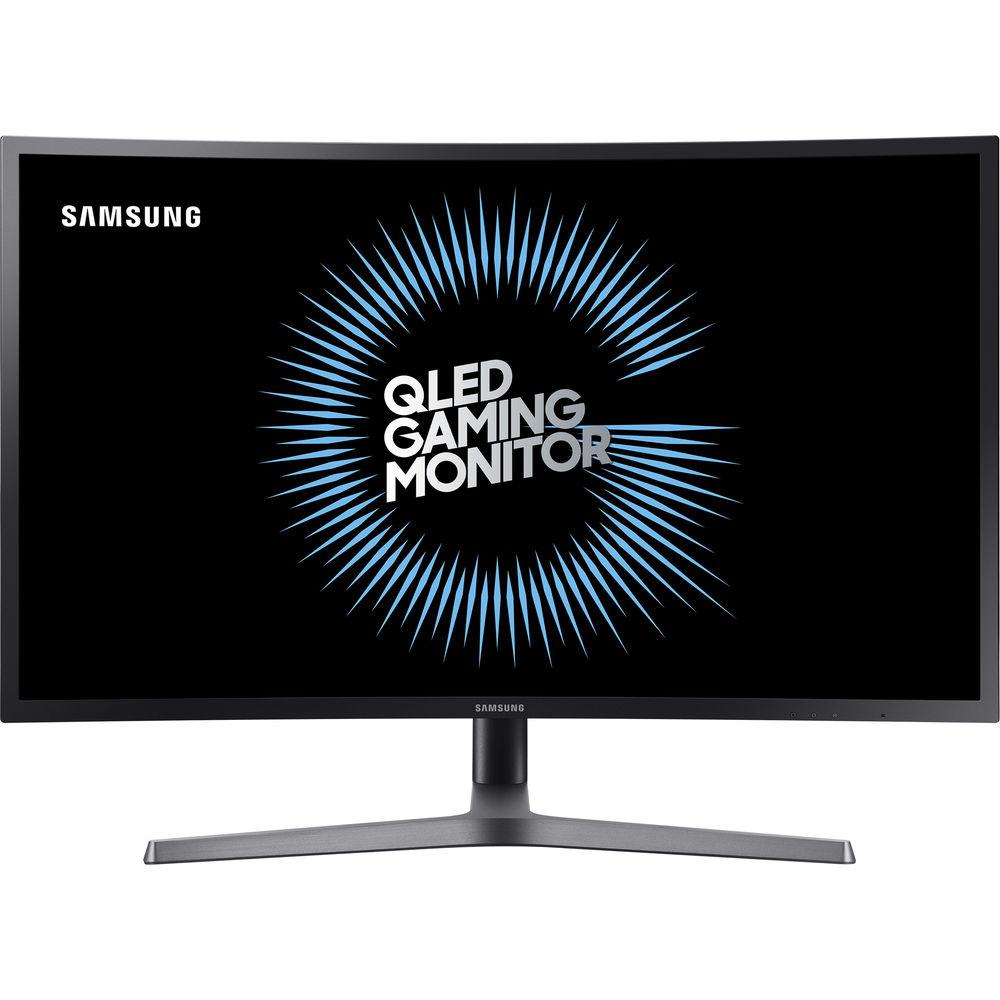

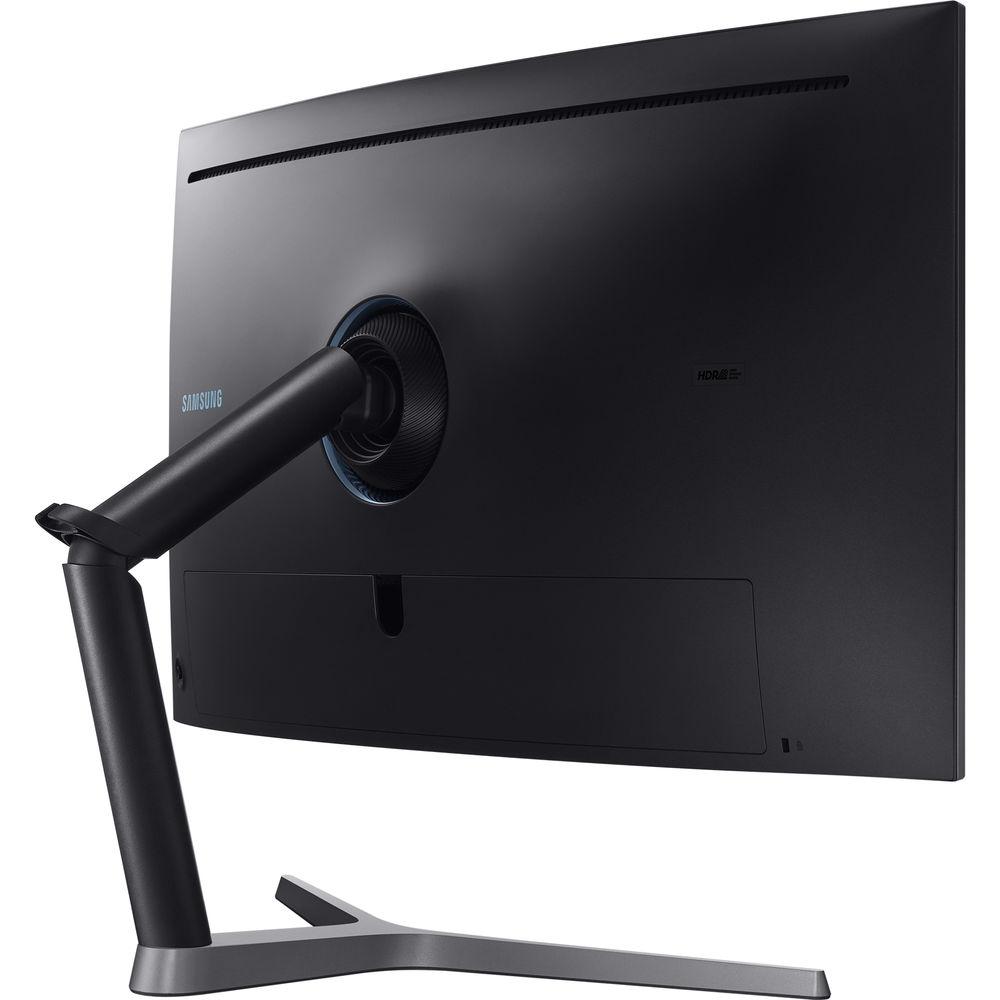

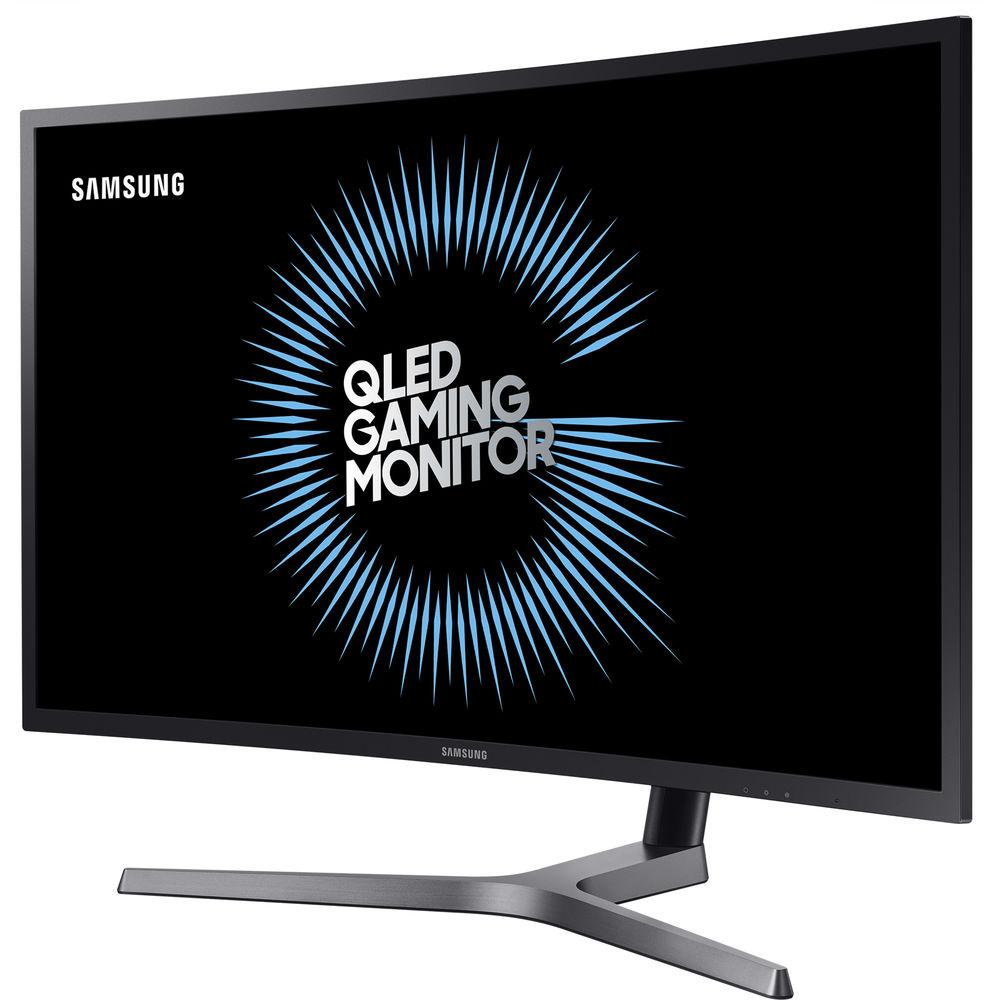

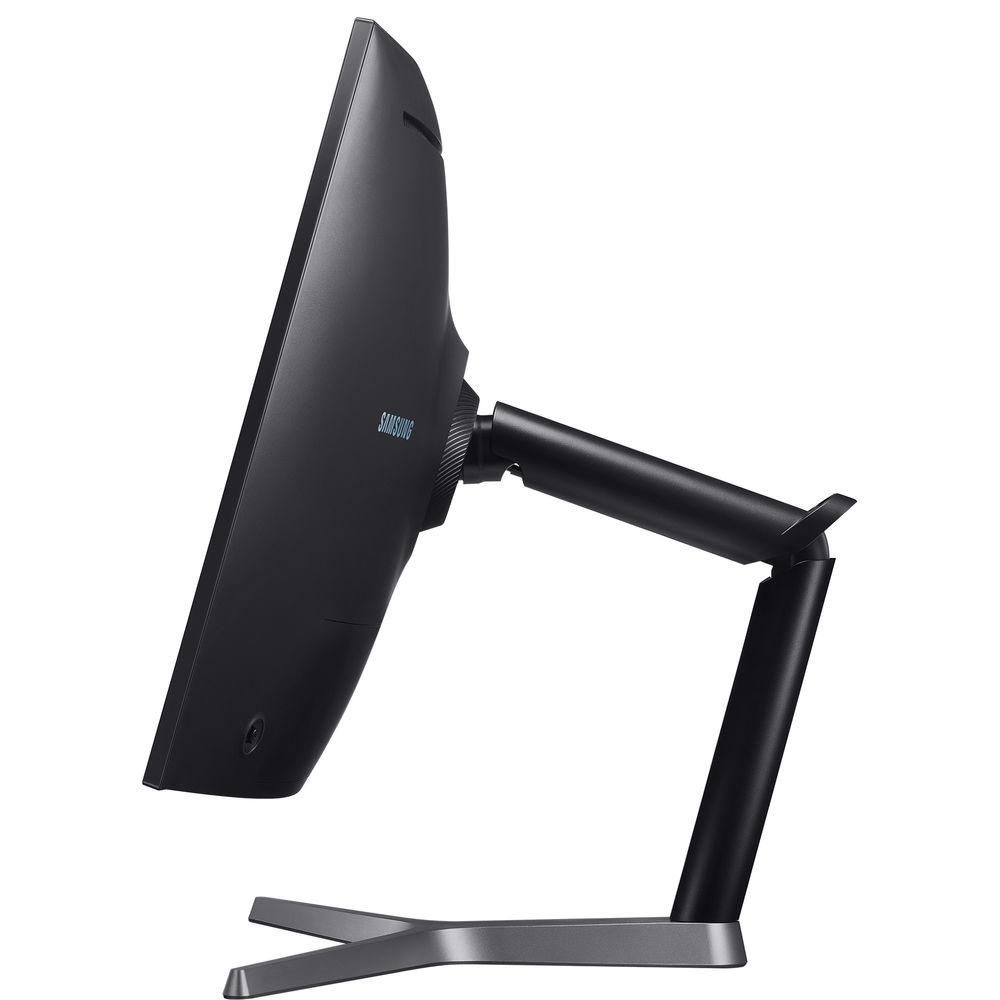

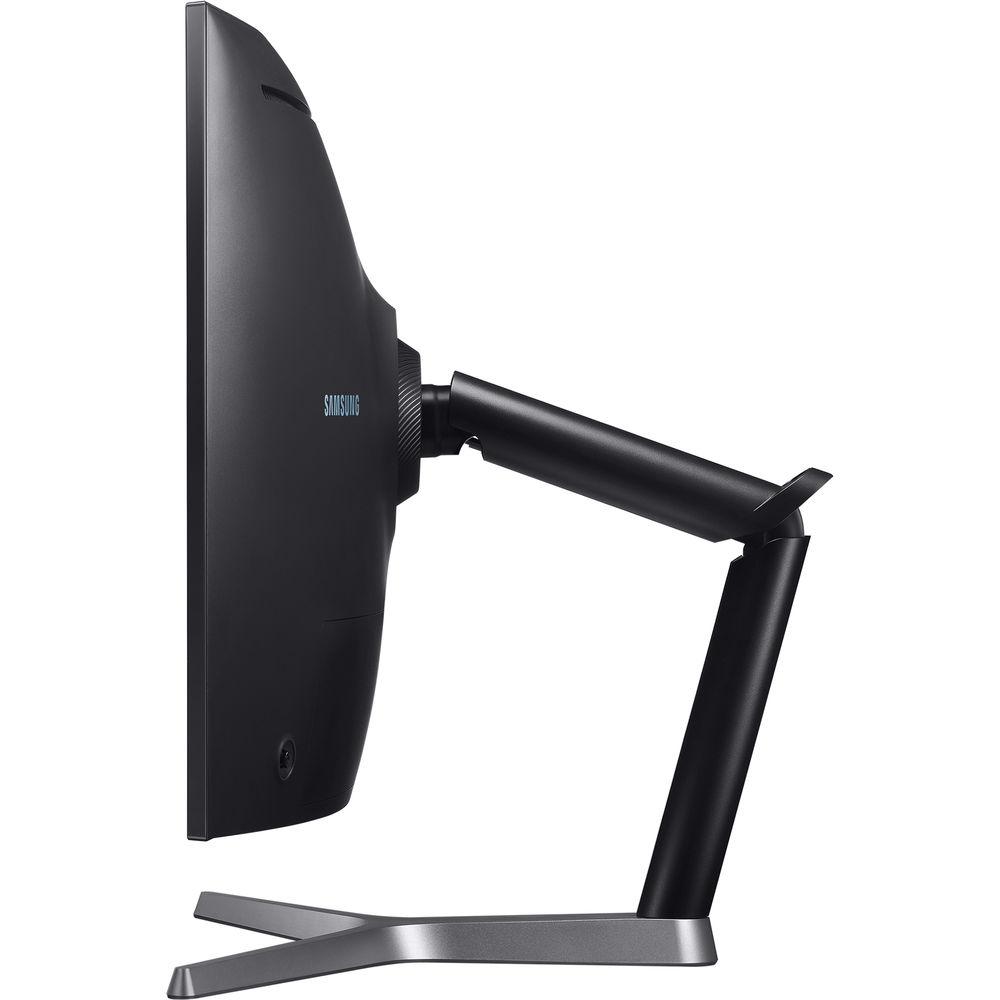

User Manual for Samsung CHG70 Series 31.5" 16:9 Curved 144 Hz FreeSync HDR LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung CHG70 Series 31.5" 16:9 Curved
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung CHG70 Series 31.5" 16:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The CHG70 Series 31.5" 16:9 Curved 144 Hz FreeSync HDR LCD Monitor from Samsung is packed with plenty of features aimed at gaming and multitasking. The curved edges wrap around your field of view, placing your right in the middle of the action for a more immersive experience. Specs-wise, it features a 2560 x 1440 resolution, a 3000:1 static contrast ratio, and a 350 cd/m² brightness rating to deliver crisp and clear content with vivid colors. To enhance your games, it's equipped with AMD FreeSync 2 technology, a 1 ms response time, a 144 Hz refresh rate, and plenty of optimized game modes. Thanks to Samsung's Quantum Dot technology and HDR support, it will provide you with over a billion colors for your entertainment. Connect this display to your system via HDMI or DisplayPort and then tilt, swivel, pivot, and adjust its height to suit your viewing preferences - Curved Display
- With a 1800R curvature and a pixel density 1.7-times higher than Full HD, the CHG70 wraps around the edges of your field of view, placing you right in the middle for an immersive experience.
- Quantum Dot Technology
- Samsung's Quantum Dot technology provides you with vivid and accurate colors, especially greens and reds, for more life-like pictures.
- HDR Support
- The CHG70 monitor supports HDR (High Dynamic Range), which offers improved brightness and contrast levels so dark areas are darker and bright areas are brighter. Thanks to its wider range of colors, you'll be able to see more details such as a bright blue sky with deep shadows and silhouettes.
- AMD FreeSync 2
- AMD FreeSync technology syncs the display's refresh rate to your graphics card's frame rate output for less stutter, ghosting, and tearing. Building on the previous iteration, FreeSync 2 works in conjunction with HDR for increased brightness levels, GPU tone mapping, and smoother playback.
- 1 ms Response Time & 144 Hz Refresh Rate
- Game without motion blur thanks to the 1 ms MPRT (Motion Picture Response Time) on this monitor. Furthermore, it sports a 144 Hz refresh rate for fluid and more responsive interactions. If your hardware isn't capable of 144 Hz, you can scale it down to 60 or 120 Hz when necessary.
- Black Equalizer
- Black Equalizer features 20-steps of adjustments to alter any game scene to the brightness level you want. You'll now be able to spot enemies hiding in the darkest areas of the screen.
- Eye-Saver Mode
- Reduce blue light emissions and give your eyes a break with Eye-Saver Mode. With it, you'll have less eye strain, a more comfortable experience, and be able to use the monitor for longer periods of time.
- Optimized Settings
- Swap through different gaming modes for all the genres of games you play. The factory-calibrated settings optimize black levels, gamma levels, contrast ratios, sharpness, and color value settings for FPS, RTS, RPG, or AOS games.
- OSD Dashboard
- Skip built-in hardware buttons and use the on-screen dashboard to adjust monitor settings on-the-fly. There's even shortcut keys for even quicker access.
- Arena Lighting
- Located on the back is the CHG70's audio-aligned Arena Lighting. As game sounds grow louder, it glows brighter, simulating moments of high intensity.
- Additional Features
-
- Eco Saving Plus
- Flicker-Free
- Game Mode
- Screen Size Optimizer
- Low Input Lag Mode
- Custom Key
- Refresh Rate Optimizer
- Super Arena Gaming UX
In the Box Samsung CHG70 Series 31.5" 16:9 Curved 144 Hz FreeSync HDR LCD Monitor Power cable HDMI Cable DisplayPort Cable Limited 1-Year Warranty User Manual PDF 1.9mbxvzbswazzsyy Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung CHG70 Series 31.5" 16:9 Curved 144 Hz FreeSync HDR LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung C32HG70QQN Specs | Screen Size | 31.5" (80 cm) | | Display Type | VA (Vertical Alignment) | | Curvature | 1800R | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Brightness | 350 cd/m² (typical)
300 cd/m² (minimum) | | Static Contrast Ratio | 3000:1 (typical)
2400:1 (minimum) | | Dynamic Contrast Ratio | Mega | | HDR | Yes | | Viewing Angle (H/V) | 178°/178° | | Response Time | 1 ms (MPRT) | | sRGB Coverage | 125% (typical)
120% (minimum)
Adobe RGB:
92% (typical)
88% (minimum) | | Color Support | 1.07 billion | | Color Gamut | NTSC 1976
88% (typical)
84% (minimum) | | Refresh Rate | 144 Hz | | Connectivity | 2 x HDMI
1 x DisplayPort
1 x 3.5 mm audio-in
1 x Headphone | | USB | 2 x USB Type-A (Super Charging)
1 x USB Type-B | | | | Height Adjustment | 5.71" (14.5 cm) | | Tilt | -5-15° | | Swivel | ±15° | | Pivot | -2-92° | | | | Power Supply | 100-240 VAC | | Power Consumption (Maximum) | 78 W | | Power Consumption (Standby) | < 0.3 W | | Power Consumption (DPMS) | < 0.5 W standby | | | | Operating Temperature | 50-104°F (10-40 °C) | | Operating Humidity | 10-80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 28.51 x 24.48 x 14.98" (72.42 x 62.18 x 38.05 cm)
Without Stand: 28.51 x 16.71 x 4.55" (72.42 x 42.44 x 11.56 cm) | | Weight | With Stand: 21.2 lb (9.6 kg)
Without Stand: 17.6 lb (8 kg) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 32.0 x 20.0 x 9.0" |
