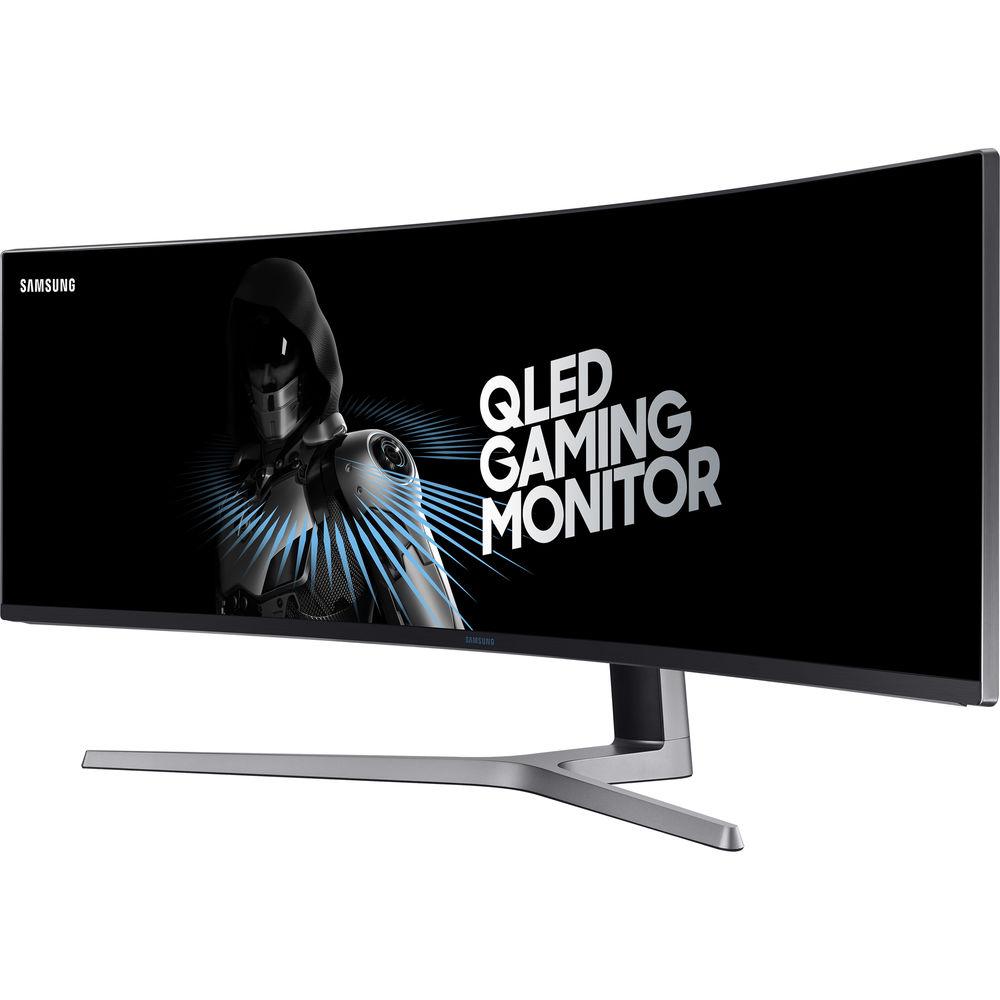

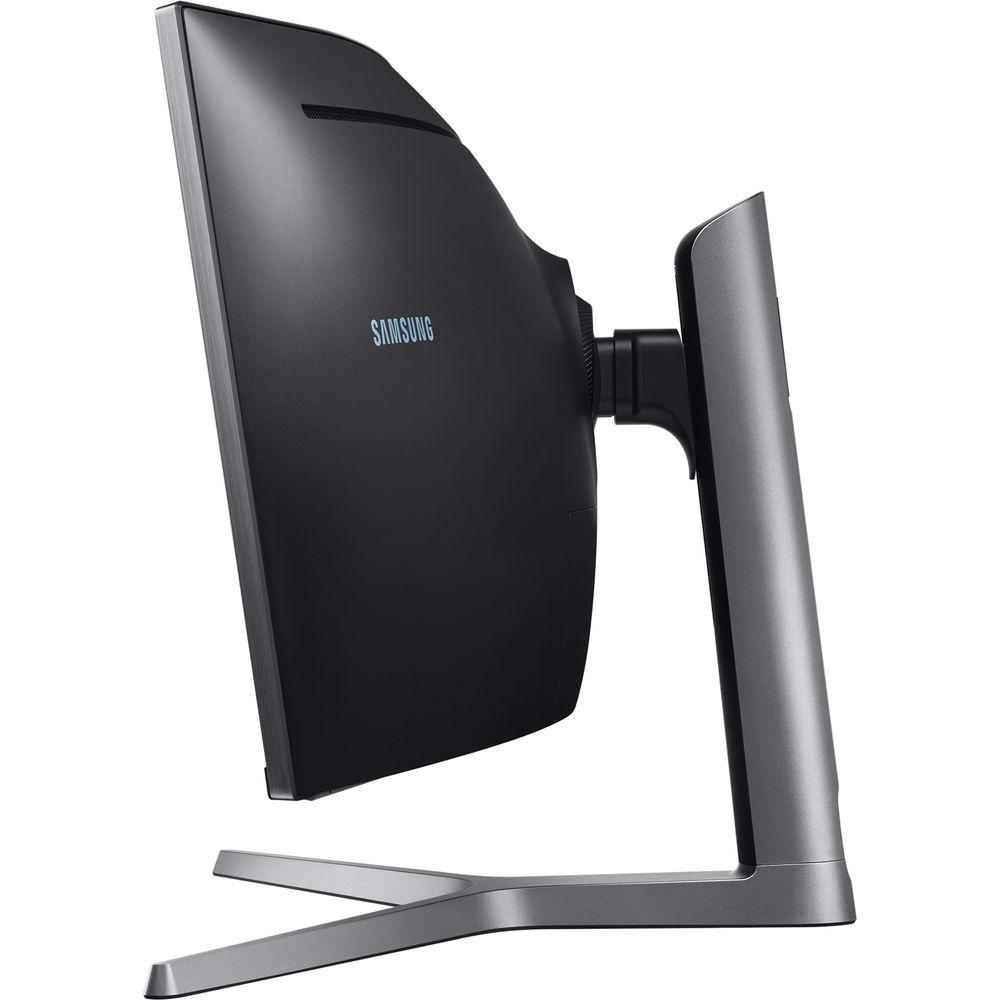

User Manual for Samsung CHG90 49" 32:9 Curved 144 Hz FreeSync HDR LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung CHG90 49" 32:9 Curved 144
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung CHG90 49" 32:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

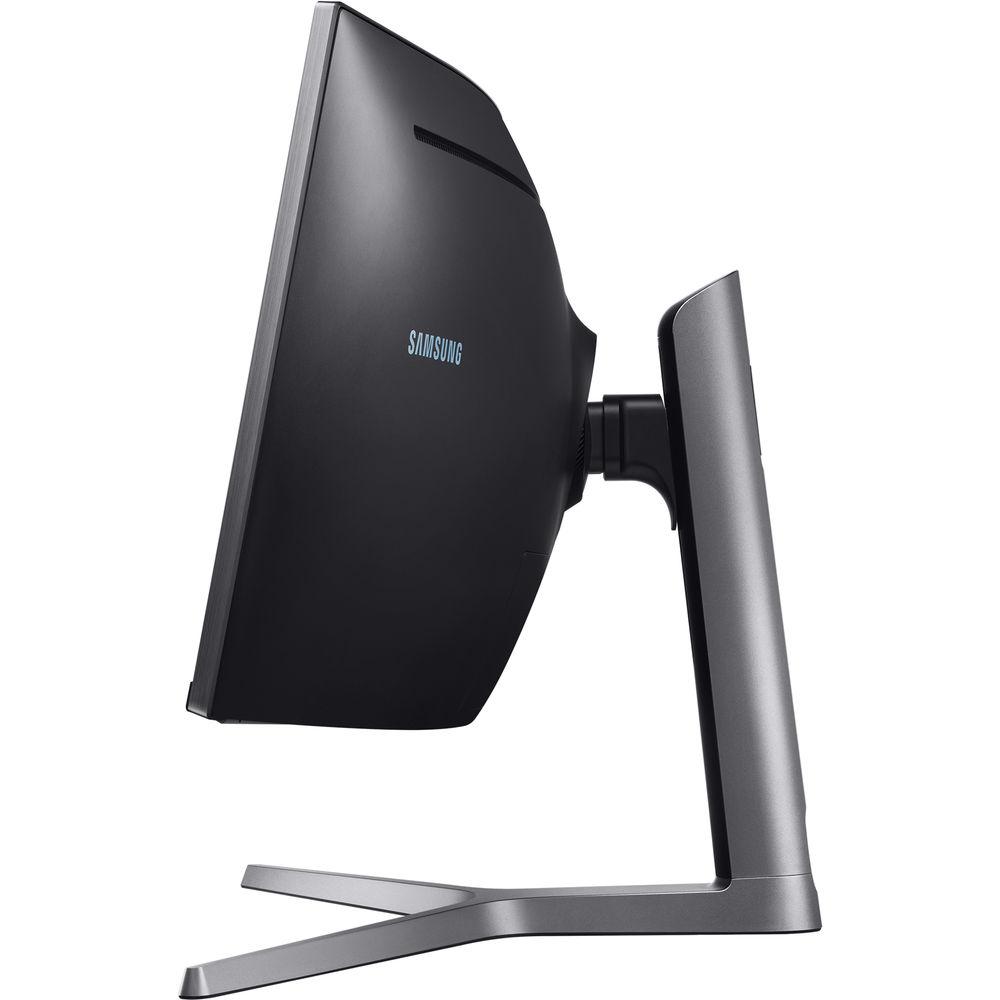

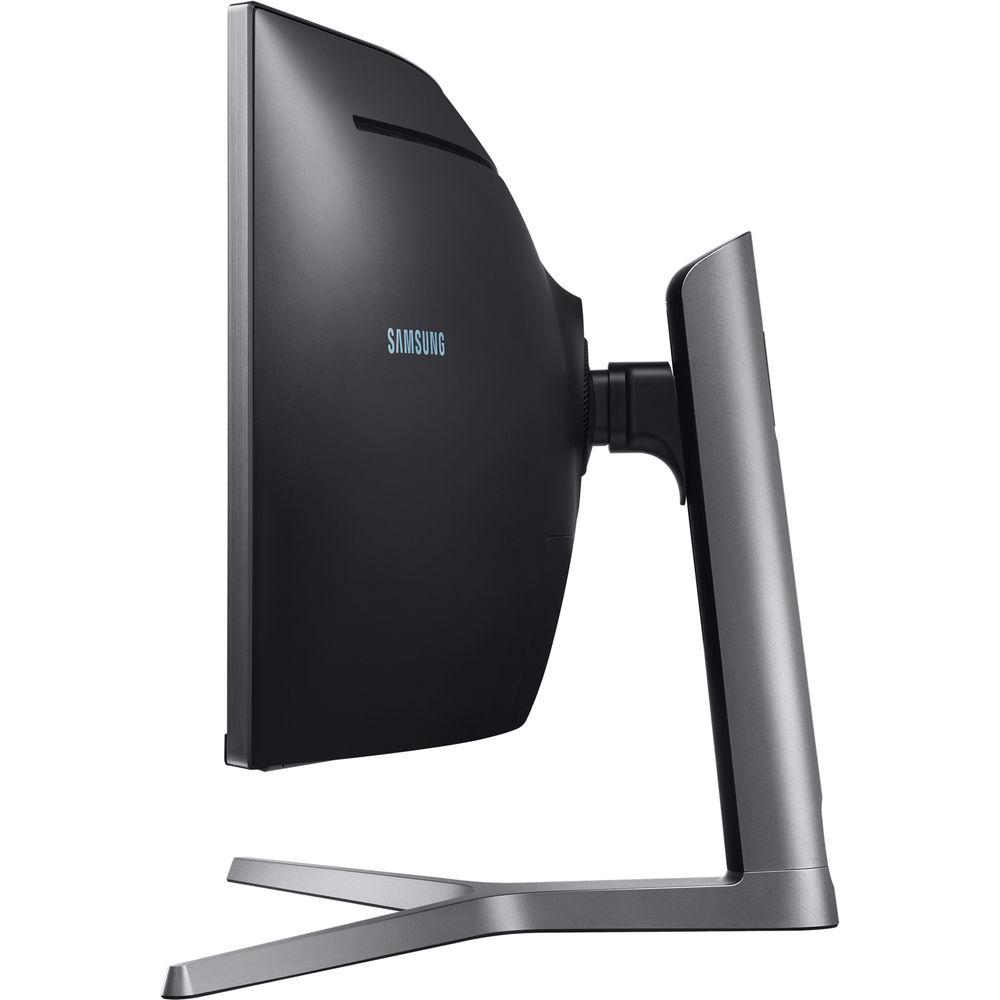

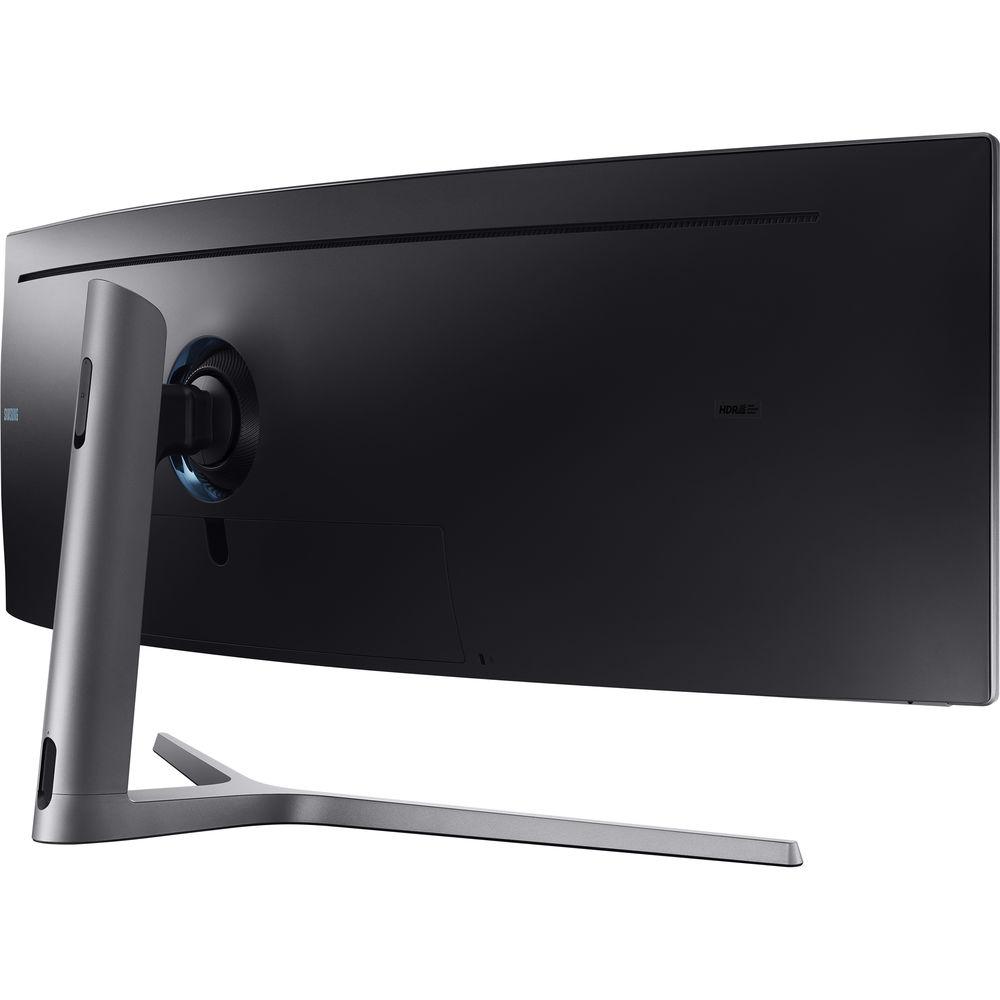

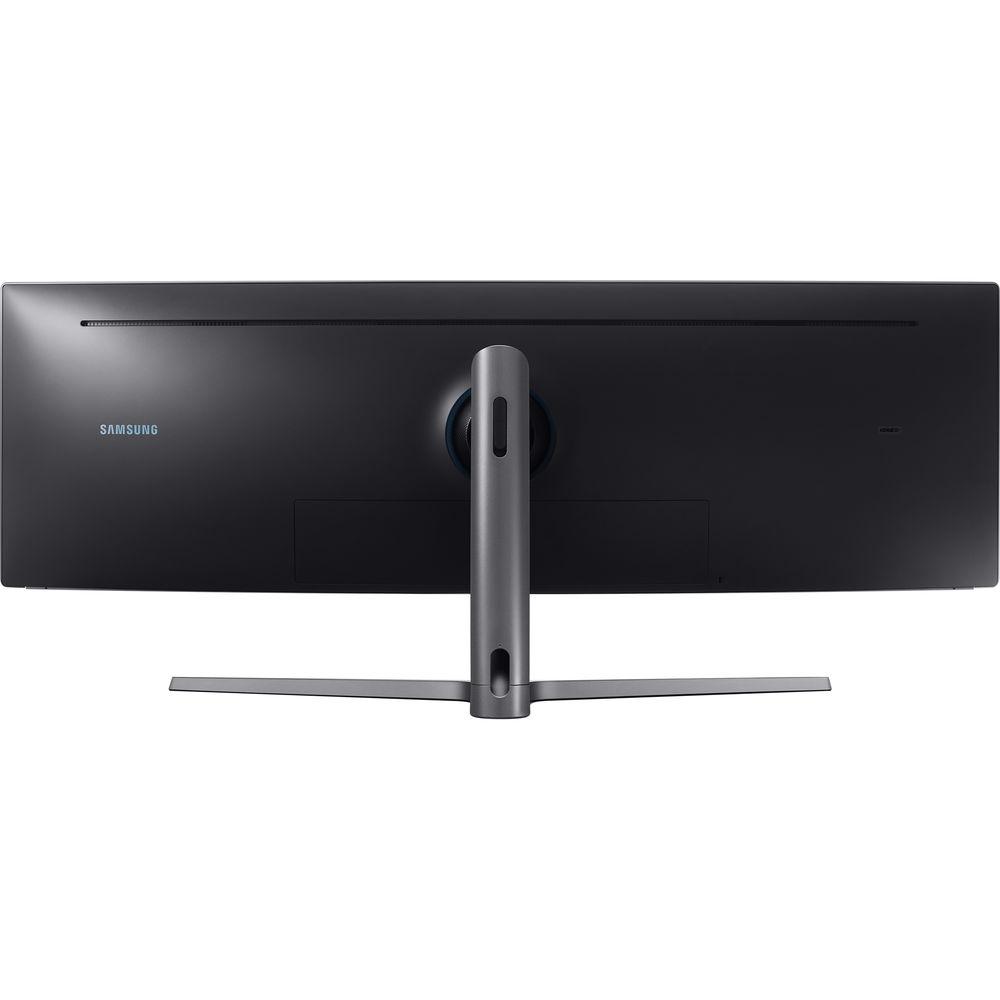

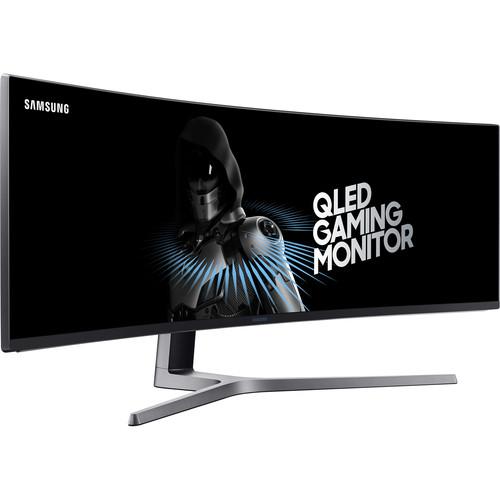

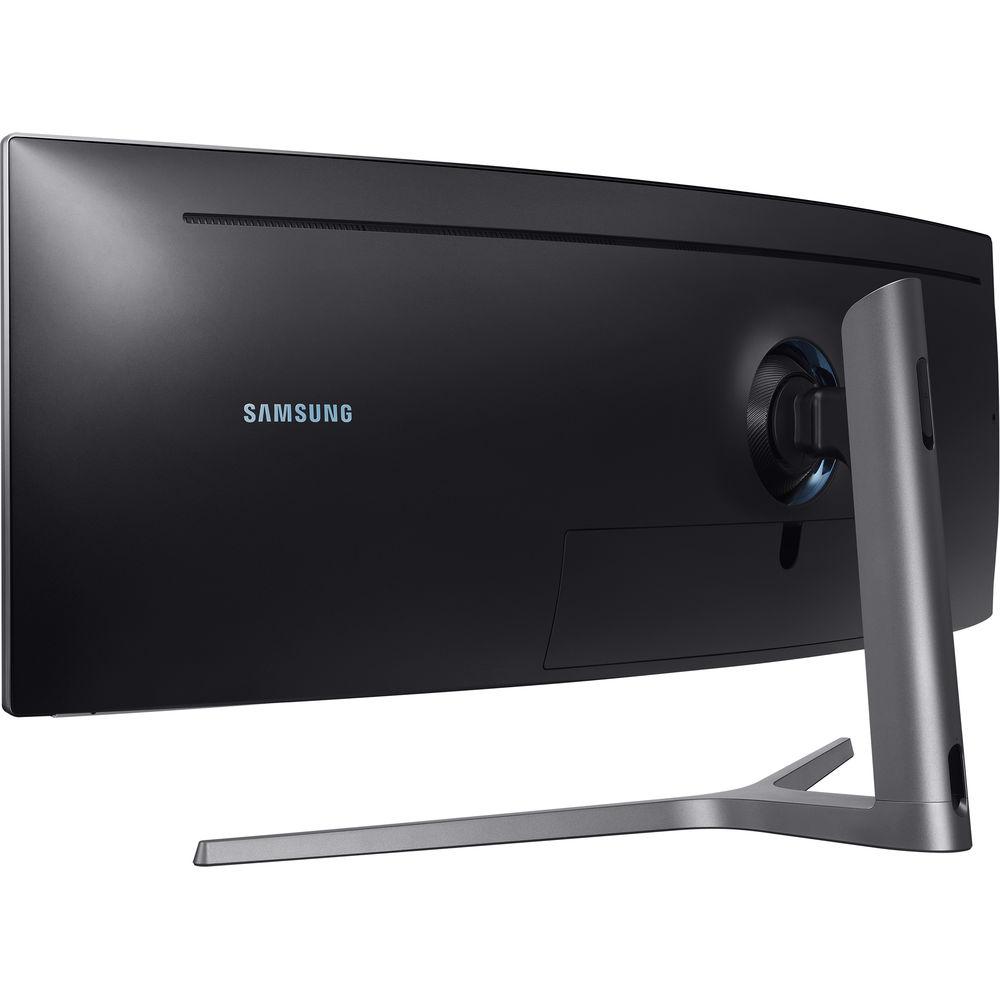

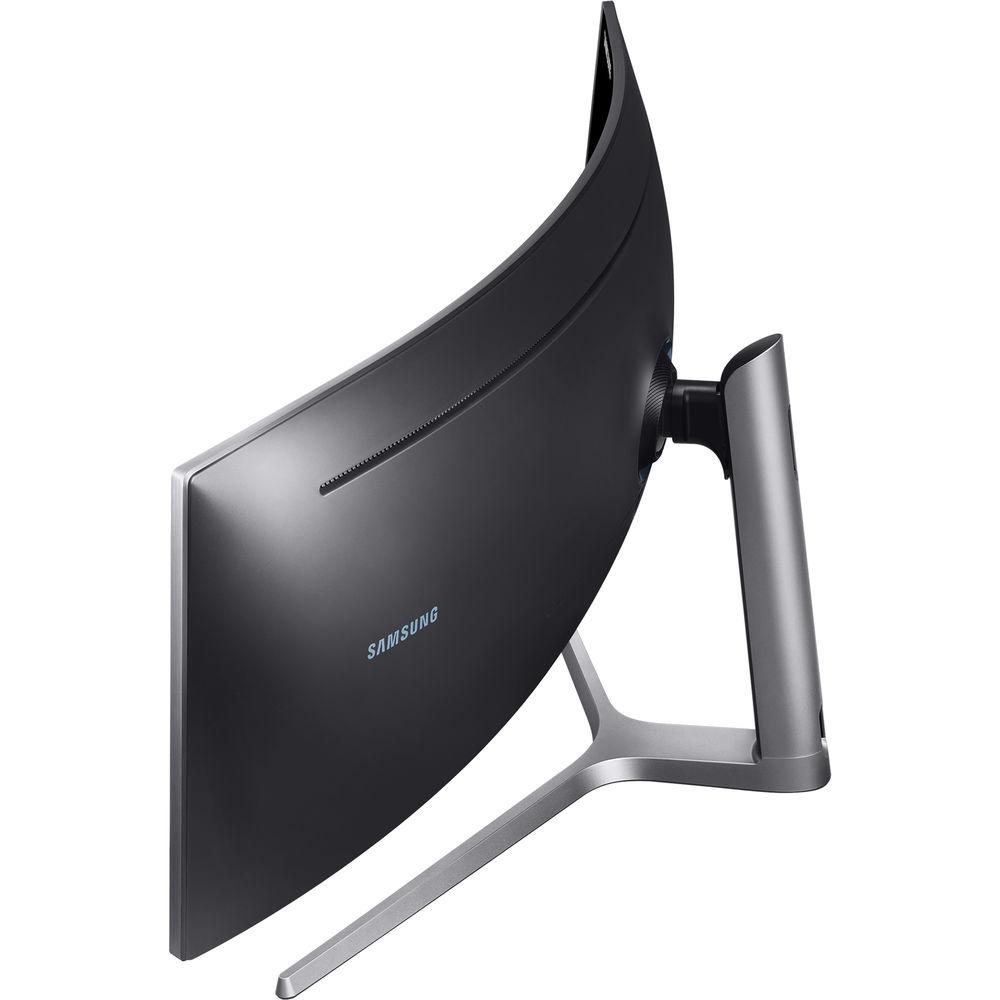

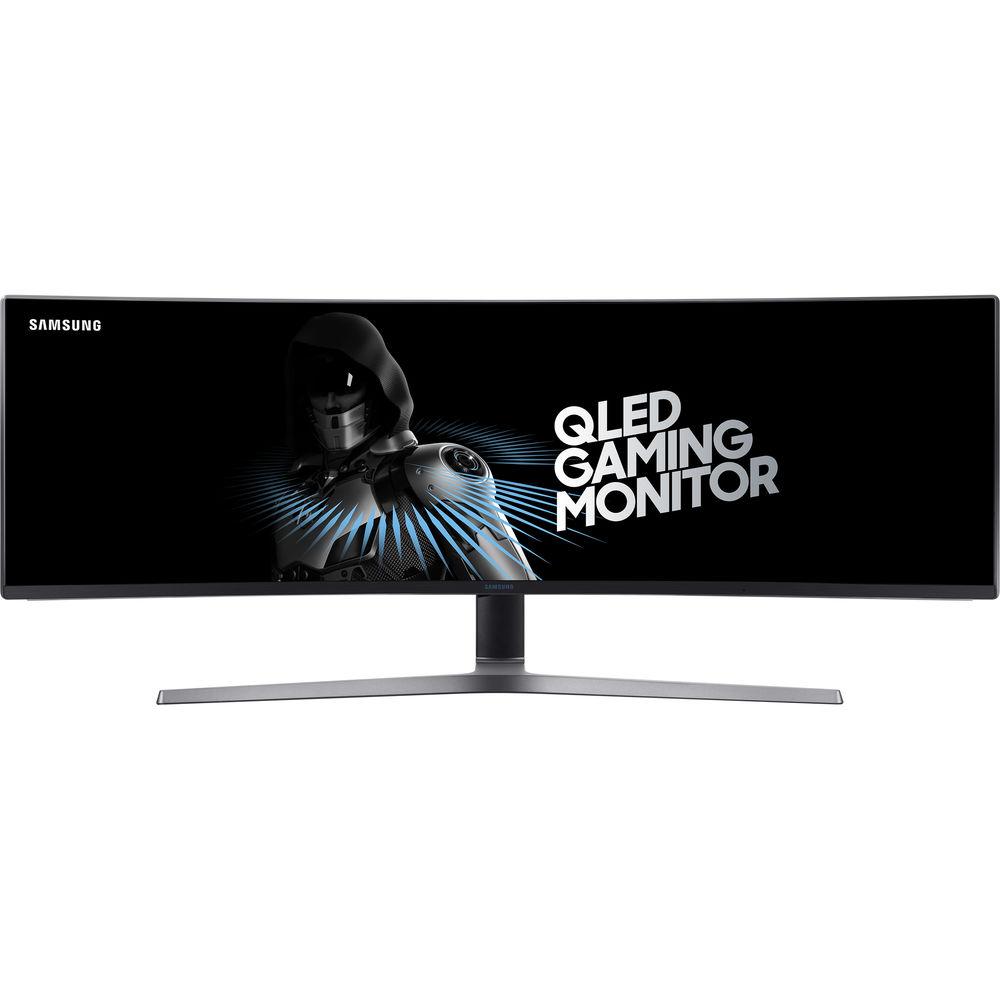

Product description New Samsung Gaming Monitors Read More The CHG90 49" 32:9 Curved 144 Hz FreeSync HDR LCD Monitor from Samsung is an ultra-large and ultra-wide display packed with plenty of features aimed at gaming and multitasking. It's essentially two Full HD displays placed side-by-side without the annoying bezel in between. The curved edges wrap around you field of view, placing your right in the middle of the action for a more immersive experience. To enhance your games, it's equipped with AMD FreeSync 2 technology, a 1 ms response time, a 144 Hz refresh rate, and plenty of optimized game modes. Thanks to Samsung's Quantum Dot technology and HDR, it will provide you with over a billion vivid and accurate colors for your entertainment. Connect this display to your system via HDMI, DisplayPort, or Mini DisplayPort and then tilt, swivel, and adjust its height to suit your viewing preferences. - Ultra-Large, Ultra-Wide Curved Screen
- With a 1800R curvature, the ultra-wide CHG90 wraps around the edges of your field of view, placing you right in the middle for an immersive experience. Its 32:9 aspect ratio is essentially two Full HD displays placed side-by-side.
- Quantum Dot Technology
- Samsung's Quantum Dot technology provides you with vivid and accurate colors, especially greens and reds, for more life-like pictures.
- HDR Support
- The CHG90 monitor supports HDR (High Dynamic Range), which offers improved brightness and contrast levels so dark areas are darker and bright areas are brighter. Thanks to its wider range of colors, you'll be able to see more details such as a bright blue sky with deep shadows and silhouettes.
- AMD FreeSync 2
- AMD FreeSync technology syncs the display's refresh rate to your graphics card's frame rate output for less stutter, ghosting, and tearing. Building on the previous iteration, FreeSync 2 works in conjunction with HDR for increased brightness levels, GPU tone mapping, and smoother playback.
- 1 ms Response Time & 144 Hz Refresh Rate
- Game without motion blur thanks to the 1 ms MPRT (motion picture response time) on this monitor. Furthermore, it sports a 144 Hz refresh rate for fluid and more responsive interactions. If your hardware isn't capable of 144 Hz, you can scale it down to 60 or 120 Hz when necessary.
- Black Equalizer
- Black Equalizer features 20-steps of adjustments to alter any game scene to the brightness level you want. You'll now be able to spot enemies hiding in the darkest areas of the screen.
- Eye-Saver Mode
- Reduce blue light emissions and give your eyes a break with Eye-Saver Mode. With it, you'll have less eye strain, a more comfortable experience, and be able to use the monitor for longer periods of time.
- Optimized Settings
- Swap through different gaming modes for all the genres of games you play. The factory-calibrated settings optimize black levels, gamma levels, contrast ratios, sharpness, and color value settings for FPS, RTS, RPG, or AOS games.
- OSD Dashboard
- Skip built-in hardware buttons and use the on-screen dashboard to adjust monitor settings on-the-fly. There's even shortcut keys for even quicker access.
- Multitasking Made Easy
- Basically two 16:9 Full HD monitors side-by-side, the CHG90 replaces your multi-monitor setup without bezels ruining the experience. Use Easy Setting Box to partition the screen or display multiple screens of different sizes with just a click. It also supports PIP (Picture-in-Picture), letting you connect and view different sources simultaneously.
- Arena Lighting
- Located on the back is the CHG90's audio-aligned Arena Lighting. As game sounds grow louder, it glows brighter, simulating moments of high intensity.
UPC: 887276229218 In the Box Samsung CHG90 49" 32:9 Curved 144 Hz FreeSync HDR LCD Monitor Power Cable HDMI Cable DisplayPort Cable Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 brysqbzxvttrdvyddsswezwyrsf User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung CHG90 49" 32:9 Curved 144 Hz FreeSync HDR LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LC49HG90DMNXZA Specs | Screen Size | 49" (124.5 cm) | | Display Type | VA (Vertical Alignment) | | Curvature | 1800R | | Resolution | 3840 x 1080 | | Aspect Ratio | 32:9 | | Viewing Angles (H/V) | 178°/178° | | Static Contrast Ratio | Typical: 3000:1
Minimum: 2400:1 | | Brightness | Typical: 350 cd/m²
Minimum: 250 cd/m² | | Response Time | 1 ms (MPRT) | | sRGB Coverage | Typical 95% (DCI-P3 95%) | | Color Gamut | NTSC 1976
Typical: 88%
Minimum: 84% | | Color Support | 1.07 billion | | Refresh Rate | 144 Hz | | AMD Free Sync Technology | Yes, FreeSync 2 | | Ports and Connectors | 2 x HDMI
1 x DisplayPort
1 x Mini DisplayPort
1 x 3.5 mm Audio-in
1 x Headphone jack
1 x USB 3.0 (upstream)
2 x USB 3.0 (downstream) | | | | Wall Mountable | Yes, 100 x 100 mm | | Tilt | -2 to 15° (±2°) | | Swivel | -2 to 15° (±2°) | | Height Adjustable | 4.72" (120 mm) (±0.2" (5 mm)) | | | | Power Supply | 100-240 VAC | | Power Consumption (Maximum) | 113 W | | Power Consumption (Standby) | < 0.3 W | | Power Consumption (DPMS) | < 0.5 W | | | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Operating Humidity | 10 to 80%, non-condensing | | | | Cable Length | Power Cable: 4.9' (1.5 m) | | Dimensions | With Stand: 47.36 x 20.69 x 15.02" (120.29 x 52.55 x 38.15 cm)
Without Stand: 47.36 x 14.54 x 7.65" (120.29 x 36.93 x 19.43 cm) | | Weight | With Stand: 33.1 lb (15 kg)
Without Stand: 26.2 lb (11.9 kg) | | | | Package Weight | 46.7 lb | | Box Dimensions (LxWxH) | 51.5 x 19.0 x 12.0" |
