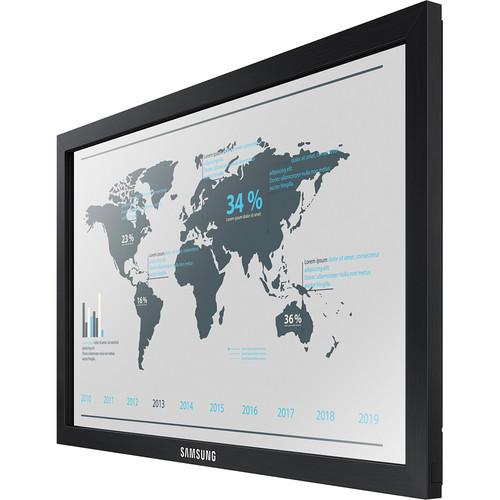

User Manual for Samsung CY-TD40LDAH Infrared Touch Overlay for 40" Displays Click to enlarge the picture
Contents of the user manual for the Samsung CY-TD40LDAH Infrared Touch Overlay for
- Product category: Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Monitors
|
User manual for the Samsung CY-TD40LDAH Infrared Touch Overlay for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description The CY-TD40LDAH Infrared Touch Overlay from Samsung adds touch capability to compatible 40" Samsung Signage eliminating the costly need of purchasing new displays. The Touch Overlay places a layer over the panel surface to allow the user's finger to slide along the surface easily experiencing up to 10 simultaneous points of touch. The added layer also provides protection against the external environment. If desired, a SBB or PIM can be added, but is not needed. The overlay is compatible with Samsung D-Series displays and Windows, Mac, and Linux operating systems. Installation hardware is included for a quick and simple installation. - Upgrades existing LFDs eliminating the need to purchase new displays
- Converts a standard LFD into a touchscreen LFD for a more interactive viewing experience
- Treatment on the front of the panel provides a realistic writing experience that is similar to writing on a conventional whiteboard
- Installation designed to be quick and uncomplicated
UPC: 887276043616 In the Box Samsung CY-TD40LDAH Infrared Touch Overlay for 40" Displays USB Cable (6.6') IR Receiver Cleaning Cloth Installation Hardware Limited 3-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung CY-TD40LDAH Infrared Touch Overlay for 40" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung CY-TD40LDAH Specs | Diagonal Screen Size | 40.0" / 101.6 cm | | Glass Thickness | 0.1" / 2.8 mm | | Glass Film | Front: AG
Rear: PET | | Glass Reflection Rate | ≤10% | | Glass Haze | ≤15% | | Frame Material | Aluminum extrusion | | Bezel Width | 1.2" / 30.0 mm | | Touch Technology | IR | | Number of Simultaneous Touch | 2 drawing, 10 touch | | Response Time | 1-point: 12 ms | | Dimensions | 37.2 x 22.0 x 1.2" / 945.1 x 558.5 x 30.9 mm | | Weight | 13.4 lb / 6.1 kg | | Compatibility | Samsung D-Series 40 displays | | OS Supported | Windows 8/7/XP, Win7 Embedded, WinXP Embedded, Mac OSX, Linux | | | | Package Weight | 17.65 lb | | Box Dimensions (LxWxH) | 40.05 x 25.1 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
