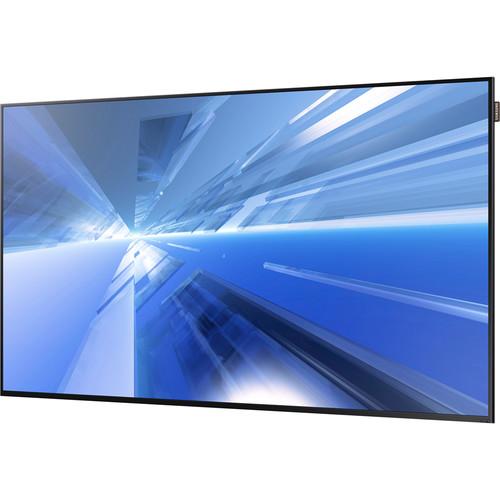

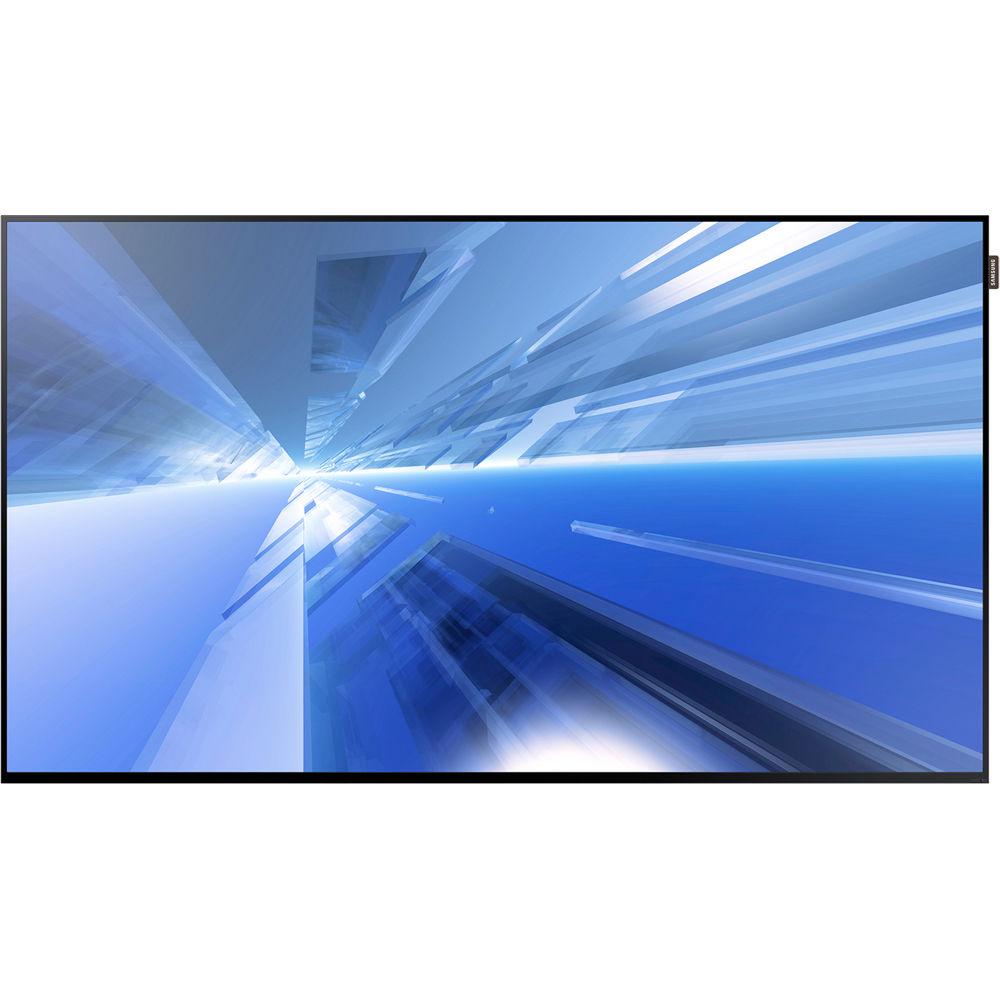

User Manual for Samsung DB-E Series 55" Full HD Commercial LED Monitor Click to enlarge the picture
Contents of the user manual for the Samsung DB-E Series 55" Full HD
- Product category: Commercial Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Commercial Monitors
 |
User manual for the Samsung DB-E Series 55" Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description The Samsung DB-E Series 55" Full HD Commercial LED Monitor delivers integrated wireless connectivity and vivid 1080p images. This model is endowed with a 55" slim-direct LED display and features a 1920 x 1080 native resolution for viewing detailed high-definition images. This monitor's 350 cd/m² brightness output and 5000:1 contrast ratio showcases its ability to adapt to various lighting conditions and handle light and dark on-screen images. A 60 Hz refresh rate is incorporated to combat image blur and distortion on fast-moving images.

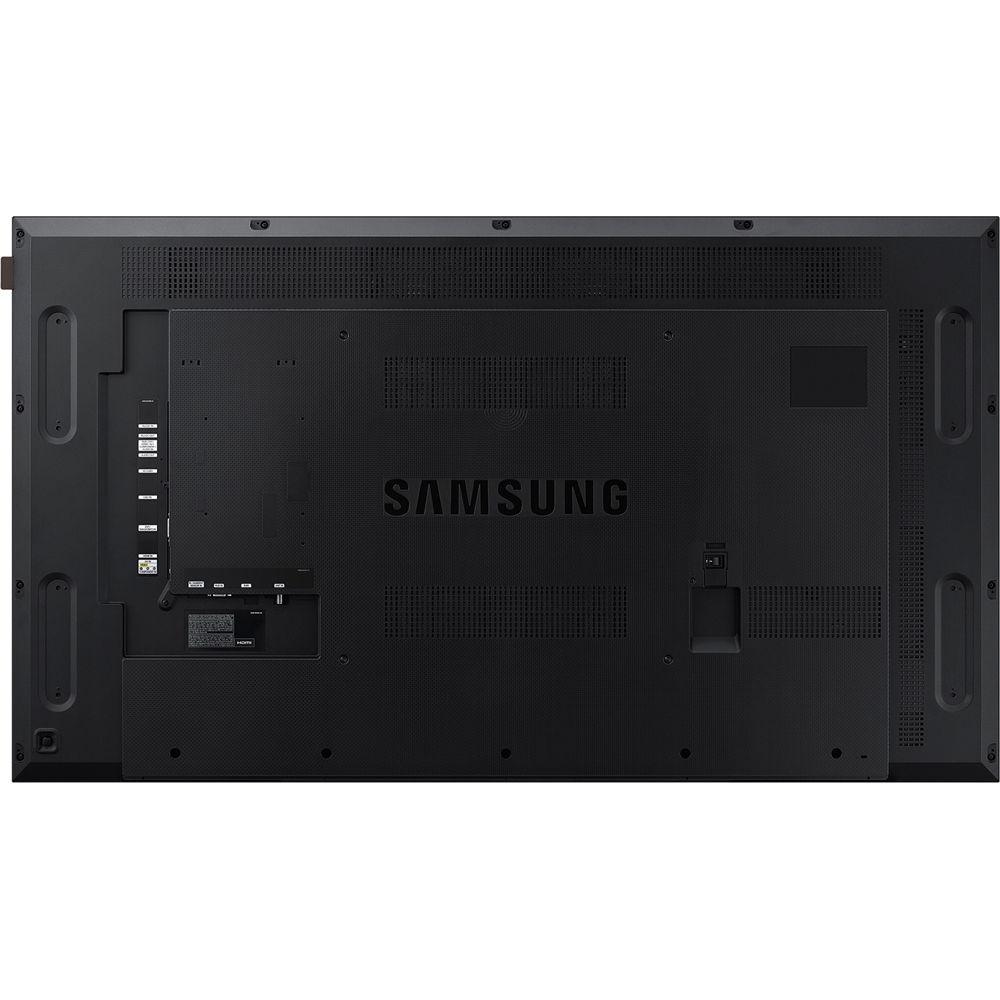

This Samsung commercial monitor features VGA, DVI-D, and an HDMI port for interfacing a variety of video sources. There's even a USB port onboard for interfacing additional devices directly to the monitor's built-in media player. A 10W mono speaker is also built into the display for audio playback. As an ENERGY STAR qualified monitor, this display was designed with efficient power management in mind. While this monitor does not include a stand, it is compatible with optional 400 x 400mm mounts for wall placement. - Built-In Wi-Fi Connectivity
- Enjoy expanded connectivity to mobile devices and simple mirroring of content on a tablet to the display.
- MagicInfo S3 Digital Signage Software
- This software and built-in media player allows you to create playlists, set playback schedules, and publish content directly to the display. A variety of traditional file formats are supported, including RSS feeds and live web pages.
- Quad-Core CPU
- Powered by a System-on-Chip semiconductor and quad-core CPU, Samsung's Smart Signage Platform is designed to offer efficient, reliable, and powerful performance. This monitor is also equipped with 8GB of on-board storage and 1.5GB of RAM.
- Slim Chassis

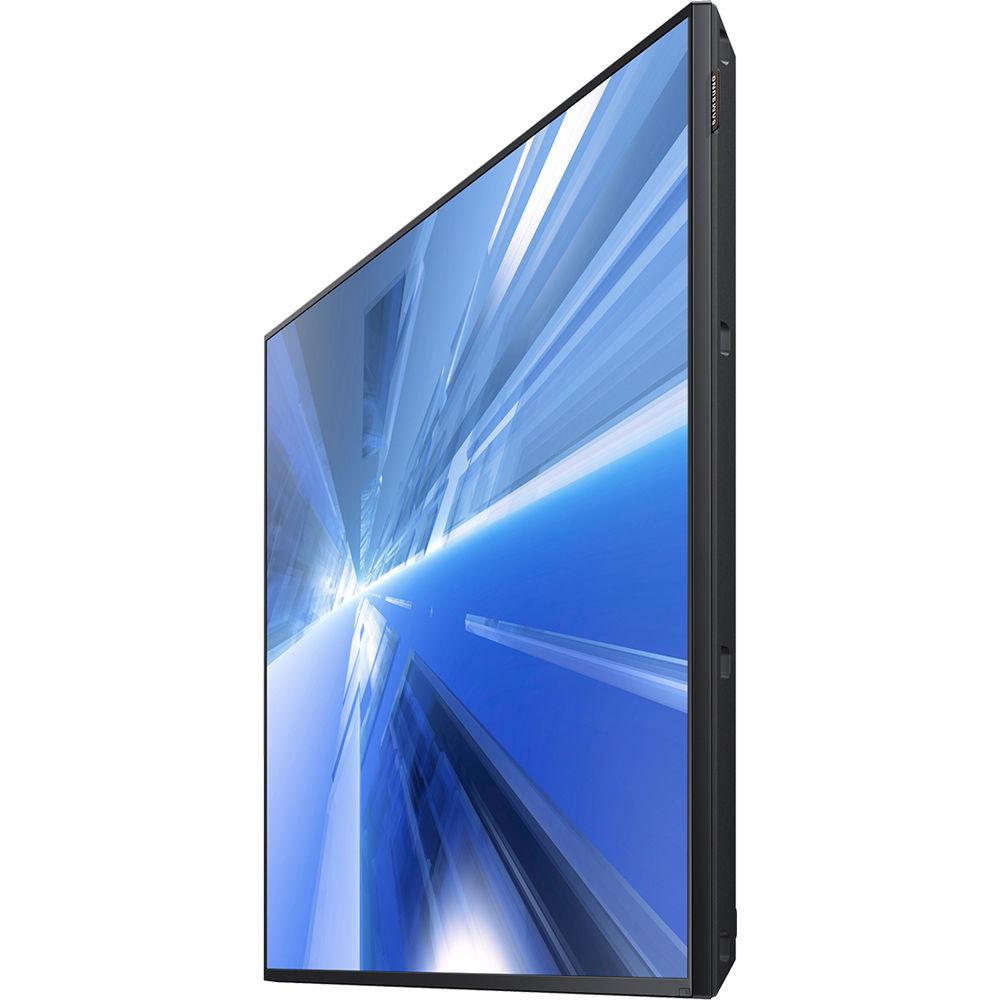

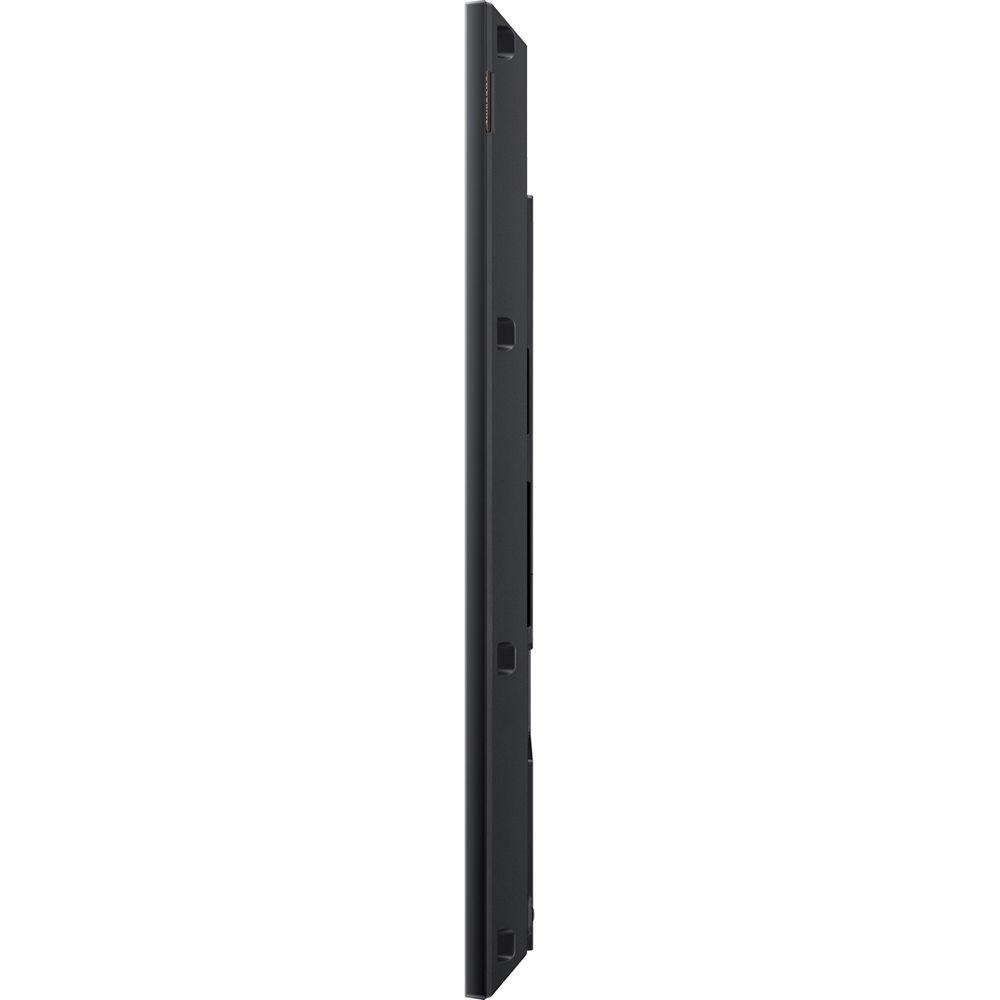

- At just 2" deep, this display helps simplify installation while meeting ADA compliance requirements.
- Slim-Direct LED Backlight
- The slim-direct-lit displays of the Samsung DB-D Series feature 1920 x 1080 Full HD resolution with 350 cd/m² brightness and 5000:1 contrast ratio for producing sharp and detailed images.
- Optional Touch Overlay
- Add an optional IR touch overlay accessory to enable up to 10 simultaneous touch points. PC-less touch uses the embedded SoC and doesn't require an external PC.
- Hardware
-
- External control capable via RS232C (In/Out) through stereo jack and Ethernet
- Supports landscape and portrait viewing modes
- Built-in SD card reader
- Integrated tuner with RF connectivity
- External Sensor Support: Infrared and ambient light
- Super clear coating
- Temperature sensor
- Pivot display
- Button lock
- Clock battery (80-hrs clock keeping)
- Supports optional bezel trim kits
- Supports optional Samsung stand and mount
- Supports optional external media player
- Software
-
- Samsung SMART signage platform compliant
- Magic Clone (to USB)
- Auto source switching & recovery
- RS232C/RJ45 MDC
- Plug and Play (DDC2B)
- PIP / PBP
- Image rotation
- Firmware update by network
- Predefined template for vertical usage
- Multi channel
- Mobile control
- Event schedule
- Backup player
UPC: 887276107349 In the Box Samsung DB-E Series 55" Full HD Commercial LED Monitor D-Sub Cable Remote Control Remote Control Batteries Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung DB-E Series 55" Full HD Commercial LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung DB55E Specs | | | Screen Size (Diagonal) | 55" | | Native Resolution | 1920 x 1080 | | Brightness | 350 cd/m
