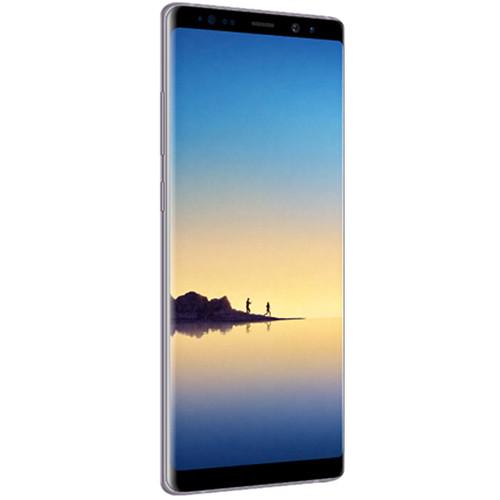

User Manual for Samsung Galaxy Note 8 SM-N950U 64GB Smartphone Click to enlarge the picture
Contents of the user manual for the Samsung Galaxy Note 8 SM-N950U 64GB
- Product category: Unlocked Cell Phones Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Unlocked Cell Phones
 |
User manual for the Samsung Galaxy Note 8 SM-N950U 64GB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

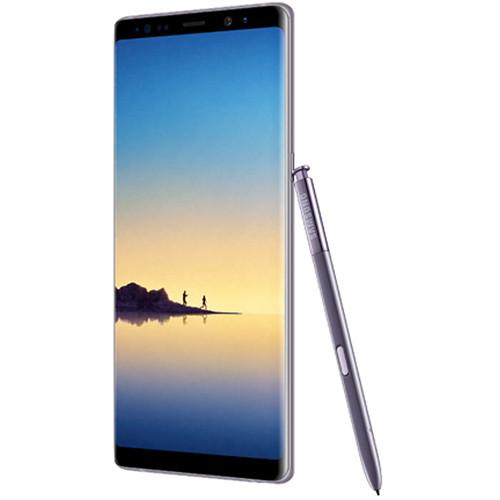

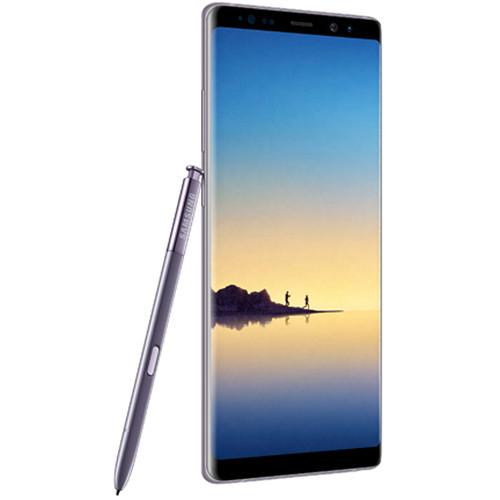

Product description Samsung Announces the Galaxy Note 8 Read More Connect, entertain, work, and play with the unlocked Samsung Galaxy Note 8 SM-N950U 64GB Smartphone in Orchid Gray. This device comes with the S Pen stylus, dual 12MP cameras, waterproofing, and Samsung's Bixby personal assistant. The phone is powered by a Snapdragon 835 processor with one 2.35 GHz quad-core processor and one 1.9 GHz quad-core processor along with 6GB of RAM. The 64GB of onboard storage can be augmented via the microSD card slot.

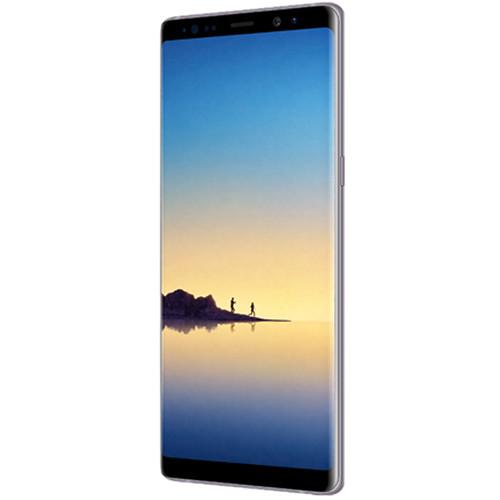

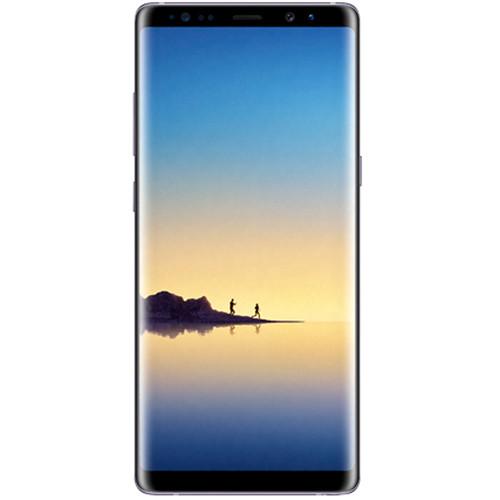

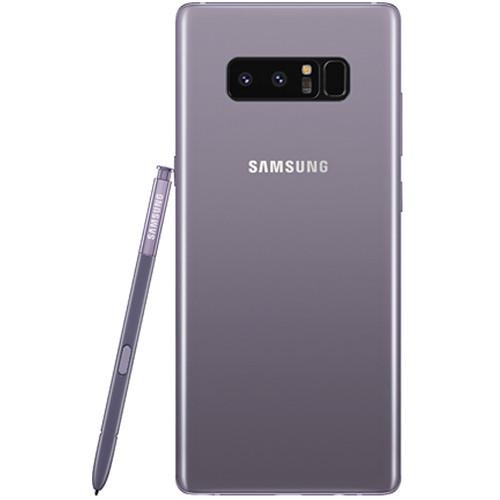

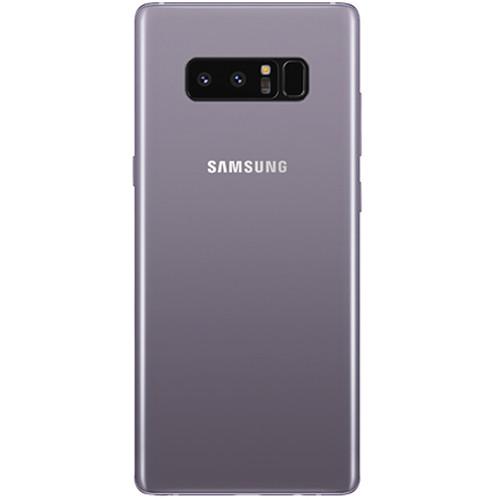

The front of the Note 8 is dominated by a 6.3" AMOLED 2960 x 1440 Infinity Display, which curves around the edges for a bezel-less look. Above the screen is an 8MP f/1.7 front-facing camera with HDR and QHD video capability. There are two 12MP cameras around back, one f/1.7 with a 26mm-equivalent lens and the other f/2.4 with a 52mm-equivalent lens, enabling 2x zoom and simultaneous video and photo recording.
The Samsung Galaxy Note 8 has Bluetooth 5.0 built-in for pairing with other Bluetooth-enabled devices, and dual-band 802.11a/b/g/n/ac Wi-Fi for high-speed Internet connectivity. Integrated Wi-Fi Direct and NFC give you the ability to connect to compatible devices for wirelessly sharing content like photos and music. The Samsung Galaxy Note 8 is powered by a 3300mAh lithium-ion battery that can be quickly recharged thanks to on-board Fast Charging technology through the reversible USB Type-C port or through Qi and PMA wireless charging. A pair of AKG by Harmon-tuned earbuds are included, as are a USB cable, micro-USB adapter, charger, and SIM key.
Note: The SM-N950U is the North American Variant of the Galaxy Note 8. It will run on any GSM network that uses cell frequencies supported by the device, including AT&T and T-Mobile. It will also work with certain CDMA carriers, such as Verizon and Sprint. Current Verizon SIM cards can be transferred to the new device, though the carrier may limit the purchase of new SIM cards for unlocked phones. Since this device is unlocked, functionality for certain carrier-specific features cannot be guaranteed. Please confirm with your carrier that it supports the SM-N950U Galaxy Note 8 before purchasing. - Cameras
- Rear-Facing Camera Features:
- 2X optical zoom
- Live Focus: Adjust depth of field in real-time
- Dual Pixel Sensor: Improved low-light photography
- Dual-LED, dual-tone flash
- Simultaneous 4K video recording and 9MP image capture
- Face/smile detection
- Auto-HDR
- Panorama
- Geotagging
- 4K video capture at 60 fps, 720p at 240 fps
Rear Camera 1: - 12MP
- f/1.7
- PDAF
- 26mm-equivalent
- 1/2.55 sensor
- 1.4
|
Upload User Manual
Have you got an user manual for the Samsung Galaxy Note 8 SM-N950U 64GB Smartphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung SM-N950U Specs | | | Operating System | Android 7.1.1 Nougat | | Memory | 6 GB | | Chipset | Qualcomm Snapdragon 835 | | CPU | 2.35 GHz Qualcomm Kryo Quad-Core
1.9 GHz Qualcomm Kryo Quad-Core | | Coprocessor | None | | GPU | Adreno 540 | | Storage | 64 GB | | | | Size | 6.3" | | Native Resolution | 2960 x 1440 | | Display Colors | 16.0 Million | | Aspect Ratio | 18.5:9 | | Pixel Density | 521 ppi | | Display Technology | OLED | | Screen Coating | Gorilla Glass 5 | | | | Ports | 1 x USB 3.1 - Type C (Input/Output) | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone
1 x Integrated Speaker | | Flash Media Slot | 1 x microSDXC | | SIM Card Size | Card 1: Nano | | | | CDMA 2G | CDMA: 800, 1900 MHz | | GSM 2G | GSM, GPRS, EDGE: 850, 900, 1800, 1900 MHz | | CDMA 3G | CDMA2000, EV-DO: 800, 1900 MHz | | GSM 3G/3.5G | UMTS, HSPA+: 850, 900, 1900, 2100 MHz | | 4G LTE | LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 20, 25, 26, 28, 38, 39, 40, 41 Bands | | Wi-Fi | Yes, Wi-Fi 5 (802.11ac) | | Bluetooth | Bluetooth 5.0 + EDR | | NFC | Yes | | Infrared | No | | GPS | Yes | | FM Radio | No | | | | Sensors | Accelerometer, Ambient Light Sensor, Barometer (Altimeter), Compass, Fingerprint, Gyroscope, Optical Heart Rate, Iris Scanner, Proximity, Pulse Oximeter (Sp02) | | Water Resistance | Submersible | | IP Rating | IP68 | | Keyboard | Virtual | | Pointing Device | Stylus | | Battery | Internal Lithium-Ion (3300.0 mAh) | | Fast Charging Technology | Qualcomm Quick Charge 2.0 | | Wireless Charging Technology | Qi, PMA | | Dimensions (W x H x D) | 2.9 x 6.4 x 0.3" / 74.8 x 162.5 x 8.6 mm | | Weight | 6.88 oz / 195 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.0 x 3.75 x 2.25" |
