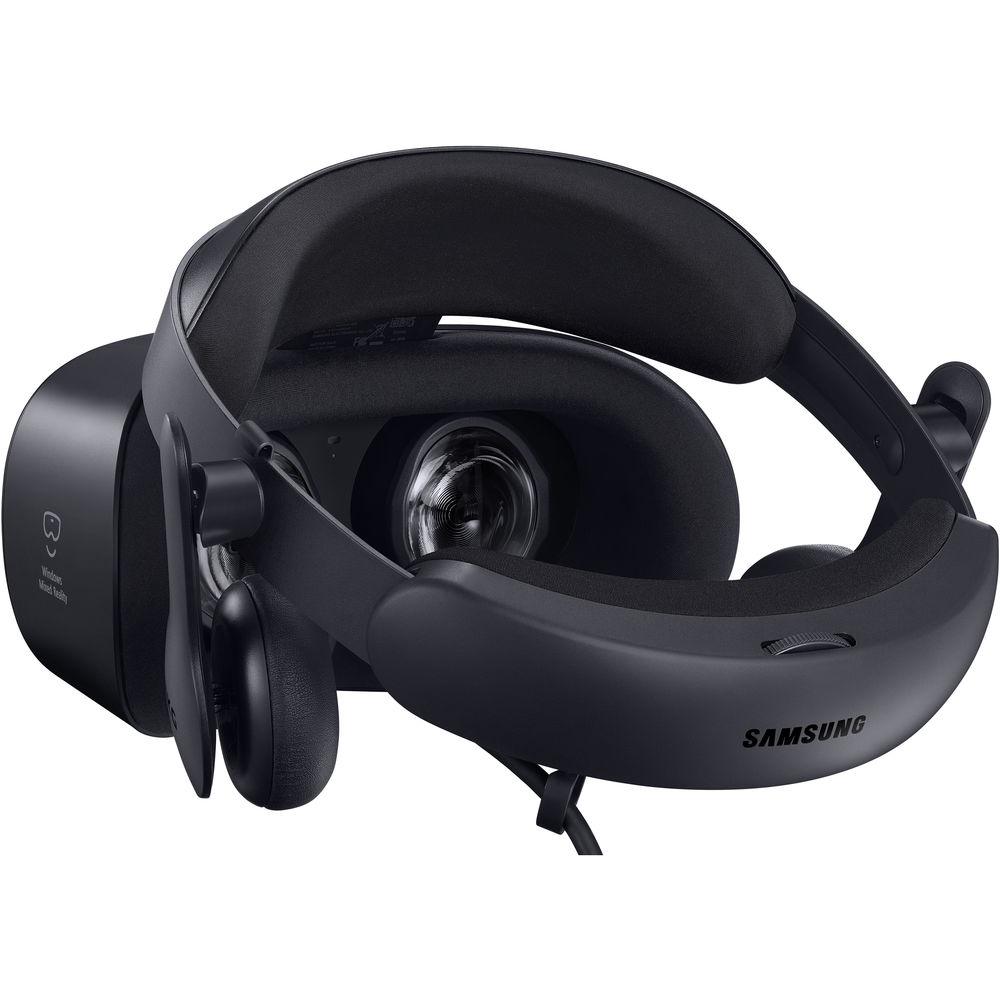

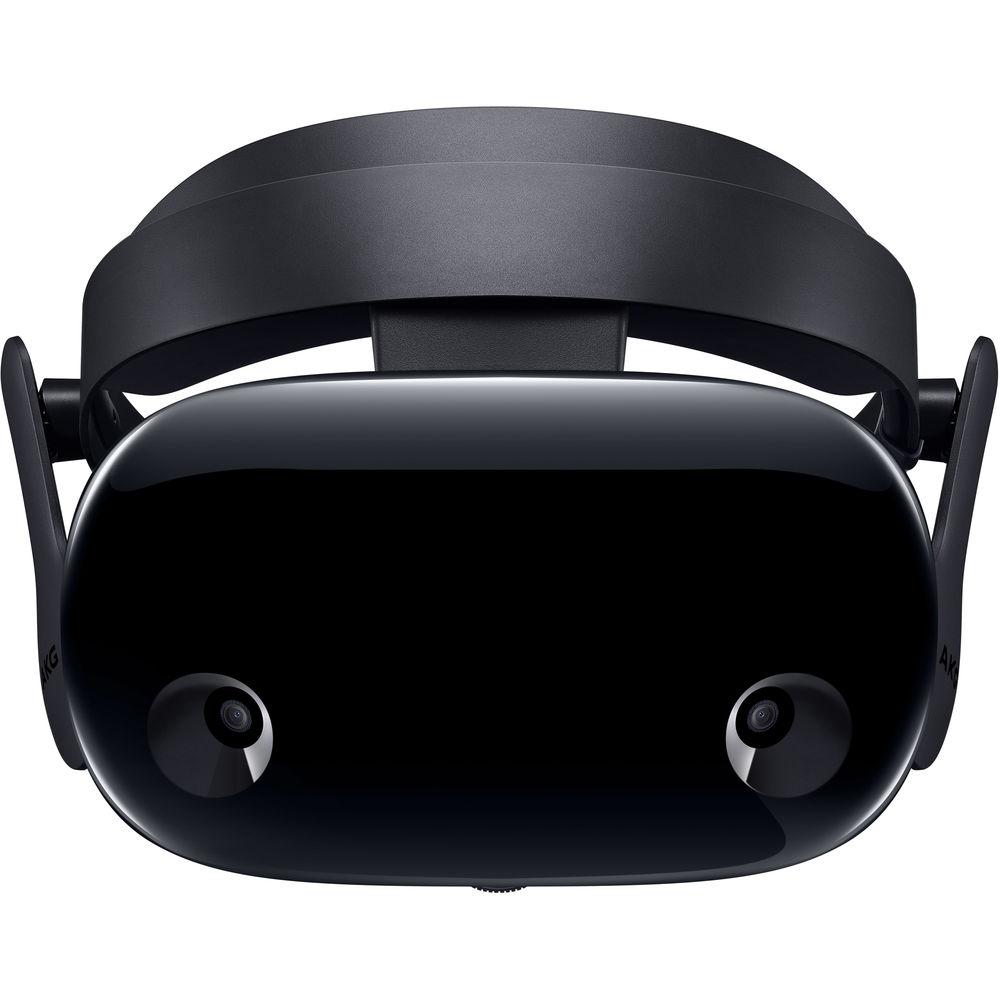

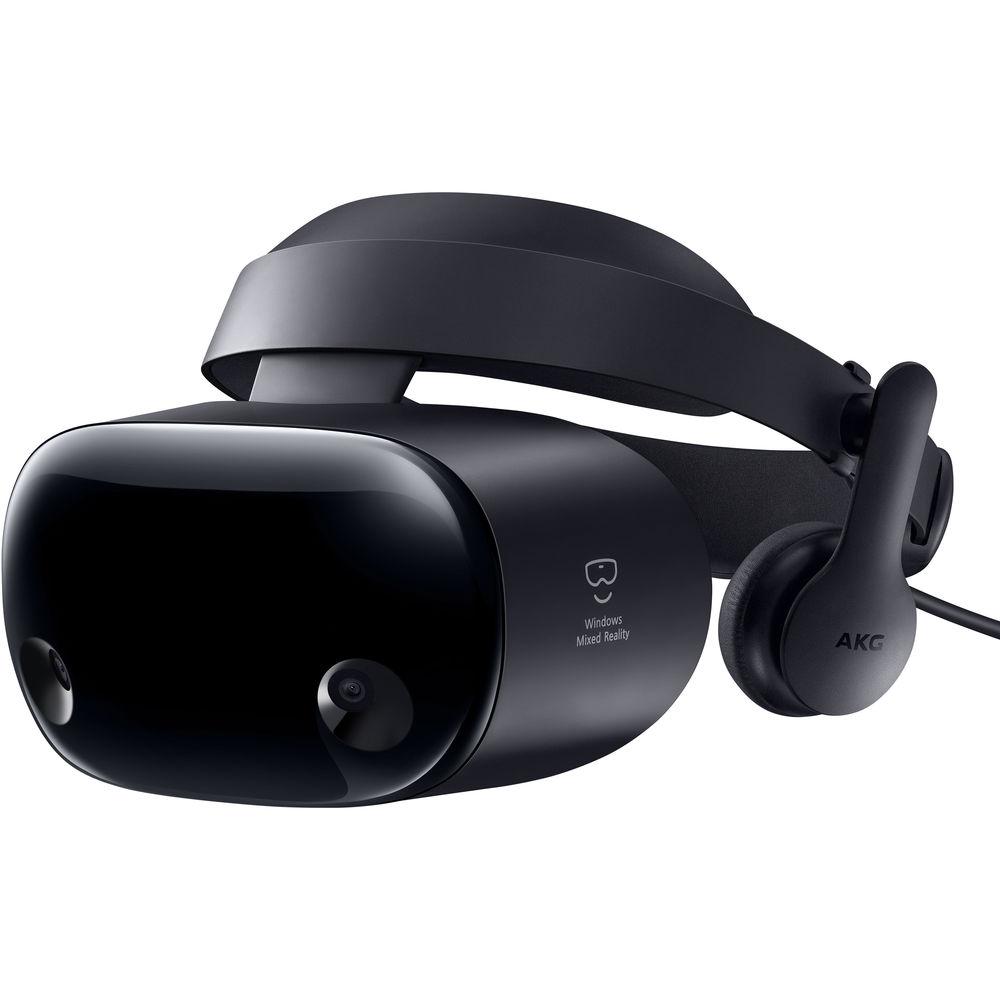

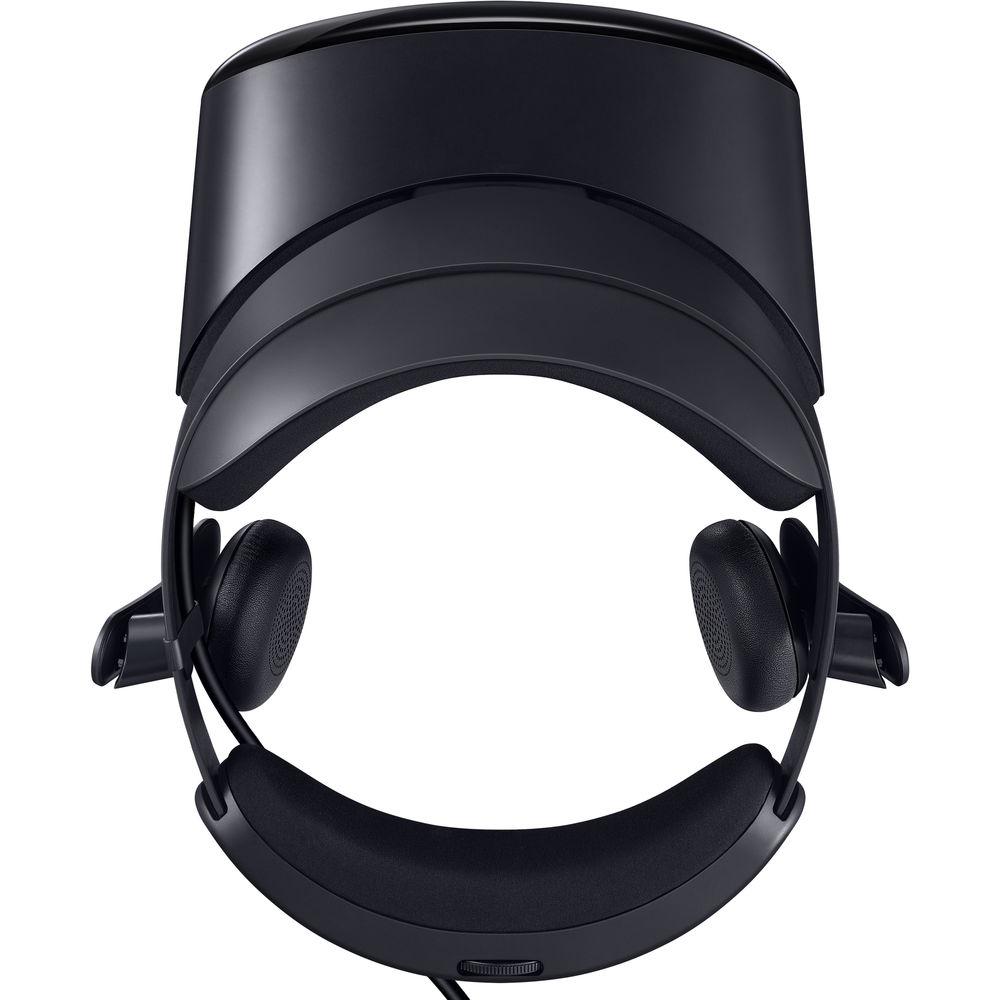

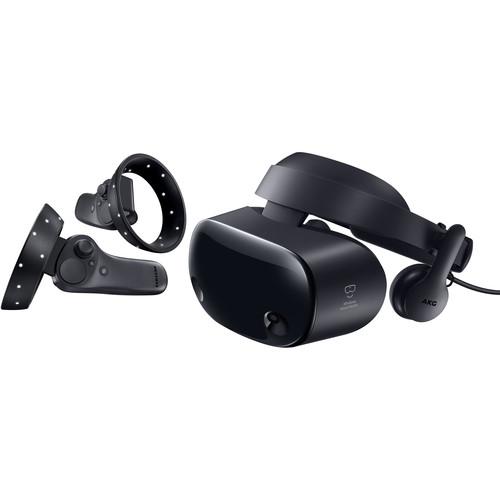

User Manual for Samsung HMD Odyssey Windows Mixed Reality Headset Click to enlarge the picture
Contents of the user manual for the Samsung HMD Odyssey Windows Mixed Reality
- Product category: VR Headsets & Accessories Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung VR Headsets & Accessories
 |
User manual for the Samsung HMD Odyssey Windows Mixed Reality contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description Designed for Windows Mixed Reality, the Samsung HMD Odyssey+ Windows Mixed Reality Headset provides an immersive virtual reality experience.The Odyssey+ improves on its predecessor with Samsung's Anti-Screen Door Effect technology. The Screen Door Effect (SDE) is a widely known issue for VR headsets, but Samsung solves it by applying a grid that diffuses light coming from each pixel and replicating the picture to areas around the pixel. This makes the spaces between pixels less visible. This provides a perceived 1233 ppi, which is doubled that of its predecessor's 616 ppi.There are also built-in headphones that were tuned by AKG and provide 360° spatial audio. The rich, dynamic surround sound delivers audio naturally. There is also a built-in microphone array for when you want to chat with friends and teammates as well as take full advantage of Cortana, the digital assistant for Windows.The Odyssey+ has dual 3.5" AMOLED displays, each with a 1440 x 1600 resolution, for a total of 2880 x 1600. It has a field of view of 110°. Its built-in Y-cable has USB 3.1 Gen 1 Type-A and HDMI 2.0 connectors that you use to connect to your computer. Two controllers are included with the Odyssey+ headset—you will need to use Bluetooth to connect them. Please note that the Windows Fall Creators Update is required.Get access to thousands of games and VR experiences through the SteamVR app or the Microsoft Store. - Samsung Anti-Screen Door Effect Technology
- With Samsung's anti-SDE (Screen Door Effect) technology, the Odyssey+ effectively delivers over twice the pixel count of the display resolution. The anti-SDE technology diffuses light coming out of the pixels and replicates the picture to areas around the pixels. This makes the space between the pixels less visible and allows for a clear, immersive VR experience.

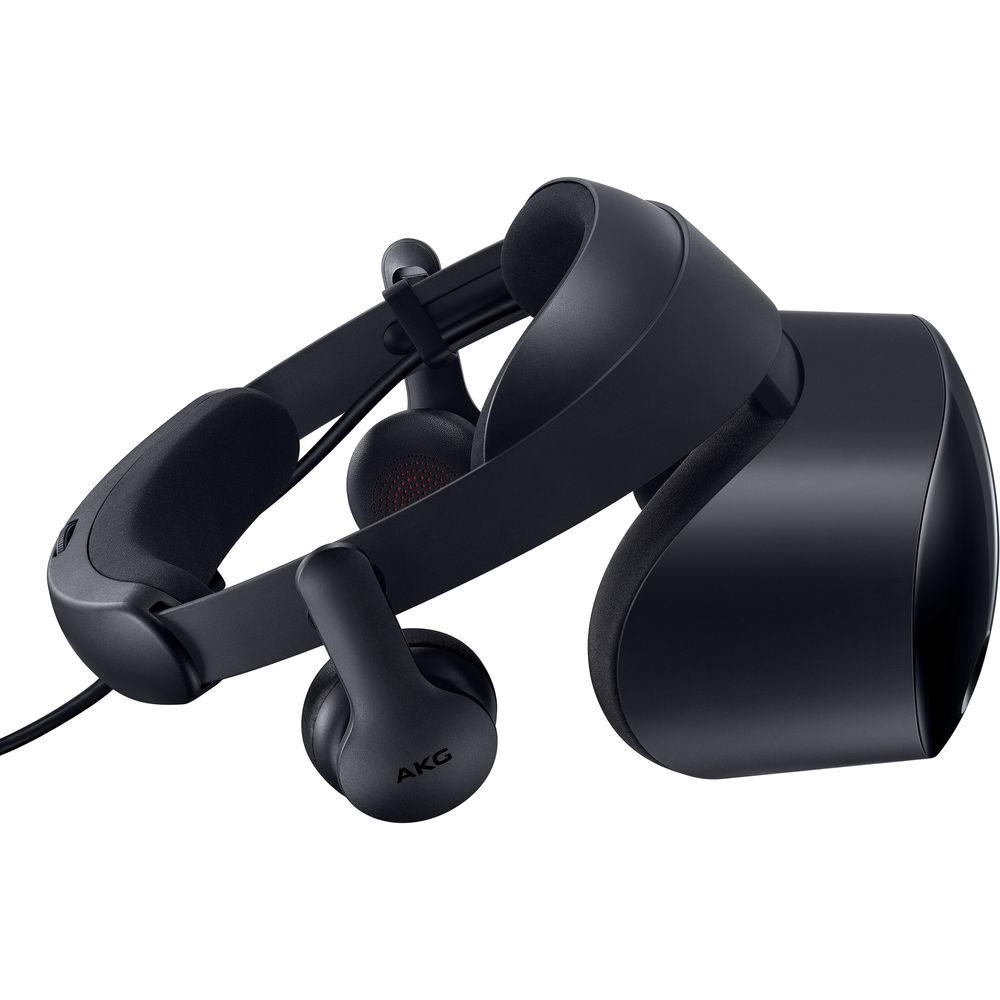

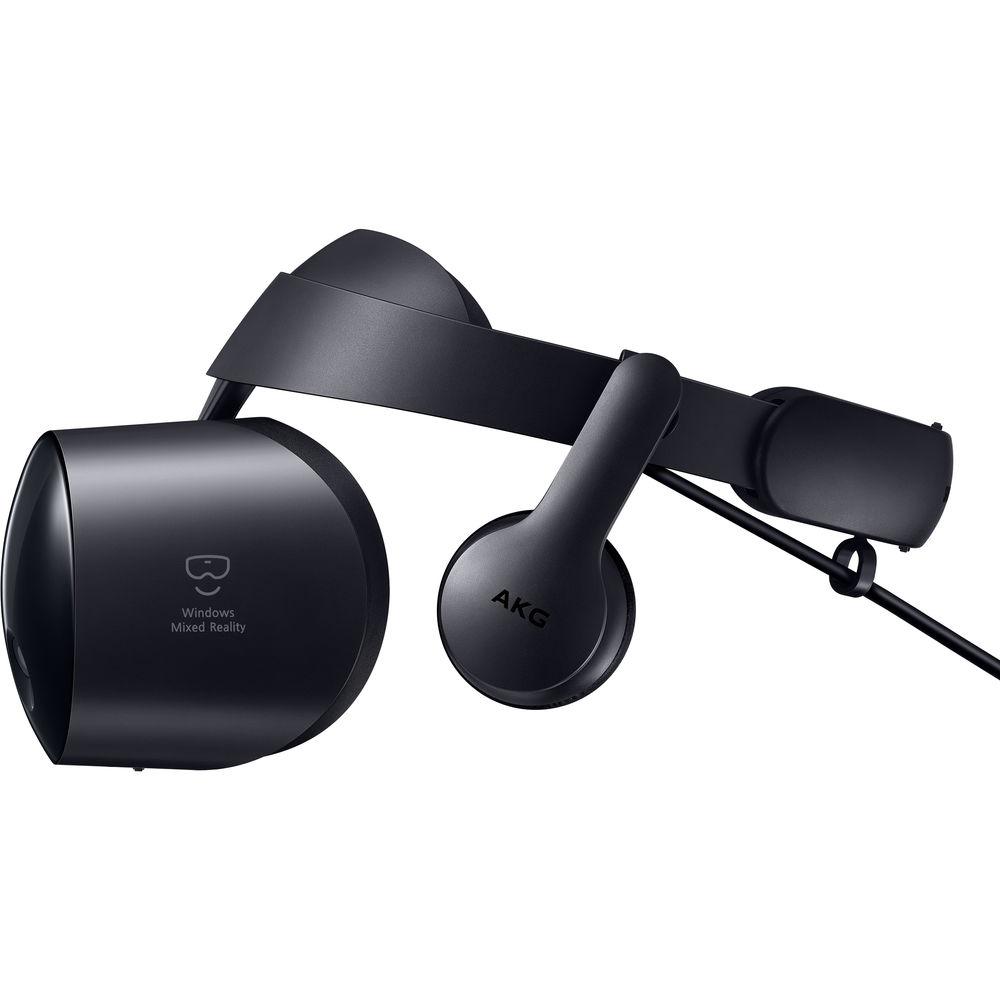

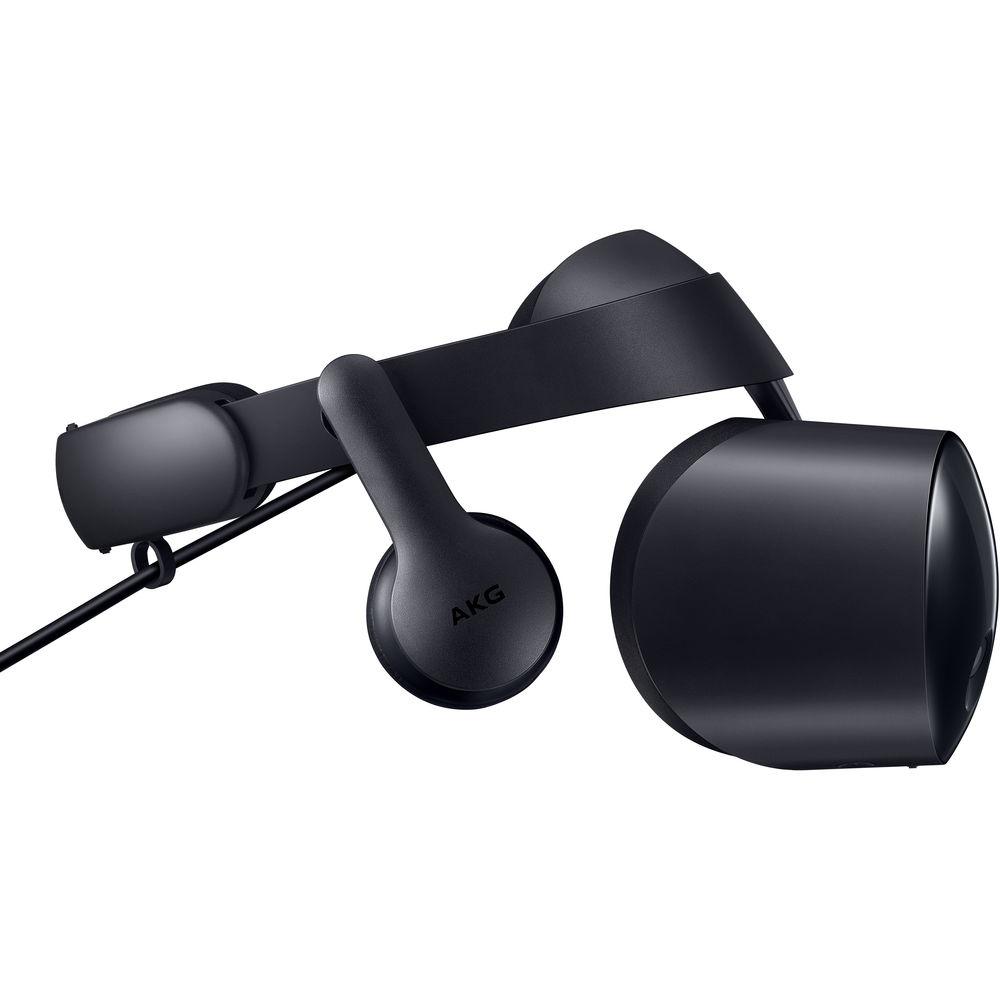

- AKG 360° Spatial Sound
- Thanks to the built-in AKG-tuned headphones, you'll experience rich and dynamic 360° surround sound. The built-in microphone array lets you chat with teammates or control your computer with Cortana, the digital Windows assistant.

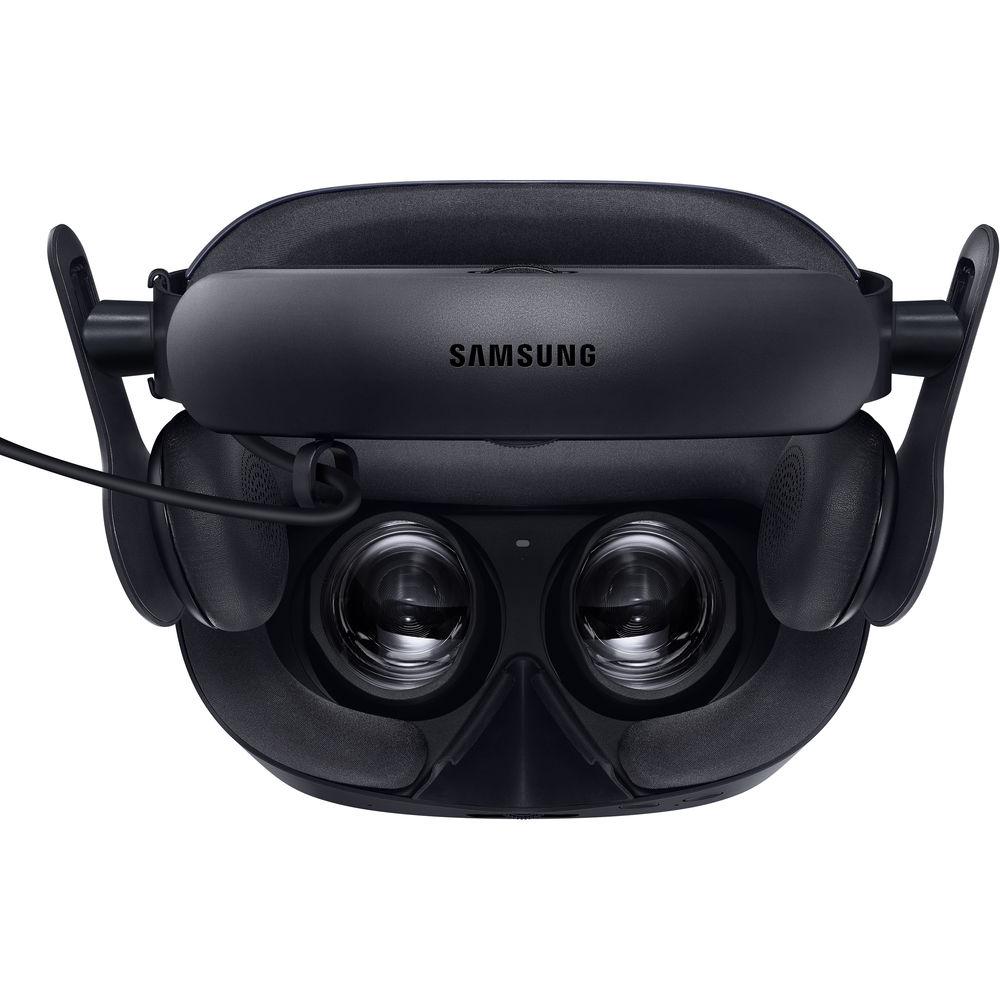

- Wider Nose Guard and Eye Box
- The Odyssey+ features a wider nose guard at 1.5" and a wider eye box at 5.7" for a more comfortable fit. It also features premium cooling fabric to reduce overheating and fogging up of the lenses.
- Ready. Set. Play.
- Your Odyssey+ can be set up in minutes. Just plug in the USB 3.1 Gen 1 and HDMI 2.0 connectors and launch the Mixed Reality Portal app in Windows.

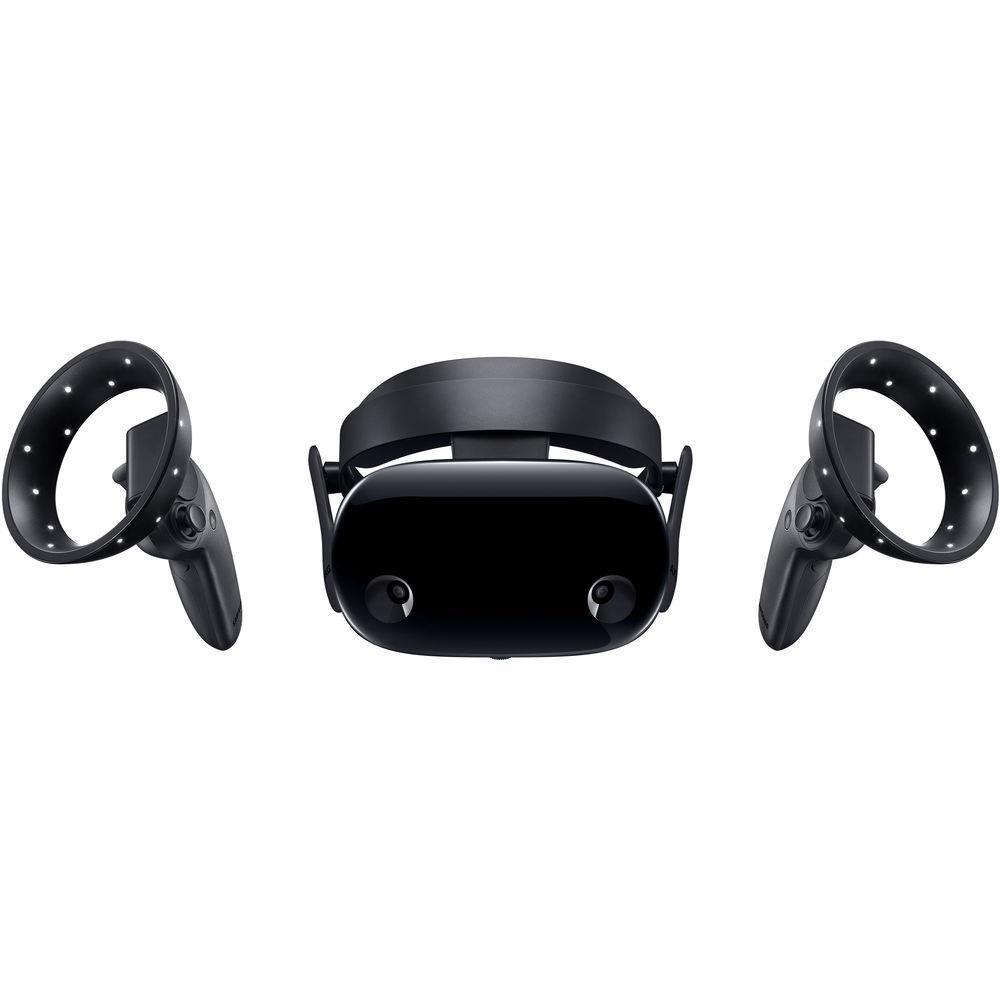

UPC: 887276290652 In the Box Samsung HMD Odyssey+ Windows Mixed Reality Headset 2 x Controller (Left & Right) 4 x AA Battery Cleaning Cloth Limited 1-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung HMD Odyssey Windows Mixed Reality Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung HMD Odyssey Specs | | | Screen | 2 x 3.5" AMOLED | | Resolution | 2880 x 1600 (1440 x 1600 per eye) | | Refresh Rate | 90 Hz | | Field of View | 110° | | | | Output | Integrated headphones
AKG 360° spatial sound | | Input | 2 x Integrated microphones | | | | Tracking | Inside-out | | Ports | 1 x HDMI 2.0
1 x USB 3.1 Gen 1 Type-A | | Sensors | 6-axis accelerator and gyro
3-axis compass
Proximity sensor
IPD sensor | | Minimum System Requirements | GPU
Integrated Intel HD Graphics 620
NVIDIA GeForce MX150 or greater
NVIDIA GeForce GTX 965M or greater
AMD Radeon RX 460/560
CPU
Intel Core i5-7200U dual-core
RAM
8 GB DDR3 or more
Storage
10 GB
Video Output
HDMI 1.4 or DisplayPort 1.2
USB Port
USB 3.1 Gen 1
Bluetooth
4.0
OS
Windows 10 Fall Creators Update | | Recommended System Requirements | GPU
NVIDIA GeForce GTX 1060 or greater
AMD Radeon RX 470/570
CPU
Intel Core i5-4590 quad-core or better
AMD Ryzen 5 1400 quad-core or better
RAM
8 GB DDR3 or more
Storage
10 GB
Video Output
HDMI 2.0 or DisplayPort 1.4
USB Port
USB 3.1 Gen 1
Bluetooth
4.0
OS
Windows 10 Fall Creators Update | | Dimensions | 7.64 x 5.08 x 4.3" / 19.4 x 12.9 x 10.9 cm | | Weight | Headset
1.31 lb / 0.59 kg (without cable)
Cable
0.45 lb / 1.14 kg | | | | Package Weight | 4.71 lb | | Box Dimensions (LxWxH) | 15.0 x 12.0 x 8.0" |
