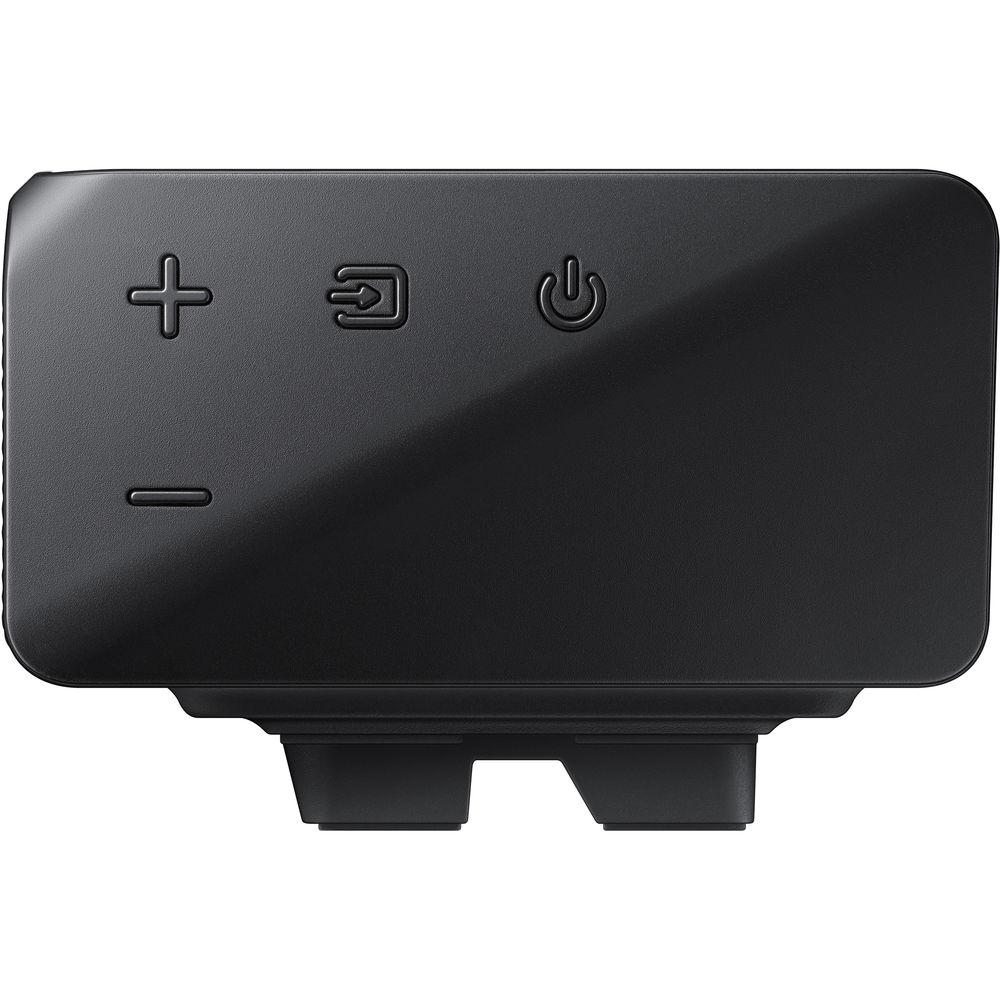

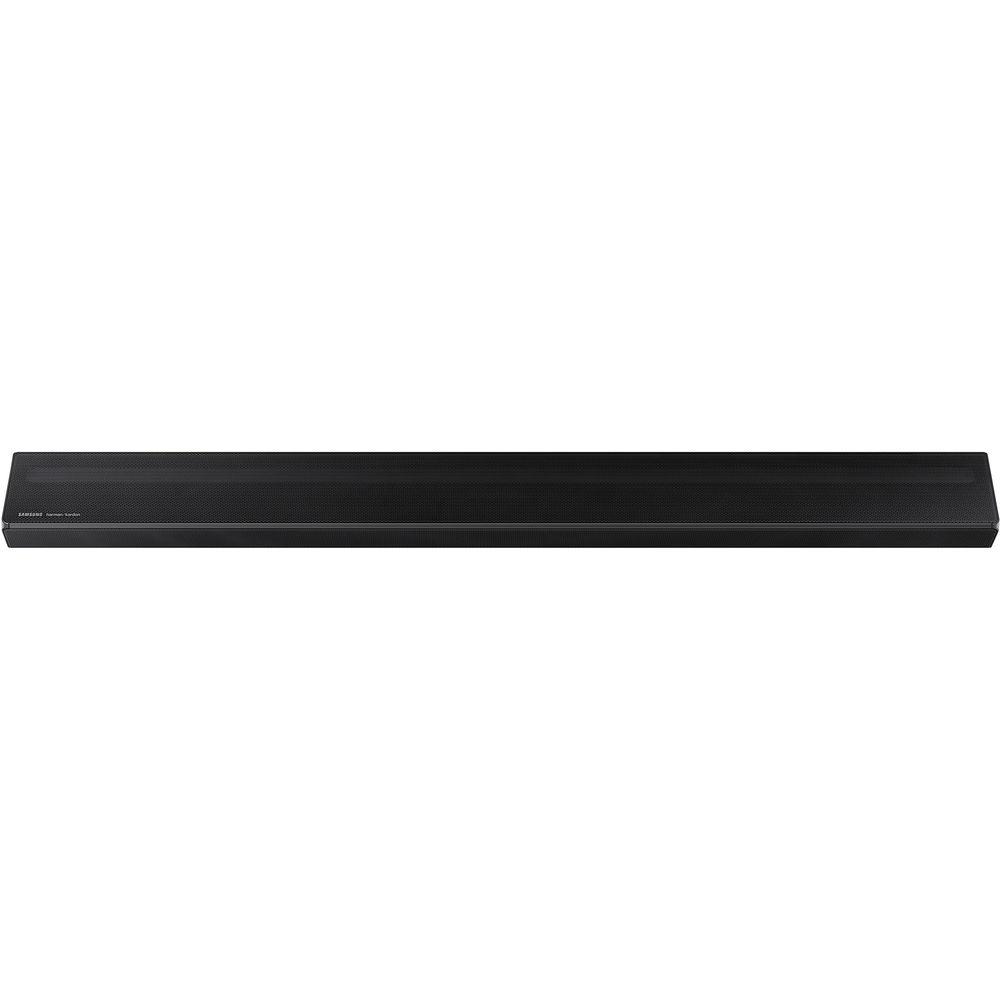

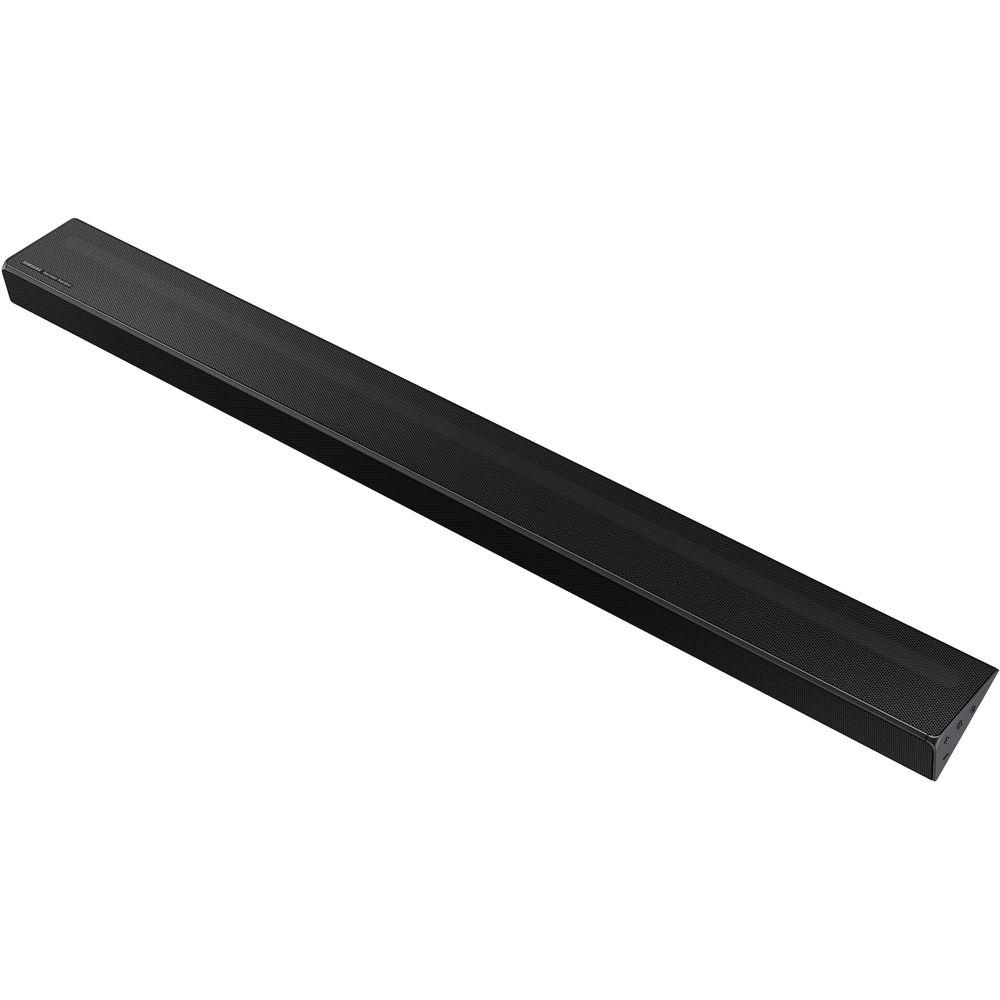

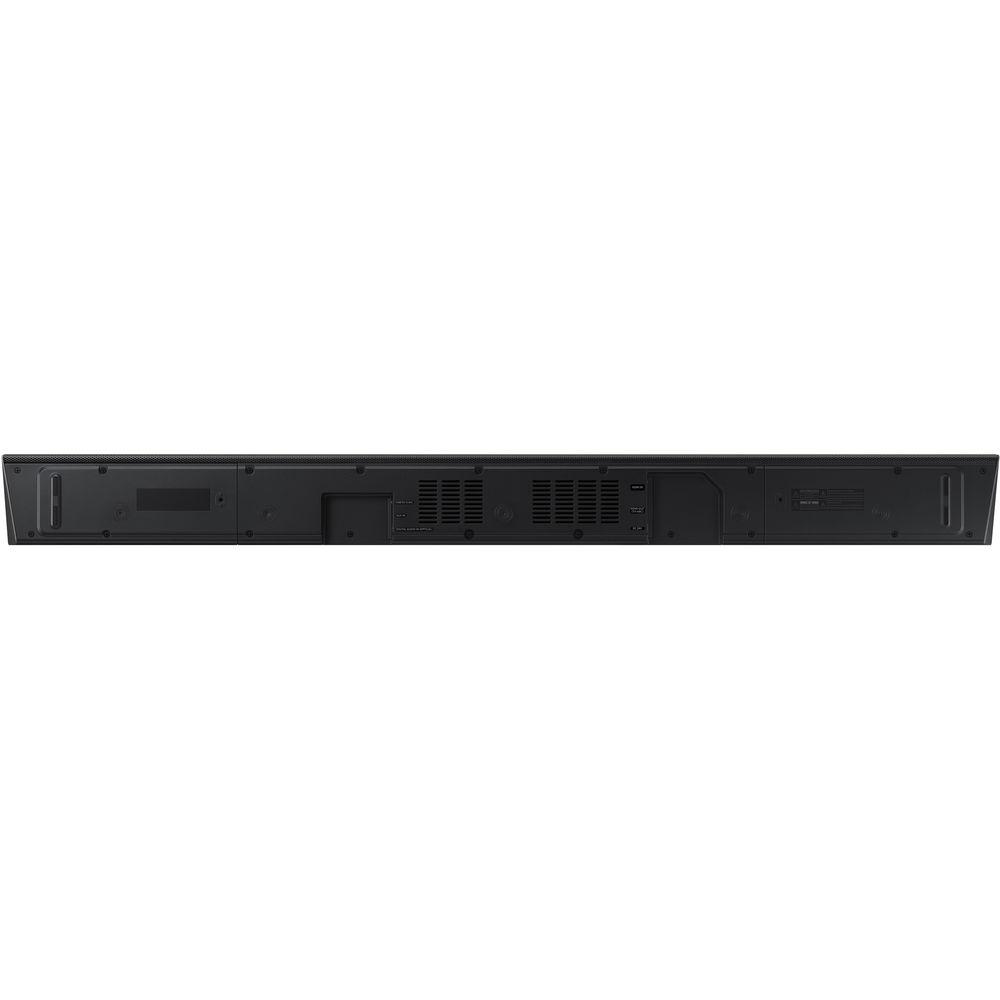

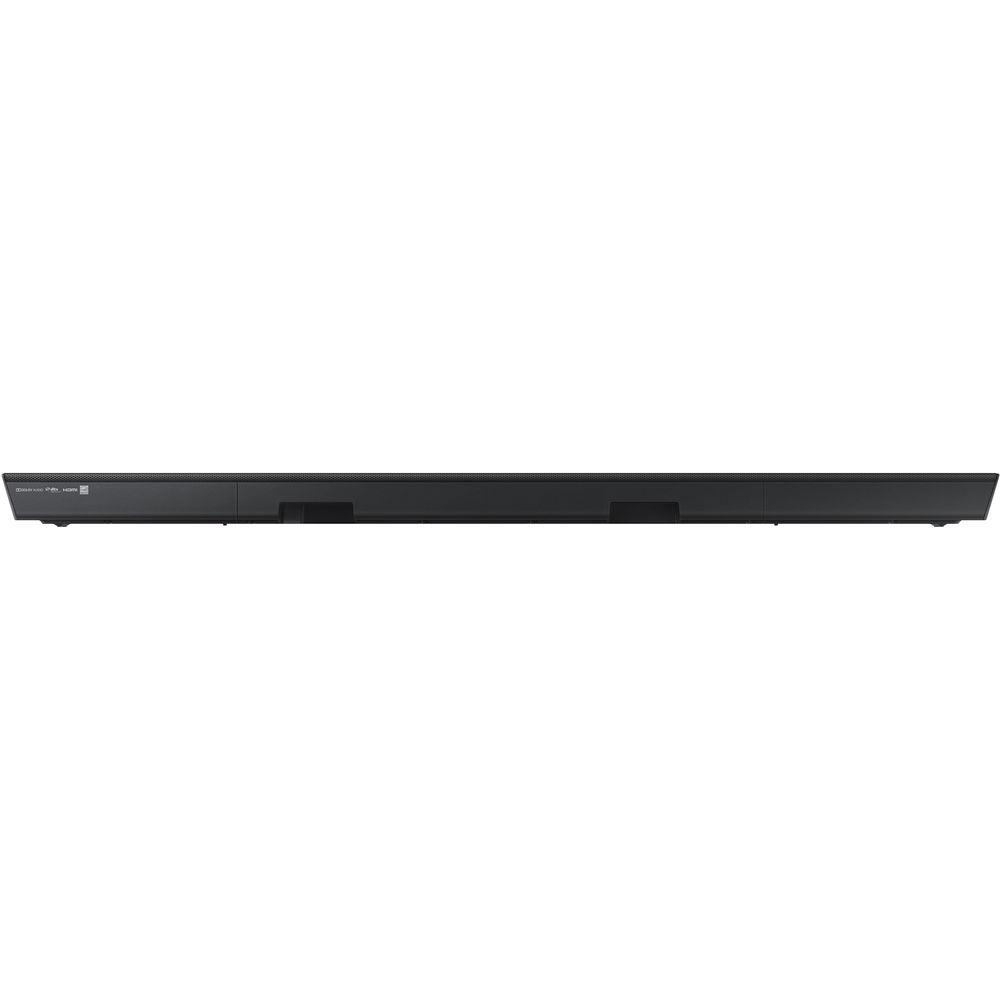

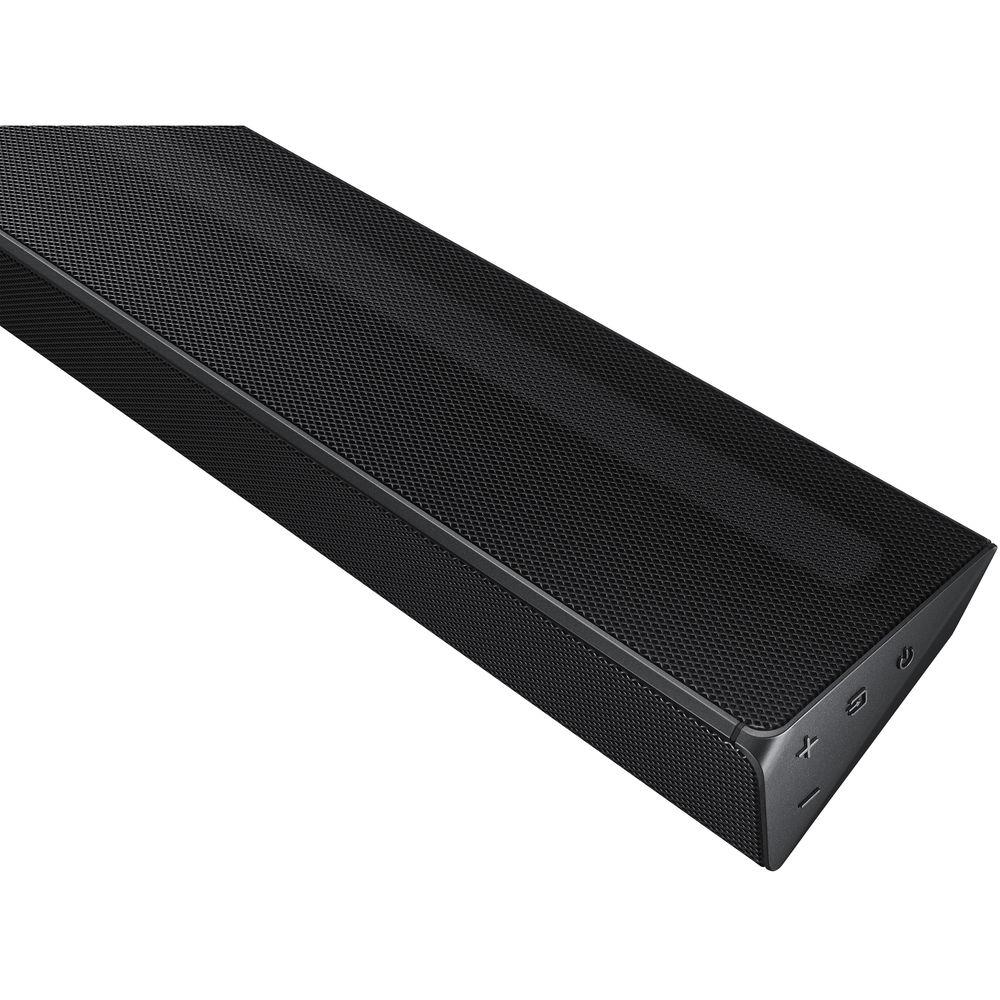

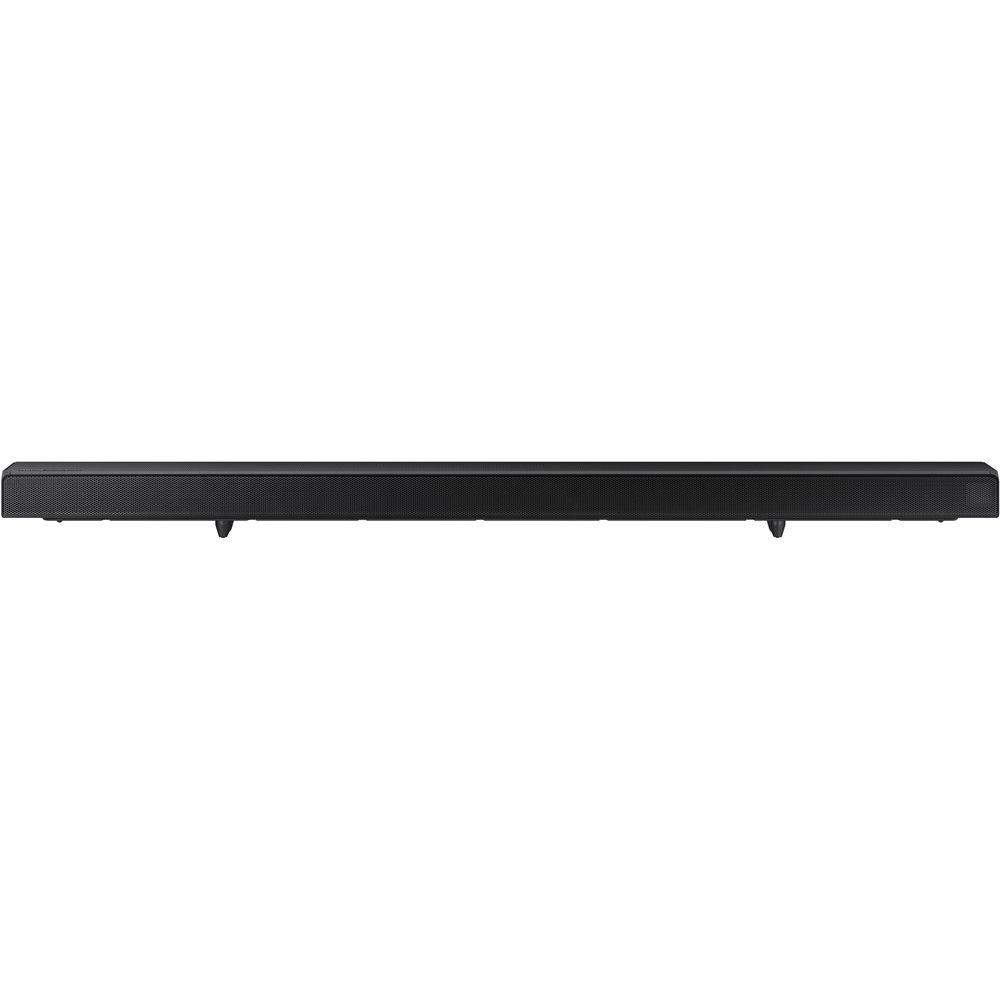

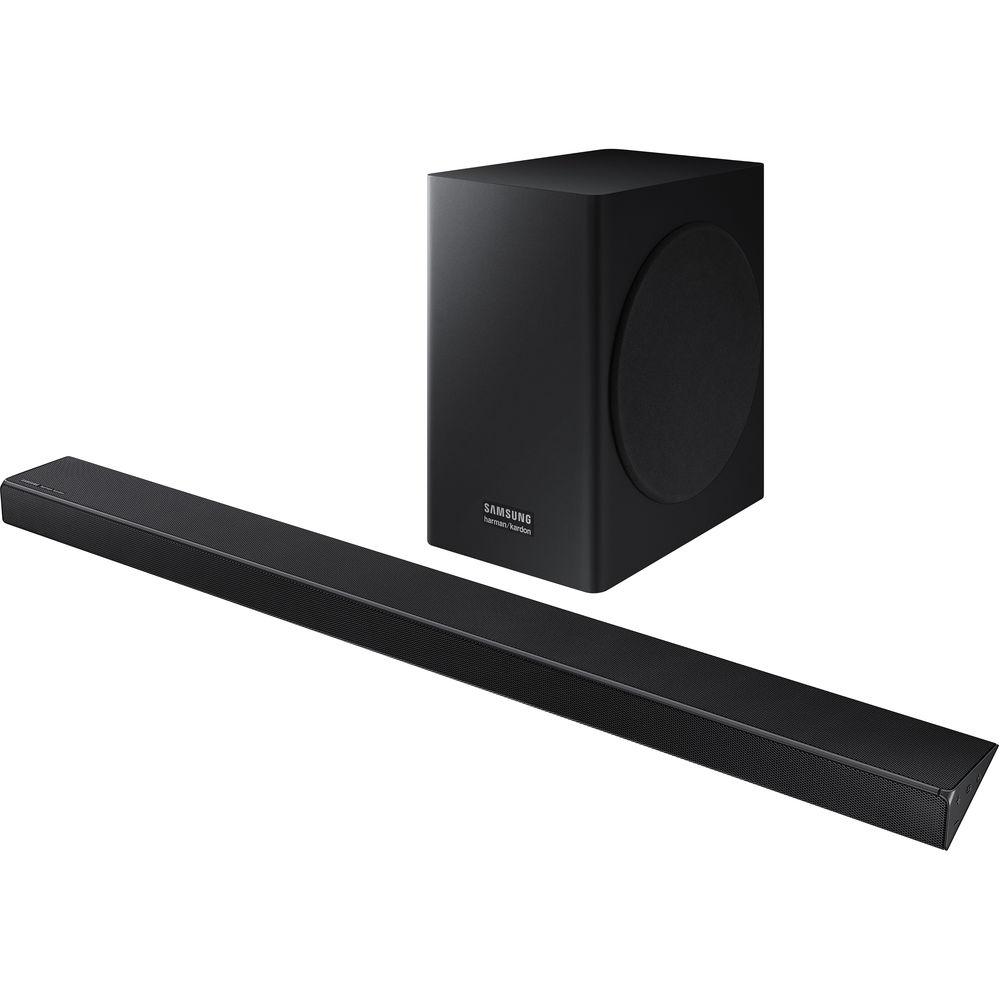

User Manual for Samsung HW-Q60R 360W Virtual 5.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the Samsung HW-Q60R 360W Virtual 5.1-Channel Soundbar
- Product category: Soundbar Speakers Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Soundbar Speakers
 |
User manual for the Samsung HW-Q60R 360W Virtual 5.1-Channel Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

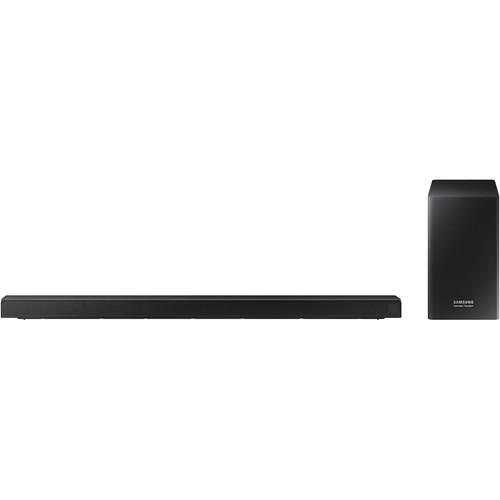

Product description New Soundbar Systems from Samsung Read More Enjoy wireless audio streaming with the Samsung HW-Q60R 360W Virtual 5.1-Channel Soundbar System. This system delivers up to 200W of power from the soundbar and up to 160W from the included wireless subwoofer.
An HDMI input provides a connection for digital video and audio, and an optical input provides an additional input option for digital audio. A USB port is also onboard for playback of compatible music files. 3.5mm connectivity also provides a wired analog connection. Bluetooth connectivity is built into the soundbar for wireless audio streaming from compatible devices like smartphones and tablets. The HW-Q60R supports select Dolby Digital and DTS audio formats. - Acoustic Beam Technology
- This technology is designed to mix and deliver the sound via a set of openings at the top of the soundbar, making it seem as if sound is coming from where the action is happening on the screen.
- Dedicated Center Channel
- The dedicated center channel helps deliver clear dialogue.
- Wireless Subwoofer
- The included wireless subwoofer helps you feel the intensity of the action and the rhythm of the music with rich bass.
- Adaptive Sound
- Adaptive Sound is designed to analyze the content and deliver optimized sound with clear voices.
- Game Mode Pro
- This sound mode is engineered to provide rich sound, detecting when you're gaming and automatically optimizing the audio in real time when connected to a compatible Samsung TV. (Compatibility may change over time. Please see the manufacturer's website for more details.)
- 4K & HDR10 Pass-Through
- With 4K pass-through capability, you can enjoy audio without compromising video quality.
- Bluetooth Music Streaming
- Enjoy music from your compatible mobile device wirelessly.
- Wireless Surround Sound Ready
- An optional Wireless Surround Kit lets you expand your sound system without signal wires. It works together with the soundbar to create a true surround sound experience.
- Additional Features
-
- 8-driver design
- Surround Sound Expansion virtual surround sound technology
- Four DSP sound modes (SSE, Game Pro, Standard, Adaptive)
- Dolby Digital 5.1-channel
- DTS 5.1 digital surround
- 3D pass-through
- One Control
- Auto Power Link
- Bluetooth power on
- Anynet+ HDMI CEC
- Samsung Audio Remote app
- USB music playback
- ENERGY STAR certified
UPC: 887276309217 In the Box Samsung HW-Q60R 360W Virtual 5.1-Channel Soundbar System Remote Control 2 x AA Batteries Optical Cable Soundbar Wall Mount Kit Soundbar Feet Attachment Hardware Wall Mount Guide Soundbar Power Cord Soundbar AC/DC Adapter Subwoofer Power Cord Limited 1-Year Warranty How to Choose a Soundbar System Richard L. Stevens 11/26/2014 Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung HW-Q60R 360W Virtual 5.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung HW-Q60R/ZA Specs | | | Speaker Configuration | 5.1-Channel (Virtual Surround) | | Amplifier Output | 200 W | | Frequency Response | 42 Hz to 20 kHz | | | | Drivers | 1 x 6.5" / 16.51 cm | | Amplifier Output | 160 W | | Subwoofer Connectivity | Wireless | | | | Inputs | 1 x HDMI 2.0a - Audio/Control/Video
1 x Optical TOSLINK - Audio
1 x 1/8" / 3.5 mm - Audio | | Outputs | 1 x HDMI 2.0a - ARC/Audio/Control/Video | | USB Ports | 1 x Micro-USB (Version Unspecified) – Audio | | Wireless Audio Protocols | Bluetooth | | Bluetooth Version | 2.1 | | NFC | No | | | | Audio Decoding | DTS Digital Surround, Dolby Digital | | HDMI Compliance | ARC, CEC | | HDCP Compliance | HDCP 2.2 | | Supported File Formats | AAC, LPCM, MP3, OGG, WAV, WMA | | | | Power Consumption | 31 W (Soundbar)
28 W (Subwoofer)
0.5 W (Soundbar, Standby)
2 W (Soundbar, Network Standby)
0.5 W (Subwoofer, Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 75% | | | | Wall Mountable | Yes, with Included Hardware | | Dimensions | 43.3 x 2.3 x 3.9" / 1100.0 x 59.0 x 100.0 mm (Soundbar)
8.1 x 13.9 x 11.9" / 205.0 x 353.0 x 303.0 mm (Subwoofer) | | Weight | 7.9 lb / 3.6 kg (Soundbar)
13.7 lb / 6.2 kg (Subwoofer) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 44.0 x 22.0 x 10.0" |
