User Manual for Samsung HW-R650 340W 3.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the Samsung HW-R650 340W 3.1-Channel Soundbar System
- Product category: Soundbar Speakers Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Soundbar Speakers
 |
User manual for the Samsung HW-R650 340W 3.1-Channel Soundbar System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

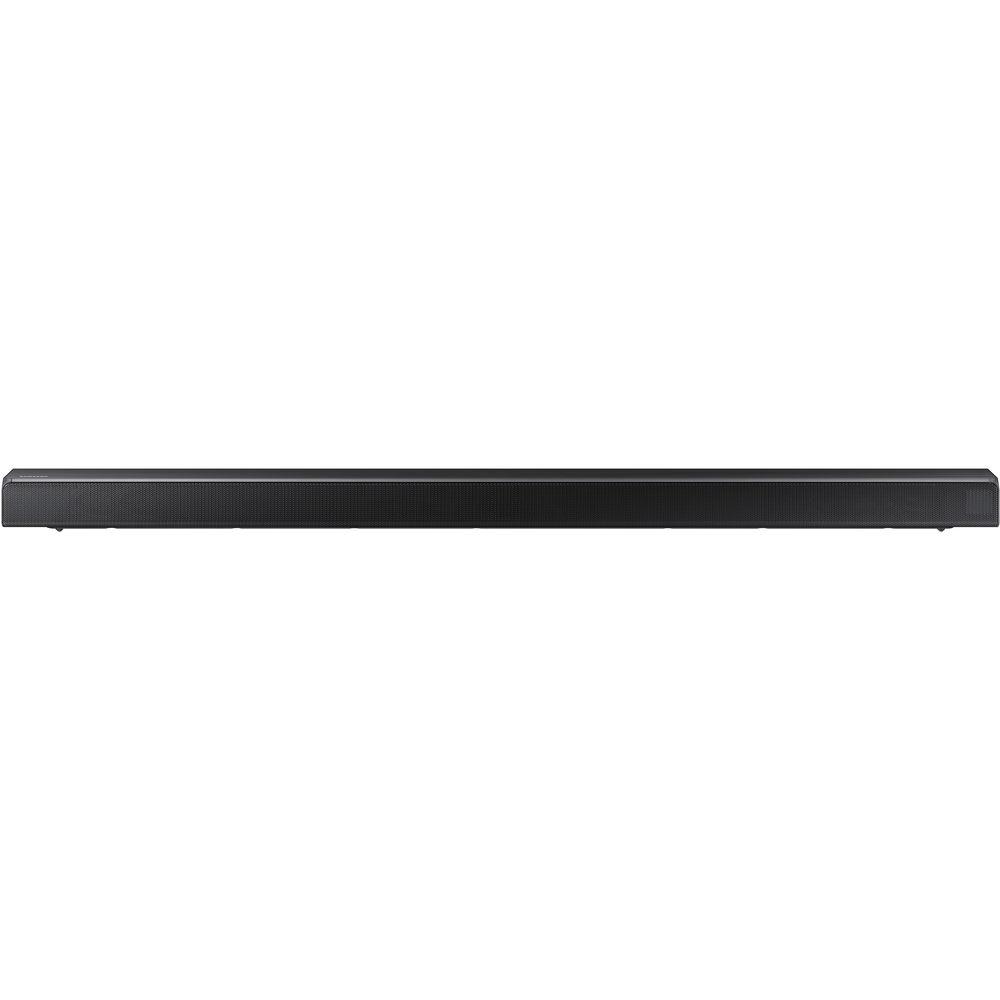

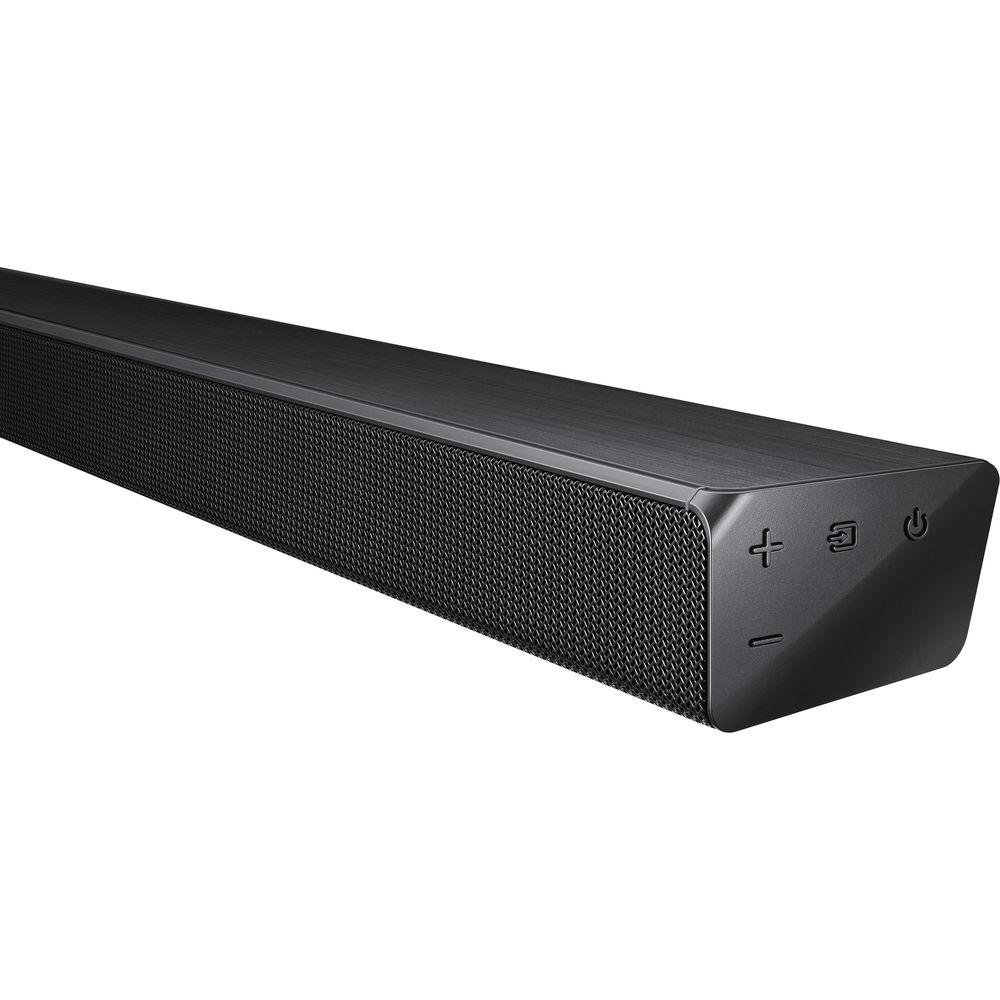

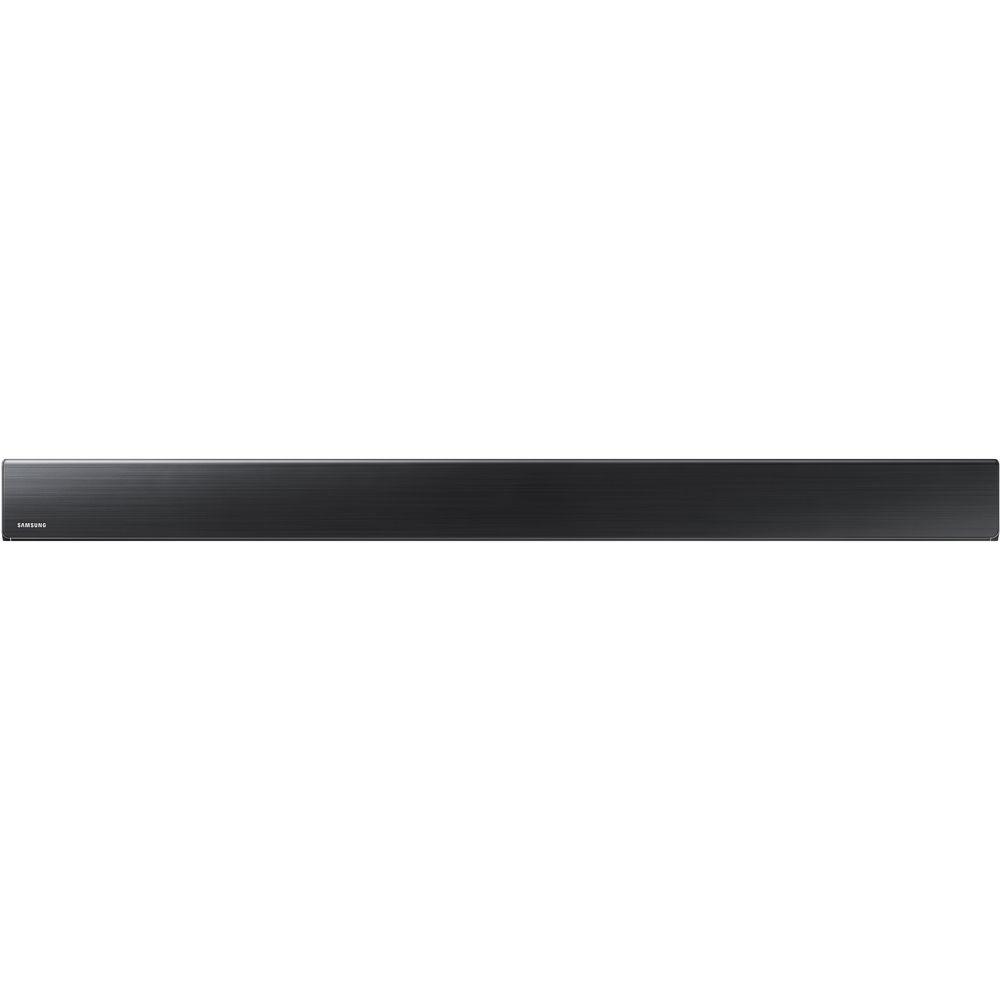

Product description New Soundbar Systems from Samsung Read More Enjoy wireless audio streaming and enhanced dialogue with the Samsung HW-R650 340W 3.1-Channel Soundbar System. This system delivers up to 180W of power from the soundbar, which has a dedicated center channel for clear TV and movie dialogue, and up to 160W from the included wireless subwoofer.

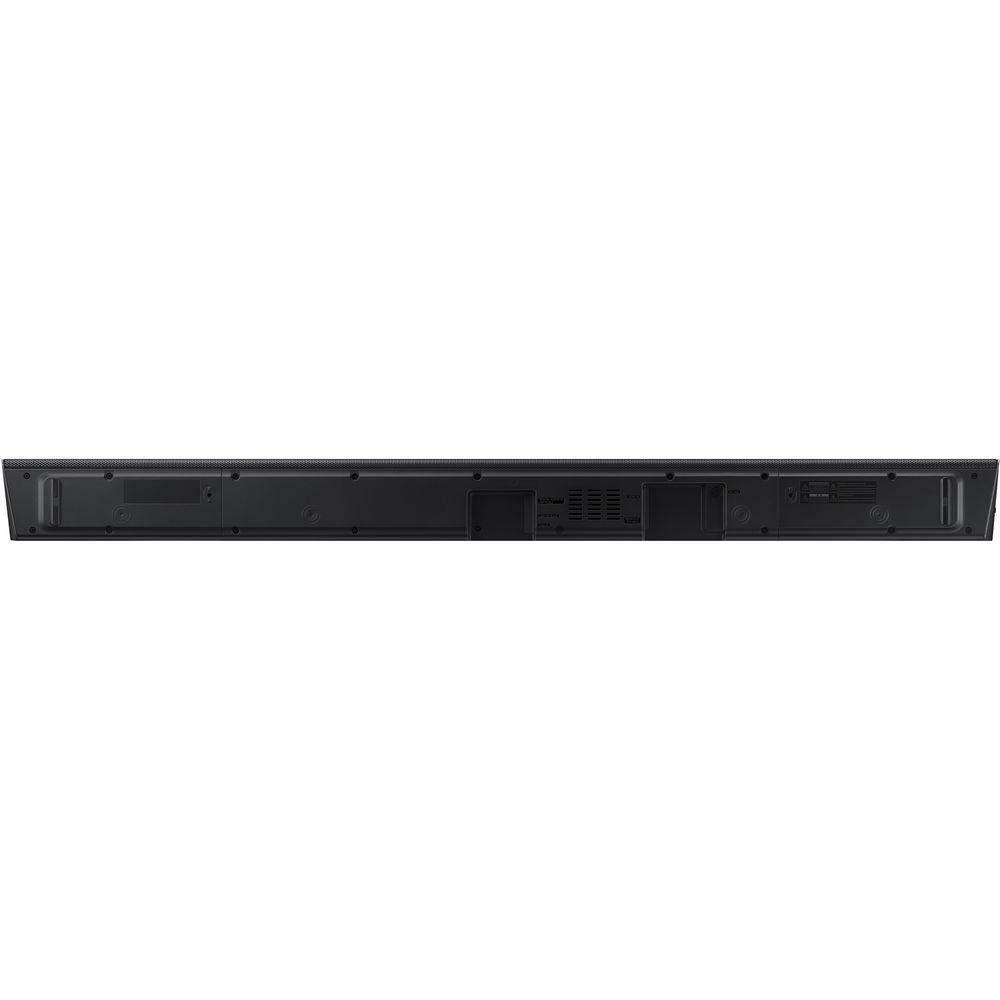

The HDMI input and output let you wire the soundbar between your video source, such as a Blu-ray player or game console, and your TV; the HDMI output supports ARC, so audio originating in TV-based apps can play through the soundbar system. A USB port is onboard for playback of compatible music files, and traditional wired connectivity is achieved via the optical and 1/8" audio inputs. Bluetooth is built into the soundbar for wireless audio streaming from compatible devices like smartphones and tablets. - Dedicated Center Channel
- The dedicated center channel helps deliver clear dialogue.

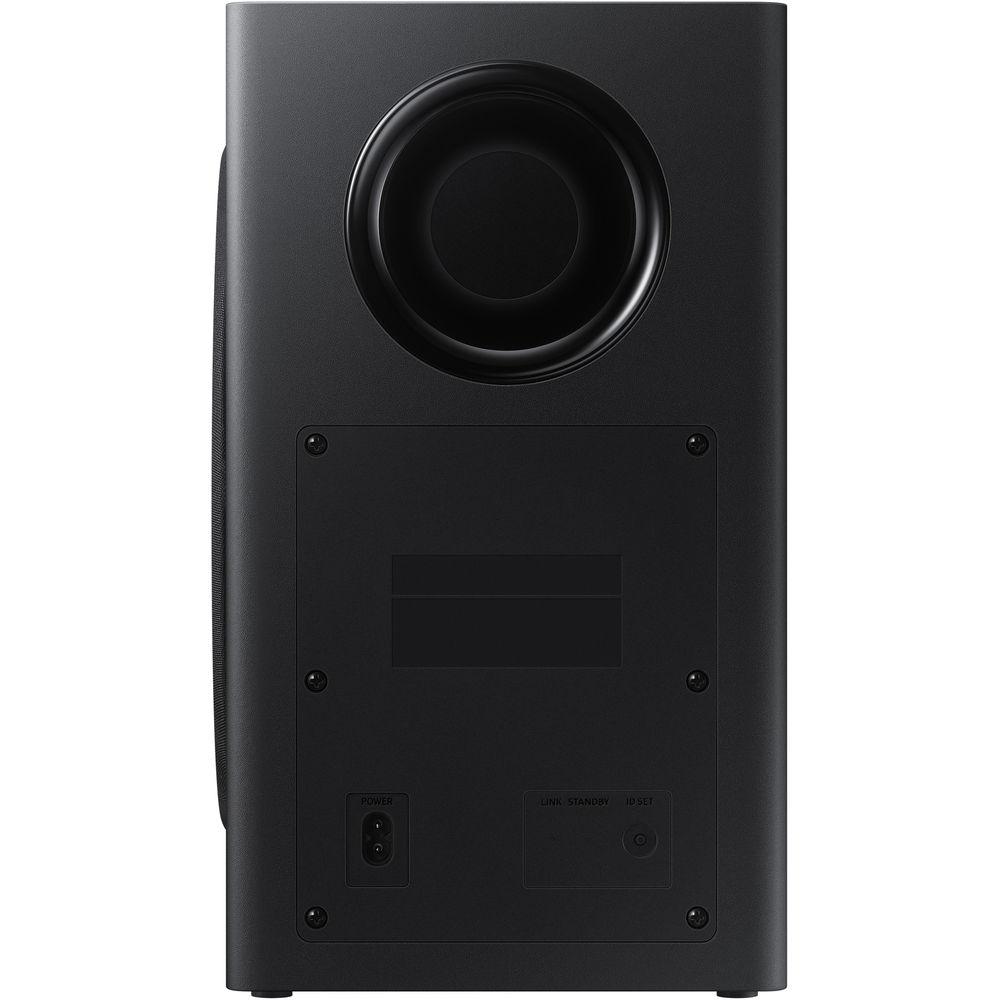

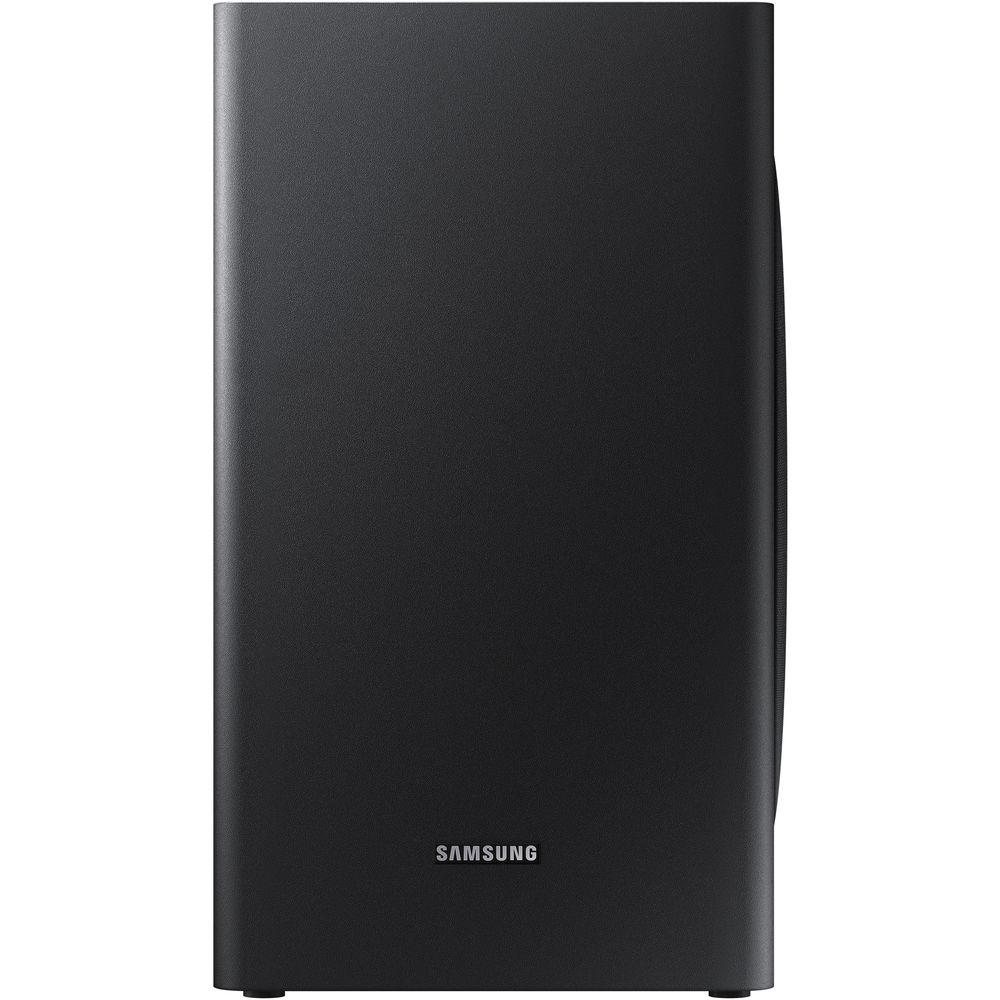

- Wireless Subwoofer
- The included wireless subwoofer helps you feel the intensity of the action and the rhythm of the music with rich bass.
- Smart Sound Mode
- This sound mode is engineered to automatically analyze the content and optimize the audio.
- Game Mode
- This sound mode is enabled by use with select TVs and is designed to boost game sound effects.
- Bluetooth Music Streaming
- Enjoy music from your compatible mobile device wirelessly.
- Plug-and-Play with Select Samsung TVs
- The HW-R650 provides wireless and wired plug-and-play connectivity with select Samsung TVs, allowing you to control both the TV and soundbar with your TV's OneRemote and fine-tune the sound from the TV menu.
- Wireless Surround Sound Ready
- An optional Wireless Surround Kit lets you expand your sound system without signal wires from the soundbar. It works together with the soundbar to create a true surround sound experience.
- Additional Features
-
- Anynet+ HDMI CEC
- Samsung Audio Remote app
- Surround Sound Expansion virtual surround sound technology
- Bluetooth power on
- ENERGY STAR certified
- Crosstalk cancellation technology
- Four DSP sound modes (SSE, Game, Standard, Smart Sound)
- 3D video pass-through
- One Control
- HDMI ARC
- Micro-USB for music playback and firmware updates
- Auto Power Link
UPC: 887276309224 In the Box Samsung HW-R650 340W 3.1-Channel Soundbar System Remote Control 2 x AA Batteries Optical Cable Soundbar Wall Mount Hardware Wall Mount Guide Soundbar Power Cord Soundbar AC/DC Adapter Subwoofer Power Cord Limited 1-Year Warranty How to Choose a Soundbar System Richard L. Stevens 11/26/2014 syzvwcbwqvbxcywesfedqfuresqteetfw Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung HW-R650 340W 3.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung HW-R650/ZA Specs | | | Speaker Configuration | 3.1-Channel | | Amplifier Output | 180 W | | Frequency Response | 42 Hz to 20 kHz | | | | Drivers | 1 x 6.5" / 16.51 cm | | Amplifier Output | 160 W | | Subwoofer Connectivity | Wireless | | | | Inputs | 1 x HDMI 1.4 - Audio/Video
1 x Optical TOSLINK - Audio
1 x 1/8" / 3.5 mm - Audio | | Outputs | 1 x HDMI 1.4 - ARC/Audio/Video | | USB Ports | 1 x Micro-USB (Version Unspecified) – Audio, Service | | Wireless Audio Protocols | Bluetooth | | Bluetooth Version | 2.1 | | NFC | No | | | | Audio Decoding | DTS Digital Surround, Dolby Digital | | Supported File Formats | AAC, MP3, OGG, WAV, WMA | | | | Power Consumption | 28 W (Soundbar)
28 W (Subwoofer)
0.5 W (Soundbar, Standby)
2 W (Soundbar, Network Standby)
0.5 W (Subwoofer, Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 75% | | | | Wall Mountable | Yes, with Included Hardware | | Dimensions | 41.7 x 2.3 x 3.5" / 1060.0 x 59.0 x 88.0 mm (Soundbar)
8.1 x 13.9 x 11.9" / 205.0 x 353.0 x 303.0 mm (Subwoofer) | | Weight | 6.4 lb / 2.9 kg (Soundbar)
13.2 lb / 6 kg (Subwoofer) | | | | Package Weight | 25.05 lb | | Box Dimensions (LxWxH) | 46.0 x 26.0 x 8.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
