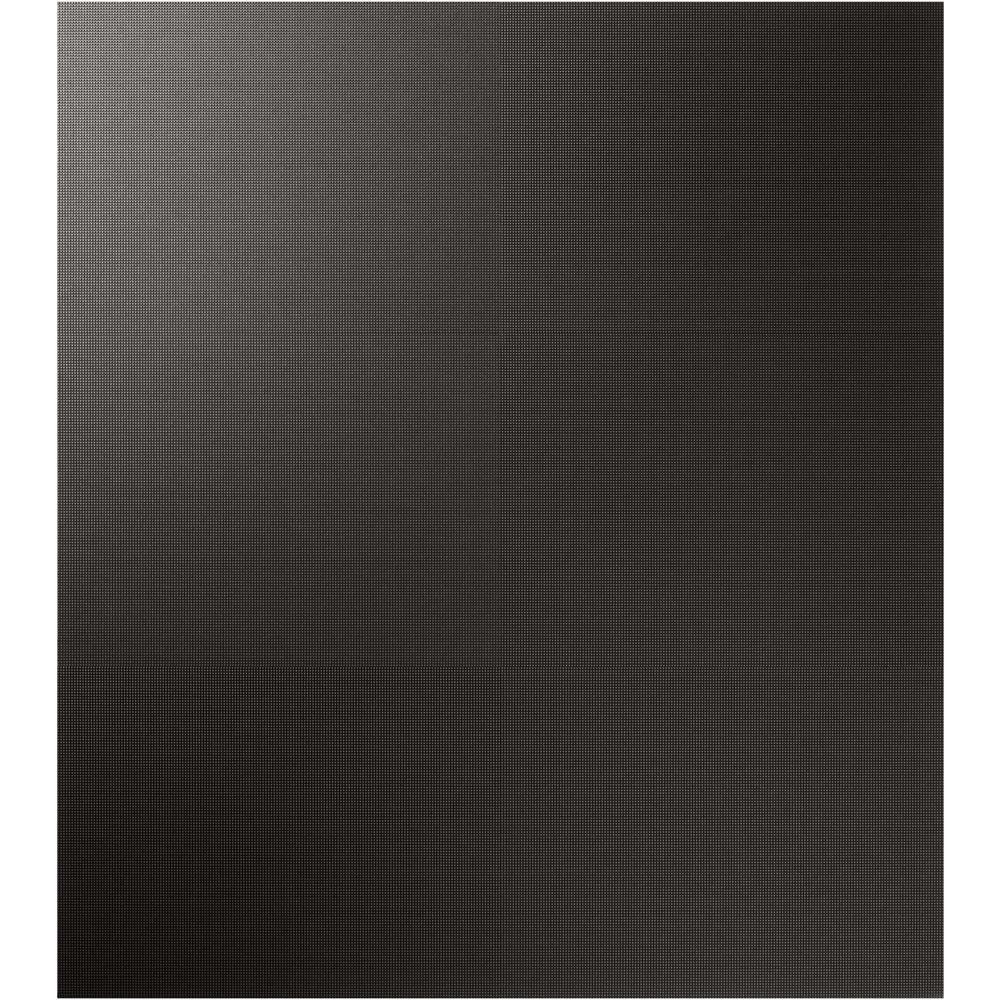

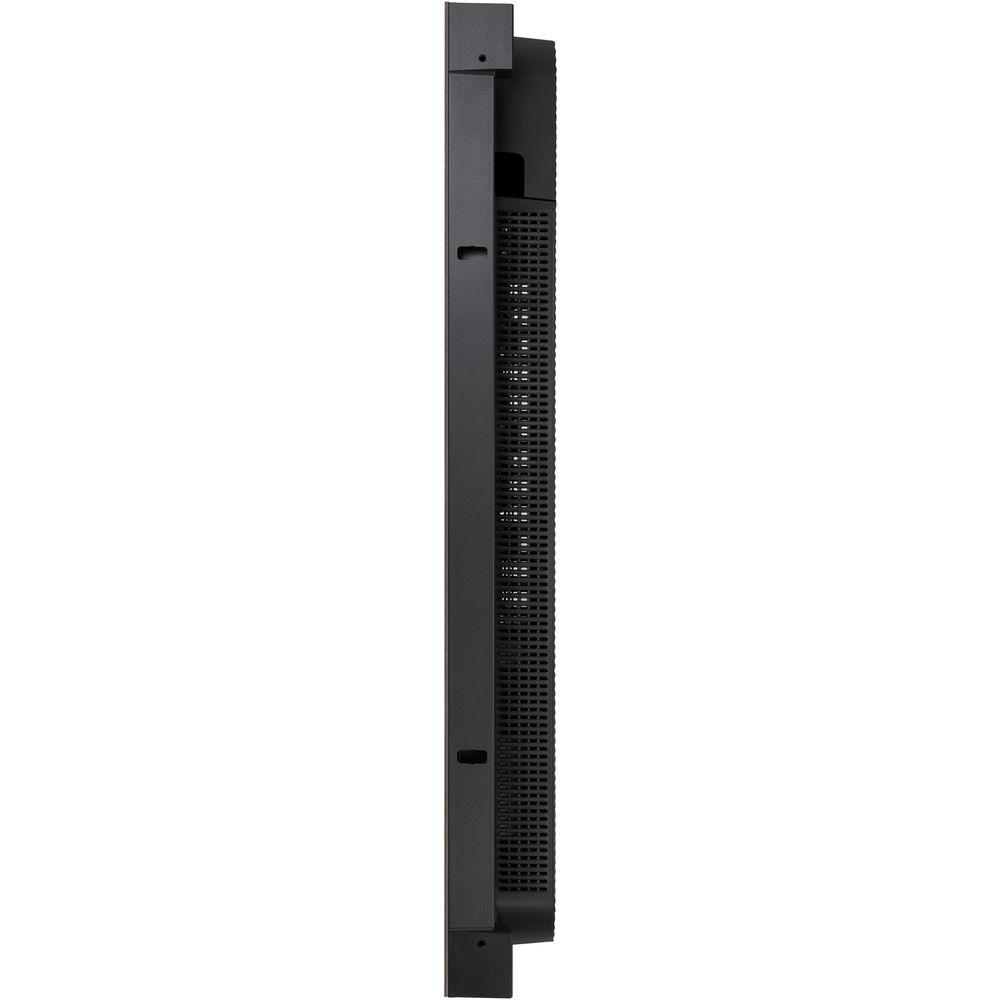

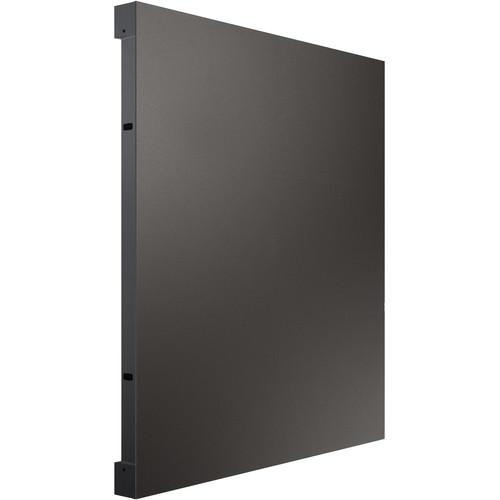

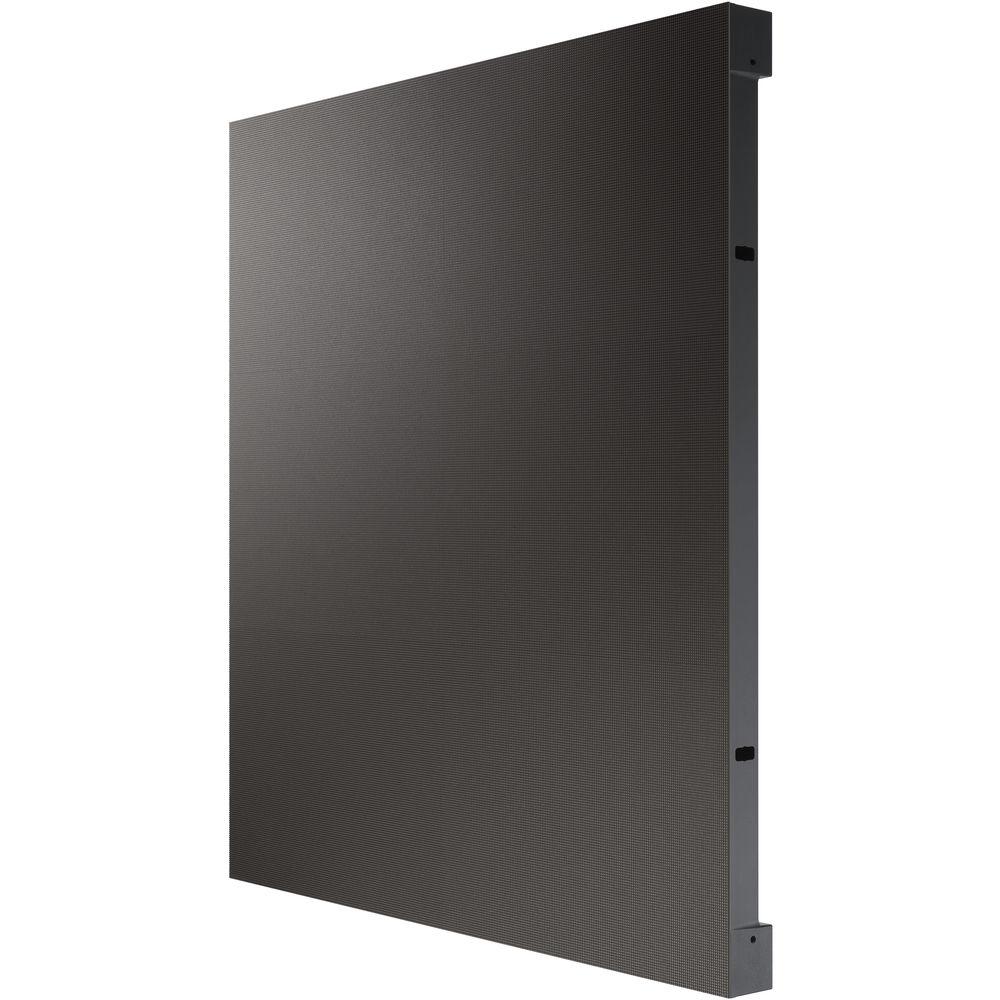

User Manual for Samsung IF015H 1.5mm Pixel Pitch Indoor LED Signage Display Cabinet Click to enlarge the picture
Contents of the user manual for the Samsung IF015H 1.5mm Pixel Pitch Indoor
- Product category: Commercial Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Commercial Monitors
 |
User manual for the Samsung IF015H 1.5mm Pixel Pitch Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

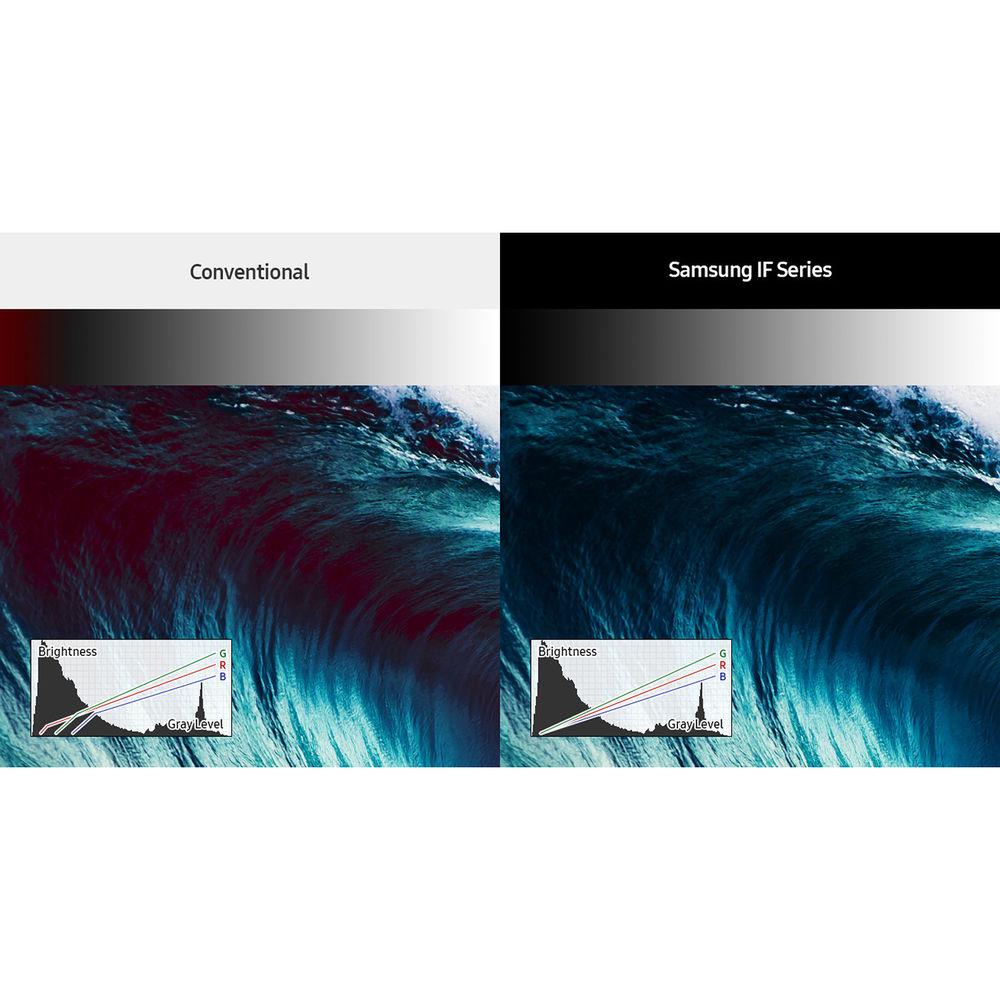

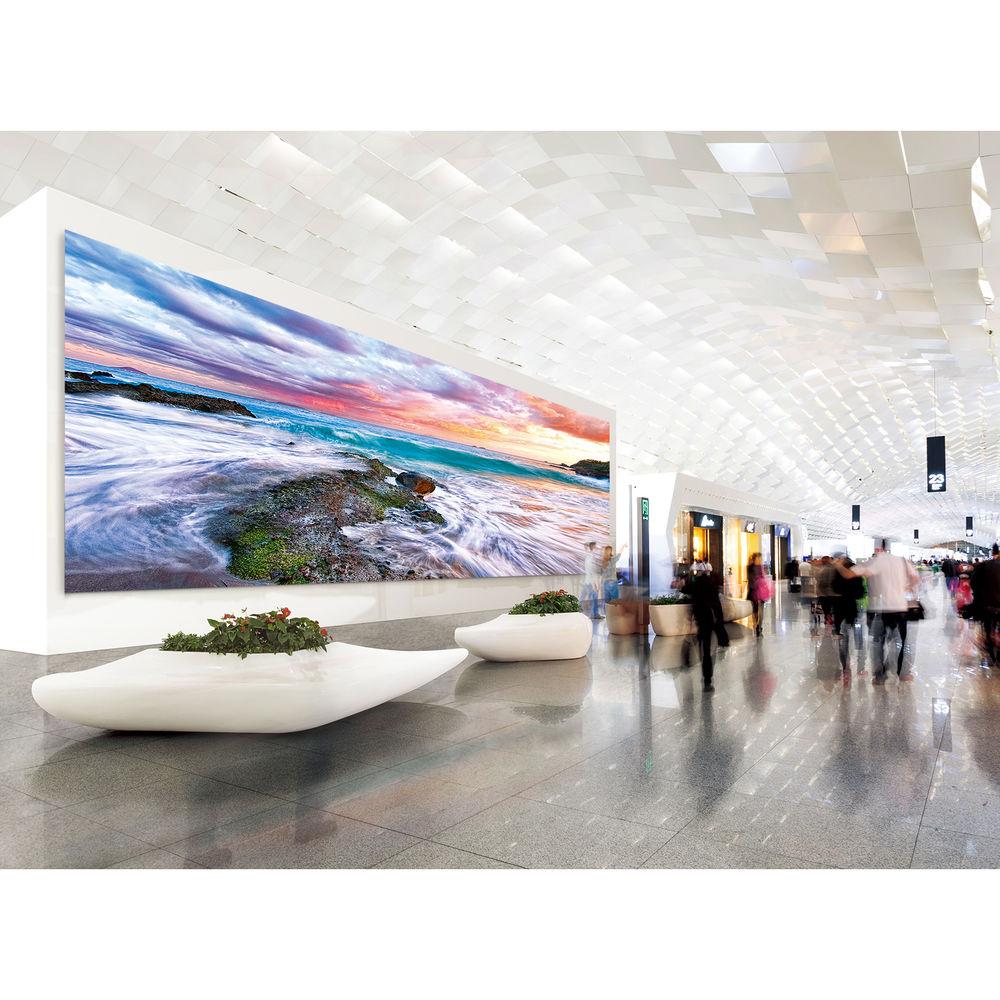

Product description Equipped with an LED HDR scene adaptation technology and customized algorithms, the IF015H 1.5mm Pixel Pitch Indoor LED Signage Display Cabinet from Samsung analyzes and optimizes gradation and brightness levels within individual content scenes while also preventing dazzling. Incorporating a grayscale management algorithm, it maintains consistent Red/Green/Blue gradation for improved color accuracy and is suitable for low-brightness indoor environments such as galleries, museums, and shops.
The LED Signage Box (S-Box) transmits UHD content across multiple screens from a single source, eliminating the need for an expensive splitter or multiple external boxes. You can use the existing cable structures to easily configure signal redundancy. The integrated Samsung MagicInfo content platform makes content creation, scheduling, and deployment easier. With LED Signage Manager, the unit quickly identifies common performance errors such as LED dot disruptions, power fluctuations, and temperature irregularities. - Advanced color calibration
- Compatible with color gamut settings such as sRGB, Adobe RGB, and LED Natural Mode spectra
- Radiant camera for sub-pixel tuning for uniform brightness and color chromaticity
- Onsite pixel calibration using DSLR camera
- LED Signage Manager with advanced picture setting

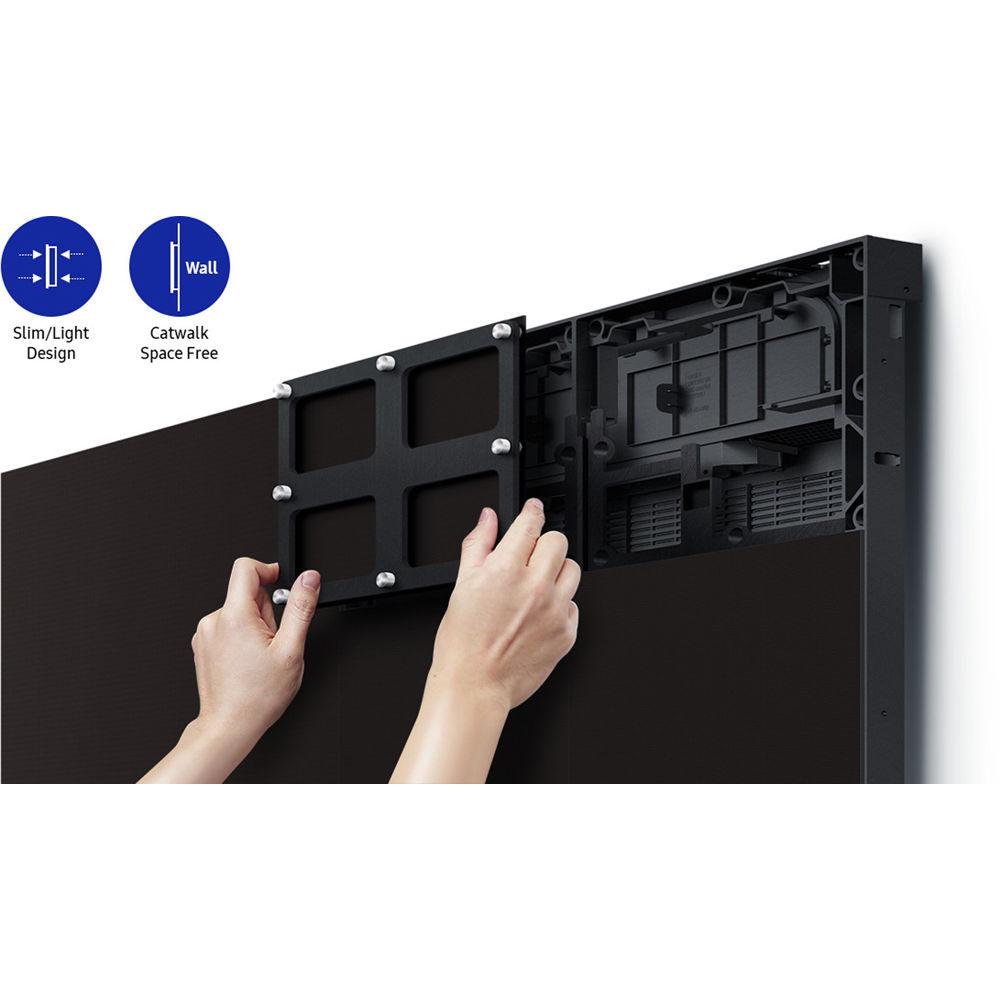

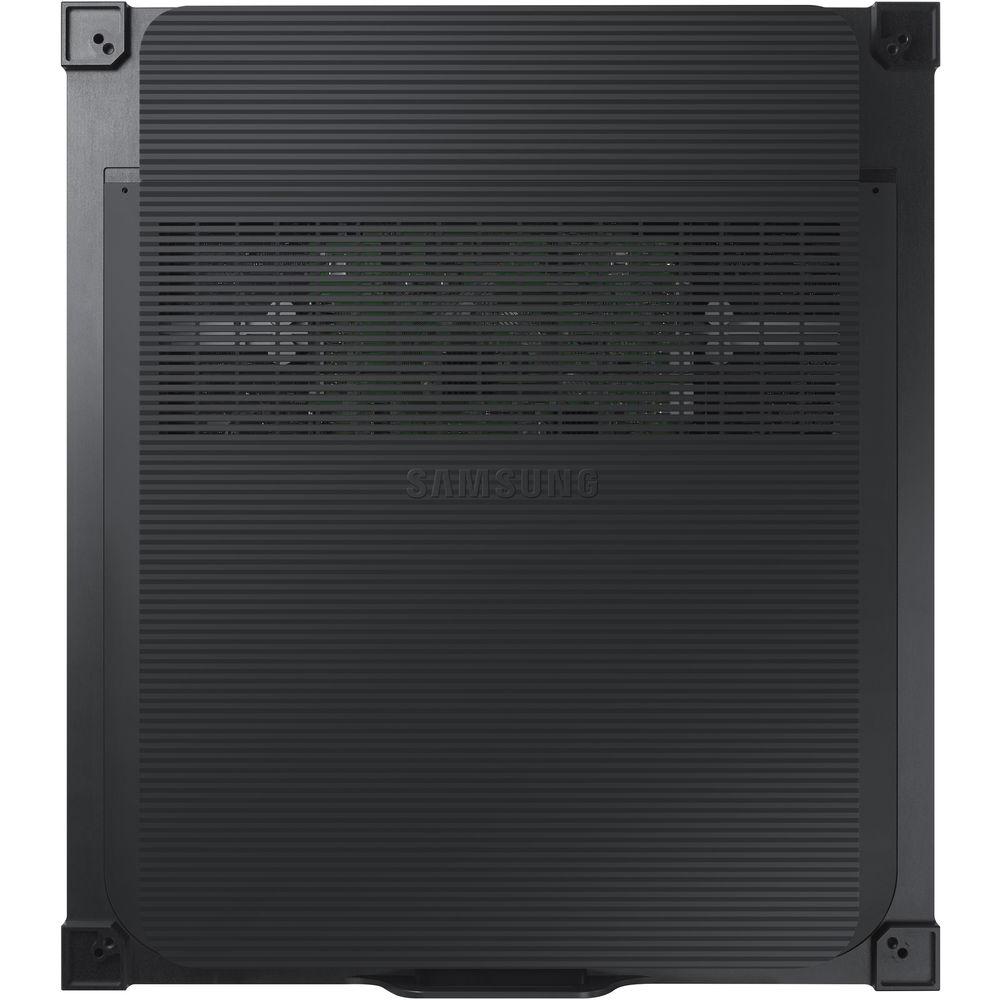

- Full-front access to critical signage components and complementary rear access for easy installation and maintenance

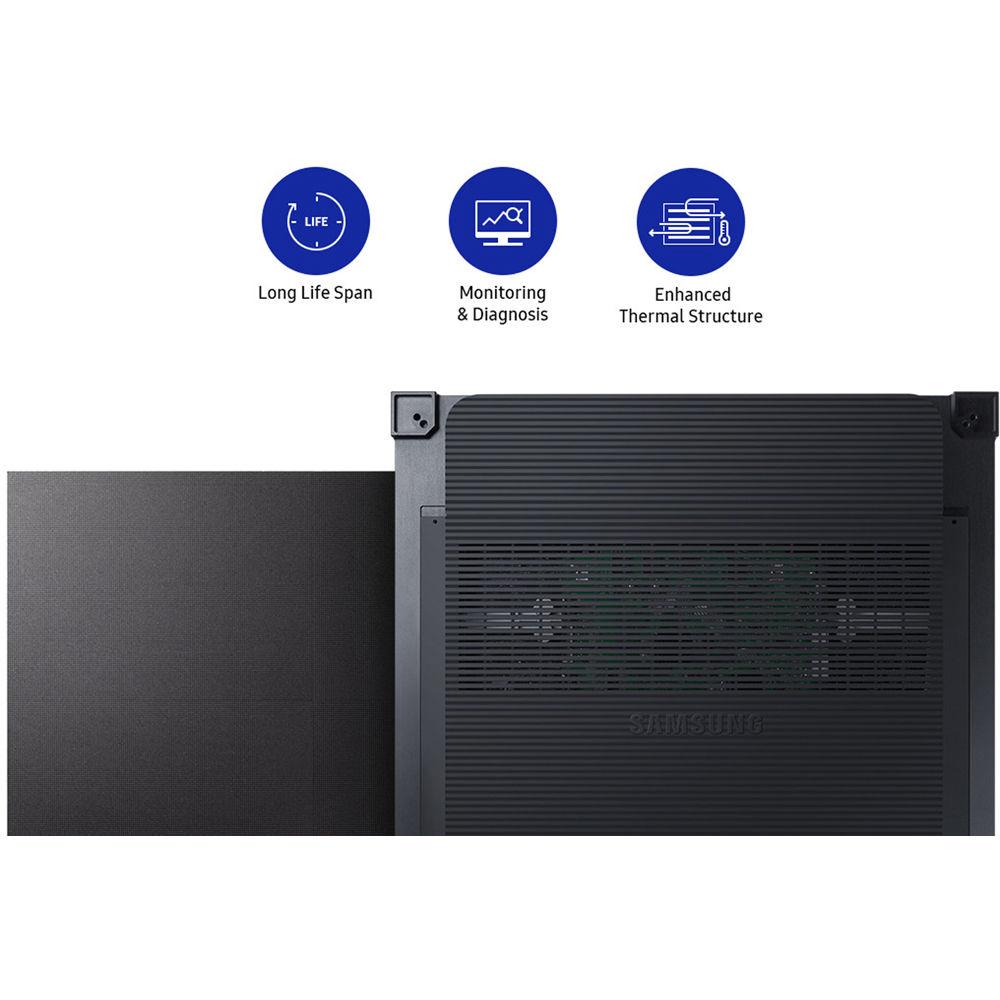

- Advanced temperature and ventilation management capabilities
- Fanless design to minimize the impact of dust and rigid particle exposure
Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung IF015H 1.5mm Pixel Pitch Indoor LED Signage Display Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung IF015H Specs | Pixel Pitch | 1.5 mm | | Diode Type | LED | | Pixel Configuration | 1 red, 1 green, 1 blue | | Pixel Density | 41,290 ft2 (444,444 m2) | | Resolution | 320 x 360 pixels | | Brightness | After Calibration: 800 cd/m2 | | Contrast Ratio | 5000:1 | | Viewing Angle | Horizontal/Vertical: 160°/160° | | Bit Depth | 16-bit per color | | Color Temperature | Default: 6500K
Adjustable: 2800 to 10,000K | | Video Rate | 50/60 Hz | | Input Power | 100 to 240 VAC, 50/60 Hz | | Maximum Power Consumption | 772 W/m2 / 200 W/Cabinet | | Typical Power Consumption | 257 W/m2 / 67 W/Cabinet | | Heat Dissipation | Maximum: 245 BTU/SF per hour | | Working Temperature | 32 to 104°F (0 to 40°C) | | IP Rating | IP20 | | LED Lifetime | 100,000 hours to half brightness | | Certification | EMC Class A, Safety 60950 | | Service | Front service and/or rear service | | Mount | Surface mount | | Dimensions | 18.9 x 21.3 x 2.6" (480 x 540 x 65 mm) | | Weight | 13.2 lb (6 kg) |
