User Manual for Samsung J4000 32" Class HD LED TV Click to enlarge the picture
Contents of the user manual for the Samsung J4000 32" Class HD LED
- Product category: Televisions Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Televisions
 |
User manual for the Samsung J4000 32" Class HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

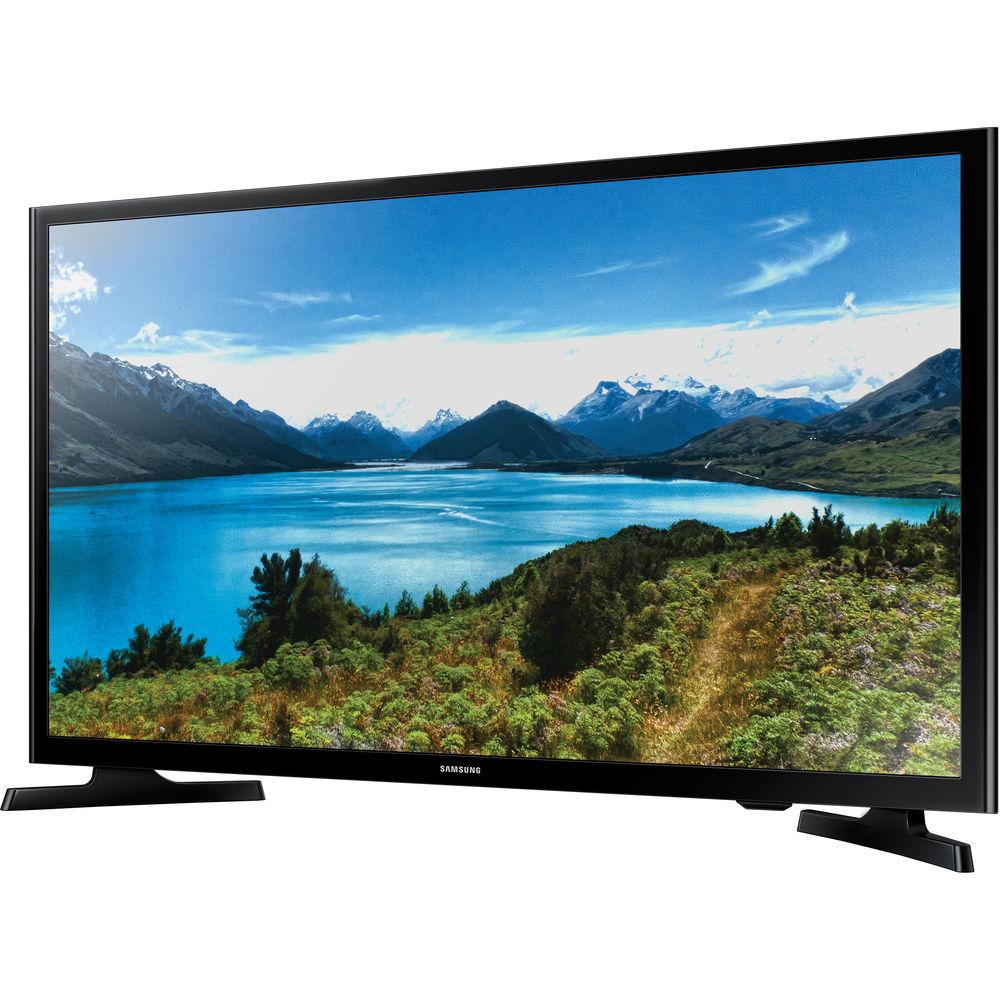

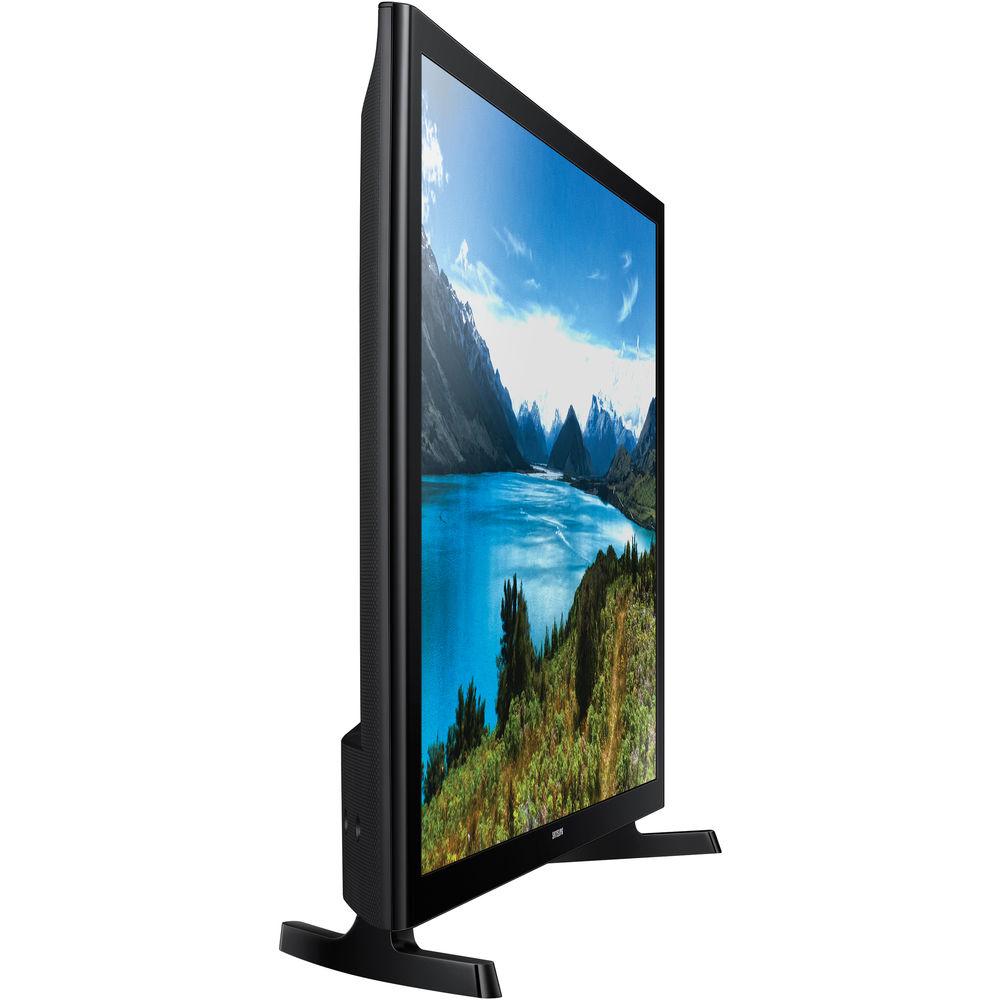

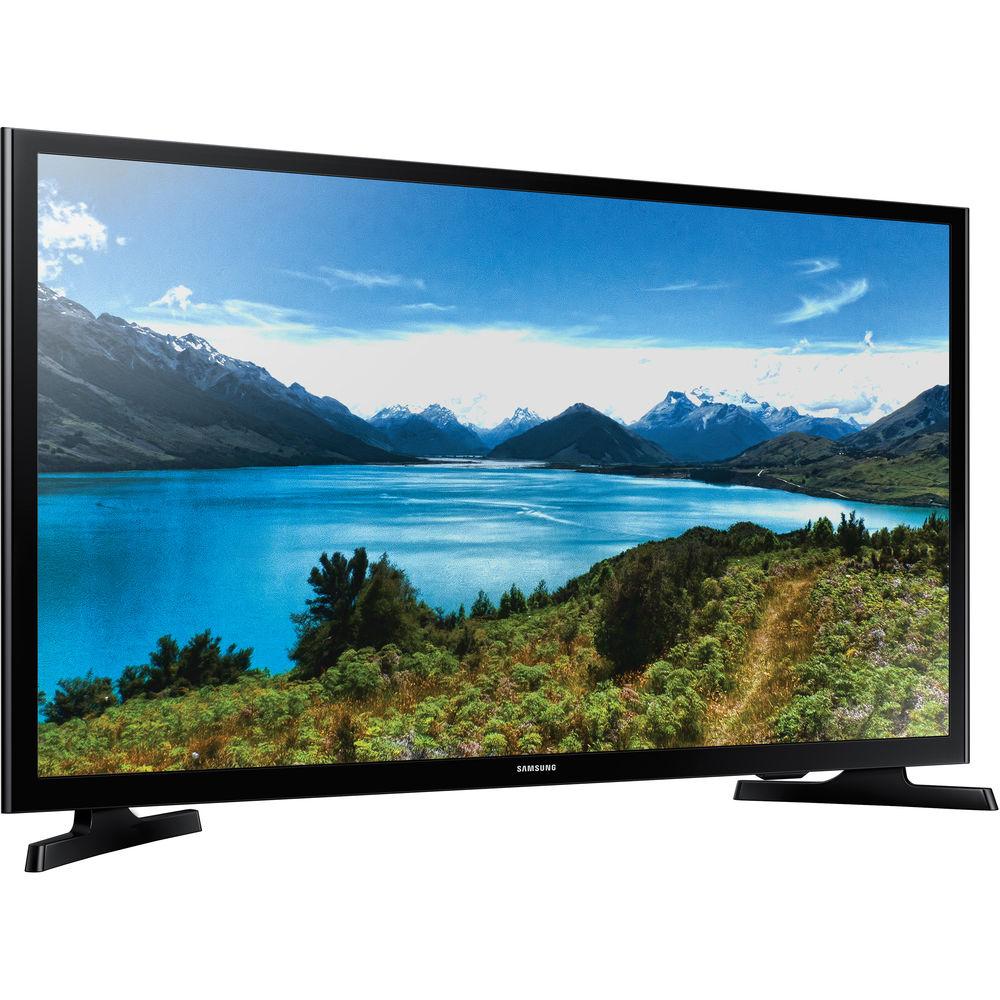

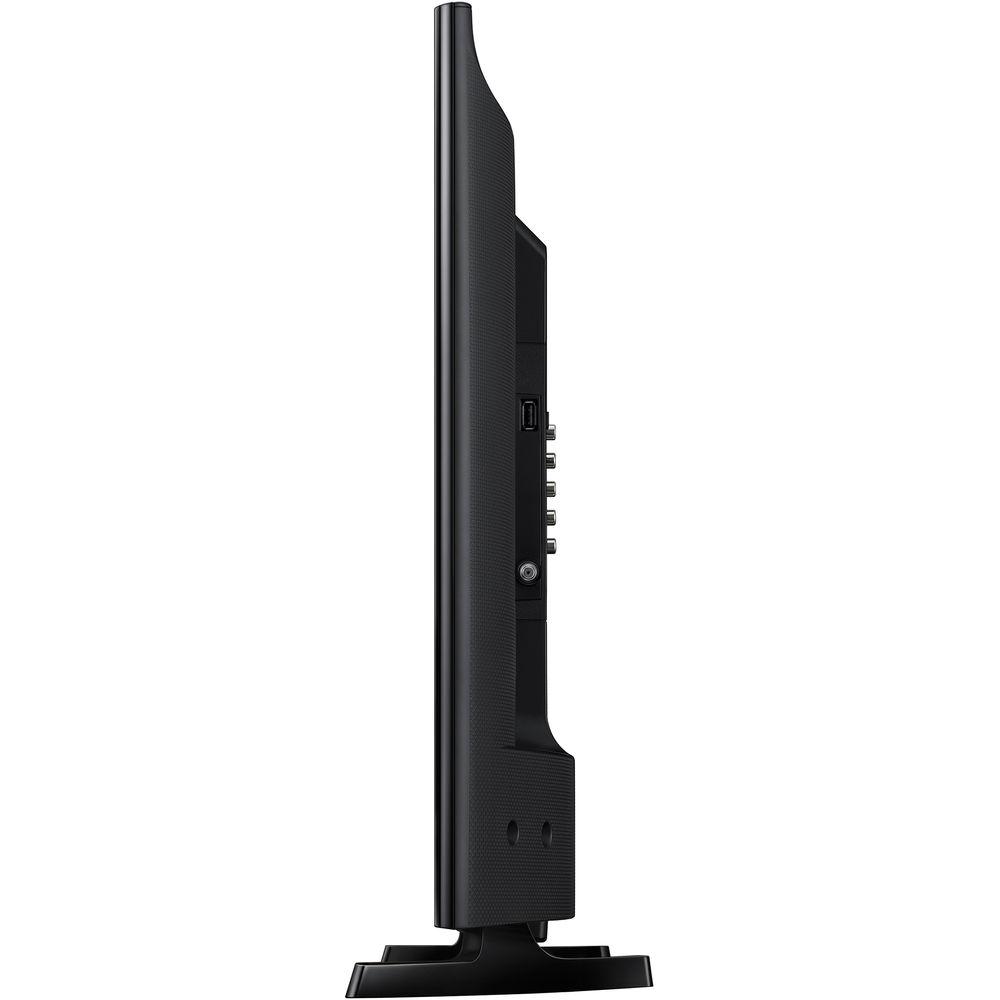

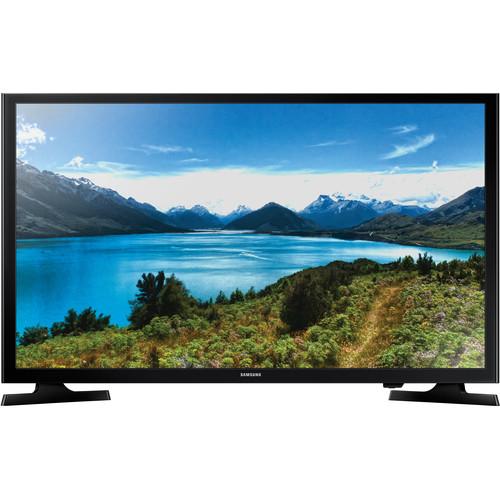

Product description The Big March TV Tournament Read More wcbewxaa Enjoy 720p HD viewing with the Samsung J4000 32" Class HD LED TV. This model features a 31.5" display and has a 1366 x 768 native resolution for viewing high-definition content. Motion Rate 60 technology is onboard for reducing distortion on moving images. This LED TV incorporates Wide Color Enhancer for life-like color reproduction.
This Samsung LED TV has dual HDMI interfaces for connecting high-definition sources. A component video input is also onboard for connecting additional sources; the component video connection is shared with a composite video input for interfacing lower resolution sources. This TV has two built-in full range bass reflex speakers that deliver 10W of total power. Using the TV's optical output, you have the option of outputting audio to an external multi-channel speaker system. - Wide Color Enhancer
- With Wide Color Enhancer you can view enriched colors while watching your favorite movies, and shows, even if it's older, non-HD content.
- Motion Rate 60
- View every detail of action packed movies and sports with Motion Rate 60 technology. This technology uses the TV's native 60 Hz refresh rate, image processor speed and backlight technology to measure fast action.
- ConnectShare Movie
- Watch videos, play music or view photos from a USB connection with ConnectShare Movie. No PC required, just plug your USB directly into your Samsung TV's USB port and entertain family and friends.
- DTS Premium Sound
- Decodes DTS-encoded content (ex: Blu-ray, streaming media) and unlocks all discrete channels of audio data within the content for an impressive and immersive surround sound experience from the built-in audio system.
- Other Features
-
- Removable black arc feet stand for wall mounting
- Dolby MS10 support
- DTS Studio Sound
- Closed captioning and electronic program guide
UPC: 887276089591 In the Box Samsung J4000 32" Class HD LED TV Stand Remote Control Power Cable Limited 1-Year Warranty Limited 90-Day Warranty for Commercial Use The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 2mb More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung J4000 32" Class HD LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung J4000 Specs | | | Screen Size (Diagonal) | 31.5" | | Panel Type | LCD | | Pixel Resolution | 1366 x 768 | | Refresh Rate | 60 Hz | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 1 x RCA Composite – Video
1 x RF Antenna – Audio, Video
2 x HDMI – Audio, Video
1 x RCA Stereo (L/R) – Audio
1 x RCA Component – Video | | Output Ports | 1 x TOSLINK Optical – Audio | | USB Ports | 1 x USB 2.0 – Audio, Photo, Video | | Ethernet | None | | Control | None | | | | Sound | Stereo | | Power | 10 W | | Orientation | Bottom | | Dolby Digital | Yes | | | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Tilt/Swivel | Tilt: No
Swivel: Yes | | Wall Mounting | 200 x 200mm | | | | Power Requirements | 110-120 VAC, 60 Hz | | Power Consumption | Typical: 40.0 W | | ENERGY STAR Compliant | Yes | | Dimensions (W x H x D) | 29.3 x 17.1 x 2.7" / 74.4 x 43.4 x 6.9 cm Without Stand
29.3 x 18.2 x 5.9" / 74.4 x 46.2 x 15.0 cm With Stand | | Weight | 8.2 lb / 3.72 kg Without Stand
8.4 lb / 3.8 kg With Stand | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 36.0 x 19.5 x 5.0" |
