User Manual for Samsung J4303 32" HD Multi-System Smart LED TV Click to enlarge the picture
Contents of the user manual for the Samsung J4303 32" HD Multi-System Smart
- Product category: Televisions Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Televisions
 |
User manual for the Samsung J4303 32" HD Multi-System Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

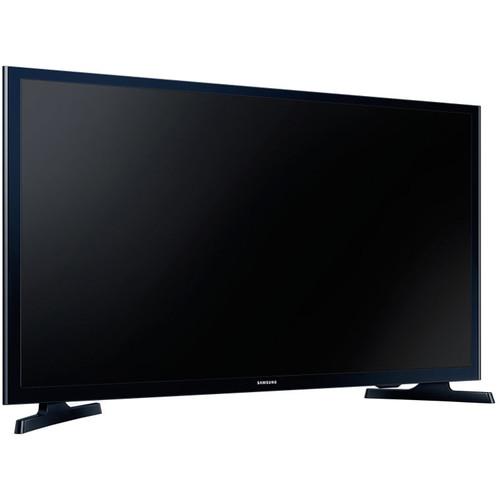

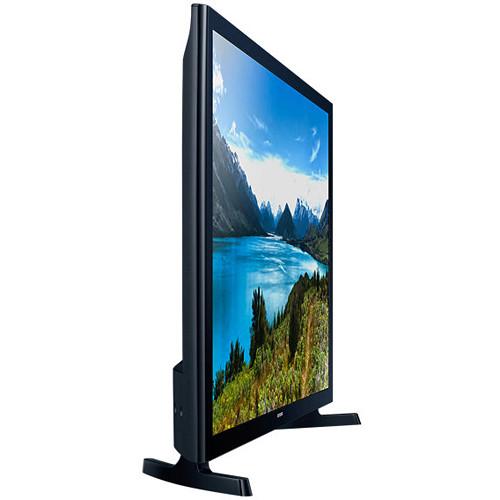

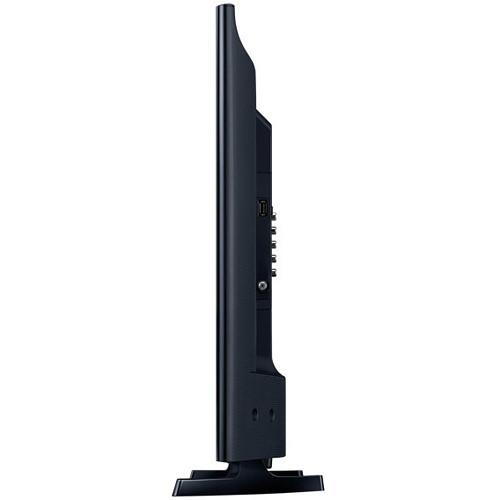

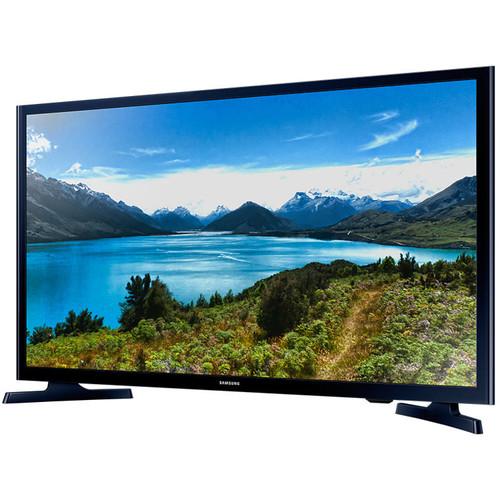

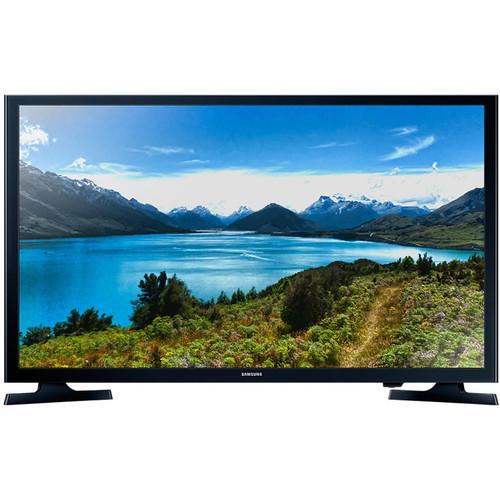

Product description The Big March TV Tournament Read More cbesbeeaczwqevcsywzrubazswtxtwfsbwzb With the Samsung J4303 32" HD Multi-System Smart LED TV you can enjoy Internet streaming content and detailed 720p images across NTSC, PAL, and SECAM TV systems. This model has a large 32" display and features a 1366 x 768 resolution for viewing high-definition content. On-board Clear Motion Rate 100 technology uses the TVs native 50 Hz refresh rate to reduce distortion and image blur on fast moving images like televised sporting events. This LED TV incorporates Wide Color Enhancer Plus technology for vivid and life-like color reproduction.
As a Smart TV, this model has built-in Wi-Fi and Ethernet for accessing Samsung's on-board apps and streaming services. With component video, USB, and two HDMI ports, you have multiple options for connecting high-resolution audio and video sources. On-board MHL connectivity allows you to mirror and charge compatible smart devices. This model has stereo speakers, which deliver 10W of total power. This multi-system TV comes with a European plug and includes a plug adapter for US use.
Please Note: This is a multi-system television and it does not include a digital/ATSC tuner to receive over-the-air broadcast channels in the US. In order to receive US broadcast channels, a separate converter or cable/satellite box is required. Please refer to the owner's manual for setup and operational assistance. - Wide Color Enhancer Plus
- Samsung's Wide Color Enhancer Plus technology is designed to offers optimized color reproduction and image quality.
- ConnectShare Movie
- With ConnectShare Movie, simply plug your USB memory drive or hard drive into the TV enjoy movies, photos or music.
- Video Enhancements
-
- HyperReal picture engine
- Mega Contrast technology
- Film mode
- Audio Enhancements
-
- Dolby Digital Plus, DTS Studio Sound, and DTS Premium sound
- Wallmount sound mode
- 2-channel bass reflex speaker
- Additional Features
-
- Mobile-to-TV mirroring and DLNA content sharing
- Connected electronic program guide
- Mobile High-Definition Link (MHL) connectivity
- Anynet+ HDMI-CEC connectivity
- Zoom support
- Digital clean view
- Auto channel search
- Auto power off
- Closed caption and teletext
- Embedded picture-on-picture and picture-in-picture support
- Game mode
- Removable stand with VESA and mini wall mount support
In the Box Samsung J4303 32" HD Multi-System Smart LED TV Stand Remote Control Remote Control Batteries Power Cable US Plug Adapter Limited 90-Day Warranty Provided by Photo The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung J4303 32" HD Multi-System Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung J4303 Specs | | | Screen Size (Diagonal) | 32" | | Panel Type | LCD | | Pixel Resolution | 1366 x 768 | | Refresh Rate | 50 Hz | | | | Video System | PAL / SECAM | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 1 x RCA Composite – Video
1 x RF Antenna – Audio, Video
2 x HDMI – Audio, Video
1 x RCA Stereo (L/R) – Audio
1 x RCA Component – Video | | Output Ports | 1 x 1/8" / 3.5 mm – Audio | | USB Ports | 1 x USB (Version Unspecified) – Audio, Photo, Video | | Ethernet | LAN | | Control | None | | | | Sound | Stereo | | Power | 10 W | | Orientation | Bottom | | Dolby Digital | Yes | | | | Wi-Fi | Built-In | | Digital Media Slot | None | | Remote Control | Yes | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Maximum: 59.0 W
Typical: 33.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 29.3 x 18.4 x 5.9" / 745.4 x 466.6 x 150.5 mm With Stand
29.3 x 17.4 x 2.7" / 745.4 x 442.2 x 69.0 mm Without Stand | | Weight | 8.42 lb / 3.82 kg With Stand
8.22 lb / 3.73 kg Without Stand | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 36.0 x 20.0 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
