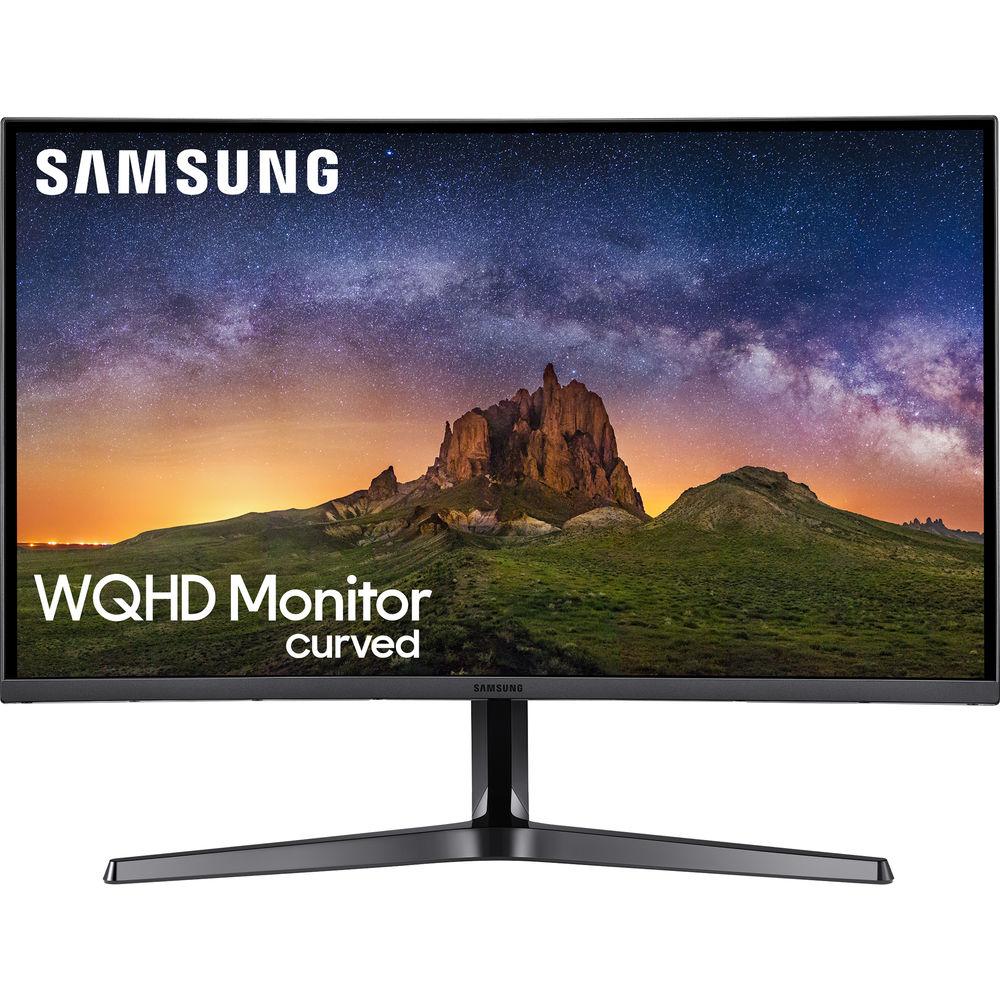

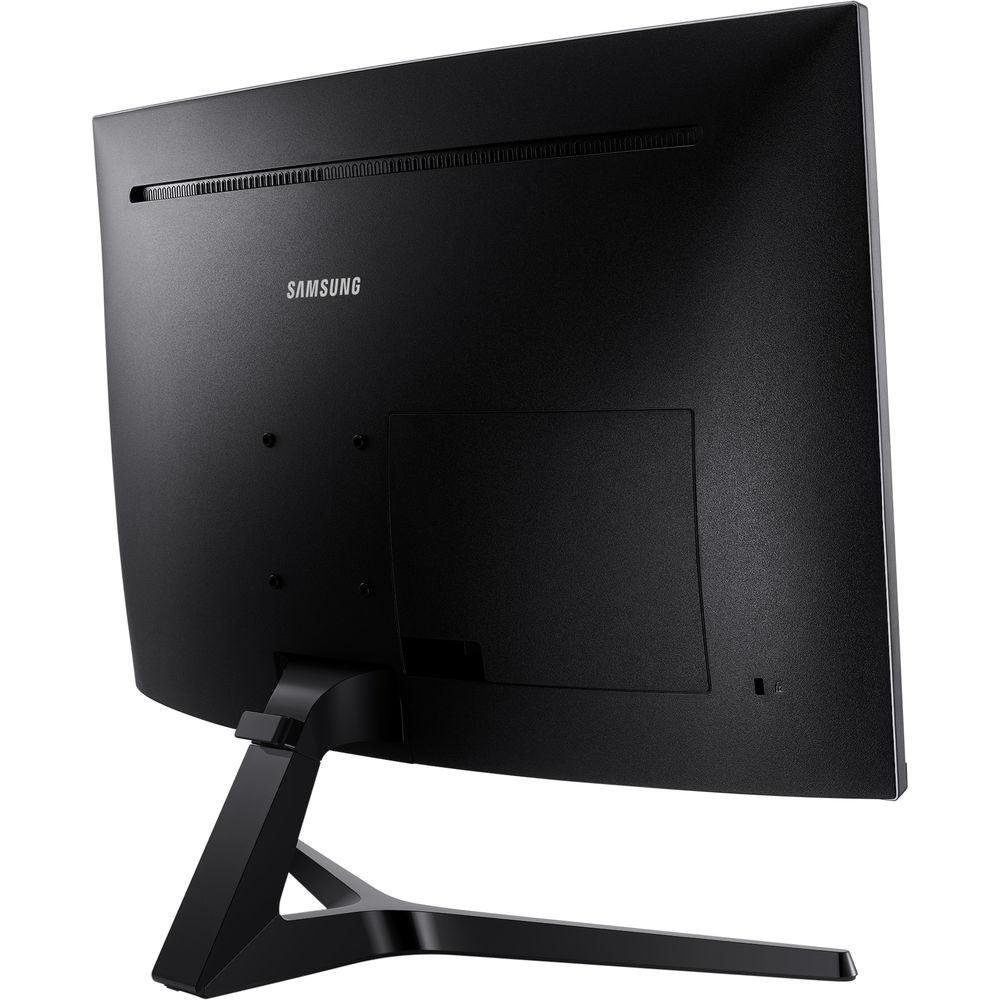

User Manual for Samsung JG50 32" 16:9 Curved 144 Hz LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung JG50 32" 16:9 Curved 144
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung JG50 32" 16:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

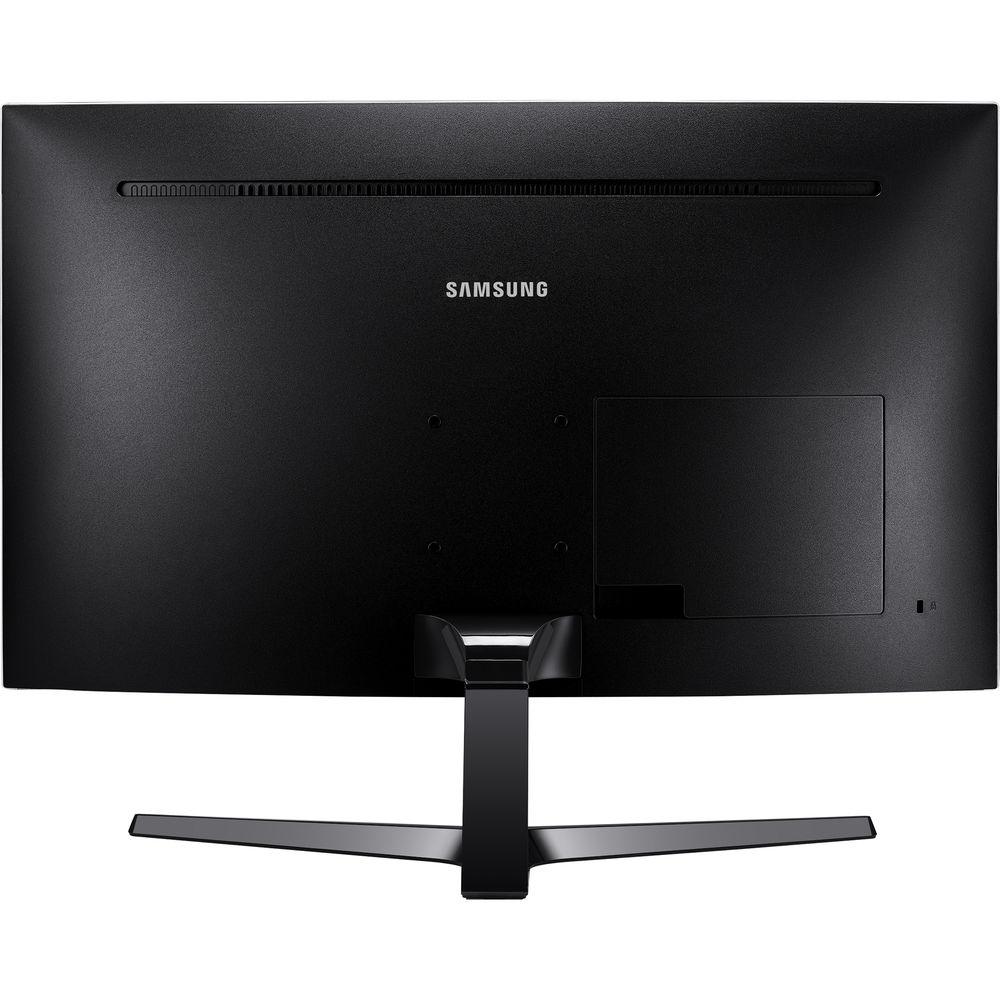

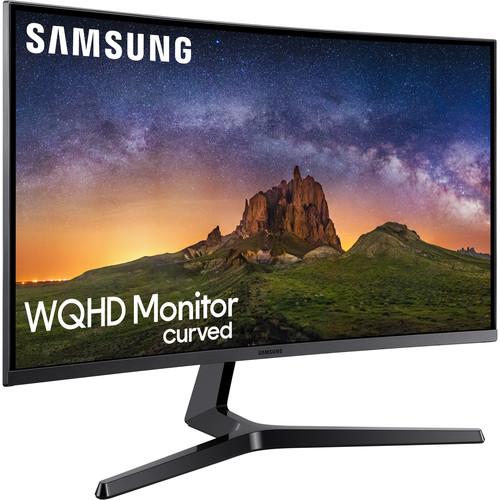

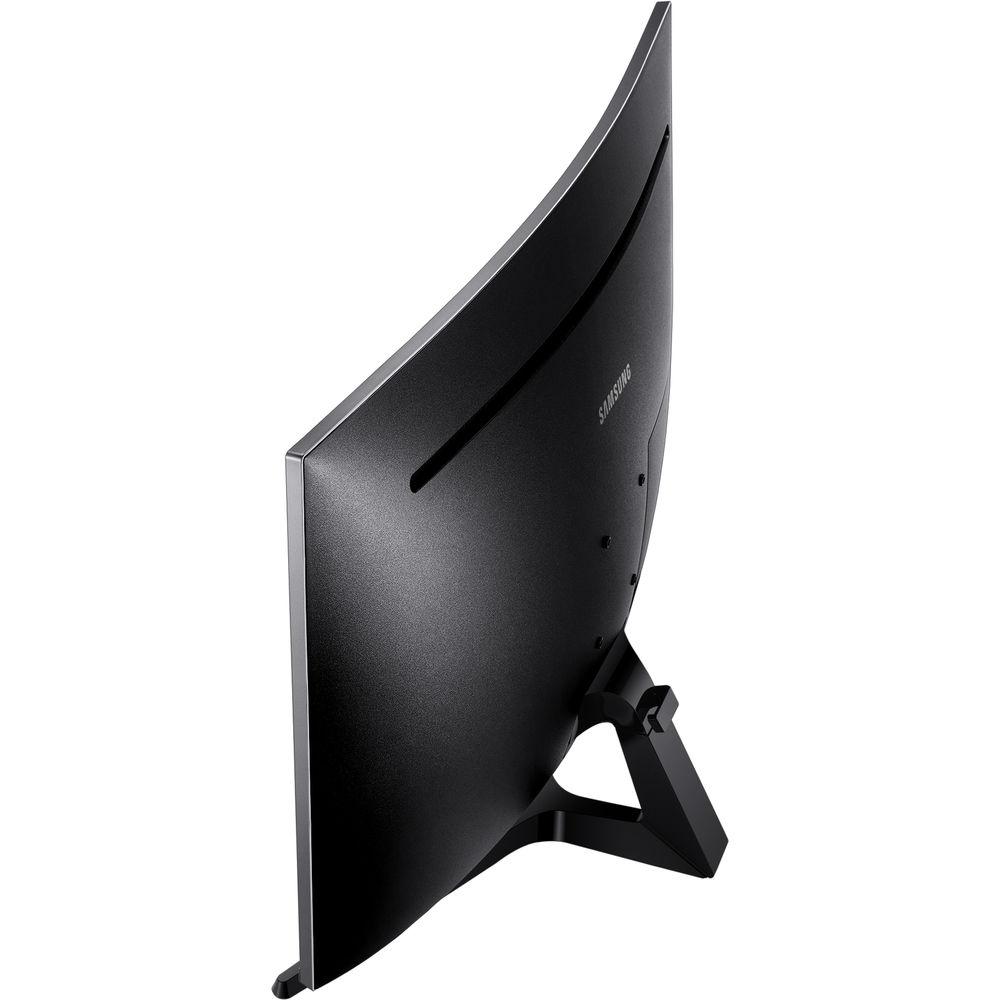

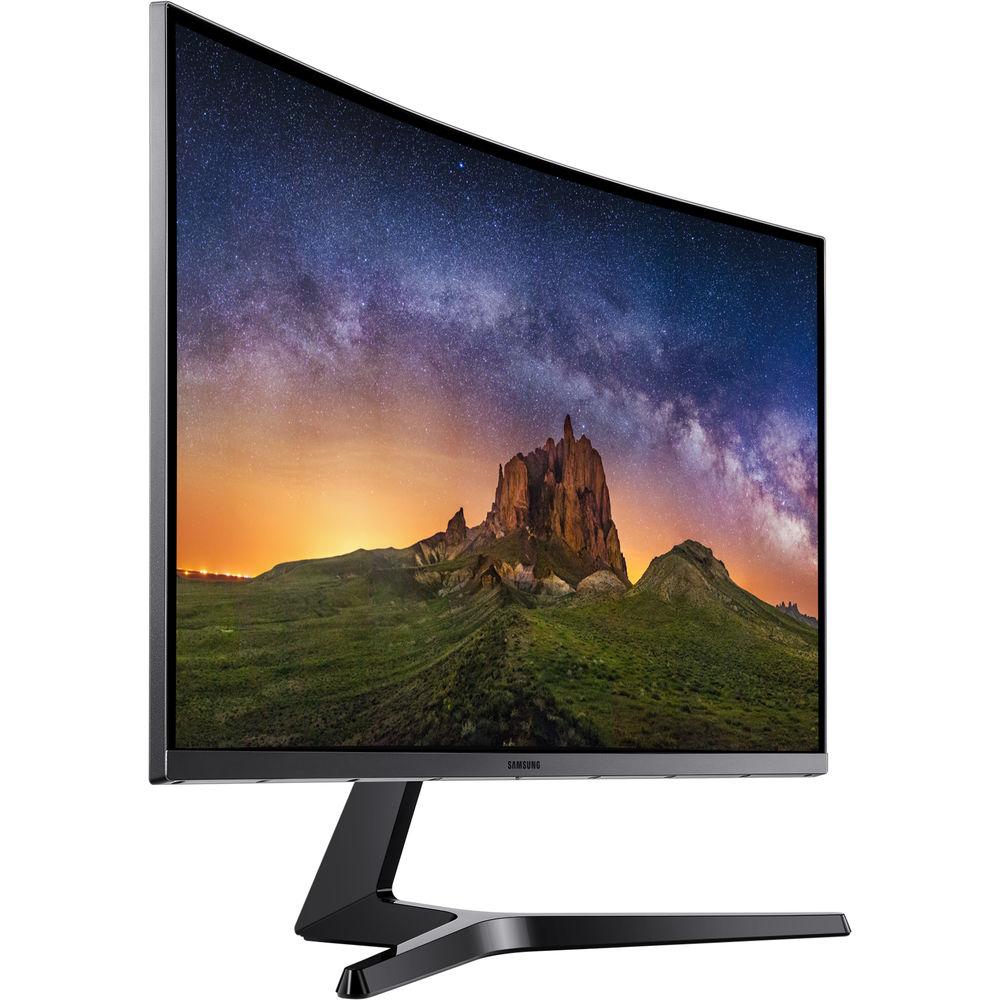

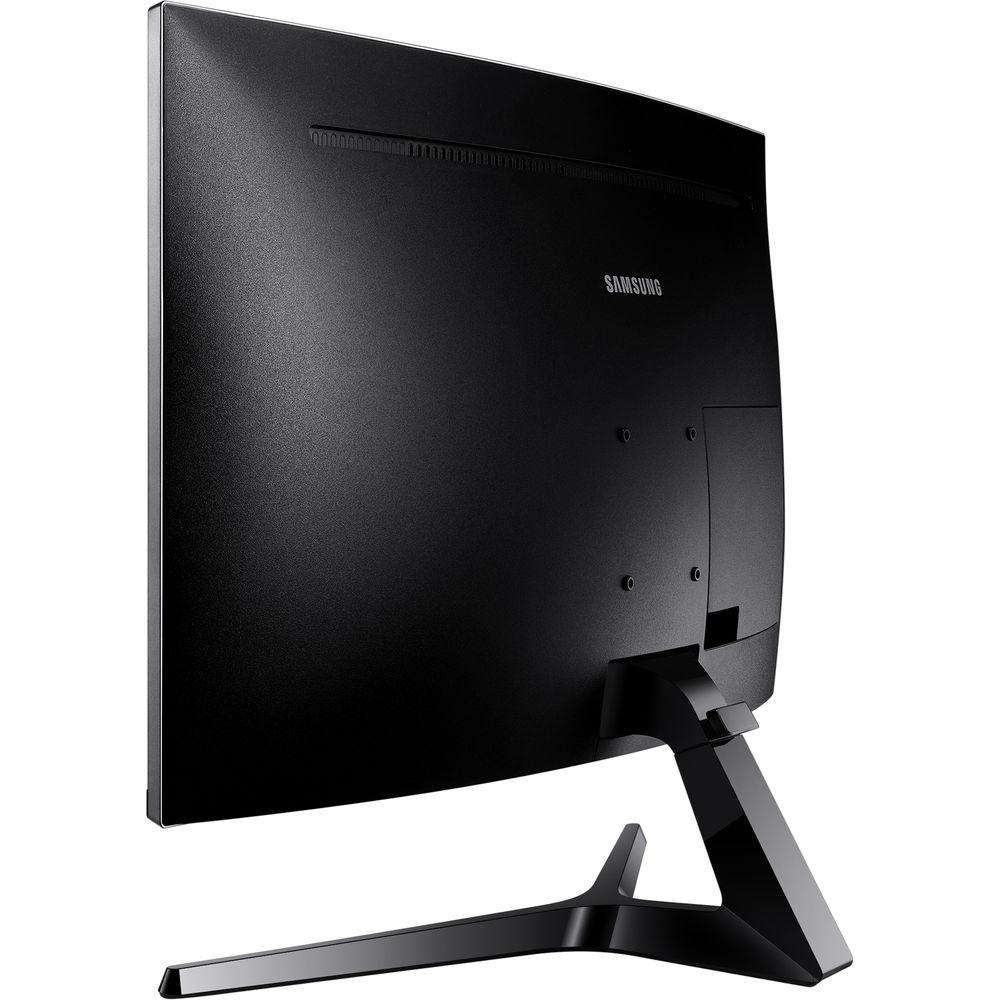

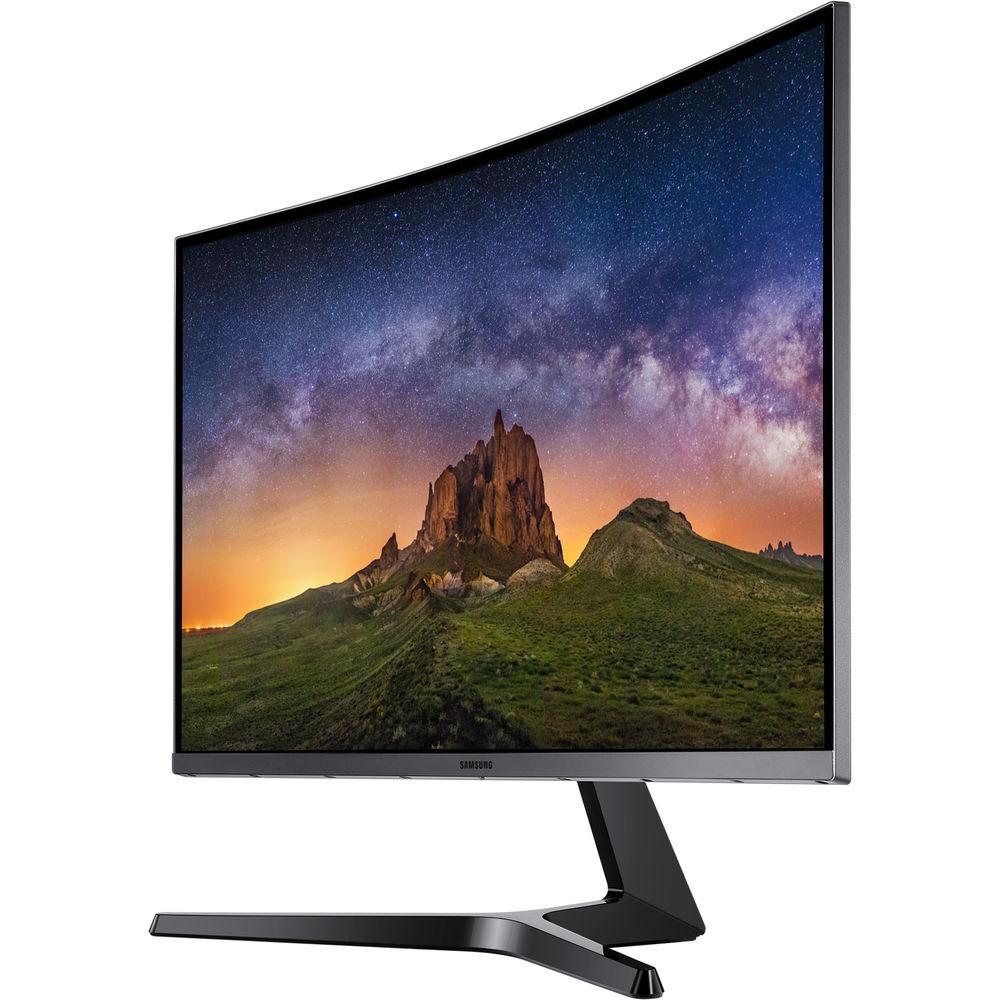

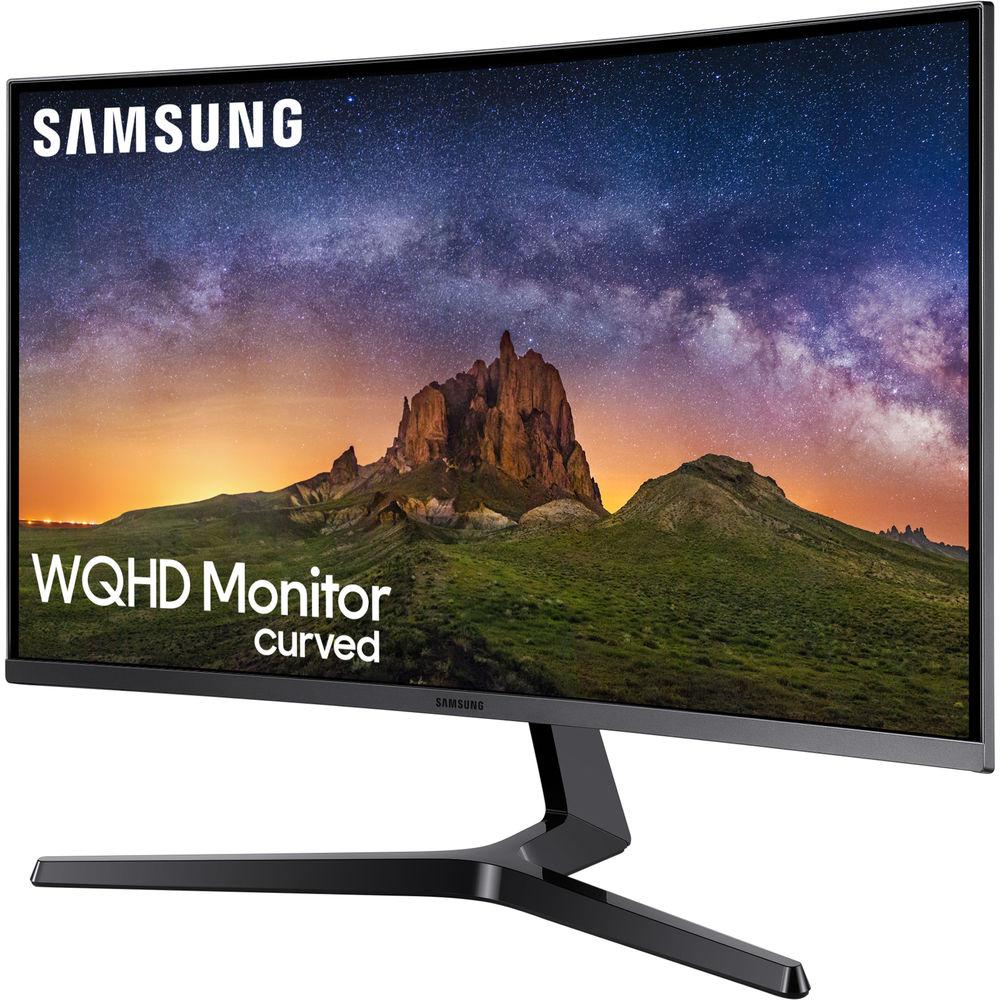

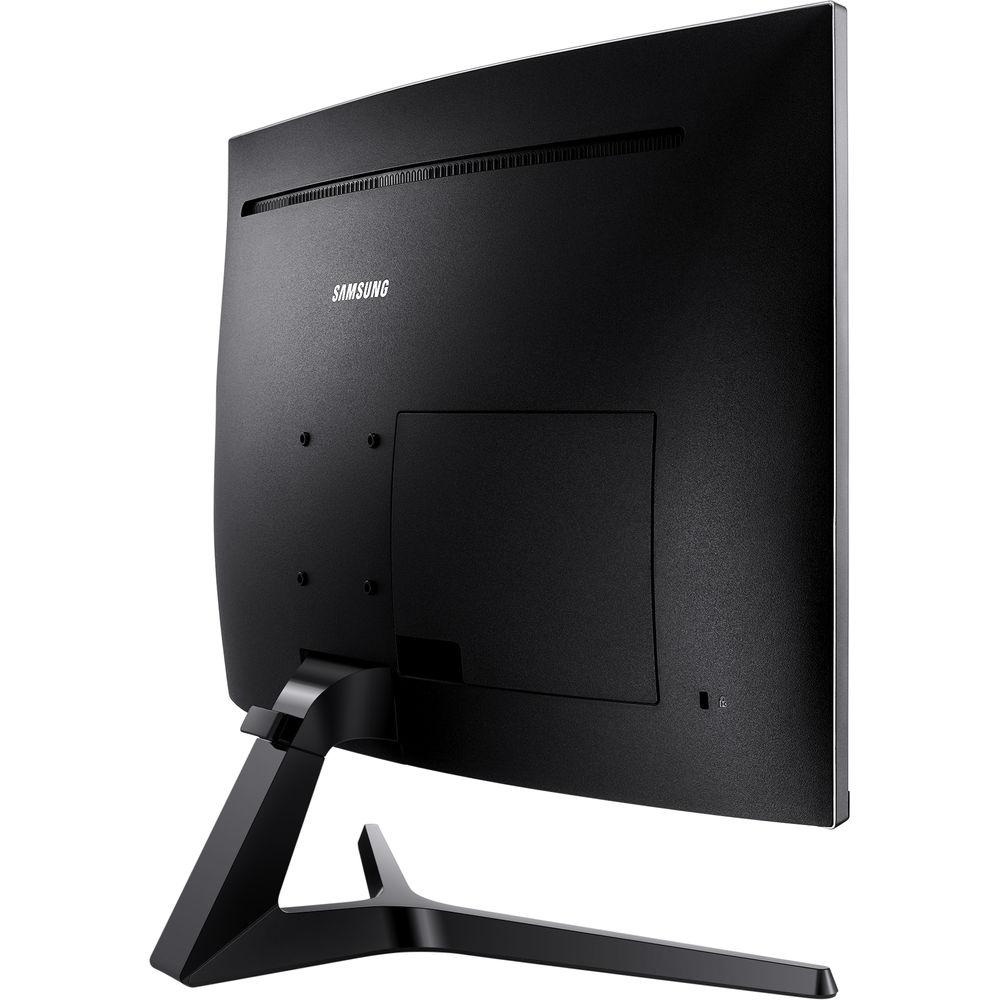

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The JG50 32" 16:9 Curved 144 Hz LCD Monitor from Samsung is built with a curved VA panel that wraps around your field of view for a more immersive experience whether you're playing games or watching movies. Specs-wise, it features a 2560 x 1440 resolution, a 3000:1 static contrast ratio, a 300 cd/m² brightness rating, a 4 ms response time, and support for 16.7 million colors. With these combined, the JG50 provides you with crisp and clear pictures with vivid colors and wide viewing angles. Connect it to your system via HDMI or DisplayPort and tilt it to your viewing preference. - 144 Hz Refresh Rate
- At high refresh rates, games are noticeably smoother than on monitors with refresh rates of 60 Hz; however, if your hardware isn't powerful enough, you'll be able to choose from 60 and 120 Hz refresh rates as well.
- 3000:1 Contrast Ratio
- A 3000:1 static contrast ratio provides deep black, brighter white, and vivid colors for movies, games, photos, and more.
- Multiple Display Modes
- The JG50 provides you with multiple viewing modes that optimizes black gamma levels, contrast ratios, sharpness, and color settings for a wide variety of games including: FPS, RTS, RPG, and AOS.
- Game Style UI
- The on-screen dashboard menu features a game-like user interface with detailed and easy-to-find settings.
- Additional Features
-
- Windows 10 Certified
- Samsung MagicUpscale
- Eco Saving Plus
- Flicker Free
- Game Color Mode
- Image Size
- Screen Size Optimizer
- Super Arena Gaming UX
UPC: 887276270142 In the Box Samsung JG50 32" 16:9 Curved 144 Hz LCD Monitor Power Cable HDMI Cable Limited 1-Year Warranty User Manual PDF 849.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung JG50 32" 16:9 Curved 144 Hz LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung C32JG50 Specs | | | Size | 32" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 92 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI 1.4
1 x HDMI 2.0
1 x DisplayPort
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 59 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -2 to 15° | | Mounting-Hole Pattern | None | | Lock Slot | No | | Dimensions (W x H x D) | 28.1 x 20.5 x 9.6" / 713.7 x 520.7 x 243.8 mm (With Stand)
28.1 x 16.5 x 5.8" / 713.7 x 419.1 x 147.3 mm (Without Stand) | | Weight | 12.79 lb / 5.80 kg (With Stand)
11.46 lb / 5.20 kg (Without Stand) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 30.0 x 18.5 x 8.0" |
