User Manual for Samsung JU7100 85" Class 4K Smart LED TV Click to enlarge the picture
Contents of the user manual for the Samsung JU7100 85" Class 4K Smart
- Product category: Televisions Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Televisions
 |
User manual for the Samsung JU7100 85" Class 4K Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

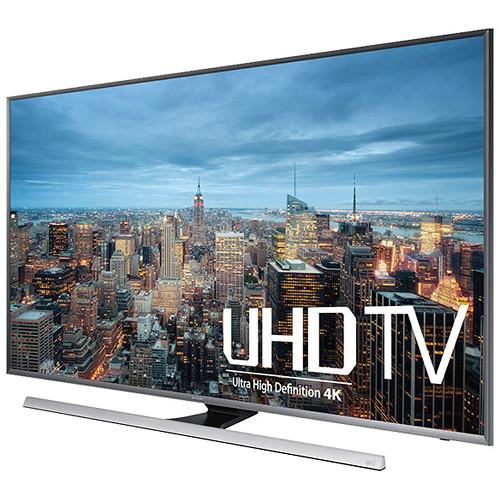

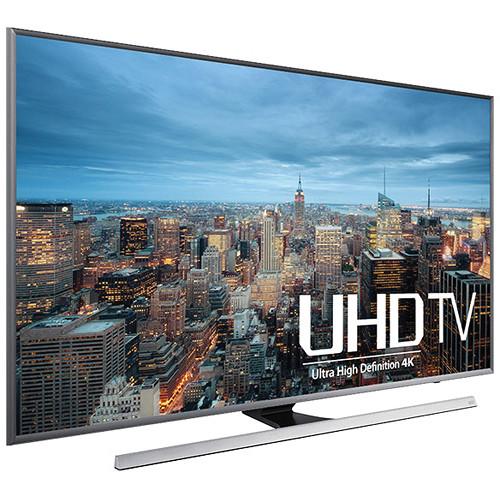

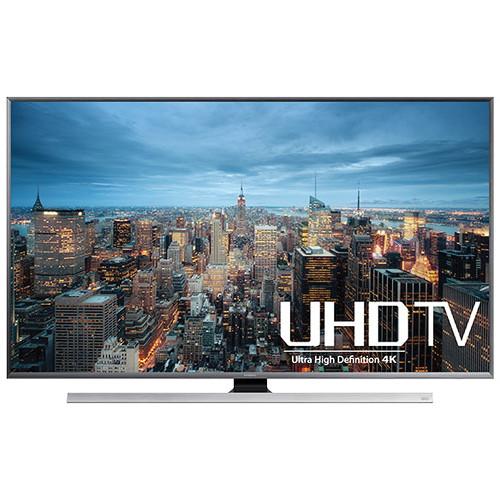

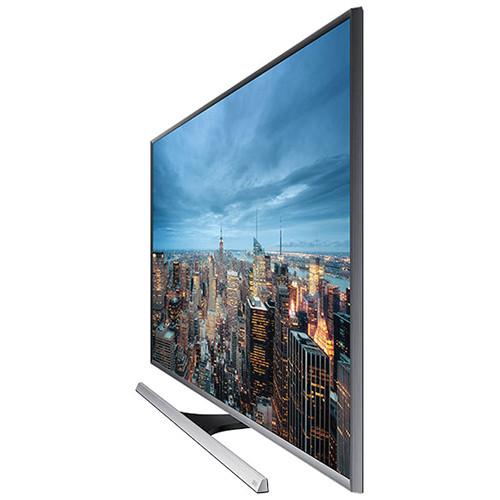

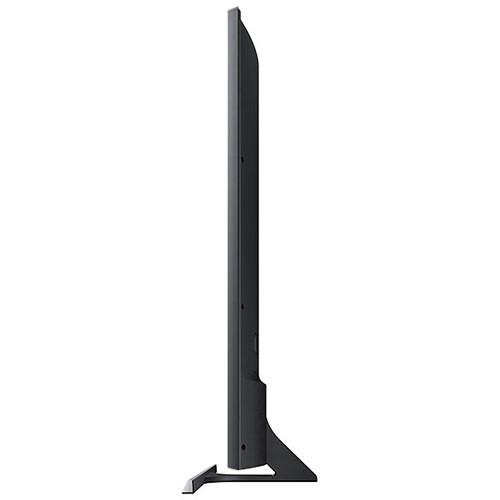

Product description The Big March TV Tournament Read More Enjoy Internet connectivity and wireless content sharing with the Samsung JU7100 85" Class 4K Smart LED TV. This model has a 85"-class display and features a 3840 x 2160 native resolution for viewing detailed 4K content. You can even upscale lower resolution material to near-4K picture quality. Clear Motion Rate 240 technology is onboard for reducing distortion on fast moving images like televised sporting events.
As a Smart TV, this model has Wi-Fi and Ethernet connectivity for accessing Samsung's app-based Smart Hub. The Smart Hub offers a full web browser and allows you to explore streaming multimedia content such as Netflix, YouTube, games and more. Built-in S-Recommendation helps you discover additional content based on preferences. This model even allows you to wirelessly mirror content between your TV and portable devices.
The JU7100 includes the Samsung One Connect Mini for external device connections. With four HDMI and three USB ports, you have multiple options for connecting high-resolution audio and video sources. A component video input is also onboard for connecting additional sources; the component video connection is shared with a composite video input for interfacing lower resolution sources. The Samsung JU7100 series also supports 3D viewing when paired with sold separately 3D glasses and content. - 4K UHD
- 4K UHD offers 4x the resolution of Full HD 1080p.
- Precision Black
- This technology produces dark black levels with optimal contrast, while not sacrificing brighter portions of the image.
- Peak Illuminator
- Experience your favorite movies, games and TV shows with improved detail and color with increased LED illumination behind the brightest regions of the picture.
- Contrast Enhancer
- Experience a greater sense of depth with optimized contrast across multiple zones of the screen.
- UHD Dimming
- Experience UHD picture quality with deep blacks, enhanced whites, bright colors, and enhanced detail.
- UHD Upscaling
- Upgrade all lower resolution media to ultra high-definition image quality with enhanced detail and optimized picture quality.
- Smart View 2.0
- With Smart View 2.0, watch your TV entertainment on your mobile device, or your mobile media on your TV.
- Smart TV with Quad-Core Processor
- With the built-in quad-core processor you can quickly perform tasks and navigate your TV's smart TV interface. You can access live TV, video on demand, apps, and social media.
- One Connect Mini
- De-clutter the connections to your TV with a streamlined audio and video connection solution for all your TV components.
- Smart Remote Control
- Use the touchpad to navigate quickly, perform voice commands with the built in microphone, or use the remote like a mouse and simply point and click.
- Audio
-
- Dolby MS11 compatible
- DTS Studio Sound
- DTS Premium Sound 5.1
- 20W of total audio (10W x 2 left and right)
- down-firing 2-channel bass reflex configuration
- Video
-
- Nano crystal color
- UHD upscaling technology
- Purcolor (color accuracy)
- Ultra Clear Pro panel
- Wide Color Enhancer Plus
- Additional Features
-
- Wi-Fi Direct and Bluetooth connectivity
- Includes smart remote control
- Voice interaction and motion control
- Smart Evolution ready
- Samsung Connectshare
- DirecTV (RVU) ready
- Samsung ANYNET+ (HDMI-CEC)
- BD Wise Plus
- Closed captioning, electronic program guide, and v-chip
- ECO sensor
- Easy pairing
- TV-to-mobile mirroring and mobile-to-TV mirroring
- Briefing on TV
- Wall mountable with removable slim t-shaped brushed silver stand
UPC: 887276062235 In the Box Samsung JU7100 85" Class 4K Smart LED TV Stand Samsung One Connect Mini Smart Remote Control Slim Gender Cable Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 7.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung JU7100 85" Class 4K Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung JU7100 Specs | | | Screen Size (Diagonal) | 84.5" | | Panel Type | LCD | | Pixel Resolution | 3840 x 2160 | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | Yes | | | | Primary Connectivity Location | Display | | Input Ports | 4 x HDMI – Audio, Video
1 x RCA Component – Video
1 x RCA Stereo (L/R) – Audio
1 x RF Antenna – Audio, Video
1 x RCA Composite – Video | | Output Ports | 1 x Digital Coaxial – Audio | | USB Ports | 3 x USB 2.0 – Audio, Video | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | No | | Power | 20 W | | Orientation | Bottom | | | | Wi-Fi | Built-In | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 400mm | | | | Power Requirements | 110-120 VAC, 60 Hz | | Dimensions (W x H x D) | 74.9 x 42.9 x 2.7" / 190.2 x 109.0 x 6.9 cm Without Stand
74.9 x 45.3 x 15.6" / 190.2 x 115.1 x 39.6 cm With Stand | | Weight | 121.5 lb / 55.1 kg Without Stand
140.7 lb / 63.8 kg With Stand | | | | Package Weight | 169.0 lb | | Box Dimensions (LxWxH) | 81.0 x 40.0 x 18.0" |
