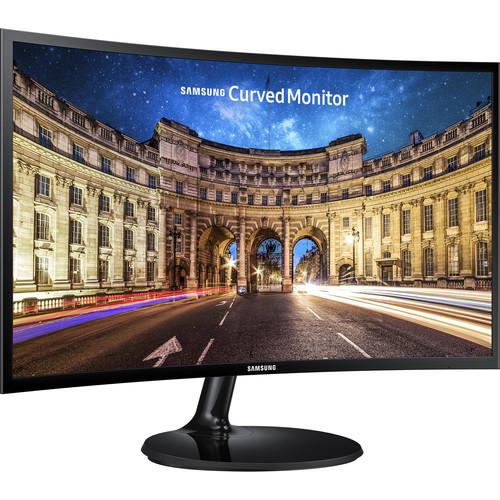

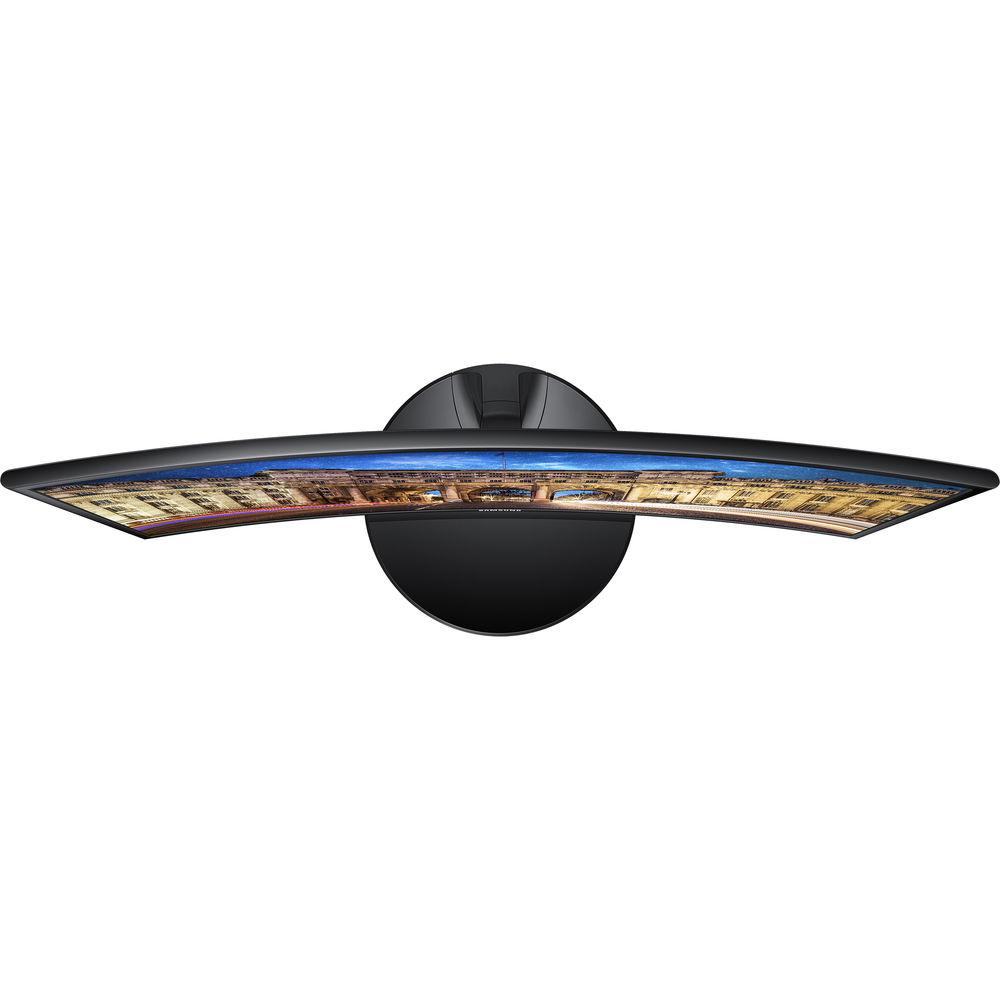

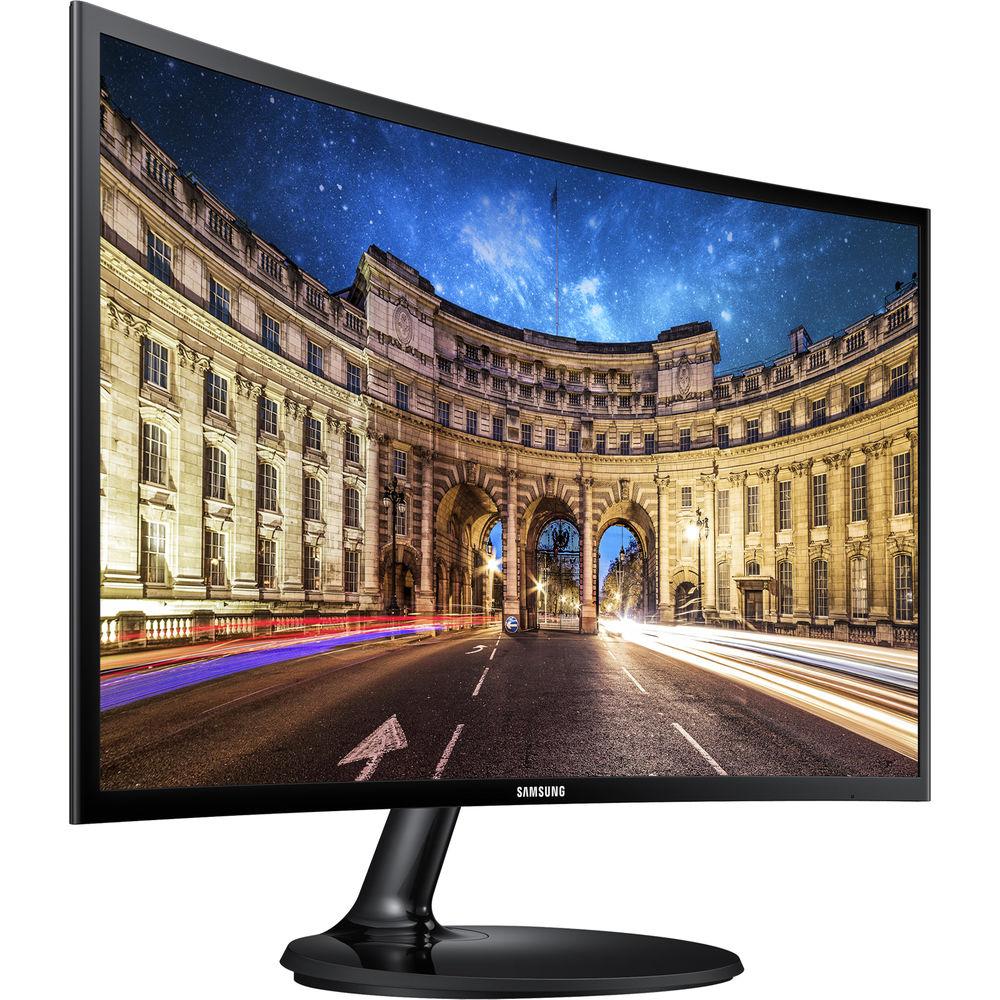

User Manual for Samsung LC27F390FHNXGO 27" 16:9 Curved LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung LC27F390FHNXGO 27" 16:9 Curved LCD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung LC27F390FHNXGO 27" 16:9 Curved LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

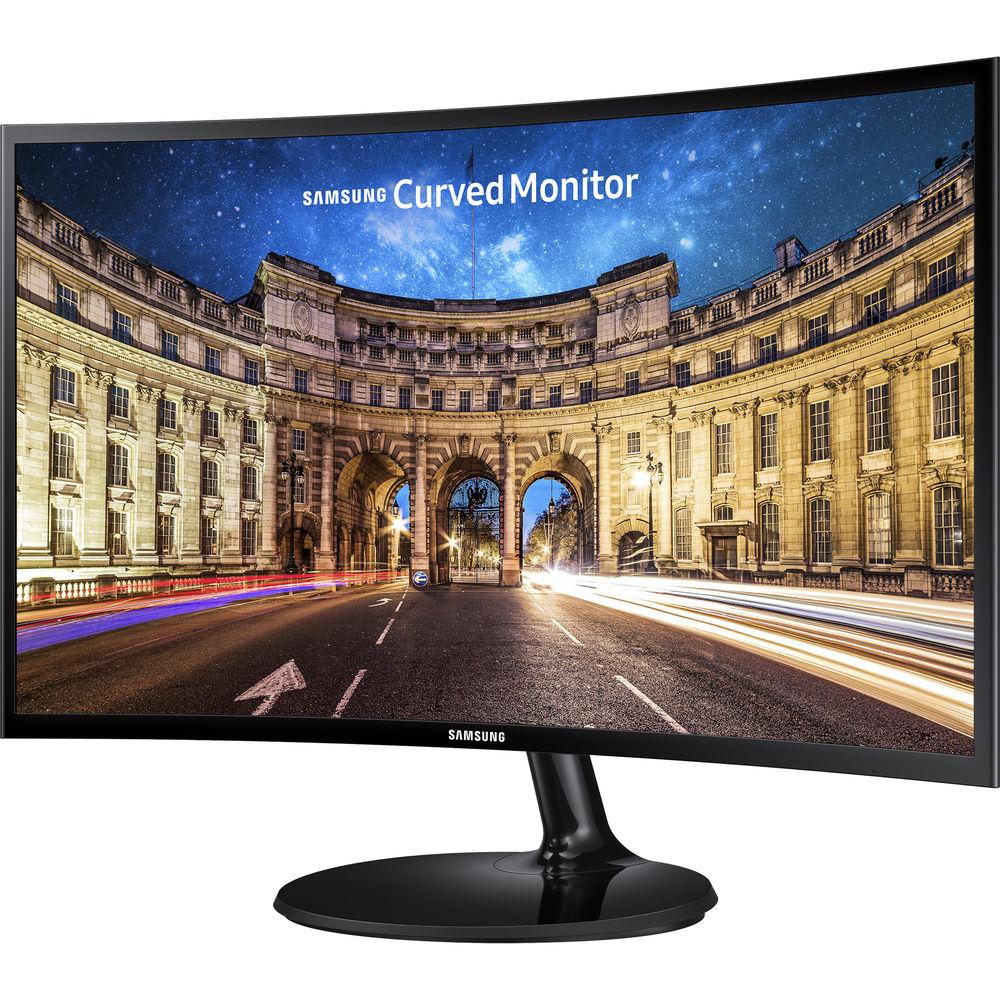

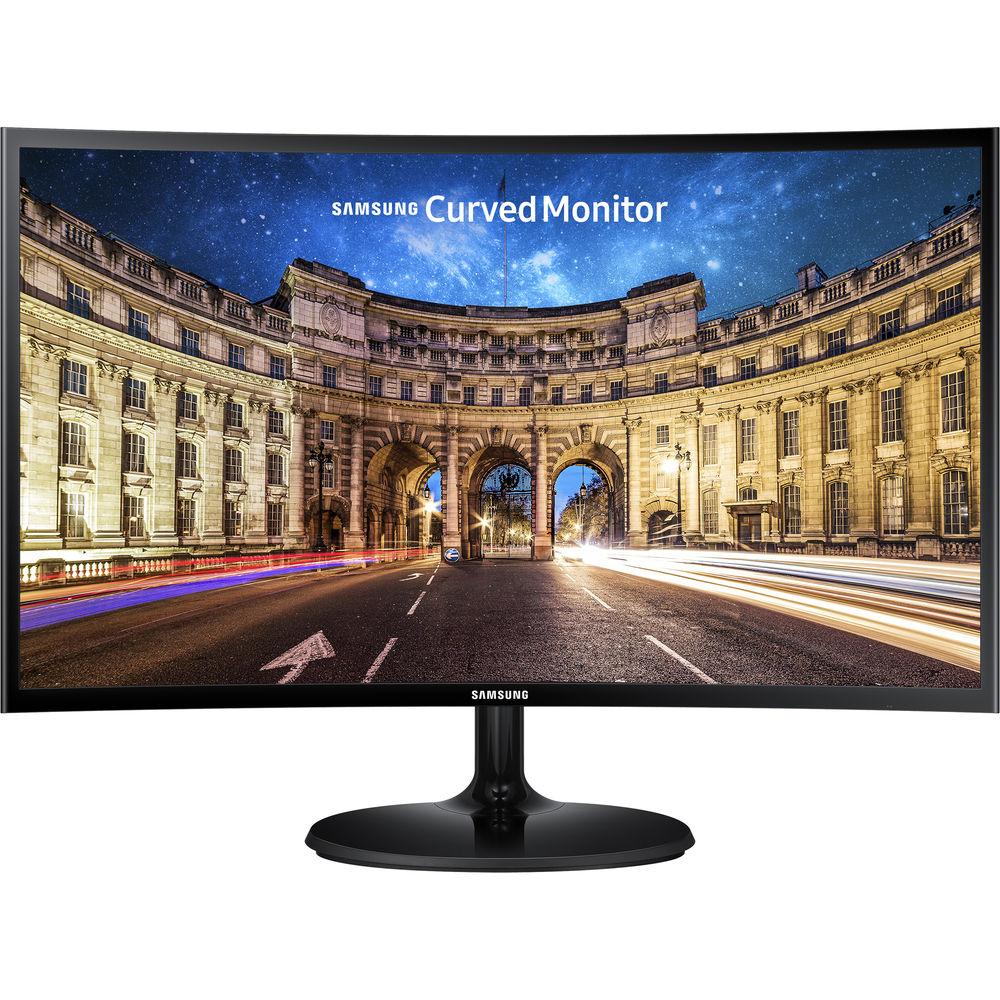

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With an 1800R curved screen, the LC27F390FHNXGO 27" 16:9 Curved LCD Monitor from Samsung is designed with viewing comfort in mind. In addition to the curvature of the display, Samsung has included both Eye Saver Mode and flicker free technology into the display to greatly reduce eye fatigue when viewing the screen for extended periods of time. For the gamer, this Samsung monitor offers AMD Free Sync connectivity and a dedicated Game Mode to make it easy to configure the display for gaming and multimedia playback.
Setting up this Samsung monitor is simple as it comes equipped with both HDMI and VGA inputs. Once configured viewers can take advantage of the Full HD 1920 x 1080 resolution display complete with a 3,000:1 contrast ratio, a 250 cd/m² brightness rating, and a 4 ms response time for a clear picture with reduced ghosting and blur. This 27" Curved Samsung monitor can also be mounted to the wall using a 75 x 75mm mount, and with 178° horizontal and vertical viewing angles the screen can be viewed from virtually any angle. - Ultra-Curved Screen Optimized the Viewing Experience

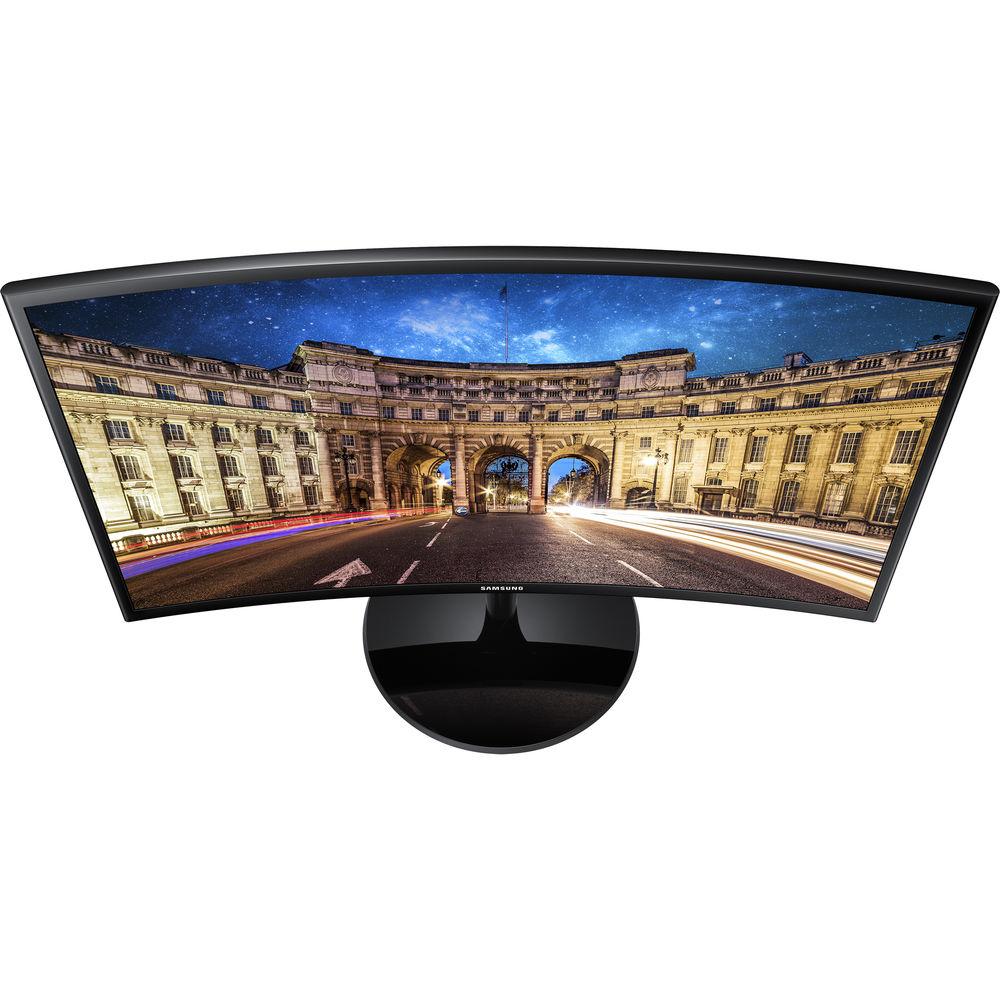

- The 1800R ultra-curved screen provides an easily noticeable increase in comfort. Viewers enjoy less eye fatigue, thanks to a reduced variation in the distance of the screen to the eye across its width, compared to a less curved or flat monitor.
- Enhanced Picture Quality
- The slim VA (vertical alignment) panel with a high contrast ratio showcases dark blacks, vivid colors, and sharp details, along with a wide viewing angle for optimized picture quality and visibility.
- Ergonomic Design

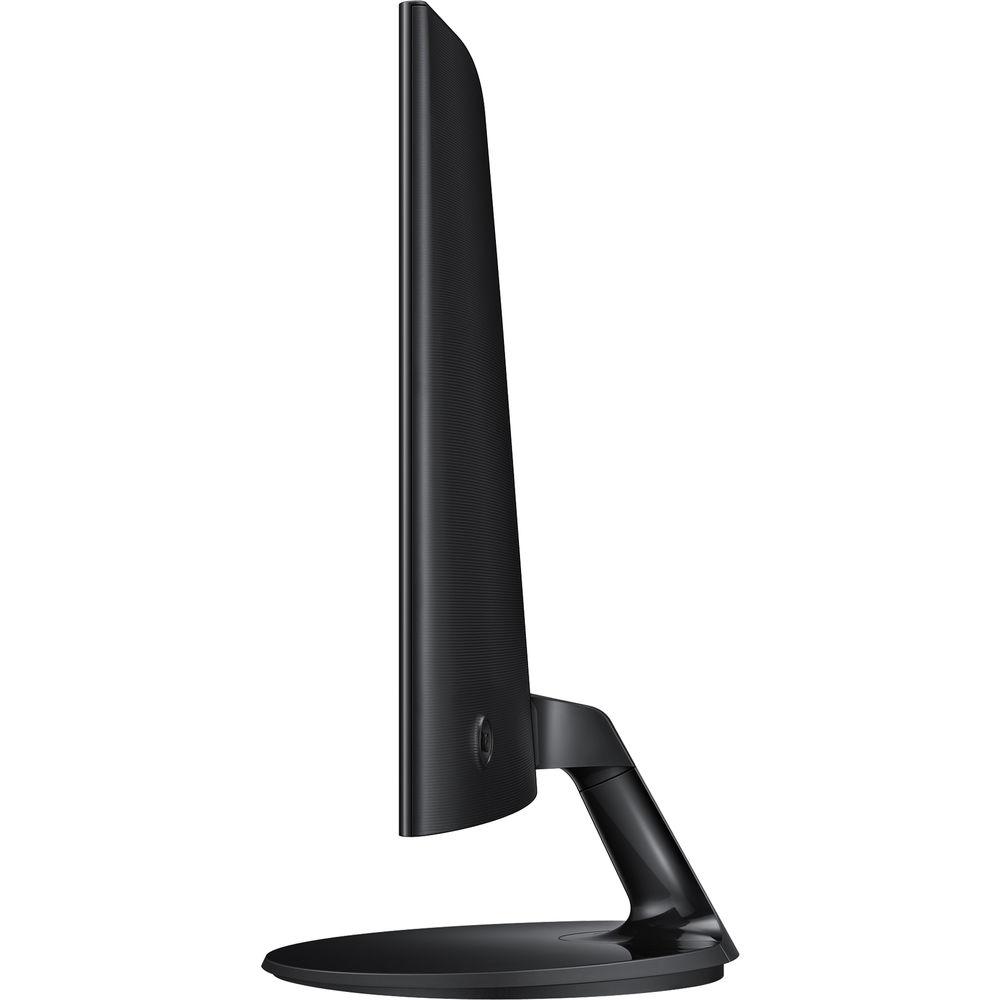

- At just 3.7" deep, the super slim panel is complimented by a black high gloss cabinet for a modern look. And since the monitor is VESA compatible, installation on a wall or separate mounting arm is easy.
- Enhanced Video Experience
- AMD Free Sync, a 4 ms response time, and Game Mode allow for an optimized video experience for demanding applications.

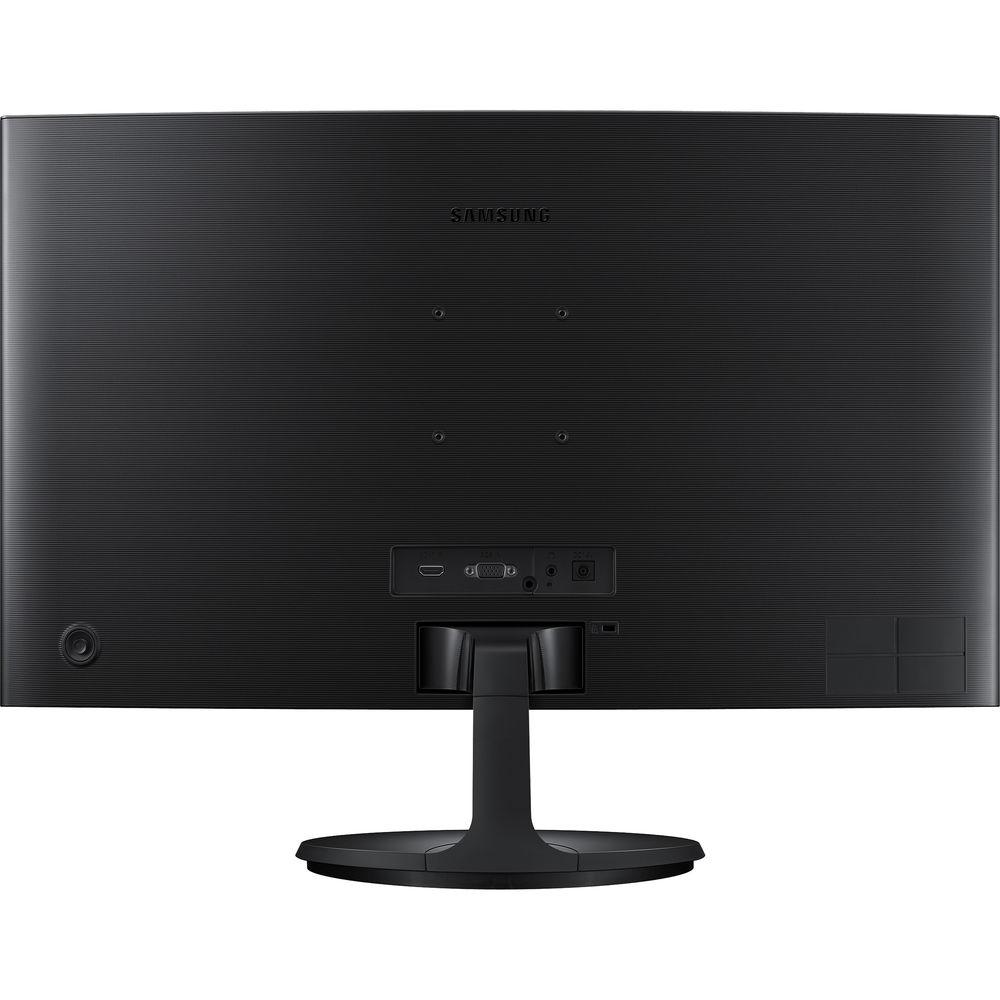

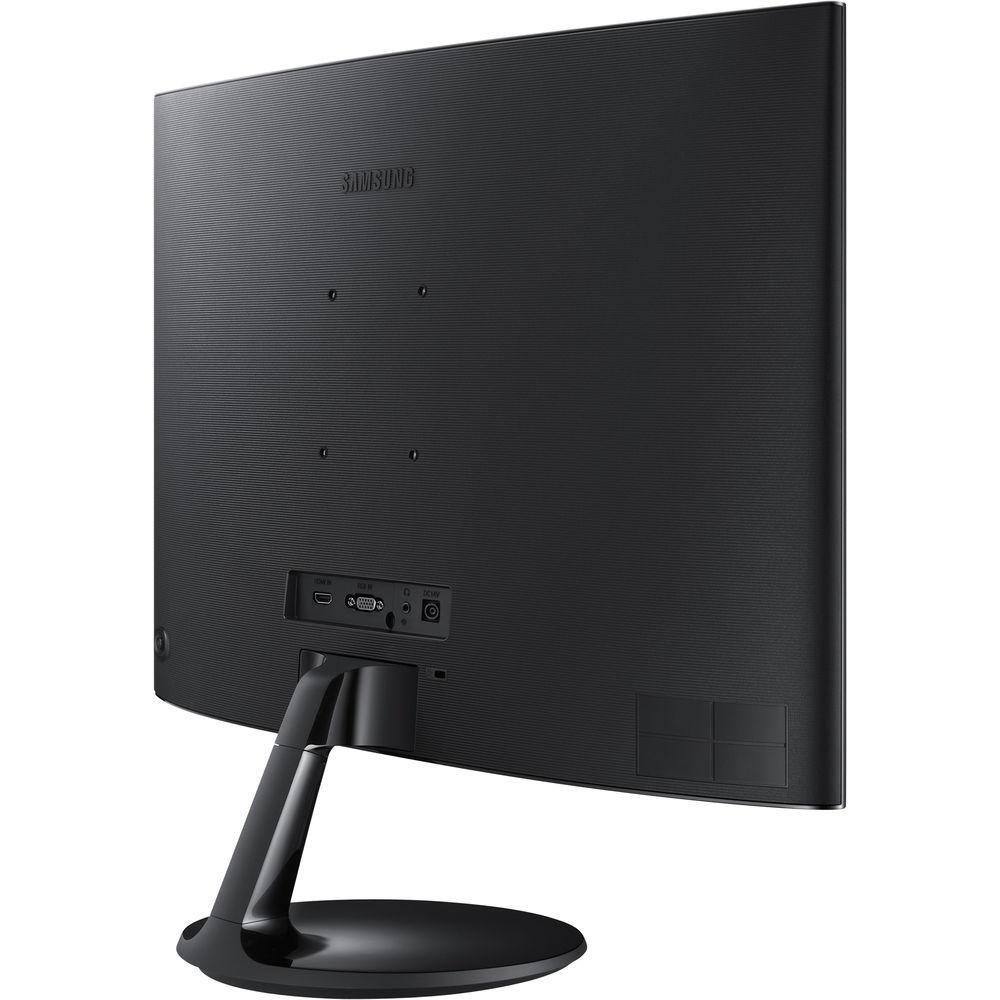

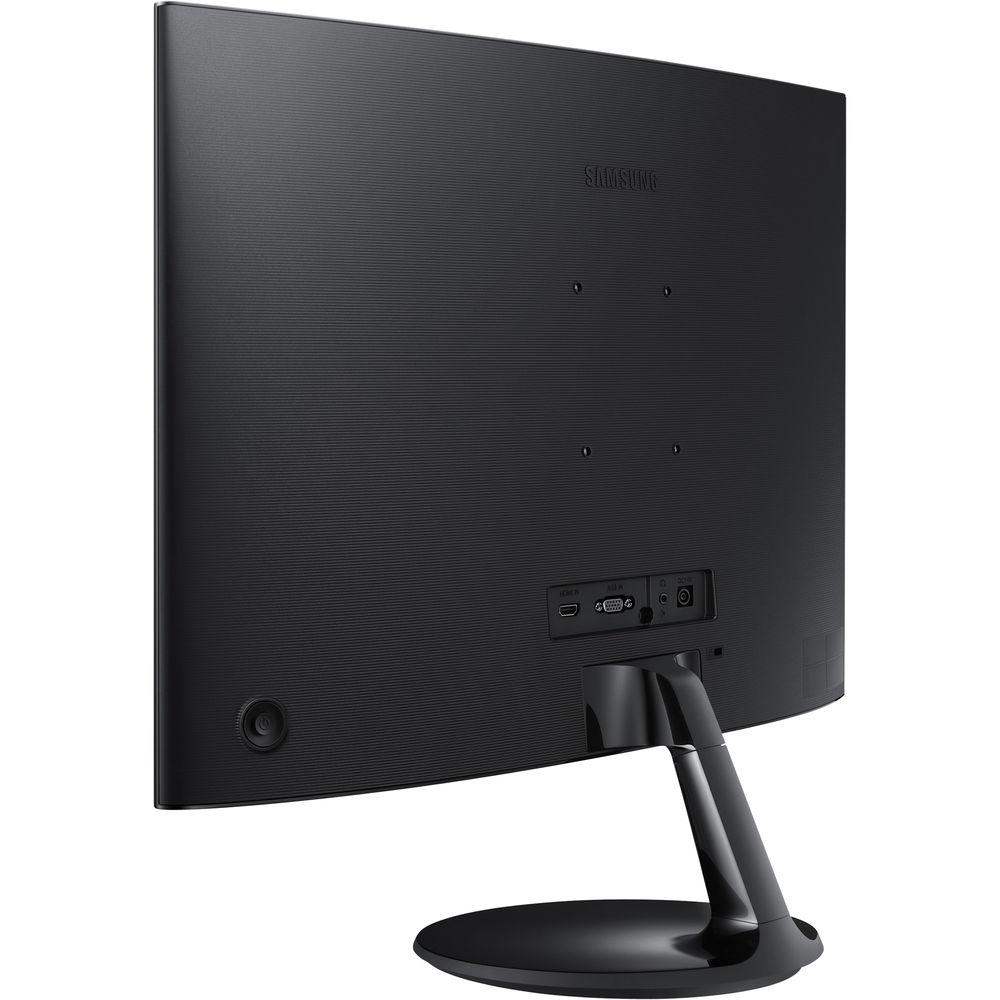

- Fast, Easy Connectivity
- The HDMI port works for high-speed connections, while the VGA port works for legacy/analogue applications.
- Eye Saver Mode and Flicker Free Technology
- Lessen eye strain during long work hours using Eye Saver Mode and Flicker Free technology. Less eye fatigue will allow you to stay focused and more productive.
- TAA Compliant
- TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which states that the U.S. Government must acquire end products that meet applicable manufacturing requirements. Samsung's TAA compliant monitors are approved to be acquired by the United States Government for use.
- Additional Features
-
- Windows 10 compatible
- Samsung MagicBright
- Samsung MagicUpscale
- Eco Saving Plus
UPC: 887276175508 In the Box Samsung LC27F390FHNXGO 27" 16:9 Curved LCD Monitor HDMI Cable Power Cable Limited 3-Year Warranty User Manual PDF 1.4mbwbdzrsfdwysvu Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung LC27F390FHNXGO 27" 16:9 Curved LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung C27F390FHN Specs | Screen Size | 27" / 68.58 cm | | Display Type | VA | | Curvature | 1800R | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m² | | Contrast Ratio | 3,000:1 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 4 ms | | Active Display Size | 23.5 x 13.2" / 59.69 x 3.53 cm | | Color Support | 16.7 million | | Power | Power Supply Type
100~240 V
Power Consumption
Max: 25 W
Stand-By: Less than 0.3 W
Max Stand-By Power (DPMS): Less than 0.3 W | | Wall Mountable | 75 x 75 mm | | Refresh Rate | 60 Hz | | Inputs | 1 x VGA
1 x HDMI
1 x headphone jack | | Tilt | -2 to 22° | | Temperature & Humidity | Temperature
50 to 104°F / 10 to 40°C
Humidity
10 to 80% | | Dimensions | With Stand
24.5 x 18.2 x 9.8" / 62.23 x 46.23 x 24.89 cm
Without Stand
24.5 x 14.5 x 3.7" / 62.23 x 36.83 x 9.4 cm | | Weight | With Stand
9.7 lb / 4.4 kg
Without Stand
7.9 lb / 3.6 kg | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 27.7 x 17.8 x 7.4" |
