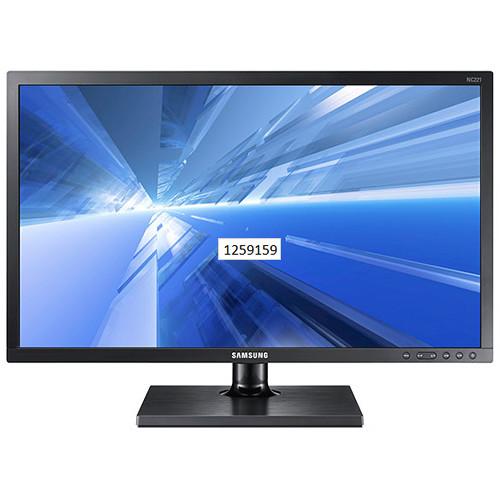

User Manual for Samsung NC Series 21.5" Zero Client Display Click to enlarge the picture
Contents of the user manual for the Samsung NC Series 21.5" Zero Client
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
|
User manual for the Samsung NC Series 21.5" Zero Client contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 21.5" Zero Client Display from Samsung supports up to 1920 x 1080 (dual screen: 1920 x 1200) resolution with a high contrast ratio of 1000:1. It is a suitable way for businesses to migrate seamlessly to a business cloud using desktop virtualization technology. - Performance
- Increase productivity, strengthen security, and streamline maintenance with VDI. Certified for optimal use with VMware View, the display featured the Teradici chipset (Tera2) and an LED-backlit screen for state-of-the-art performance.
- Seamlessly Migrate to VDI
- The display features built-in PCoIP technology that enables users to seamlessly connect to their organization's VMware business cloud. With information centralized and secured there, your user environment is easier to maintain and manage.
- Simplify and Secure the Desktop
- The 21.5" Zero Client Cloud Display enables businesses to simplify and secure their network endpoints with desktop intelligence. SoC (System on Chip) technology is used to reduce the desktop attack surface while almost eliminating the need for client-side administration.
- High Performance with Efficiency
- This display is equipped with the 2nd generation Teradici chipset (Tera2). This delivers high VDI pixel performance, strong security with AES 256-bit encryption, and low bandwidth usage.
- Dual Digital Display
- The monitor chassis spans desktop content across two monitors to increase user productivity, accuracy and satisfaction.
- Image Quality
- The display features LED-backlit LCD screens with low power consumption. Advanced encoding and decoding deliver the high-quality images possible in both still images and high-speed video in richness.
- Thin, Clutter-Free Design
- This cloud display integrates the zero-client technology into its monitor and its stand houses cables to minimize clutter and is tilt/pivot/height/swivel-adjustable. It is VESA-compatible and offers flexible installation on walls or arm mounts.
- Functional Expandability
- This display provides SIX USB ports. A DVI-I output can be used to drive a second display and expand the UI landscape for great workforce productivity. It can be used as a corporate cloud access device or a monitor for locally attached notebooks.
In the Box Samsung NC Series 21.5" Zero Client Display Limited 3-Year Warranty User Manual PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung NC Series 21.5" Zero Client Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung Zero Client Specs | | | Processor | Teradici Tera2321 | | Memory (RAM) | 256 Megabit (32 MB) | | Graphics | DDR3 | | Ethernet | 10 / 100 / 1G Ethernet (RJ-45) | | | | Screen Size | 21.5" (54.6 cm) | | Resolution | 1280 x 1080
(Dual Screen) 1920 x 1200 | | Panel Type | a-Si TFT active matrix | | Aspect Ratio | 16:9 | | Response Time | 5 ms | | Pixel Pitch (HxV) | 0.01 x 0.01" | | Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 170 / 160° (CR≥10) | | Colors Supported | 16.7 million | | Frequency | Horizontal: 31 to 80 kHz
Vertical: 56 to 75 Hz | | | | Support | VMware Horizon View, VMware Horizon DaaS, Amazon Workspaces (AWS) | | | | Power (typ) | 31 W | | Maximum Power Rating | 46 W | | Stand-By Condition | <1.0 W | | | | Port | DVI-I out | | VGA | VGA in (15-pin D-Sub) | | Microphone | Mic in | | Headphone | Headphone out | | USB | 6 x USB (4 x 0.5 A, 2 x 1.0 A) | | RJ-45 | LAN (RJ-45, giga) | | Audio | Audio in | | Serial Port | RS-232C (9-pin D-Sub) | | | | Speaker | 2 x 1 W | | Height Adjustable Stand | 5.1" (130 mm) | | Wall Mount | VESA 100 x 100 | | OSD Language | Korean, Japanese, Chinese, English, German, Spanish, French, Italian, Swedish, Russian, Portuguese, Turkish, Hungarian, and Polish | | Dimensions (W x H x D) | With Stand: 21.8 x 15 x 8.8" (55.4 x 38.1 x 22.4 cm)
Without Stand: 21.8 x 13 x 2.4" (55.4 x 33 x 6.1 cm) | | Weight | 13.4 lb (6.1 kg) |
