User Manual for Samsung NU8000 49" Class HDR UHD Smart LED TV Click to enlarge the picture
Contents of the user manual for the Samsung NU8000 49" Class HDR UHD
- Product category: Televisions Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Televisions
|
User manual for the Samsung NU8000 49" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

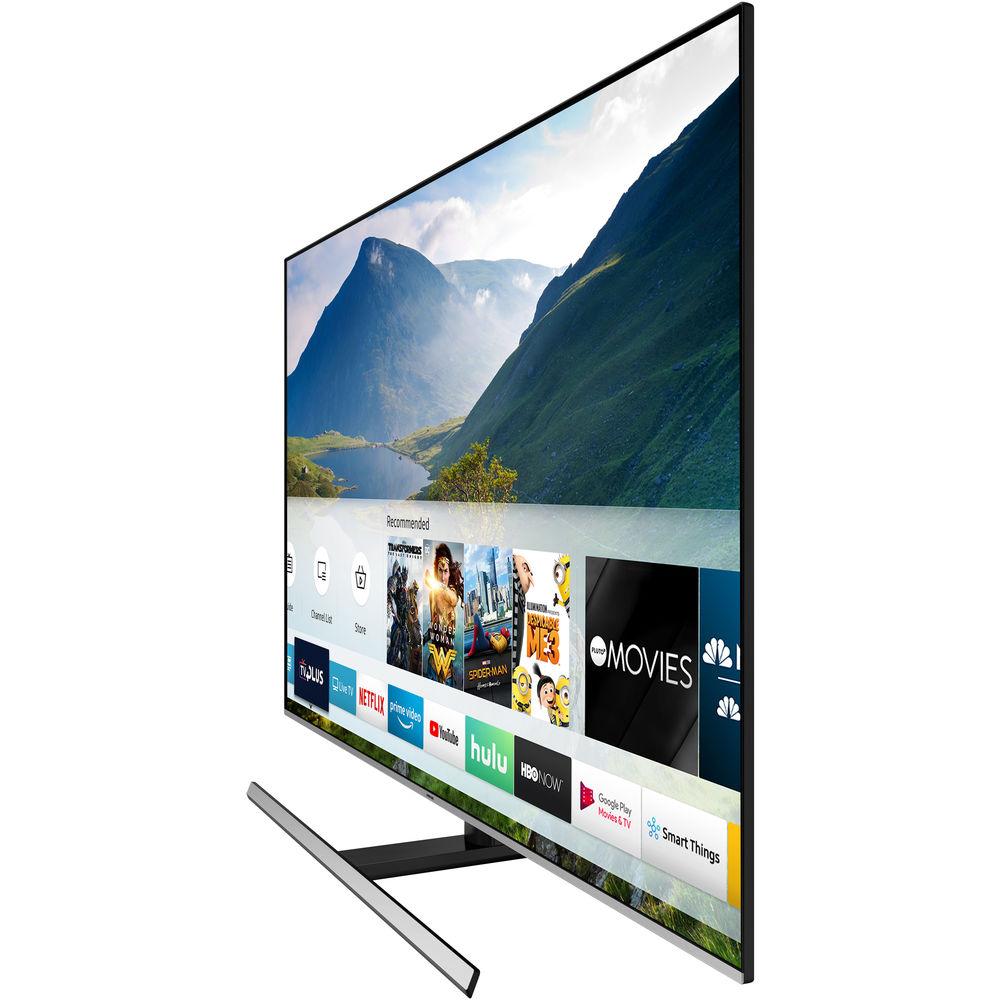

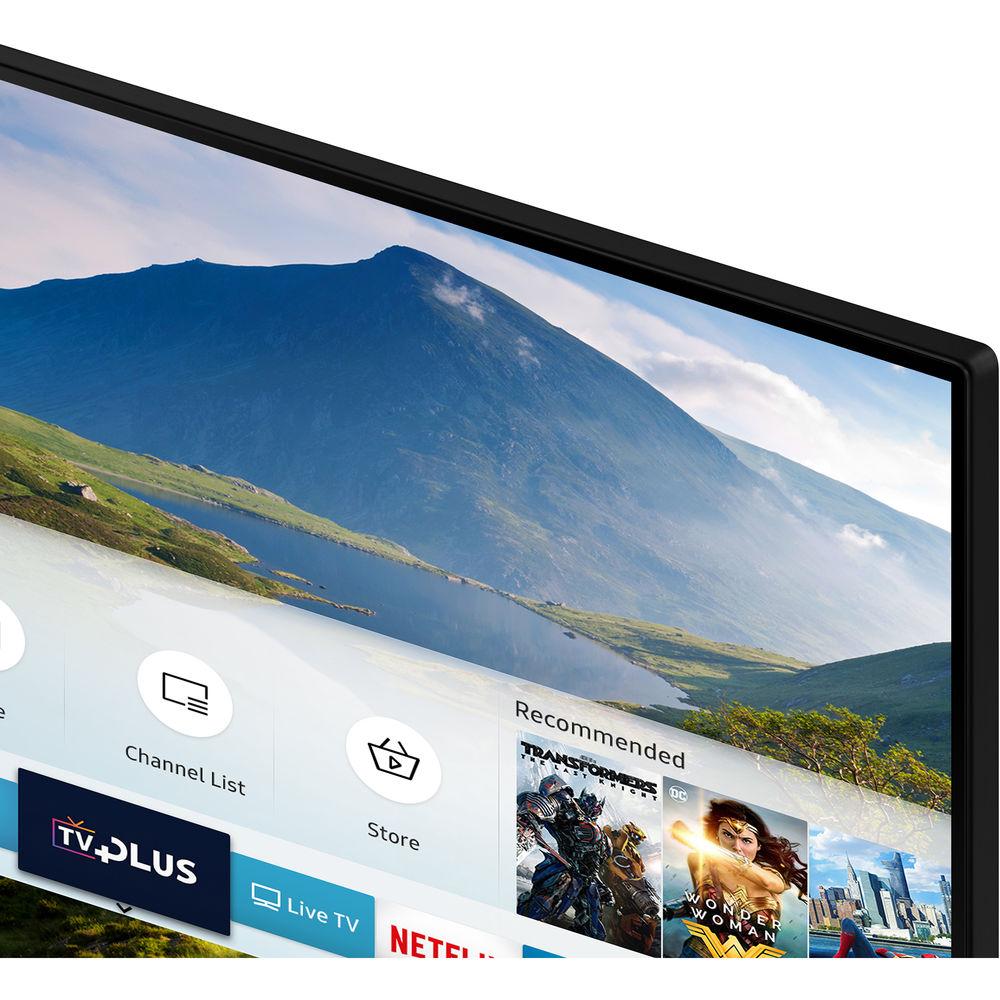

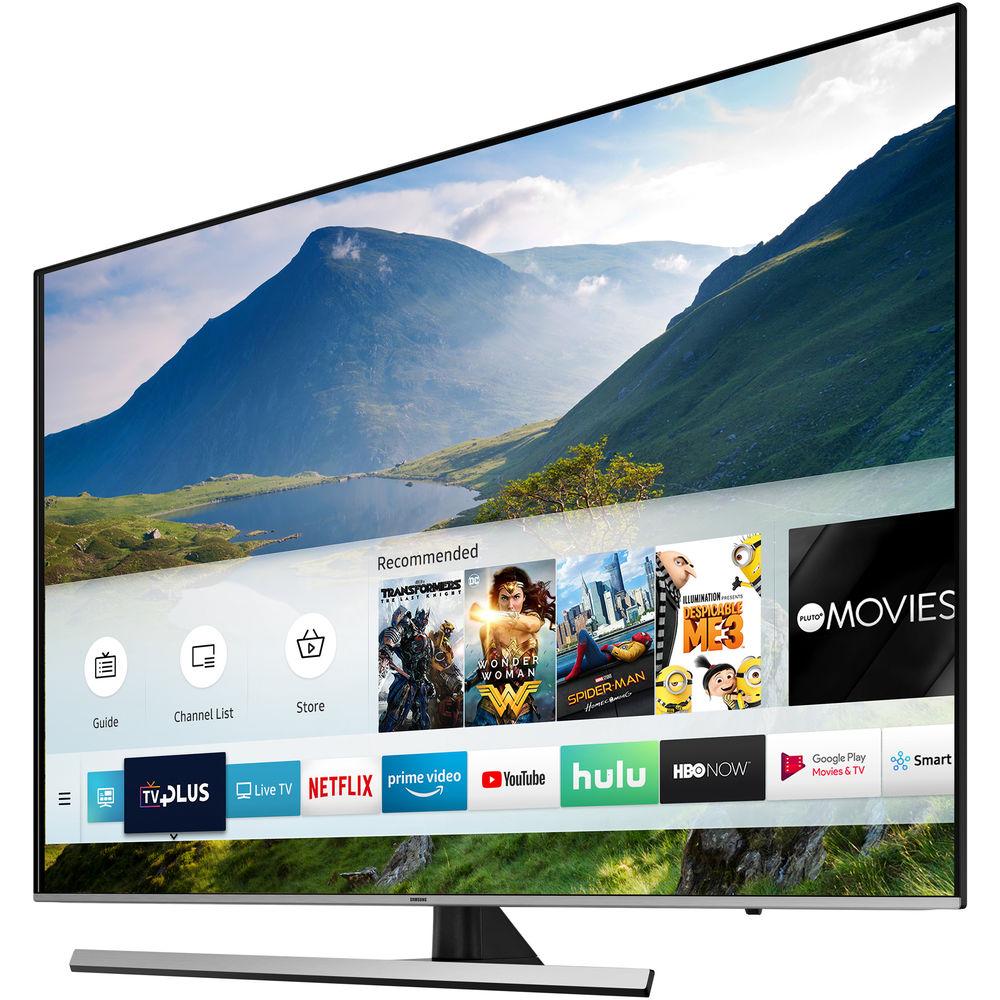

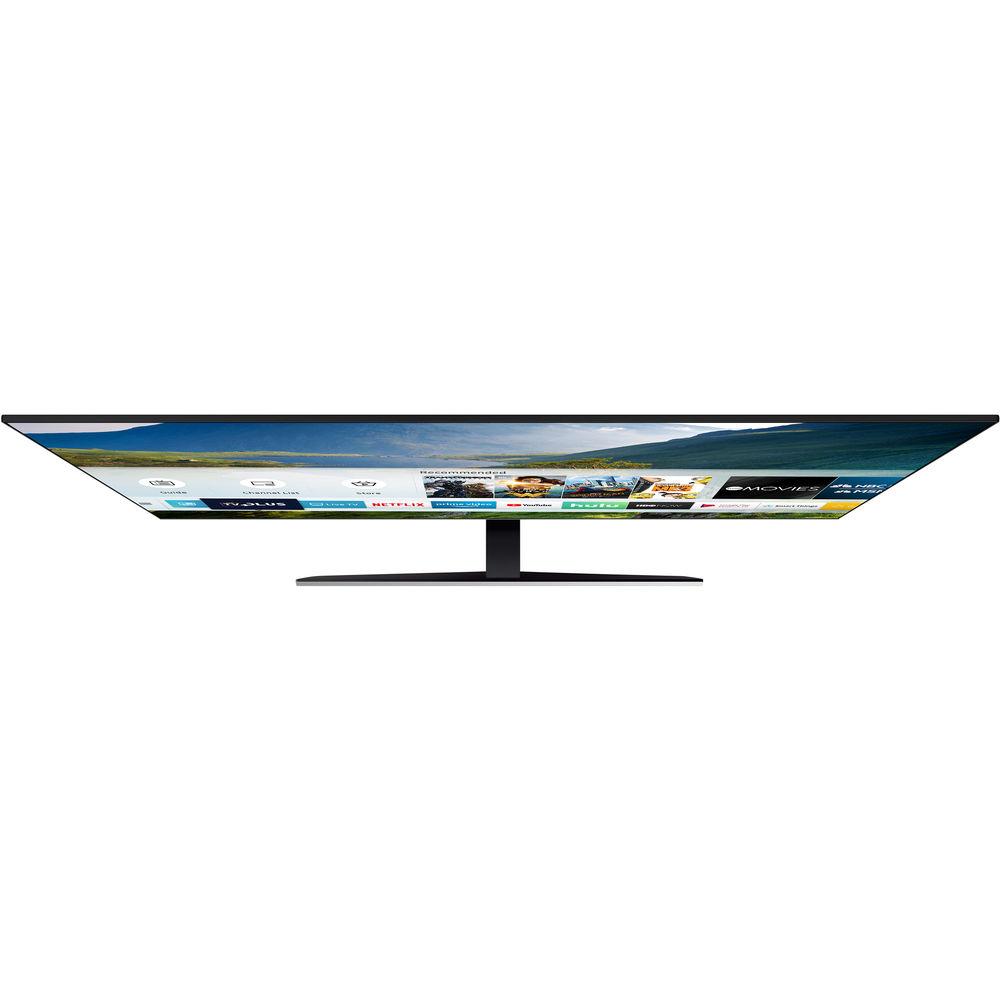

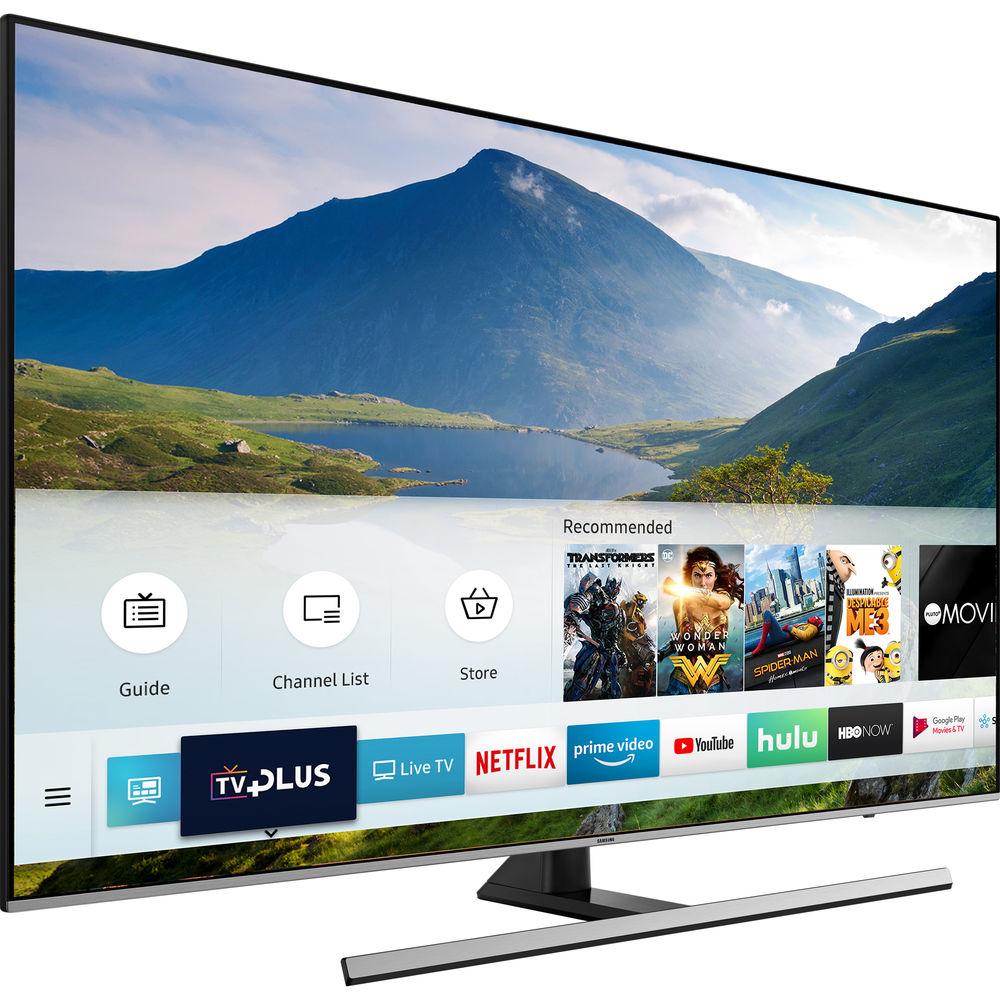

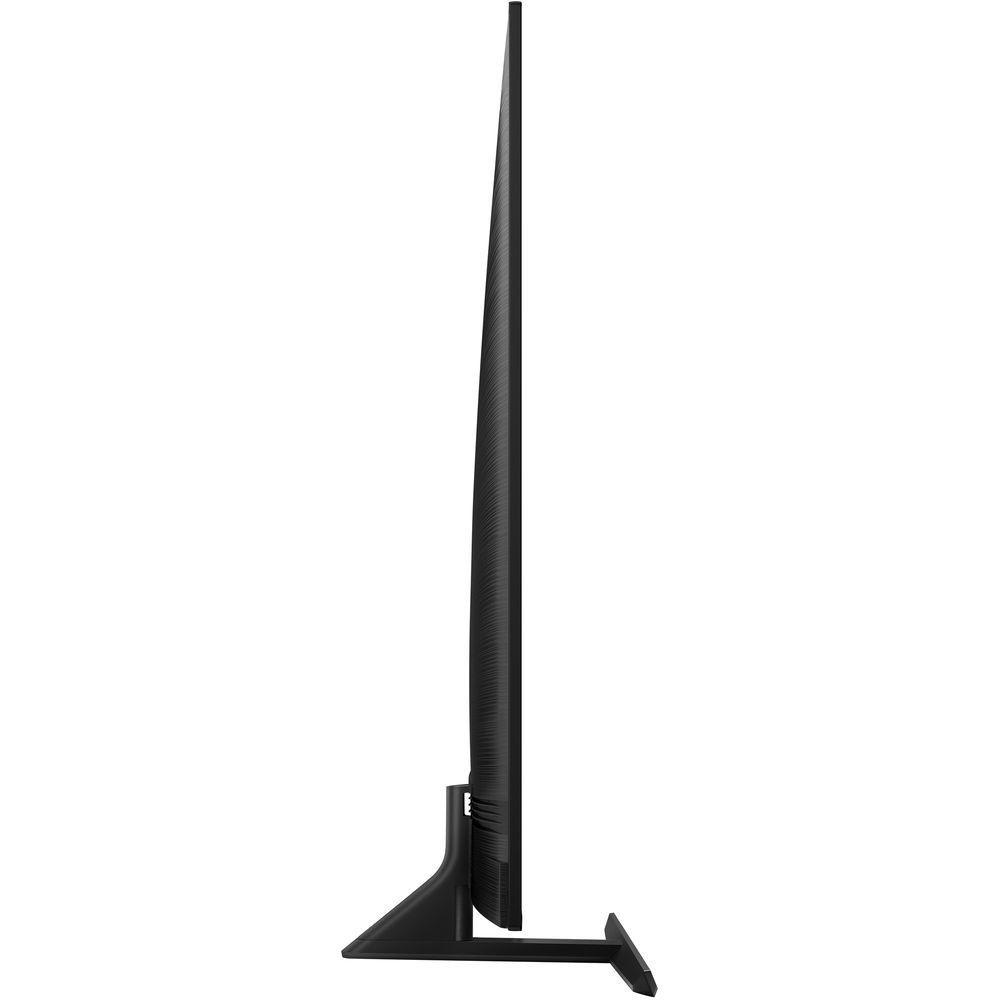

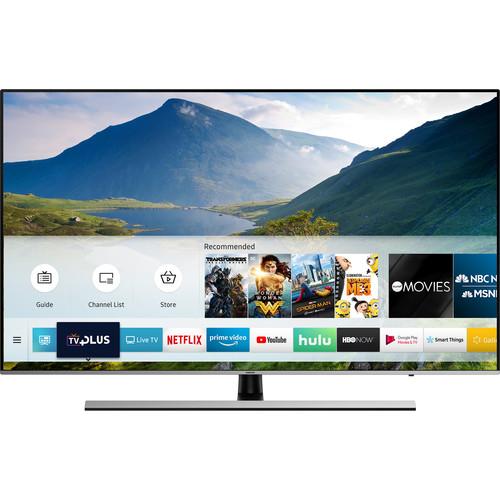

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Samsung NU8000 49" Class HDR UHD Smart LED TV. This TV has a 48.5" LED edge-lit LCD, and incorporates Motion Rate 120 technology to digitally enhance fast-moving images to reduce blur. It is compatible with the HDR10, HDR10+, and HLG HDR formats to provide a wider color gamut with compatible content and other equipment for more vivid images.
The NU8000 has built-in Wi-Fi connectivity to allow access to your favorite apps and Internet-based content, plus content-sharing and screen-mirroring with other smart devices such as your smartphone or tablet. With four HDMI inputs, there are multiple options for connecting high-definition video sources. Two USB ports are also onboard for connecting multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - Dynamic Crystal Color
- With Dynamic Crystal Color, you can experience an expanded world of colors with millions of shades.
- Enhanced Color and Contrast with HDR10+
- HDR10+ technology helps provide a wide range of brightness and contrast to bring the nuances of movies to life.
- Ultra Slim Array
- Ultra Slim Array technology controls lighting, making dark zones on the screen darker and bright objects brighter. Together with the Contrast Enhancer, contrast across all areas of the screen is optimized.
- Motion Rate 120
- Fast motion is digitally smoothed out by Motion Rate 120 technology, reducing the blur commonly associated with fast-moving objects.
- UHD Resolution
- See enhanced detail with an image that's four times the resolution of Full HD.
- Reduced Clutter
- The Samsung Clean Cable Solution is engineered to neatly manage cords for a cleaner look.
- 360° Design
- The TV is designed to look attractive from nearly any angle.
- 4K HDR Gaming with Auto Game Mode
- The TV allows your gaming console to optimize its settings for an enhanced gaming experience with reduced input lag and fast refresh rates.
- OneRemote with Voice Assistance
- Spend more time watching and less time searching. The OneRemote, voice assistance, and a universal guide help you find streaming and live shows. The OneRemote also automatically detects and controls all of your compatible connected devices and content.
- Bixby Digital Assistant
- Bixby helps make it easy to search for content, flip channels, or ask questions like,"What's the weather?" using only your voice. Click voice recognition on your remote or compatible mobile device, and Bixby is at your command.
- Universal Guide
- The universal guide brings your favorite content from multiple devices and apps together in one easy-to-browse menu. It recommends popular shows and can make custom recommendations tailored just for you.
- Your SmartThings Hub
- The SmartThings app connects your TV to a range of compatible smart devices and appliances, from your refrigerator to your smartphone. You can change room temperatures, see what's in the refrigerator or who's at your door, all from the comfort of your couch. Download the SmartThings app on your mobile device to control and monitor your TV and connected devices all from one screen.
- Designed for Seamless Setup with Your Smartphone
- Simply turn on your TV and it will connect to your smartphone automatically. Your phone will then share Wi-Fi network information with the TV. If your phone is linked to a Samsung account, it will automatically be shared with the TV, so no separate login is required. After a future firmware update, you'll be able to choose the apps on your phone that you also want on the TV; they will then be copied into the TV's Smart Hub and you'll automatically be logged in.
- Notifications
- If you have laundry in your compatible washing machine, you'll get a popup message in the corner of the TV letting you know when it's done.
- TV Plus
- With TV Plus, you're just a few clicks away from a library of UHD 4K and HDR content.
- Sync & Share
- Sync your TV to your compatible smartphone to access and control your content on the screen. You can also continue your entertainment non-stop as you move around the house. With Sync and Share, you can grab your popcorn from the kitchen without pausing or missing a scene.
- Steam Link
- The Steam Link app lets you stream your favorite games seamlessly with enhanced graphics and speed.
- HDMI Connectivity
- HDMI connectivity enables digital audio and video over a single cable. One HDMI input is ARC-compatible for simplified connection to your compatible home theater system.
- Integrated Wi-Fi
- Enjoy your favorite on-demand content over your existing Wi-Fi (802.11ac) network.
- Dolby Digital Plus
- Dolby Digital Plus is designed to optimize your entertainment experience with enhanced sound richness and clarity.
- CTA 4K UHD Connected
- The NU8000 series complies with the Consumer Technology Association (CTA) 4K Ultra High-Definition Connected definition requirements.
- Additional Features
-
- Bottom edge-lit LED
- T-type stand
- 4K Ultra HD Connected
- UHD Remastering Engine
- Dolby Digital Plus, DTS Premium Sound 5.1
- Down- & front-firing speaker drivers
- Multiroom Link
- Bluetooth headset support
- Wi-Fi Direct
- Quad-core processor
- Full web browser
- Digital Clean View
- Auto channel search
- Supreme UHD Dimming
- ConnectShare
- Embedded POP
- InstaPort S (HDMI Quick Switch)
- Anynet+ HDMI CEC
- Closed captioning
- USB HID support
- Eco sensor
- Auto power off
- Easy Pairing
- TV-to-mobile device and mobile device-to-TV pairing via DLNA
UPC: 887276256344 In the Box Samsung NU8000 49" Class HDR UHD Smart LED TV OneRemote Power Cable Limited 1-Year Warranty Limited 90-Day Warranty for Commercial Use The Top 8 TVs of 2018 Richard Risitano 12/20/2018 uqwcxvtvuqcsawrbydaeccszdwcw The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 14.8mb More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung NU8000 49" Class HDR UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung NU8000 Specs | Screen Size (Diagonal) | 48.5" | Panel Type | LCD | Aspect Ratio | 16:9 | Pixel Resolution | 3840 x 2160 | HDR Compatibility | HDR10, HDR10+, Hybrid Log Gamma | Refresh Rate | 60 Hz | | Video System | NTSC / | TV Tuner | Yes | 3D | No | | Primary Connectivity Location | Display | Input Ports | 4 x HDMI – Audio, Video 1 x RF Antenna – Audio, Video | Output Ports | 1 x TOSLINK Optical – Audio | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video | Ethernet | LAN | Control | RS-232C | | Sound | Stereo | Subwoofer | None | Power | 40 W | Dolby Digital | Yes | | Virtual Assistant Support | Samsung Bixby | Operating System | Tizen | Wi-Fi | Built-In | Picture Modes | Game | Sound Modes | Game | Supported Languages | English French Spanish | Remote Control | Yes | Wall Mounting | 200 x 200mm | | Power Requirements | 100-120 VAC, 50/60 Hz | Power Consumption | Typical: 60.0 W Maximum: 125.0 W Standby: 0.3 W | ENERGY STAR Compliant | Yes | Dimensions (W x H x D) | 43.0 x 25.0 x 2.2" / 109.2 x 63.5 x 5.6 cm Without stand 43.0 x 28.0 x 11.8" / 109.2 x 71.1 x 30.0 cm With stand 31.5 x 9.6 x 11.8" / 80.0 x 24.4 x 30.0 cm Stand | Weight | 28.9 lb / 13.1 kg Without stand 33.1 lb / 15.0 kg With stand | | Package Weight | 47.0 lb | Box Dimensions (LxWxH) | 51.0 x 30.3 x 6.0" |
