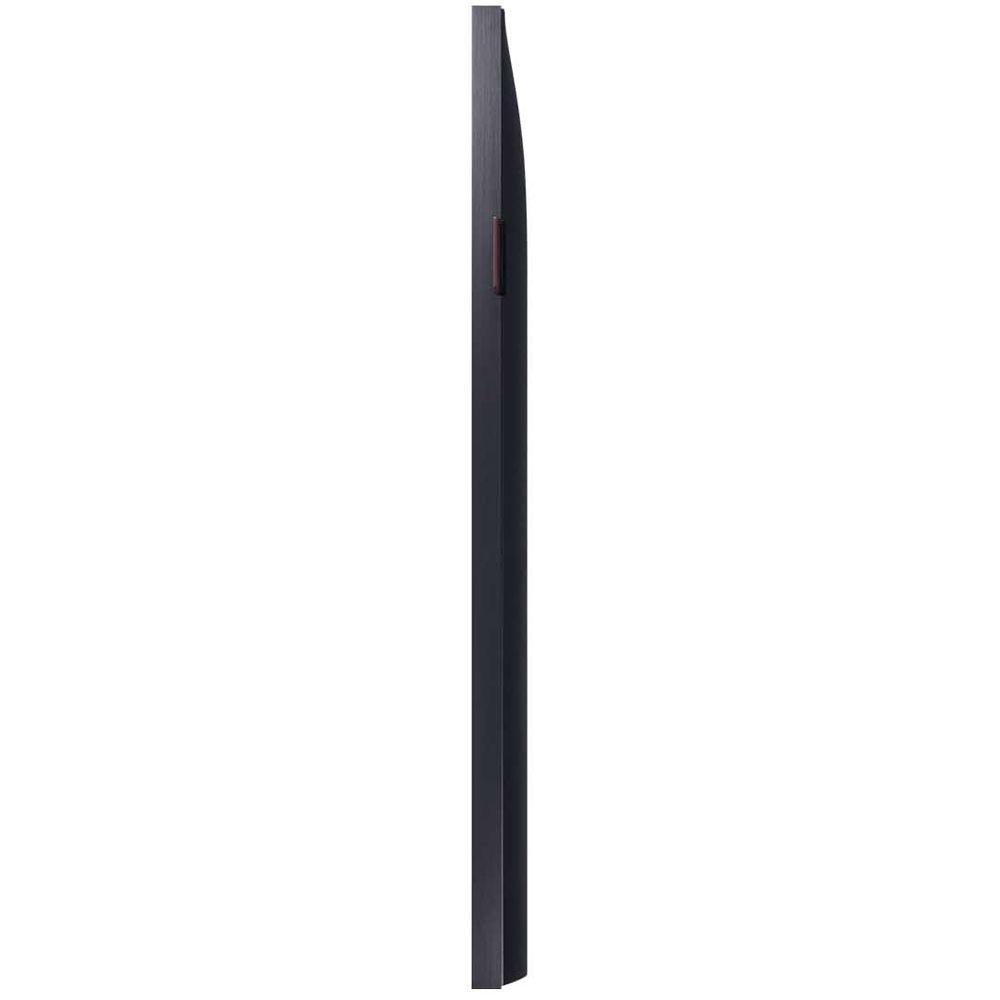

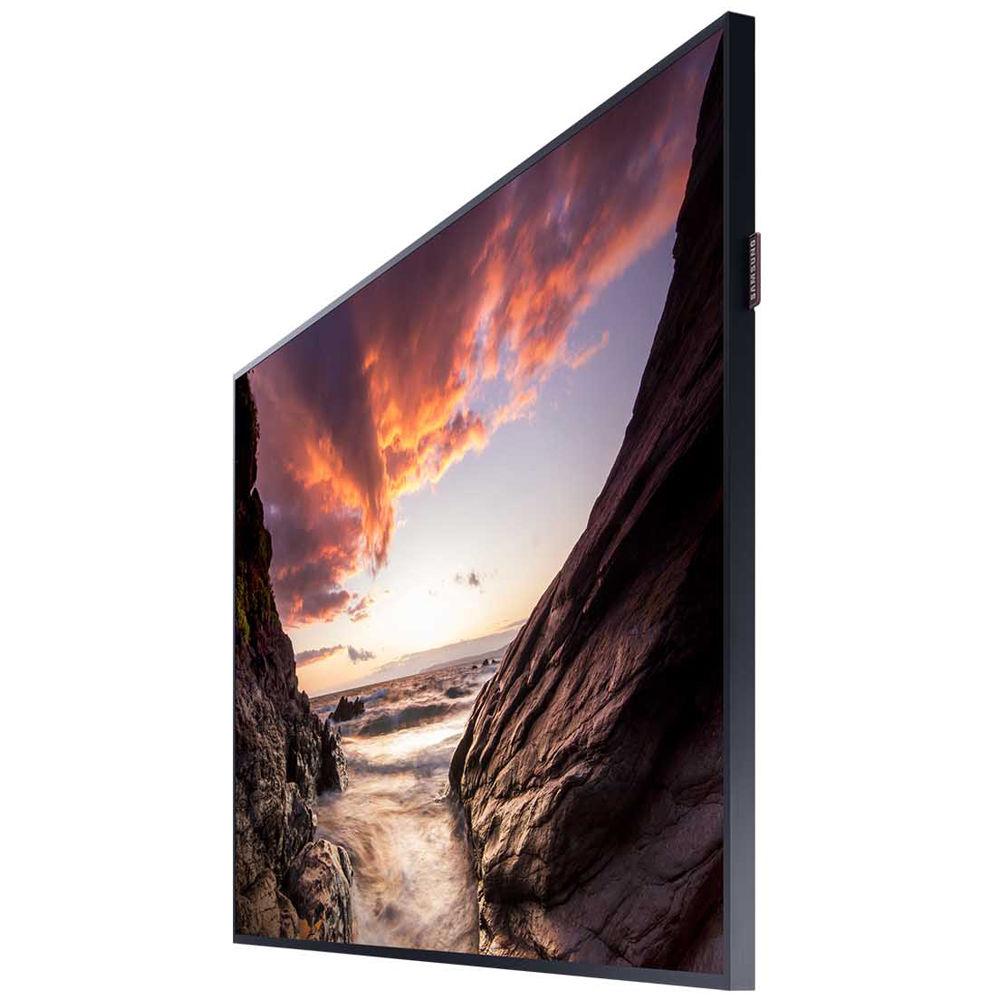

User Manual for Samsung PH55F-P 55"-Class Full HD Smart LED Commercial Display Click to enlarge the picture
Contents of the user manual for the Samsung PH55F-P 55"-Class Full HD Smart
- Product category: Commercial Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Commercial Monitors
 |
User manual for the Samsung PH55F-P 55"-Class Full HD Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

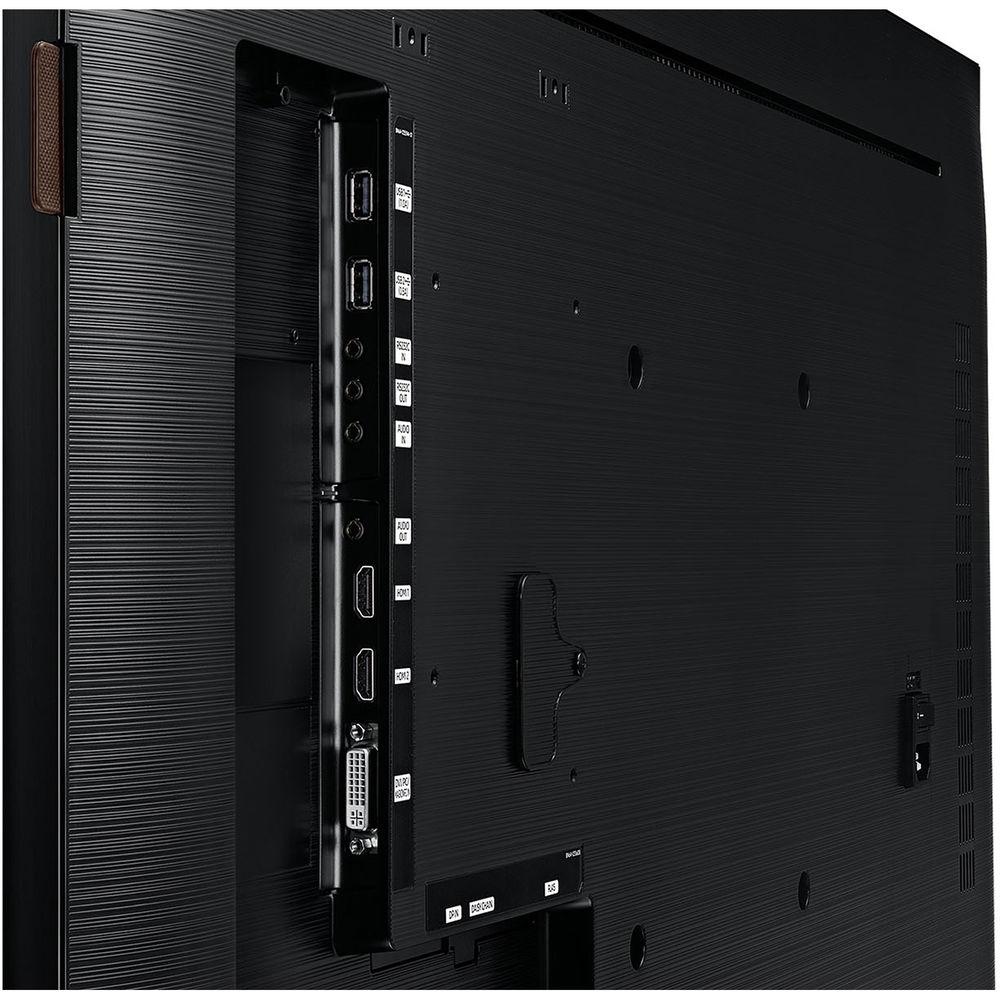

Product description With a built-in media player and expandability options, the Samsung PH55F-P 55"-Class Full HD Smart LED Commercial Display is designed to support a variety of content types to suit your needs. It features DVI-I, two DisplayPort, and two HDMI inputs to display your digital HD content, plus two USB ports for multimedia playback. The PHF series also has two built-in 10W speakers and supports computer-free video wall setups. - Embedded Media Powered by Tizen
-
- The 3D graphic engine is designed to provide enhanced 3D graphic performance while keeping scrolling text moving smoothly; it also supports playback of up to three videos concurrently
- Built-in security architecture allows for stability and security through three layers of supplementation for applications, platform, and system
- SW Development Kit (SDK) and Remote Web Inspector (RW) help you develop what you need for your signage application; as a web standard-based open platform, it is compatible with HTML5
- SSSP 4.0 user screen is designed for quick access for web apps thanks to the URL Launcher
- Content Creation, Scheduling, and Deployment Tools with MagicInfo Player S4
-
- Designed for enhanced overall performance while supporting images up to 5120 x 5120 resolution and over 100 text boxes
- When the optional Touch Overlay option is utilized, you can navigate the web browser through the tap of a finger on the display, mitigating the need for additional computers
- The display can function as a content management solution that allows you to play media files, set and edit playback schedules, and configure the display as a video wall and control device through use of the Wi-Fi connection, on/off timer, and graphical user interface
- Enables large organizations to manage and monitor multiple digital signage displays through a single integrated server
- Anti-Glare Panel
- Equipped with a non-glare front panel, the PHF series is designed to reduce natural and ambient light interference to help ensure continuous readability in nearly any location, making it well suited as a QSR menu board or airport flight schedule board.
- Centralized IR Receiver
- The display's integrated centralized IR (infrared) receiver helps ensure flexible user control, allowing you to navigate the IR functionality from various directions.
- IP5X Dust-Resistant Design
- The PHF series is IP5X certified, so you won't have to worry about dust accumulating on displays installed in dust-prone areas, such as subway trains or external platforms.
- Augment Playback Options with an Optional PIM
- The PHF series can accept an optional Samsung PIM, which uses OPS (Open Pluggable Specification) connectivity to enable power and video source delivery over a single cable with no power cord.
- Additional Features
-
- 72% Color Gamut
- Mega Dynamic Contrast Ratio
- Temperature sensor
- Pivot Display
- Clock battery (up to 168 hours of clock keeping)
- Magic Clone (via USB)
- Auto source switching & recovery
- Image rotation
- Button Lock

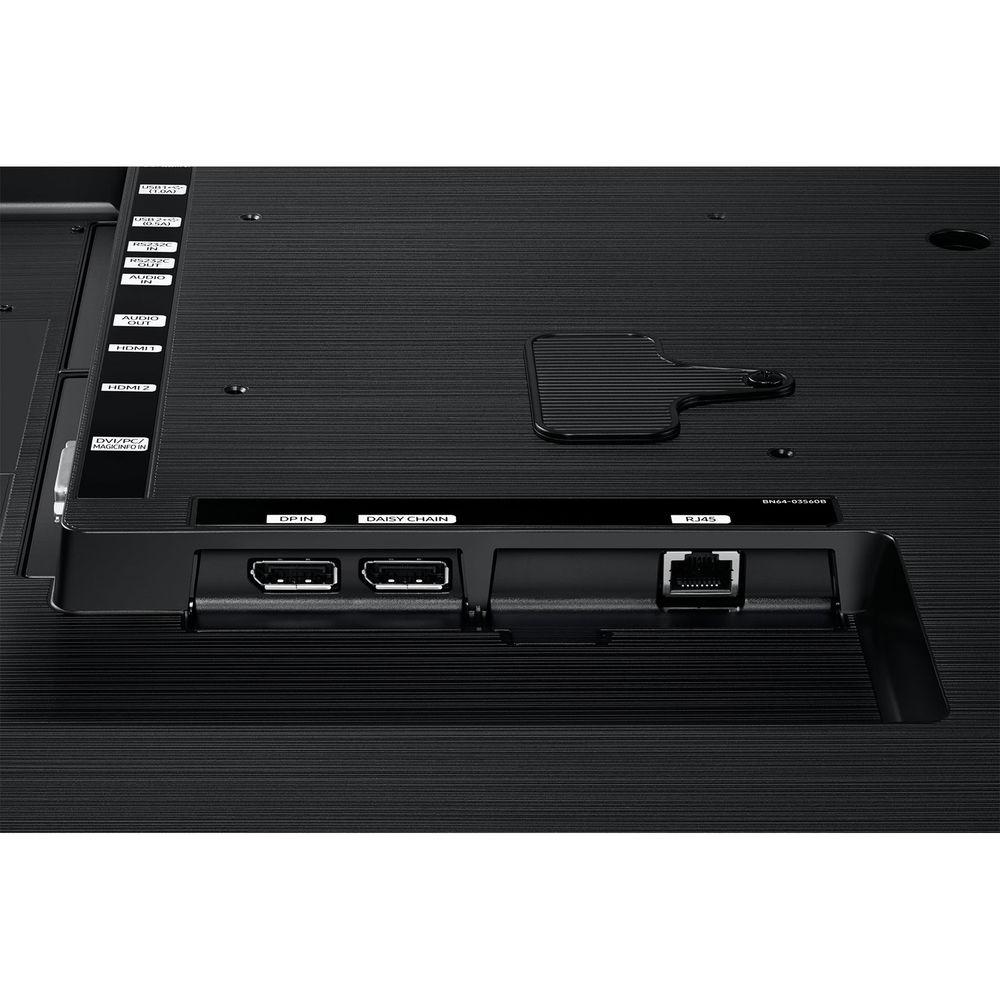

- DisplayPort 1.2 daisy-chaining with HDCP support
- Firmware updates via network
- Computer-less video walls with an external source
- Mobile control
- Backup player
In the Box Samsung PH55F-P 55"-Class Full HD Smart LED Commercial Display Remote Control with Batteries RS-232C (IN) Adapter Cover Jack Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung PH55F-P 55"-Class Full HD Smart LED Commercial Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung PH55F-P Specs | | | Screen Size (Diagonal) | 55" | | Native Resolution | 1920 x 1080 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
