User Manual for Samsung PHF Series 49" SMART Signage LED Display Click to enlarge the picture
Contents of the user manual for the Samsung PHF Series 49" SMART Signage
- Product category: Commercial Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Commercial Monitors
 |
User manual for the Samsung PHF Series 49" SMART Signage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

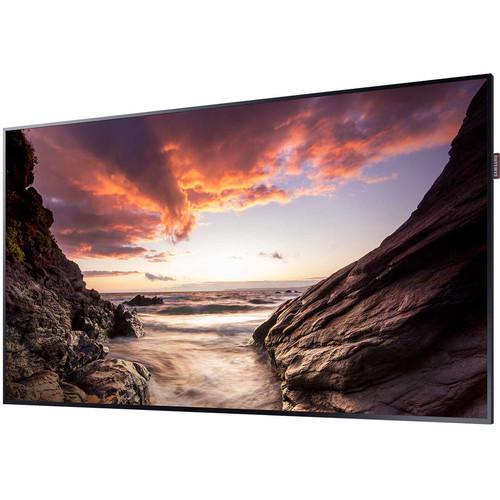

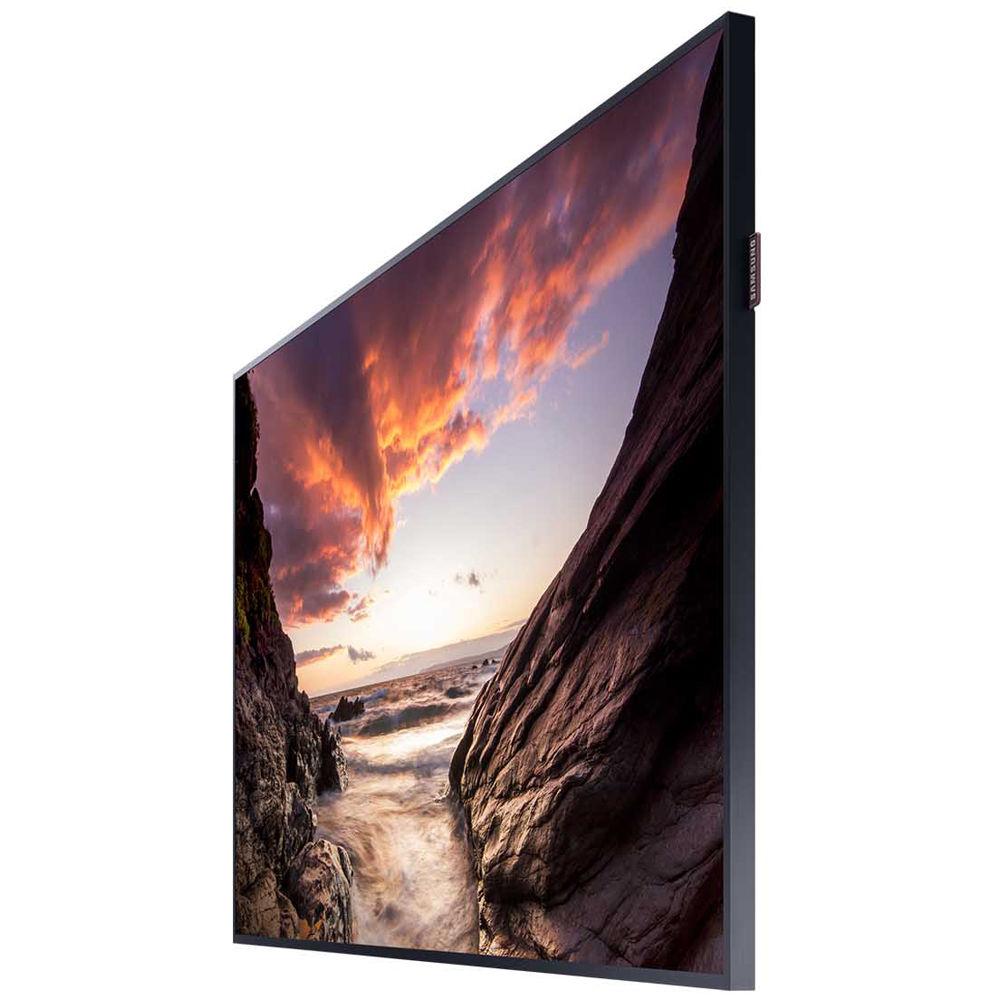

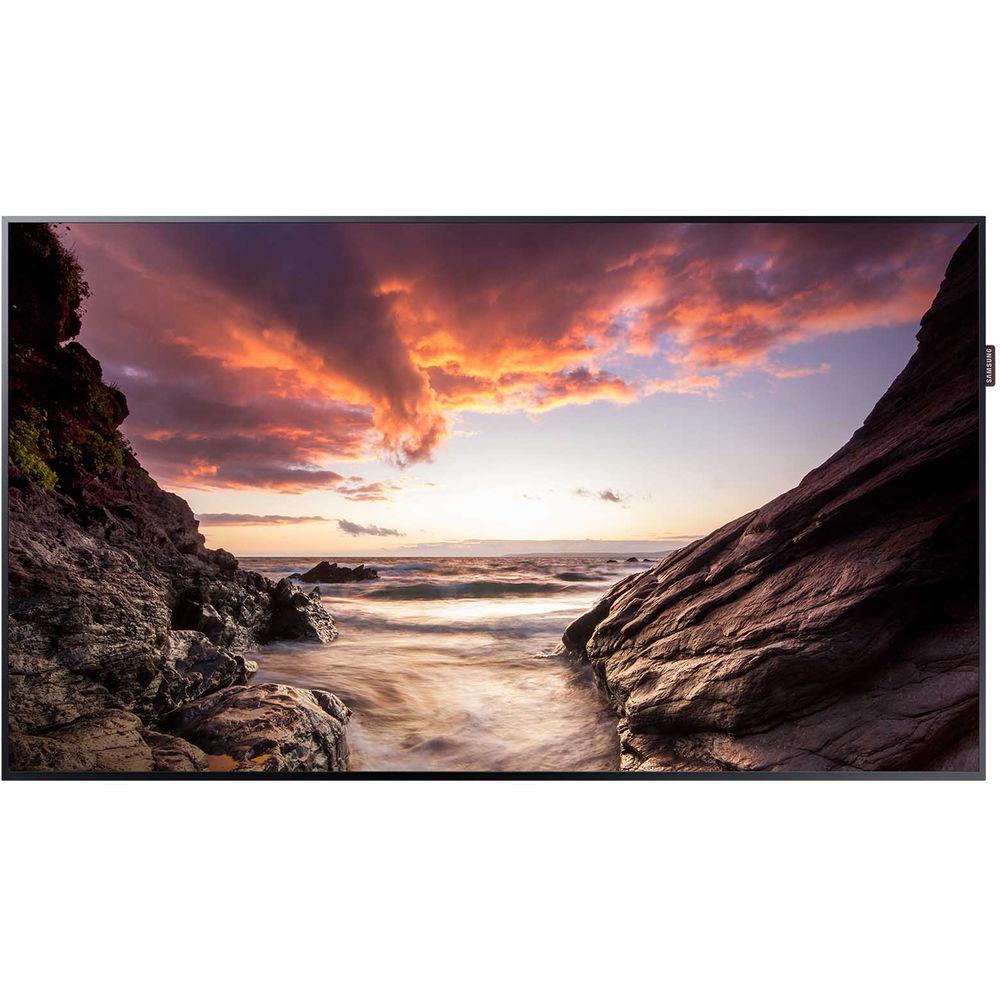

Product description The PHF Series 49" SMART Signage LED Display from Samsung is a TIZEN powered premium display that optimizes digital signage to deliver high brightness and sharp display images in various lighting environments. Featuring the embedded MagicInfo Player S4, it deploys advanced web applications to effectively manage content. This IP5x certified display delivers durability to allow for uninterrupted and dependable operation. Equipped with an enhanced 3D-graphic engine, it can support three movies playing concurrently on one screen. - Enhanced 3D Graphic Engine
- Experience dynamic content by enhancing 3D graphic performance while text scrolling. It can even support three movies playing concurrently on one screen.
- PC-Less Touch Solution
- Experience improved touch performance, thanks to the powerful TIZEN OS that bypasses the need for a PC.
- Enhanced Security
- Applications, platform, and systems are all supported by TIZEN OS and a holistic security architecture allows for high stability and security through three layers of supplementation.
- Easy Development
- Features development tools such as SW Development Kit (SDK) or Remote Web Inspector (RW). In addition, as it is a web standard-based open platform, it is compatible with HTML5.
- Simple Usability
- Usability is attained due to a touch-friendly UI while web browsers are able to display a homepage without the need to develop a web app. Quick access for web apps is supported through URL Launcher.
- Central IR
- The standalone displays' integrated centralized infrared receiver (IR) ensures easier and more flexible user control. It receives the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.
- Non-Glare Panel
- Equipped with a non-glare front panel, this display reduces natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.
- Hardware Features
-
- Non-glare panel
- Temperature sensor
- Video wall (15 x 15 (OSD))
- Video wall daisy chain (16)
- Pivot display
- Clock battery (80 hours clock keeping)
- Built-in speaker (2 x 10 W)
- Wi-Fi module embedded, IP5x, and center IR
- Software Features
-
- Magic clone (to USB)
- Auto source switching and recovery

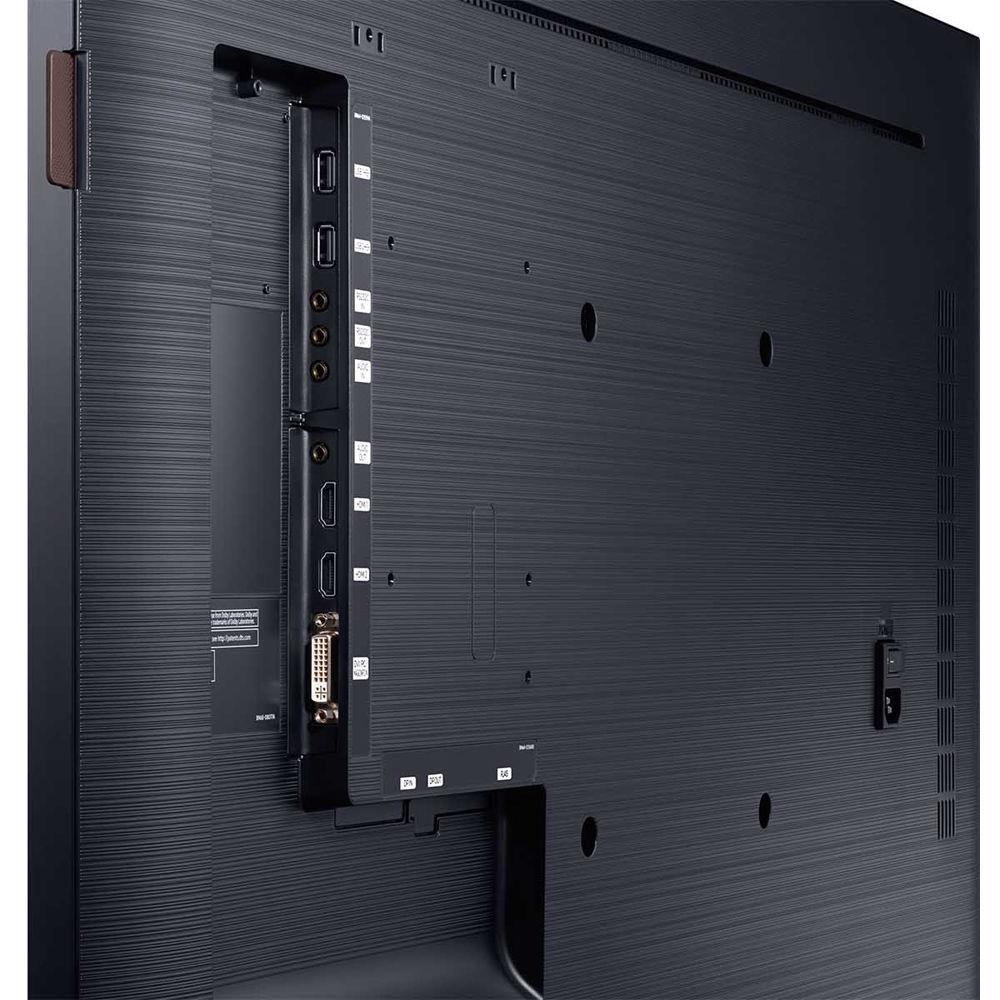

- RS-232C/RJ45 MDC, plug-and-play, and PIP/PBP
- Image rotation
- Button lock
- DisplayPort 1.2 digital daisy chain (HDCP support)
- Firmware update by network
- New home screen
- PC-less video wall
- Multi-channel
- Mobile control
- Event schedule
- Backup player
- Other Features
-
- Improved SSSP 4.0 user screen

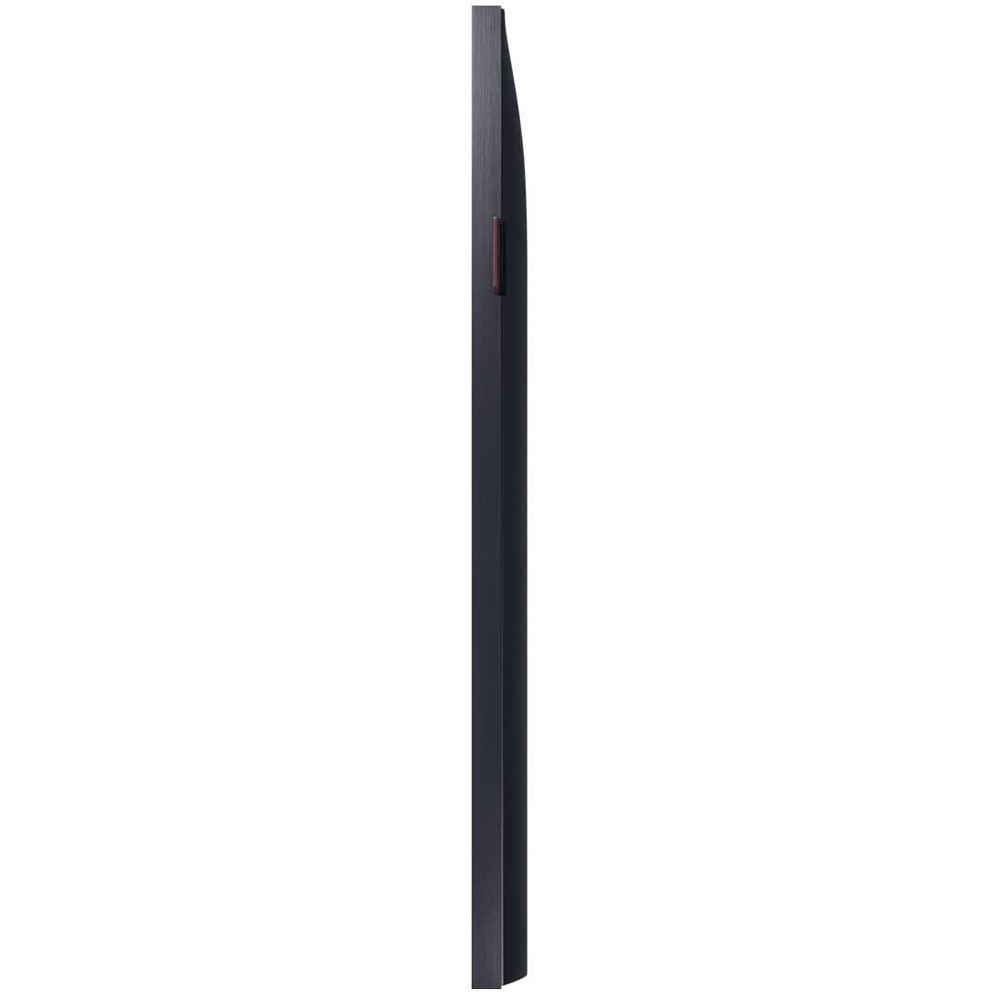

- Slim design overcomes spatial limitations
- Complete and convenient control by navigating display hub with Central IR
In the Box Samsung PHF Series 49" SMART Signage LED Display Power Cord Remote Controller Batteries RS-232C (IN) Adapter Cover Jack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung PHF Series 49" SMART Signage LED Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung PH49F Specs | | | Screen Size (Diagonal) | 49" | | Native Resolution | 1920 x 1080 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
