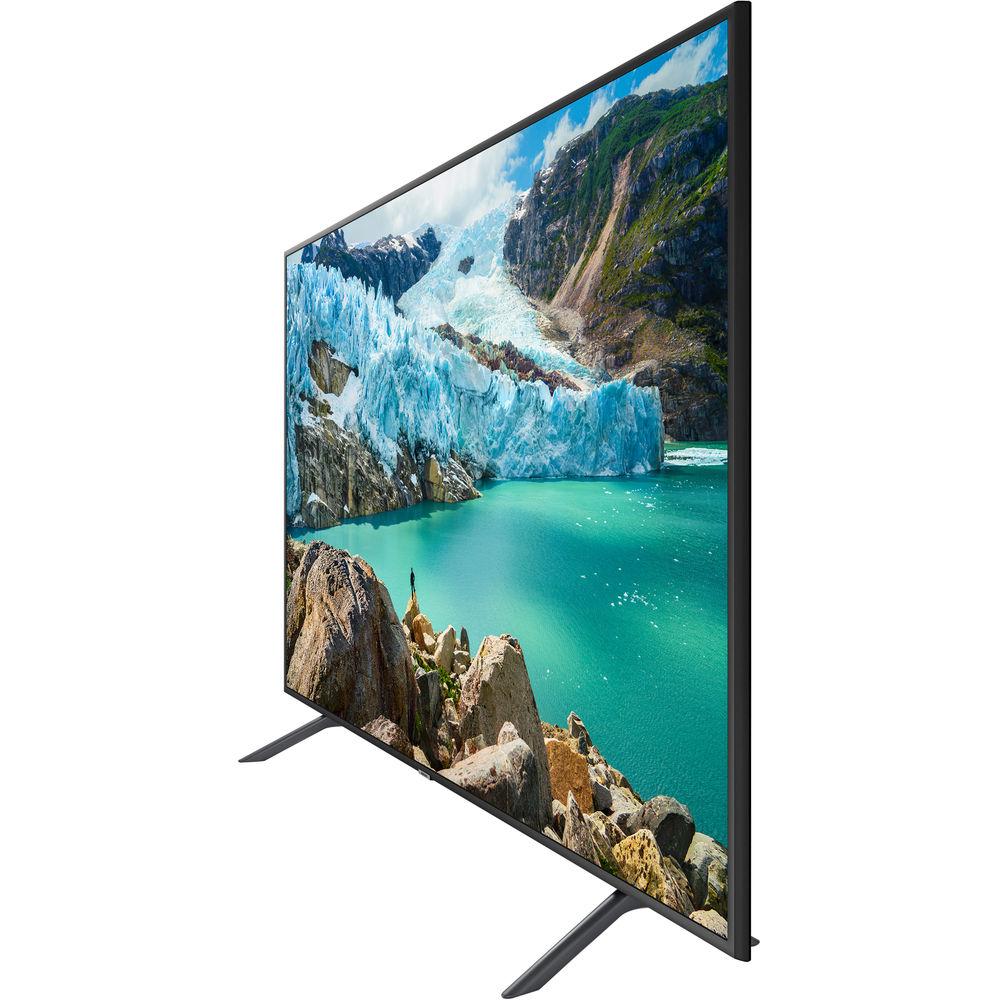

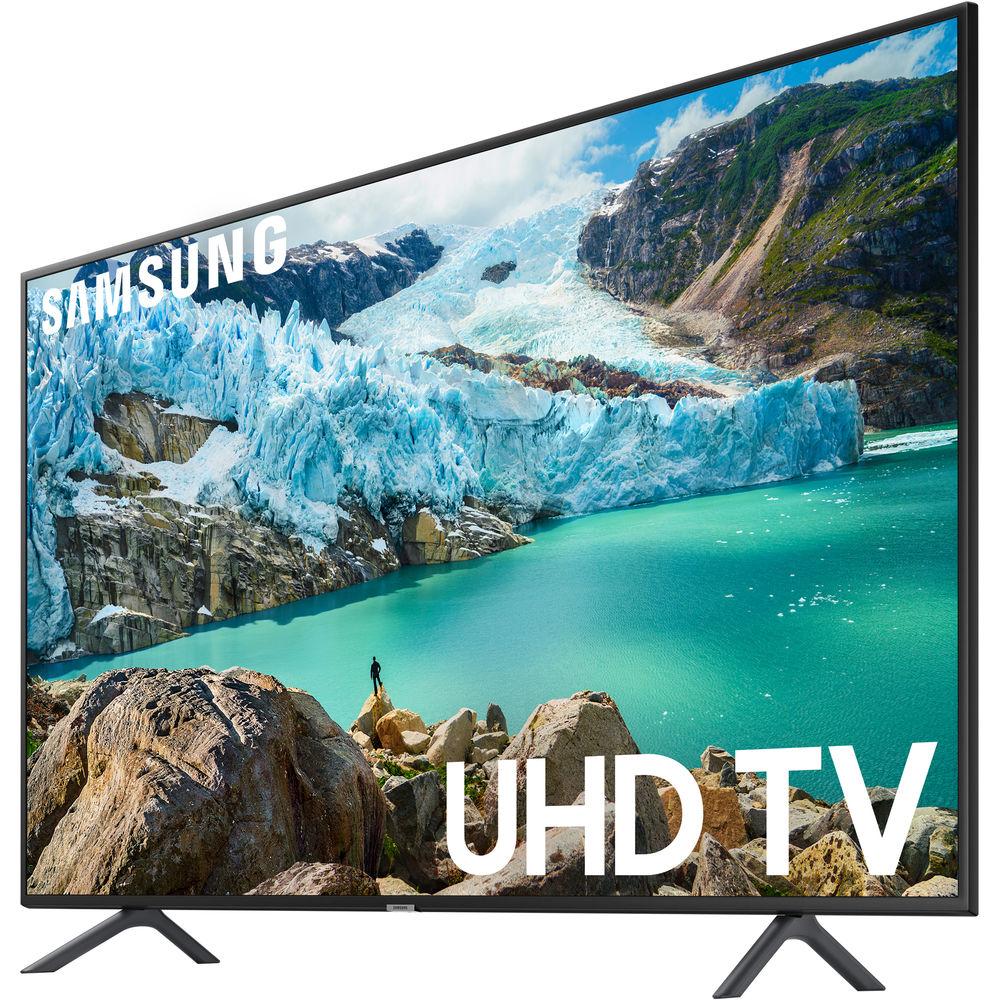

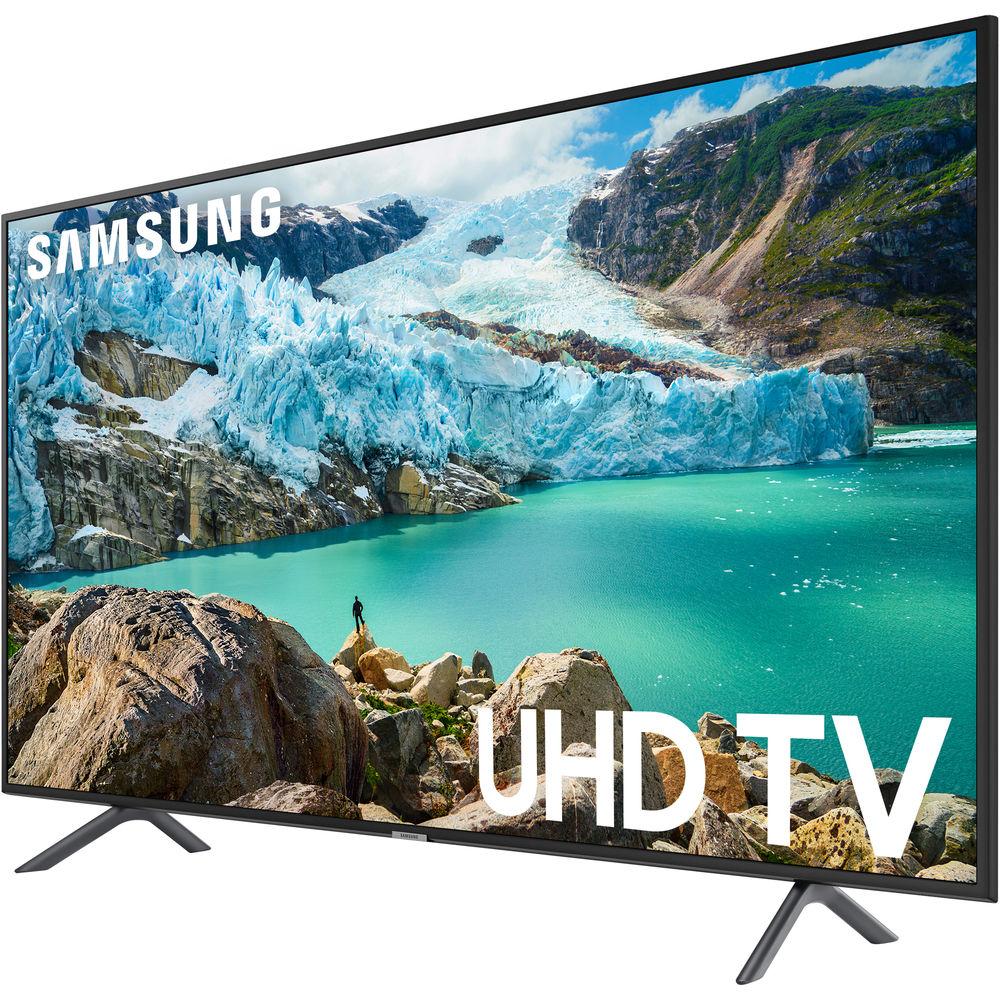

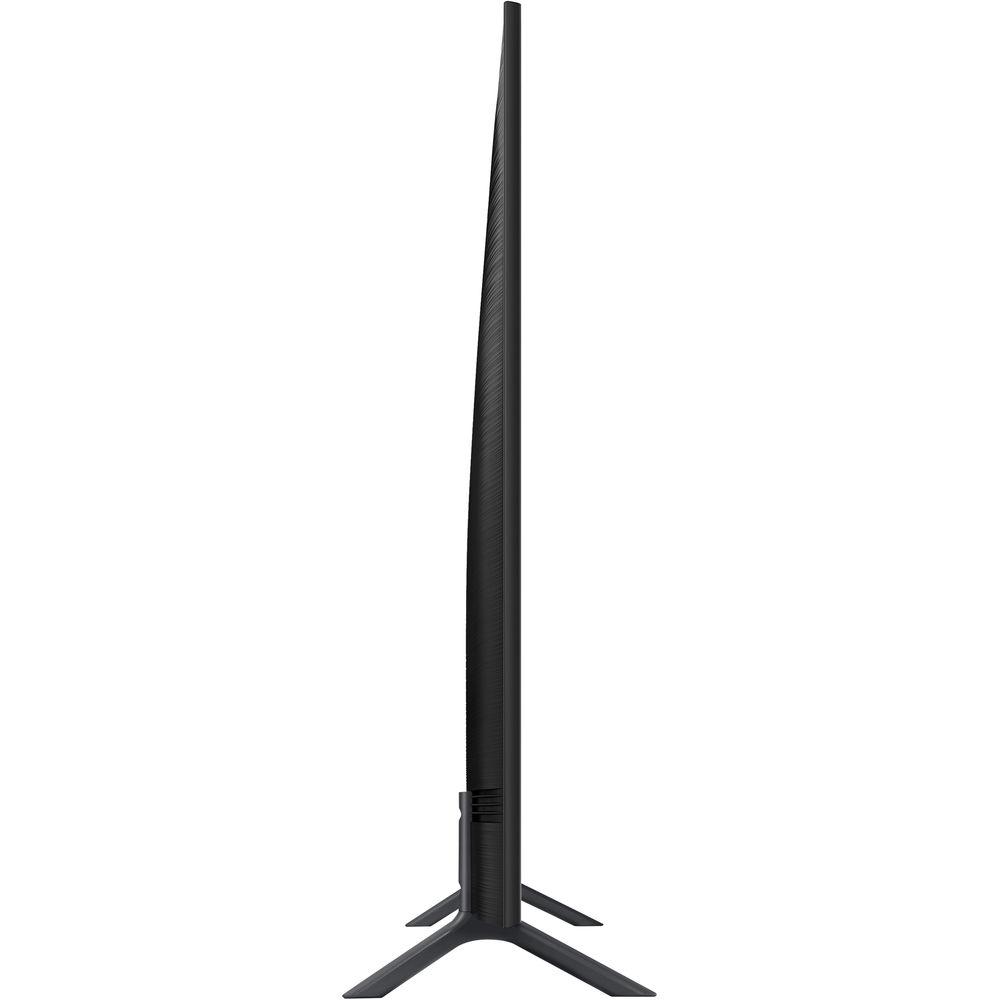

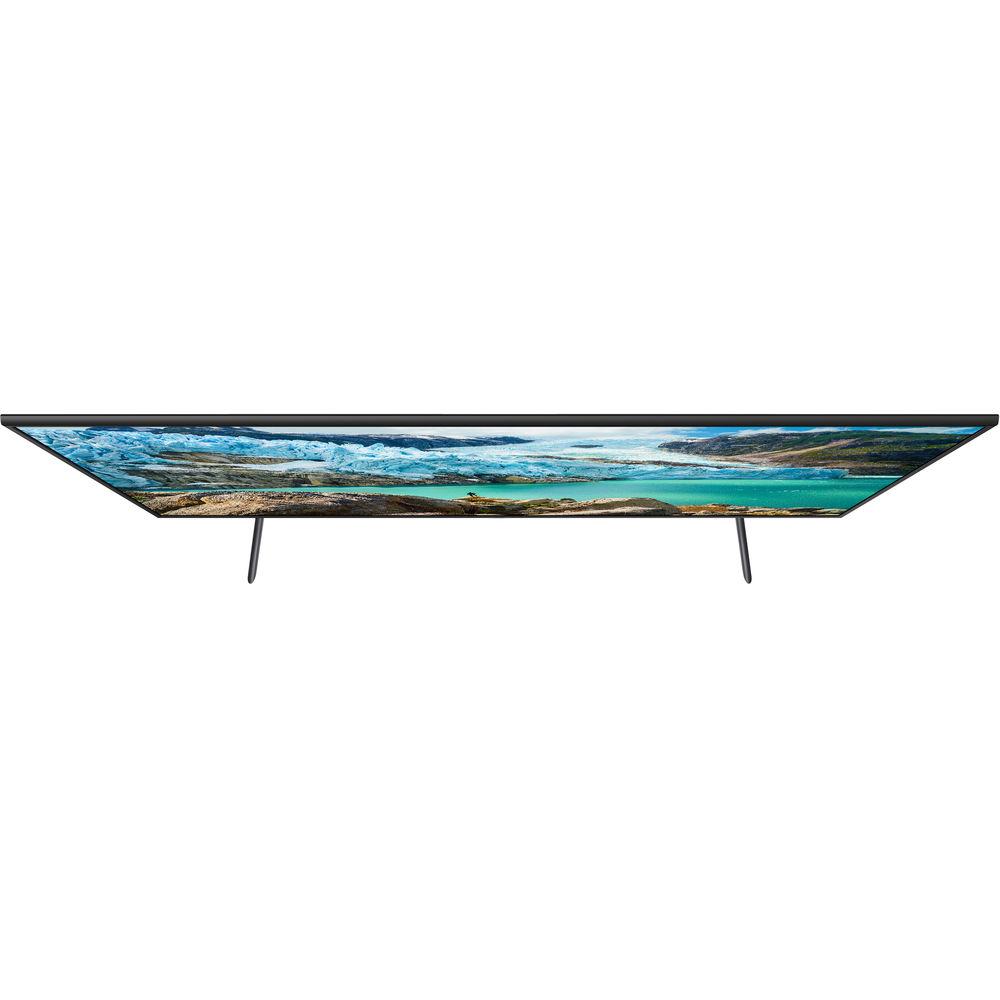

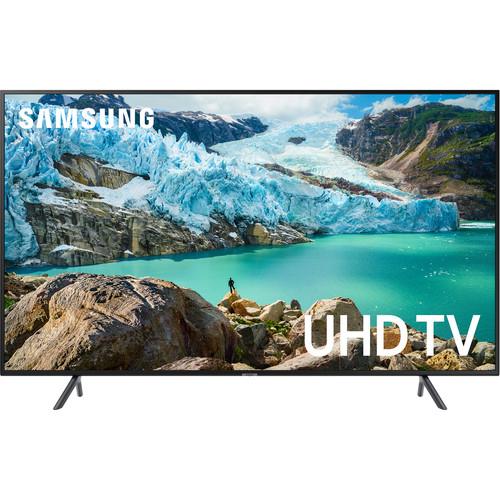

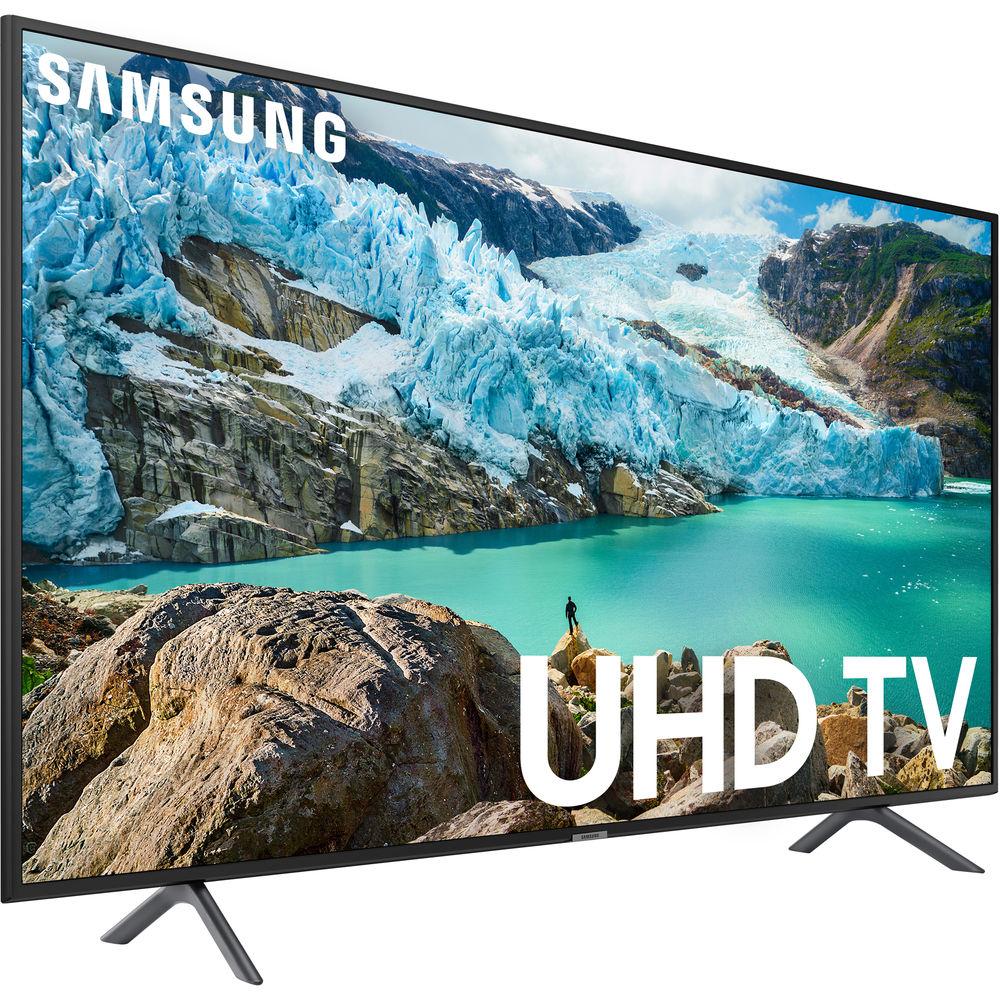

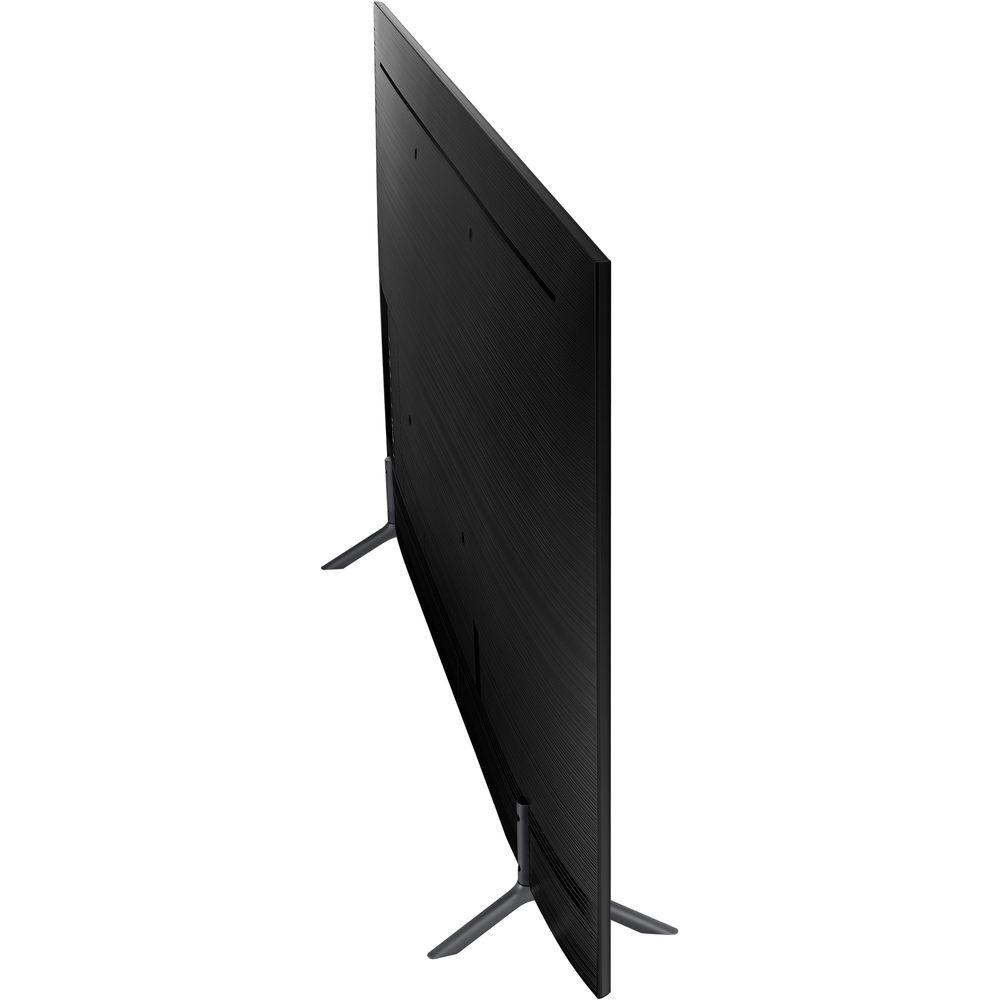

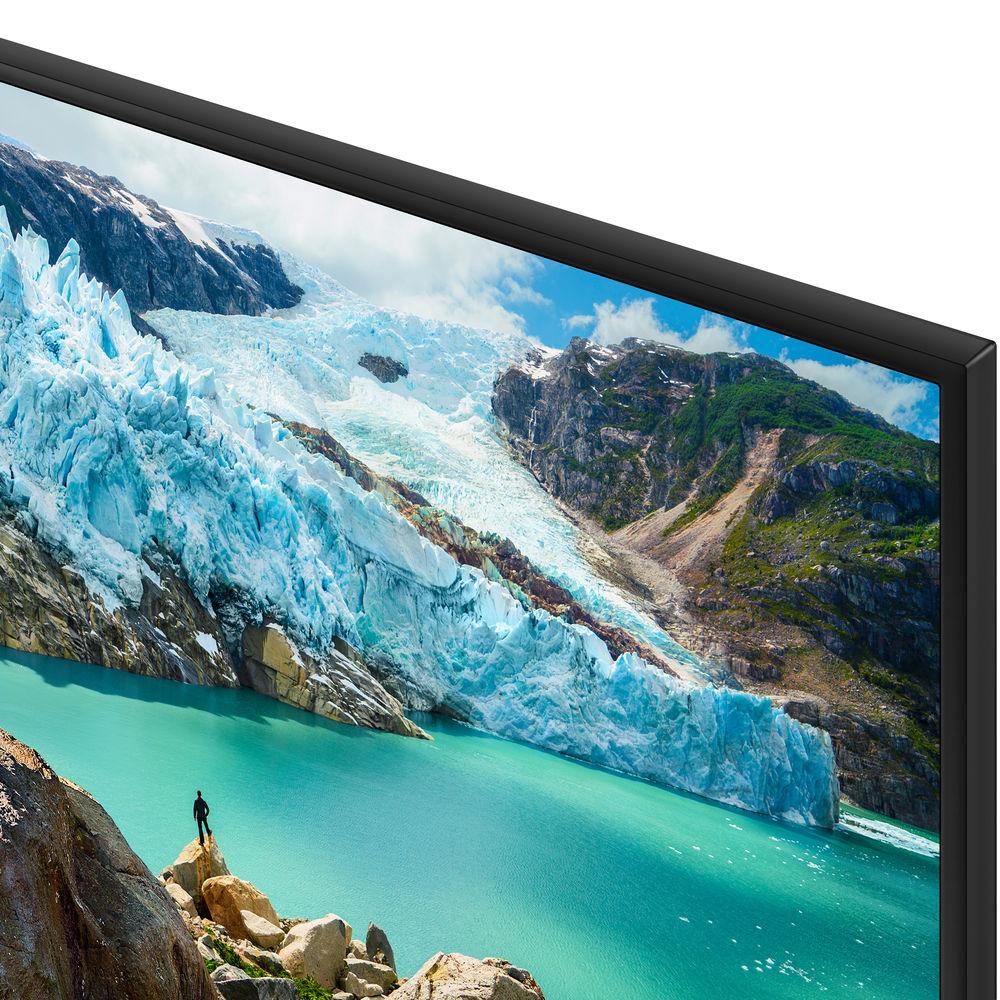

User Manual for Samsung RU7100 58" Class HDR 4K UHD Smart LED TV Click to enlarge the picture
Contents of the user manual for the Samsung RU7100 58" Class HDR 4K
- Product category: Televisions Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Televisions
 |
User manual for the Samsung RU7100 58" Class HDR 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Samsung RU7100 58" Class HDR 4K UHD Smart LED TV. This TV has a 57.5" LED-backlit LCD panel, and incorporates Motion Rate 120 technology to digitally enhance fast-moving images to reduce blur. It is compatible with the HDR10, HDR10+, and HLG HDR formats to provide a wider color gamut with compatible content and other equipment for more vivid images.
The RU7100 has built-in Wi-Fi and Ethernet connectivity to provide access to your favorite apps and Internet-based content, plus content sharing and screen mirroring with your other smart devices such as your smartphone or tablet. With three HDMI inputs, there are multiple options for connecting high-definition video sources. Two USB ports are also onboard for connecting multimedia peripherals like flash drives. Google Assistant and Amazon Alexa functionality is also supported. Note: Content acquired via certain apps may require subscription to a service. Voice functionality does not support all languages, accents, dialects, or expressions, and features may vary by language. Please see the manufacturer's website for more information. -
- Edge-lit display
- UHD Processor picture engine
- Motion Rate 120 technology
- Mega contrast
- PurColor
- UHD Dimming micro-dimming
- Contrast Enhancer
- Auto Motion Plus
- Film Mode
- Natural Mode support
- Dolby Digital Plus
- Multiroom Link
- Bluetooth Audio
- Works with the Google Assistant and Amazon Alexa
- TV Plus
- Integrated web browser
- SmartThings app support
- Universal Guide
- Gallery
- Mobile device to TV mirroring via DLNA
- Wireless & Wired TV On - Samsung WOL
- Bluetooth Low Energy
- Wi-Fi Direct
- Instant On
- Quad-core processor
- Accessibility
- Digital Clean View
- Auto channel search
- Auto power off
- Closed captioning (subtitle)
- ConnectShare (HDD & USB 2.0)
- Embedded POP
- Electronic program guide
- Auto Game Mode
- IP control
- USB HID support
- V-Chip
- MBR & IPv6 support
- Digital & analog tuners
- EX-Link RS-232C control via optional USB adapter
- ARC support
- HDMI Quick Switch
- Wi-Fi 5 (802.11ac)
- Anynet HDMI CEC
- Eco sensor
UPC: 887276305486 In the Box Samsung RU7100 58" Class HDR 4K UHD Smart LED TV Remote Control with Batteries Power Cable Limited 1-Year Warranty Limited 90-Day Warranty for Commercial Use The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung RU7100 58" Class HDR 4K UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung RU7100 Specs | | | Screen Size (Diagonal) | 57.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, HDR10+, Hybrid Log Gamma | | | | Video System | NTSC | | TV Tuner | Yes - ATSC, Clear QAM | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video
1 x RF Antenna – Audio, Video
1 x RCA Component/Composite Combo – Video
1 x RCA Stereo (L/R) – Audio | | Output Ports | 1 x TOSLINK Optical – Audio | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video | | Ethernet | LAN | | Control | RS-232C via USB Type-A | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Tizen | | Wi-Fi | Built-In | | Picture Modes | Cinema, Game | | Sound Modes | Game | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 400mm | | | | Power Requirements | 110-120 VAC, 50/60 Hz | | Power Consumption | Maximum: 140.0 W
Typical: 65.0 W
Standby: 0.3 W | | Dimensions (W x H x D) | 51.2 x 29.8 x 2.3" / 130.1 x 75.7 x 5.8 cm Without stand
21.2 x 32.9 x 10.3" / 53.9 x 83.6 x 26.2 cm With stand | | | | Package Weight | 59.5 lb | | Box Dimensions (LxWxH) | 57.0 x 34.0 x 7.0" |
