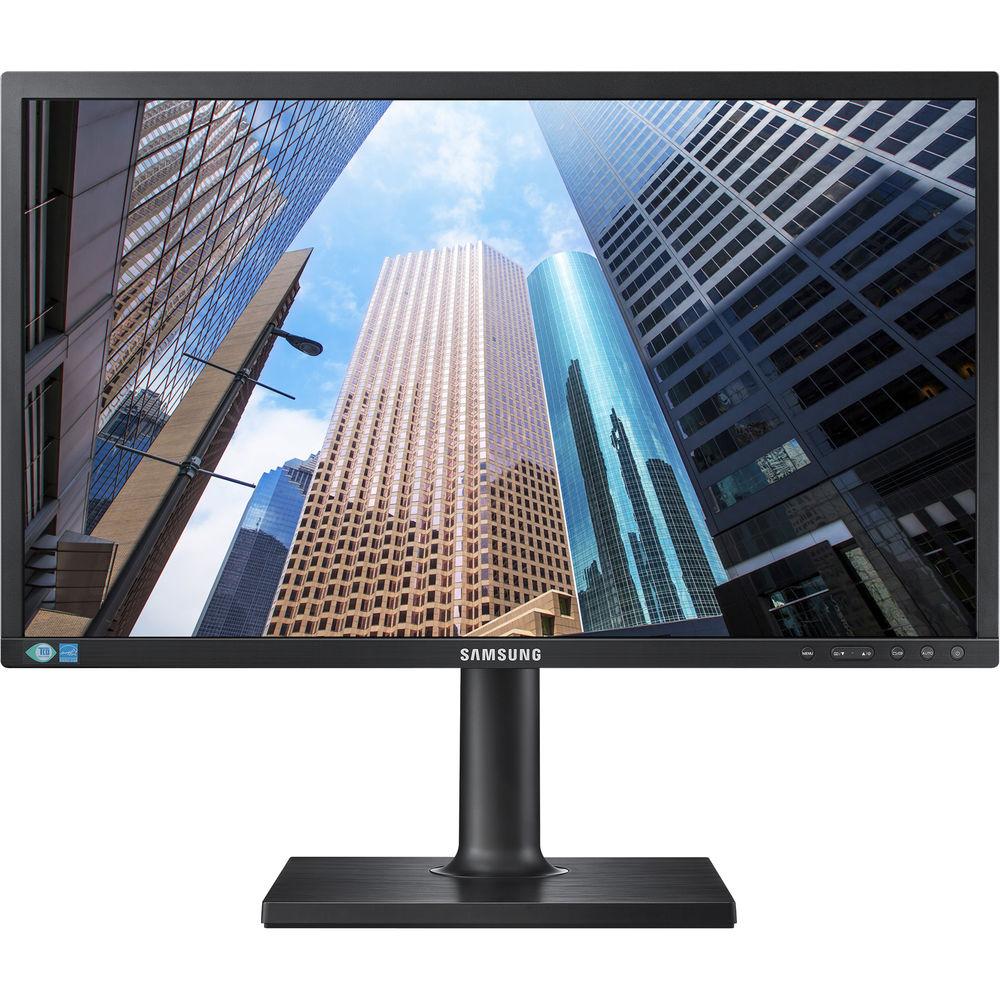

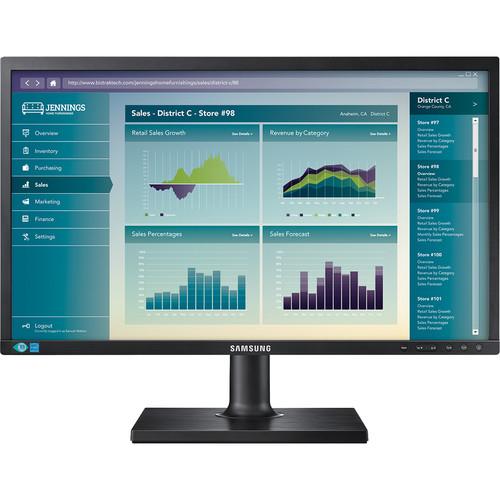

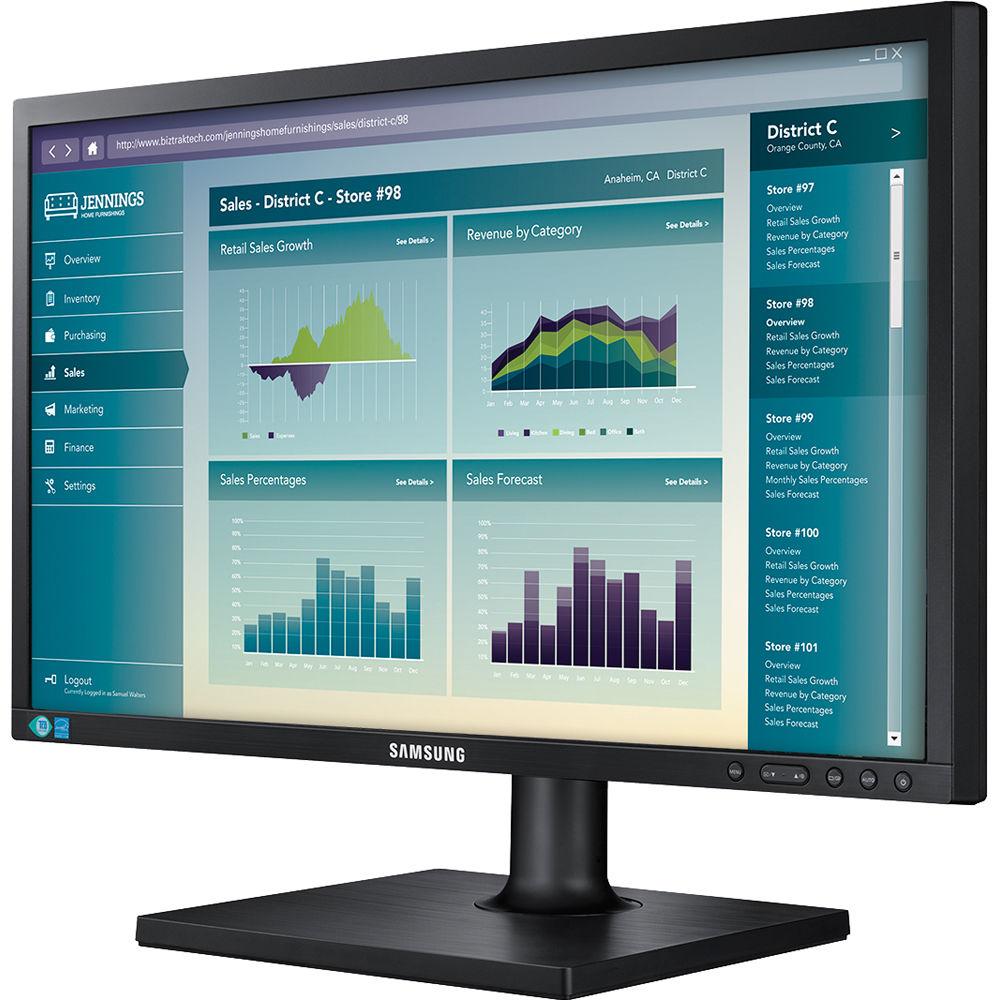

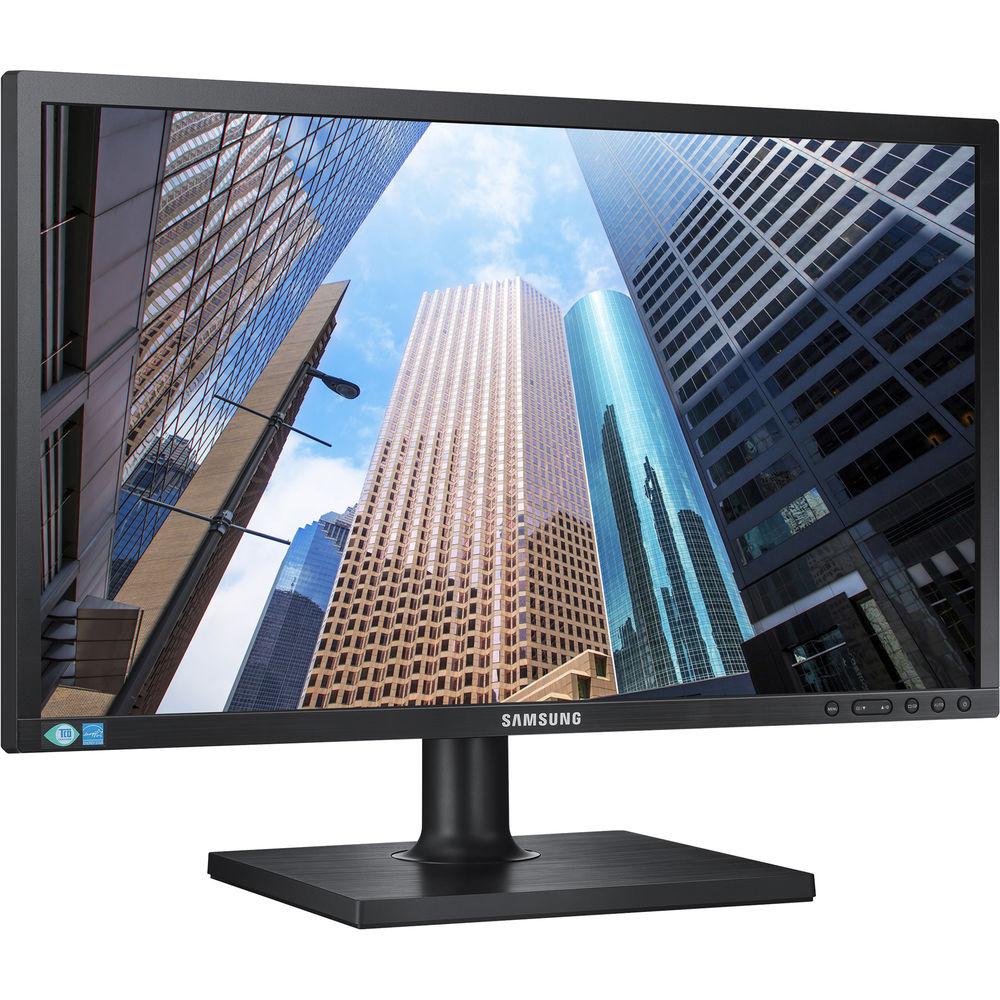

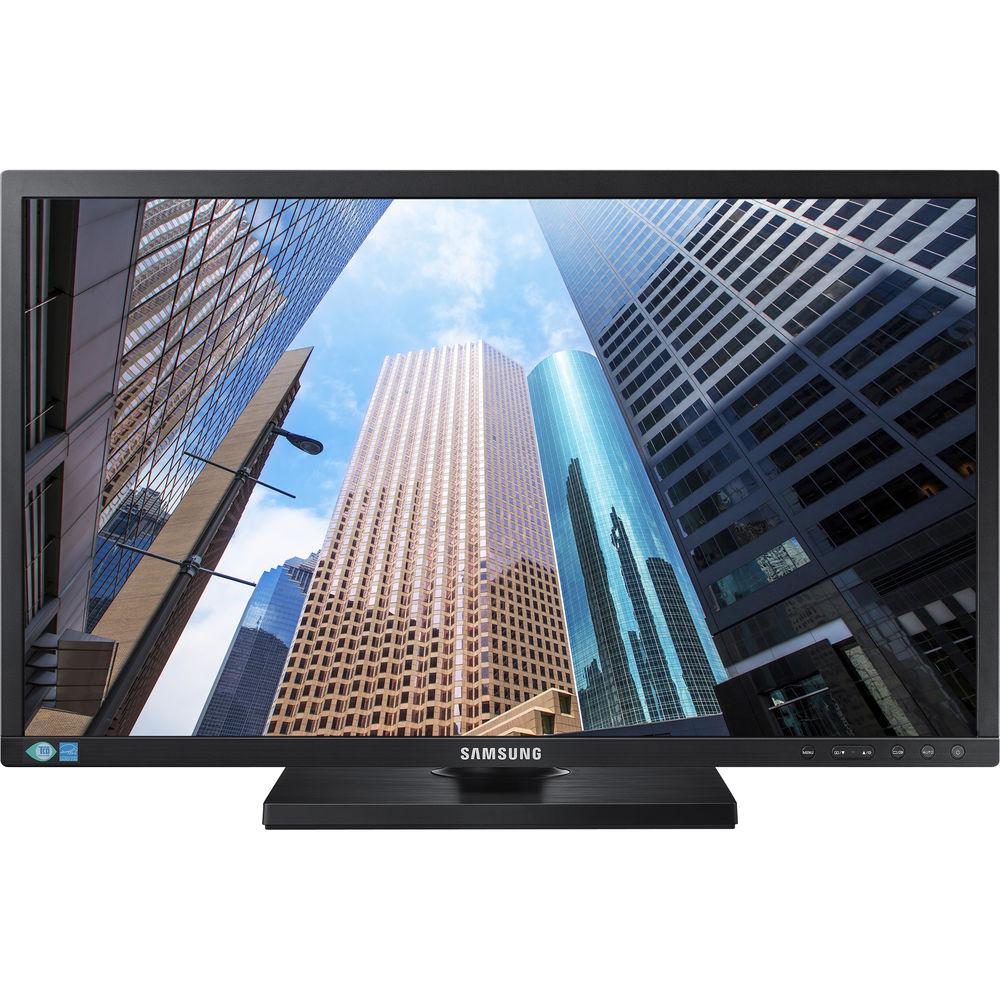

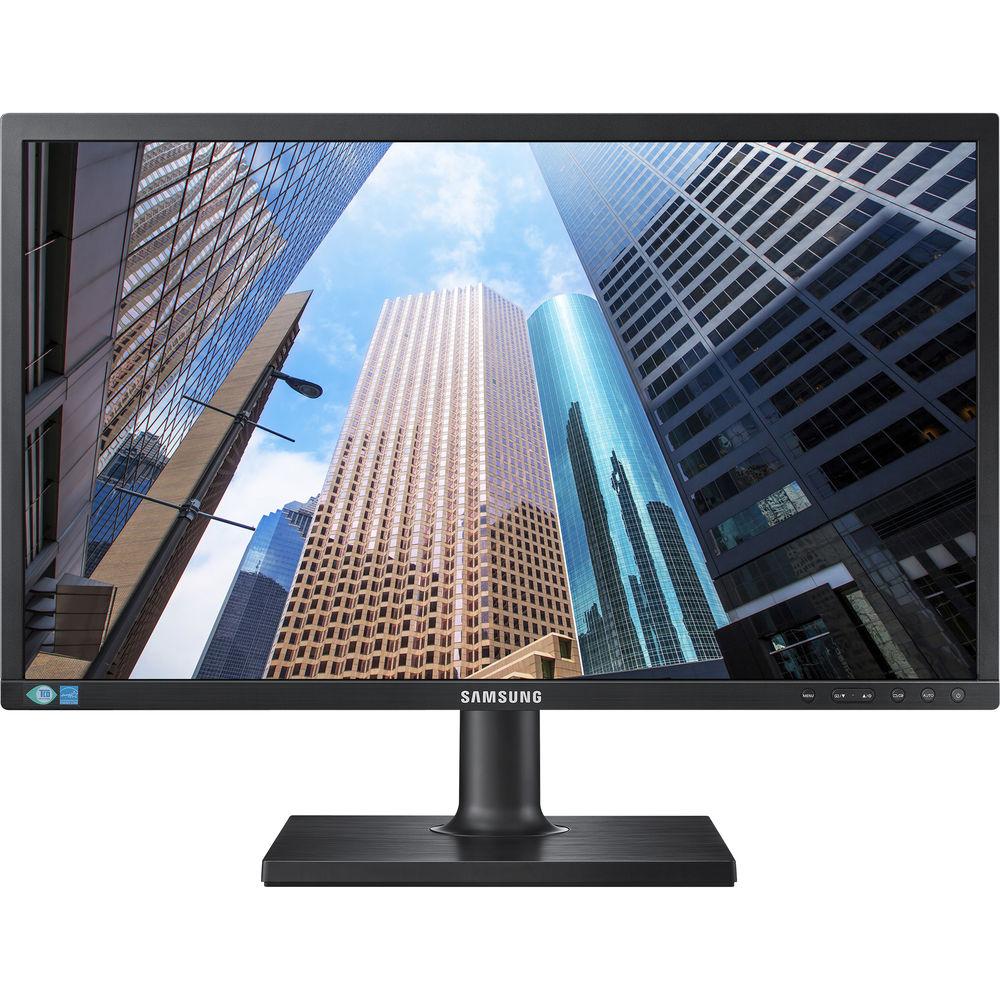

User Manual for Samsung S22E450B 21.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung S22E450B 21.5" 16:9 LCD Monitor
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung S22E450B 21.5" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

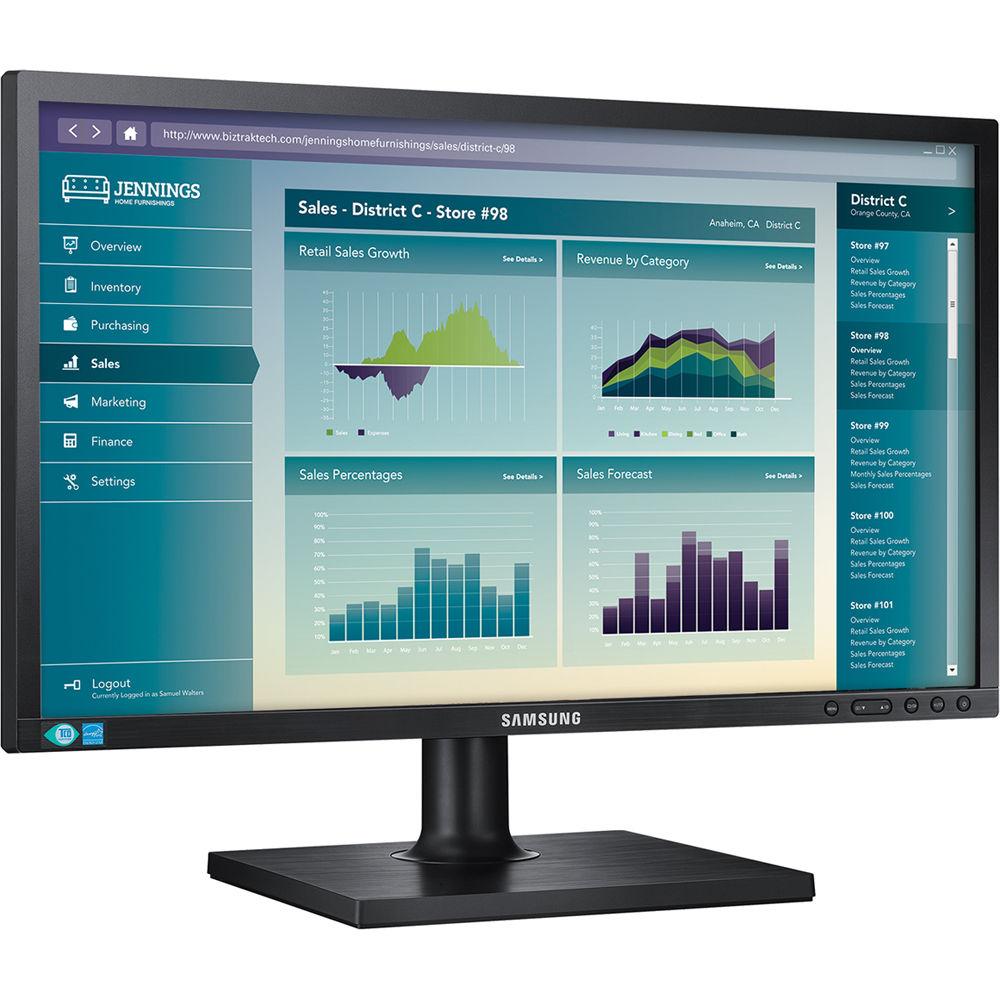

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The S22E450B 21.5" 16:9 LCD Monitor from Samsung features an easy-to-use design, versatile connectivity, and a low-glare commercial-grade TN panel. It is constructed of 30% recycled material and uses less than 0.005W of off-mode power consumption for an eco-friendly option. The LED-backlit LCD screen offers a mega infinity dynamic contrast ratio for subtle detail in the lights and darks, and there is MagicAngle technology for quality color, even when viewed off-angle. VESA and speaker bar compatibility as well as VGA and DVI connections are available for a wide range of applications. The monitor has a resolution of 1920 x 1080, and built-in cable management provides a clutter-free work environment. An ergonomic stand allows you to swivel, tilt, pivot, and adjust the height of the monitor. - LED-backlit LCD screen for sharp and bright images
- Mega infinity dynamic contrast ratio enhances subtle detail in the lights and darks
- MagicAngle technology delivers quality color, even when viewed off-angle
- Eco features reduce power consumption when the monitor is in use
- Low profile stand takes up minimal desk space
- Built-in cable management feature for a clutter-free work environment

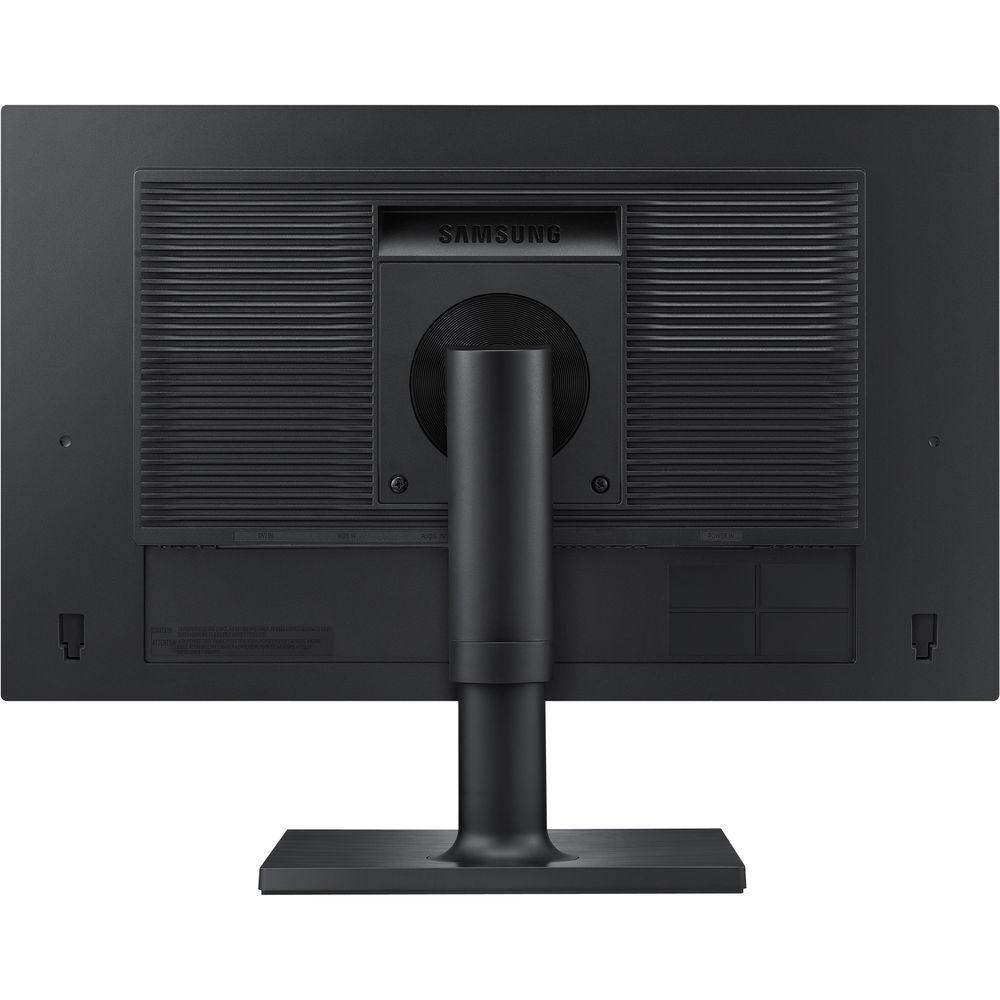

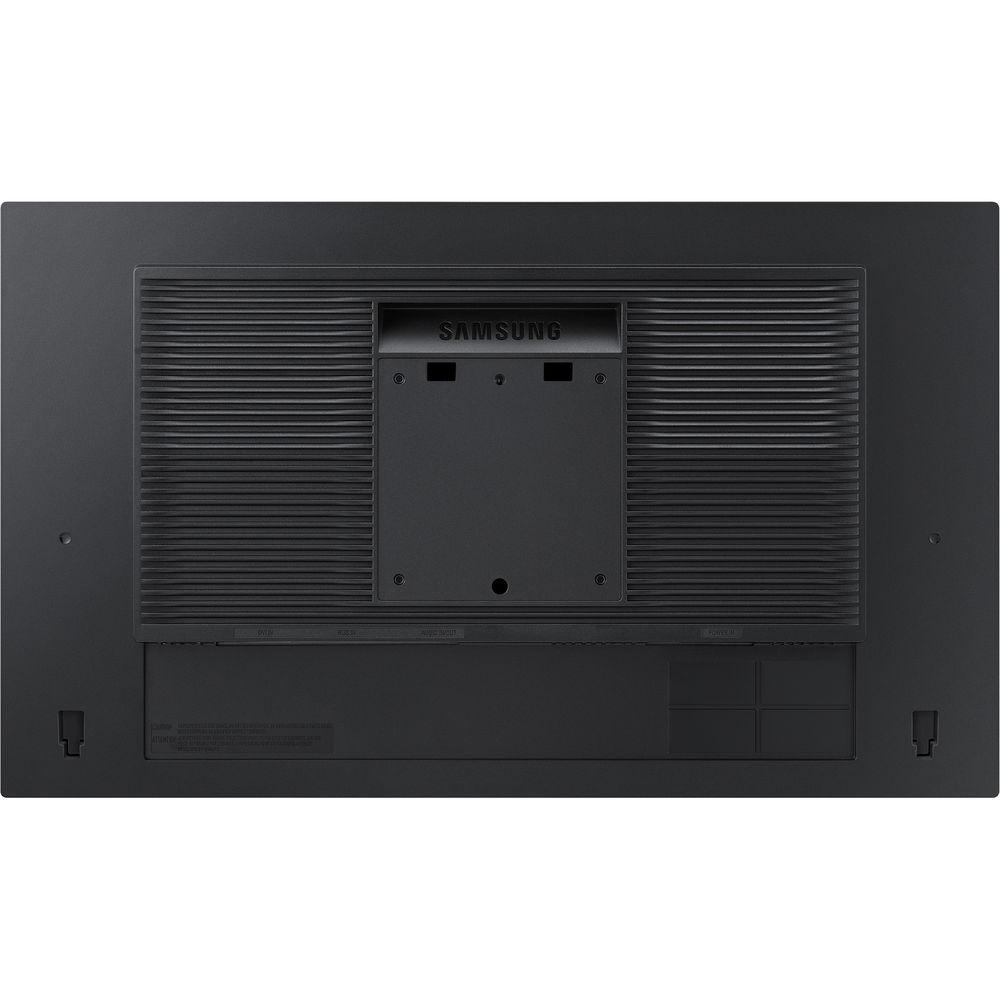

- VESA mount and speaker bar compatibility, VGA and DVI connections

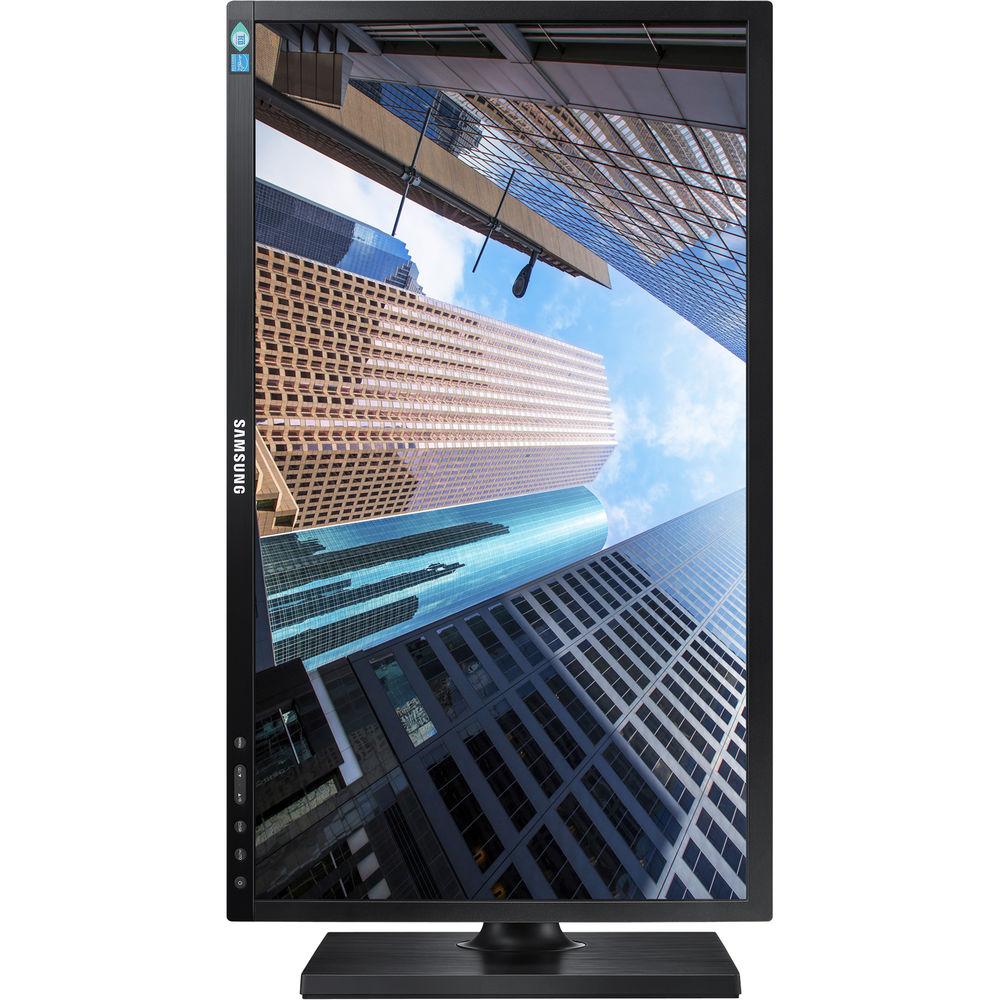

- An ergonomic stand allows the monitor to swivel, tilt, pivot, and is height adjustable
In the Box Samsung S22E450B 21.5" 16:9 LCD Monitor VGA Cable Power Cable (5') DVI Cable Limited 3-Year Warranty User Manual PDF 8.9mbydrbfqreaszedzudsrdewebxaxbzsastuzedaz Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung S22E450B 21.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung S22E450B Specs | | | Size | 21.5" | | Screen Area | 18.8 x 10.6" / 47.7 x 26.8 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.24826 x 0.24826 mm | | | | Connectivity | 1 x DVI
1 x VGA | | | | Power Consumption | 21 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 95% | | | | Height Adjustment | 3.9" / 9.9 cm | | Rotation Adjustment | 96° (-1 to 95°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -3 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.9 x 12.8 x 8.3" / 50.5 x 32.5 x 21.1 cm
19.9 x 11.9 x 3.1" / 50.4 x 30.2 x 7.8 mm (Without Stand) | | Weight | 10.5 lb / 4.8 kg (With Stand)
7.2 lb / 3.3 kg (Without Stand) |
