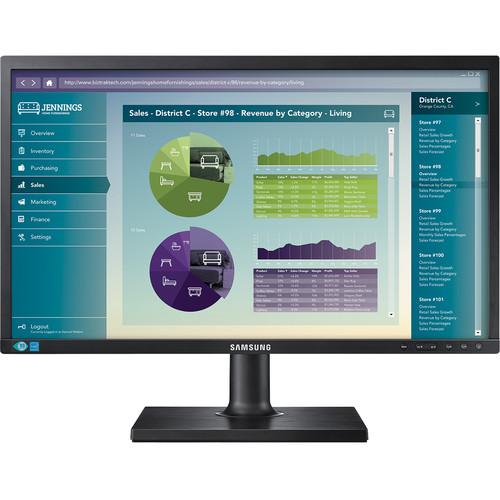

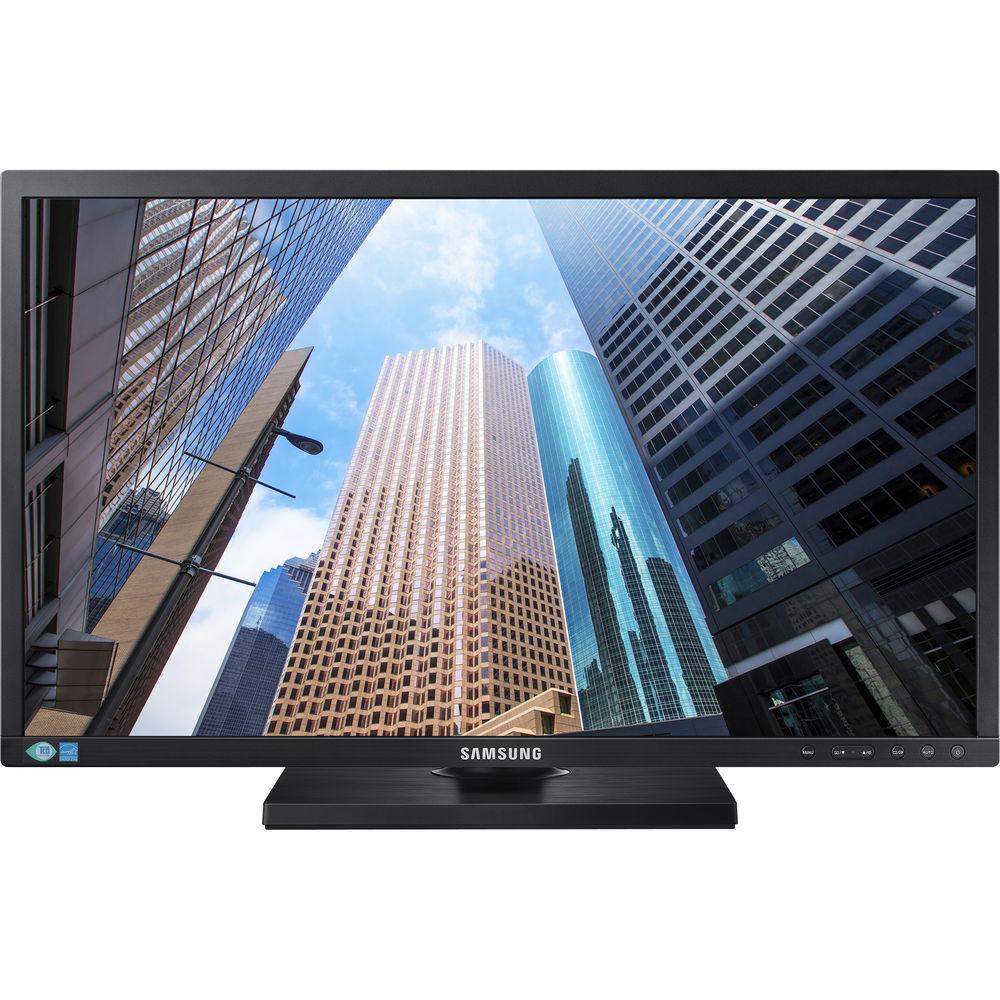

User Manual for Samsung S22E450BW 22" 16:10 Business-Class LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung S22E450BW 22" 16:10 Business-Class LCD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung S22E450BW 22" 16:10 Business-Class LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

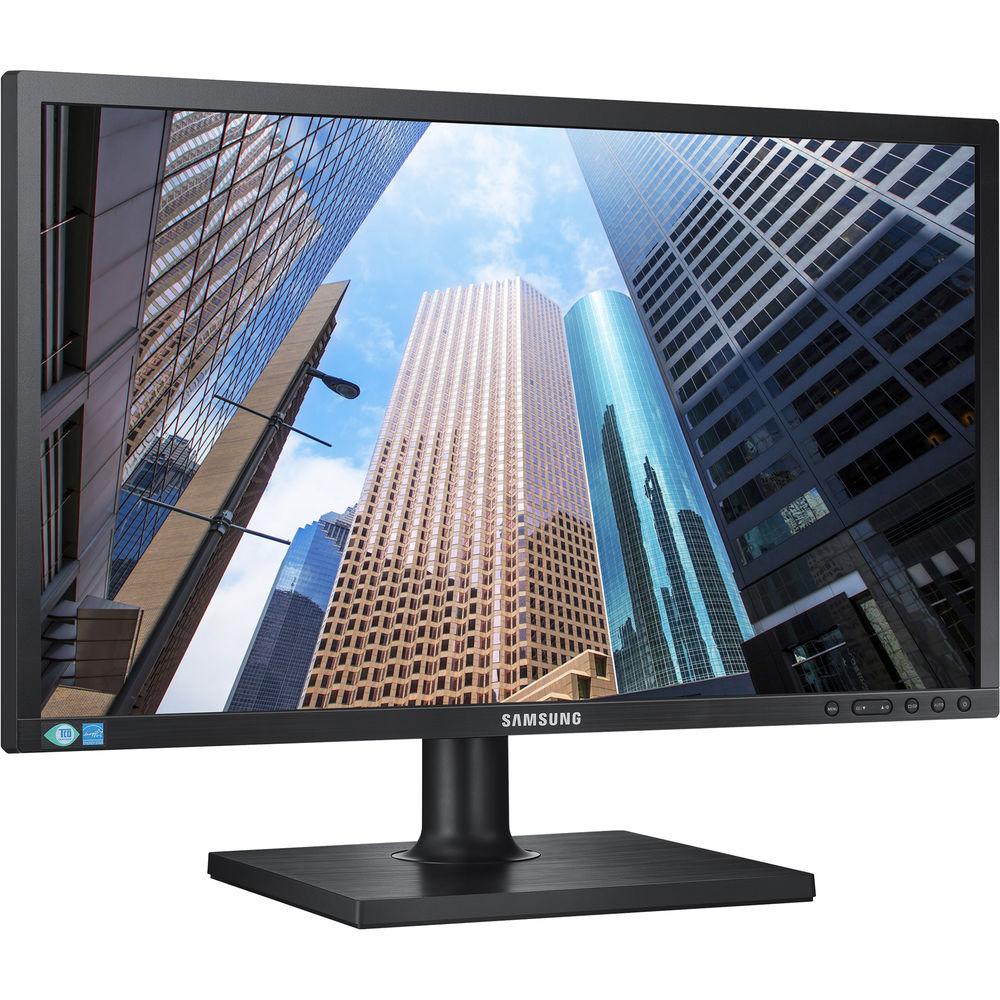

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The black S22E450BW 22" 16:10 Business-Class LCD Monitor from Samsung is an environmentally friendly desktop monitor for businesses. The 22" monitor is built from approximately 30% recycled plastic, comes in fully recyclable packaging, and has an off-mode power consumption of less than 0.005W. With a 1680 x 1050 resolution, its LED-backlit LCD screen delivers sharp, bright images. Its Mega Infinity dynamic contrast ratio helps provide subtle detail in even the lights and darks, while its Magic Angle technology retains the screen's color quality when viewed off-angle.
The LED monitor features a simple design with a matte black bezel and clearly labeled buttons, a low-glare commercial-grade TN panel, and a 16:10 aspect ratio for viewing legacy applications. The monitor's VGA and DVI connections provide flexible high-speed connectivity. Additionally, it offers USB sound bar compatibility, as well as stand and VESA mount compatibility. - Smart Eco-Saving function reduces screen brightness and increases energy efficiency
- Off Timer Plus function reduces power consumption and provides power-off scheduling
- Samsung MagicBright, MagicAngle, and MagicUpscale technologies
UPC: 887276099446 In the Box Samsung S22E450BW 22" 16:10 Business-Class LCD Monitor AC Power Cable DVI Cable VGA/D-Sub Cable Limited 3-Year Warranty User Manual PDF 8.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung S22E450BW 22" 16:10 Business-Class LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung S22E450BW Specs | | | Size | 22" | | Screen Area | 18.7 x 11.7" / 47.5 x 29.7 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1680 x 1050 | | Aspect Ratio | 16:10 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 81 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.282 x 0.282 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x DVI
1 x VGA | | | | Power Consumption | 19 W (Eco)
0.3 W (Standby)
24 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 95% | | | | Height Adjustment | 3.9" / 10 cm | | Rotation Adjustment | 96° (-1 to 95°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -3 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.9 x 12.8 x 8.3" / 50.5 x 32.5 x 21.1 mm (With Stand)
19.9 x 11.9 x 2.2" / 50.5 x 30.2 x 5.6 mm (Without Stand) | | Weight | 10.1 lb / 4.6 kg (With Stand)
6.8 lb / 3.1 kg (Without Stand) | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 22.5 x 16.25 x 7.0" |
