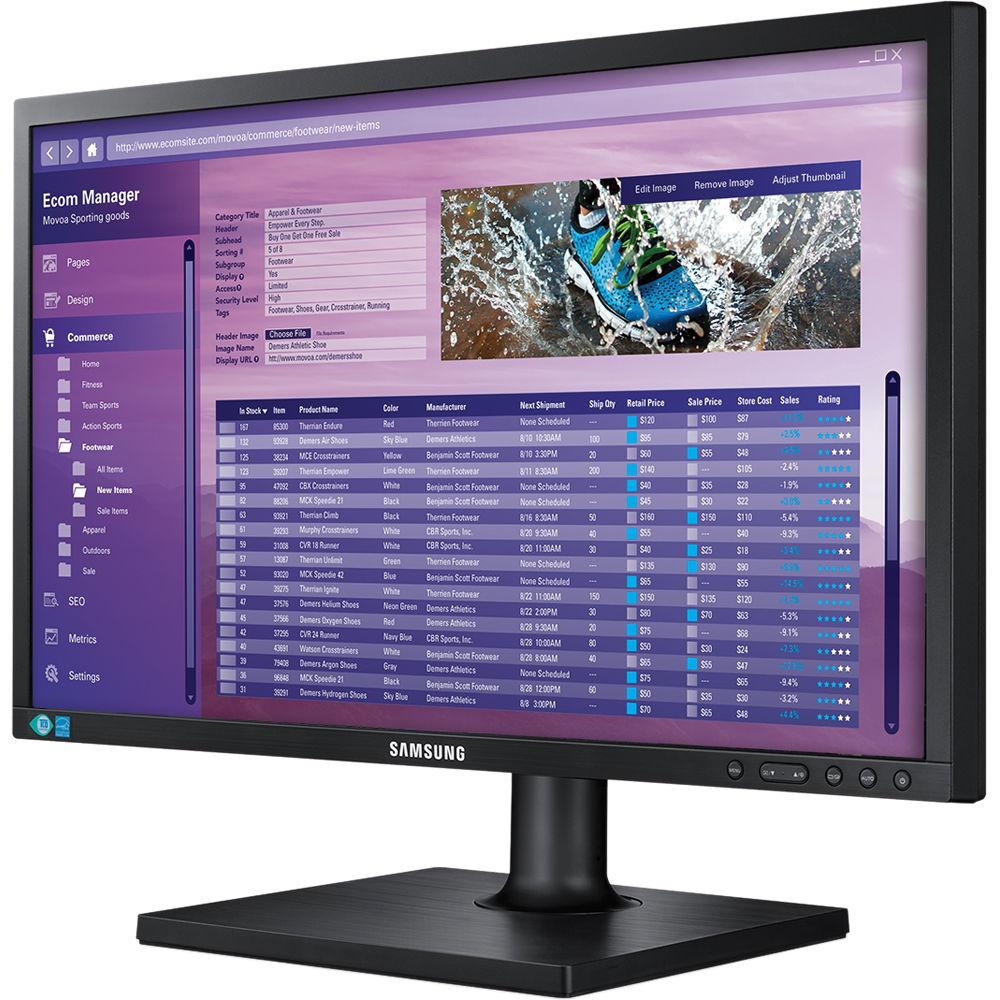

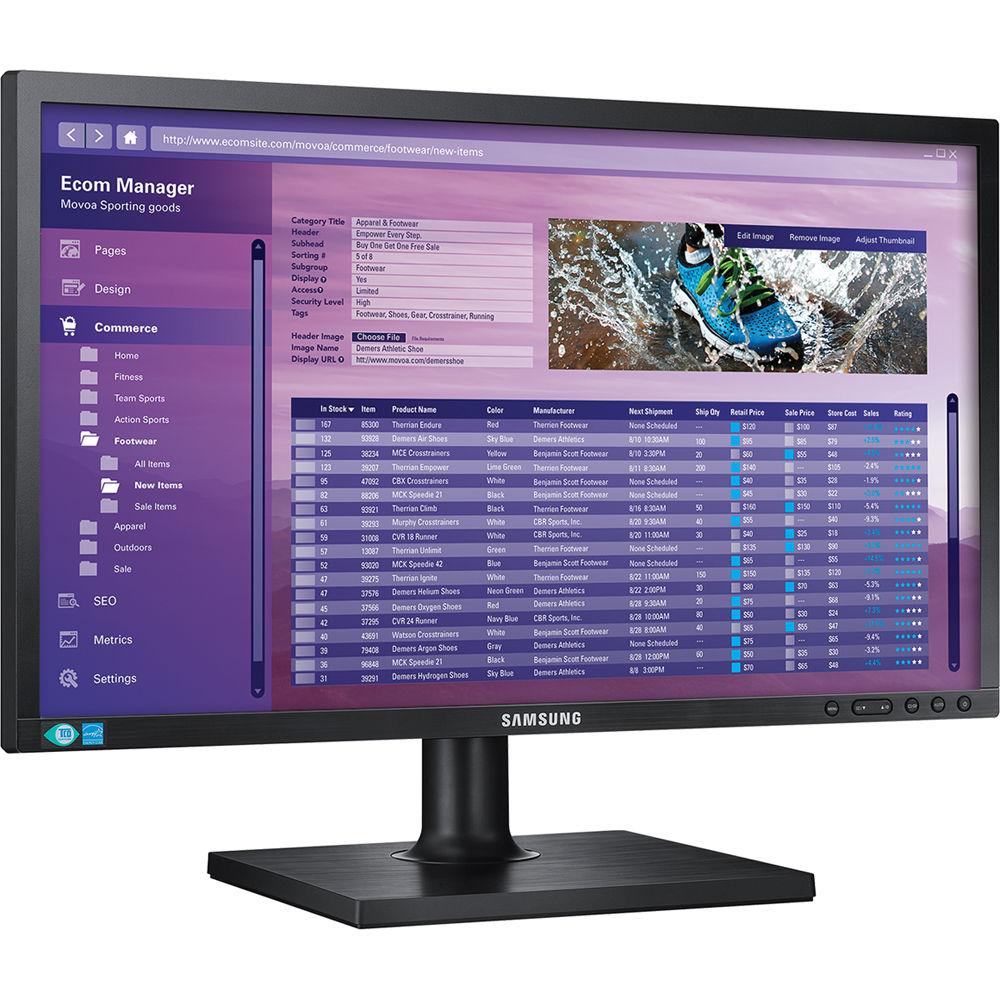

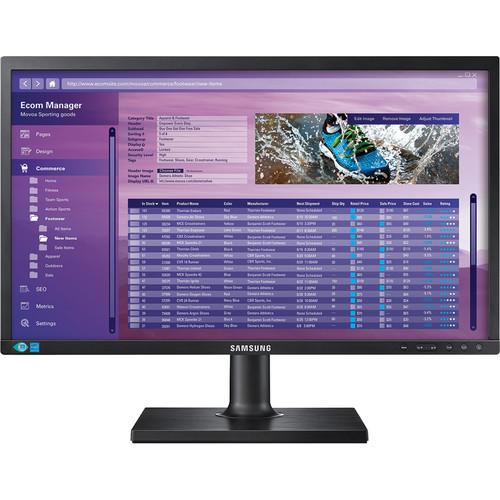

User Manual for Samsung S24E650DW 24" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Samsung S24E650DW 24" 16:10 IPS Monitor
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung S24E650DW 24" 16:10 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

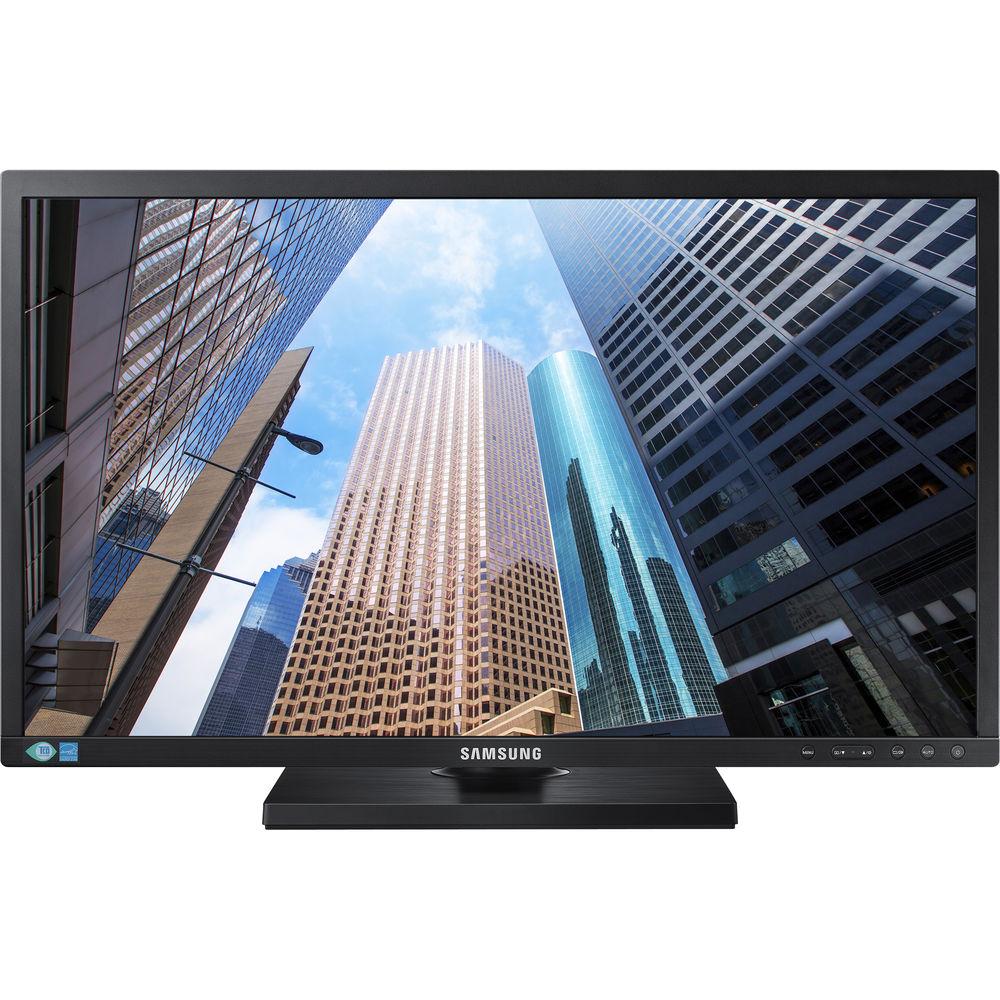

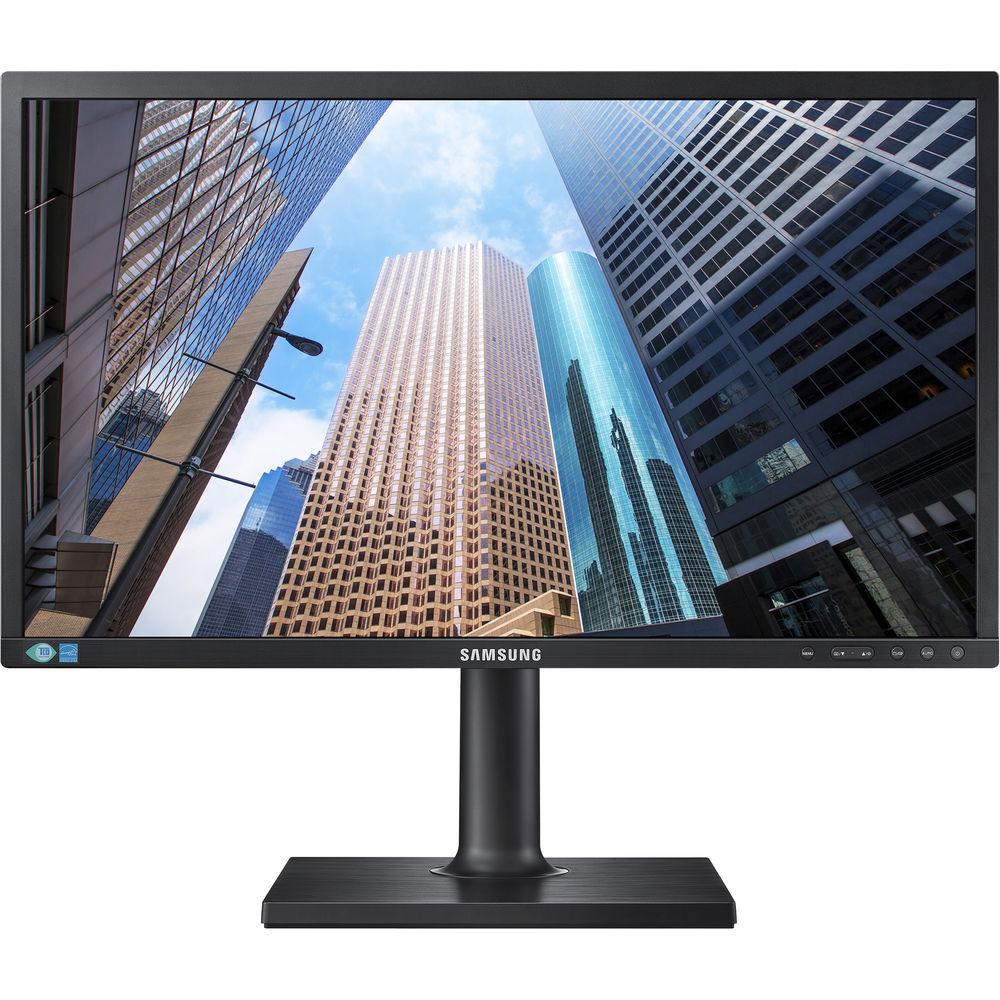

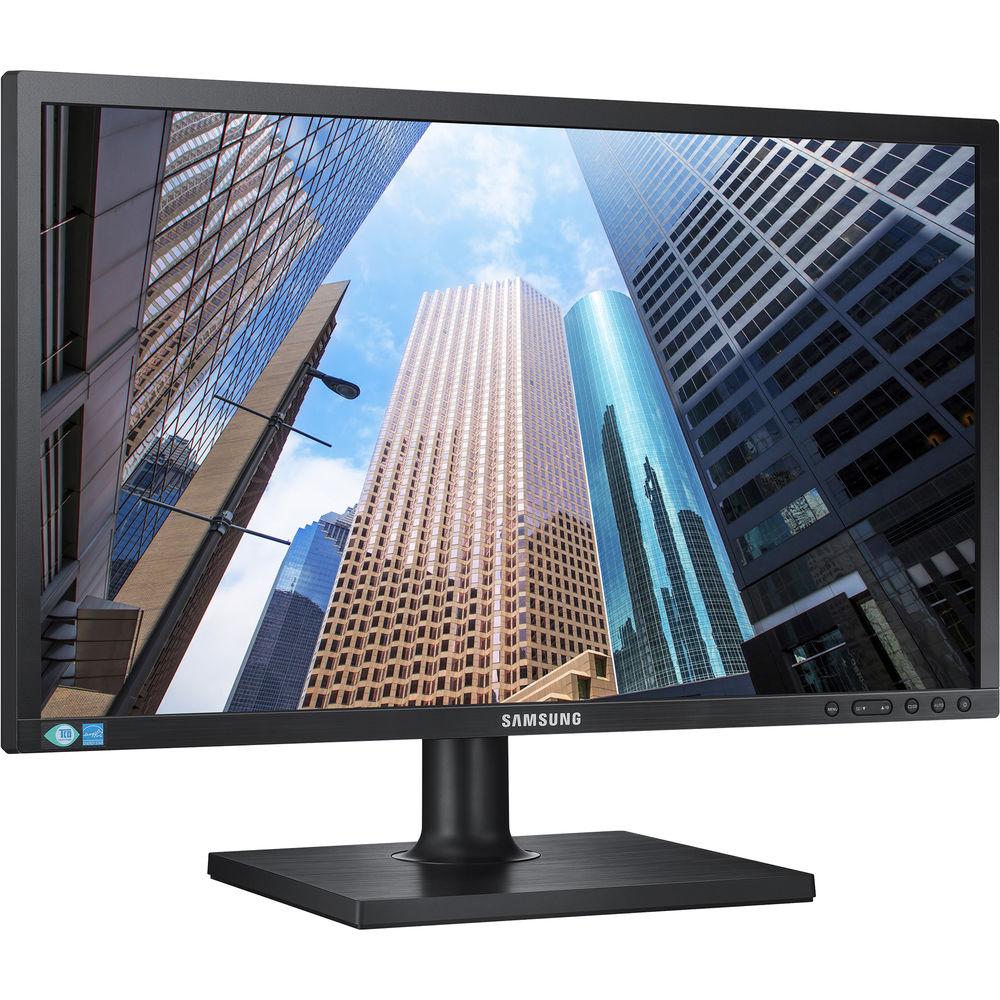

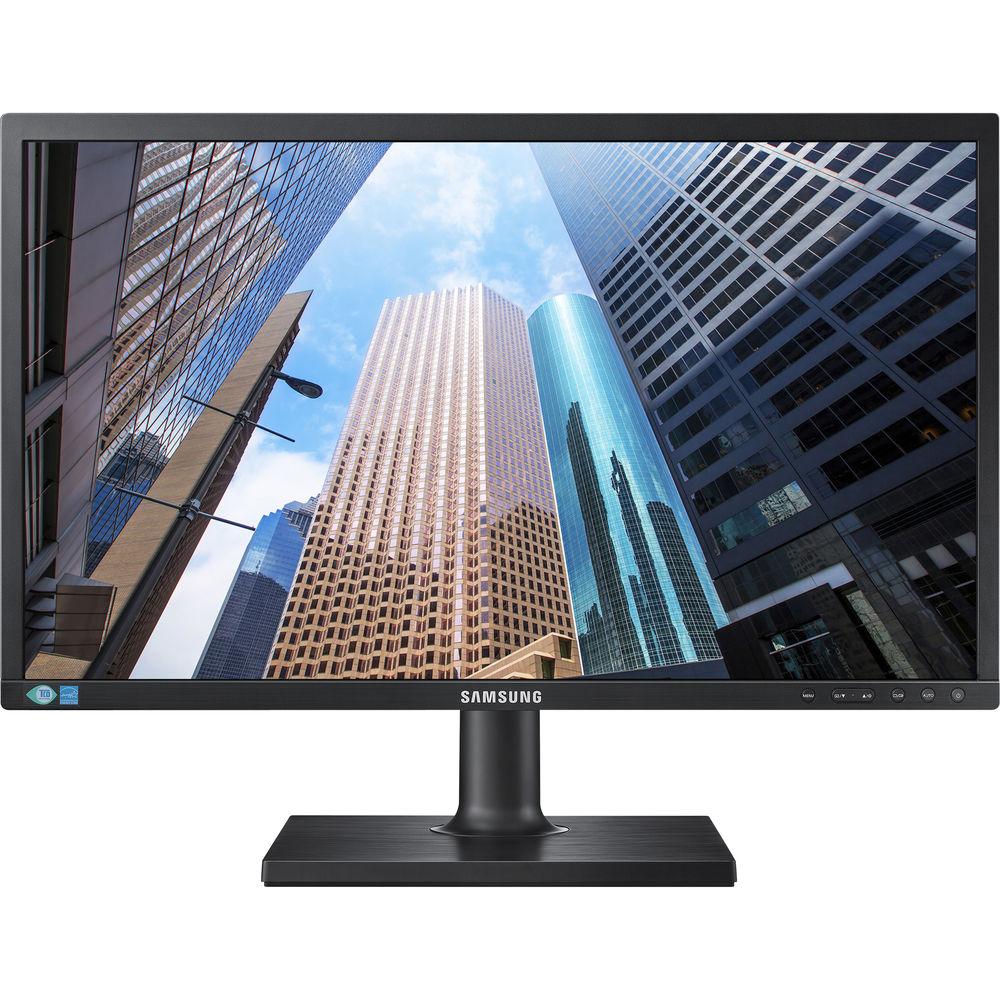

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The S24E650DW 24" 16:10 IPS Monitor from Samsung is built with a Plane-to-Line switching (PLS) panel that provides you with wide viewing angles and vivid colors. Enjoy crisp and clear HD content with its 1920 x 1200 resolution and support for 16.7 million colors. For subtle detail in the lights and darks, it has a static 1000:1 contrast ratio, a 250 cd/m² brightness rating, and MagicAngle technology, which delivers quality color even when viewed at off-angles. Connect this display to your system via VGA, DVI, DisplayPort, and two USB hub and use its built-in cable management options for a clutter-free work environment. An ergonomic stand allows you to swivel, tilt, pivot, and adjust the height of the monitor. - LED-backlit LCD screen for sharp and bright images
- Mega infinity dynamic contrast ratio enhances subtle detail in the lights and darks
- MagicAngle technology delivers quality color, even when viewed off-angle
- Eco features reduce power consumption when the monitor is in use
- Low profile stand takes up less desk space
- Built-in cable management feature for a clutter-free work environment

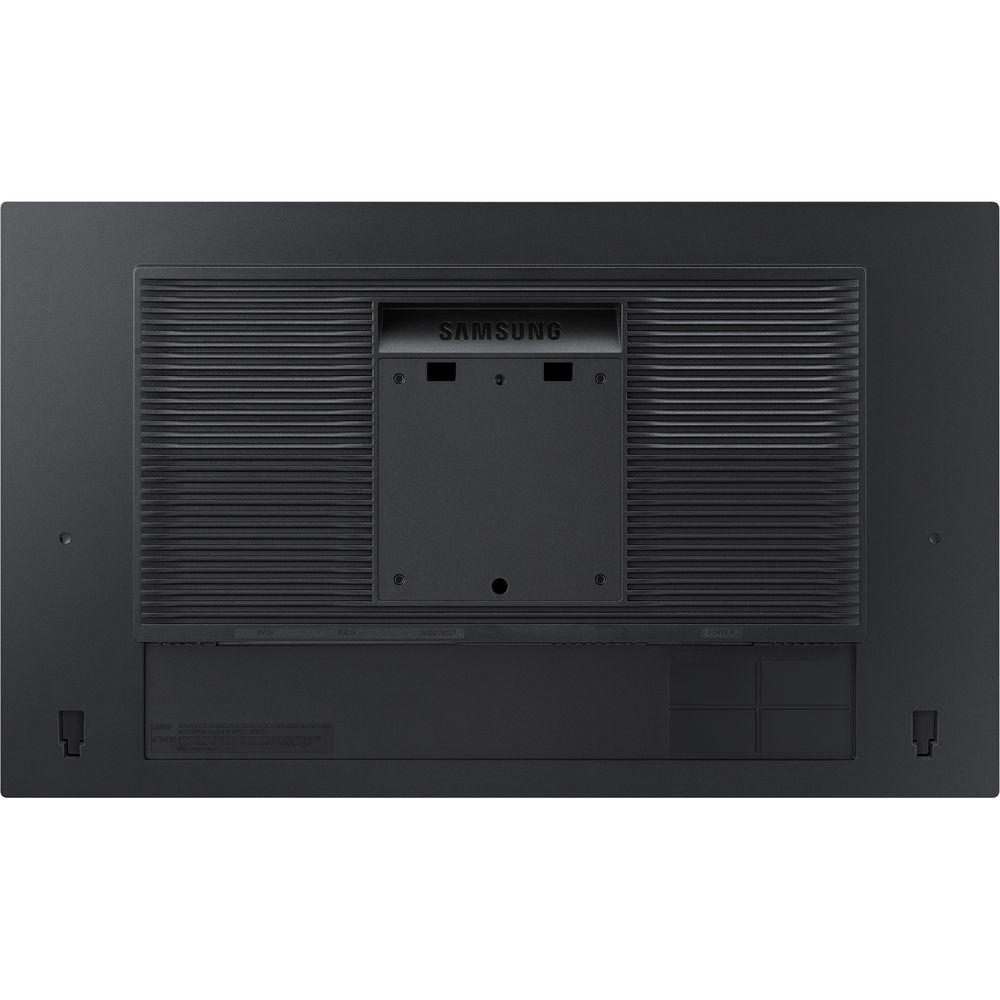

- VESA mount and speaker bar compatibility, VGA, DVI, DisplayPort, and two USB hub connections

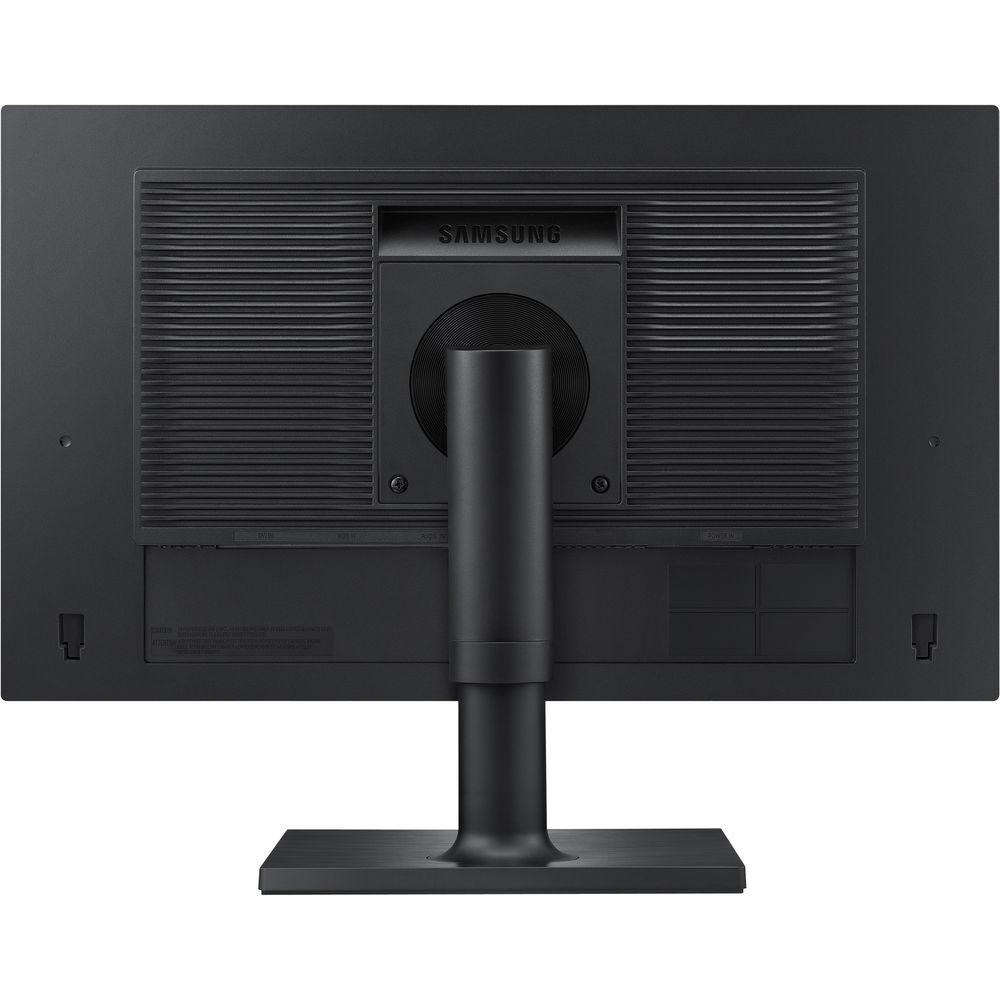

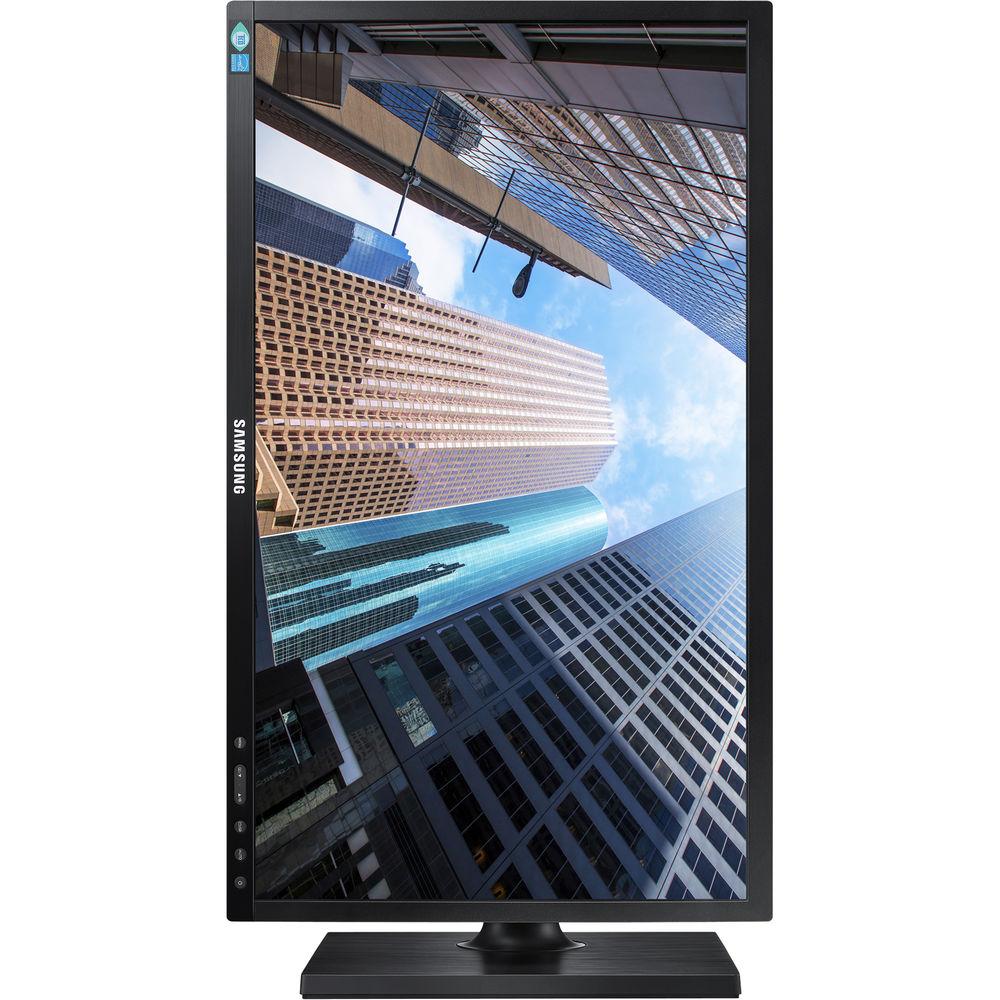

- An ergonomic stand allows the monitor to swivel, tilt, pivot, and is height adjustable
UPC: 887276112664 In the Box Samsung S24E650DW 24" 16:10 IPS Monitor DVI Cable DisplayPort Cable USB 2.0 Cable Limited 3-Year Warranty User Manual PDF 5.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung S24E650DW 24" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung S24E650DW Specs | | | Size | 24" | | Screen Area | 20.4 x 12.8" / 51.8 x 32.4 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27 x 0.27 mm | | | | Connectivity | 2 x USB Type-A
1 x DVI
1 x DisplayPort Input
1 x VGA | | | | Power Consumption | 25 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 95% | | | | Height Adjustment | 5.2" / 13.2 cm | | Rotation Adjustment | 96° (-1 to 95°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -3 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.8 x 15.2 x 8.8" / 55.4 x 38.6 x 22.4 cm
21.8 x 14.1 x 2.2" / 55.4 x 35.8 x 5.6 mm (Without Stand) | | Weight | 12.8 lb / 5.8 kg (With Stand)
9.1 lb / 4.1 kg (Without Stand) | | | | Package Weight | 17.45 lb | | Box Dimensions (LxWxH) | 25.0 x 16.9 x 7.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
