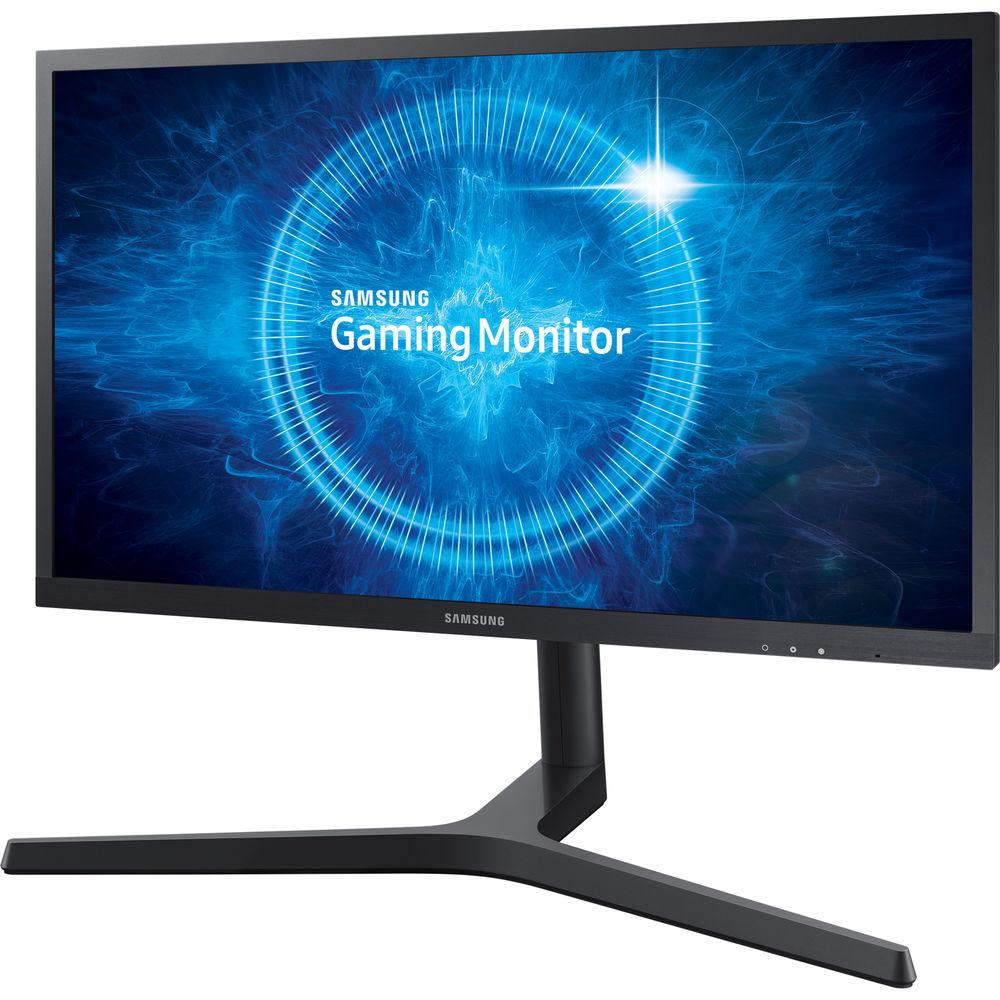

User Manual for Samsung S25HG50FQN 24.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung S25HG50FQN 24.5" 16:9 LCD Monitor
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung S25HG50FQN 24.5" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed to support a wide variety of activities from gaming to business, the S25HG50FQN 24.5" 16:9 LCD Monitor from Samsung offers a variety of features to enhance the overall viewing experience. This Full HD monitor features a 1920 x 1080 resolution accompanied by a 1,000:1 contrast ratio, a 1 ms response time, and a 144 Hz refresh rate for a crisp, clear picture quality with reduced ghosting.
This Samsung monitor also supports a brightness rating of 400 cd/m² along with Black Equalizer technology, which is designed to brighten dark areas of the screen. Setup is simple as the S25HG50FQN monitor comes equipped with both HDMI and DisplayPort inputs.
Once configured, this Samsung monitor has the features to satisfy the needs of both gamers and business users alike. Built-in AMD FreeSync technology syncs the monitor to compatible graphics cards, further enhancing fast gaming and video scenes. Additionally, Game Mode lets the user switch between preconfigured modes to suit the type of game being played. For added viewing comfort, the monitor can be swiveled, pivoted, and the height can be adjusted to take full advantage of the 170° horizontal and 160° vertical viewing angles. - Designed for Fast Moving Content
- The 144 Hz refresh rate and 1 ms response time work together to deliver a smooth and crisp presentation of fast moving content, helping to eliminate blurring, ghosting, and juddering and reducing lag for gaming and video content.
- Enhanced Video Experience
- AMD FreeSync technology synchronizes the refresh rate to match the output of the graphic card, so that videos can have a smoother frame display without stuttering or tearing.
- Game Mode
- Instantly activate Game Mode for an optimized gaming experience. Improved dark scenes let all movement be vividly seen. Black gamma, sharpness, contrast, and color tune are also customizable with four different Game Modes available (FPS, RPG, RTS, AOS).
- Enhanced Picture Quality
- The Full HD LED-backlit LCD screen delivers a sharp and bright picture with 400 cd/m² brightness.
- Black Equalizer and Low Input Lag Mode
- Samsung's Black Equalizer has twenty different dark level values to enhance the visibility of details in dark areas of your content. Low Input Lag Mode maximizes keyboard and mouse response times to improve your efficiency at work.
- Gaming User Interface
- Experience an intuitive gaming UI with a 5-way joystick and 3 hot keys to save your game settings. Plus, you can easily and quickly change the refresh rate, response time, and brightness.

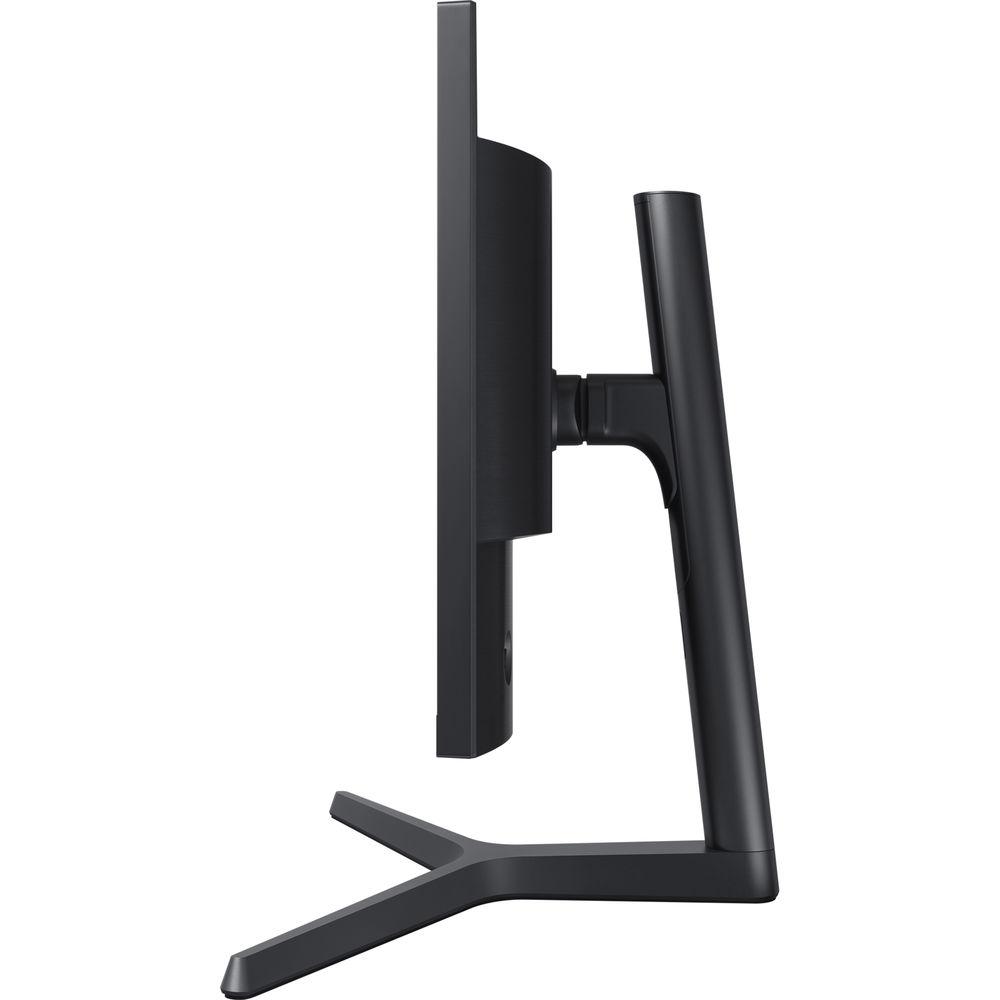

- Ergonomic, Adjustable Stand
- The monitor swivels, tilts, pivots, and is height-adjustable. Since it is VESA compatible, installation on a wall or separate mounting arms is easy.
- Easy on the Eyes
- Eye Saver Mode and Flicker Free technology help to reduce eye strain for a more comfortable work experience, even during long work hours. When Eye Saver Mode is active, blue light levels are lowered. Flicker-free technology eliminates flickering at all levels of brightness.
UPC: 887276210711 In the Box Samsung S25HG50FQN 24.5" 16:9 LCD Monitor HDMI Cable DisplayPort Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung S25HG50FQN 24.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung S25HG50FQN Specs | Screen Size | 24.5" / 62.2 cm | | Display Type | TN | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | Typical
400 cd/m²
Minimum
320 cd/m² | | Contrast Ratio | Static
1,000:1 (typical)
Dynamic
Mega | | Viewing Angles (H/V) | 170°/160° | | Response Time | 1 ms | | Active Display Area | 21.4 x 11.9" / 54.4 x 30.3 cm | | Color Support | 16.7 million | | Power | Power Supply
Internal 100-240 VAC
Power Consumption
Max: 30 W
Typical: <0.3 W | | VESA Mount Standard | 100 x 100 mm | | Refresh Rate | 144 Hz | | Ergonomics | Height Adjustable
5.3" / 135 mm
Tilt
-3 to 20°
Swivel
-15 to 15°
Pivot
-2 to 92° | | Inputs | 2 x HDMI
1 x DisplayPort
1 x Headphone jack | | Temperature & Humidity | Operating Temperature
50 to 104°F / 10 to 40°C
Operating Humidity
10 to 80% non-condensing | | Dimensions | With Stand
22.5 x 20.8 x 11.1" / 57.2 x 52.8 x 28.2 cm
Without Stand
22.5 x 13.3 x 2.1" / 57.2 x 33.8 x 5.3 cm | | Weight | With Stand
11.9 lb / 5.4 kg
Without Stand
8.8 lb / 4.0 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 28.0 x 16.0 x 10.0" |
