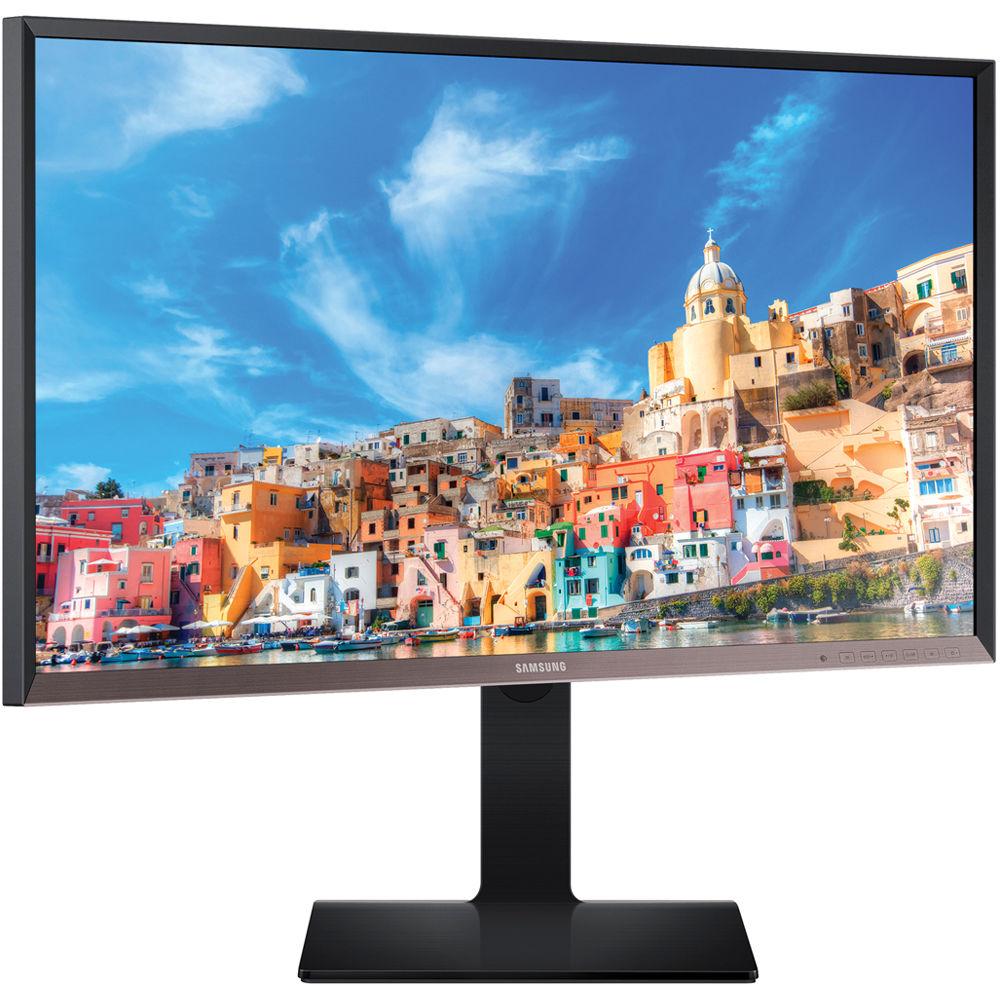

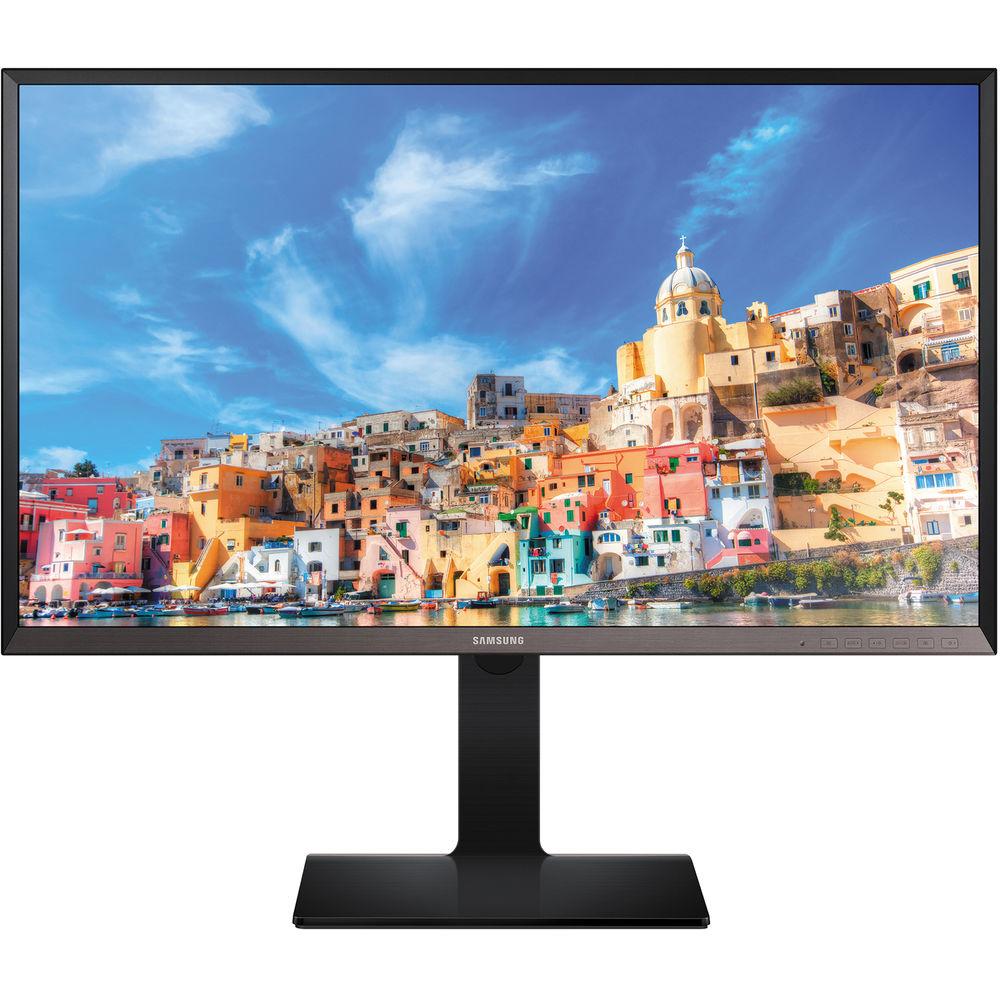

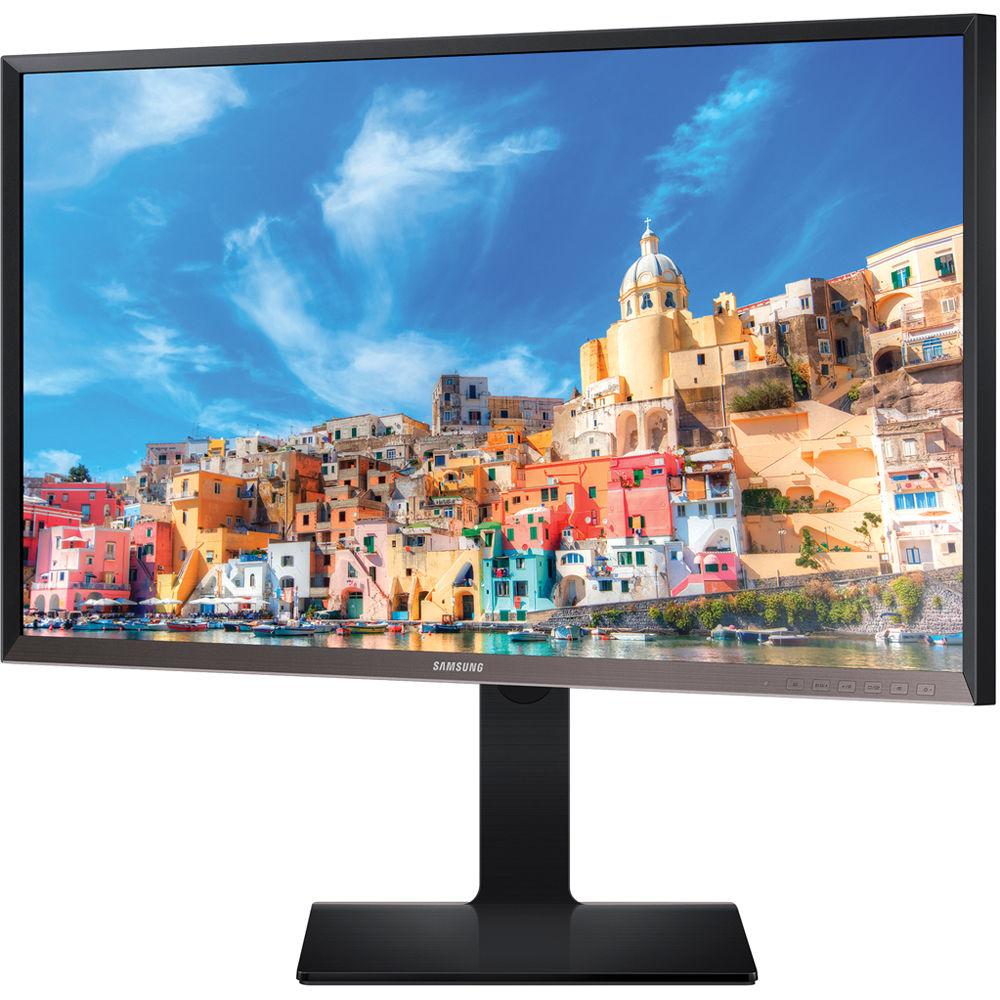

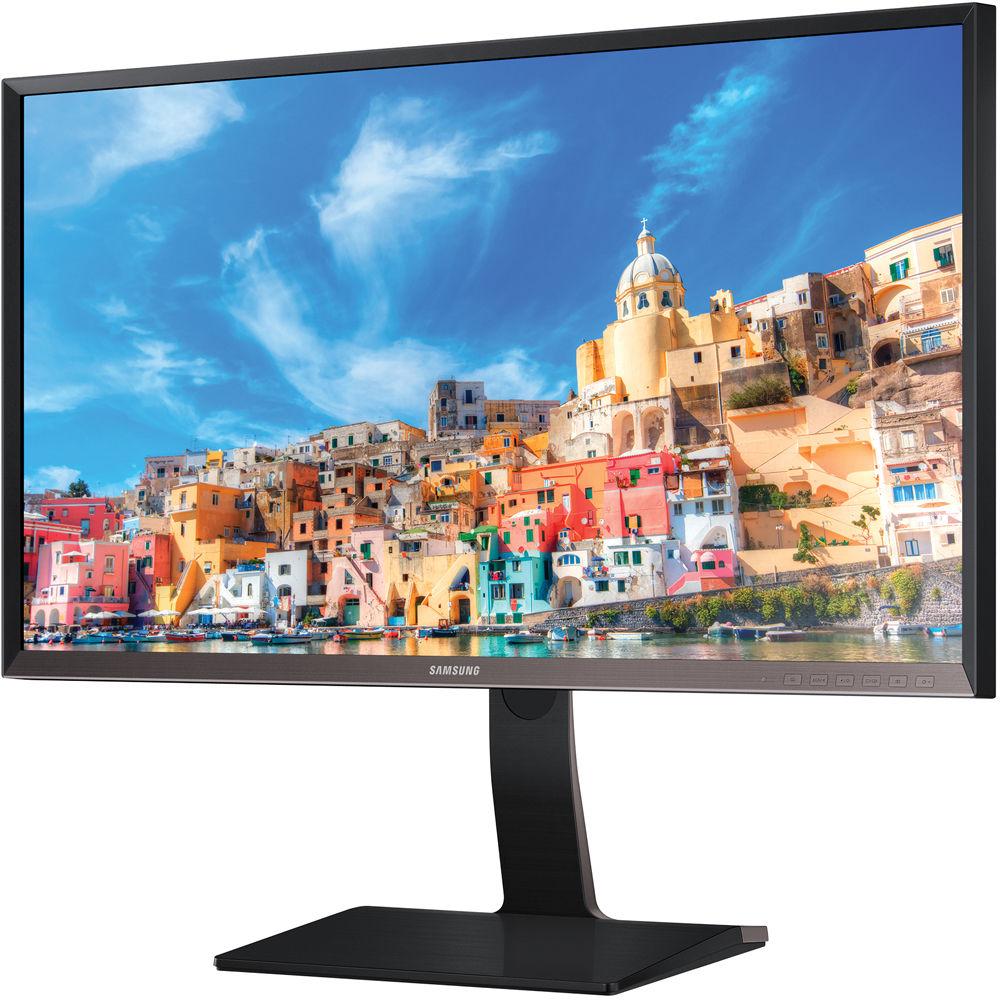

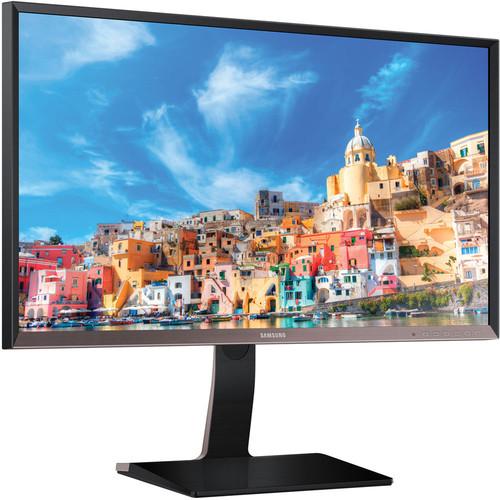

User Manual for Samsung S32D850T 32" Widescreen LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung S32D850T 32" Widescreen LED Backlit
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung S32D850T 32" Widescreen LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a WQHD 2560 x 1440 resolution, the S32D850T 32" Widescreen LED Backlit LCD Monitor from Samsung is capable of displaying content at up to four times the resolution of standard Full HD. Along with an enhanced resolution, you benefit from 100% sRGB coverage for enhanced color accuracy. With picture-by-picture and picture-in-picture technologies you can transform the way you view your multimedia content, the way you work, and much more.
Picture-by-picture technology lets you view content from two separate PCs simultaneously while picture-in-picture lets you utilize two windows at the same time, on top of one another. Whether viewing two things at once, or just using the monitor to do some work, you benefit from enhanced 178° horizontal and vertical viewing angles along with the ability to raise and lower, tilt, and pivot the monitor for enhanced viewing comfort.

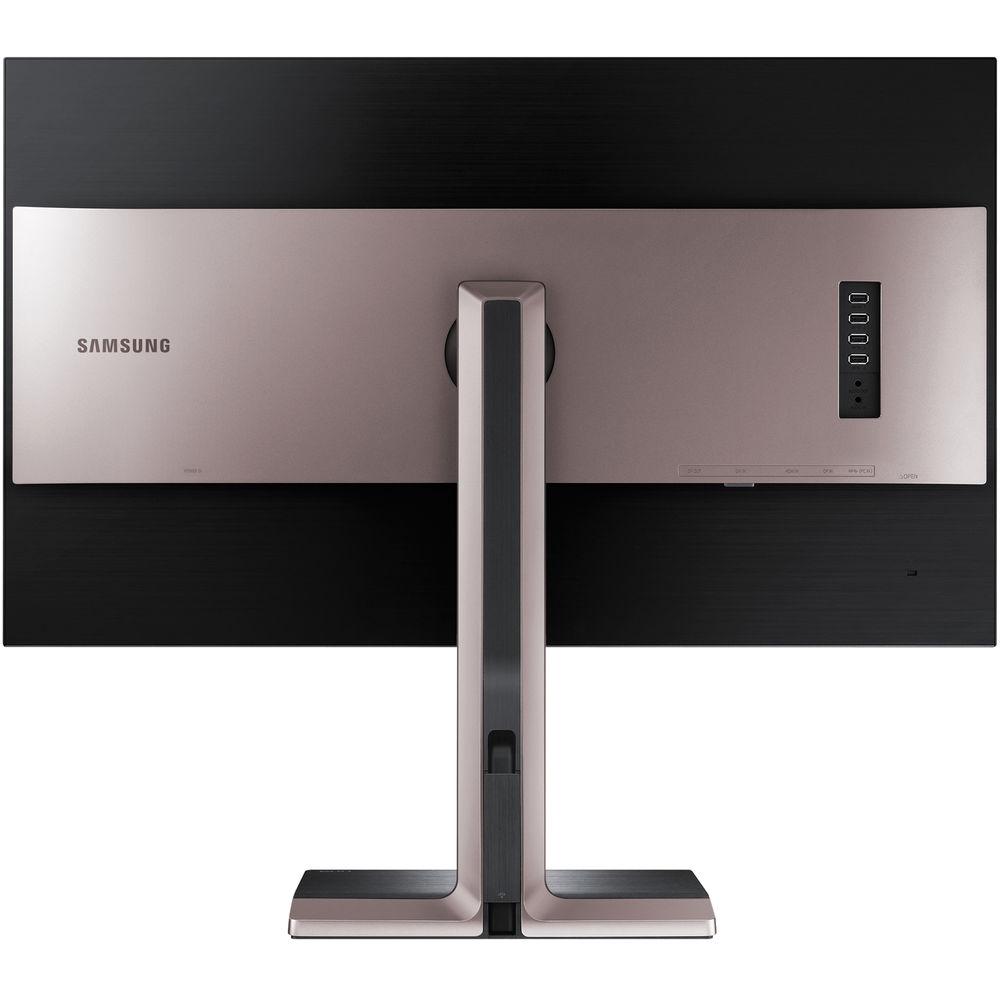

The S32D850T comes equipped with a 2560 x 1440 resolution providing greater detail for viewing a variety of content. The fast 5 ms response time ensures reduced lag for fast moving videos and movies, while the 3,000:1 contrast ratio ensures you receive darker dark and brighter bright colors. The back of the monitor features DVI, HDMI, and DisplayPort connectors along with a five port USB 3.0 hub and audio in and out ports making it easy to connect this Samsung monitor to a variety of computer configurations. - Precision to the Finest Detail
- The WQHD SD850 Monitor features a large 32" display, four times the pixel resolution of HD and 100% sRGB screen technology providing an enhanced visual experience that lets you see more details at a glance.
- Clean, Professional Design

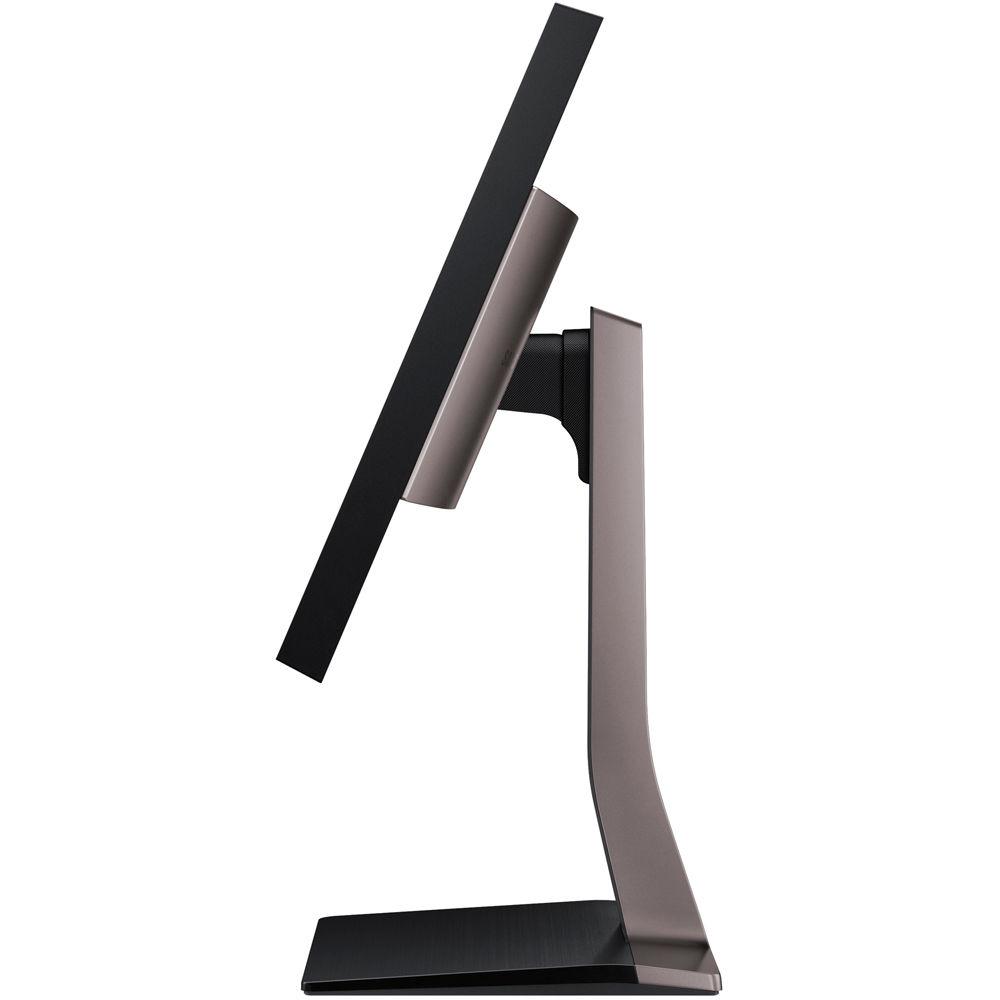

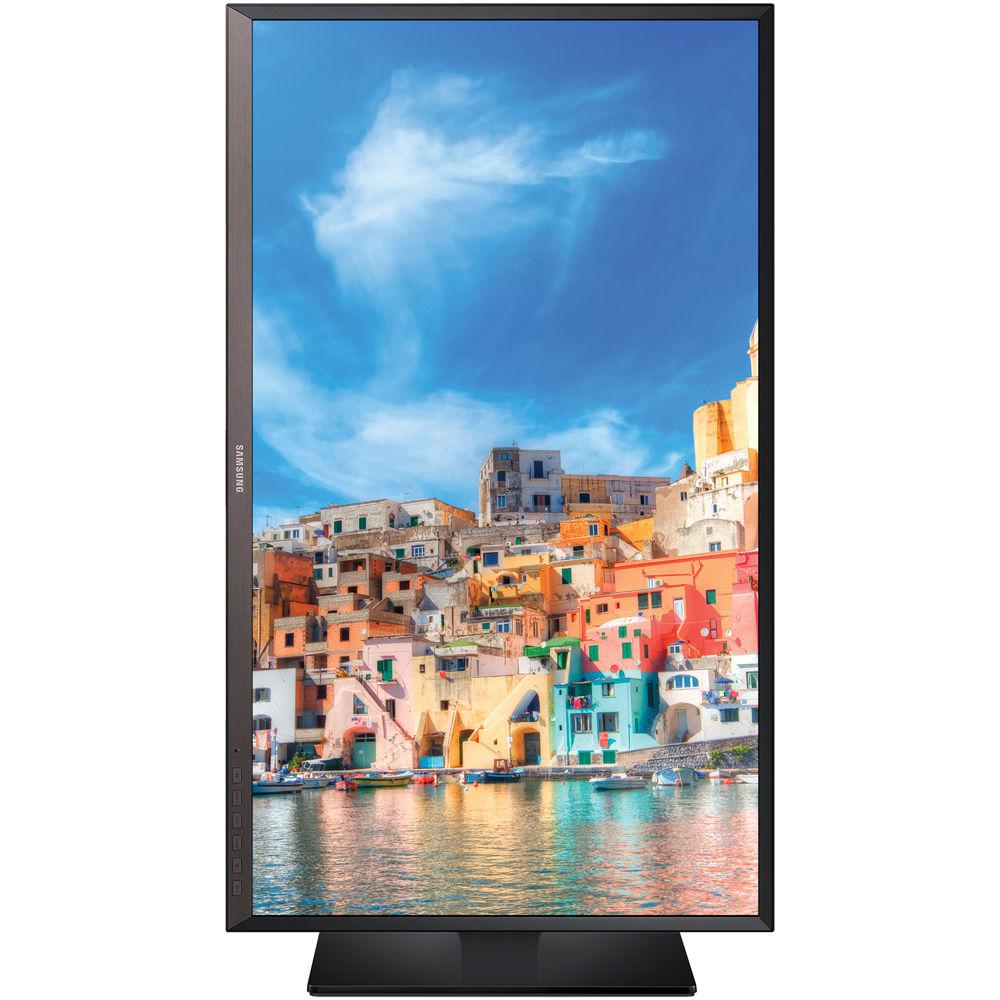

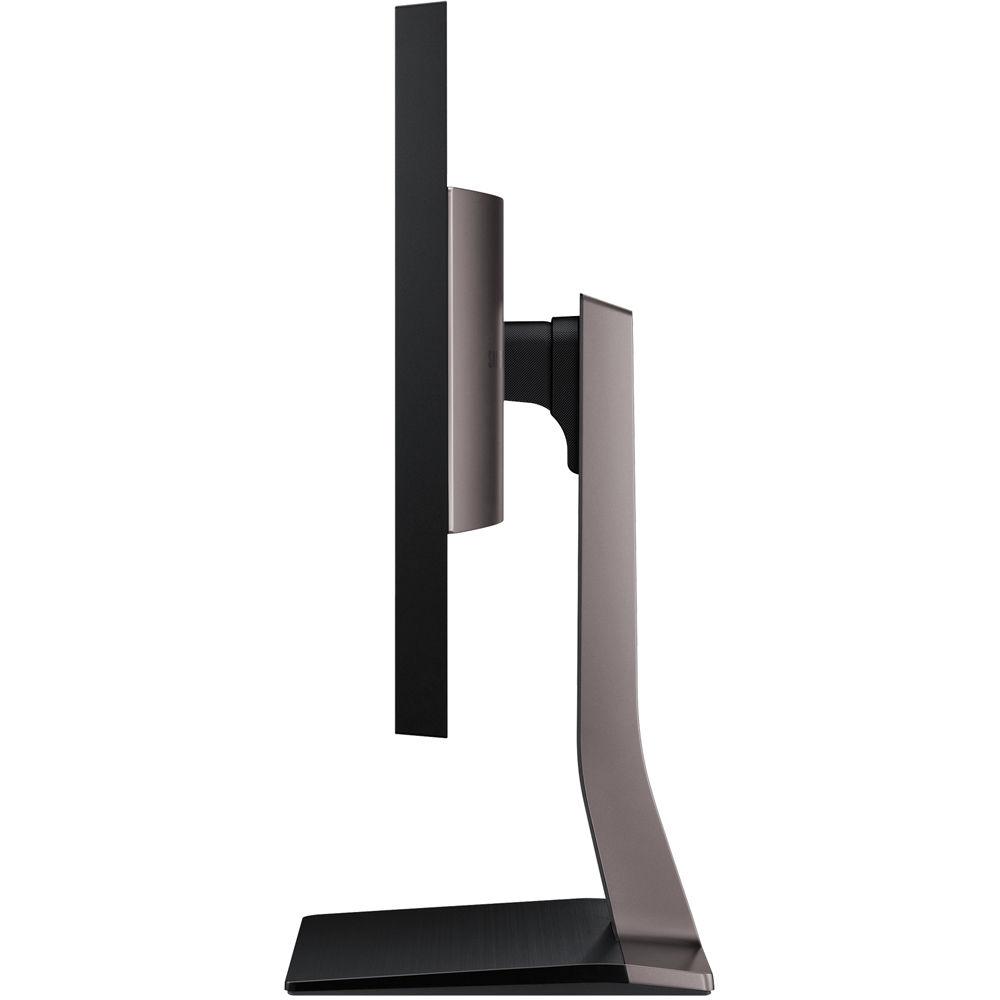

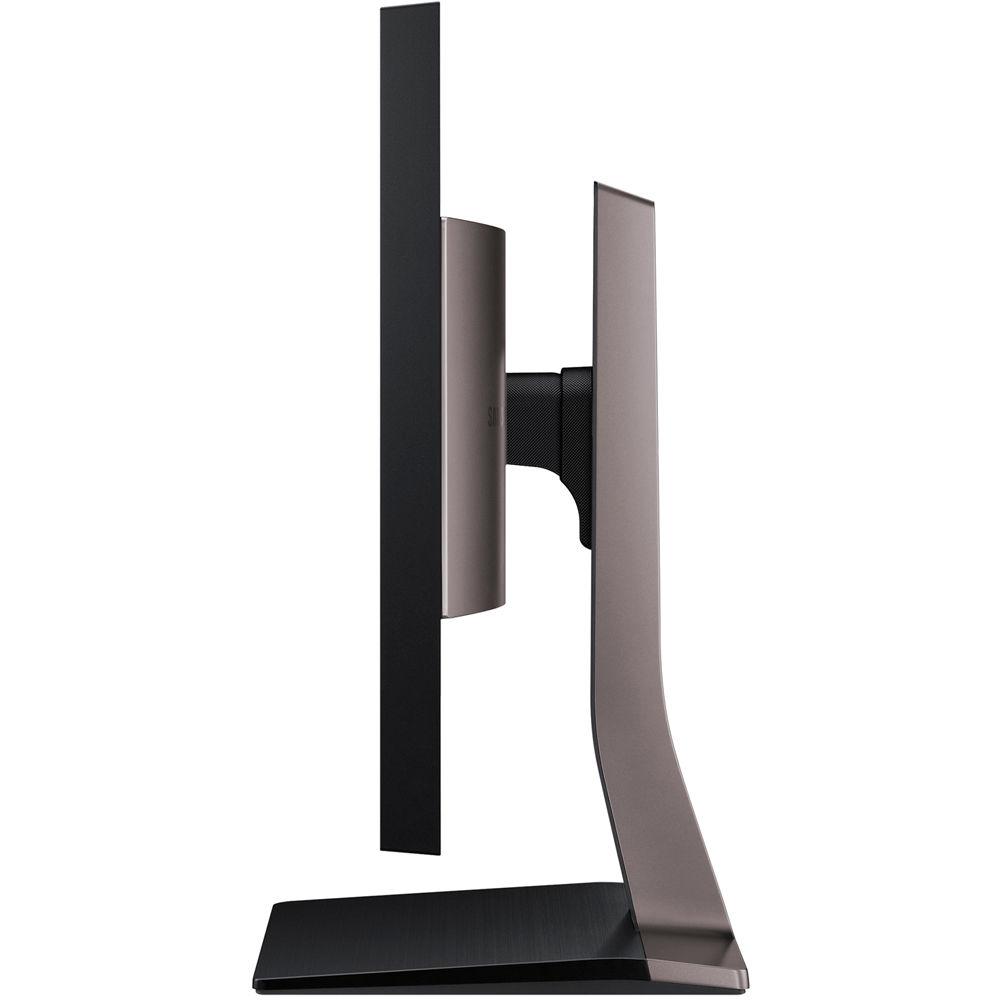

- Optimize your viewing experience and increase your productivity with the SD850's ergonomic stand. The hinge technology allows for versatile height adjustment, and the ability to tilt, and pivot the monitor as well.
- Easy Multitasking with PIP 2.0
- With Picture-in-Picture (PIP) 2.0 technology, you can watch your favorite movie or video in one window while simultaneously working on a spreadsheet. Whether it's 720p or 480p, PIP 2.0 doesn't downscale but maintains the source's original resolution up to HD.
- Entertainment from Every Angle
- Wide Viewing Panel provides 178° wide viewing angle horizontally and vertically, so that you can experience the optimal screen from any position.
- Gentle on the Eyes
- Samsung's Eco light sensor technology automatically adjusts screen brightness to match your surrounding environment, which ensures that the screen is highly visible and appropriately set for your eyes. This feature also significantly reduces energy consumption which is better for the environment.
- Enhanced Connectivity
- The SD850 provides a broad range of useful and advanced connections that can enhance your productivity.
• Triple Interface: Provides seamless connectivity with your PC and AV equipment with Display Port 1.2, HDMI 1.4, and DVI-D Dual Link support
• USB 3.0 Hub: 4 fast USB connections replace the need for a docking station
USB Super Charging: Charge mobile devices 3 times faster than 2.0 UPC: 887276057651 In the Box Samsung S32D850T 32" Widescreen LED Backlit LCD Monitor Install CD (Manual) Mini-DisplayPort to DisplayPort Cable DVI-DL Cable HDMI 1.4 Cable DisplayPort 1.2 Cable Power Cable USB 3.0 Cable Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung S32D850T 32" Widescreen LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung S32D850T Specs | | | Size | 32" | | Screen Area | 27.9 x 15.7" / 70.8 x 39.9 cm | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.27675 x 0.27675 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
1 x USB Type-B Input
4 x USB Type-A Output
1 x DVI
1 x DisplayPort Input
1 x HDMI | | | | Power Consumption | 100 W (Maximum)
0.5 W (Standby)
65 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 5 to 90% | | Certifications | ENERGY STAR, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Mounting-Hole Pattern | 100 x 100 mm, 200 x 200 mm | | Dimensions (W x H x D) | 29.2 x 19.7 x 11.0" / 74.1 x 50.0 x 28.0 mm (With Stand)
29.2 x 17.4 x 2.7" / 74.1 x 44.1 x 6.8 mm (Without Stand) | | Weight | 26.8 lb / 12.2 kg
20.7 lb / 9.4 kg (Without Stand) | | | | Package Weight | 39.2 lb | | Box Dimensions (LxWxH) | 34.0 x 21.0 x 14.0" |
