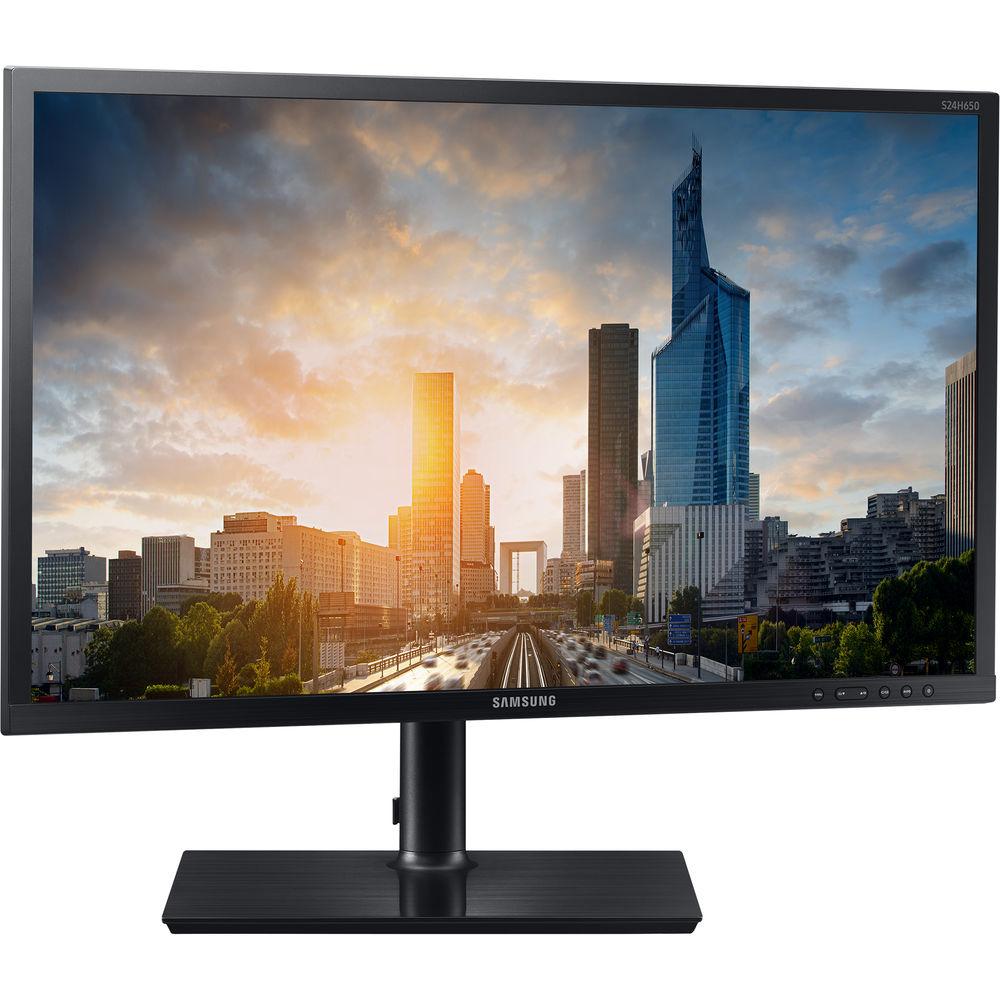

User Manual for Samsung SH650 Series 24" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung SH650 Series 24" 16:9 LCD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung SH650 Series 24" 16:9 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

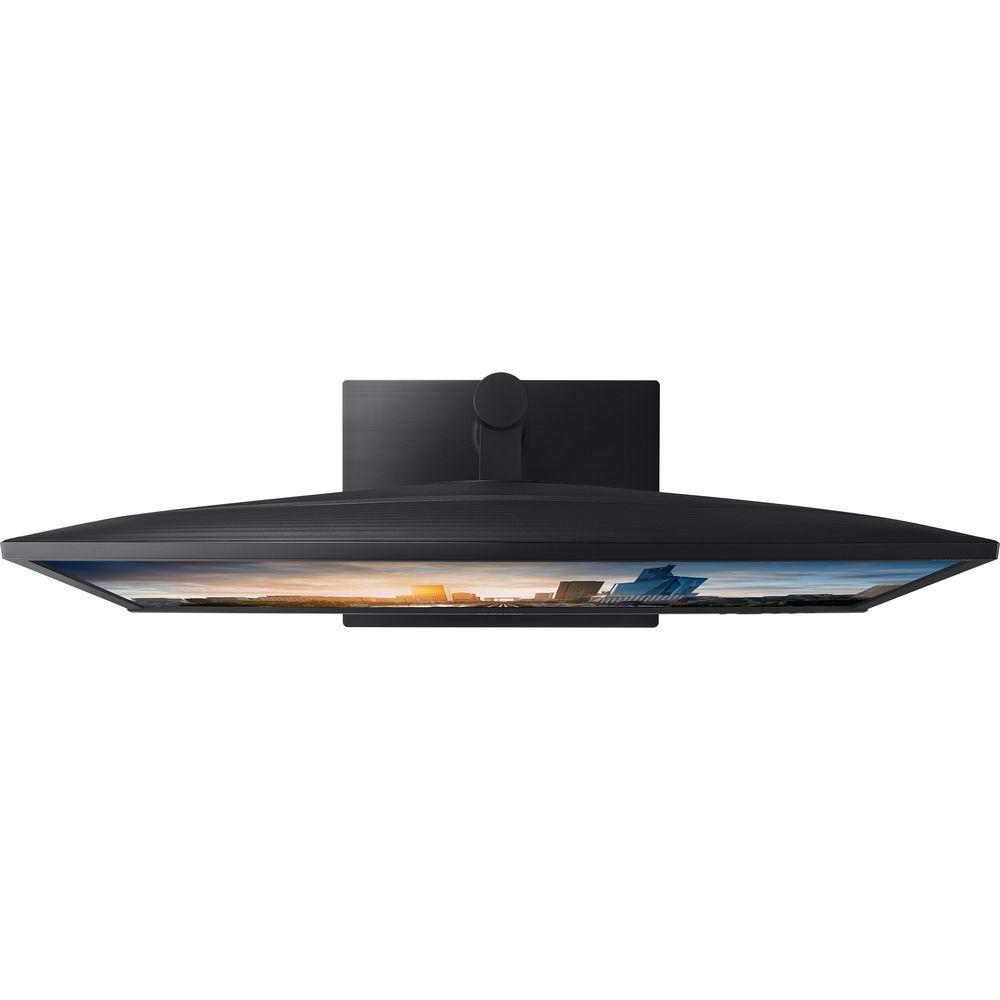

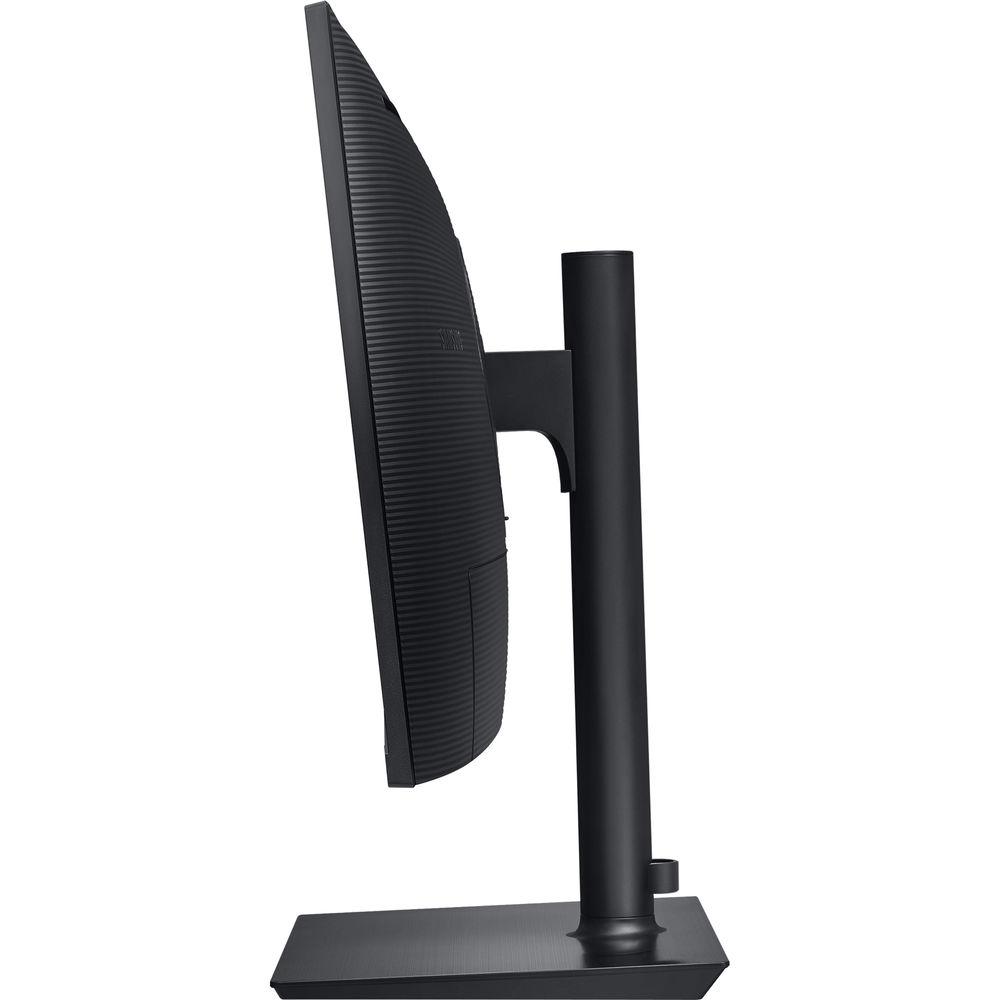

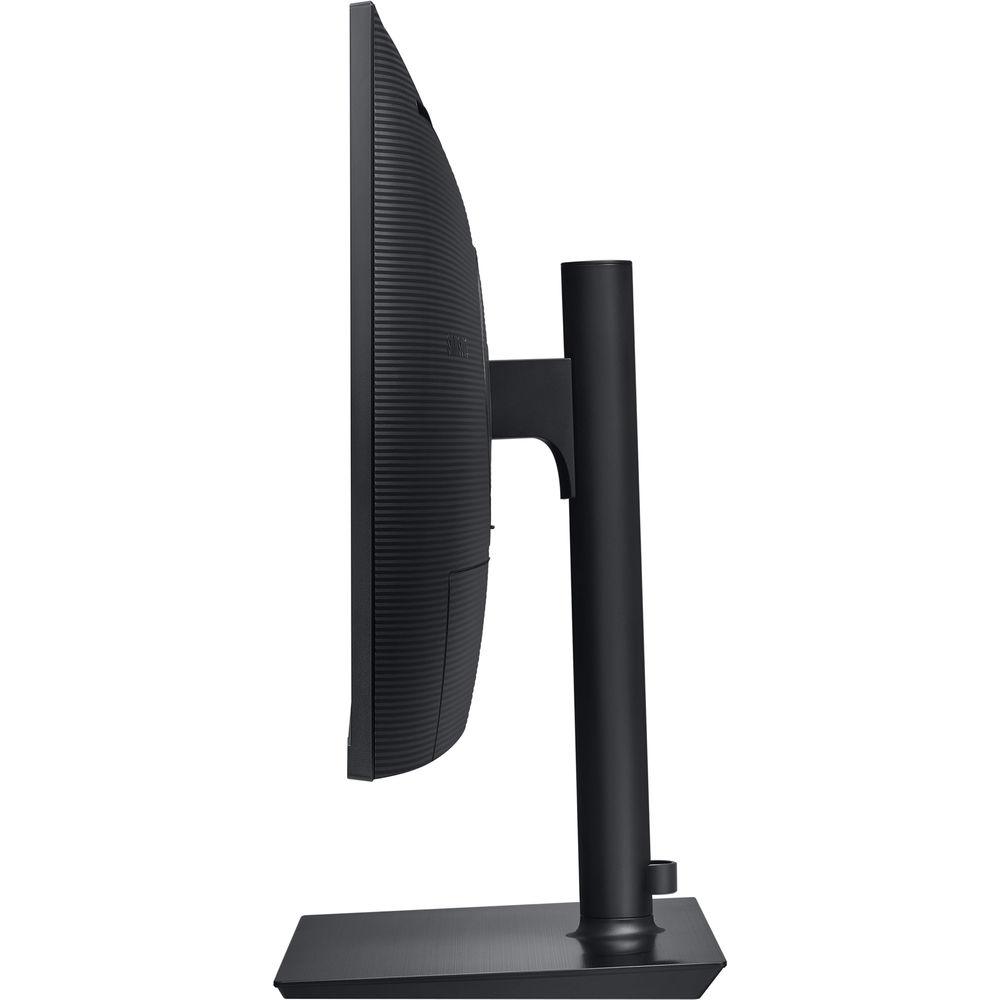

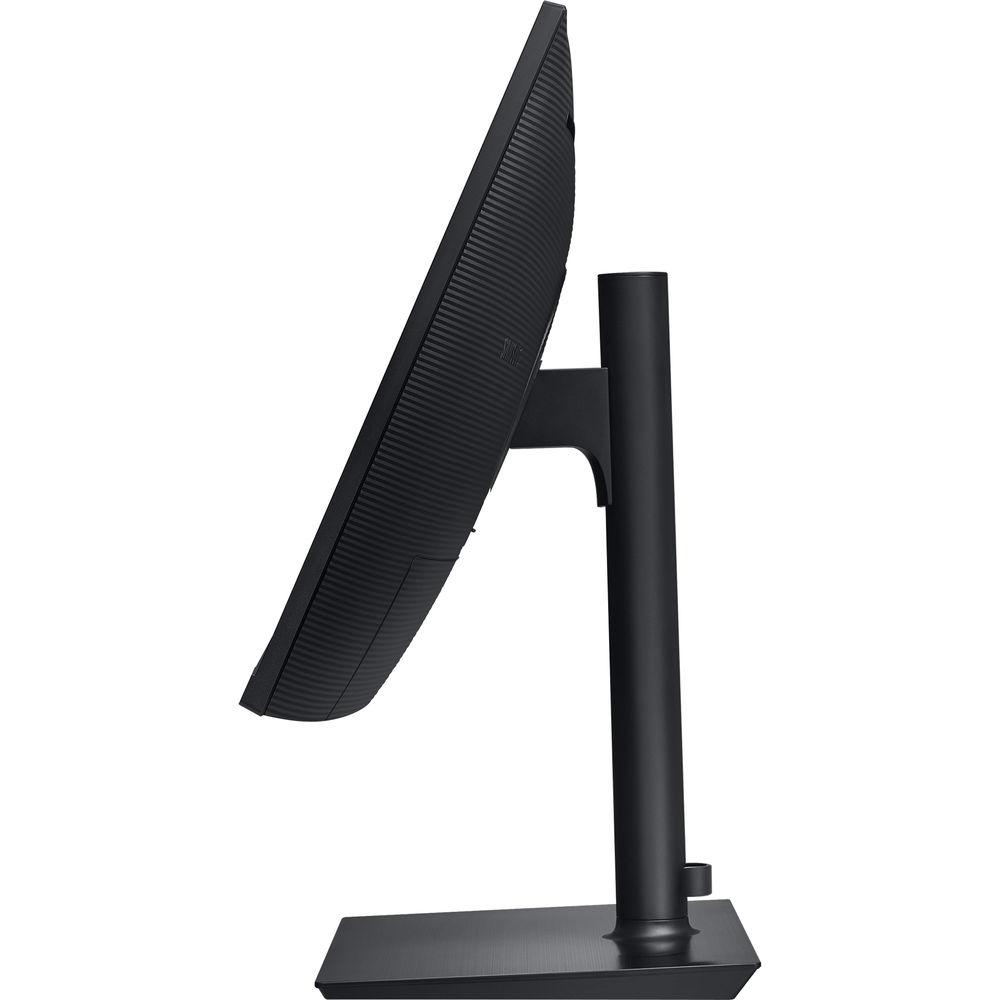

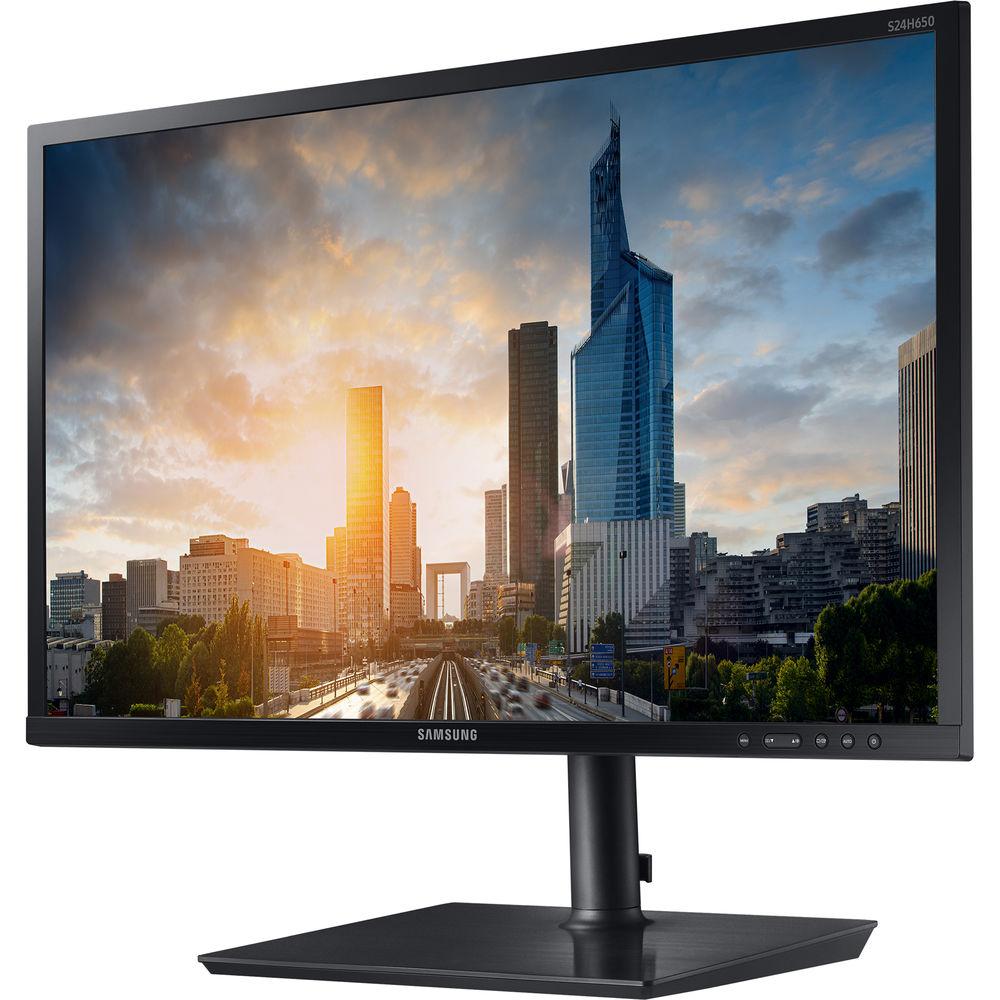

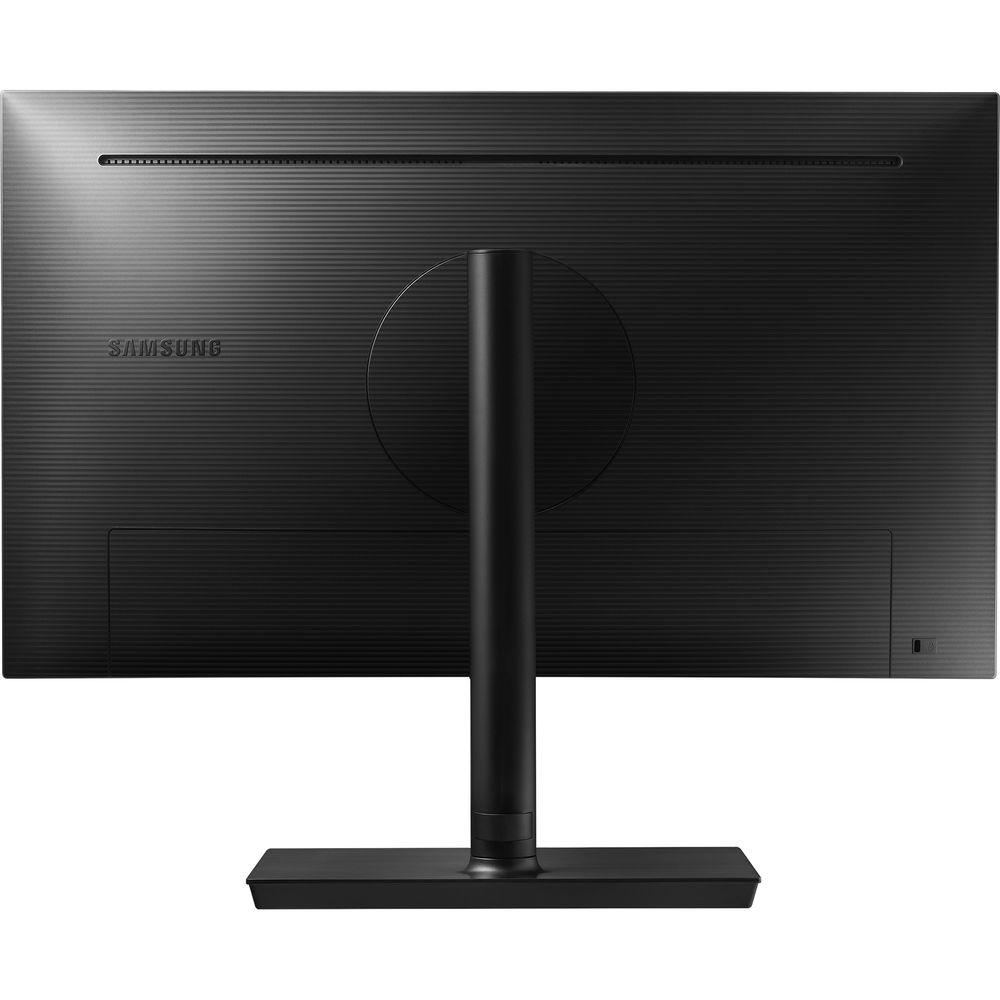

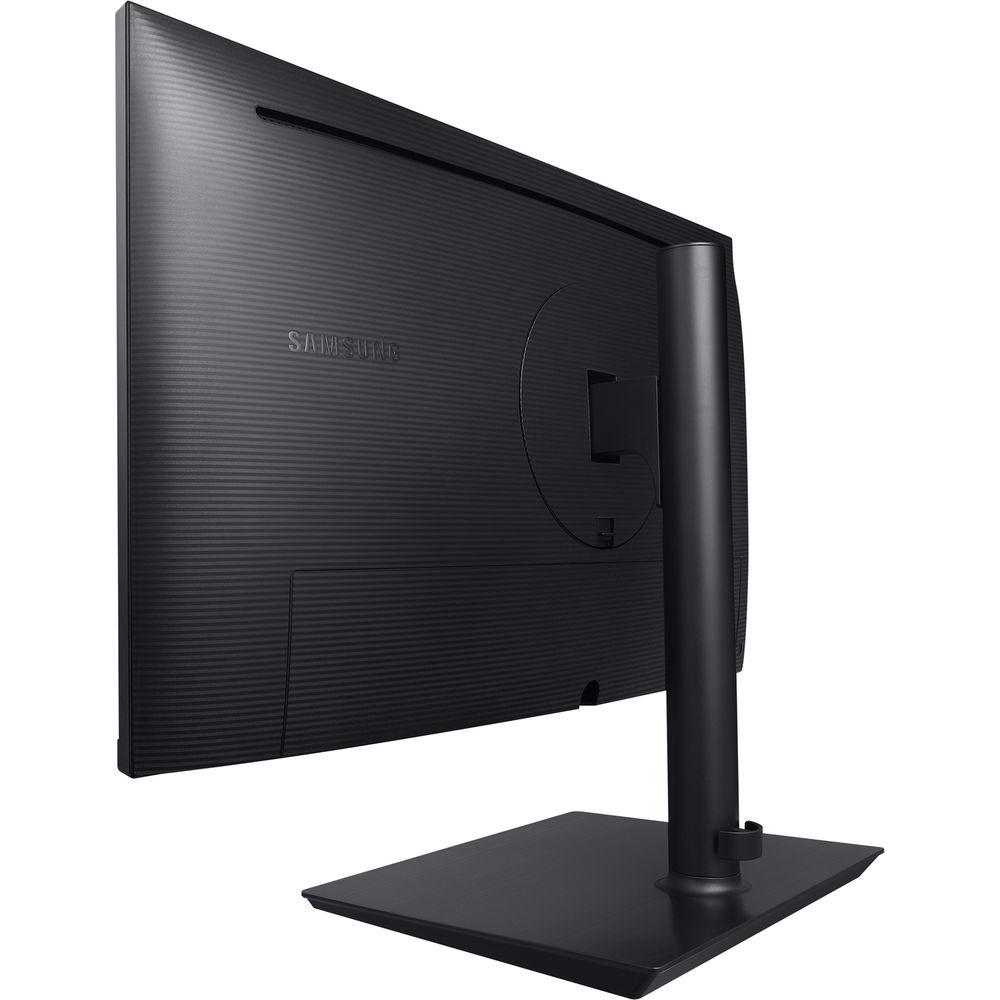

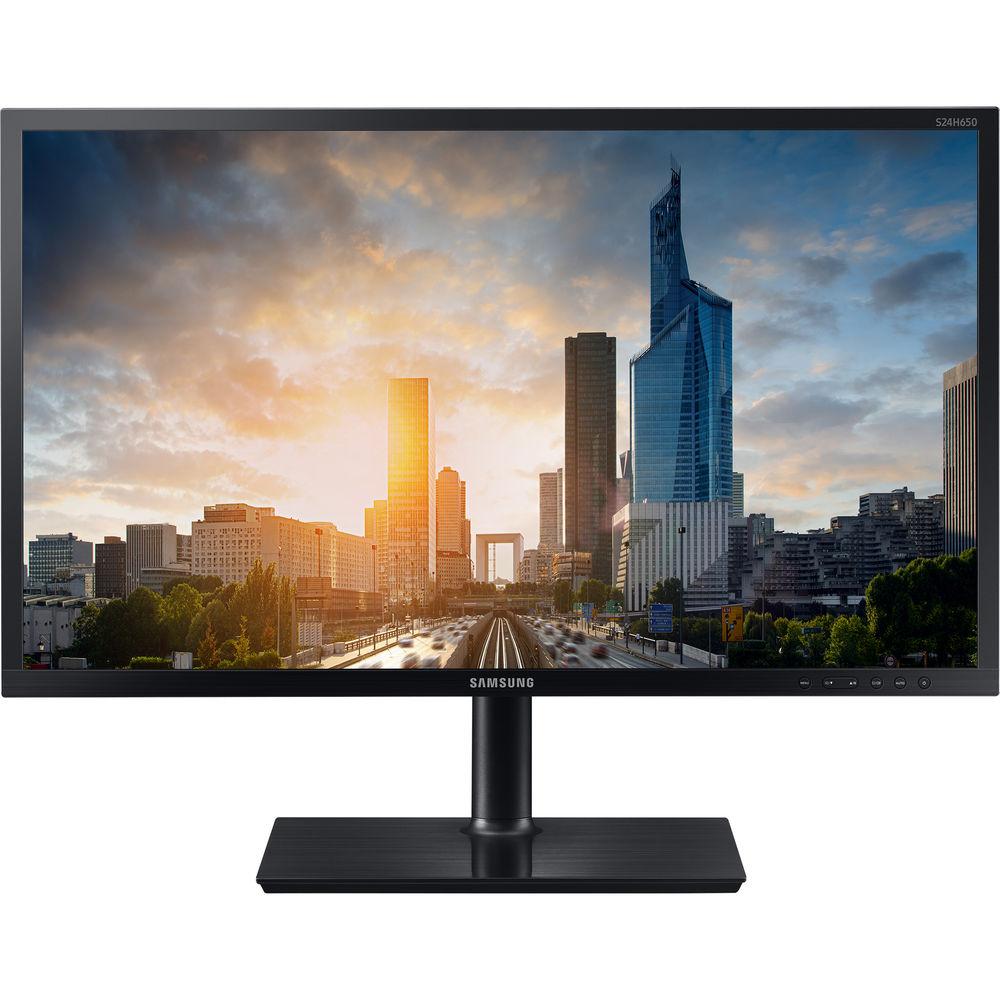

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The SH650 Series 24" 16:9 LCD Monitor from Samsung is built with their PLS (Plane to Line Switching) panel technology, which delivers enhanced image quality and wide 178° viewing angles. It features a 1920 x 1080 Full HD resolution and a fast 4 ms response time for crisp, clear, and fast content reproduction. Thanks to its 250 cd/m² brightness rating, 1000:1 static contrast ratio, and support for 16.7 million colors, you'll be able to enjoy vivid colors with deeper blacks and brighter bright colors. Connect this display to your system via VGA, DisplayPort, or HDMI. Then tilt, swivel, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional mount, stand, or arm using the 100 x 100mm VESA mounting holes on the back. For your convenience, it has a built-in USB hub with two ports, allowing you to easily connect peripherals. -
- Special Off Timer Plus
- Samsung MagicBright, MagicUpscale
- ECO Saving Plus
- Eye Saver Mode
- Flicker-Free
- Game Mode
- Image Size
UPC: 887276222646 In the Box Samsung SH650 Series 24" 16:9 LCD Monitor DisplayPort Cable HDMI Cable USB Cable Power Cable Limited 3-Year Warranty User Manual PDF 1003kb More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung SH650 Series 24" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung SAS24H650GDN Specs | Screen Size | 24" (60.96 cm) | | Active Display Area | 20.4 x 12.8" (51.8 x 32.4 cm) | | Aspect Ratio | 16:9 | | Panel Type | PLS (Plane to Line Switching) | | Brightness | Typical: 250 cd/m² | | Static Contrast Ratio | Static: 1000:1
Dynamic: Mega ∞ | | Resolution | 1920 x 1200 | | Viewing Angles (H/V) | 178°/178° | | Response Time | 4 ms | | Color Support | 16.7 million | | Refresh Rate | 60 Hz | | USB | 1 x USB upstream
2 x USB 3.0 Type-A downstream | | Ports and Connectors | 1 x VGA
1 x DisplayPort
1 x HDMI
1 x headphone jack | | | | Height Adjustment Range | 5.31" (13.5 cm) | | Tilt | -5° (±2) to 24° (±2) | | Swivel | -45° (±2) to 45° (±2) | | Pivot | -2° (±2) to 92° (±2) | | VESA Compatibility | 100 x 100 mm | | | | Power Supply | 100 - 240 VAC | | Power Consumption (Maximum) | 28 W | | Power Consumption (Standby) | < 0.005 W | | Power Consumption (DPMS) | < 0.3 W | | | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Operating Humidity | 10 to 80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 22 x 21.5 x 9.3" (55.88 x 54.61 x 23.62 cm)
Without Stand: 22 x 14.3 x 2.9" (55.88 x 36.32 x 7.37 cm) | | Weight | With Stand: 14.8 lb (6.71 kg)
Without Stand: 9.7 lb (4.4 kg) | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 27.0 x 18.6 x 8.5" |
