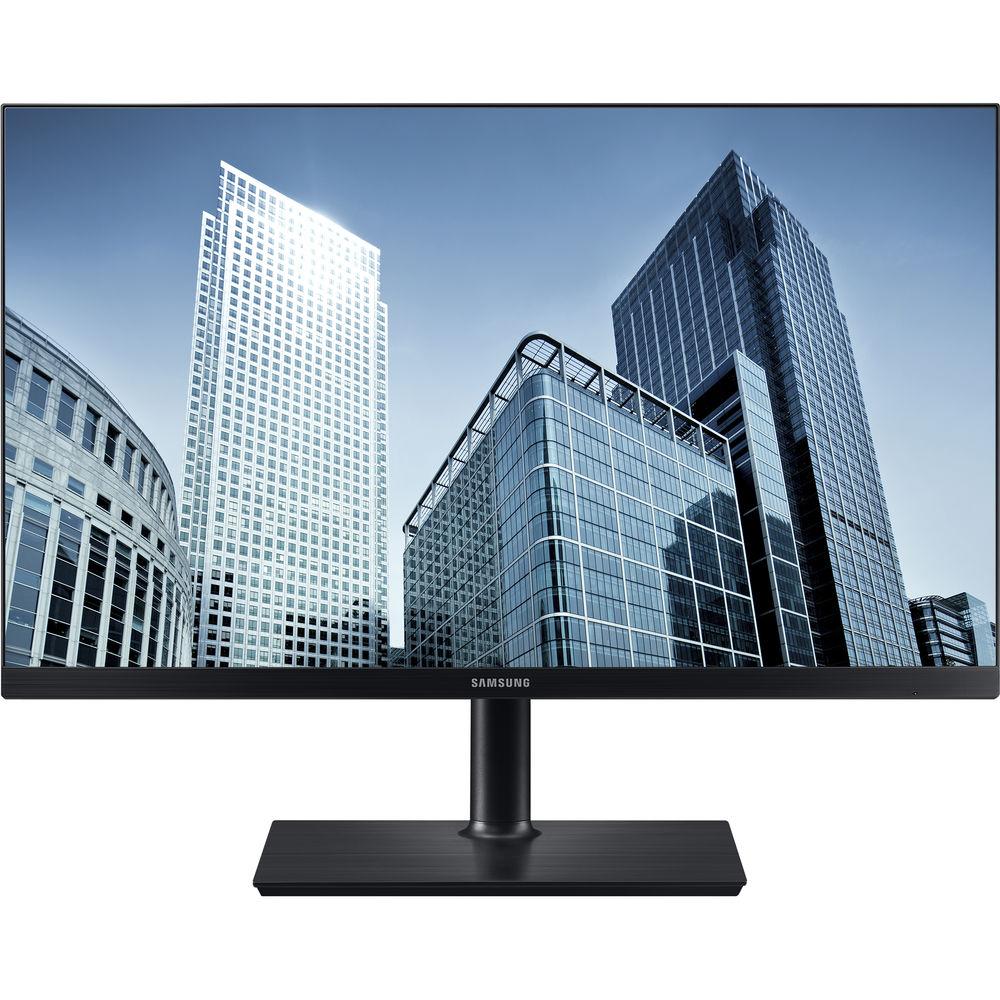

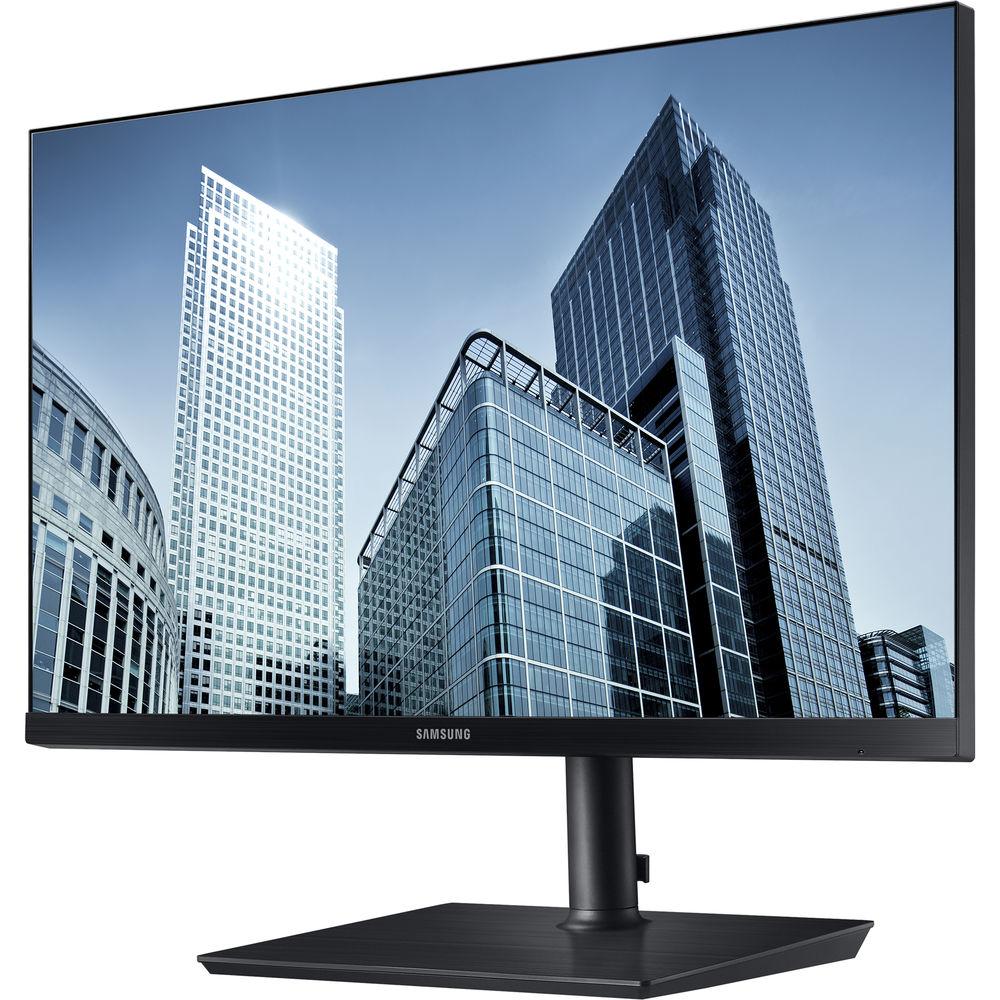

User Manual for Samsung SH850 Series 26.9" 16:9 FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung SH850 Series 26.9" 16:9 FreeSync
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung SH850 Series 26.9" 16:9 FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

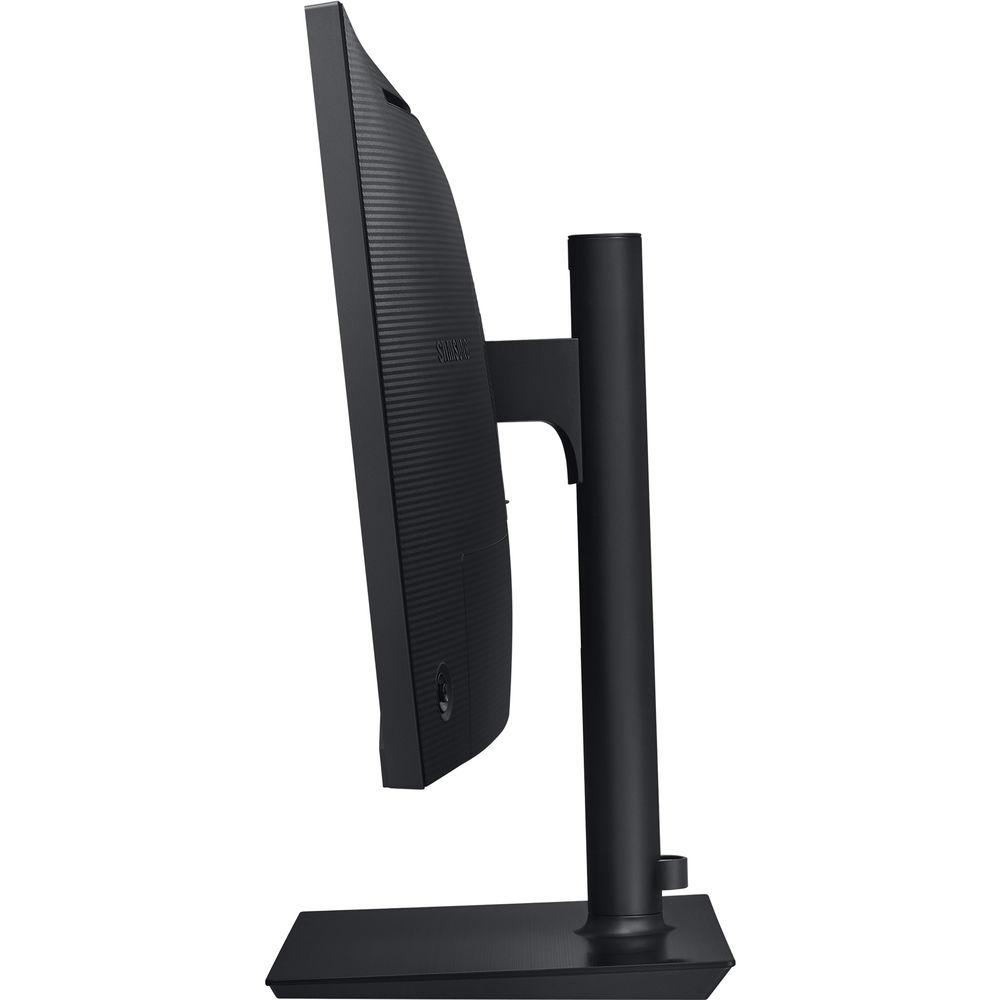

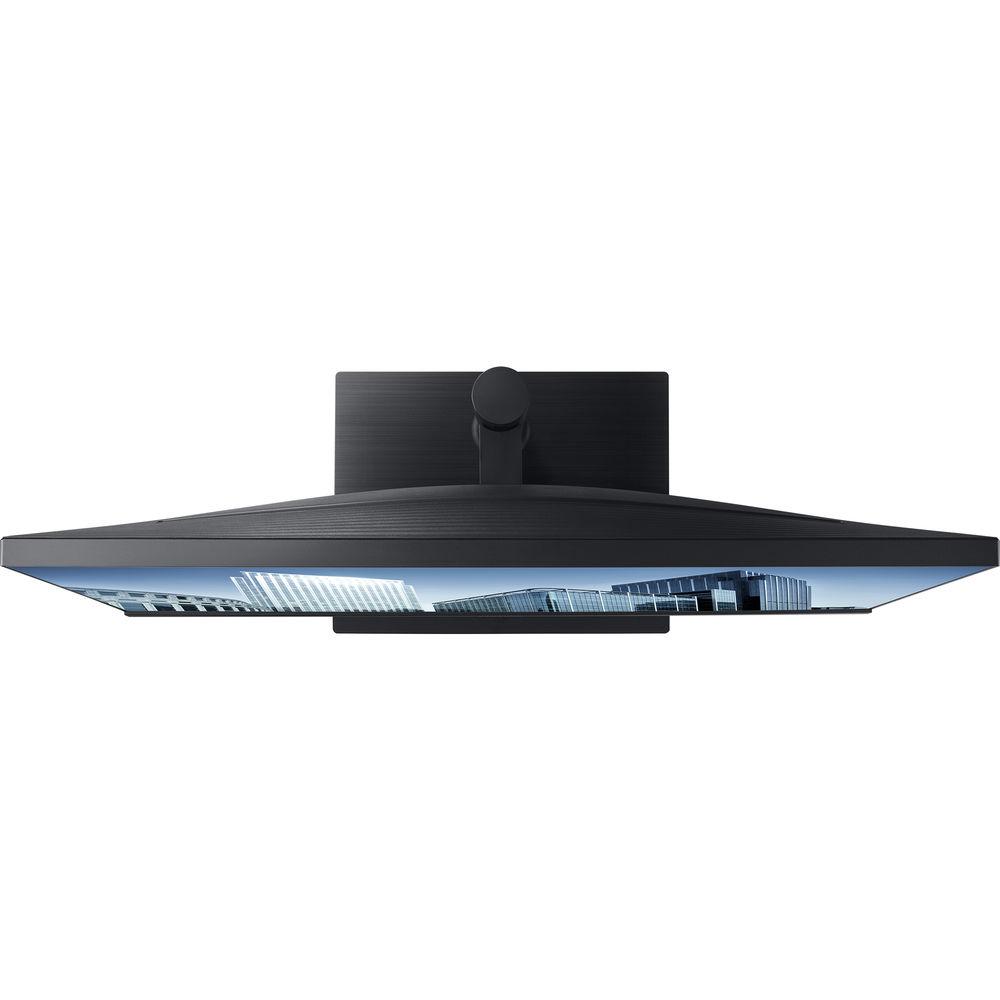

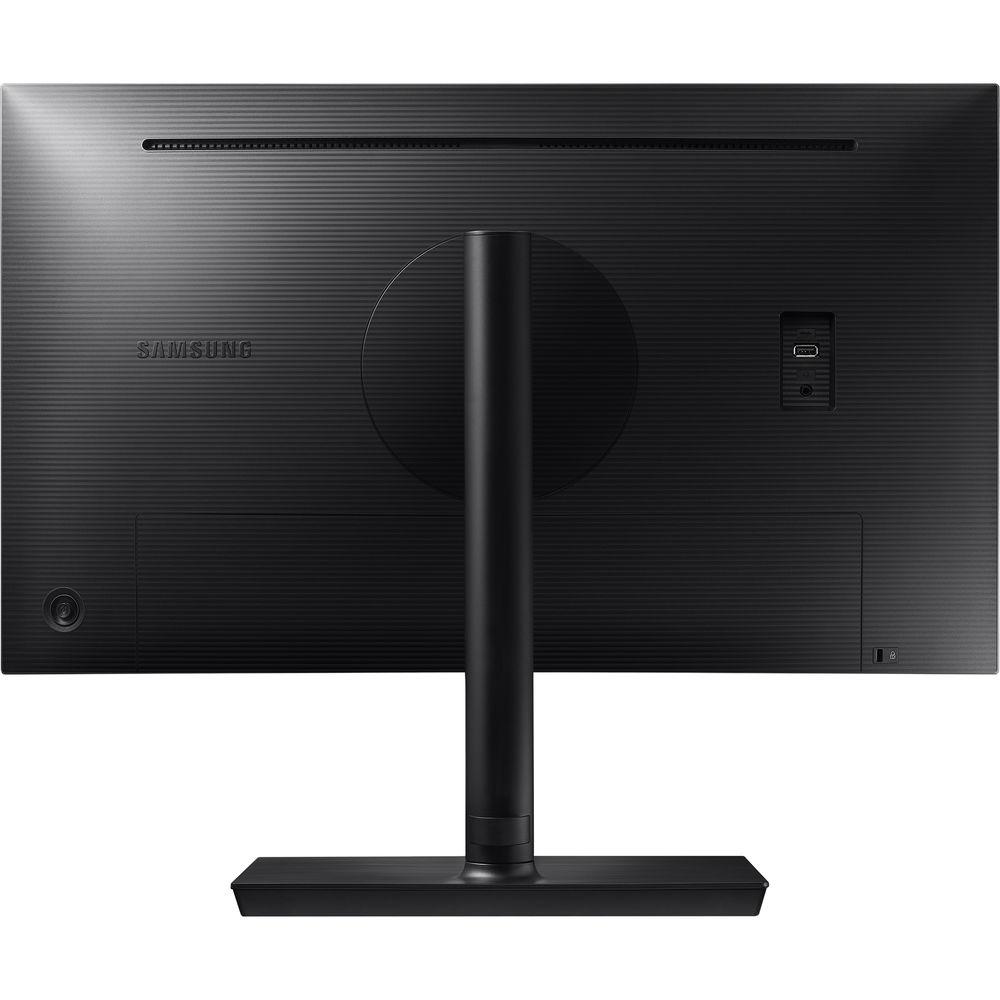

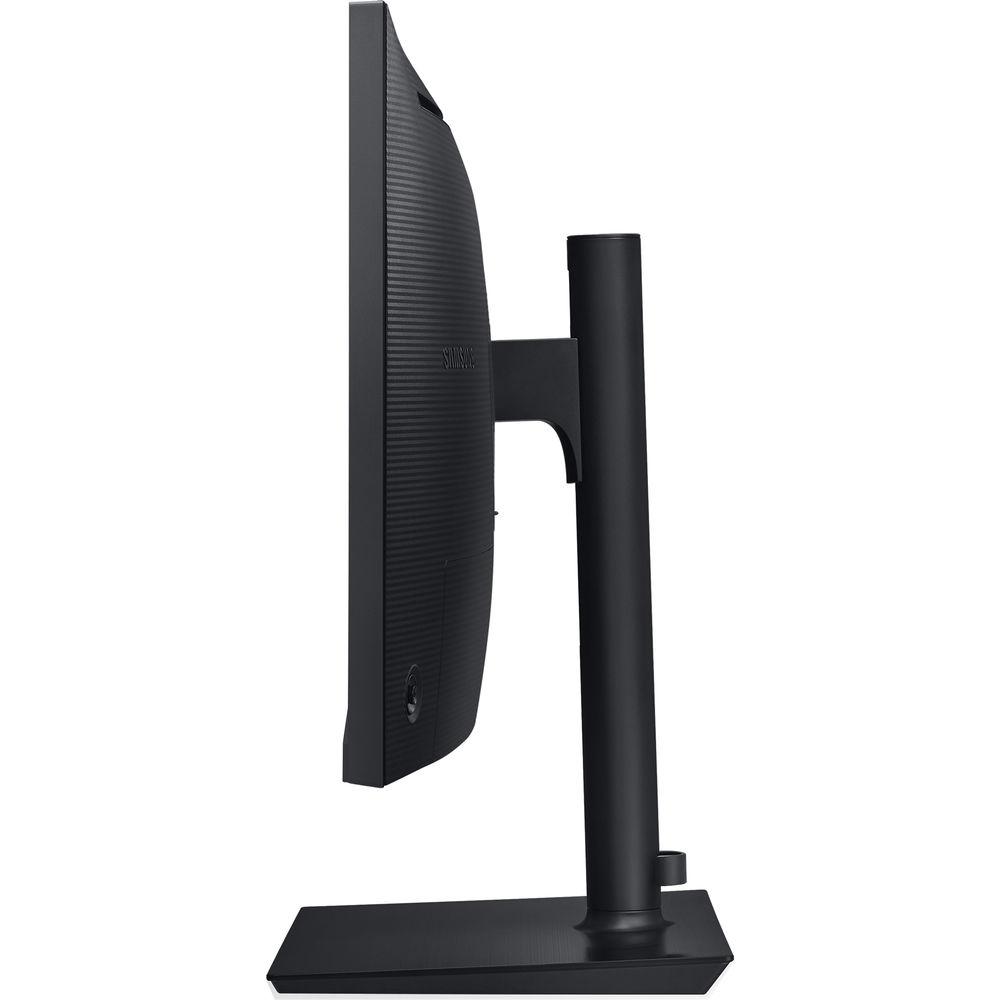

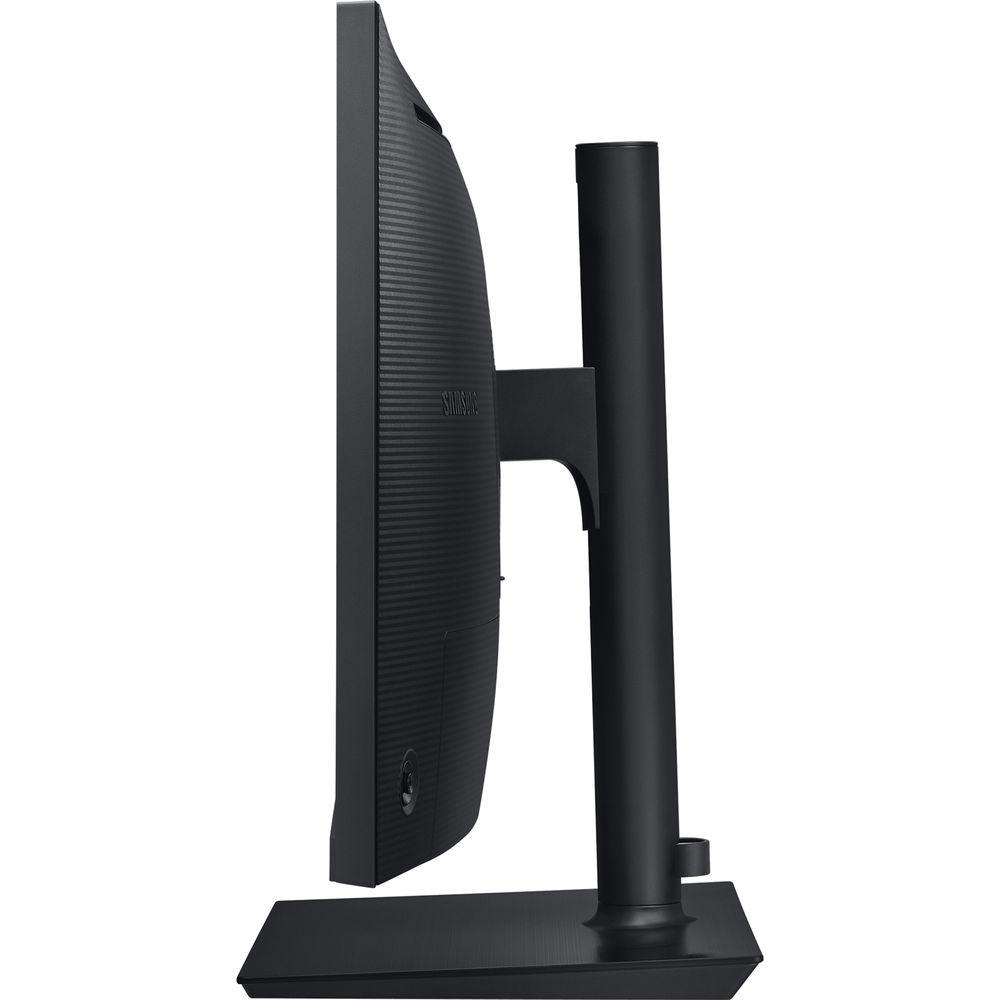

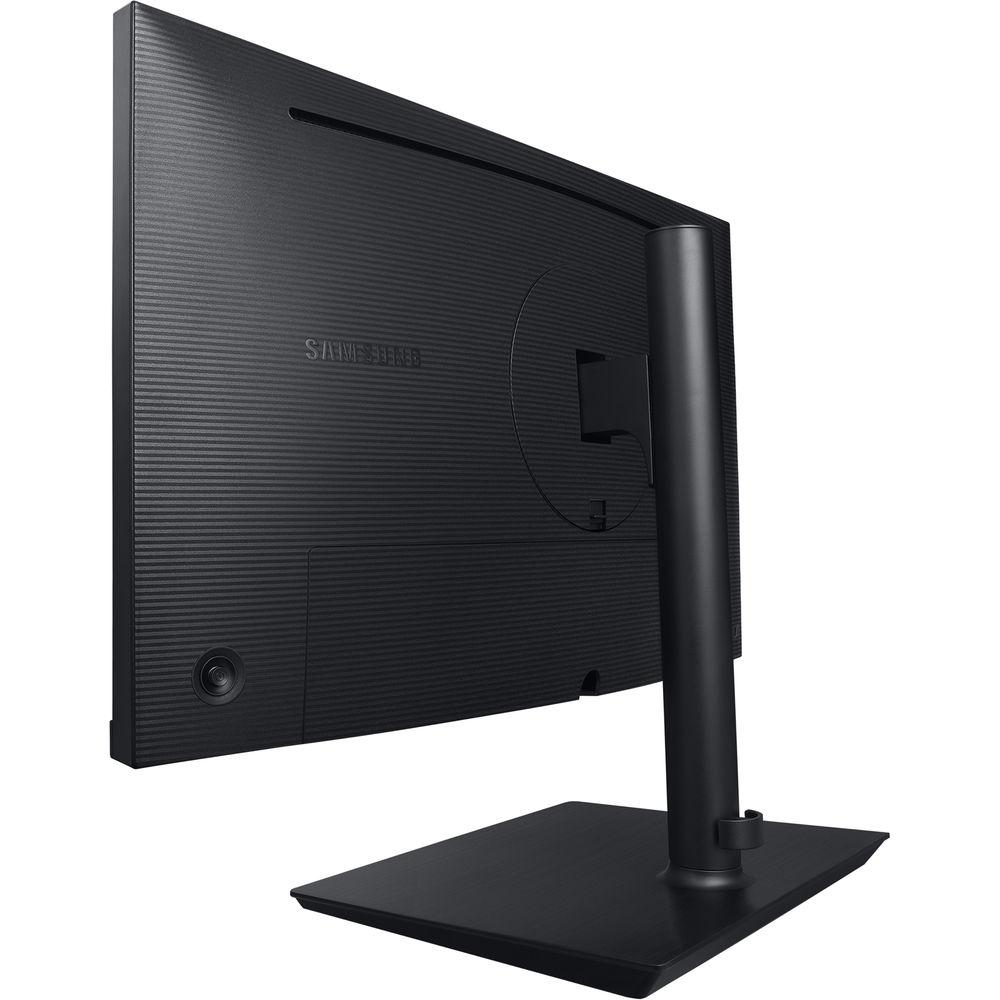

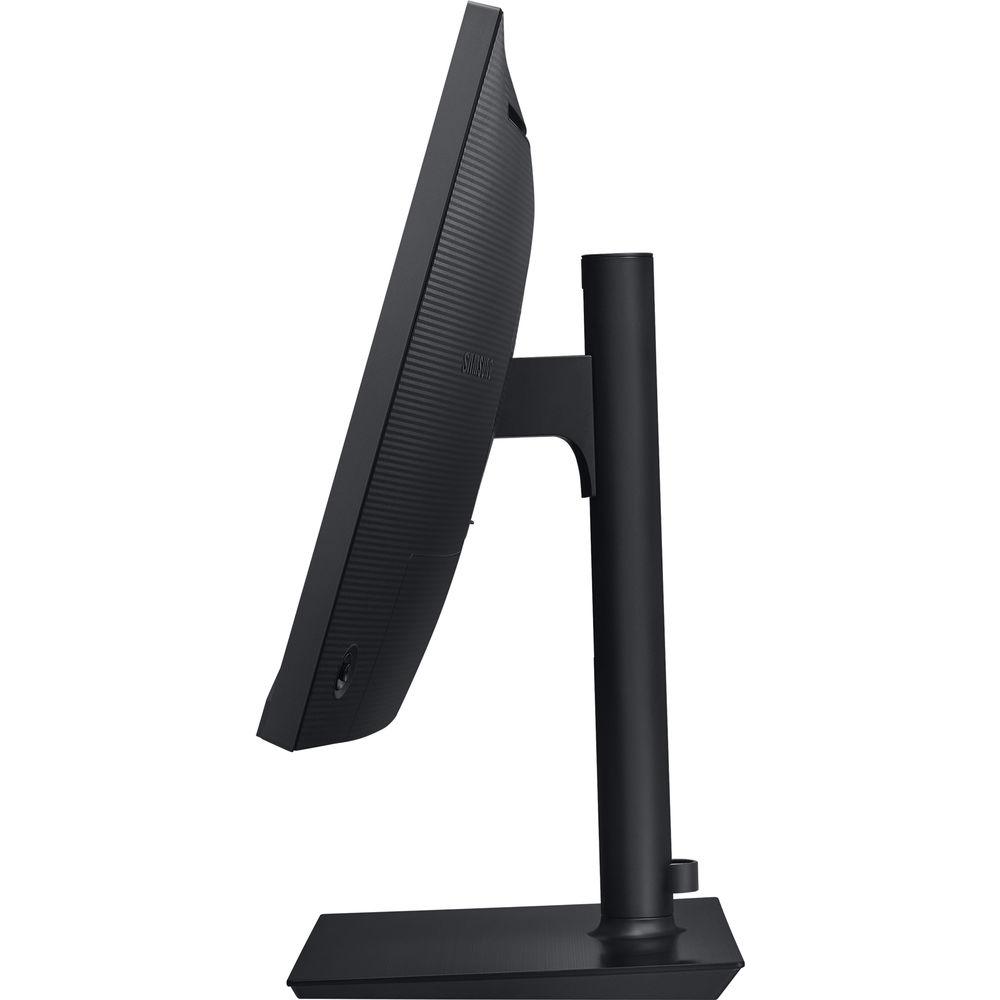

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The SH850 Series 26.9" 16:9 FreeSync LCD Monitor from Samsung is built with their PLS (Plane to Line Switching) panel technology, which delivers enhanced image quality and wide 178° viewing angles. It features a 2560 x 1440 Quad HD resolution and a fast 4 ms response time for crisp, clear, and fast content reproduction. Thanks to its 350 cd/m² brightness rating, 1000:1 static contrast ratio, and support for 1.07 billion colors, you'll be able to enjoy vivid colors with deeper blacks and brighter bright colors. Connect this display to your system via USB Type-C, DisplayPort, or HDMI. Then tilt, swivel, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional mount, stand, or arm using the 100 x 100mm VESA mounting holes on the back. For your convenience, it has a built-in USB hub with three ports, allowing you to easily connect peripherals. - AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output for a smoother experience with less stuttering and screen tearing.
- Daisy Chain with One Connection
- Daisy chain up to 4 Full HD monitors or 2 QHD monitors with a single connection between them, eliminating the need to connect each one to a PC. Plus, you can extend your desktop with MST technology or duplicate it with SST technology for a versatile computing solution that meets the demands of your work.
- USB Type-C Port
- USB Type-C allows a single cable connection to transmit digital display, data (USB), and power. Directly connect any computer, tablet, or mobile device with a USB Type-C port and you're ready to work. Your device will charge and up to 3 peripherals can be plugged in directly to the monitor for added productivity.
- Additional Features
-
- Fully Adjustable Stand
- Off Time Plus
- Picture-in-Picture, Picture-by-Picture
- Samsung MagicBright, MagicUpscale
- Eye Saver Mode
- Flicker Free
- Game Mode
- Image Size
- VESA Compatibility
In the Box Samsung SH850 Series 26.9" 16:9 FreeSync LCD Monitor USB Type-C Cable DisplayPort cable HDMI Cable mDP to DP Adapter Power Cable Limited 3-Year Warranty User Manual PDF 1.1mbaxbxtvaxua Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung SH850 Series 26.9" 16:9 FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung S27H850QFN Specs | Screen Size | 26.9" (68.33 cm) | | Active Area | 23.5 x 13.2" (59.7 x 33.6 cm) | | Aspect Ratio | 16:9 | | Panel Type | PLS (Plane to Line Switching) | | Brightness | Typical: 350 cd/m²
Minimum: 280 cd/m² | | Static Contrast Ratio | Typical: 1000:1
Minimum: 600:1
Dynamic: Mega ∞ | | Resolution | 2560 x 1440 | | Response Time (GtG) | 4 ms | | Viewing Angles (H/V) | 178°/178° | | Color Support | 1.07 Billion Colors | | Refresh Rate | 60 Hz | | USB | 1 x USB Type-C upstream
3 x USB 3.0 Type-A downstream | | Ports and Connectors | 1 x DisplayPort-out
1 x HDMI-in
1 x DisplayPort-in
1 x headphone jack | | | | Height Adjustment Range | 5.31" (13.5 cm) | | Tilt | -5° (±2) to 24° (±2) | | Swivel | -45° (±2) to 45° (±2) | | Pivot | -2° (±2) to 92° (±2) | | VESA Compatibility | 100 x 100 mm | | | | Power Supply | 100 - 240 VAC | | Power Consumption (Maximum) | 107 W | | Power Consumption (Standby) | < 0.5 W (DPMS) | | Power Consumption | < 0.3 W | | | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Operating Humidity | 10 to 80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 24.1 x 21.4 x 9.3" (61.21 x 54.36 x 23.62 cm)
Without Stand: 24.1 x 14.4 x 3" (61.21 x 36.58 x 7.62 cm) | | Weight | With Stand: 17.6 lb (7.98 kg)
Without Stand: 12.8 lb (5.81 kg) | | | | Package Weight | 23.75 lb | | Box Dimensions (LxWxH) | 29.0 x 18.3 x 8.5" |
