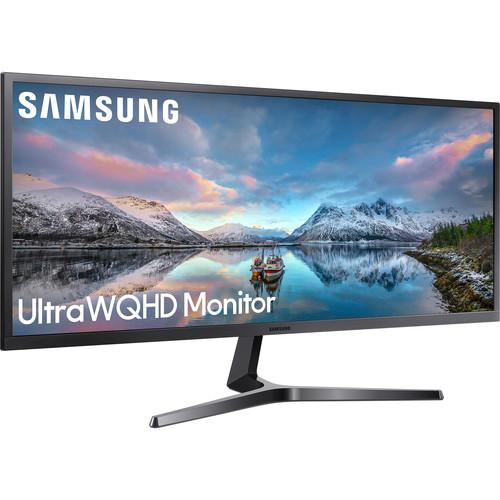

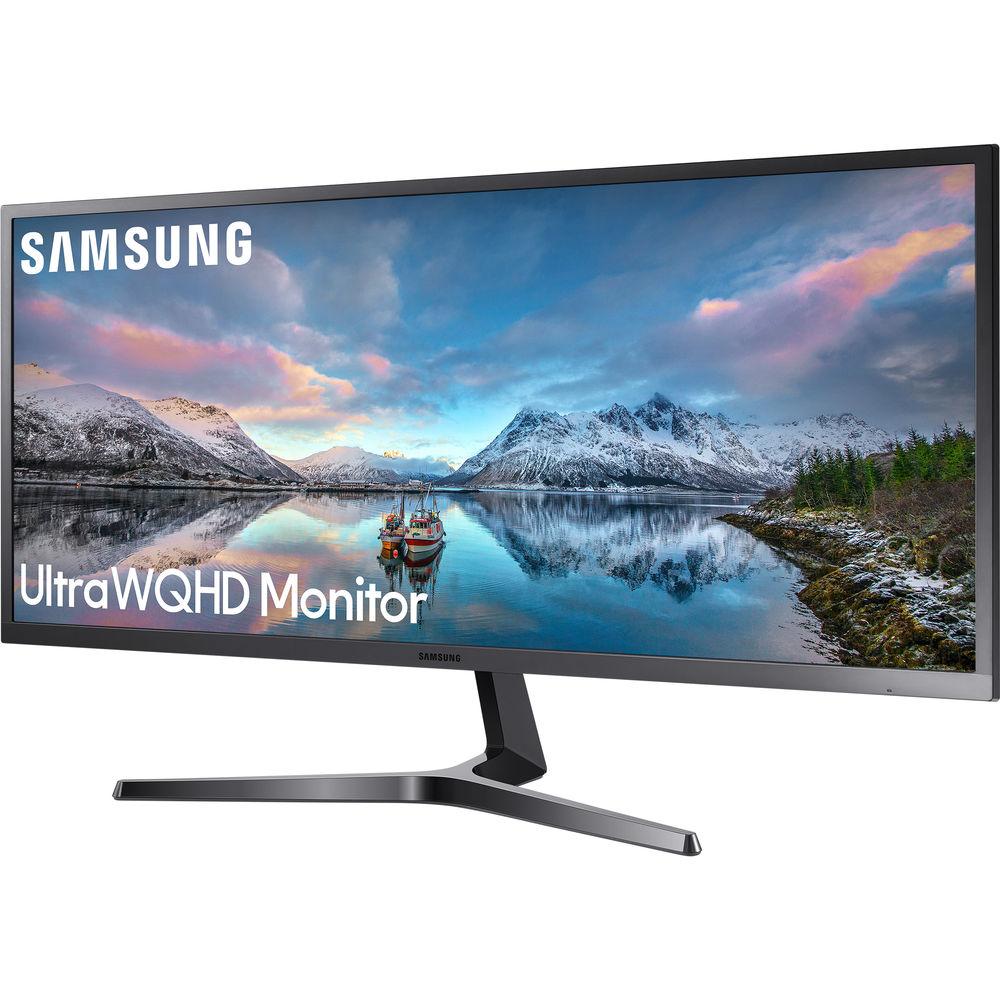

User Manual for Samsung SJ55W 34" 21:9 FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung SJ55W 34" 21:9 FreeSync LCD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung SJ55W 34" 21:9 FreeSync LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

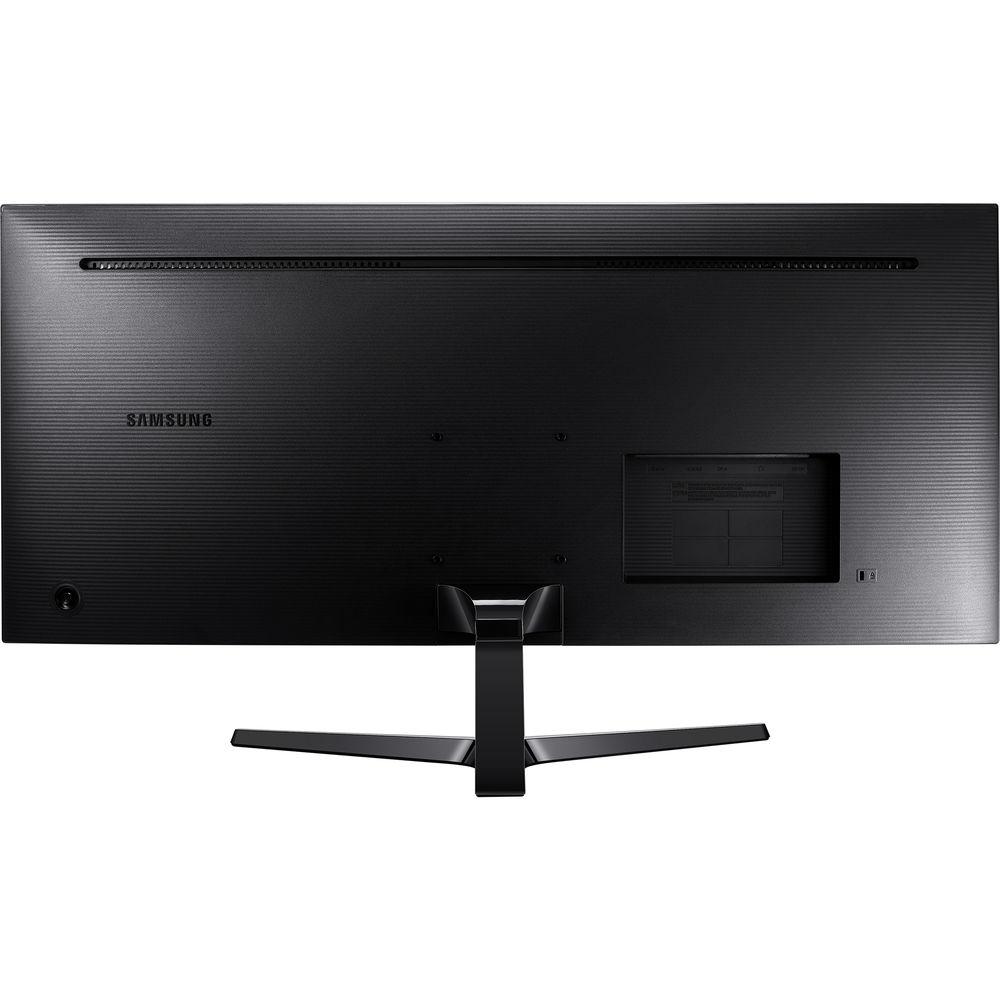

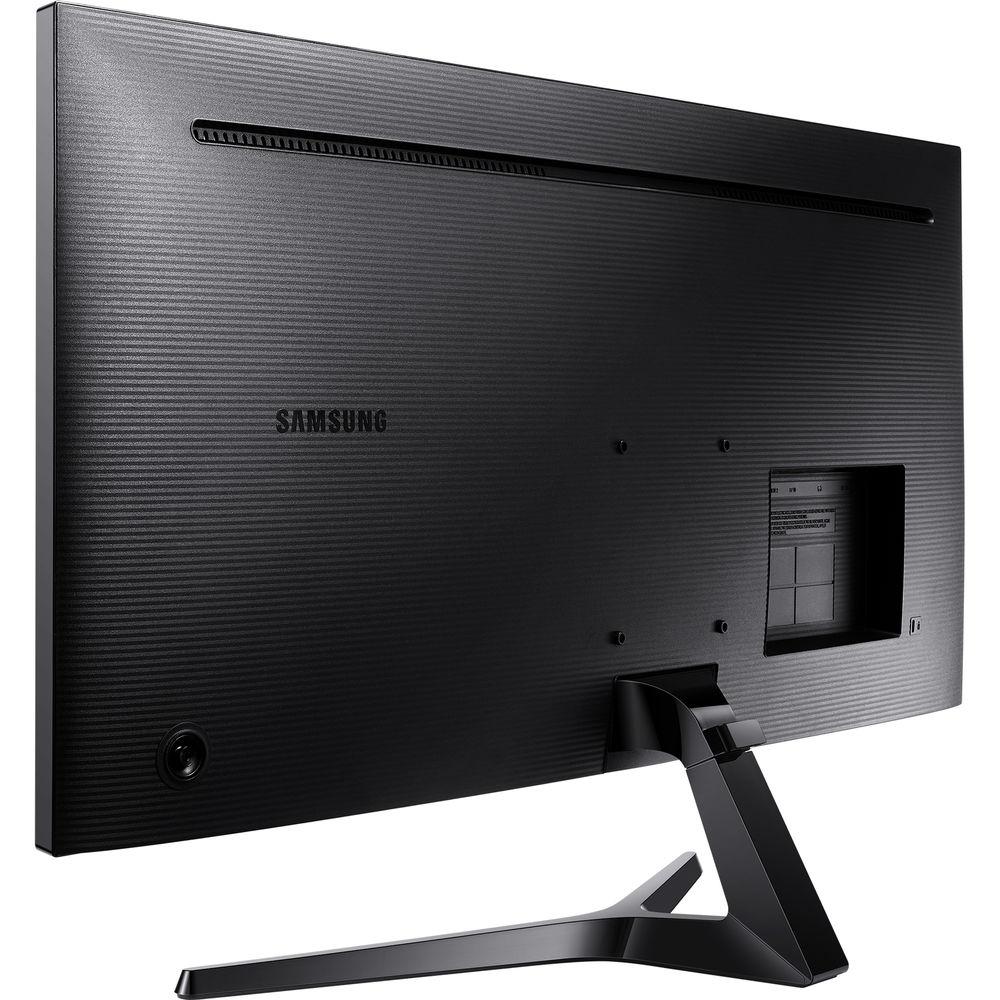

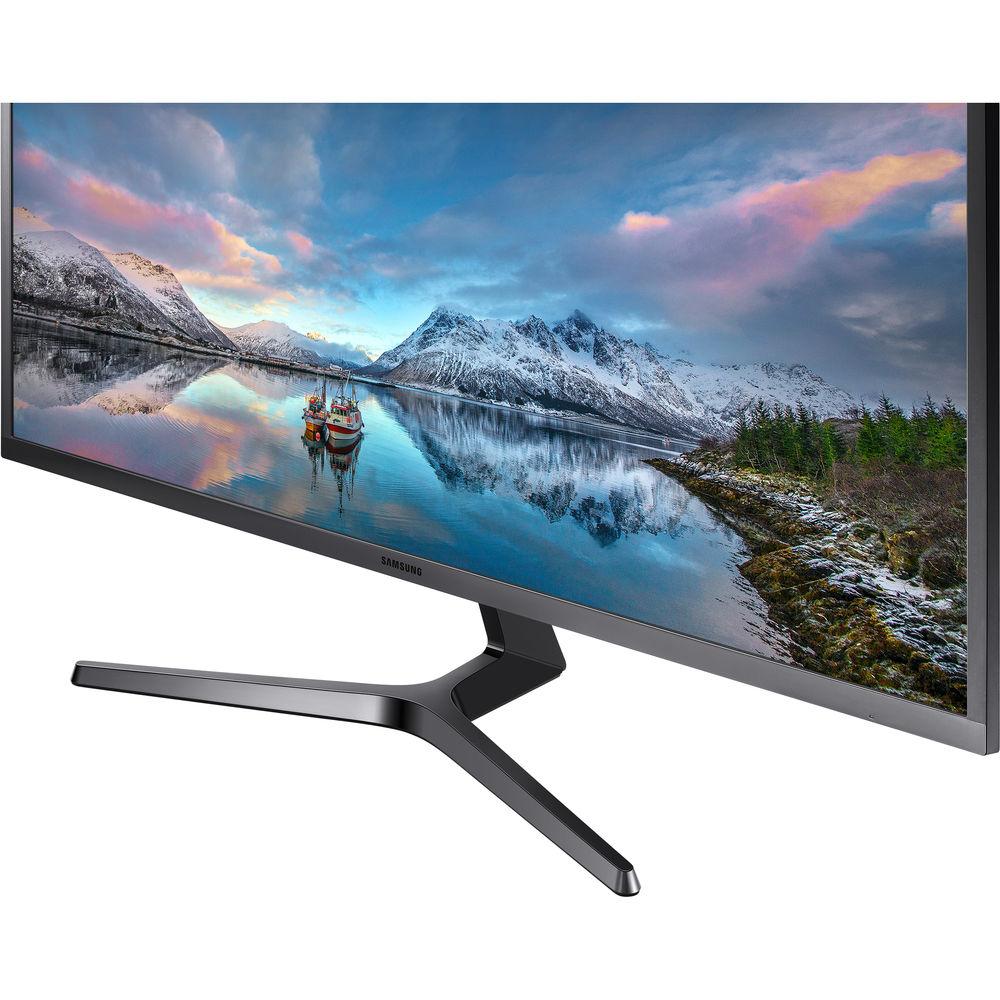

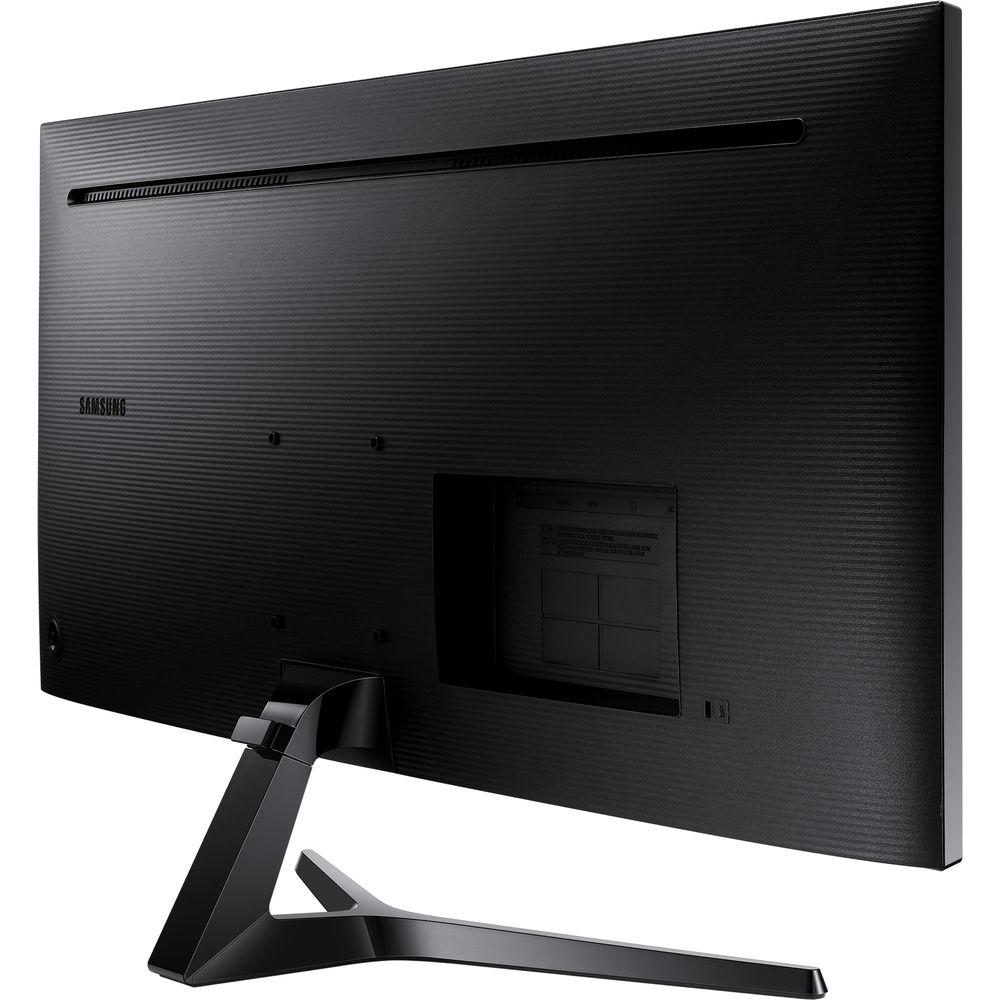

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The SJ55W 34" 21:9 FreeSync LCD Monitor from Samsung features an expansive 34" Vertical Alignment (VA) panel that provides you with vivid colors and wide viewing angles. Moreover, it has an ultra-wide 21:9 aspect ratio with a 3440 x 1440 UWQHD resolution for enhanced multitasking. Other specs include a 3000:1 static contrast ratio, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. When used for gaming, the SJ55W has a fast 4 ms response time as well as AMD FreeSync technology for a smoother gaming experience. Once connected to your system via HDMI or DisplayPort, it can be freely adjusted to fit your viewing preference. Otherwise, you can install a VESA stand, mount, or arm using the mounting holes on the back - PBP and PIP

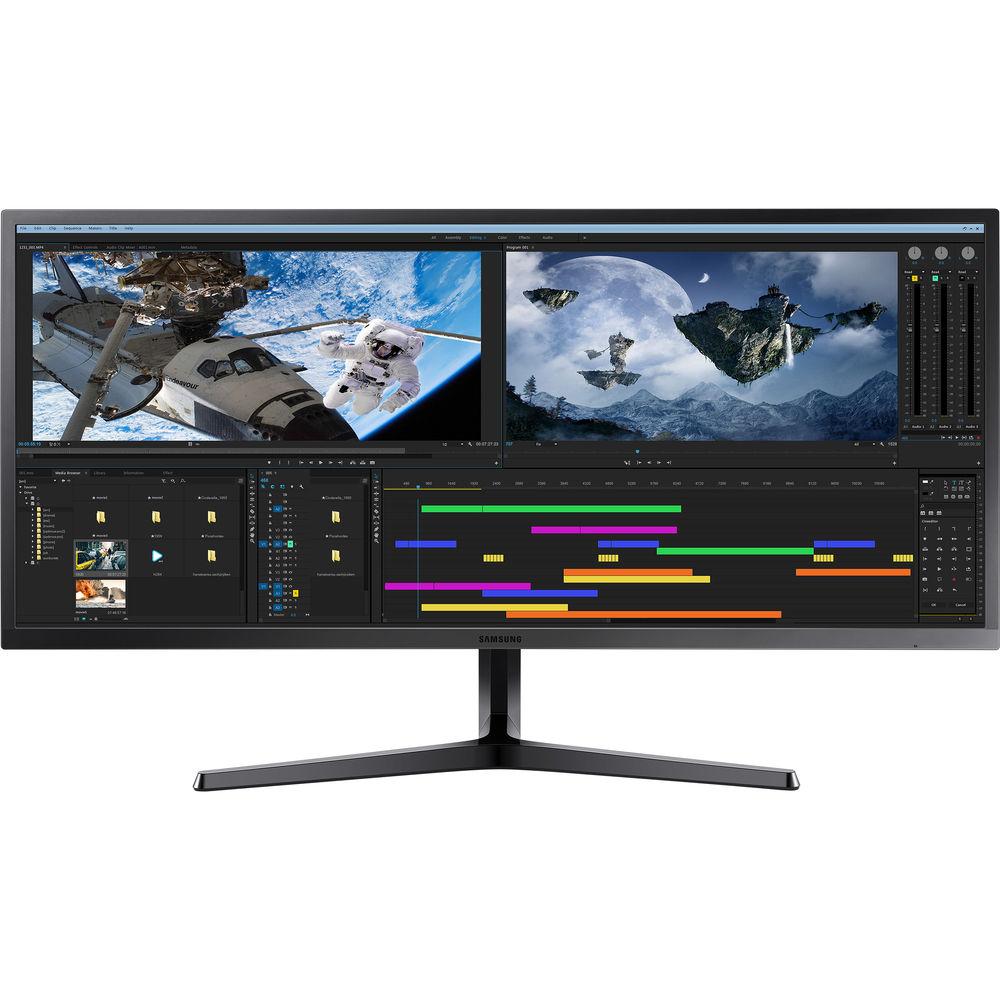

- With such a large screen size, this SJ55W can efficiently utilize Picture-by-Picture (PBP) and Picture-in-Picture (PIP) modes for enhanced multitasking.
- AMD FreeSync
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
UPC: 887276280141 In the Box Samsung SJ55W 34" 21:9 FreeSync LCD Monitor Power Cable HDMI Cable Limited 1-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung SJ55W 34" 21:9 FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung SJ55W Specs | | | Size | 34.1" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 109 ppi | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI 1.4
1 x HDMI 2.0
1 x DisplayPort
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 59 W (Maximum)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -2 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.6 x 18.5 x 9.5" / 828.0 x 469.9 x 241.3 mm (With Stand)
32.6 x 14.5 x 4.2" / 828.0 x 368.3 x 106.7 mm (Without Stand) | | Weight | 15.21 lb / 6.90 kg (With Stand)
14.1 lb / 6.40 kg (Without Stand) | | | | Package Weight | 21.1 lb | | Box Dimensions (LxWxH) | 35.0 x 17.0 x 6.0" |
