User Manual for Samsung Slim Configurable Wall Mount for UD UE Series Video Wall Click to enlarge the picture
Contents of the user manual for the Samsung Slim Configurable Wall Mount for
- Product category: Monitor Wall Mounts Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Monitor Wall Mounts
 |
User manual for the Samsung Slim Configurable Wall Mount for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

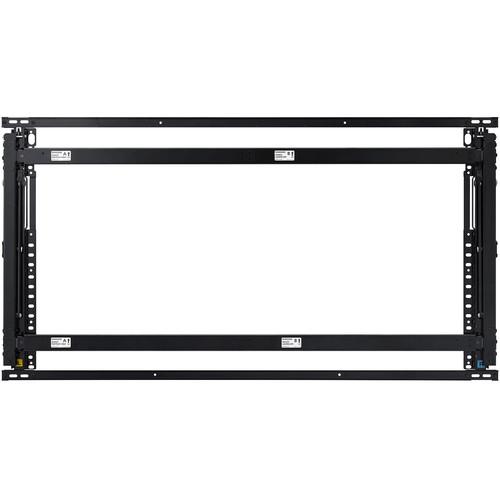

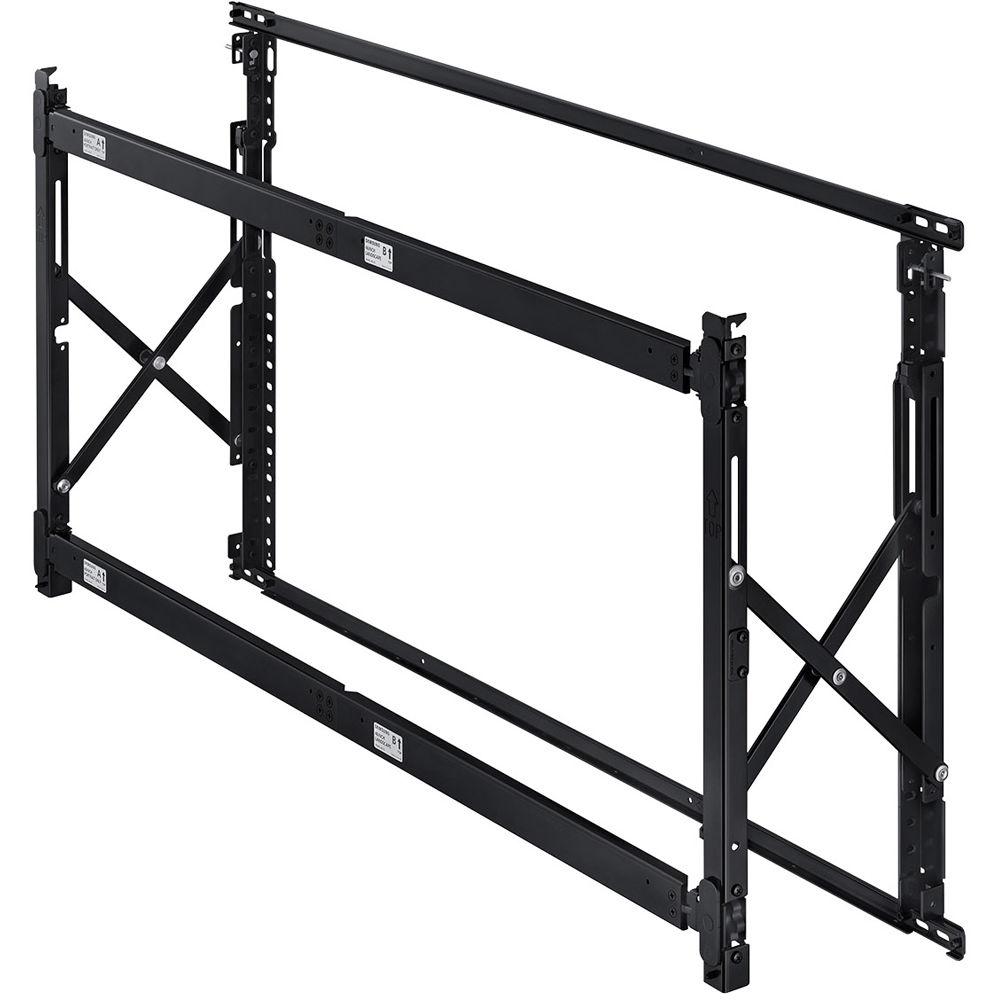

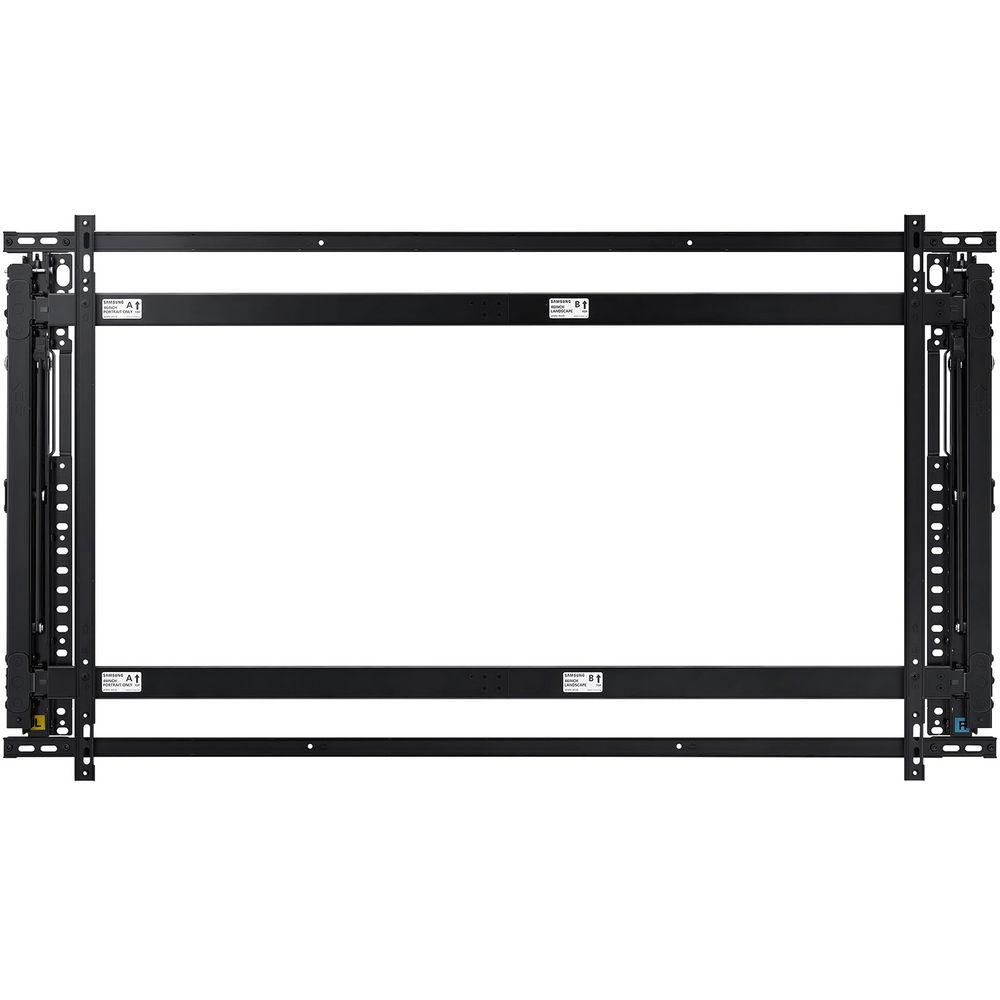

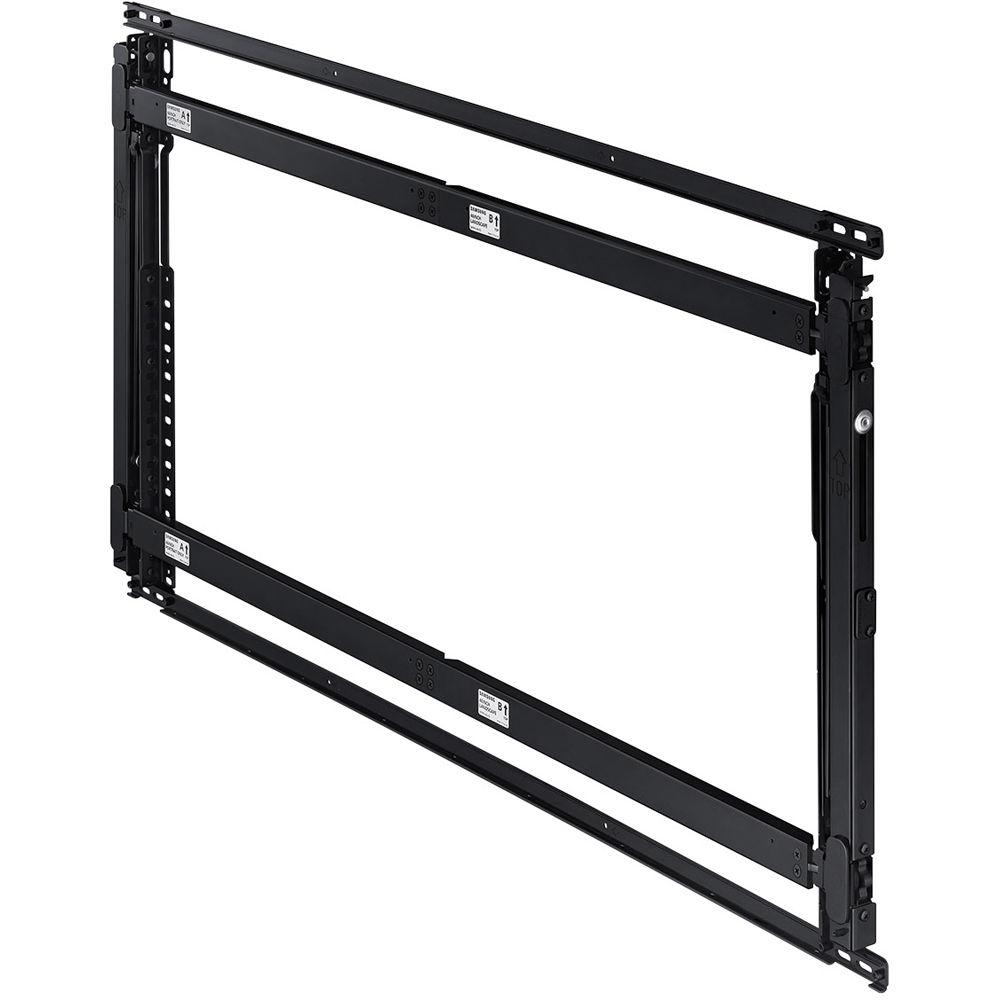

Product description Set up your SMART Signage UD/UE Series video wall neatly and without hassle with the 55" Slim Configurable Wall Mount from Samsung. As the mount is sized to precisely match the 55" UD/UE video wall displays (available separately), all you have to do is install the mount and then fit the display into it. By finely adjusting individual displays across three axis points, you can align them to enable a continuous and gap-free presentation. The wall mount features three-dimensional axis adjustment, including x-axis (up and down movement with rotational screws for fine tuning); y-axis (left and right movement for fine tuning); and z-axis (push and pull pop-up capability for effortless installation).

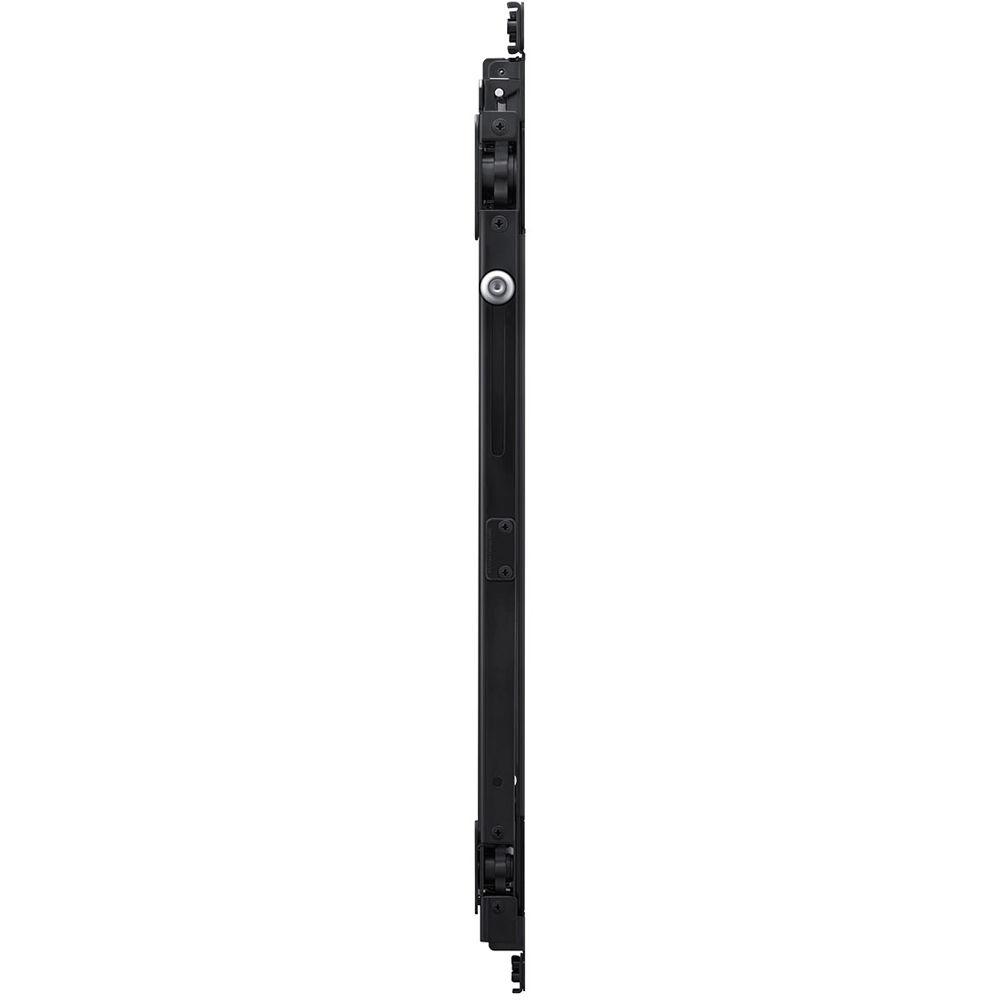

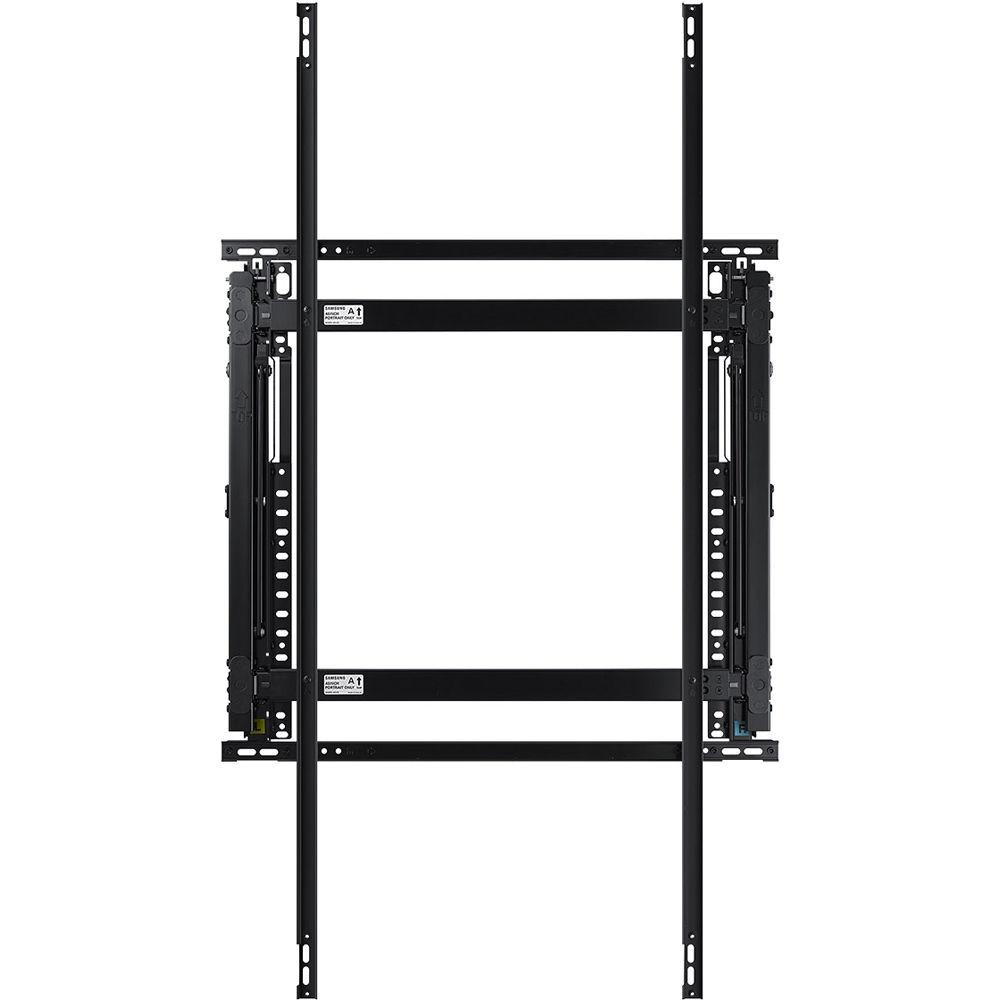

The video wall mount offers a slim depth of 1.5" and helps maintain a clean installation area by hiding source and power cables. Versatile in use, the WMN-55VD wall mount transforms to accommodate portrait or landscape orientation to best fit your content. More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung Slim Configurable Wall Mount for UD UE Series Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung WMN-55VD Specs | Supported Screen Sizes | 55" / 139.7 cm | | Supported Weight Capacity | 63.93 lb / 29 kg | | Mounting-Hole Pattern | 400 x 400 to 600 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | None | | Swivel Adjustment | None | | Orientation | Landscape, Portrait | | | | Dimensions | 47.76 x 21.25 x 1.54" / 121.3 x 53.98 x 3.9 cm | | Weight | 24.9 lb / 11.3 kg | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 50.5 x 25.0 x 4.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
