User Manual for Samsung SR75 27" 16:9 LCD Space Monitor Click to enlarge the picture
Contents of the user manual for the Samsung SR75 27" 16:9 LCD Space
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung SR75 27" 16:9 LCD Space contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More - Samsung Space Monitor (SR75) Introduction Video

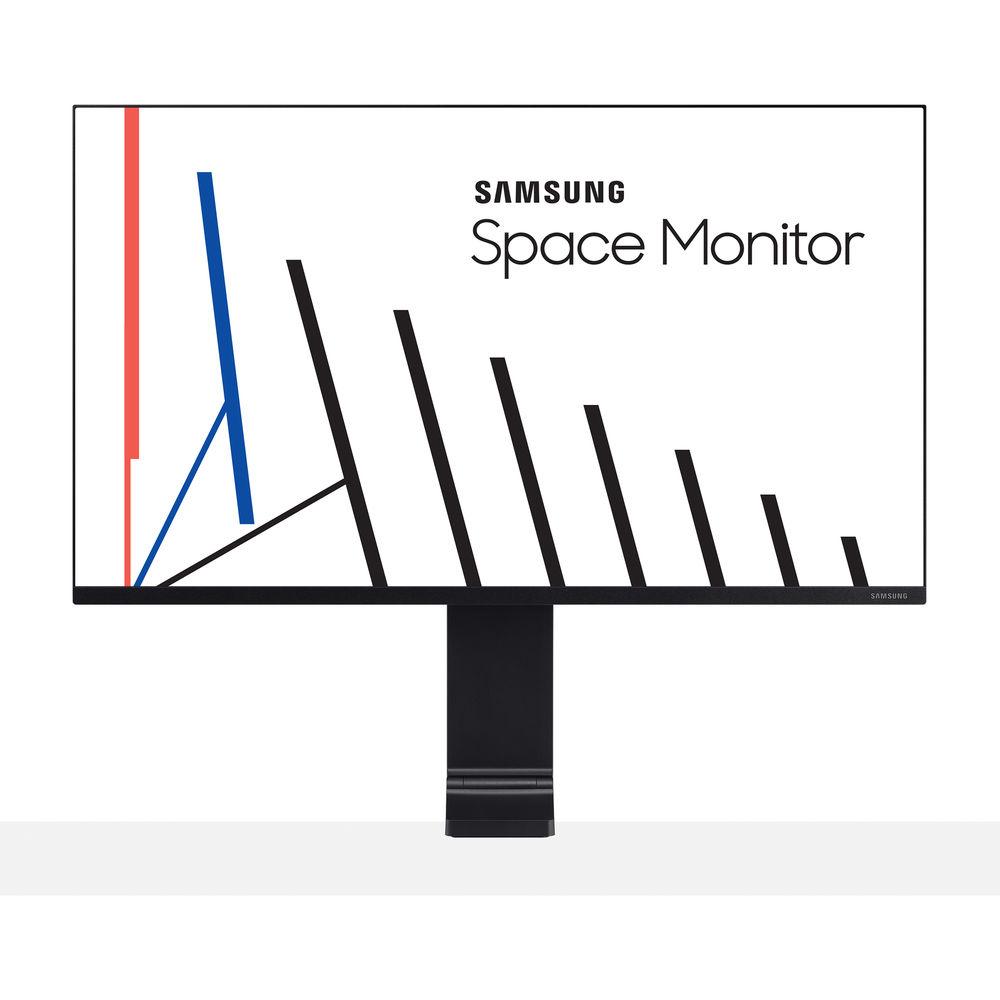

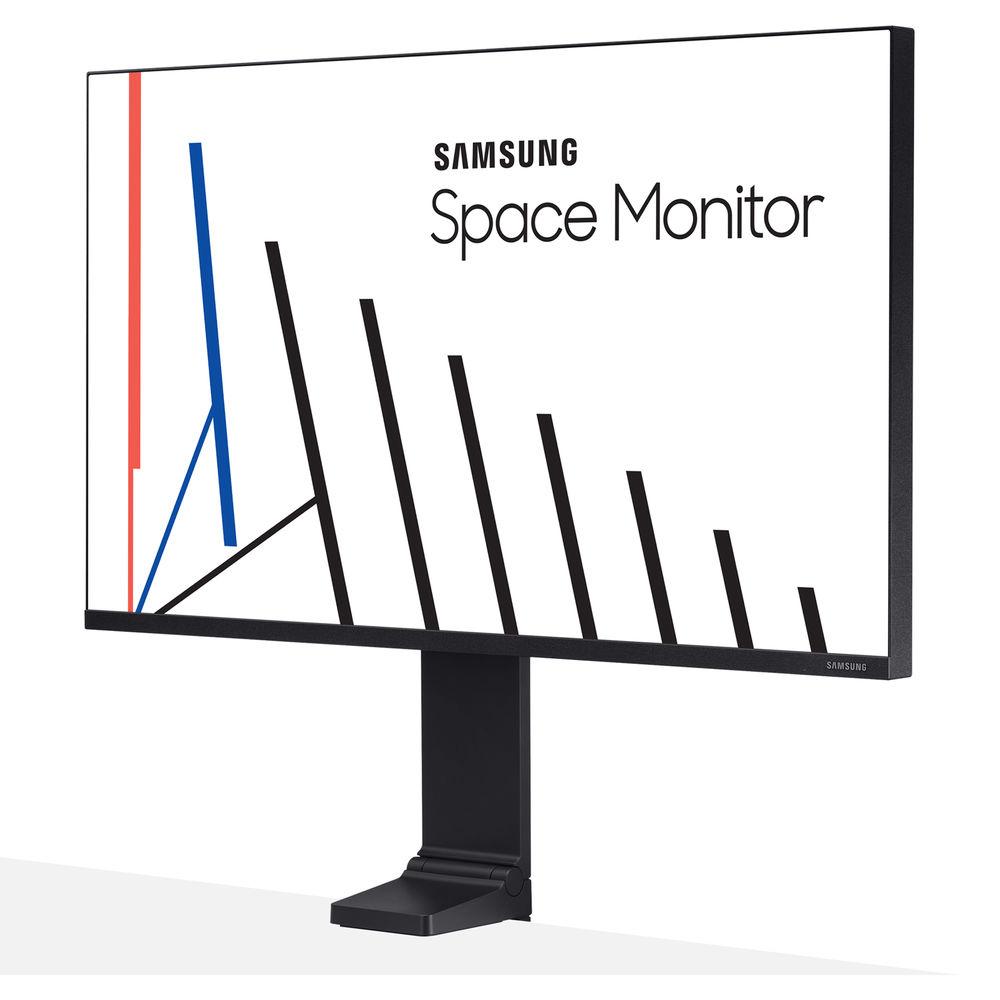

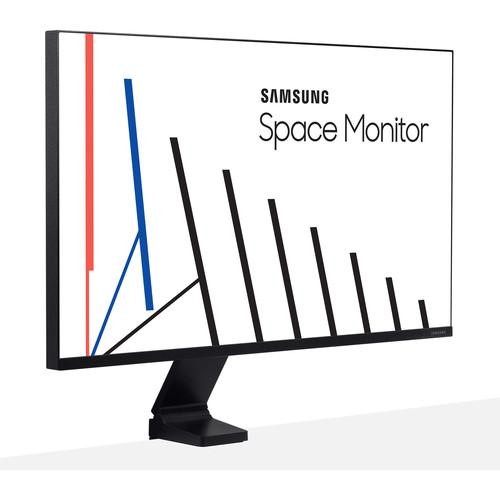

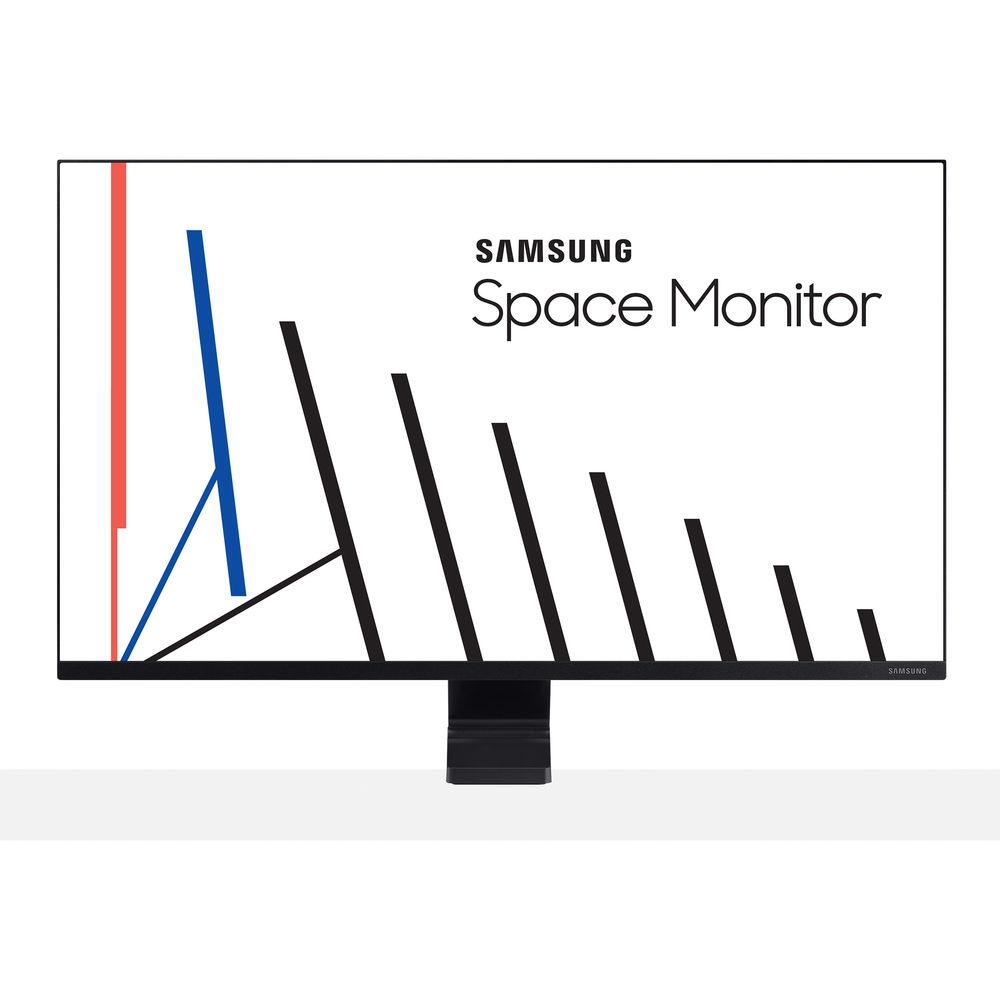

Designed for environments where space is at a premium, the SR75 27" 16:9 LCD Space Monitor from Samsung has been designed with a zero-level arm that can be height adjusted to better position the screen for comfort and convenience. Its adjustment span allows viewing from a height of up to 8.4" above the desktop and all the way down to surface level. Rather than employ a traditional stand, its arm stand uses an integrated clamp that is adjustable up to 3.54" and securely attaches to desks and tables with a wide range of thicknesses.
Aside from its space-saving capabilities, this 27" display features a native QHD resolution of 2560 x 1440 with refresh rates of 60, 120, or 144 Hz, Vertical Alignment (VA) panel technology, support for 1.07 billion colors, a 16:9 aspect ratio, a static contrast ratio of 3000:1, a typical brightness level of 250 cd/m2, and a 4 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one HDMI 2.0 port and one Mini DisplayPort 1.2 port for connecting to your system. General Features - Reclaim Your Space
- The Samsung Space Monitor is designed to let you reclaim your work space. Occupying a minimum of desk space and leaving work areas clear when not in use, the Samsung Space Monitor is a good solution wherever space is at a premium.
- Free Up More Space
- The Samsung Space Monitor provides up to 40% more usable desk surface area.
- Space-Saving Design
- When not in use, the Samsung Space Monitor pushes back to sit flat against a back wall to leave your entire work surface clear. When it's time for use, simply pull the Samsung Space Monitor towards you and adjust to your preferred viewing position.
- Concealed Cables

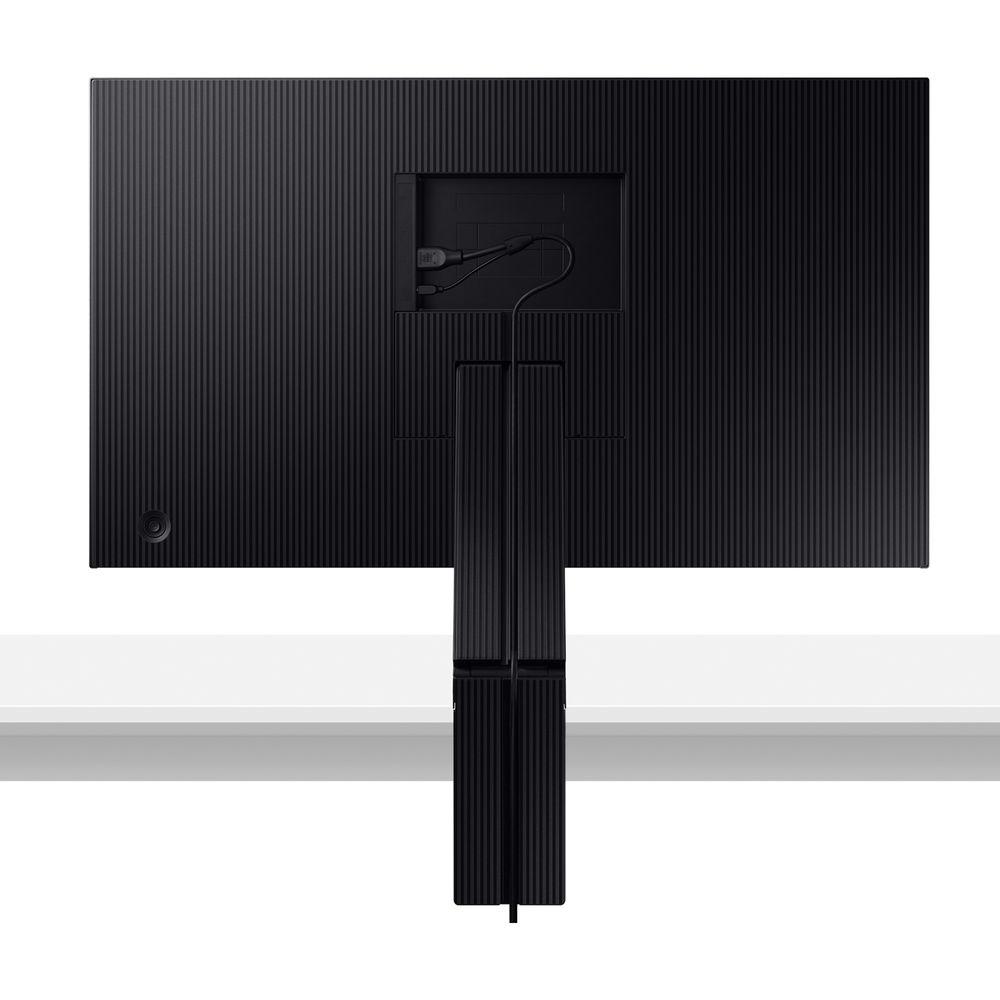

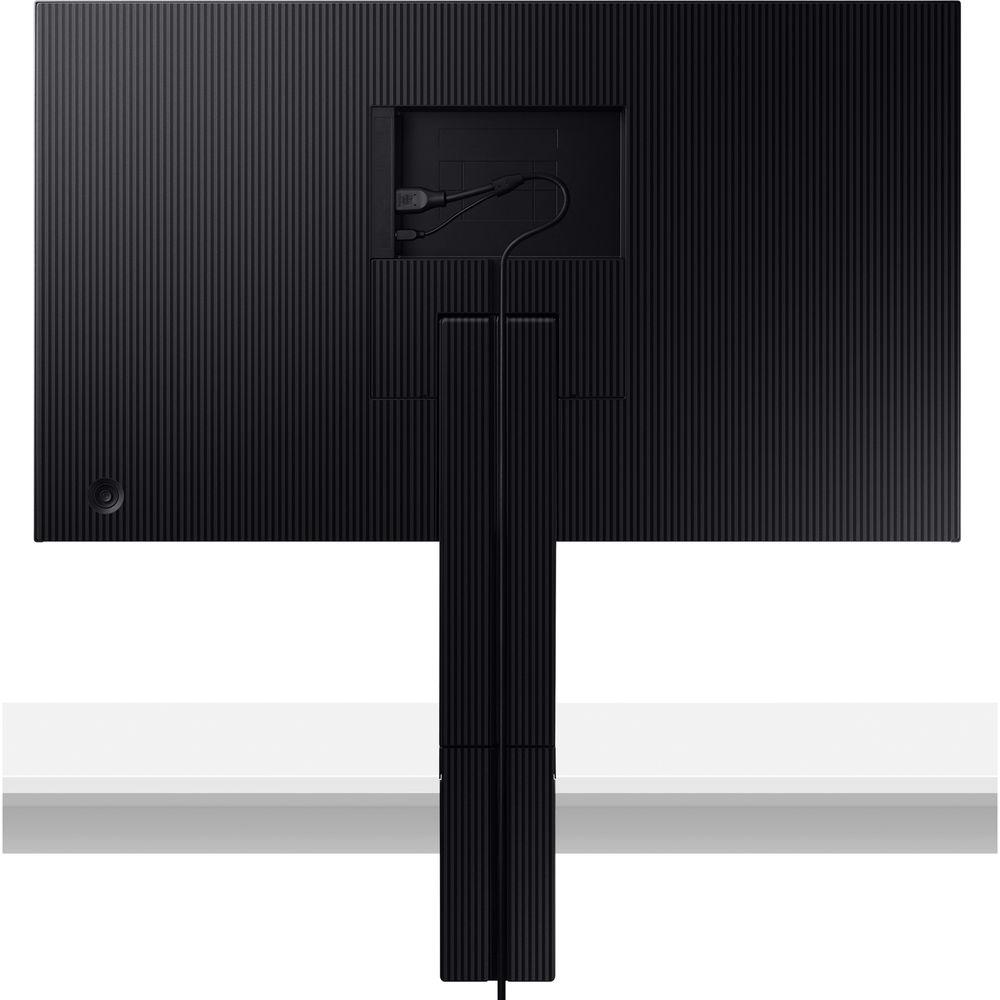

- The Samsung Space Monitor arm stand neatly conceals its power/HDMI Y-cable in recessed channels to prevent tangling and keep your work space clear and free from clutter.
- Stylish Design
- With its slim panel featuring a 3-sided bezel-less screen, the Samsung Space Monitor offers an understated stylish solution for workplaces or home interiors.
- WQHD Resolution
- With more pixels than Full HD, the 27" Samsung Space Monitor's WQHD (2560 x 1440) resolution not only delivers detailed and sharp images, it also creates a wider workspace that lets you see more of documents and webpages on the screen with less scrolling and zooming.
- 60 / 120 / 144 Hz Refresh Rates
- The 27" Samsung Space Monitor's fast 144 Hz screen refresh rate provides smooth scenes and can be adjusted to 60 or 120 Hz for optimized monitor performance.
- Height-Adjustable Arm Stand
- The Samsung Space Monitor's zero-level height adjustable arm stand allows easy positioning of the screen for comfort and convenience. Its adjustment span allows viewing from a height of 8.4" above the desktop (27" screen) all the way down to surface level.
- Adjustable Eye Level
- The Samsung Space Monitor can be quickly and easily raised or lowered to the optimal viewing height of any user, making it a versatile solution for use at home or in public spaces such as libraries.
- User-Friendly Installation

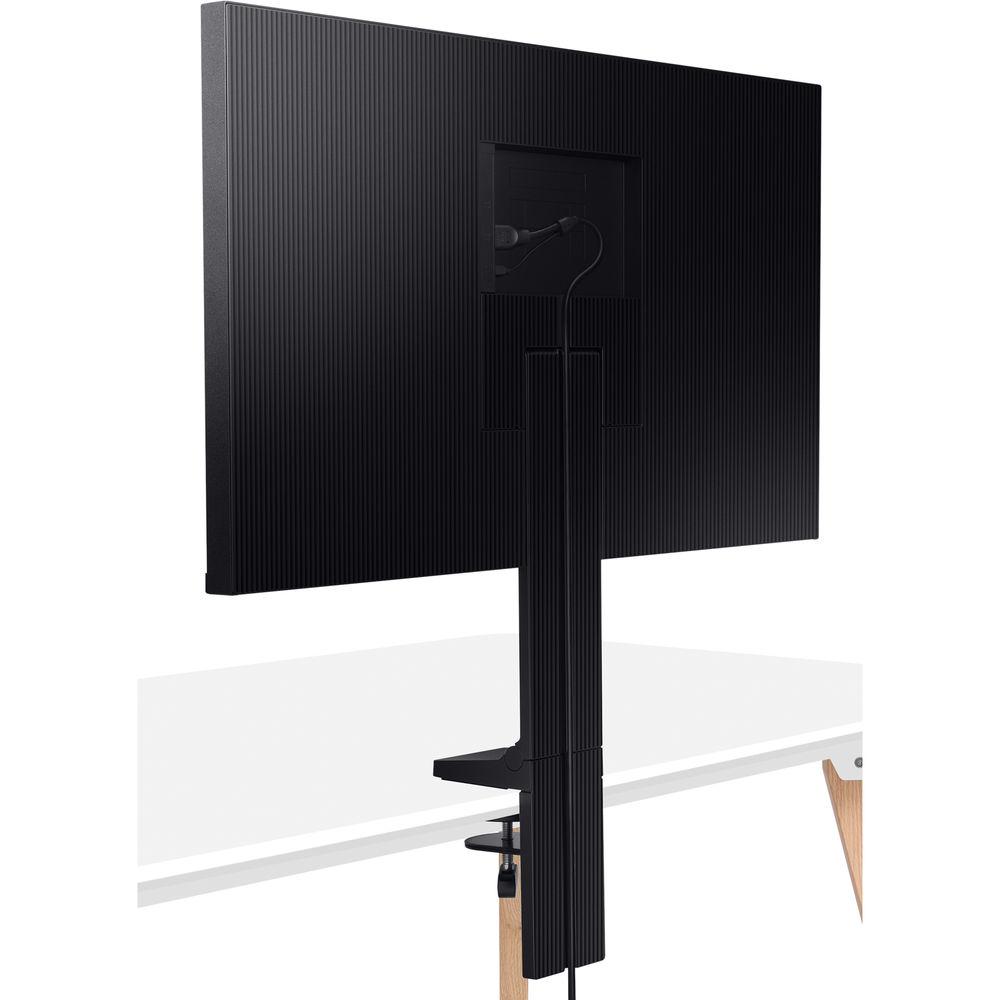

- The Samsung Space Monitor's arm stand features an integrated clamp for quick and easy installation. Adjustable up to 3.54", the clamp allows the Samsung Space Monitor to be securely attached to desks and tables with a wide range of thicknesses.
- Robust Hinge
- The Samsung Space Monitor's arm stand employs a robust hinge that helps to ensure consistent and reliable performance. Developed using Samsung technology and tested to withstand thousands of movements, the durable hinge assures smooth and precise screen positioning.
- Picture-by-Picture
- Picture-by-Picture lets you display two sources onscreen at their native resolutions.
- Picture-in-Picture
- Optimize your multitasking further with Picture-in-Picture, which lets you resize the second source up to 25% of the screen and reposition it.
- Easy Setting Box
- Arrange your windows for multitasking with Samsung's Easy Setting Box software.
UPC: 887276301952 In the Box Samsung SR75 27" 16:9 LCD Space Monitor HDMI/Power Y-Cable Limited 1-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung SR75 27" 16:9 LCD Space Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung SR75 Specs | | | Size | 27" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 108 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI 2.0
1 x Mini DisplayPort 1.2 | | Built-In Speakers | None | | | | Power Consumption | 59 W (Maximum)
0.5 W (Standby)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | 8.39" / 21.31 cm | | Dimensions (W x H x D) | 24.2 x 22.7 x 4.5" / 61.5 x 57.7 x 11.4 cm (With Stand)
24.2 x 14.3 x 1.1" / 61.5 x 36.3 x 2.8 cm (Without Stand) | | Weight | 12.56 lb / 5.70 kg (With Stand)
7.71 lb / 3.50 kg (Without Stand) | | | | Package Weight | 16.95 lb | | Box Dimensions (LxWxH) | 34.5 x 17.5 x 6.0" |
