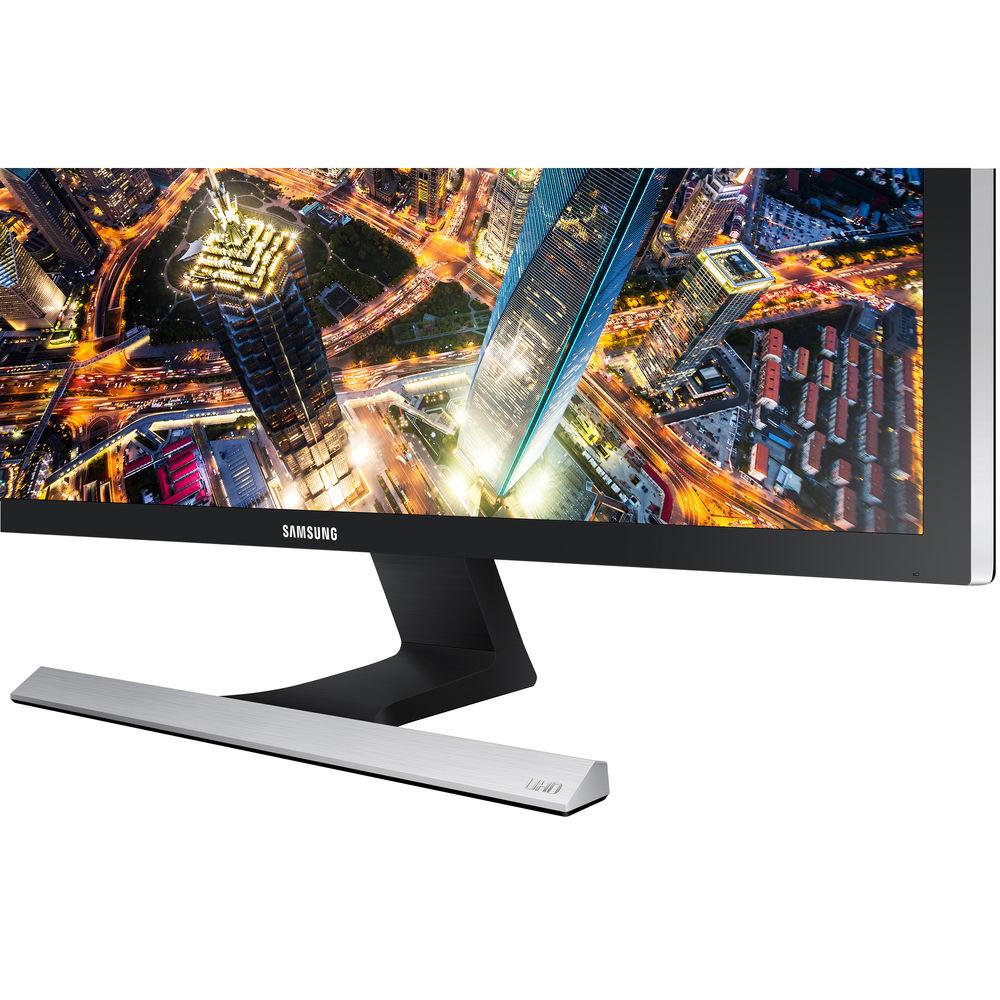

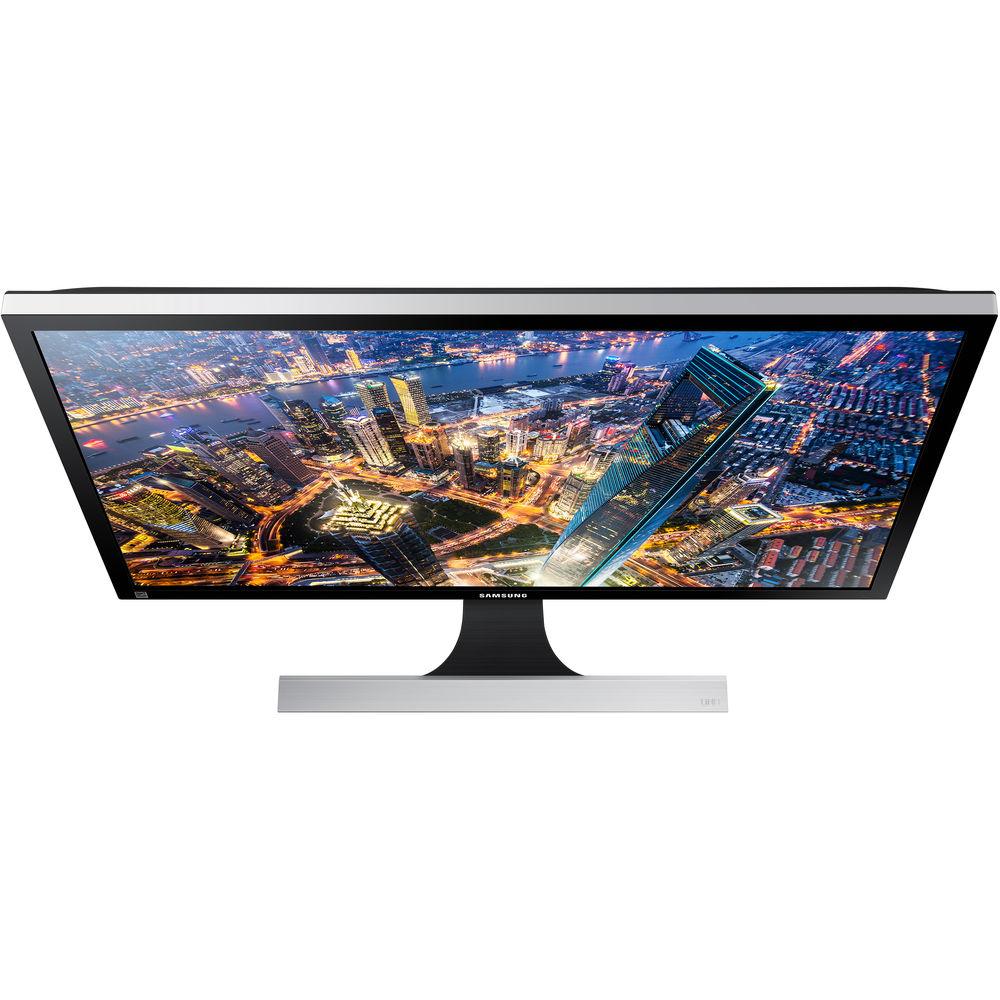

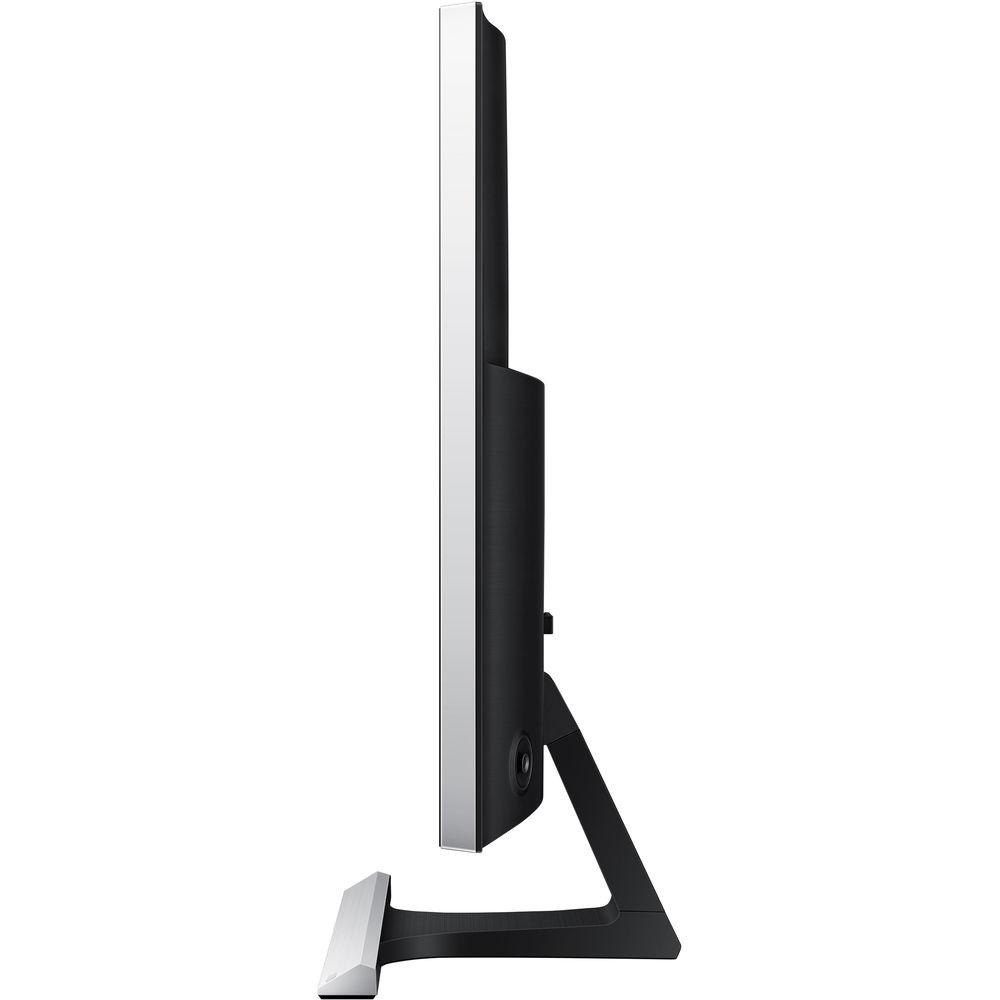

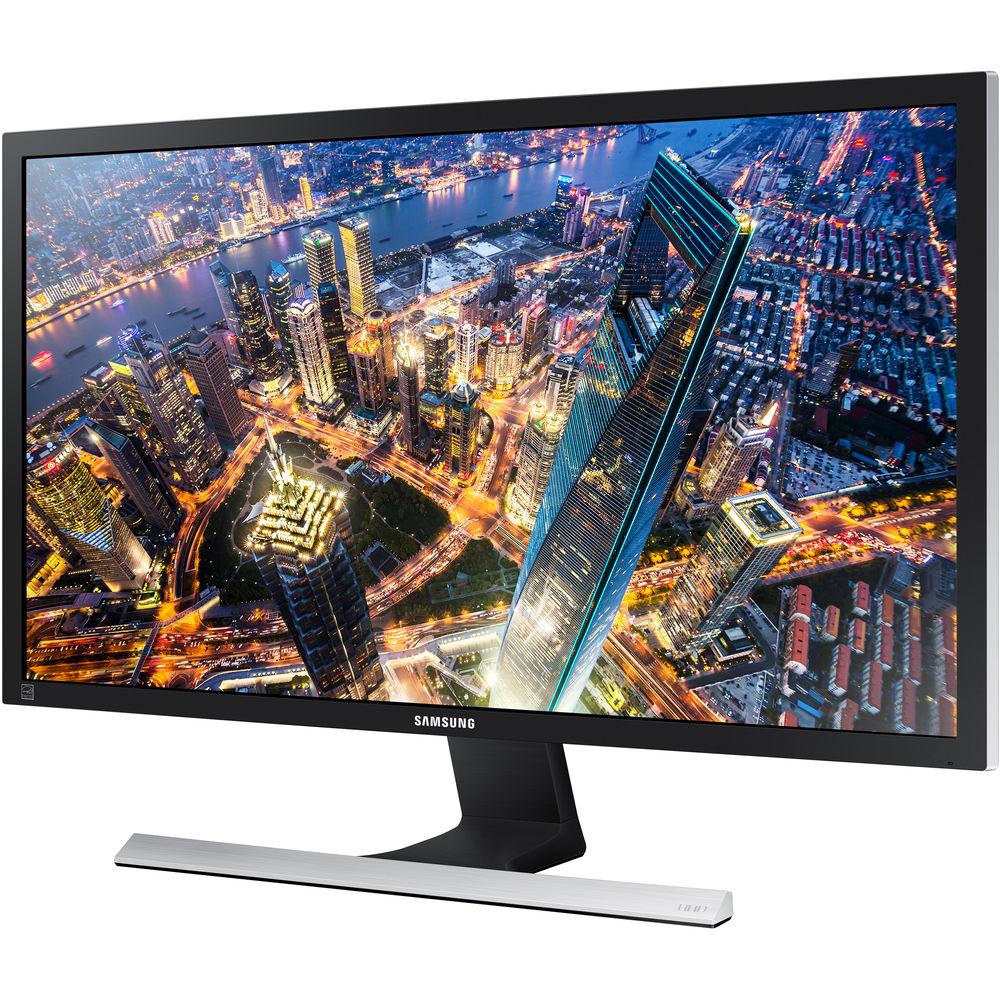

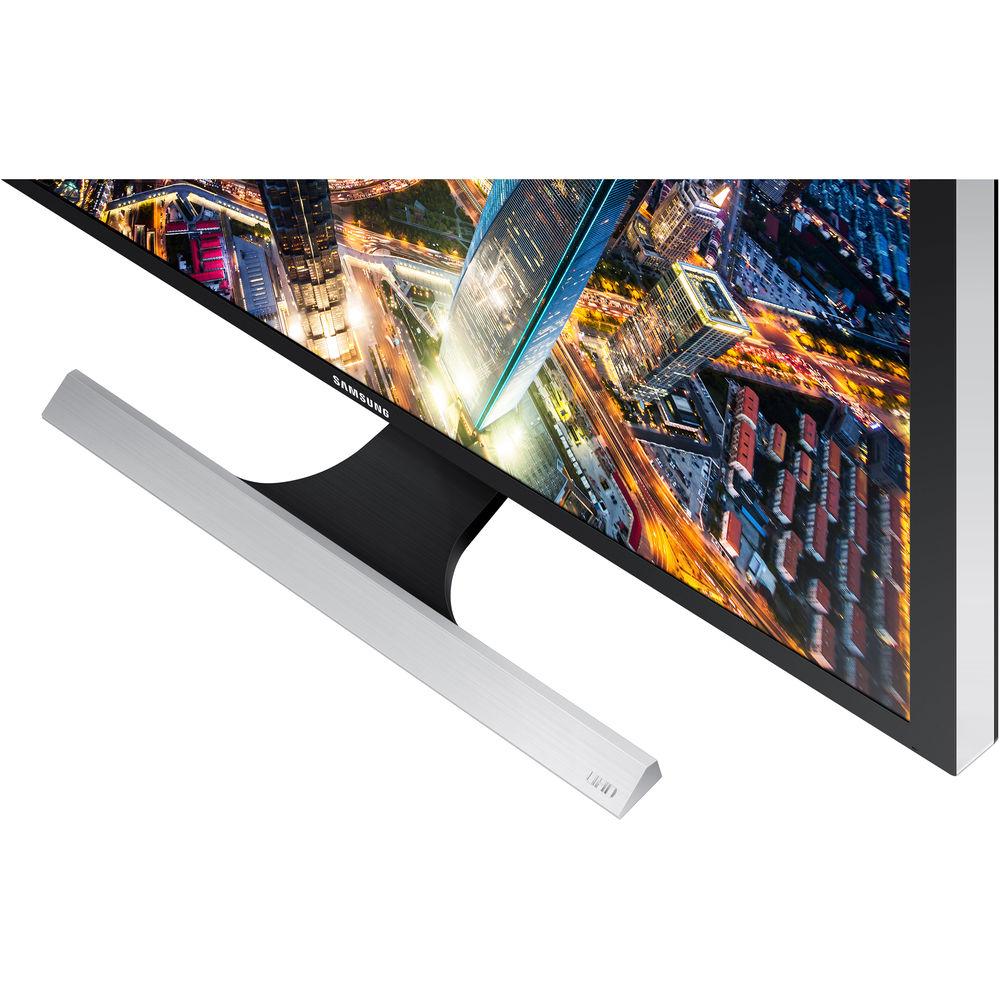

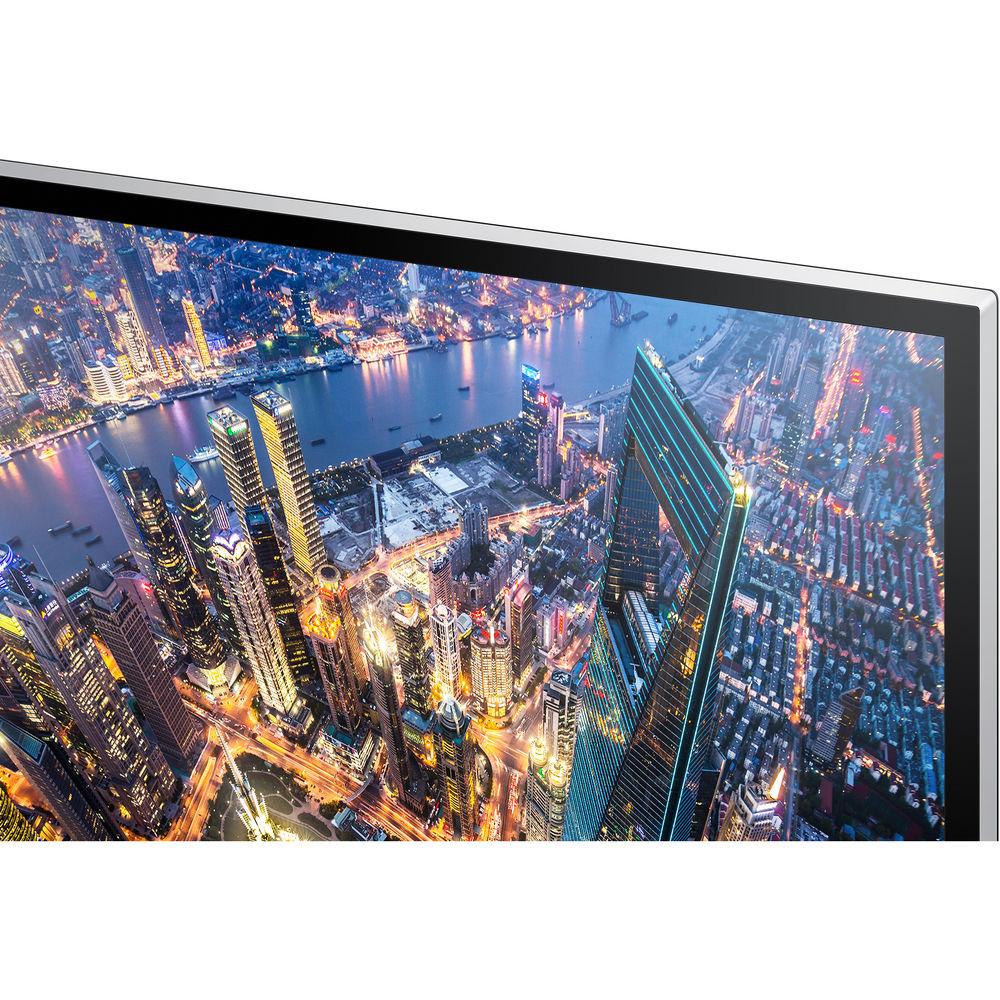

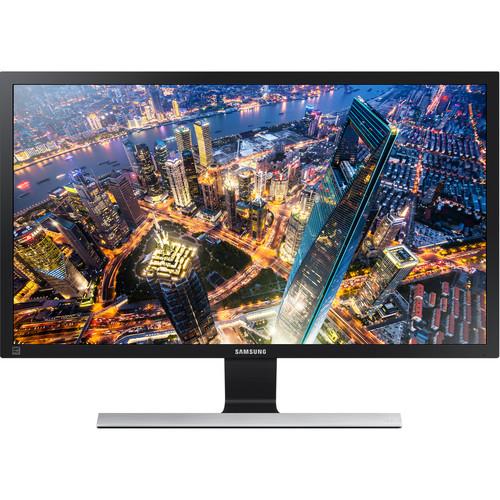

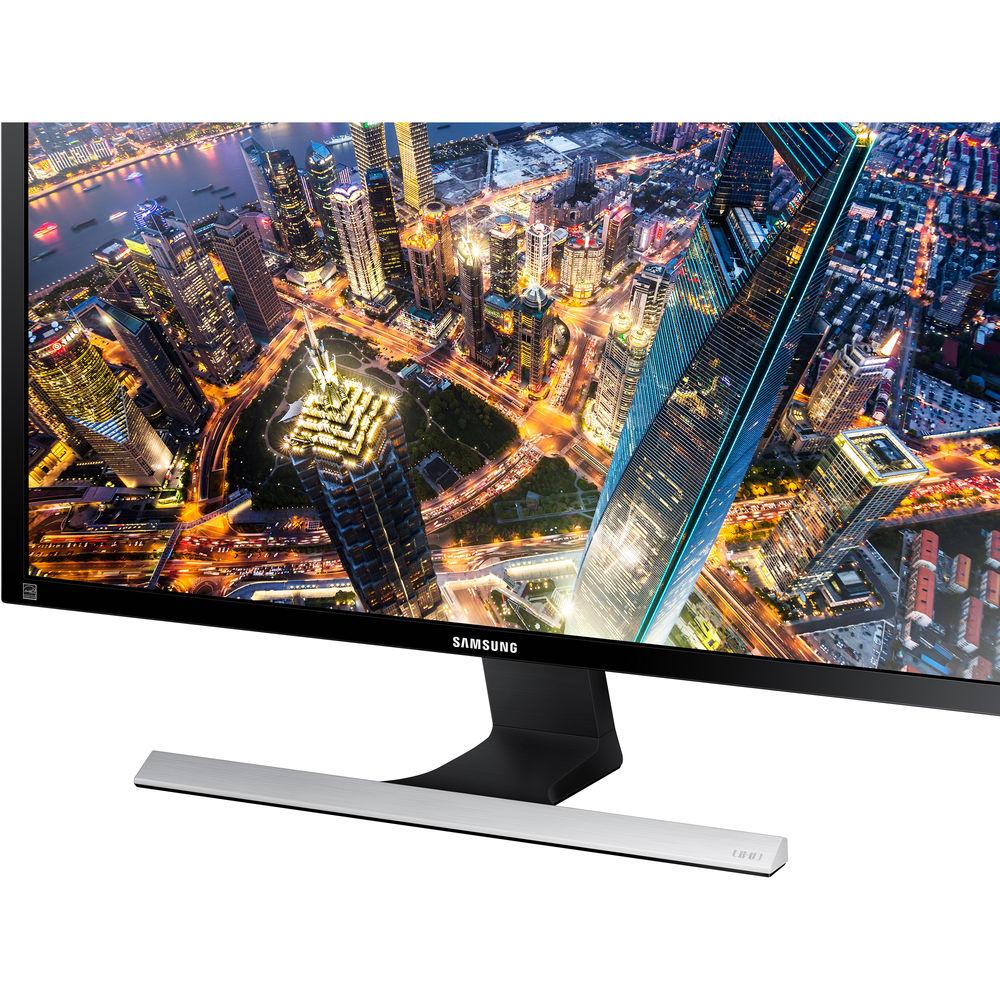

User Manual for Samsung U28E590D 28" 16:9 4K UHD LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung U28E590D 28" 16:9 4K UHD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung U28E590D 28" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a resolution four times that of standard Full HD, the U28E590D 28" 16:9 4K UHD LCD Monitor from Samsung generates a crisp, clear picture. With support for a UHD 4K resolution of 3840 x 2160 and 100% coverage of the sRGB color gamut your pictures are displayed with enhanced color accuracy. This monitor also features a 1 ms response time and AMD FreeSync technology to satisfy the needs of gamers and those who enjoy watching fast paced movies and videos. Whether watching movies or working on that excel spreadsheet, you can multitask with ease using picture-in-picture (PIP) 2.0 technology to split the screen in two for a side by side view of both tasks simultaneously. Setup and configuration of the U28E590D is simple as it comes equipped with both HMDI and DisplayPort connectors and can be wall mounted to take full advantage of the 170°/160° horizontal and vertical viewing angles. - Realistic UHD Picture Quality
- The Samsung UE590 UHD monitor offers PC viewing, gaming, and more, all in enhanced Ultra HD picture quality. With a resolution that's four times higher than Full HD, this ultra high-definition (UHD) monitor delivers images that use 8 million pixels for a more realistic picture.
- AMD FreeSync
- Enjoy smooth images, even during fast-moving scenes. AMD FreeSync dynamically syncs the screen refresh rate with the frame rate of your content to minimize input latency and dramatically reduce image tearing and stutter during gaming. Plus, with a fast 1 ms response time, you'll see fast on-screen motion clearly and smoothly with less motion blur, judder, and ghosting.
- More than 1 Billion Colors
- This UHD monitor features 64 times more color than conventional monitors - 1 billion colors. That means that movies, games, and other multimedia content appear detailed, natural looking, and realistic. More colors also ensure a smoother transition between different tones for a richer, more accurate picture.
- Easy Multitasking with PIP 2.0
- With Picture-in-Picture (PIP) 2.0 technology, you can watch your favorite movie or video in one window while simultaneously working on a spreadsheet. PIP 2.0 maintains the source's original resolution--up to Full HD--so you enjoy a crisp, clear picture. You can also adjust the size and position of the PIP window to fit your needs.
- Connectivity for UHD-Compatible Devices

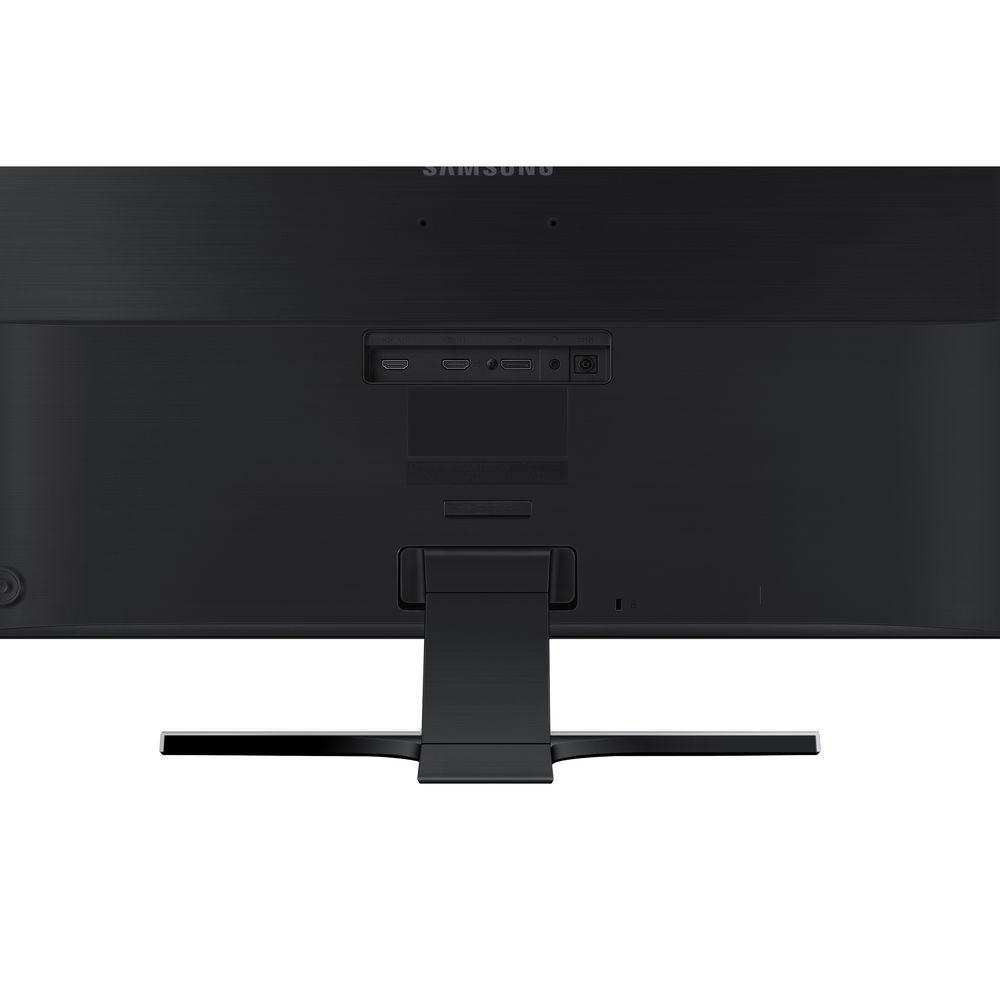

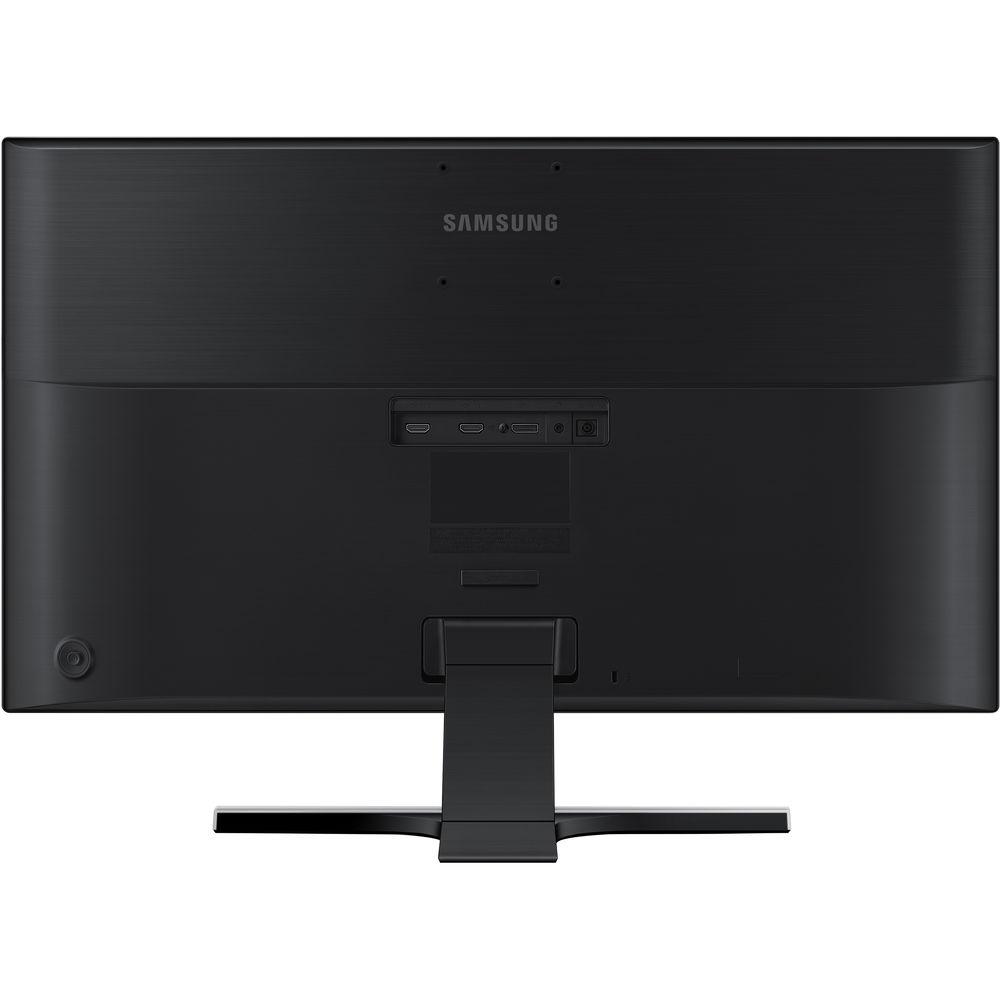

- You can connect multiple Ultra HD devices, like PCs and gaming consoles, to the UE590. There are two HDMI inputs as well as one Display Port input on the back panel. Enjoy upgraded HDMI support with an upgraded HDMI (v2.0) that supports UHD resolutions at a 60 Hz refresh rate, so 4K content plays smoothly without delay.
- Eye Saver Mode
- Eye Saver Mode optimizes your viewing comfort by reducing blue light emissions and flickers at the touch of a button. Read documents, play games, watch movies and edit photos for longer periods of time, and experience a more comfortable view, without worrying about eye strain or fatigue.
UPC: 887276079820 In the Box Samsung U28E590D 28" 16:9 4K UHD LCD Monitor HDMI Cable DisplayPort Cable Install CD Limited 1-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung U28E590D 28" 16:9 4K UHD LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung U28E590D Specs | | | Size | 28" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Maximum Brightness | 370 cd/m2 | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 100% sRGB | | Response Time | 1 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.16 x 0.16 mm | | | | Connectivity | 1 x 3.5 mm Output
1 x DisplayPort Input
2 x HDMI | | | | Power Consumption | 0.5 W (Standby)
45 W (Maximum)
29.6 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 80% | | | | Tilt Adjustment | -2 to 15° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 26.0 x 15.0 x 2.9" / 66.1 x 38.1 x 7.3 mm (Without Stand)
26.0 x 18.4 x 7.4" / 66.1 x 46.8 x 18.7 mm (With Stand) | | Weight | 11.6 lb / 5.3 kg (With Stand)
10.4 lb / 4.7 kg (Without Stand) | | | | Package Weight | 16.6 lb | | Box Dimensions (LxWxH) | 29.0 x 18.0 x 5.0" |
