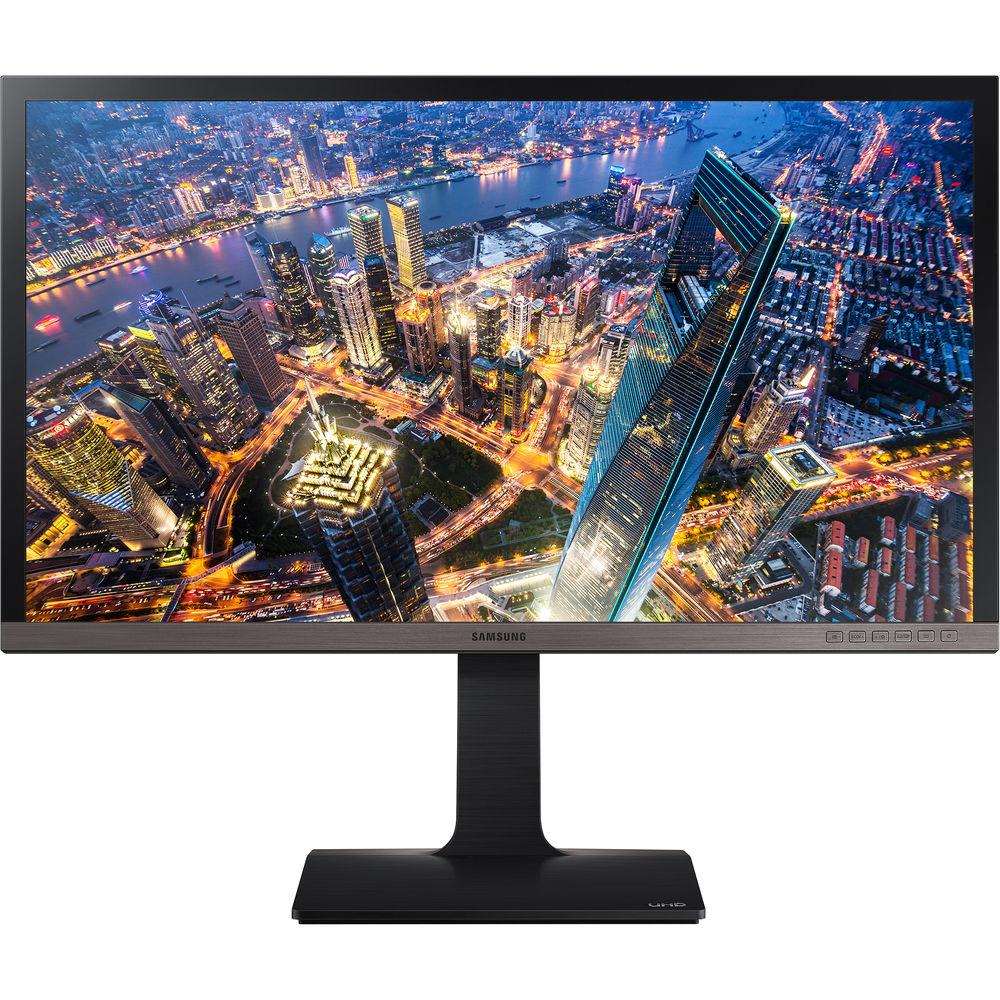

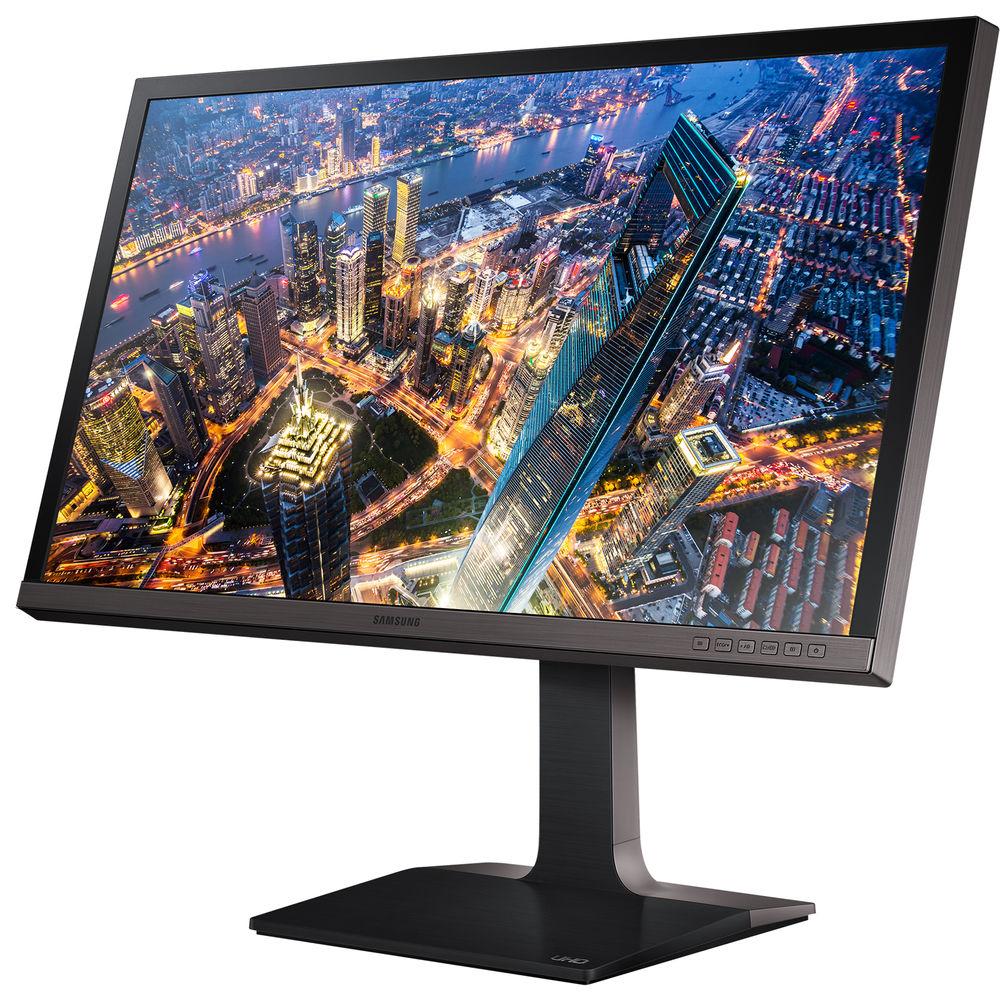

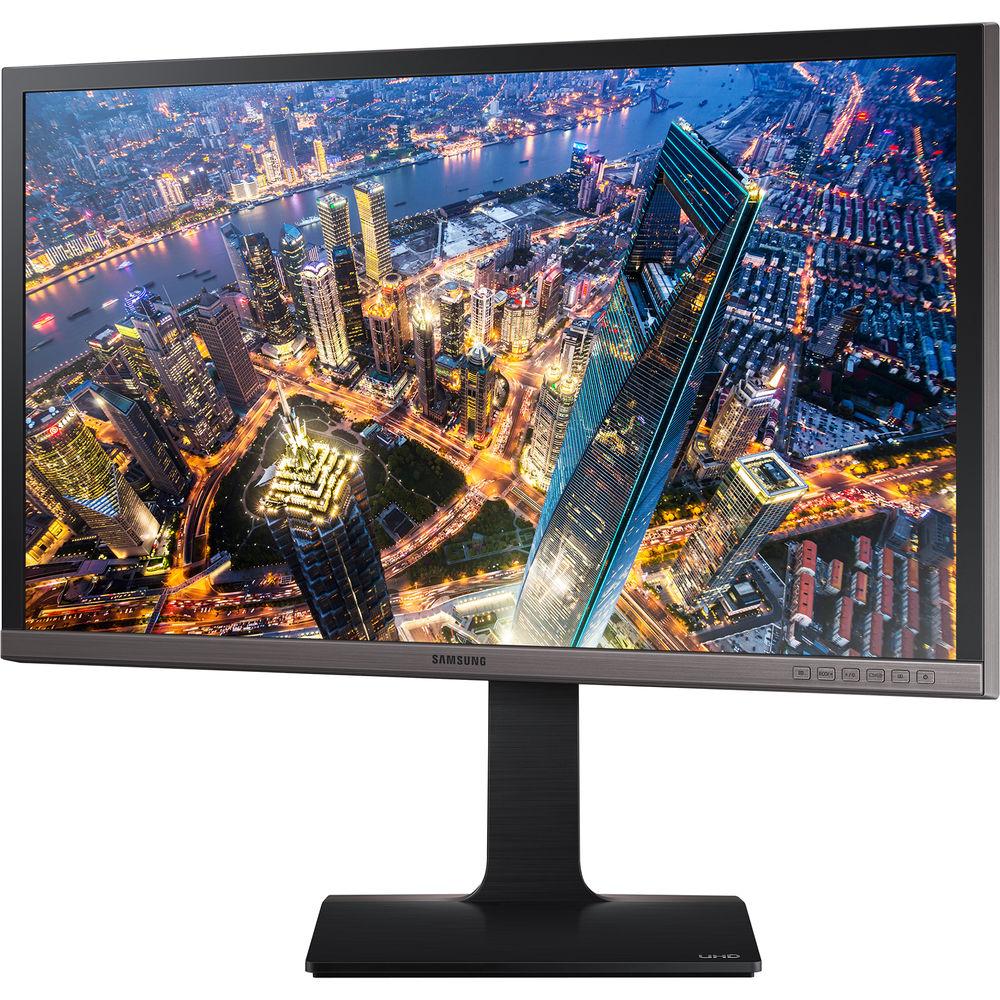

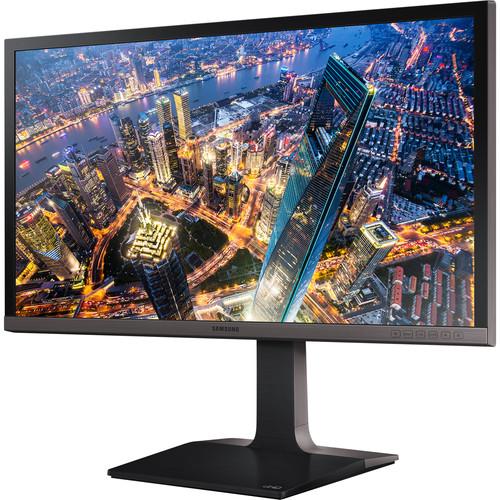

User Manual for Samsung UE850 Series 28" 16:9 4K FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung UE850 Series 28" 16:9 4K
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung UE850 Series 28" 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

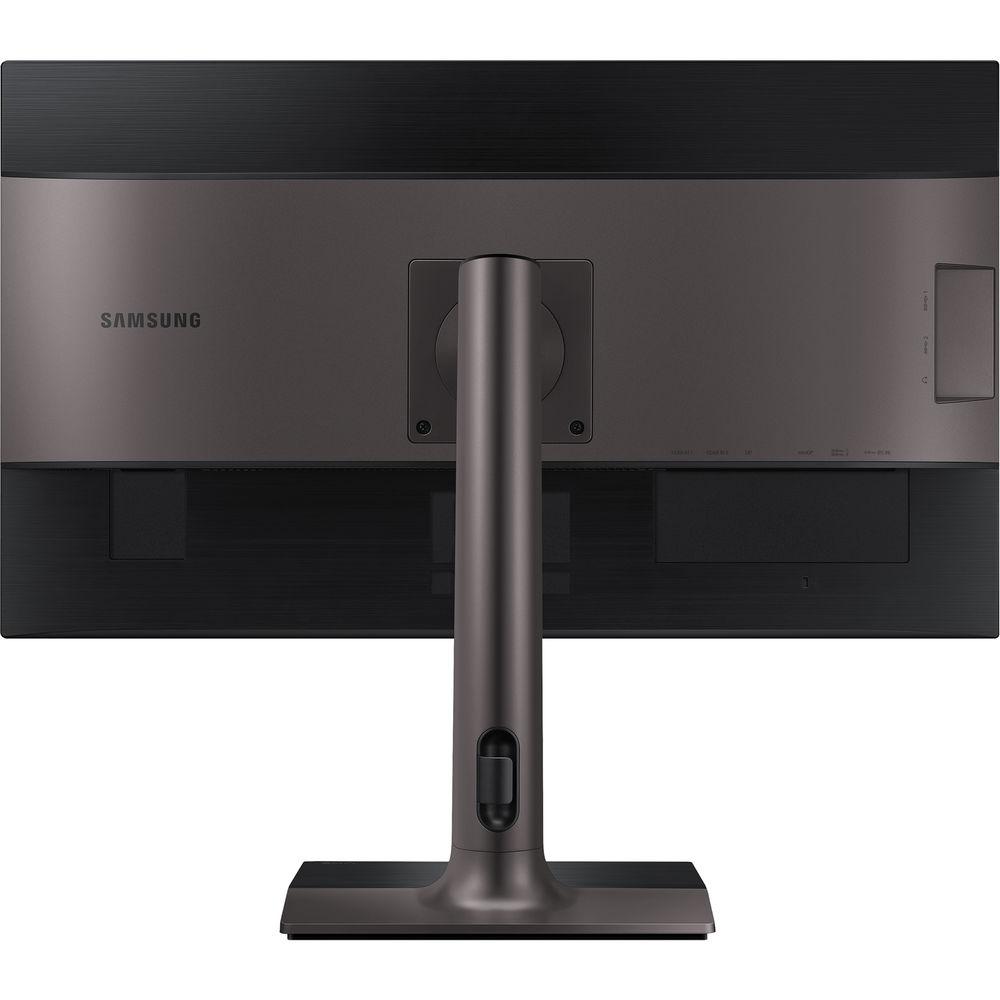

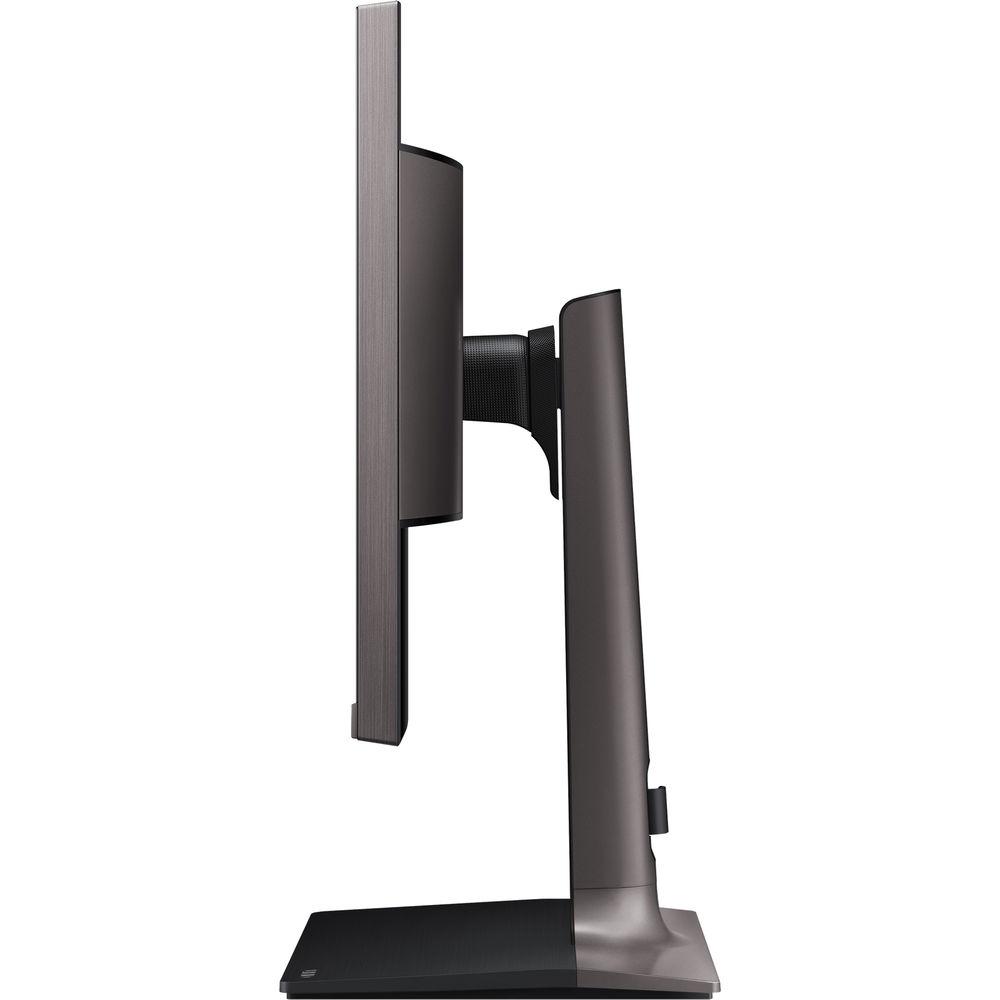

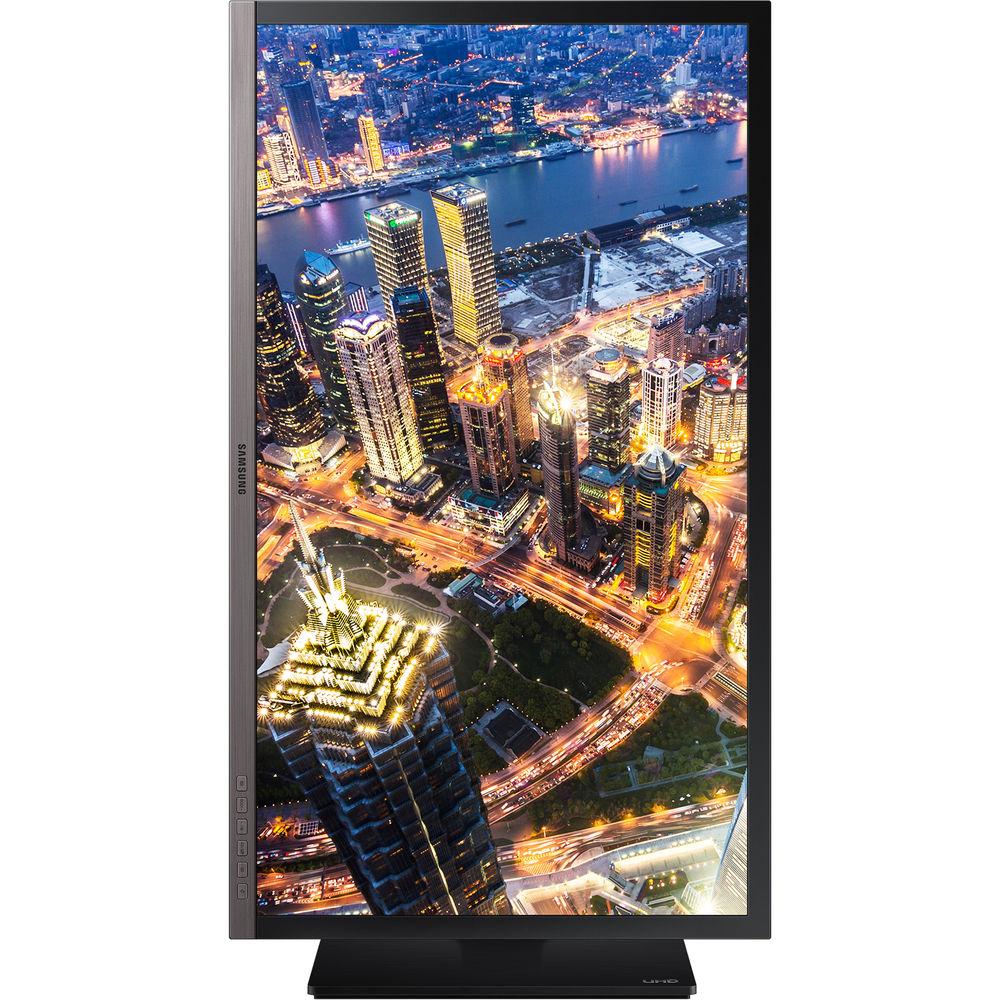

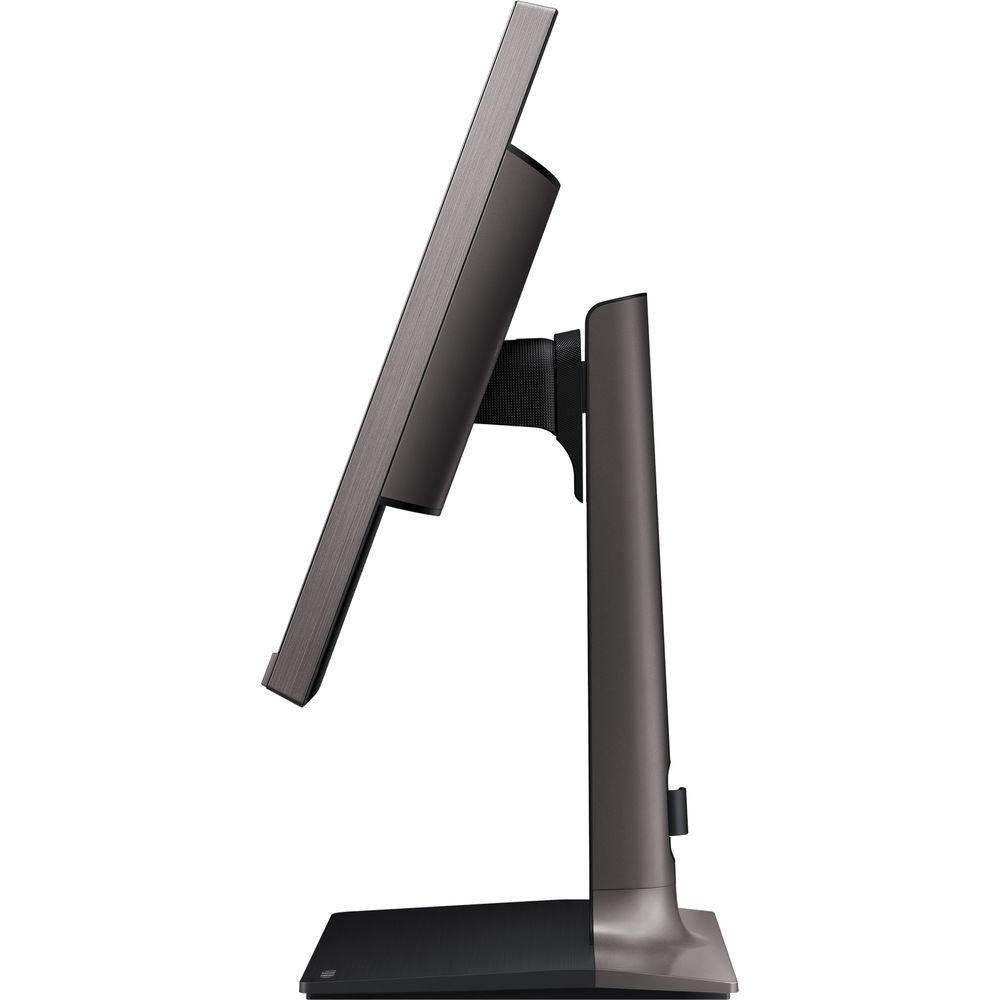

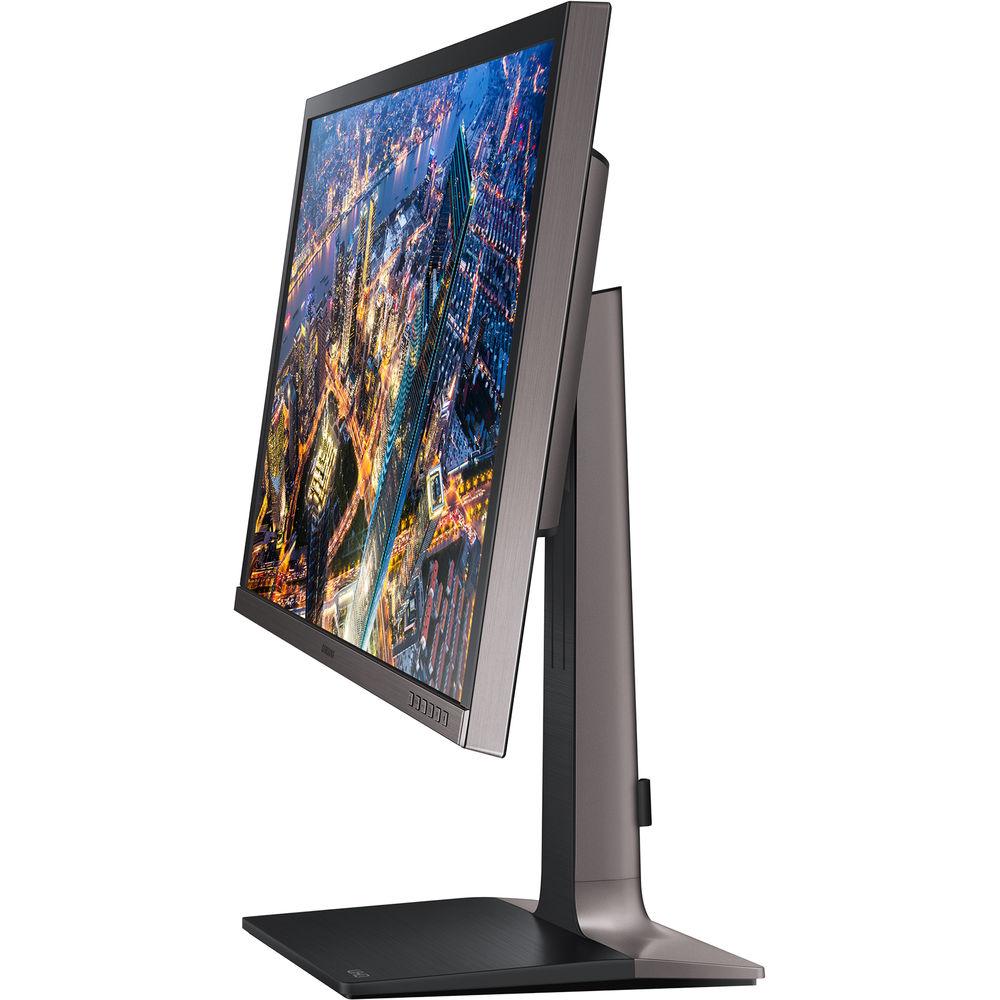

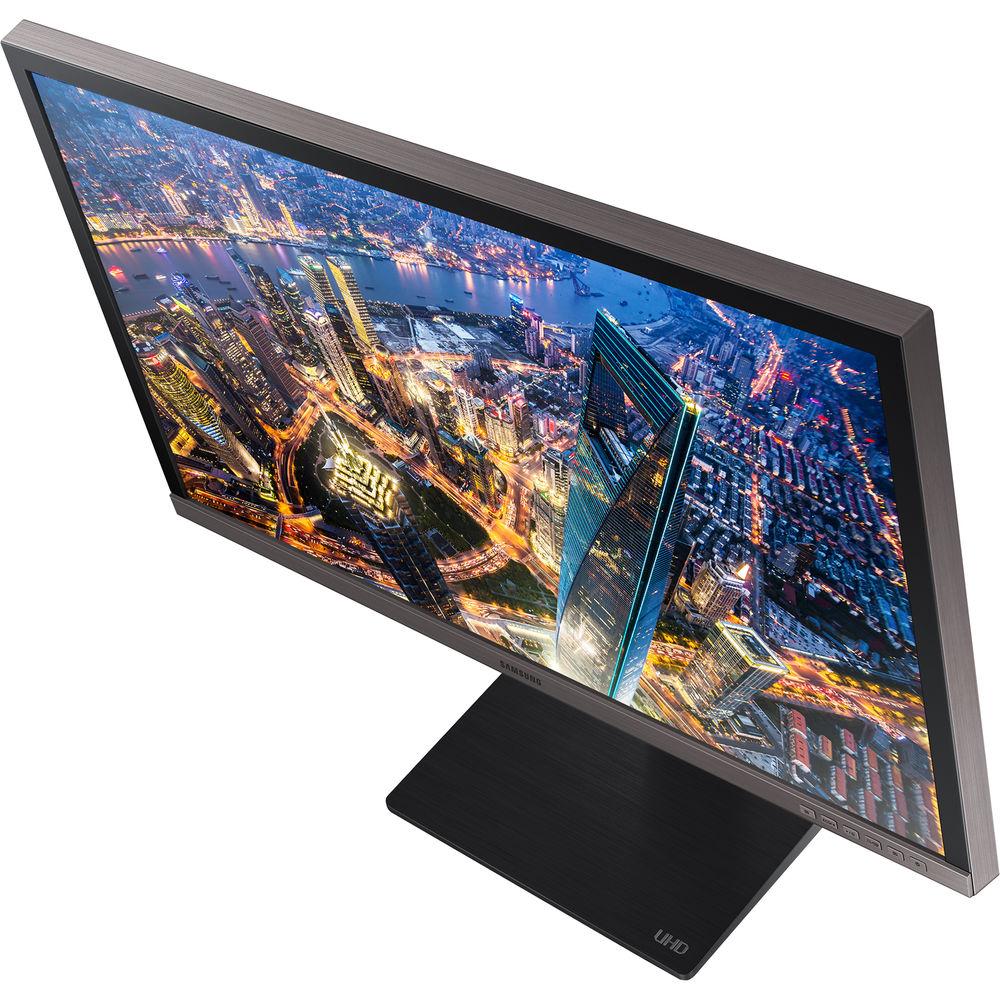

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Enjoy crisp and clear 4K UHD content with the UE850 Series 28" 16:9 4K FreeSync LCD Monitor from Samsung. This monitor is built with a TN (Twisted Nematic) panel and features an expansive 3840 x 2160 resolution with a fast 1 ms response time. Thanks to its 300 cd/m² brightness rating, 1000: static contrast ratio, and support for 1.07 billion colors, you'll be able to enjoy deeper blacks and brighter bright colors. Combined, it provides you with precise and accurate colors, ideal for color sensitive work. Additionally, this monitor supports AMD FreeSync technology, which syncs the display's refresh rate to your graphics card's frame rate output for a smoother experience with less stuttering and screen tearing. Connect this display to your system via HDMI, DisplayPort, or Mini DisplayPort. Then you'll be able to tilt, swivel, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional mount, stand, or arm using the 100 x 100mm VESA mounting holes on the back. For your convenience, it's USB soundbar-ready and built with a four port USB 3.0 hub. - UHD 3840 x 2160 Resolution
- The 3840 x 2160 UHD resolution features four times the resolution of a standard Full HD monitor for highly detailed pictures, videos, and games.
- PBP & PIP Technology
- PBP (Picture-by-Picture) technology lets you connect two systems to the monitor so you can see and work on both desktops simultaneously. PIP (Picture-in-Picture) allows you to watch a video or movie in a separate window while you're working on something else without it down-scaling.
- AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate to your graphics card's frame rate output for a smoother experience with less stuttering and screen tearing. Please note that an AMD graphics card is required.
- Eye Saver Mode & Flicker-Free Technology
- Eye Saver mode minimizes blue light emissions while Flicker-free technology reduces flickering at all brightness levels. Thanks to these, you can read documents, play games, and watch movies for longer periods of time without eye strain or fatigue.
- TAA Compliant
- This monitor is TAA compliant (Trade Agreements Act 19 U.S.C. & 2501-2581), which states that the U.S. Government must acquire end products that meet applicable manufacturing requirements.
UPC: 887276175515 In the Box Samsung UE850 Series 28" 16:9 4K FreeSync LCD Monitor HDMI Cable USB 3.0 Cable Mini DisplayPort to DisplayPort Cable Limited 3-Year Warranty User Manual PDF 6.3mb More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung UE850 Series 28" 16:9 4K FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LU28E85KRS/GO Specs | Screen Size | 28" (71.1 cm) | | Display Type | TN (Twisted Nematic) | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Brightness | Typical: 300 cd/m2
Minimum: 250 cd/m2 | | Static Contrast Ratio | Typical: 300 cd/m²
Minimum: 250 cd/m²
Dynamic: Mega ∞ | | Viewing Angles (H/V) | 170°/160° | | Response Time | 1 ms | | Active Display Size (H x V) | 24.44 x 13.44" (62.1 x 34.1 cm) | | Pixel Pitch | 0.16 x 0.16 mm | | Color Support | 1.07 billion | | USB | 1 x USB upstream
4 x USB 3.0 Type-A downstream | | Ports and Connectors | 2 x HDMI
1 x DisplayPort
1 x Mini DisplayPort
1 x headphone jack | | | | VESA Compatibility | 100 x 100 mm | | Height Adjustment | 5.1" (130 mm) | | Tilt | -5° (±2°) to 22° (-1.5° - 2°) | | Swivel | -25° (-2° - 0°) to 25° (0° - +3°) | | Pivot | -1.5° (±1.5) to 91.5° (±1.5) | | | | Power Supply | 100 - 240 VAC | | Power Consumption (typical) | 27.1 W | | Power Consumption (Standby) | 0.3 W | | | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Operating Humidity | 10 to 80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 26 x 16.6-21.7 x 10.3" (66 x 42.2-55.1 x 26.2 cm)
Without Stand: 26 x 15.1 x 2.4" (66 x 38.4 x 6.1 cm) | | Weight | With Stand: 16.4 lb (7.44 kg)
Without Stand: 10.9 lb (4.94 kg) | | | | Package Weight | 24.4 lb | | Box Dimensions (LxWxH) | 29.0 x 19.5 x 13.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
