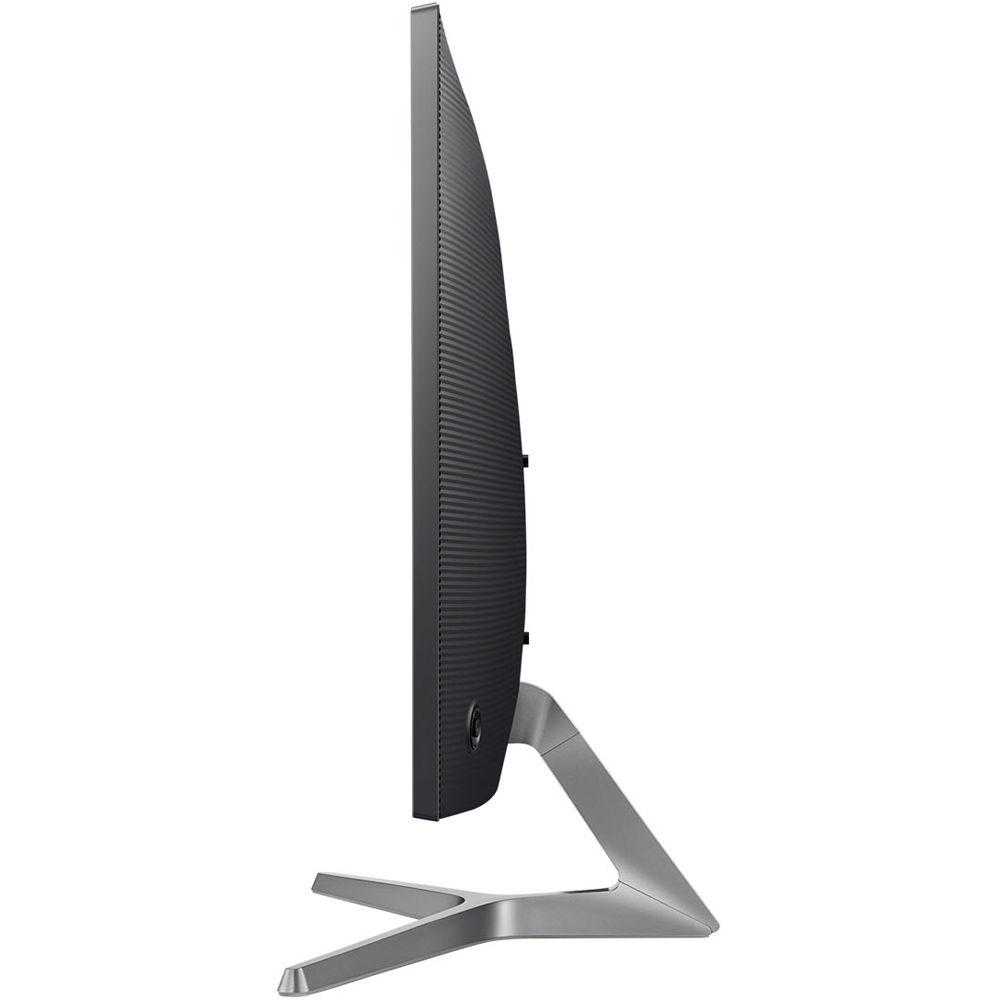

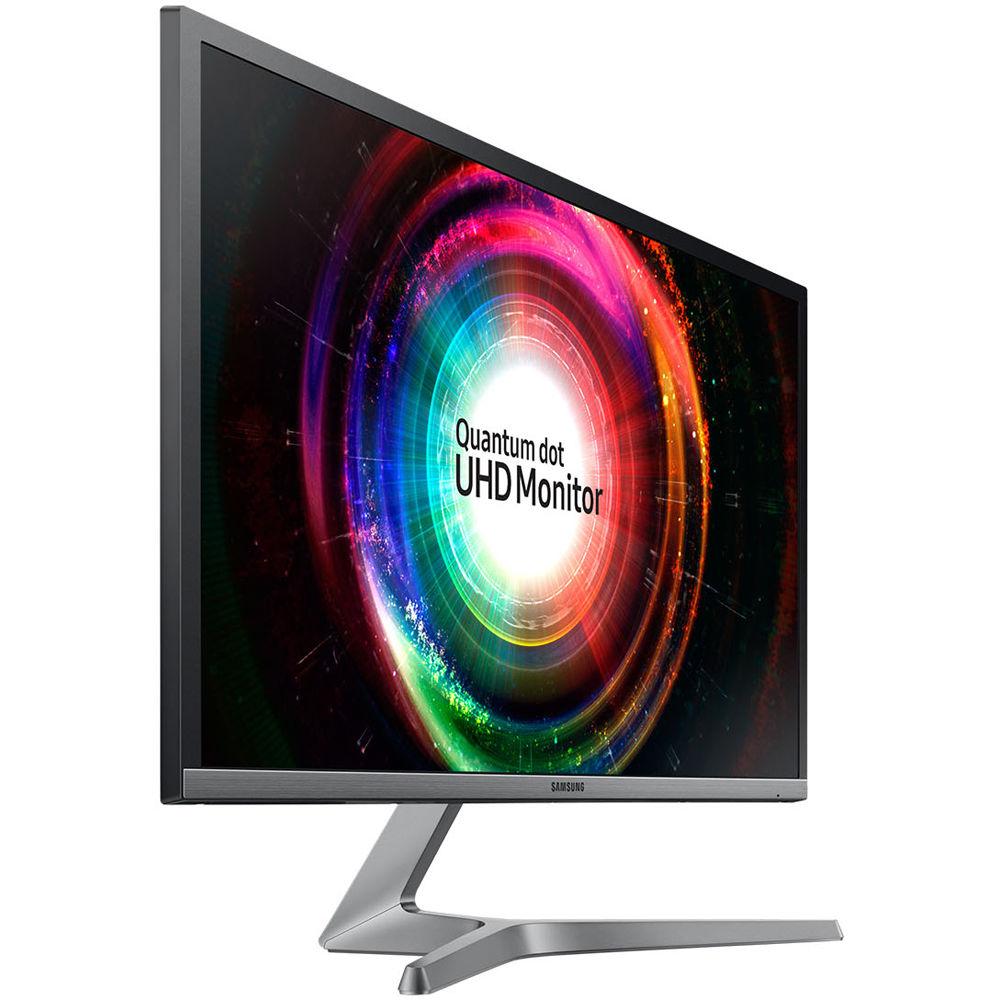

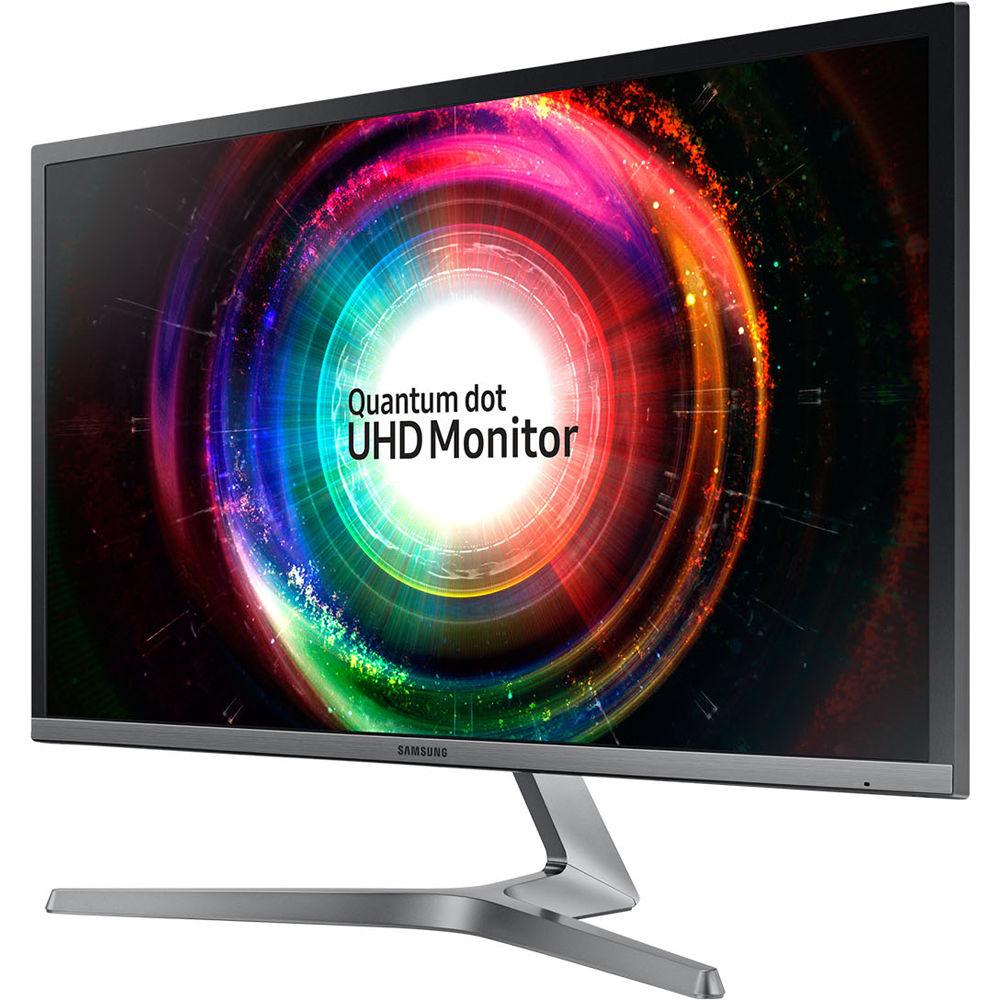

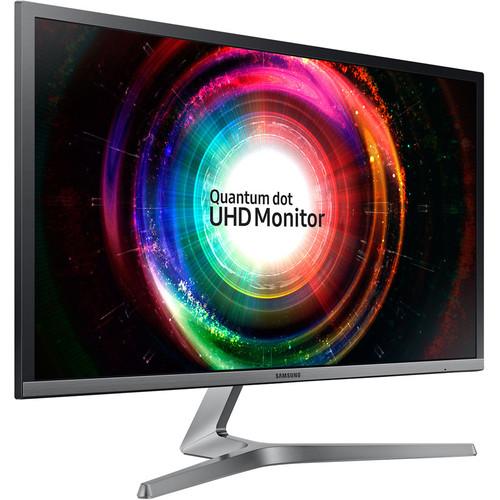

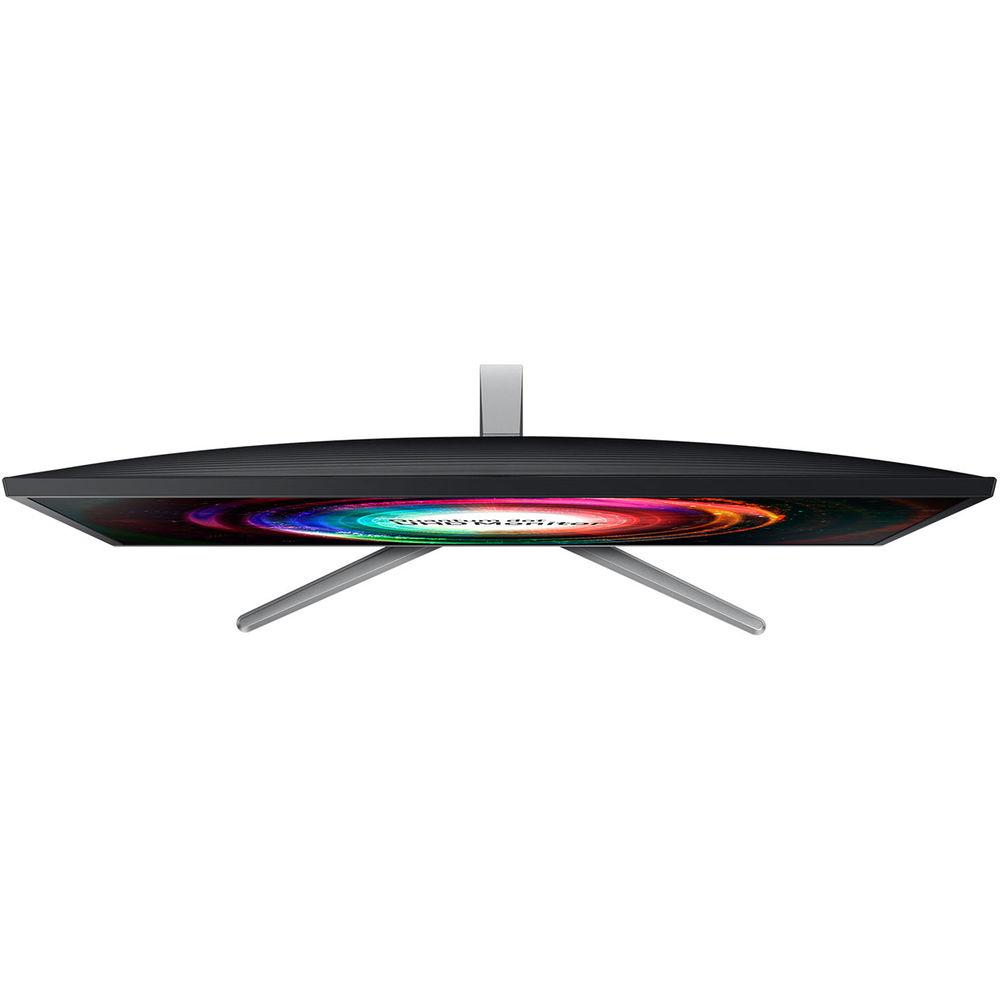

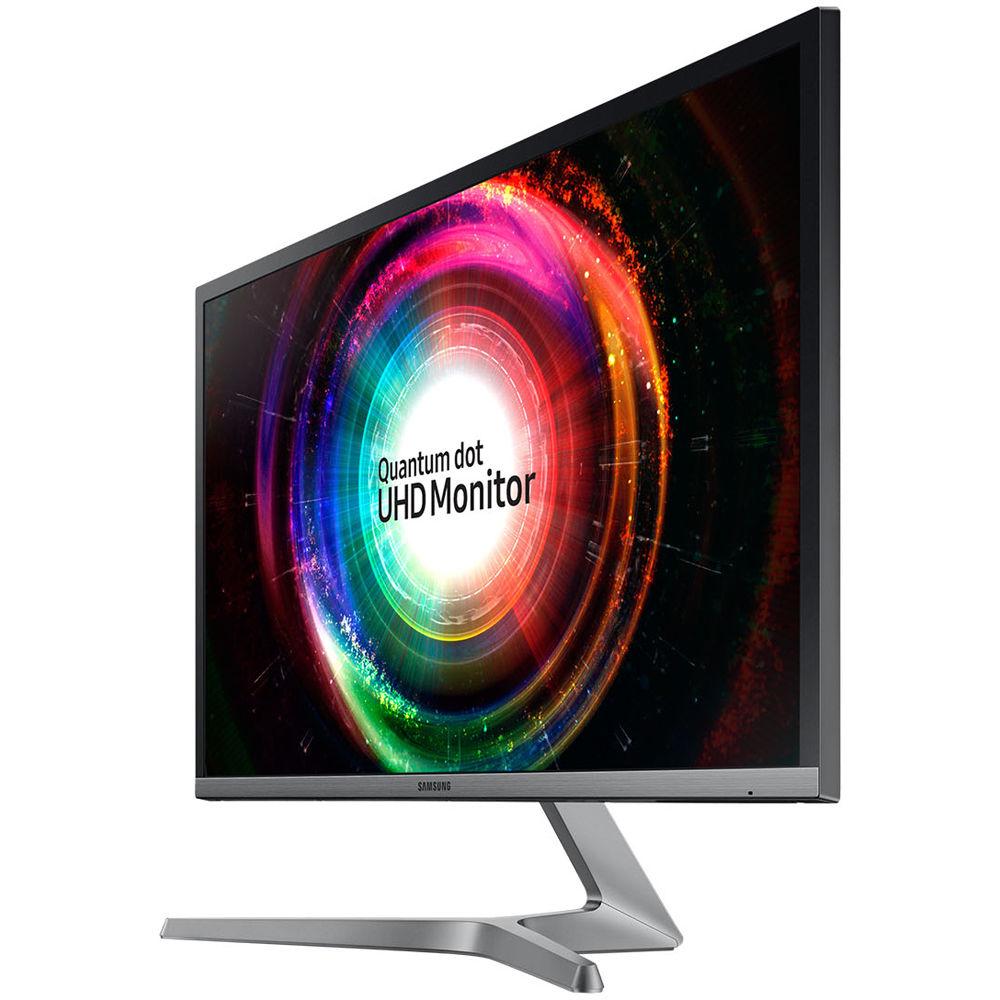

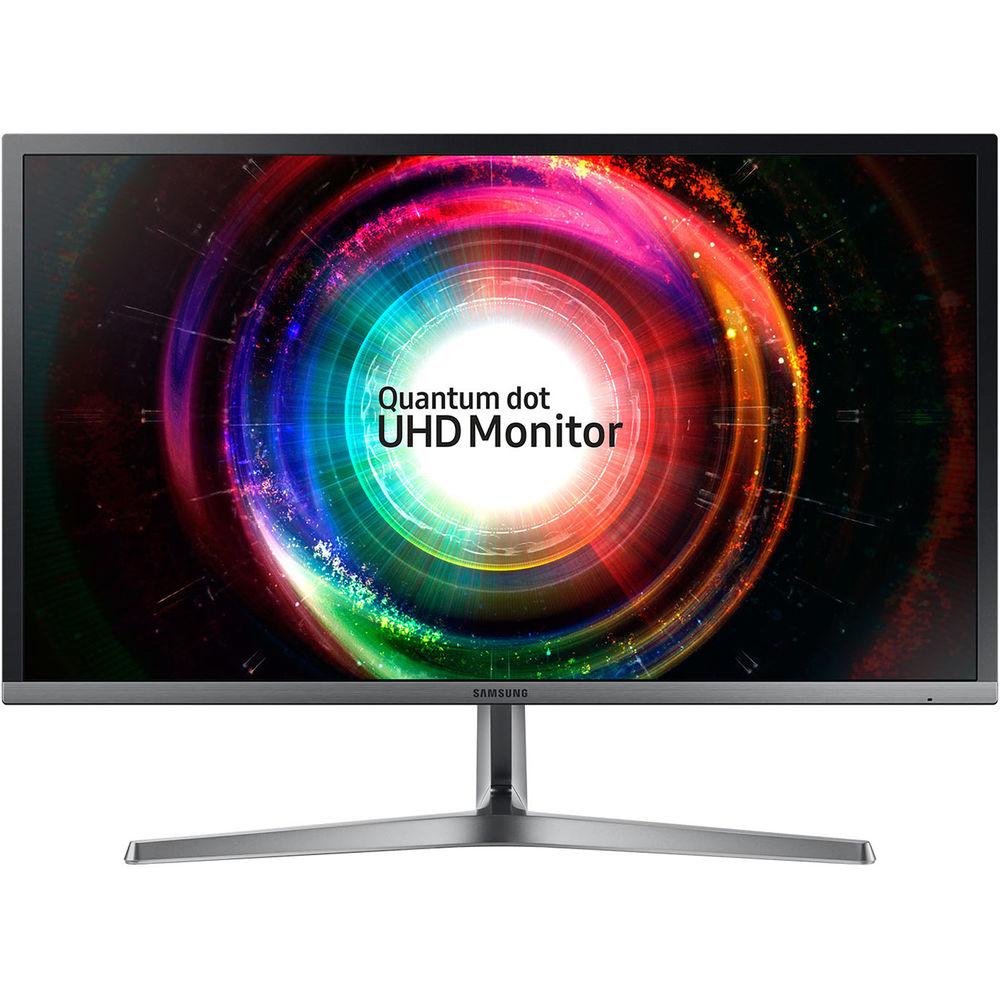

User Manual for Samsung UH750 28" 16:9 4K FreeSync QLED LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung UH750 28" 16:9 4K FreeSync
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung UH750 28" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

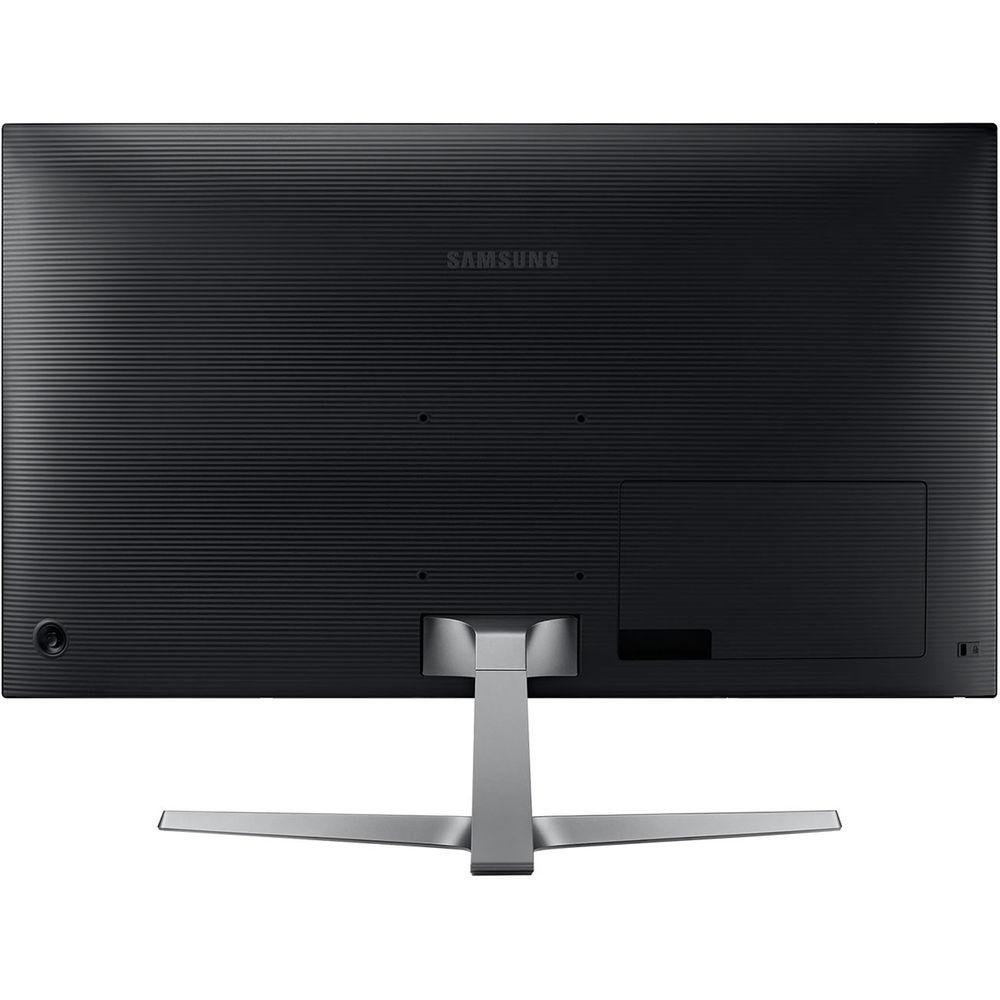

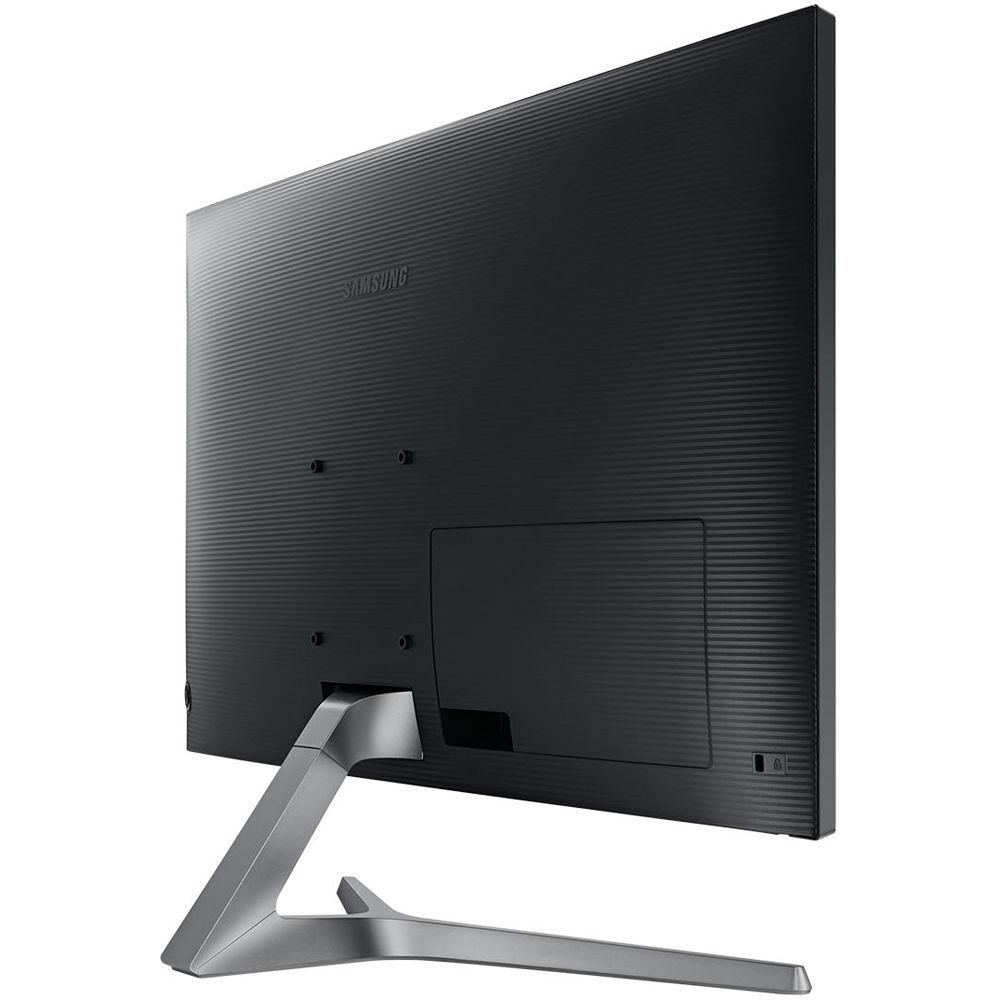

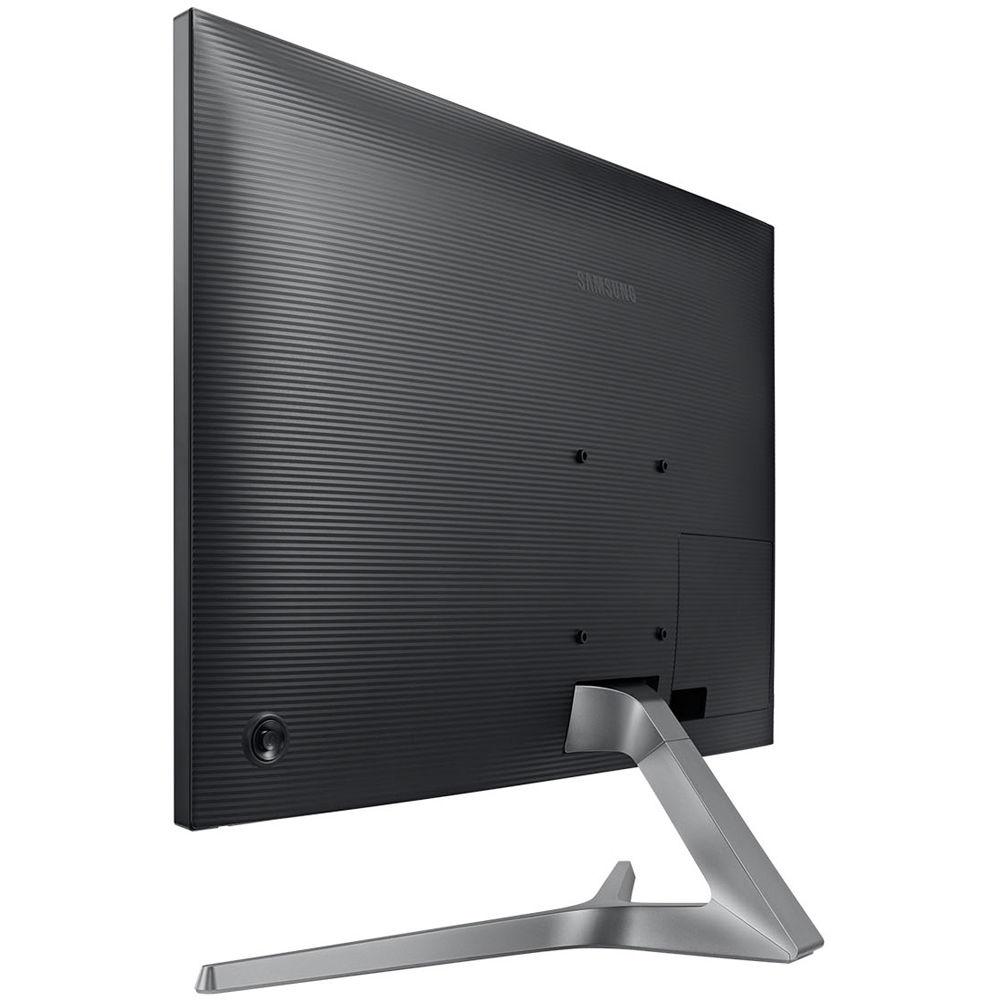

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Work and play with great detail using the UH750 28" 16:9 4K FreeSync QLED LCD Monitor from Samsung. This 4K monitor has a 3840 x 2160 resolution, a 300 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for 1.07 billion colors. Thanks to Samsung's Quantum Dot technology, you'll be able to enjoy vivid and accurate colors with improved greens and reds. Moreover, this monitor supports AMD FreeSync technology, which syncs its refresh rate with your graphics card's frame rate output for a fluid gaming experience. Connect this display to your system via HDMI or DisplayPort and adjust it to your viewing preferences. Otherwise, you can install an optional mount, stand, or arm using the VESA mounting holes on the back. - Quantum Dot Technology
- Samsung's Quantum Dot Technology combined with support for 1.07 billion colors provides you with a vivid and accurate palette for a more colorful viewing experience.
- PBP & PIP Viewing Modes
- With PBP (Picture-by-Picture), you can connect two different devices at the same time while still keeping the original image quality. PIP (Picture-in-Picture) lets you resize the second image up to 25% of the screen and position it anywhere you like.
- AMD FreeSync & 1 ms Response Time
- AMD FreeSync syncs the display's refresh rate to your graphics card's frame rate output. Paired with a 1 ms response time, you'll be able to enjoy fluid gaming with less motion blur, judder, and ghosting.
UPC: 887276199627 In the Box Samsung UH750 28" 16:9 4K FreeSync QLED LCD Monitor HDMI Cable DisplayPort Cable Power Cable Limited 3-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung UH750 28" 16:9 4K FreeSync QLED LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung LU28H750UQNXZA Specs | Screen Size | 27.9" (708.66 mm) | | Display Type | TN (Twisted Nematic) | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m2 | | Static Contrast Ratio | 1000:1 | | Minimum Contrast Ratio | 700:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time (GtG) | 1 ms | | Refresh Rate | 60 Hz | | sRGB Coverage | 125% | | Color Support | 1.07 billion | | AMD Free Sync Technology | Yes | | Ports and Connectors | 2 x HDMI
1 x DisplayPort
1 x Headphones | | | | VESA Compatibility | 100 x 100 mm | | Tilt | -1.0° (-2.0°, +1.0°) to 20.0° (±2.0°) | | | | Power Supply Type | 100 - 240 VAC | | Power Consumption (Maximum) | 59 W | | Power Consumption (Standby) | < 0.3 W | | | | Operating Temperature | (10 to 40°C) | | Operating Humidity | 10 to 80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 25.74" x 18.75" x 9.56" (653.8 x 476.25 x 242.824 mm)
Without Stand: 25.74" x 14.8" x 3.72" (653.8 x 375.92 x 94.5 mm) | | Weight | With Stand: 11.46 lb (5.2 kg)
Without Stand: 10.36 lb (4.7 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 29.0 x 18.0 x 7.5" |
