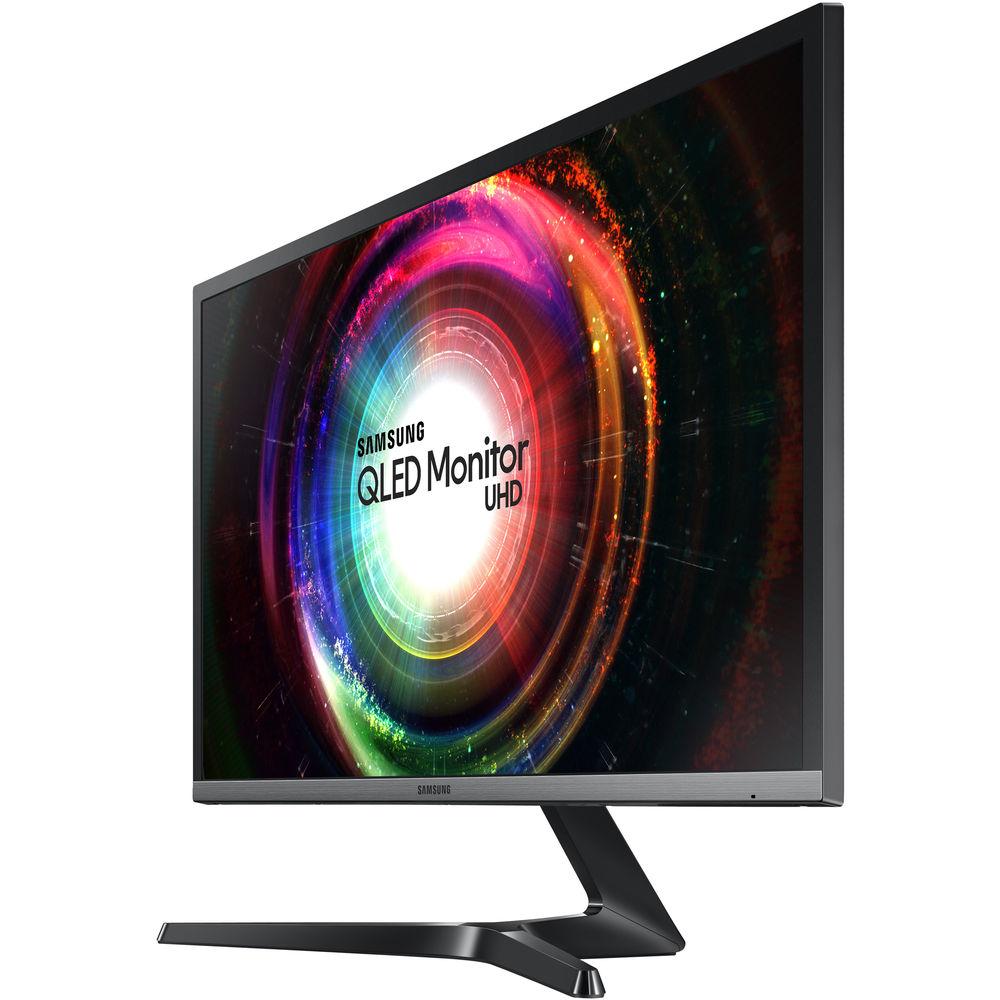

User Manual for Samsung UH750 31.5" 16:9 4K UHD LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung UH750 31.5" 16:9 4K UHD
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung UH750 31.5" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

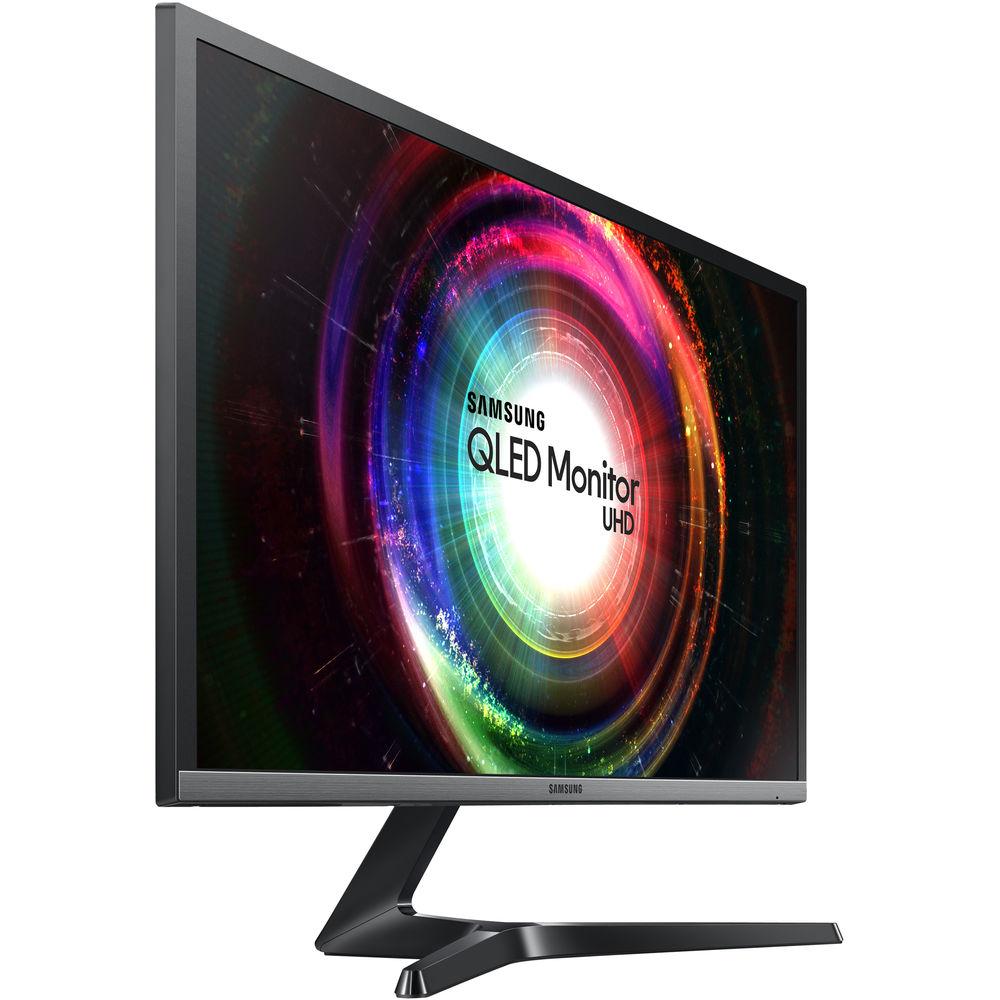

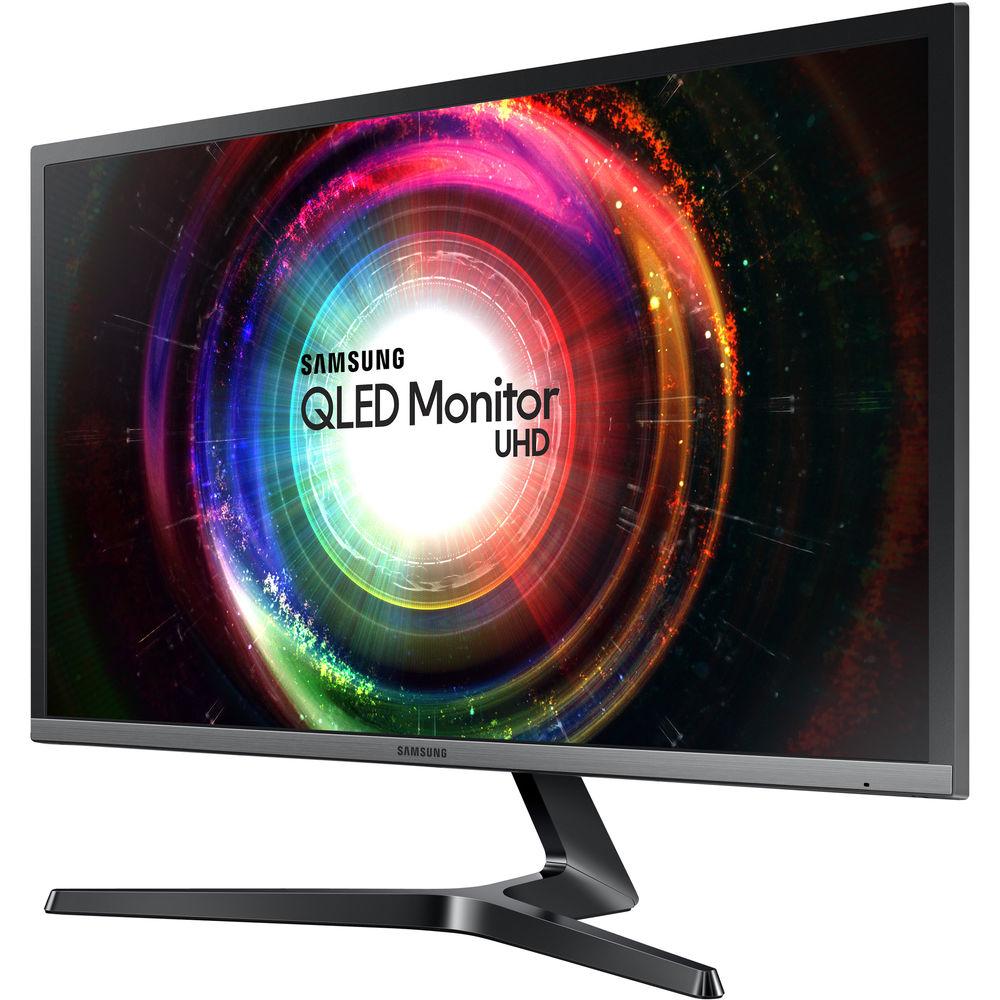

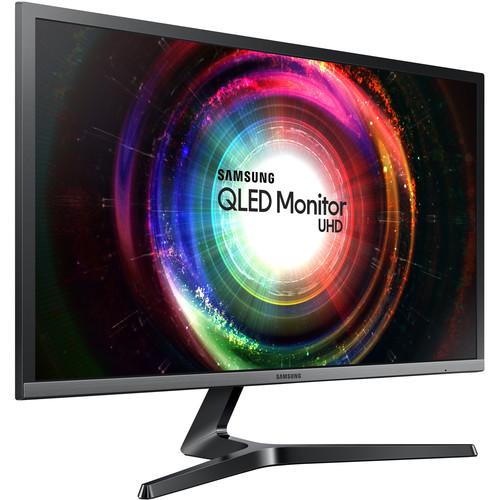

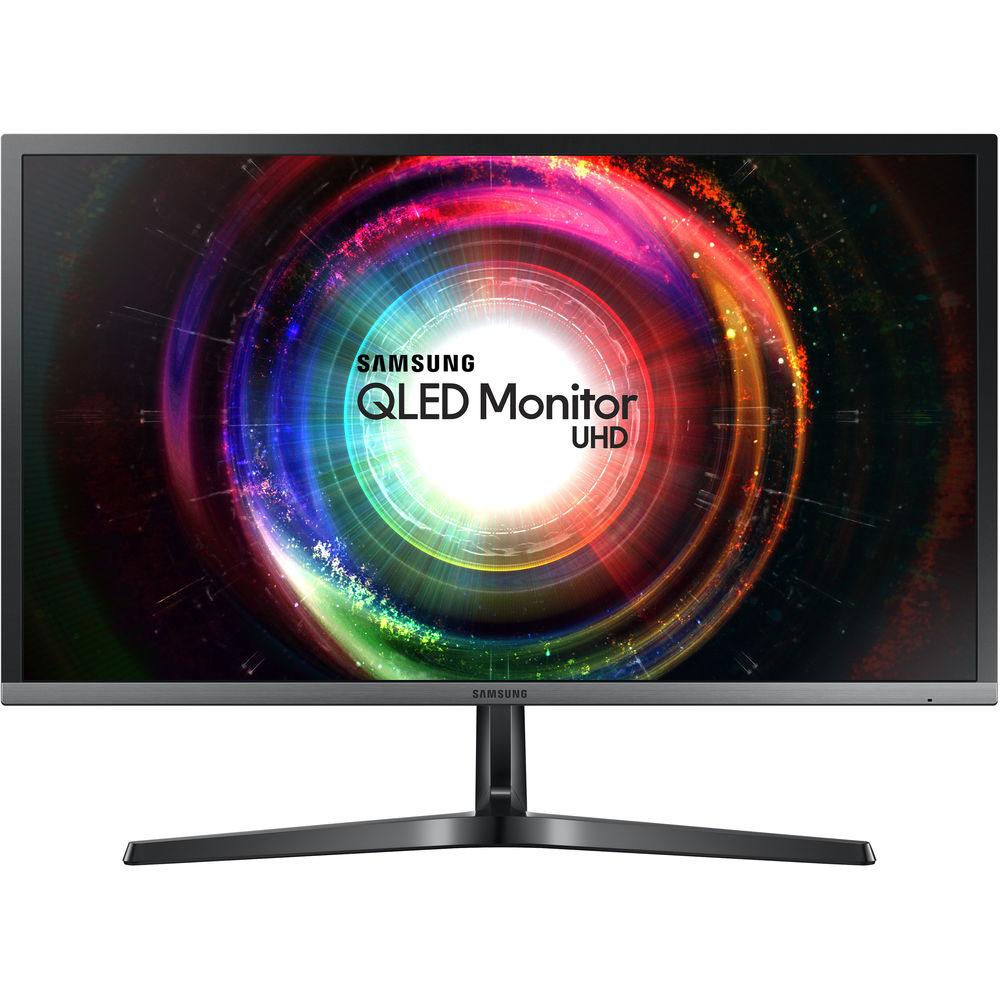

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Outfitted with a metallic Y stand and a narrow bezel, the UH750 31.5" 16:9 4K UHD LCD Monitor from Samsung offers an enhanced viewing experience with less distractions.
The Samsung UH750 monitor features a 3840 x 2160 4K UHD resolution, a 3000:1 static contrast ratio, a 250 cd/m² brightness rating, a 1 ms response time, support for over 1.07 billion colors, and Samsung's Mega ∞ dynamic contrast ratio to produce darker dark and brighter light colors. Setup and configuration of this Samsung monitor is simple as it comes equipped with HDMI, DisplayPort, and Mini DisplayPort inputs as well as a USB 3.0 hub.
Samsung has a variety of features designed to enhance the viewing experience including quantum dot technology and Picture-by-Picture functionality. Quantum dot technology, when coupled with the 1.07 billion supported colors, offers enhanced color representation including coverage of 125% of the sRGB color space. You can also divide up the screen using the Picture-by-Picture function to see projects, documents, and other content side-by-side, which greatly enhances workflow. - 4K UHD Resolution
- With 4K UHD resolution, its wider workspace allows you to view more webpages, images, and texts without having to scroll or zoom.
- One Billion Shades of Color
- Blending quantum dots with one billion shades of color, the UH750 presents images vividly and accurately. With greens and reds refreshingly freed from desaturation, what you see on the screen simply comes alive.
- Picture-by-Picture Capabilities
- Samsung's Picture-by-Picture capabilities let you connect to two different devices at the same time while still maintaining the original image quality. The Picture-in-Picture feature also allows you to do away with the need for a second monitor even when you are multitasking. You can resize the second image up to 25% of the screen and position it anywhere you wish.
- Ergonomic Design

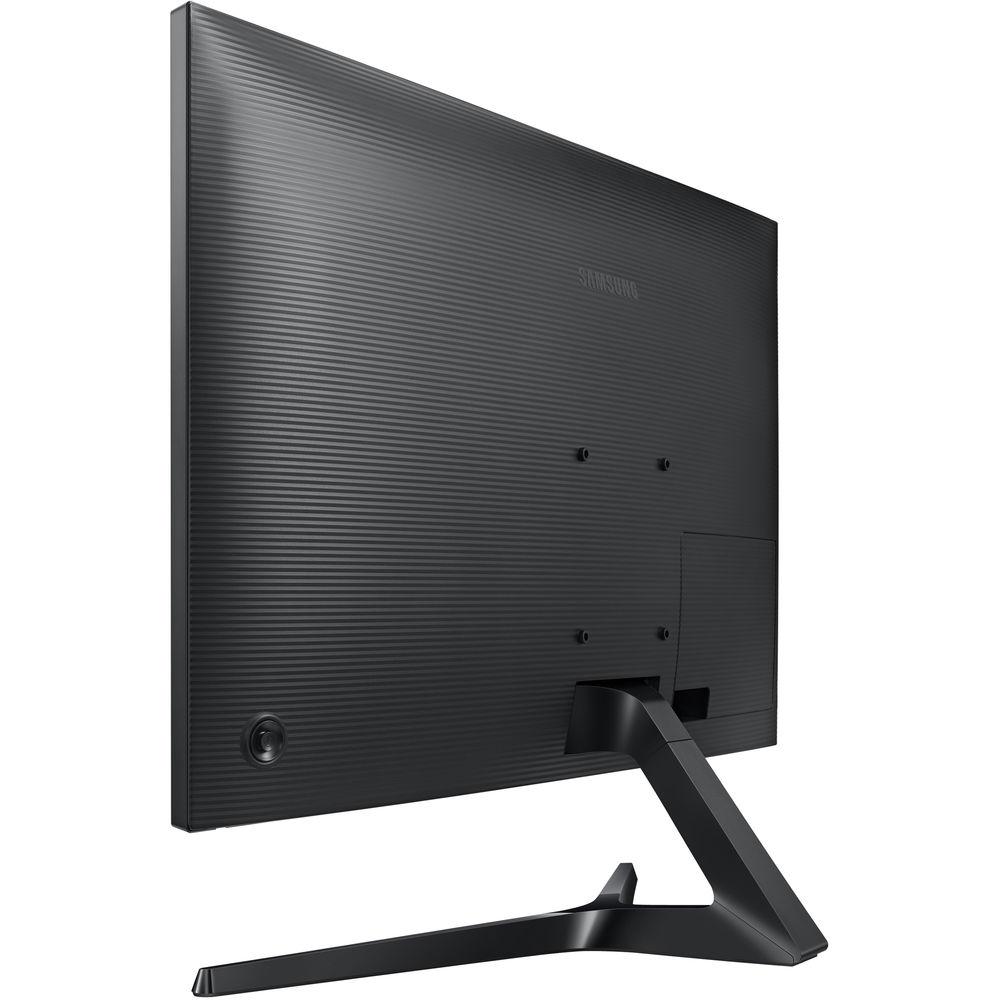

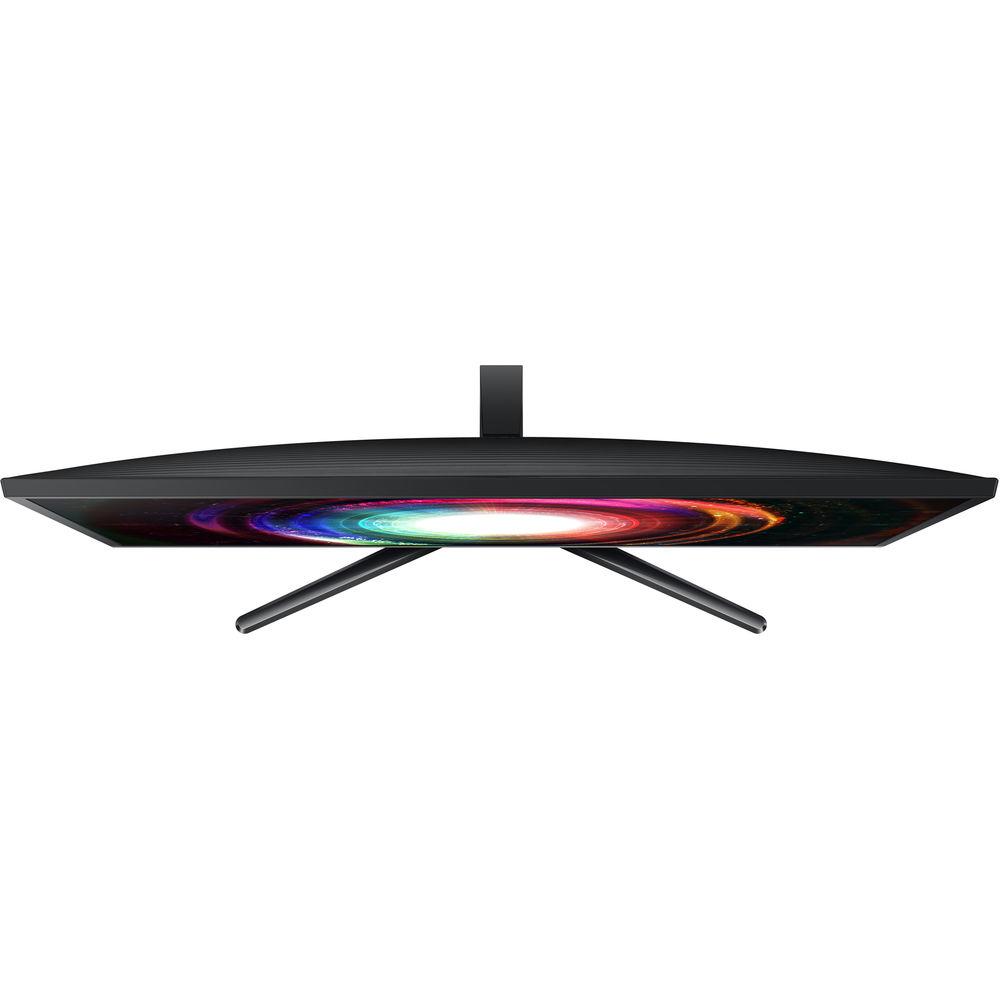

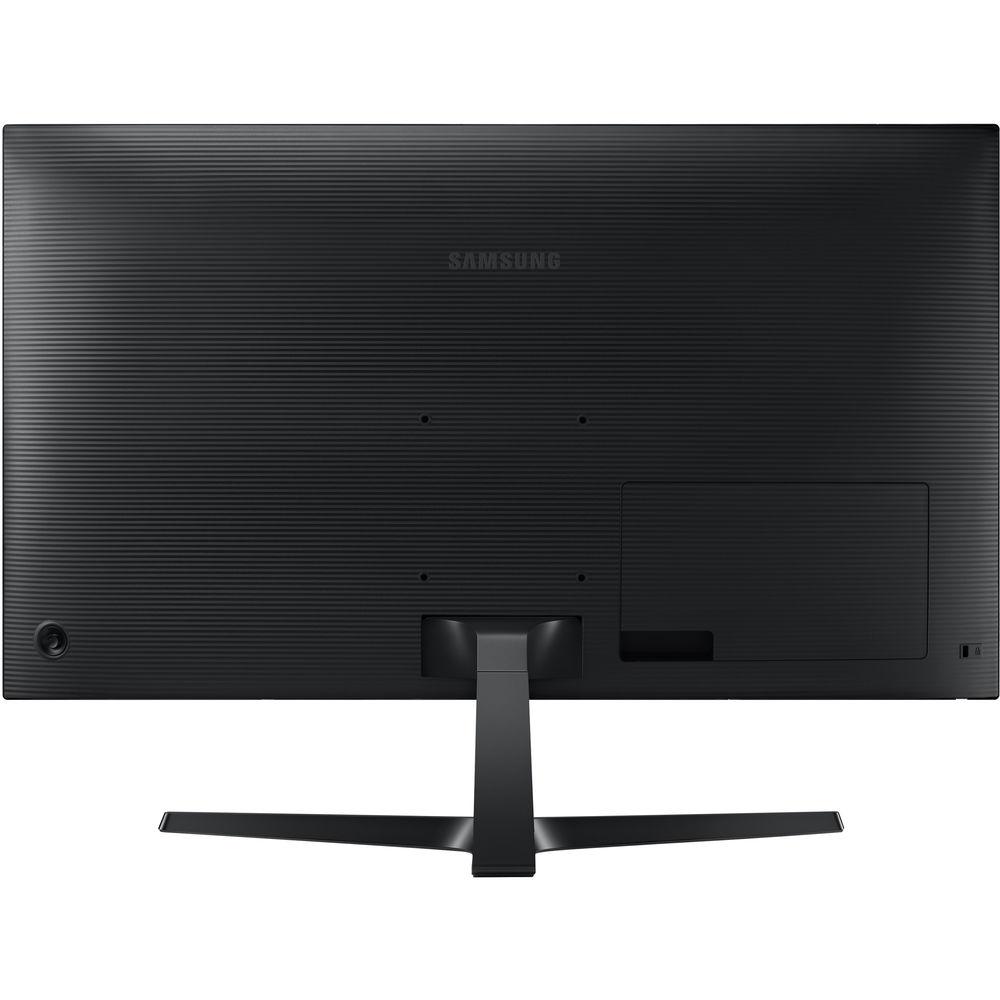

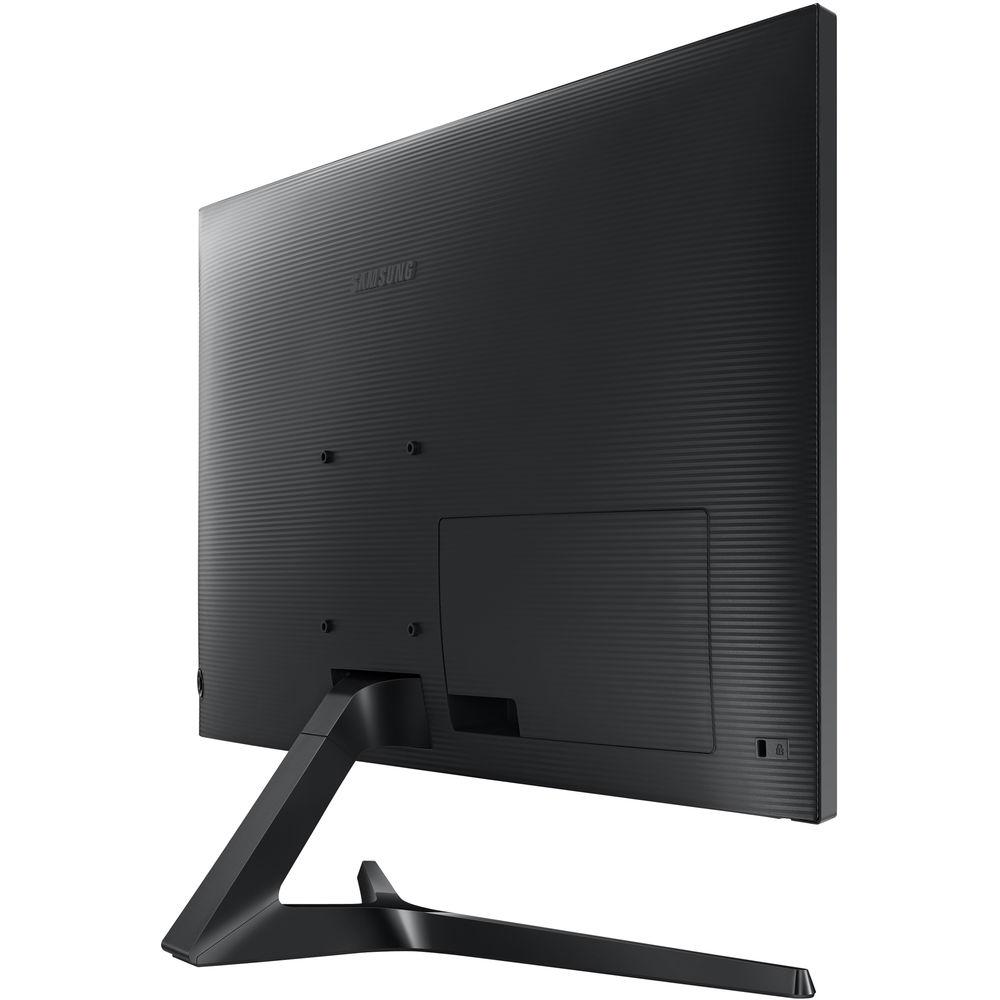

- With a slim-body, narrow bezel, a sleek back, and a metallic Y stand, the UH750 makes an urbane, modern accent to your home or office d
|
Upload User Manual
Have you got an user manual for the Samsung UH750 31.5" 16:9 4K UHD LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung UH750 Specs | | | Size | 31.5" | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 140 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 125% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI
1 x DisplayPort 1.2
1 x Mini DisplayPort
1 x 3.5 mm
4 x USB (USB 3.1 Gen 1) | | Built-In Speakers | None | | | | Power Consumption | 100 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | 5.31" / 13.5 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -5 to 24° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 28.8 x 24.4 x 11.8" / 73.2 x 62.0 x 30.0 cm (With Stand)
28.8 x 16.9 x 3.1" / 73.2 x 42.9 x 7.9 cm (Without Stand) | | Weight | 19.4 lb / 8.80 kg (With Stand) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 33.0 x 20.0 x 10.0" |
