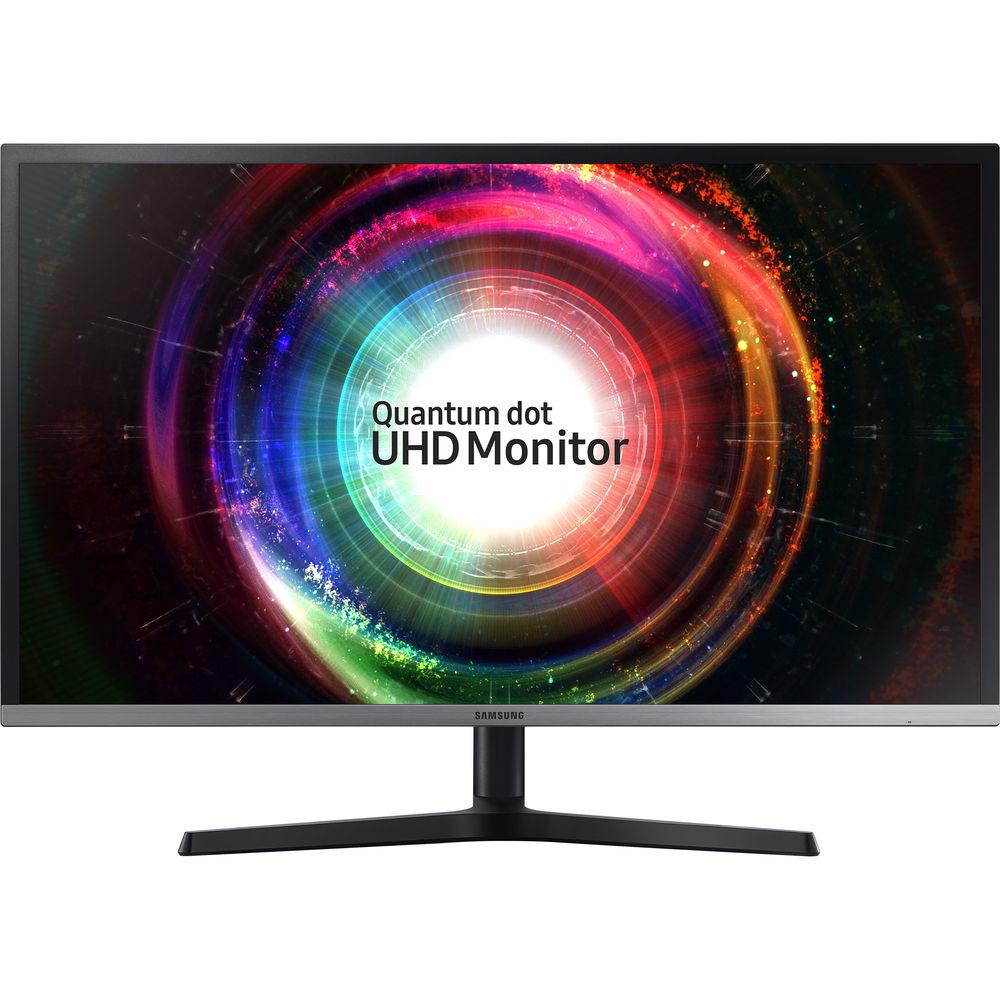

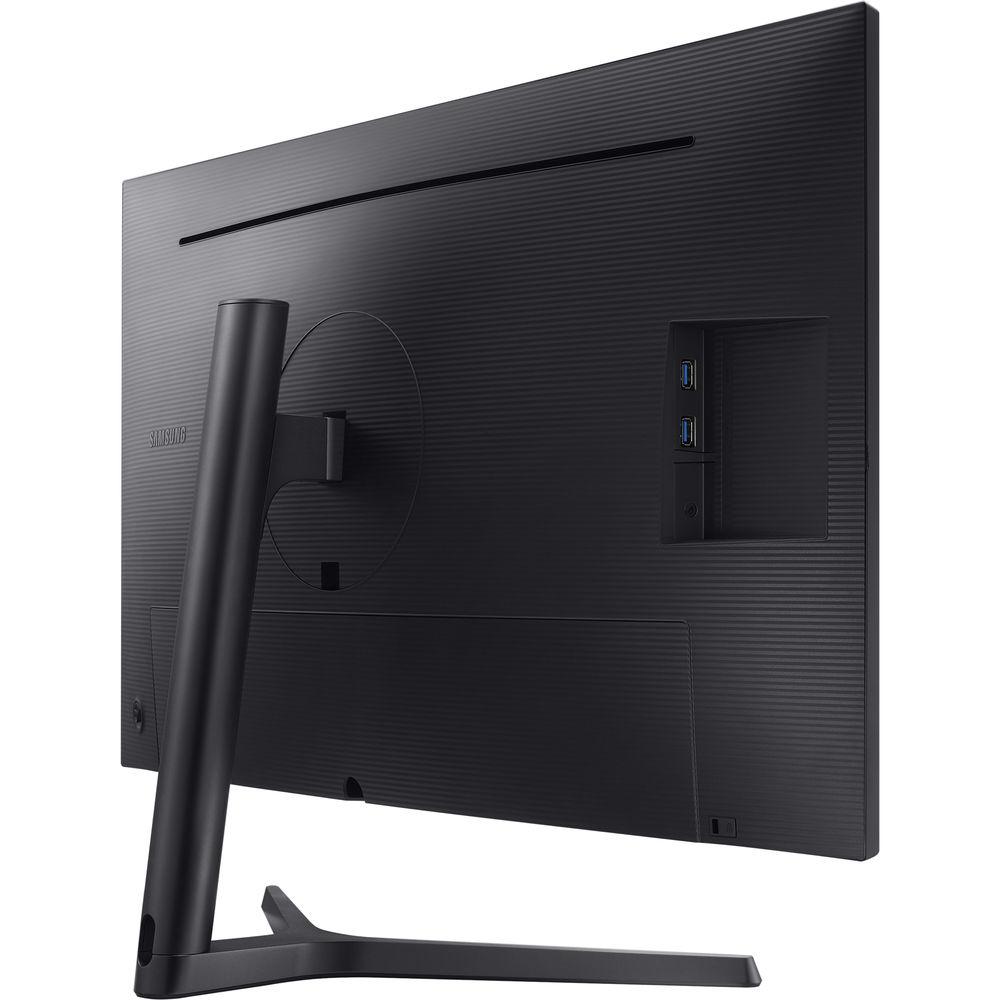

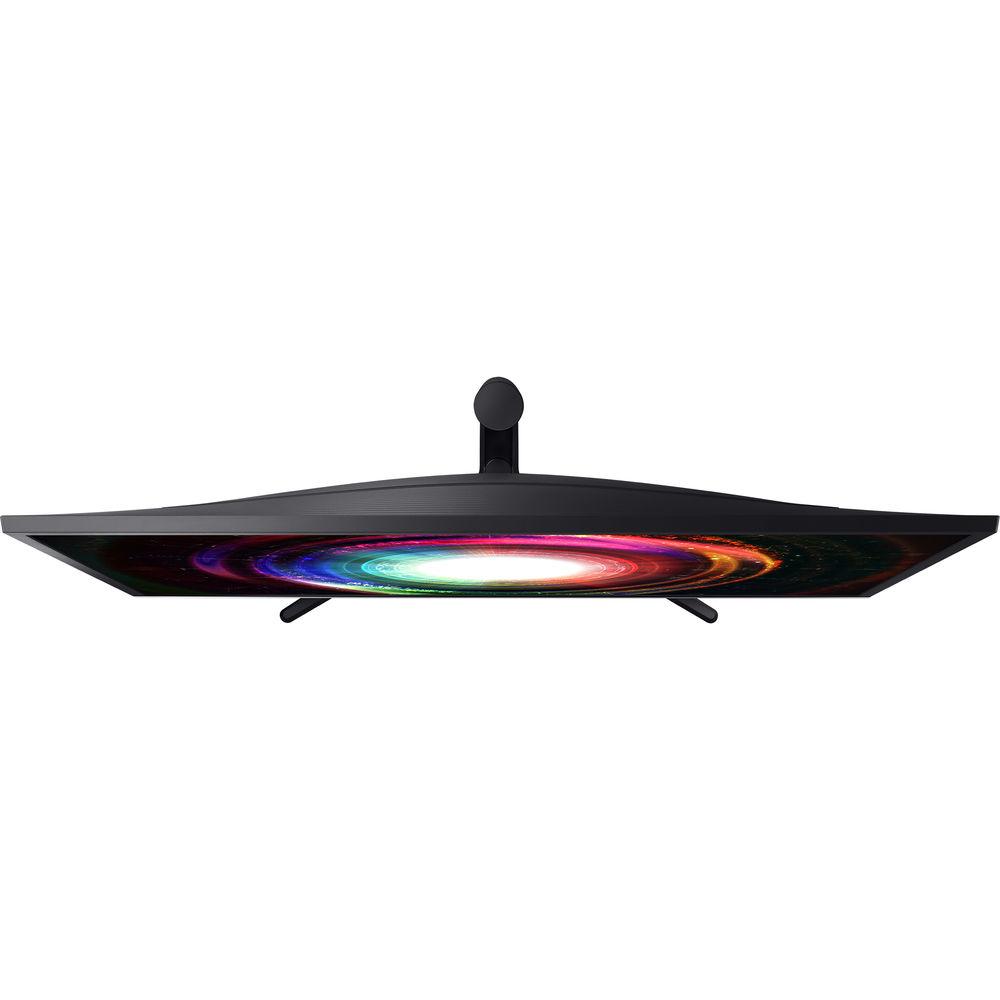

User Manual for Samsung UH850 Series 31.5" 16:9 4K FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Samsung UH850 Series 31.5" 16:9 4K
- Product category: Computer Monitors Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Computer Monitors
 |
User manual for the Samsung UH850 Series 31.5" 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|

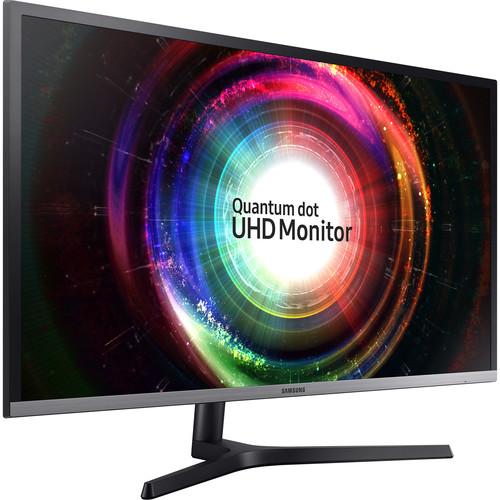

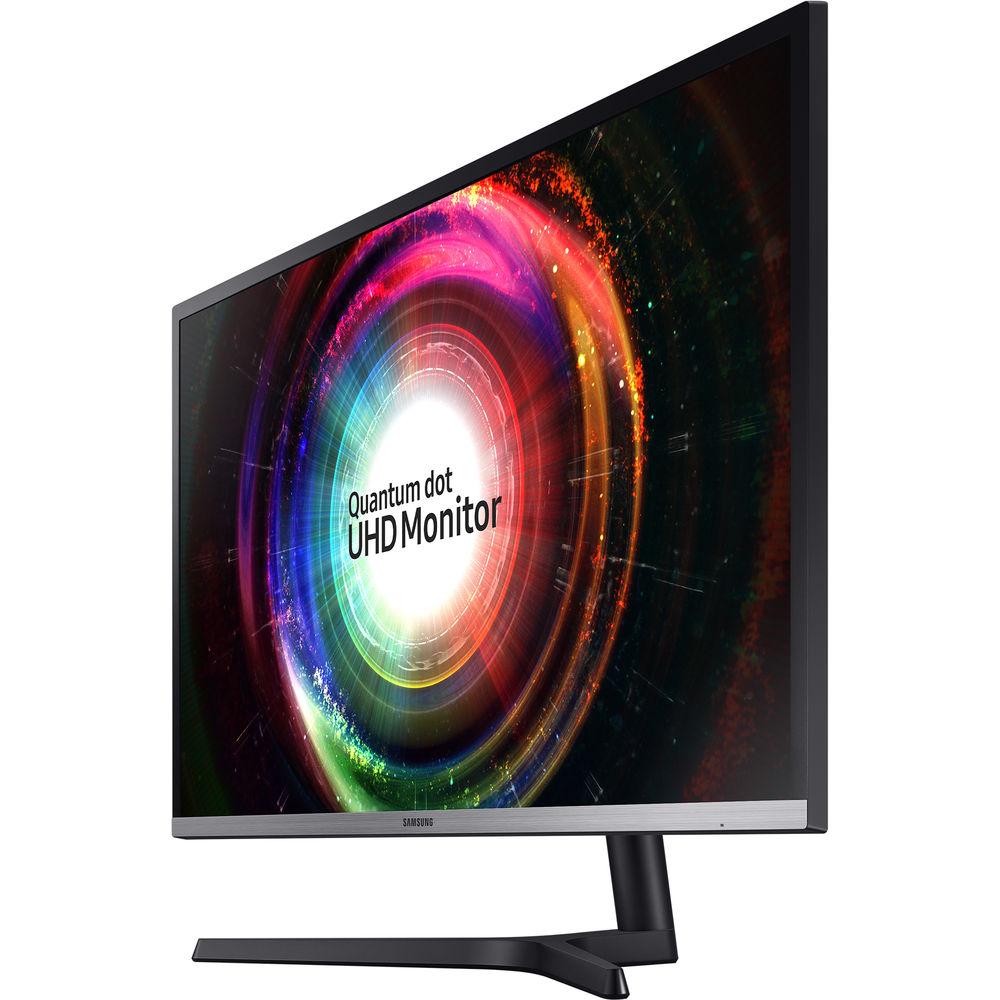

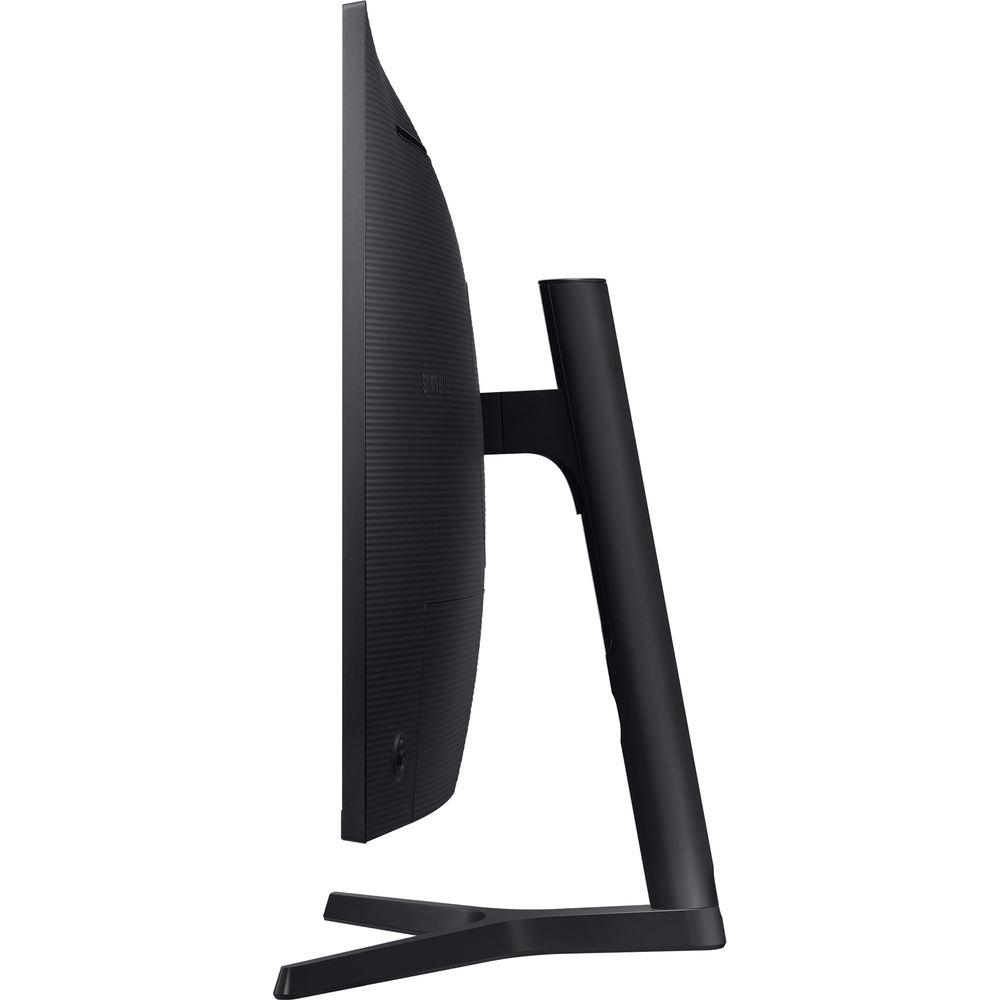

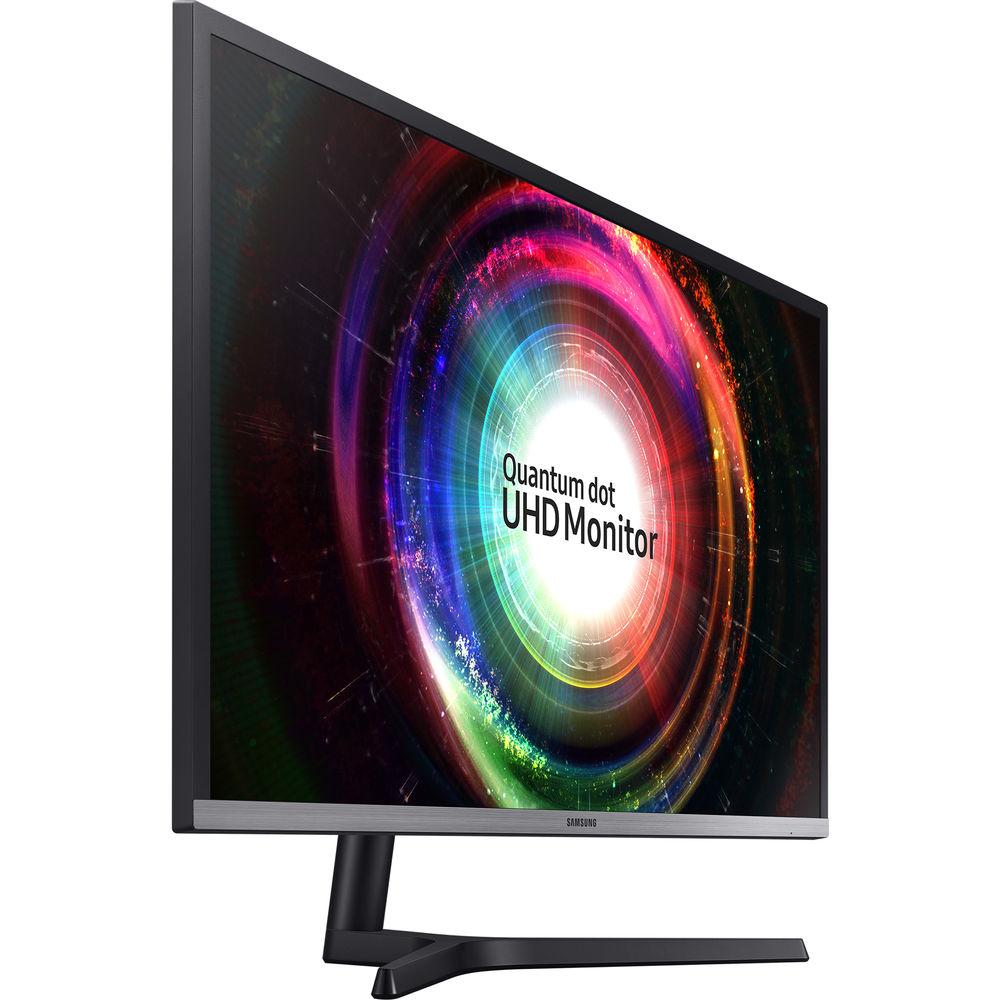

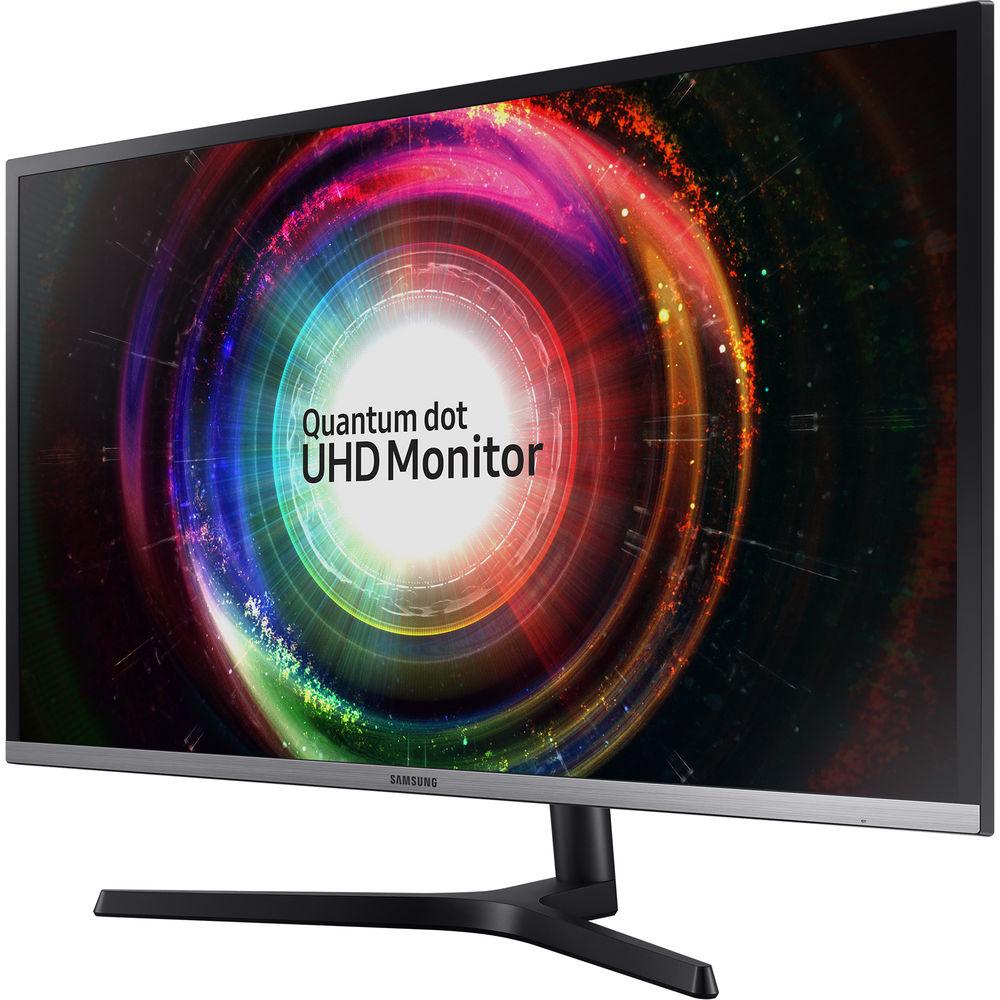

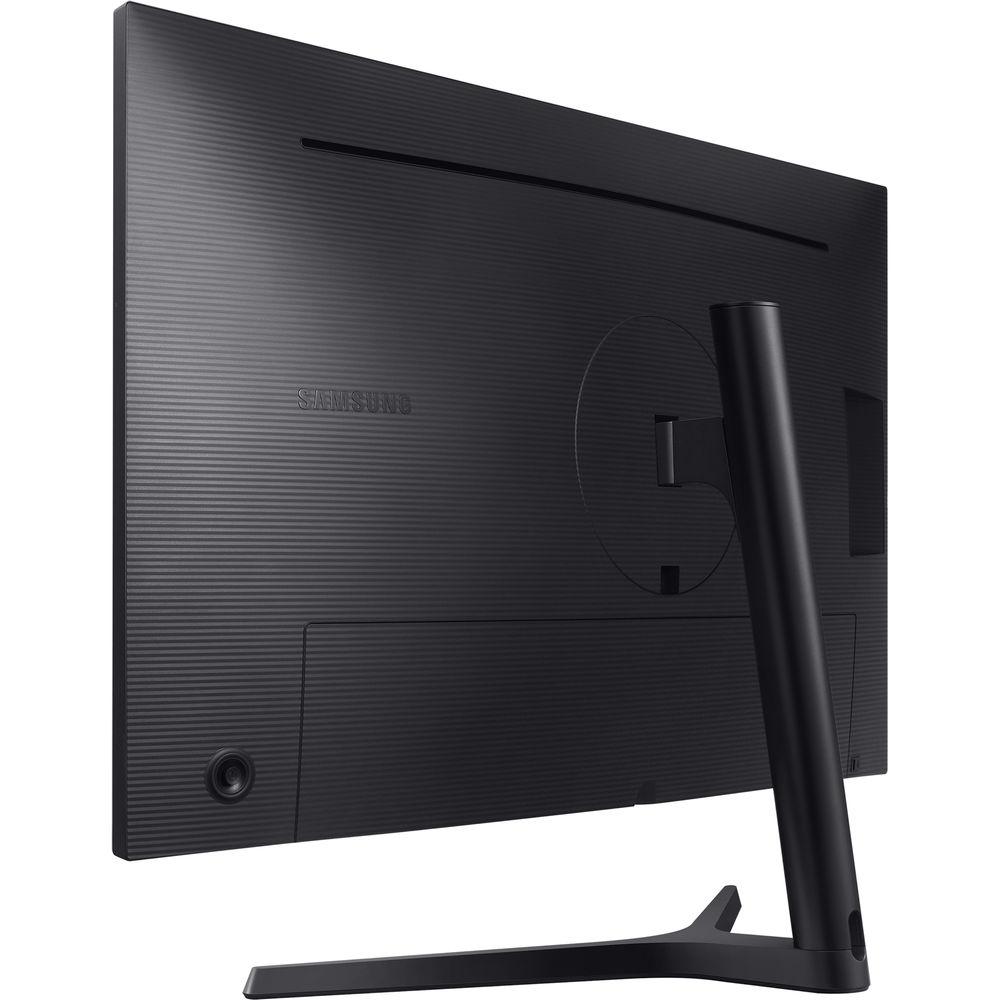

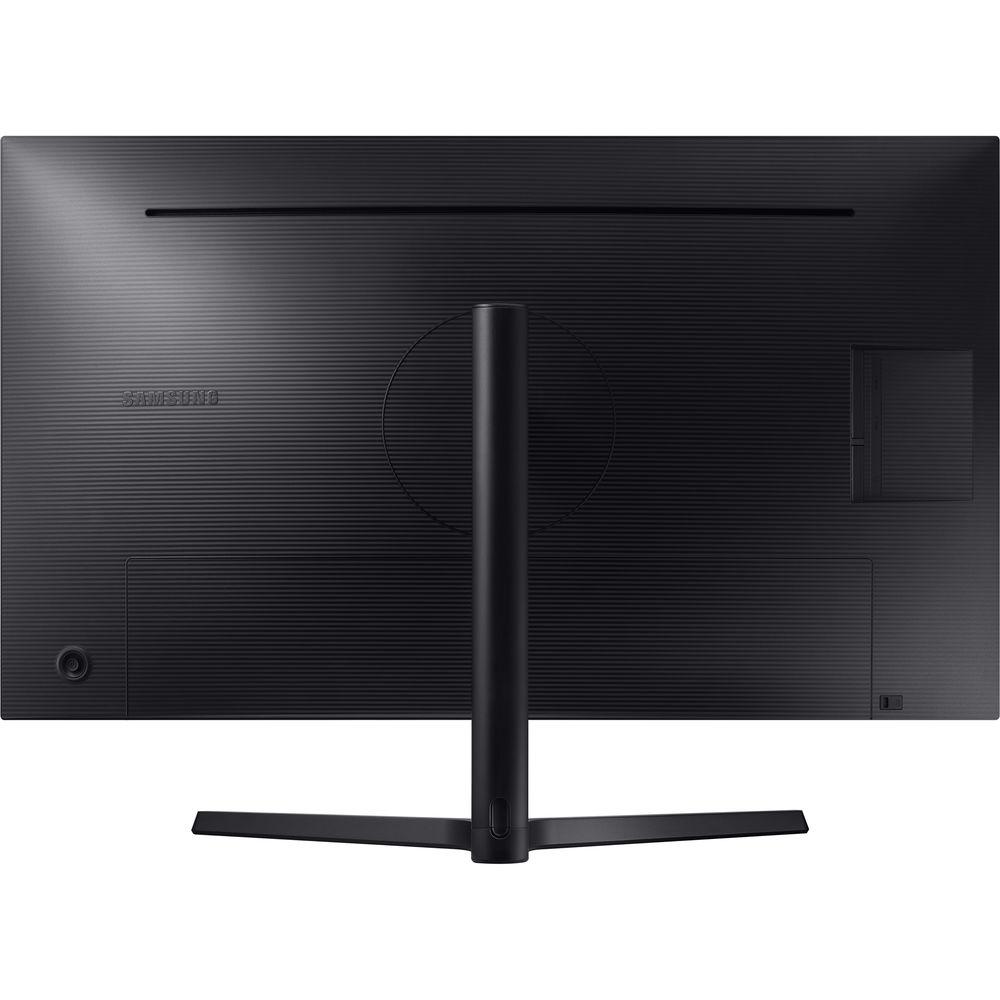

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The UH850 Series 31.5" 16:9 4K FreeSync LCD Monitor from Samsung is built with a VA (Vertical Alignment) panel, which delivers enhanced image quality and wide 178° viewing angles. It features a 3840 x 2160 UHD resolution and a fast 4 ms response time for crisp, clear, and fast content reproduction. Thanks to its 250 cd/m² brightness rating, 3000:1 static contrast ratio, and support for 1.07 billion colors, you'll be able to enjoy vivid colors with deeper blacks and brighter bright colors. Connect this display to your system via DisplayPort, Mini DisplayPort, or HDMI. Then tilt, swivel, pivot, and adjust its height to your viewing preference. Otherwise, you can install an optional mount, stand, or arm using the VESA mounting holes on the back. For your convenience, it has a built-in USB hub with four ports, allowing you to easily connect peripherals. - AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output for a smoother experience with less stuttering and screen tearing.
- Black Equalizer and Factory Calibration
- Black Equalize features twenty different dark level values to enhance visibility of details in dark areas. Also, the monitor is factory calibrated for accurate and realistic images.
- Seamless Multi-Screen Functionality
- With PBP (Picture-by-Picture), you can connect two separate sources to the display and view them simultaneously. PIP (Picture-in-Picture) lets you view an image on one side while editing on the other, or code on one and view results on the other
- Game mode
- The monitor optimizes your gaming experience with the touch of a button. Game Mode detects changes in scenes, enhances colors, and adjusts contrast so you that you can see everything clearly.
- Eye Saver Mode and Flicker Free Technology
- Lessen eye strain during long work hours using Eye Saver Mode and Flicker Free technology. Less eye fatigue will allow you to stay focused and more productive.
-
- Samsung MagicRotation Auto, MagicBright
- Off Timer Plus
- USB Super Charging
- Game Mode
- Image Size
- Easy Setting Box
UPC: 887276223872 In the Box Samsung UH850 Series 31.5" 16:9 4K FreeSync LCD Monitor DisplayPort Cable Mini DisplayPort to DisplayPort Adapter HDMI Cable USB Cable Power Cable Limited 3-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung UH850 Series 31.5" 16:9 4K FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung U32H850UMN Specs | Screen Size | 31.5" (80.01 cm) | | Panel Type | VA (Vertical Alignment) | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Brightness | Typical: 250 cd/m²
Minimum: 200 cd/m² | | Static Contrast Ratio | Static: 3000:1
Dynamic: Mega ∞ | | Viewing Angles (H/V) | 178°/178° | | Response Time (GtG) | 4 ms | | Active Display Size (H x V) | 27.5 x 15.47" (69.84 x 39.29 cm) | | sRGB Coverage | 125% | | Color Support | 1.07 billion | | Color Gamut | NTSC 1976: 72% | | Refresh Rate | 60 Hz | | USB | 1 x USB upstream
4 x USB 3.0 Type-A downstream | | Ports and Connectors | 2 x HDMI
1 x DisplayPort
1 x Mini DisplayPort | | | | Height Adjustment Range | 5.31" (13.5 cm) | | Tilt | -5° (±2) to 24° (±2) | | Swivel | -45° (±2) to 45° (±2) | | Pivot | -2° (±2) to 92° (±2) | | VESA Mount | 100 x 100 mm | | | | Power Supply | 100 - 240 VAC | | Power Consumption (Maximum) | 100 W | | Power Consumption (Standby) | < 0.3 W | | Power Consumption (DPMS) | < 0.5 W | | | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Operating Humidity | 10 to 80% non-condensing | | | | Dimensions (W x H x D) | With Stand: 28.8 x 24.4 x 11.8" (cm)
Without Stand: 28.8 x 16.9 x 3.1" (cm) | | Weight | With Stand: 19.4 lb (kg)
Without Stand: 15.2 lb (kg) | | | | Package Weight | 26.9 lb | | Box Dimensions (LxWxH) | 33.0 x 20.0 x 9.0" |
