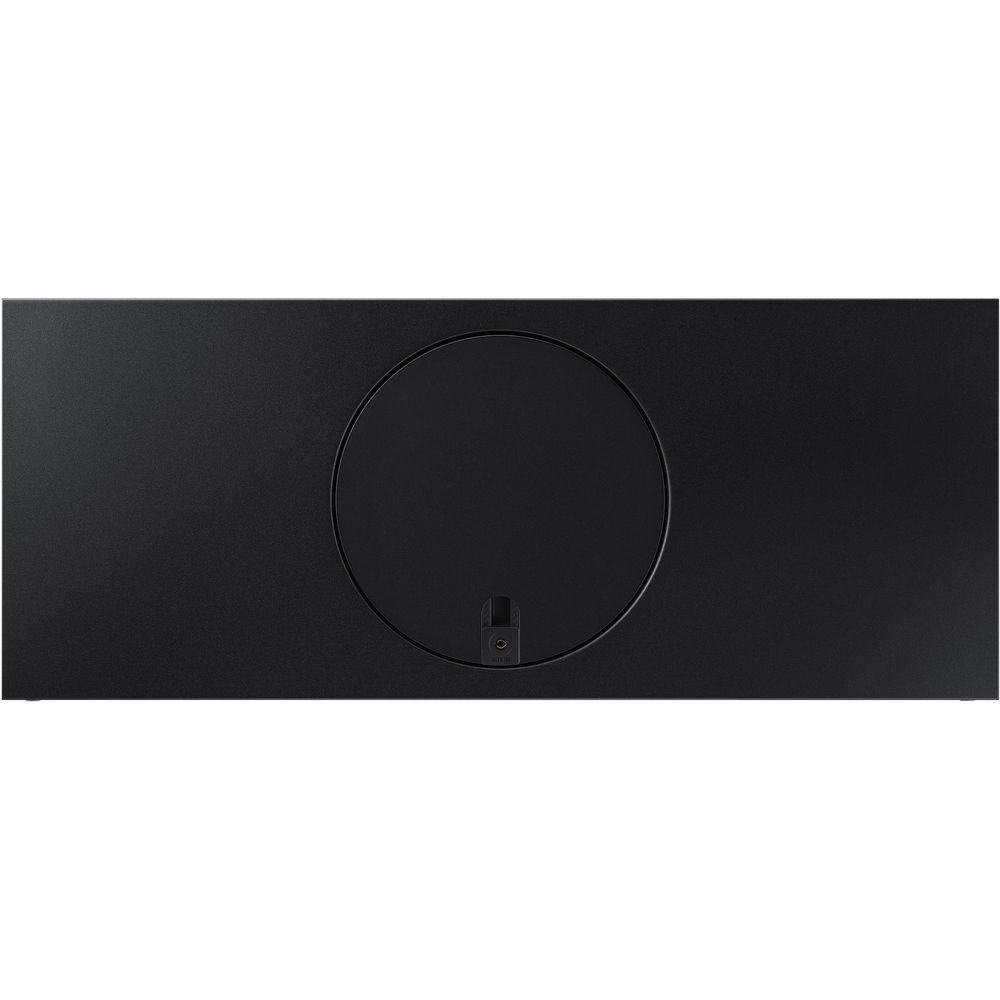

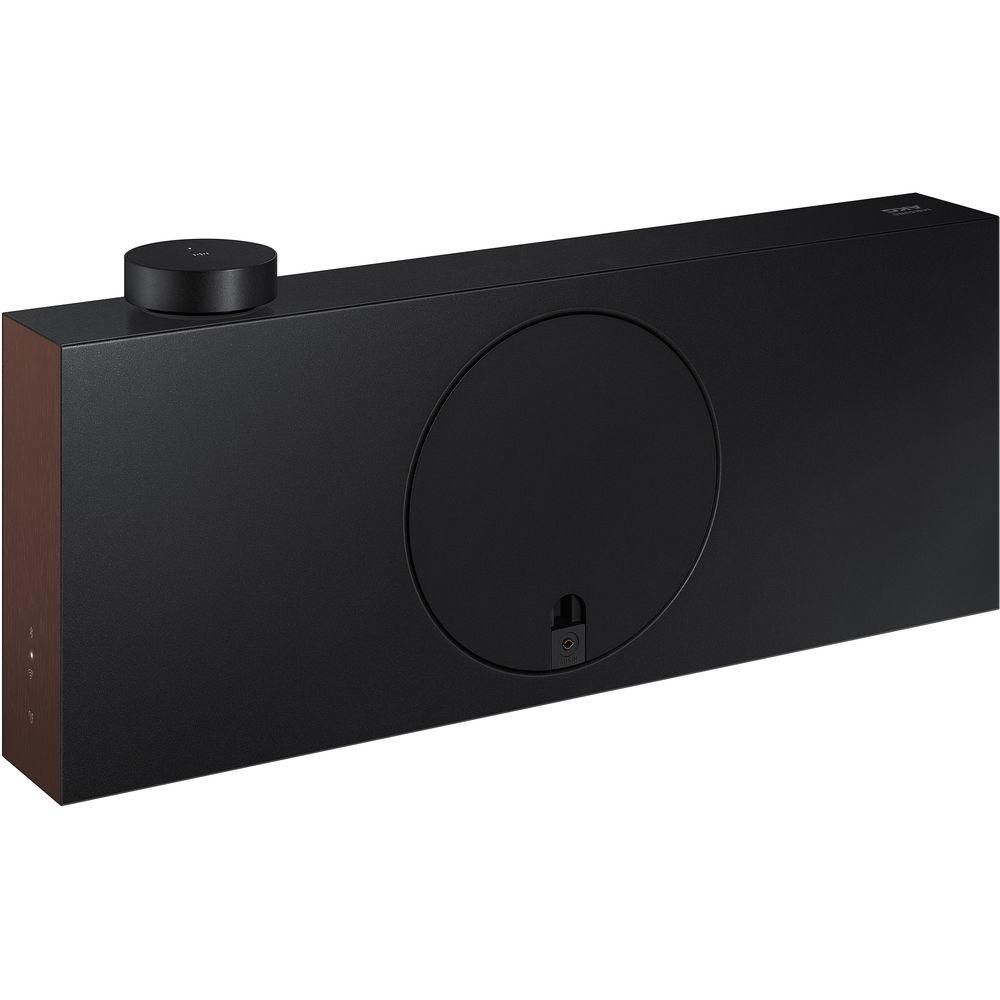

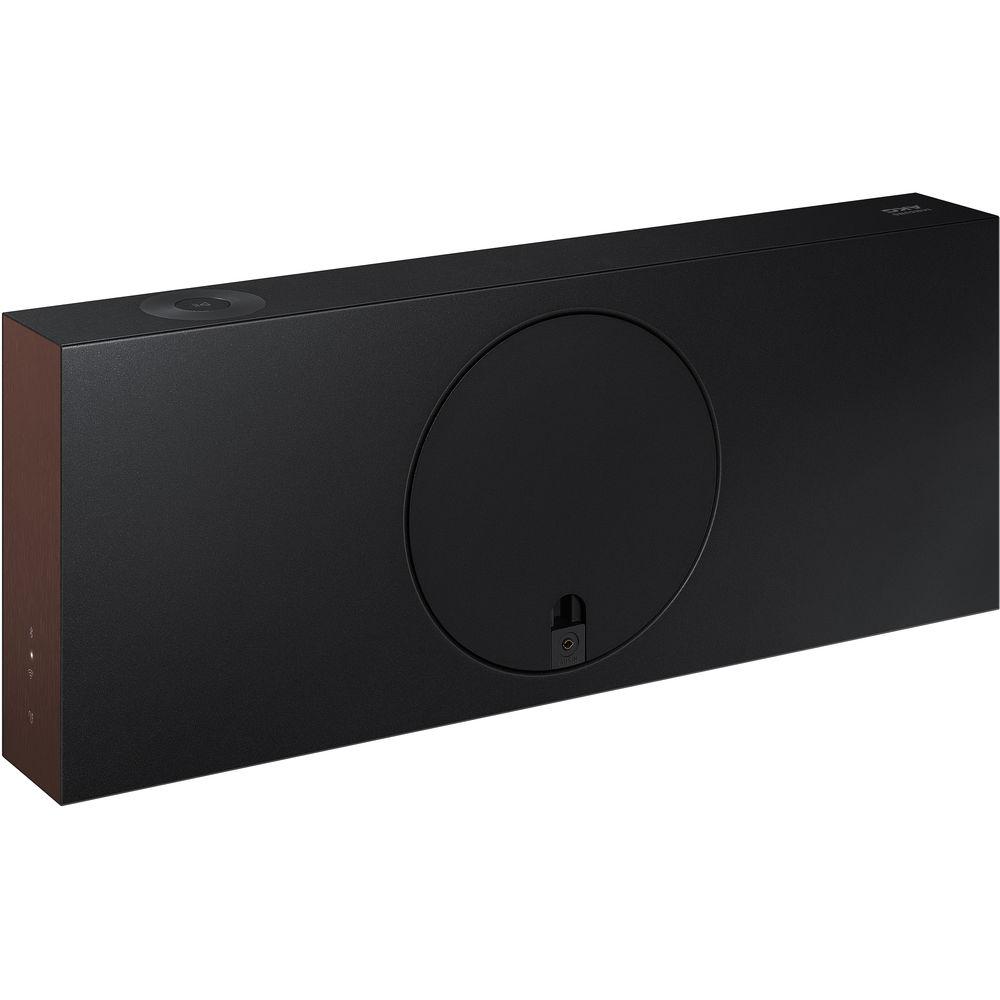

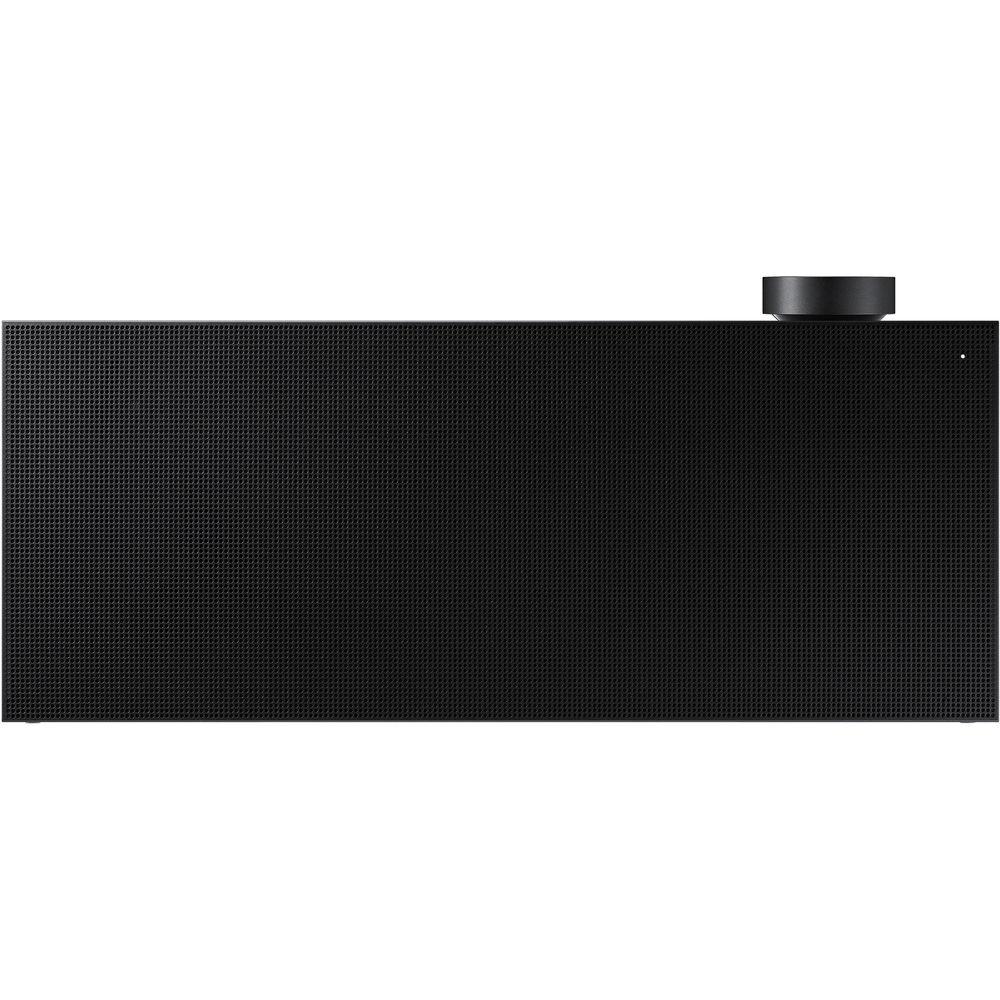

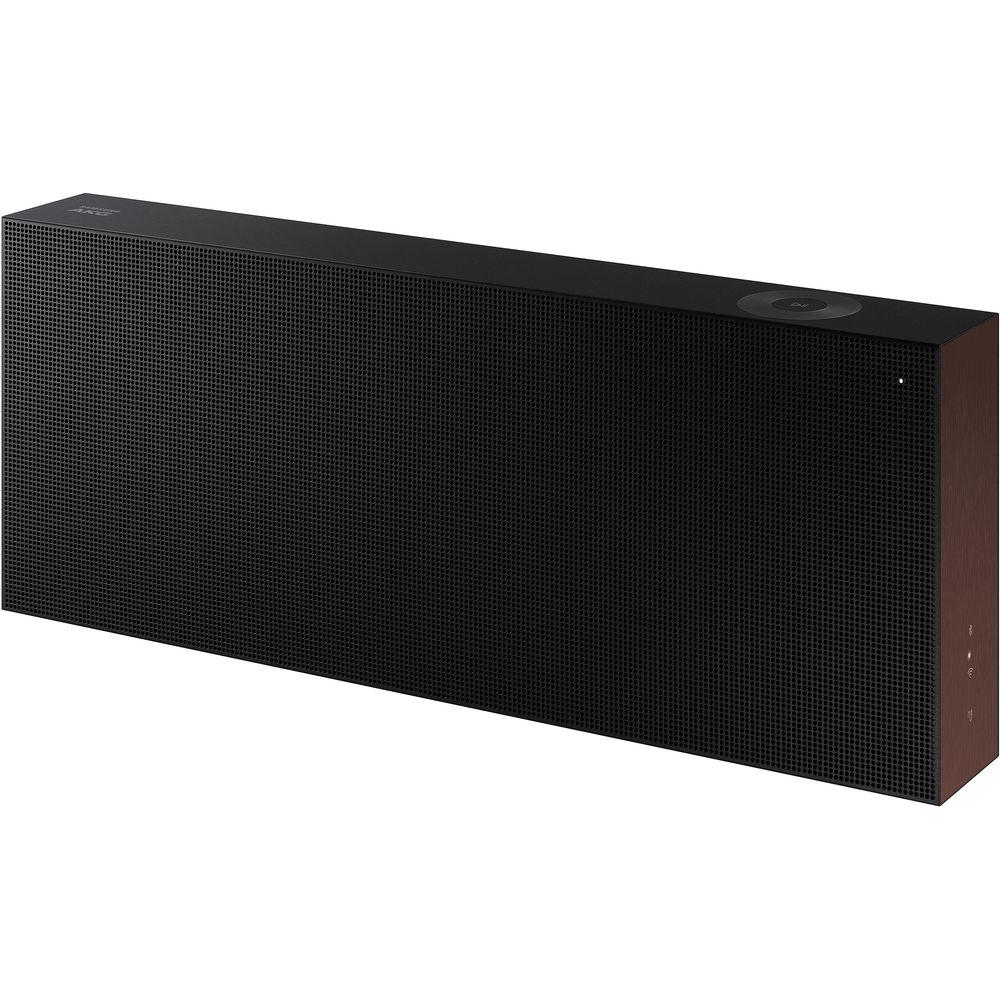

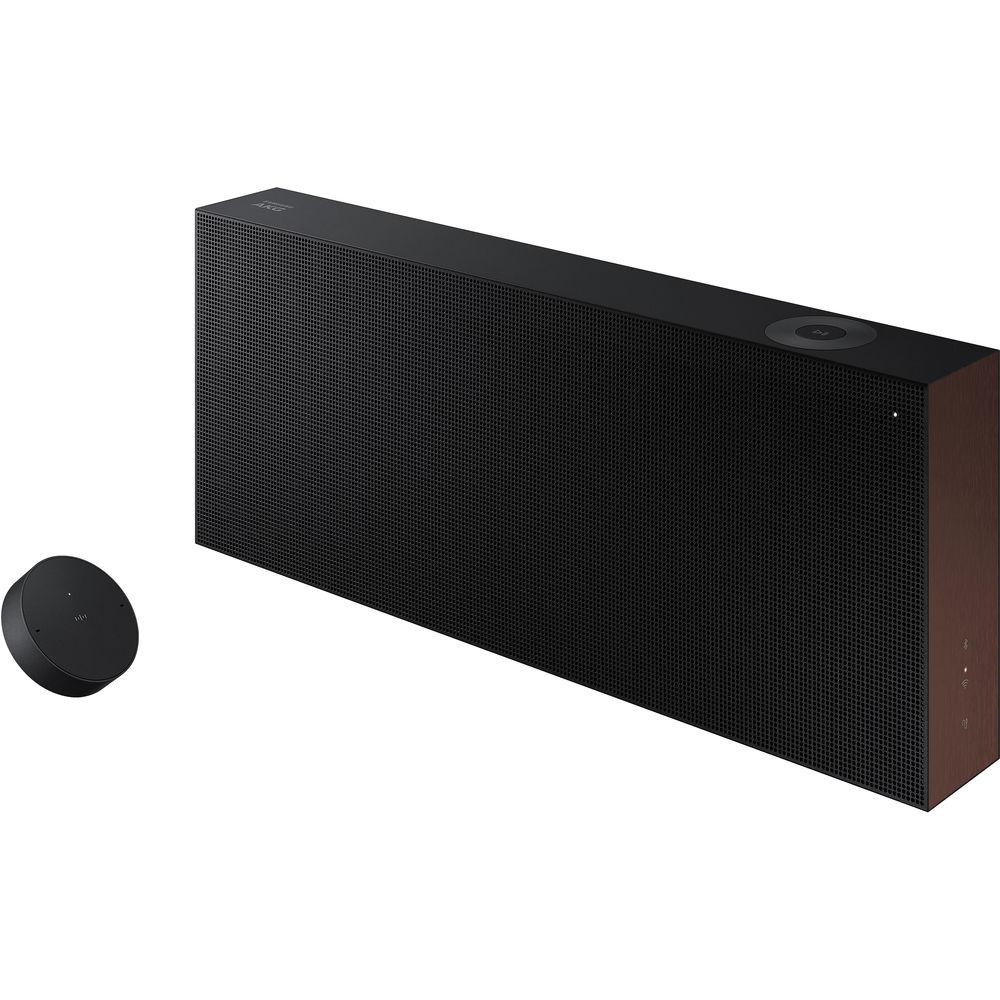

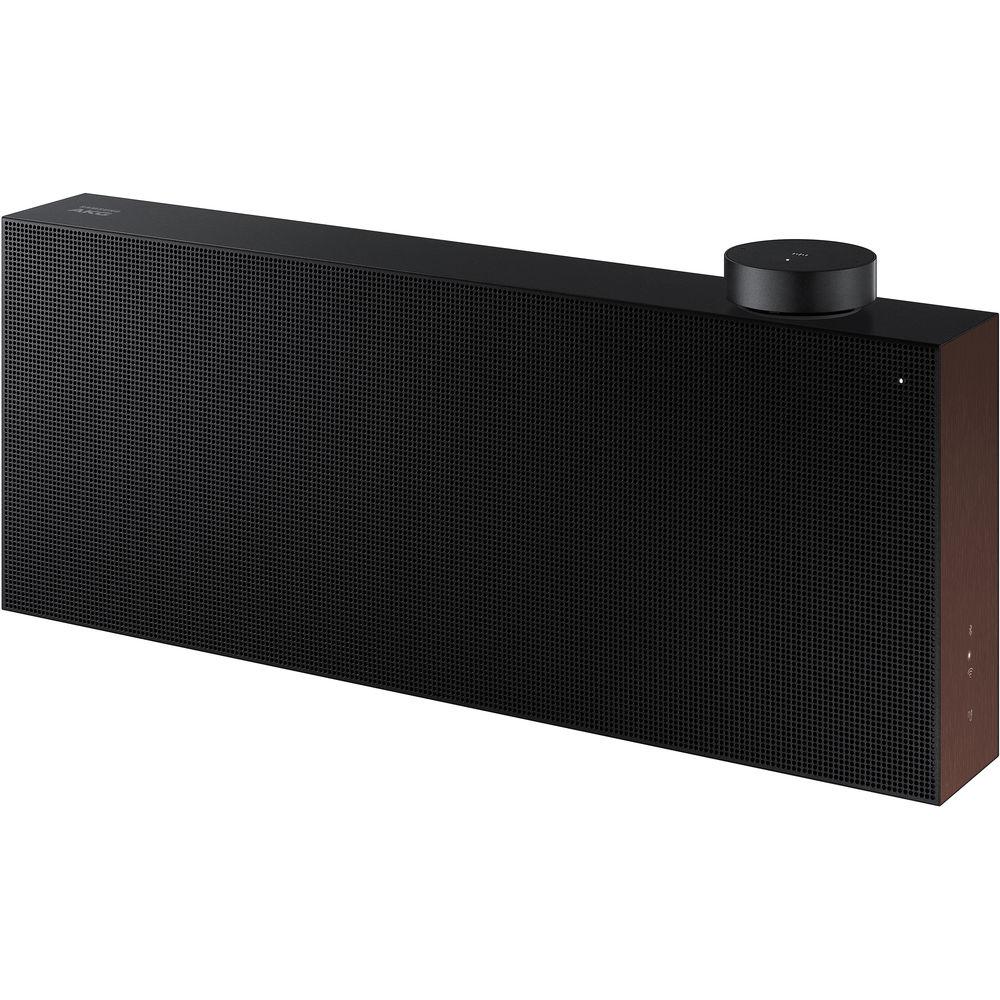

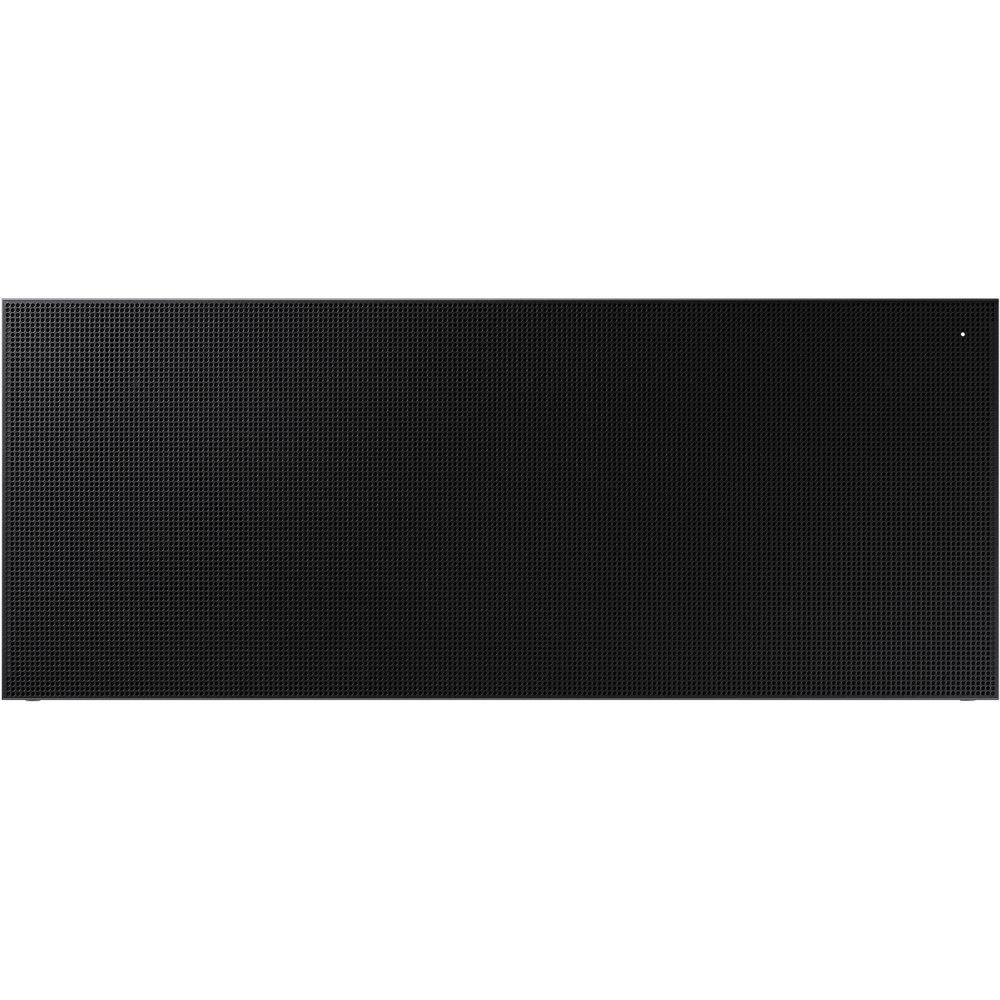

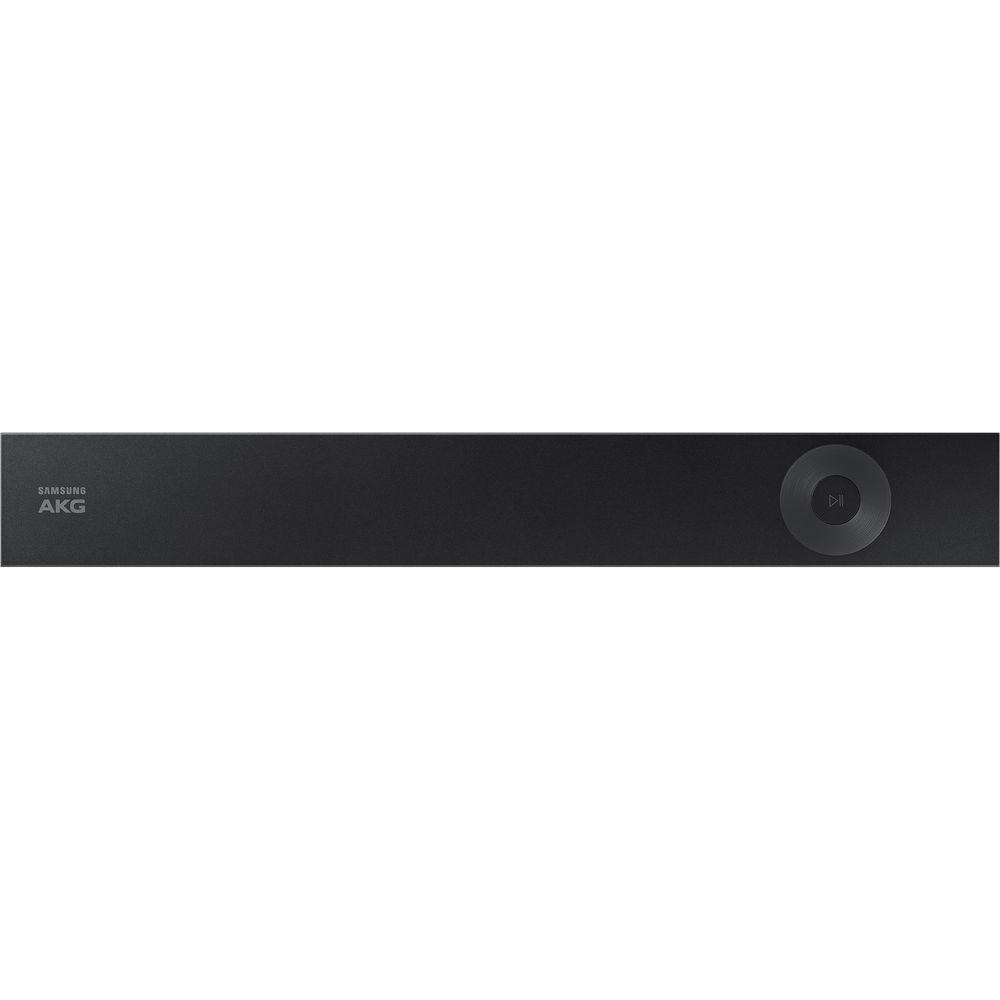

User Manual for Samsung VL550 Wireless Speaker System Click to enlarge the picture
Contents of the user manual for the Samsung VL550 Wireless Speaker System
- Product category: Wireless Home Speakers Samsung
- Brand: Samsung
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samsung Wireless Home Speakers
 |
User manual for the Samsung VL550 Wireless Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samsung product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samsung user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samsung product will considerably shorten its lifespan!
|
Product description Enjoy wireless audio with the Samsung VL550 Wireless Speaker System. It outputs up to 155W and features Wi-Fi and Bluetooth wireless connectivity, plus an 1/8" analog input and wired Ethernet. It can be controlled by the SmartThings app or with your voice with Amazon Alexa compatibility via the included moving dial control. An 1/8" aux cable is included for instant wired connection. - Bring Studio Sound to Your Space
- The VL550 has been fine-tuned and certified by AKG.
- UHQ 32-Bit Upscaling
- Upscale nearly any of your music files to 32-bit for enhanced sound quality.
- Distortion-Canceling Technology
- Onboard distortion-canceling technology is designed to predict and cancel out distortion before it happens, to provide augmented bass without the need for a subwoofer.
- Moving Dial Control
- Just rotate and click, or use your voice. With the moving dial control, you can adjust the volume, skip songs, and use voice commands from anywhere in your space within Bluetooth range.
- Sync with Your Mobile Device
- Just long-press and talk to the moving dial. Using Bluetooth, the moving dial control syncs with your compatible mobile device and finds the music you want and enables voice control.
- Wireless Audio with Alexa Voice Control
- If you have an Amazon Echo device, you can enjoy your wireless audio hands-free using Alexa voice control. Ask Alexa to play something by simply saying the title or a few lines of the song's lyrics.
- Designed for Simple Setup with Your Compatible Smartphone
- If your mobile device has the SmartThings app, you'll get a notification after plugging in the VL550 to connect to the network. From there, just click the connected speaker shown on your device to register the VL550, and your setup is complete.
- Group Play with the SmartThings App
- With Group Play and the SmartThings app, you can listen to your music on any compatible Samsung audio device in your home.
- Additional Features
-
- TV sound-ready (Bluetooth & Wi-Fi)
- Voice guidance
- One Control (TV remote)
- DLNA
UPC: 887276259154 In the Box Samsung VL550 Wireless Speaker System Moving Dial Control 1/8" Aux Cable Power Cable Limited 1-Year Warranty More info from Samsung Table of Contents
|
Upload User Manual
Have you got an user manual for the Samsung VL550 Wireless Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamsung VL550 Specs | Tweeter | 2 x wide-range tweeters | | Mid-Woofers | 3 x mid-woofers | | Power Output | Total: 155 W
Tweeters: 10 W each
Mid-Woofers: 45 W each | | Frequency Response | 40 Hz to 20 kHz | | Wi-Fi | Yes, dual-band | | Bluetooth | Yes | | Connectors | 1 x 1/8" / 3.5 mm aux in
1 x RJ45 Ethernet LAN
1 x micro-USB (service)
1 x USB Type-A (updates) | | Decoding Formats | WAV, MP3, OGG, FLAC, AAC, ALAC, AIFF | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 75% | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Standby Power Consumption | 3 W | | Dimensions (W x H x D) | 20.55 x 8.32 x 2.75" / 52.2 x 21.13 x 6.99 cm | | Weight | 10.14 lb / 4.6 kg | | | | Package Weight | 14.65 lb | | Box Dimensions (LxWxH) | 14.0 x 5.0 x 2.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
