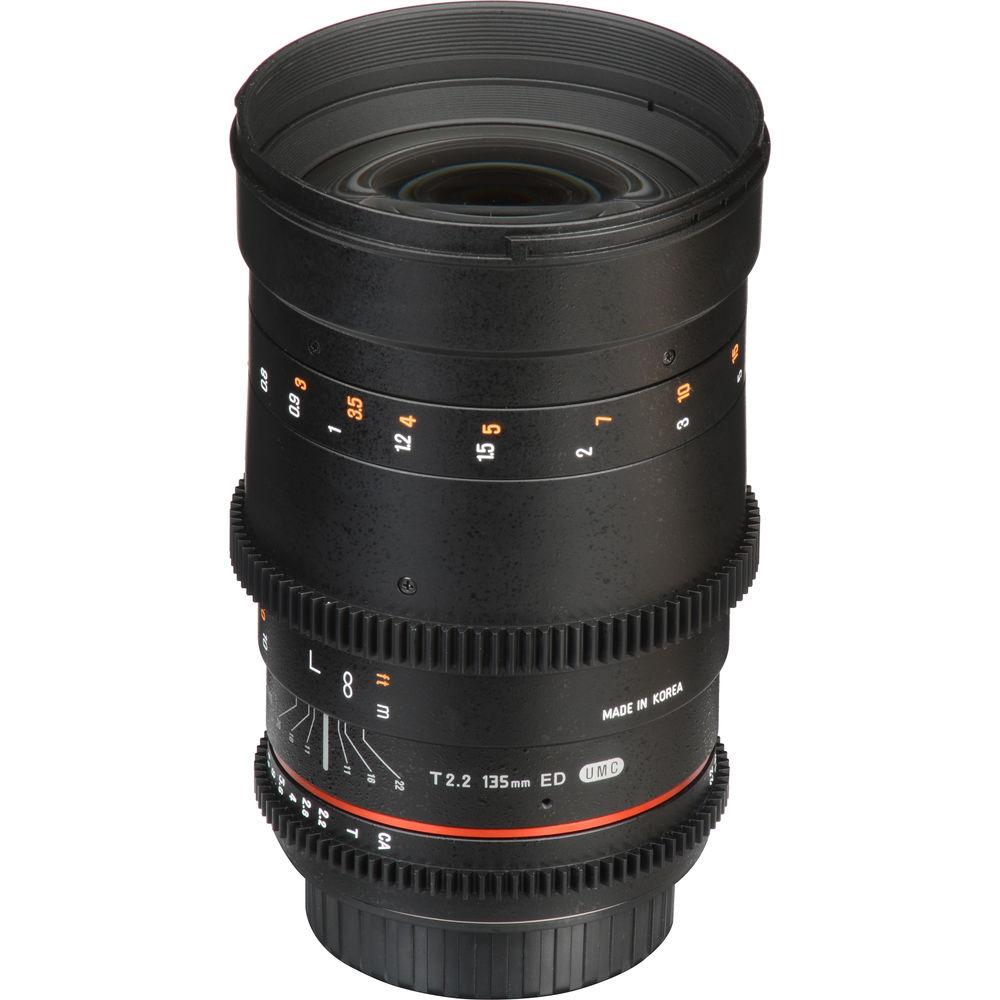

User Manual for Samyang 135mm T2.2 AS UMC VDSLR II Lens for Micro Four Thirds Mount Click to enlarge the picture
Contents of the user manual for the Samyang 135mm T2.2 AS UMC VDSLR
- Product category: Digital Cine Lenses Samyang
- Brand: Samyang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samyang Digital Cine Lenses
 |
User manual for the Samyang 135mm T2.2 AS UMC VDSLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samyang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samyang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samyang product will considerably shorten its lifespan!
|

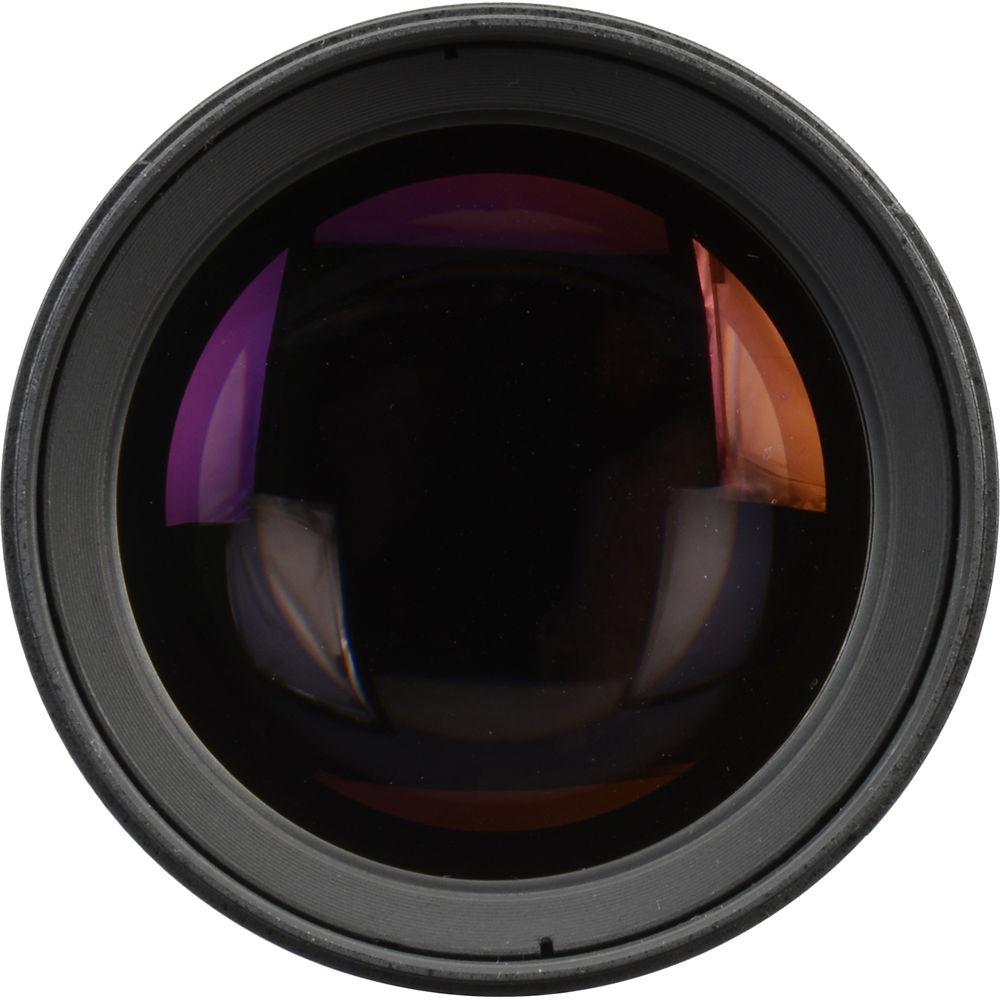

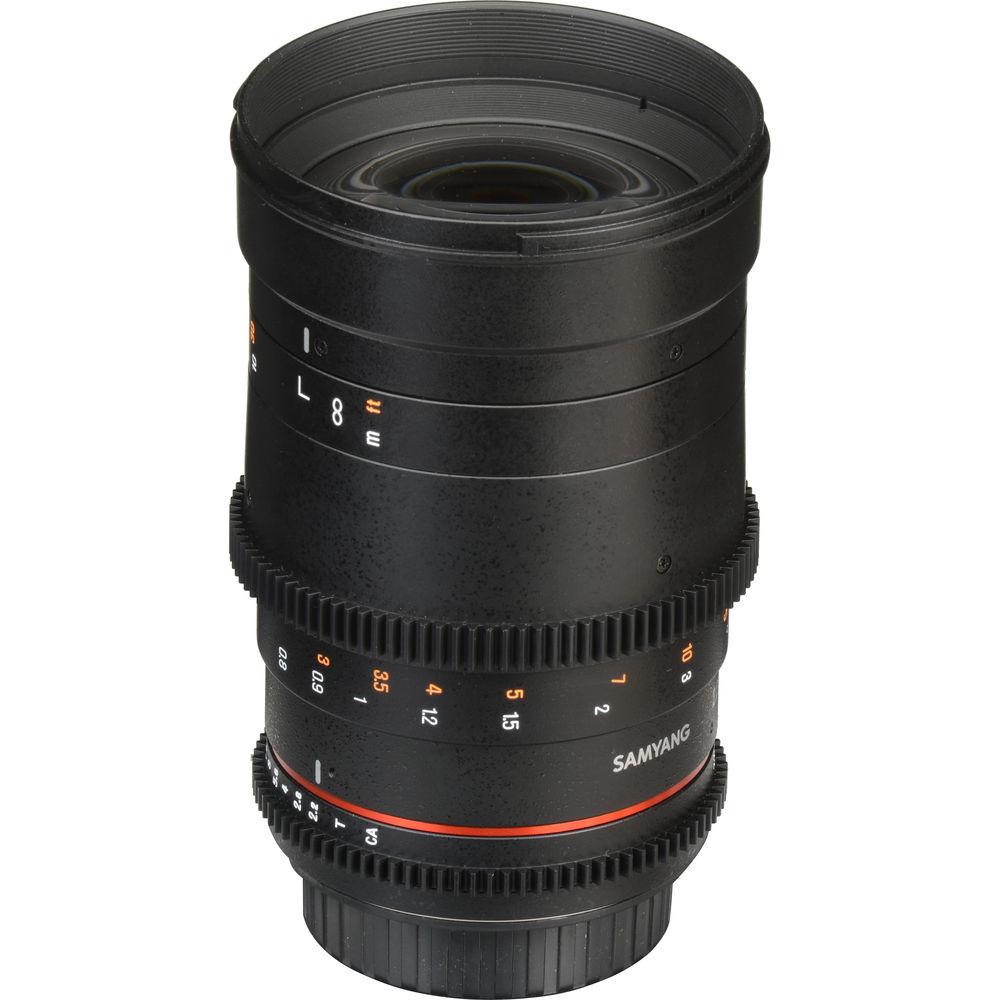

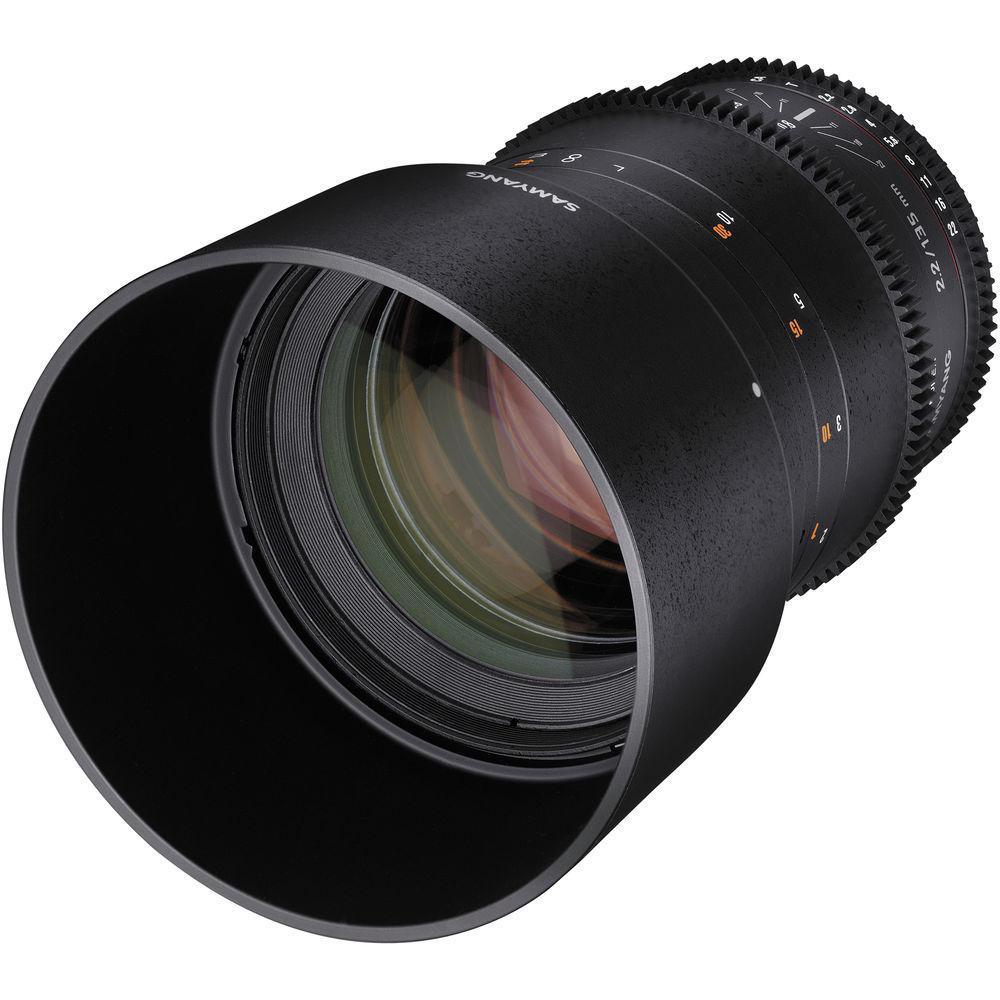

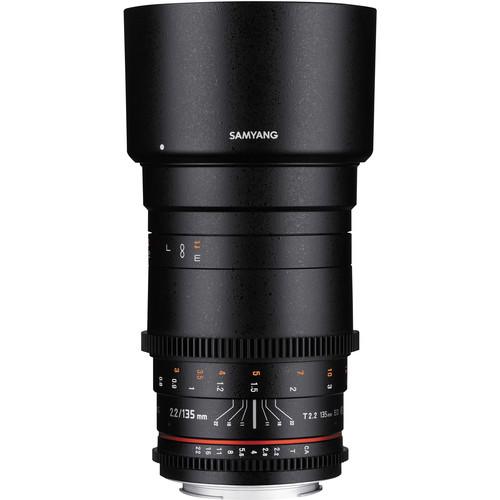

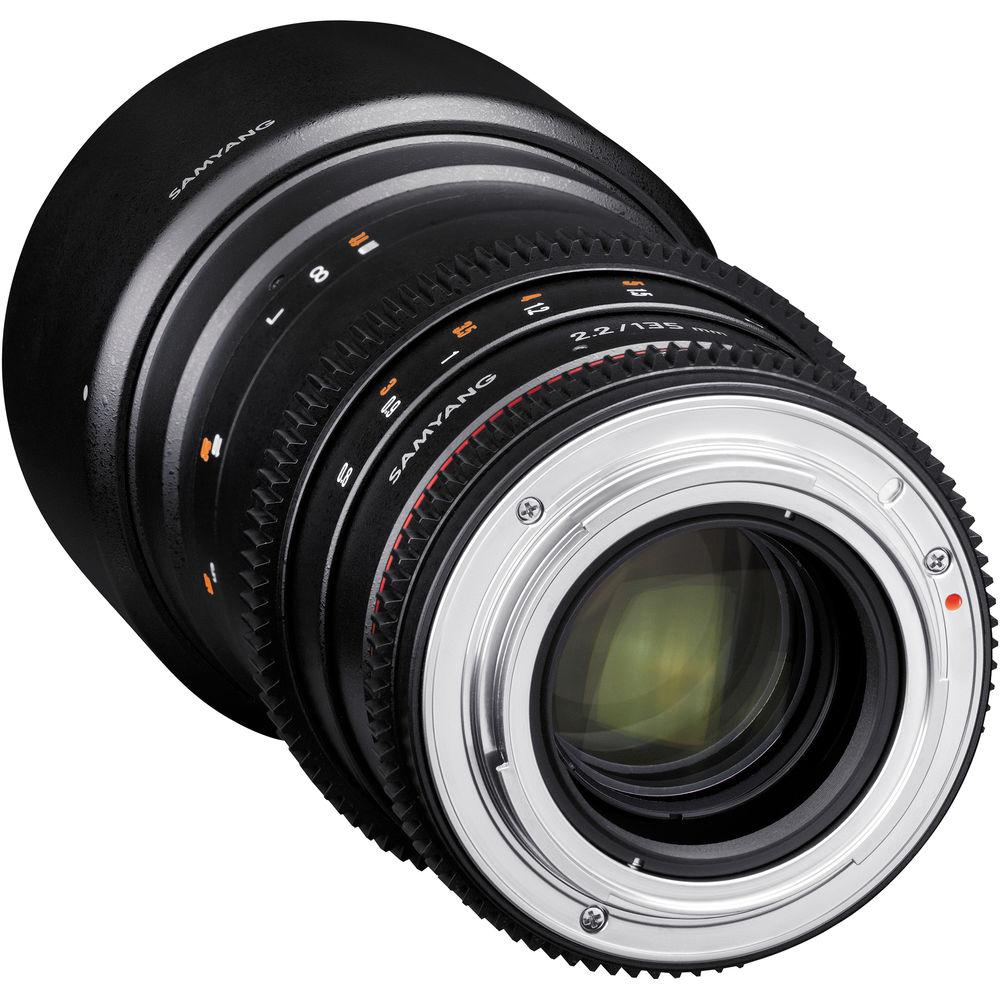

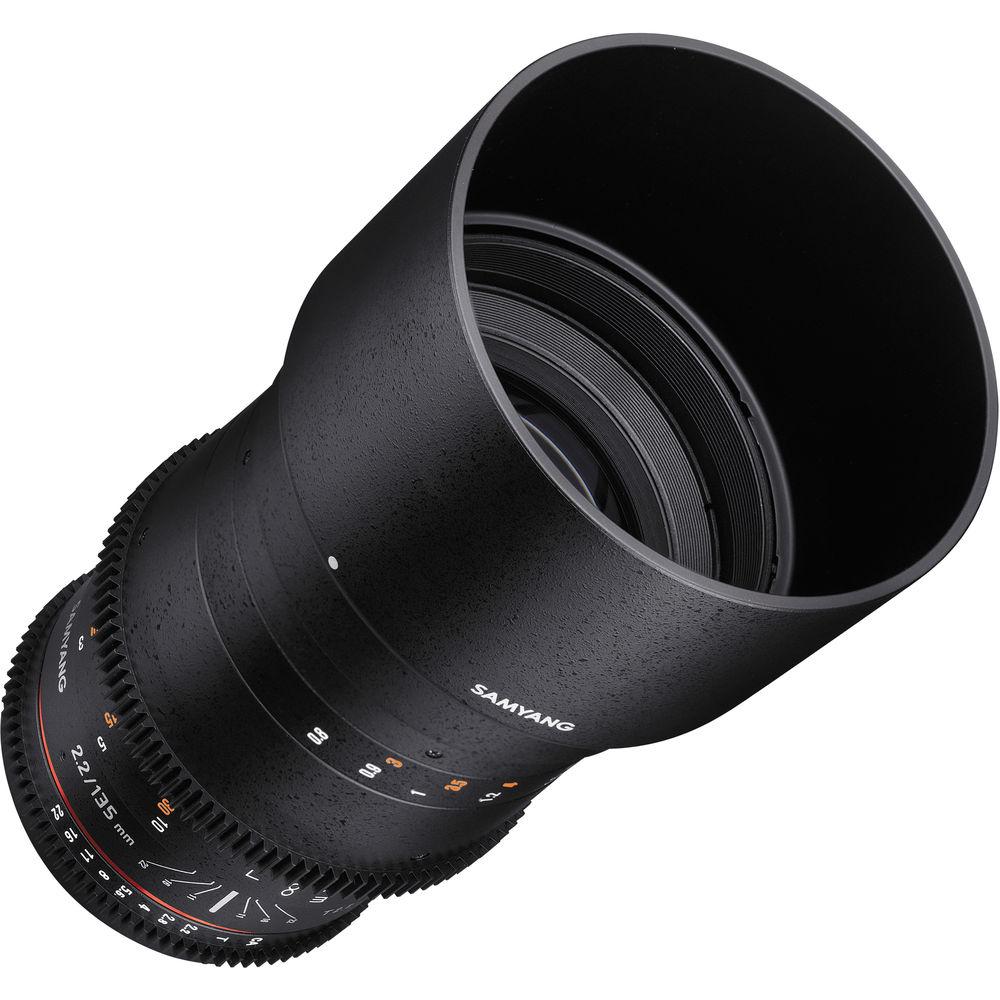

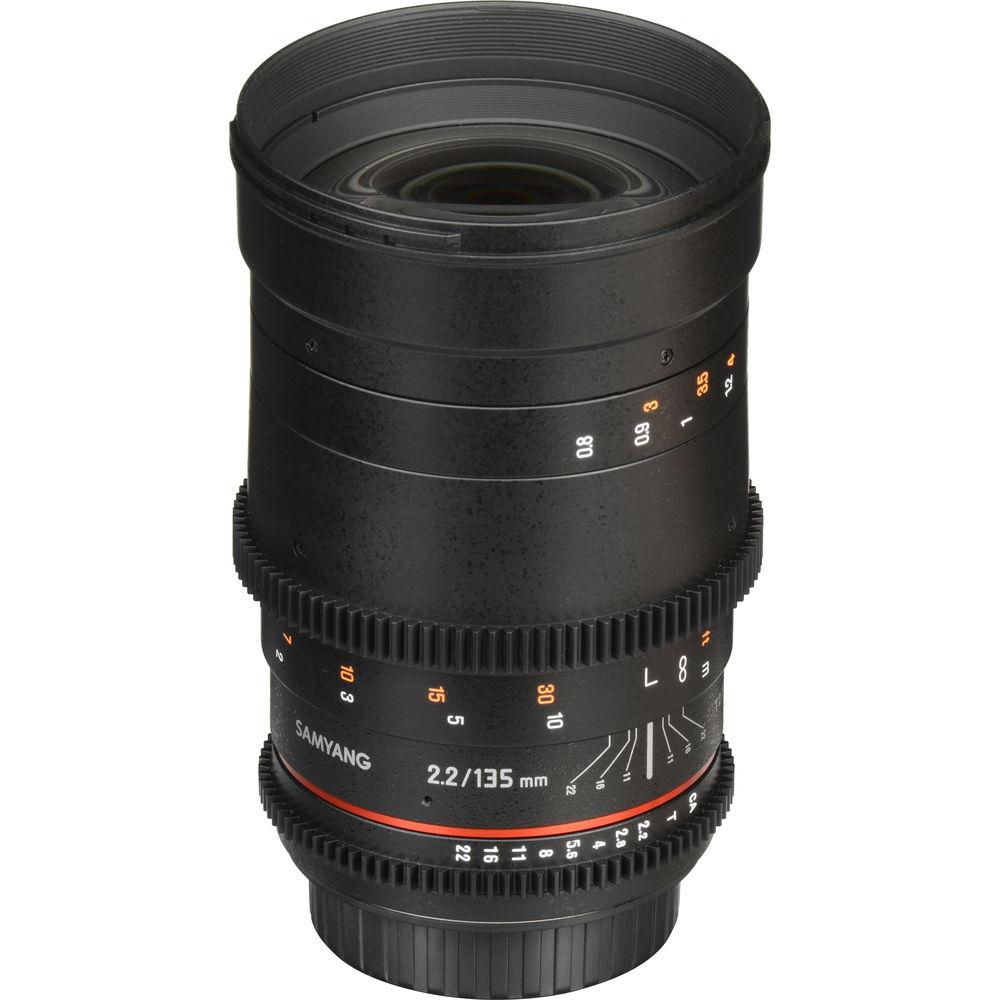

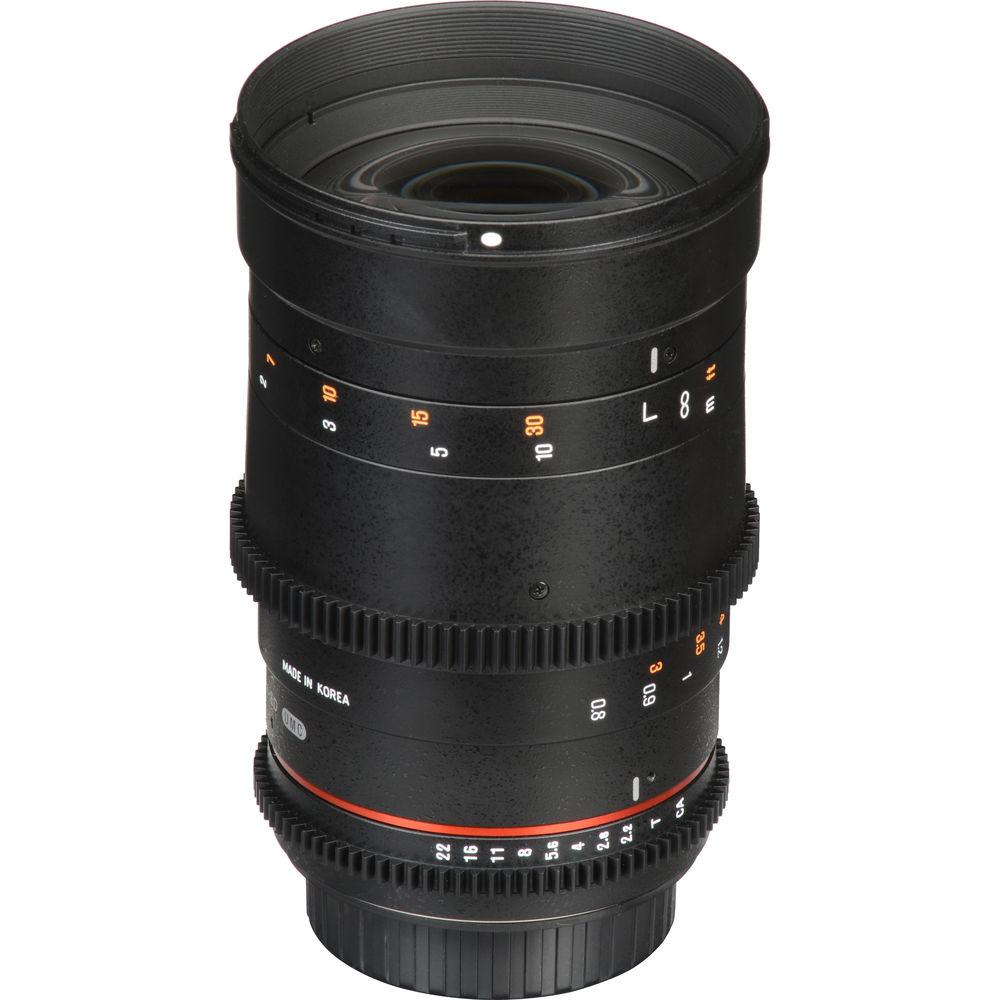

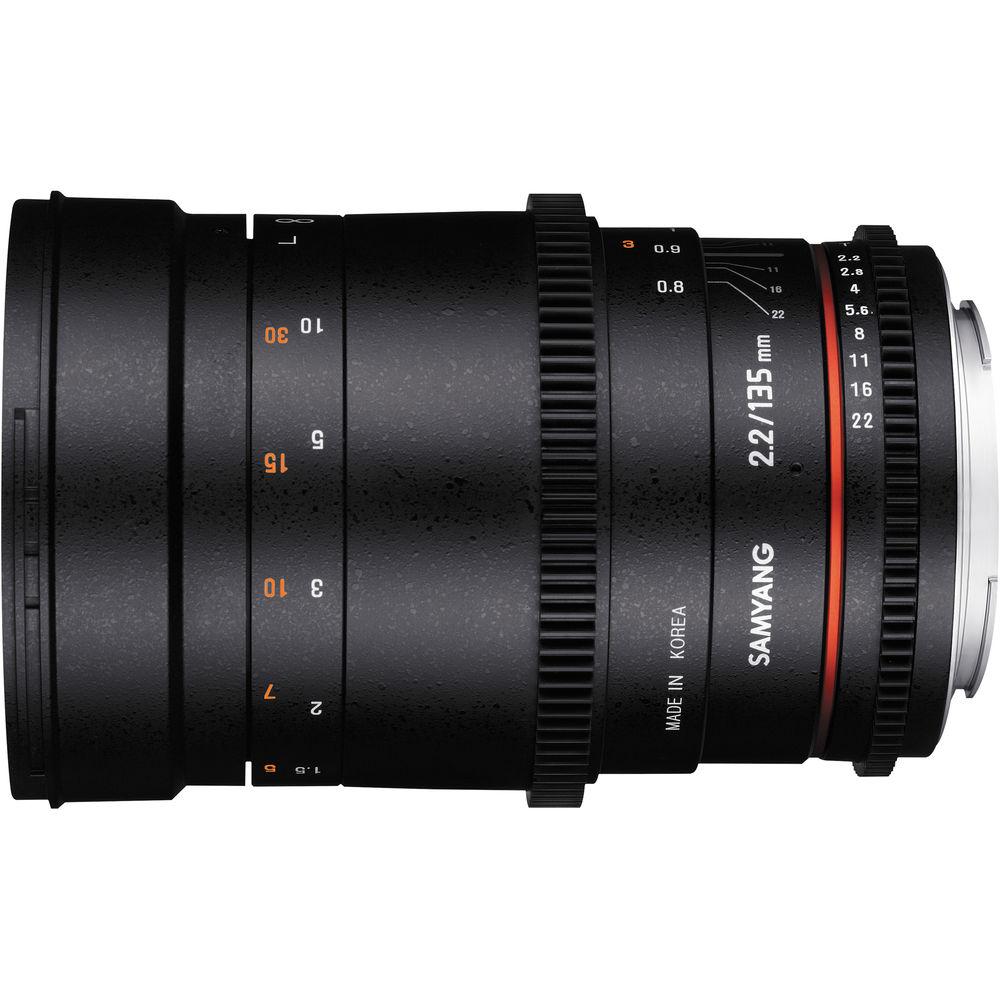

Product description Cinema Lens Care and Maintenance Read More The 135mm T1.5 AS UMC VDSLR II Lens for Micro Four Thirds Mount from Samyang is a manual focus prime lens. When used on Micro Four Thirds format cameras it offers a 35mm equivalent focal length of 270mm pushing it into an extreme telephoto angle of view. It provides a maximum aperture of T2.2 for effective low light capture and shallow depth of field control and a 9 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller. The lens has a minimum focus distance of 2.6'. Internal focusing minimizes the effects of focus breathing, and the lens is composed of 11 elements in 7 groups. A lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter for attaching sunshades or filter rings is 77mm.
Each of the VDSLR II lenses will offer the same position of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video, allowing you to add lenses to your kit over time without worrying about the color of your image changing significantly when swapping lenses. As an aid to focus pullers, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from both sides of the camera. - Optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions and side-facing aperture and distance markings. The 135mm T2.2 is part of the VDSLR II series of cine lenses, sharing characteristics and features that unify the series and make it easier for users to swap out lenses when shooting video. Each VDSLR II lens provides aligned focus and aperture rings so that readjustment of the follow focus is not necessary when switching lenses. Also each lens has been tested to match color and contrast for a consistent look and less potential post-processing. Finally, all lenses from this series print focus scales on both sides of the lens barrel for ease of use from each side of the camera.
- Very fast T2.2 maximum aperture for effective low light capture and shallow depth of field.
- Internal focusing system with 11 lens elements in 7 groups.
- Lens multi-coating improves light transmission and reduces flare and ghosting.
- Minimum focus distance of 2.6'
- Filter thread diameter of 77mm
UPC: 084438764321 In the Box Samyang 135mm T2.2 AS UMC VDSLR II Lens for Micro Four Thirds Mount Front Lens Cap Rear Lens Cap Removable Petal-Style Lens Hood Soft Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 135mm T2.2 AS UMC VDSLR II Lens for Micro Four Thirds Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 135mm T2.2 VDSLR II Specs | Focal Length | 135mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 9.5° | | Minimum Focus Distance from Image Plane | 2.6' / 79.2 cm | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Length | 5.8" / 147 mm | | Weight | 29.6 oz / 840.0 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 7.638 x 5.118 x 5.118" |
