User Manual for Samyang 16mm T2.2 Cine Lens for Nikon F Click to enlarge the picture
Contents of the user manual for the Samyang 16mm T2.2 Cine Lens for
- Product category: Digital Cine Lenses Samyang
- Brand: Samyang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samyang Digital Cine Lenses
 |
User manual for the Samyang 16mm T2.2 Cine Lens for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samyang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samyang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samyang product will considerably shorten its lifespan!
|

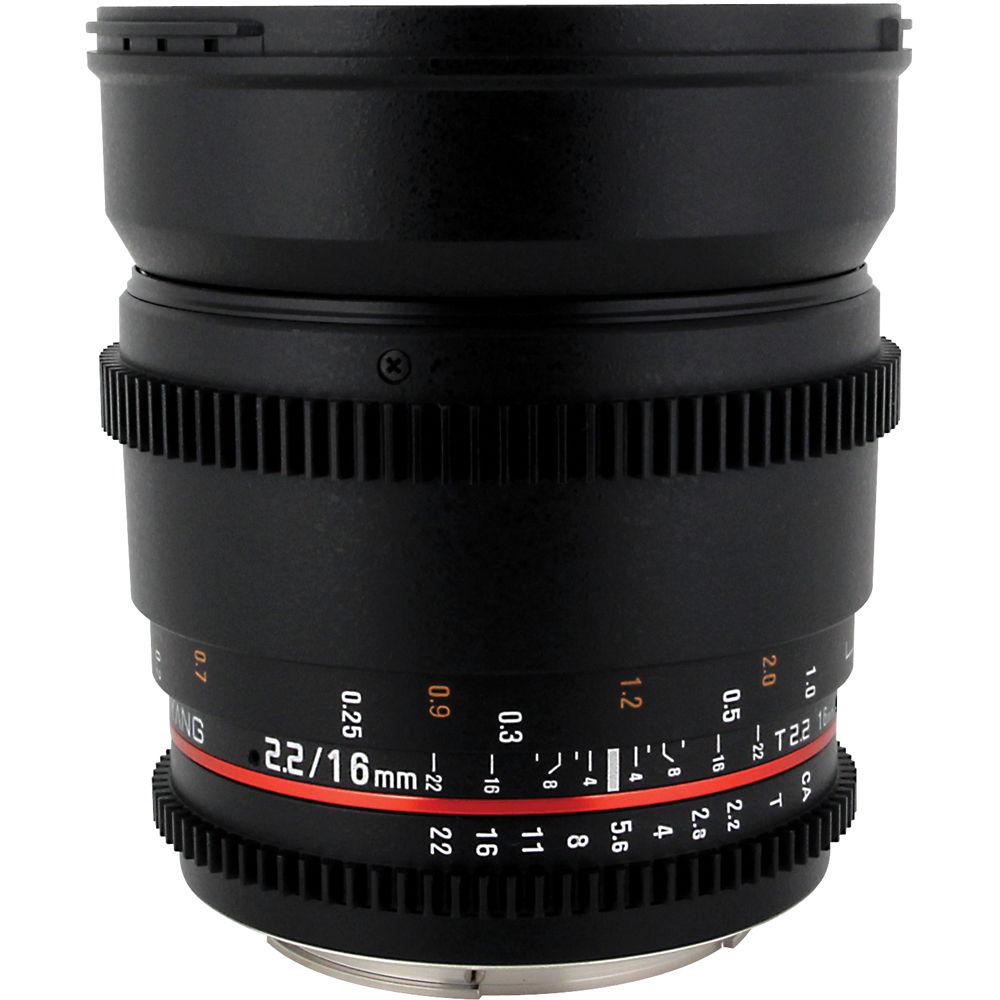

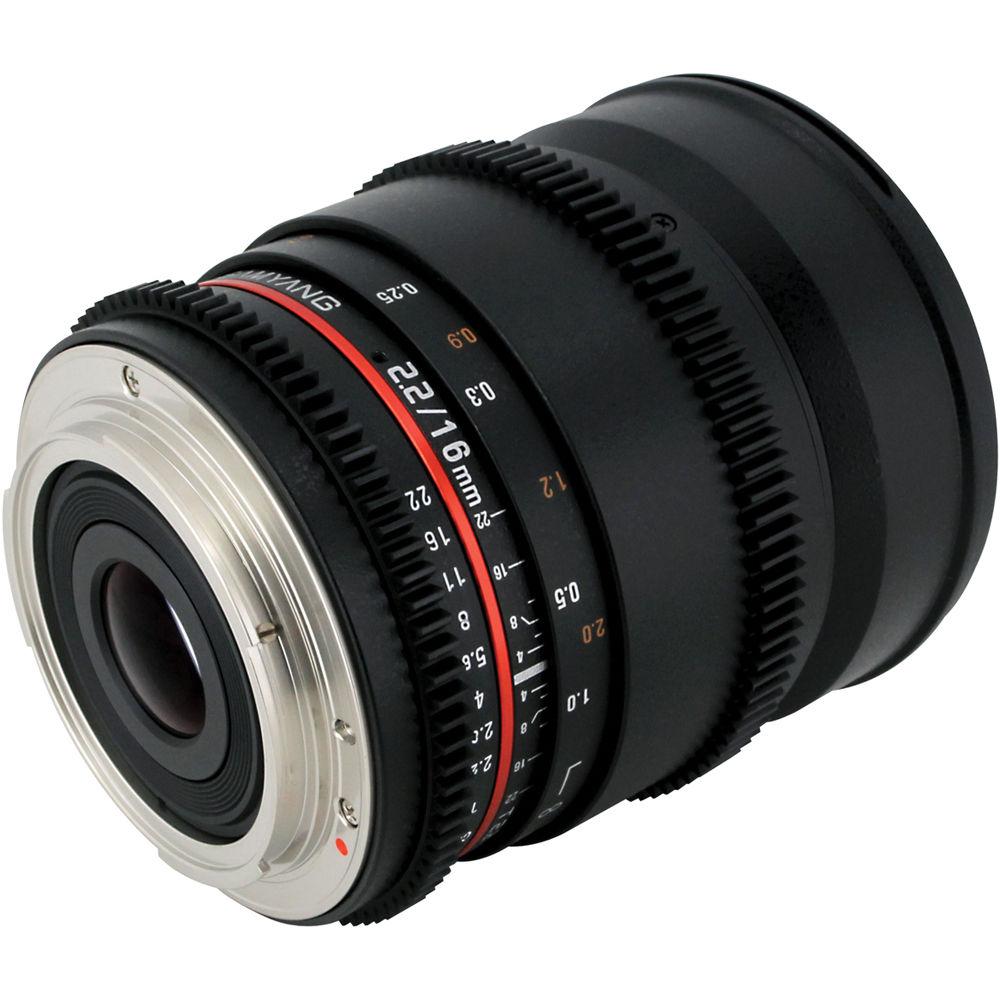

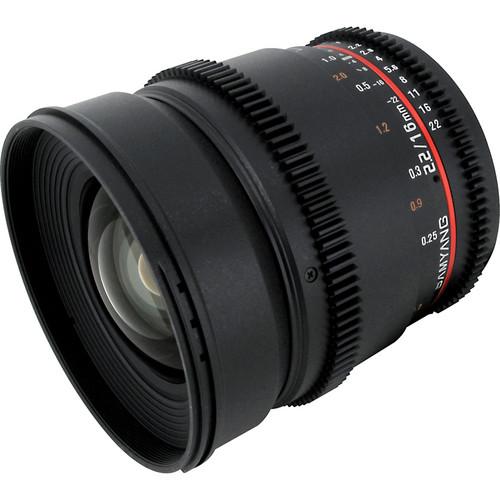

Product description Cinema Lens Care and Maintenance Read More zrdrexybbvevsacswfsqefbxvvafvvsqaeyau The Samyang 16mm T2.2 Cine Lens for Nikon F is a wide-angle lens optimized for digital cinematography. The lens produces an image circle that will cover APS-C sized sensors or smaller. The focus and aperture rings feature industry-standard 0.8 pitch gearing for attaching a follow focus unit. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera.
The 16mm T2.2 lens is constructed out of 13 individual elements in 11 groups, including one aspherical and one hybrid aspherical element. Aspherical elements help minimize unwanted distortion and chromatic aberrations. The lens also has a multi-layer coating to reduce flares and maintain image contrast in bright conditions.

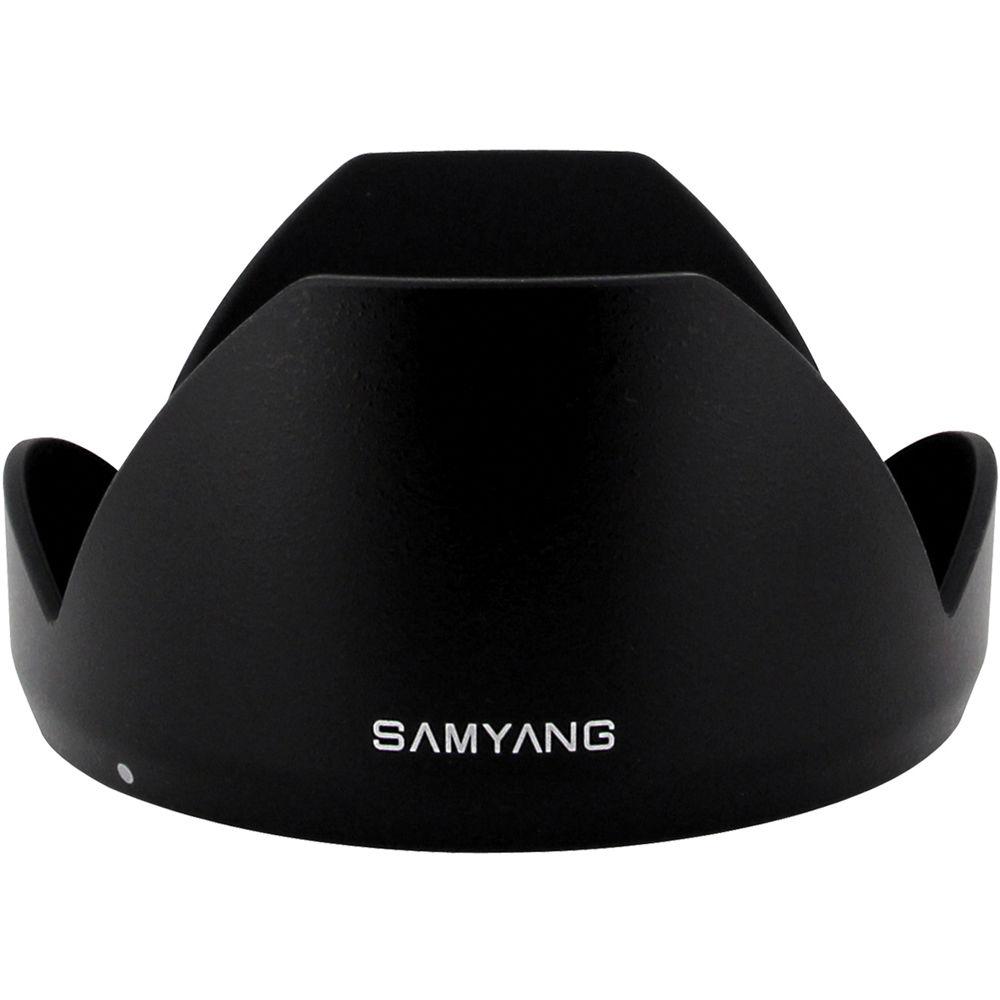

With an angle of view of 83.1°, the lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. A maximum aperture of T2.2 means that the lens is effective in low-light shooting and can produce a shallow depth of field when the lens is closer to the subject. The lens has a minimum focus distance of 7.87". A bayonet-mount lens hood and lens pouch come included with the lens. -
- 16mm lens with 83.1° angle-of-view
- Image Circle covers APS-C sized sensors
- Industry Standard 0.8 pitch gearing on Focus and Iris rings
- De-clicked aperture for smooth focus pulls
- 13 elements in 11 groups with an aspherical and a hybrid aspherical lens element
- Ultra Multi Coating on lens minimizes flares and ghosting
- Depth of Field markings on side of the lens
- A minimum focusing distance of 7.87 inches
- Includes bayonet mount lens hood
UPC: 084438761740 In the Box Samyang 16mm T2.2 Cine Lens for Nikon F Front Lens Cap Rear Lens Cap Lens Hood Limited 1-Year Warranty User Manual PDF 6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Samyang 16mm T2.2 Cine Lens for Nikon F in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamyang 16mm T2.2 Cine Specs | Focal Length | 16mm | | Lens Mount | Nikon F | | Format | Super35/APS-C | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 83.1° | | Minimum Focus Distance from Image Plane | 7.9" / 20 cm | | Optical Design | 13 Elements in 11 Groups | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 3.4" / 86.9 mm | | Weight | 20.5 oz / 580.0 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.7 x 6.7 x 5.0" |
